Home » Securitron EEB2 Push To Exit
Securitron

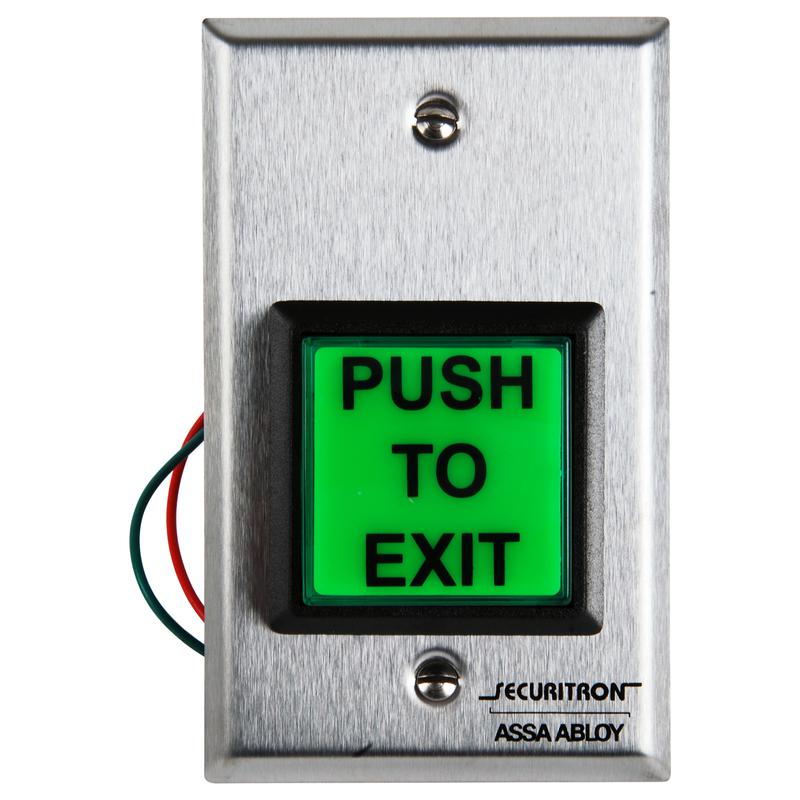

Securitron EEB2 Push To Exit

SKU: EEB2
$ 85.00

"Push to Exit" Pushbutton, for use with XMS Motion Sensor, Narrow Stile, Stainless Steel

Product Features

  • Emergency Exit Buttons offer additional safety, as required by code, for possible malfunction of motion exit sensor
  • Mounted next to door
  • Momentarily pressing the button releases door for 30 seconds
  • Retriggerable
  • Single Gang or Narrow Stile
  • SPDT 3 Amp wet N/C contacts
  • Operates on 12 or 24 VDC (must be same voltage as the installed lock)
  • For indoor use only

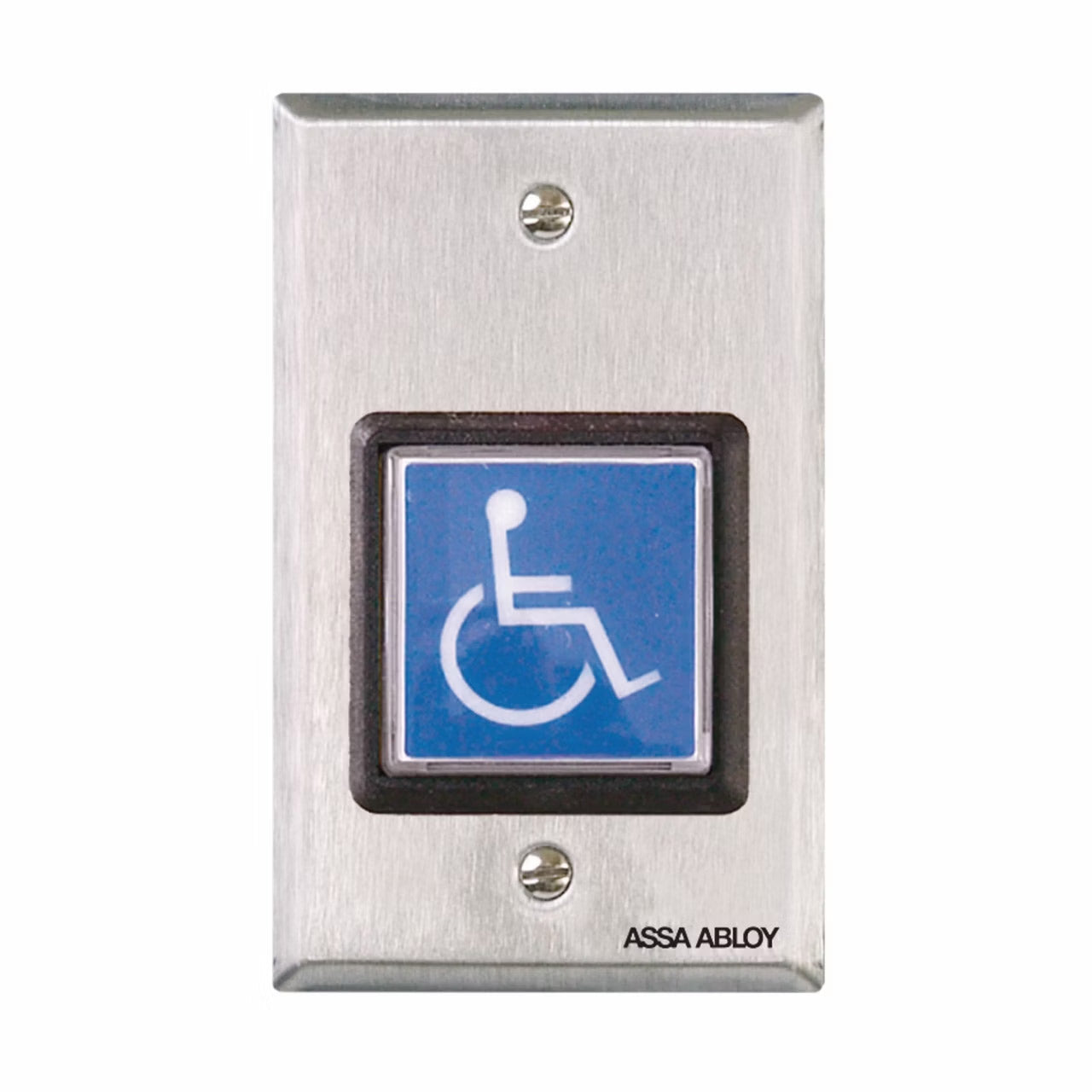

  • EEB2 includes switchable green, red and blue ADA lenses
  • EEB3N includes switchable green and red lenses
  • UL Listed

Models

Part # Description

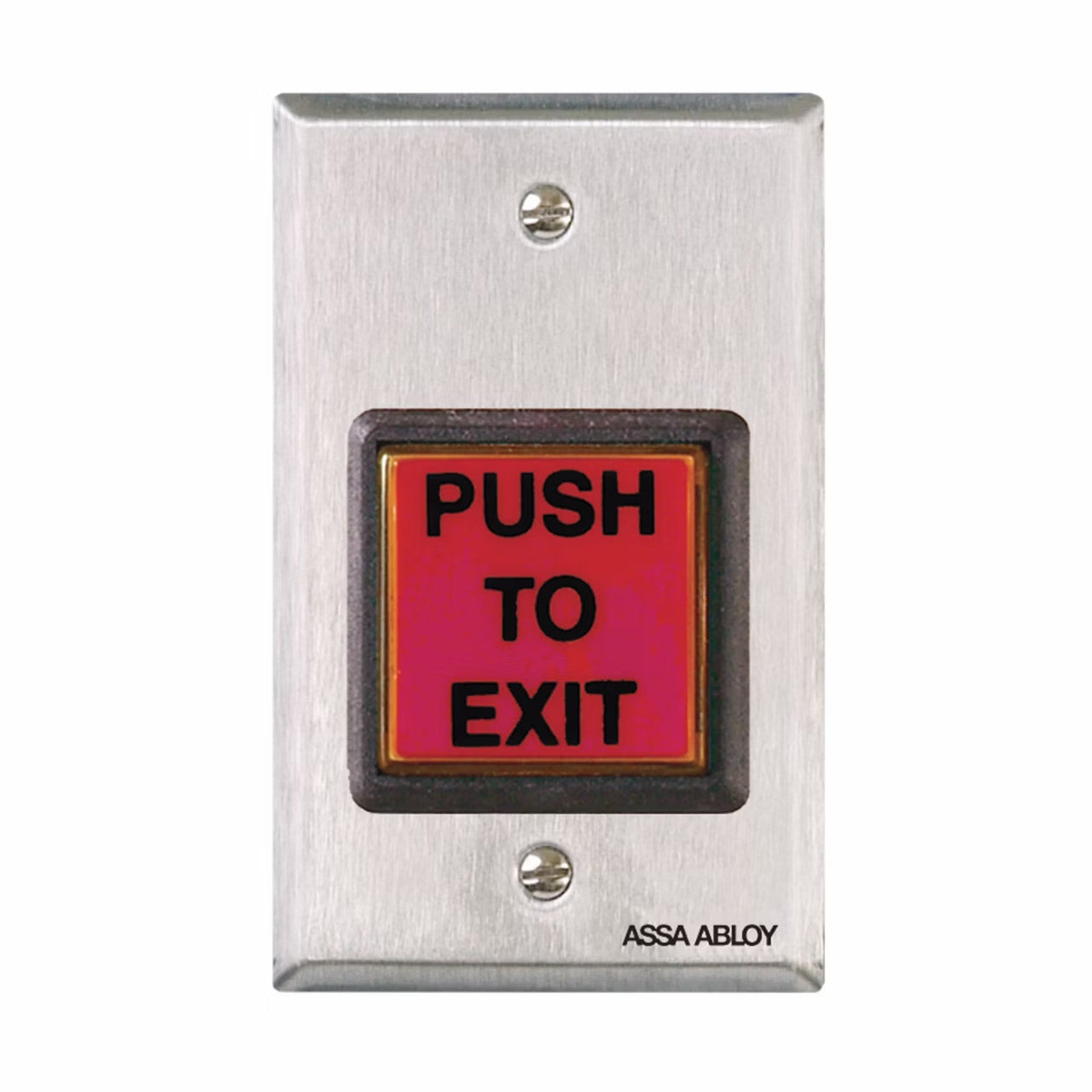

EEB2 EEB w/ 30 Sec. Timer - SG, Grn/Red/Handicap

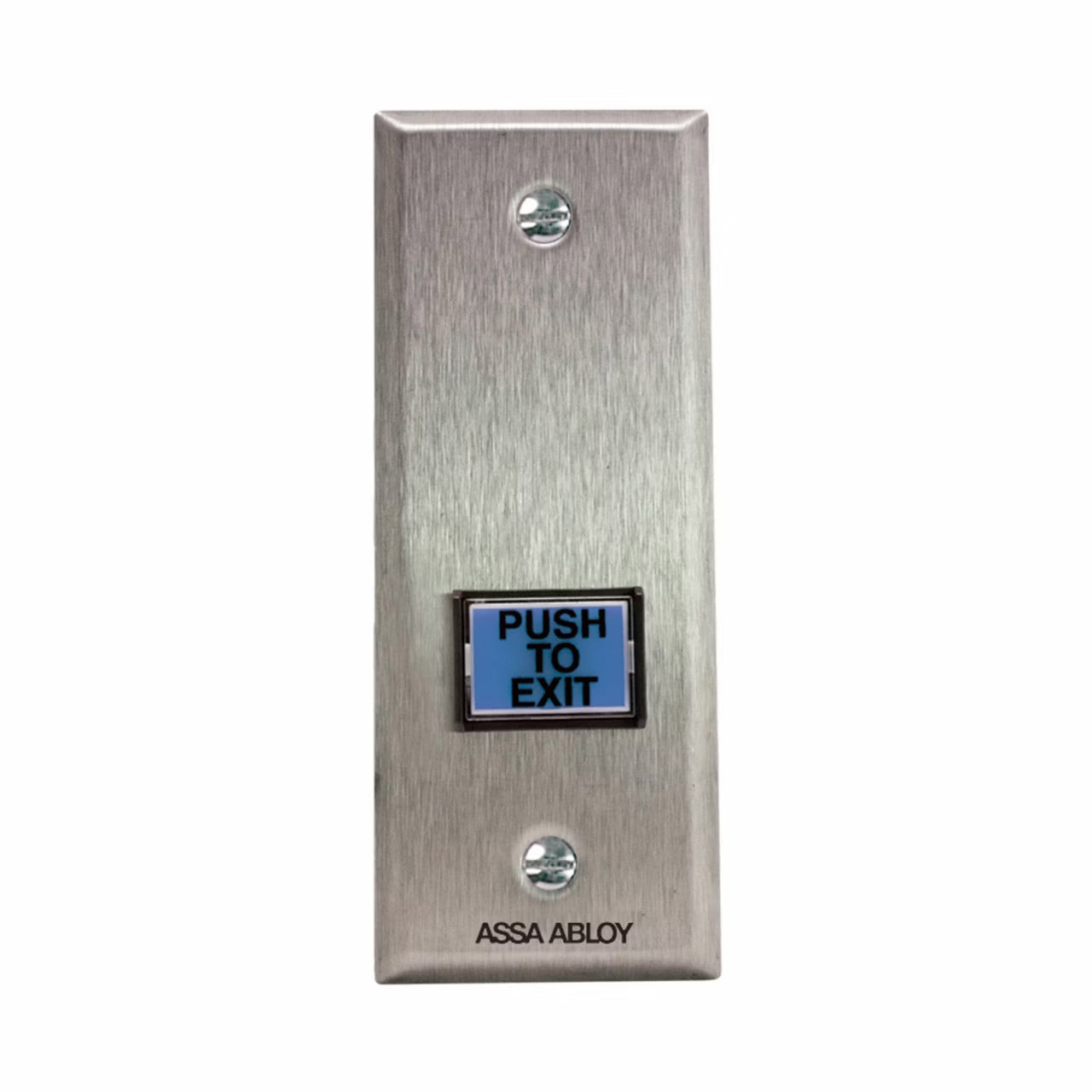

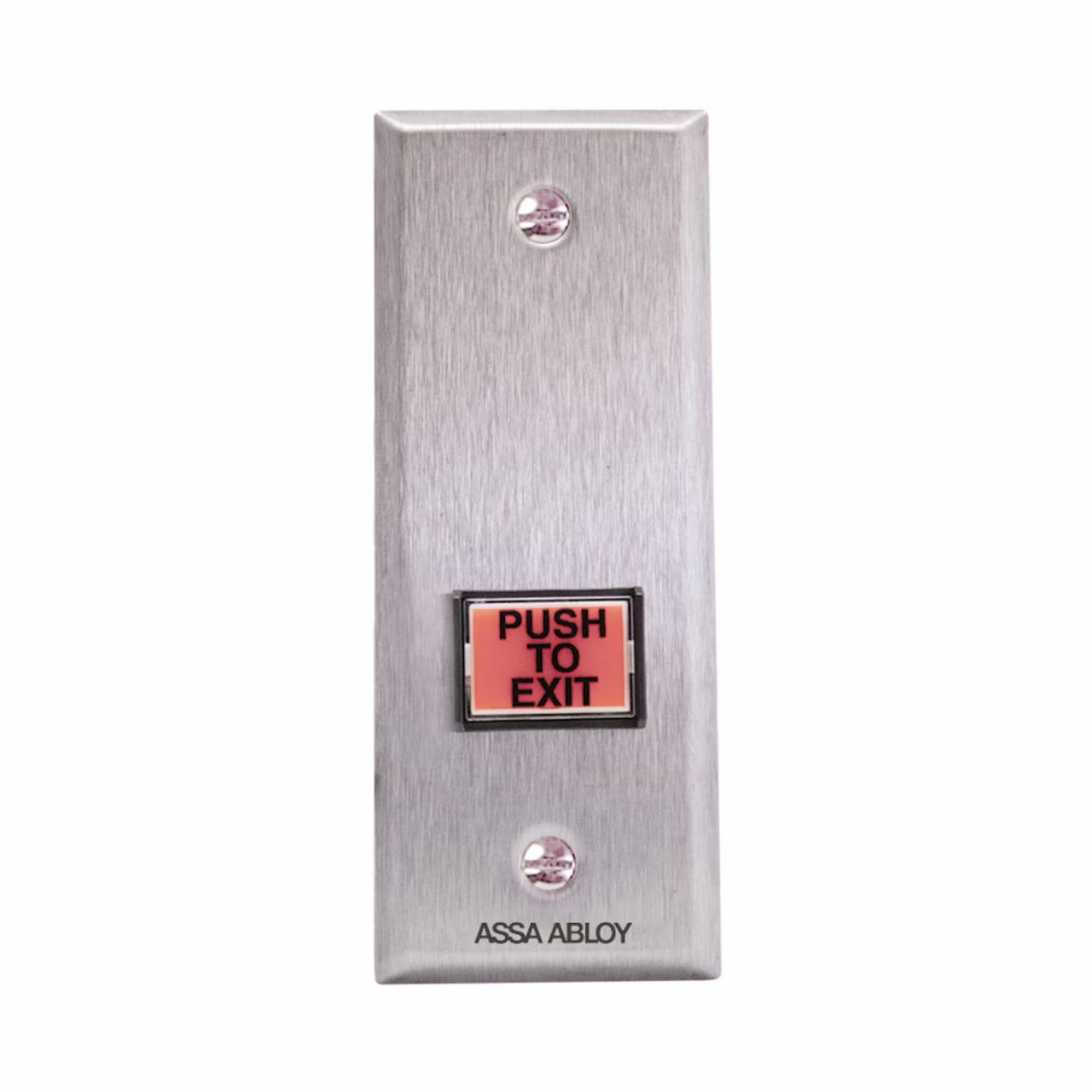

EEB3N EEB w/ 30 Sec. Timer - Narrow Stile, Grn/Red
PB2-LK Illumination Kit for PB2E, PB5E, EEB2 Series Push Buttons
PB3-LK Illumination Kit, Grn/Red for PB3E/EEB3N Series



Note: The red and white wires from the EEB2/3N must receive voltage from the same power supply.

Weather Option: WCC and WBB available for all Single Gang Push Buttons, Keyswitches and Keypads.

Safety Notice: Securitron's UL294 certification indicates that when the EEB is used with the XMS Motion Sensor, it meets the NFPA Life Safety Code 101 requirements for exit of access controlled egress doors.
