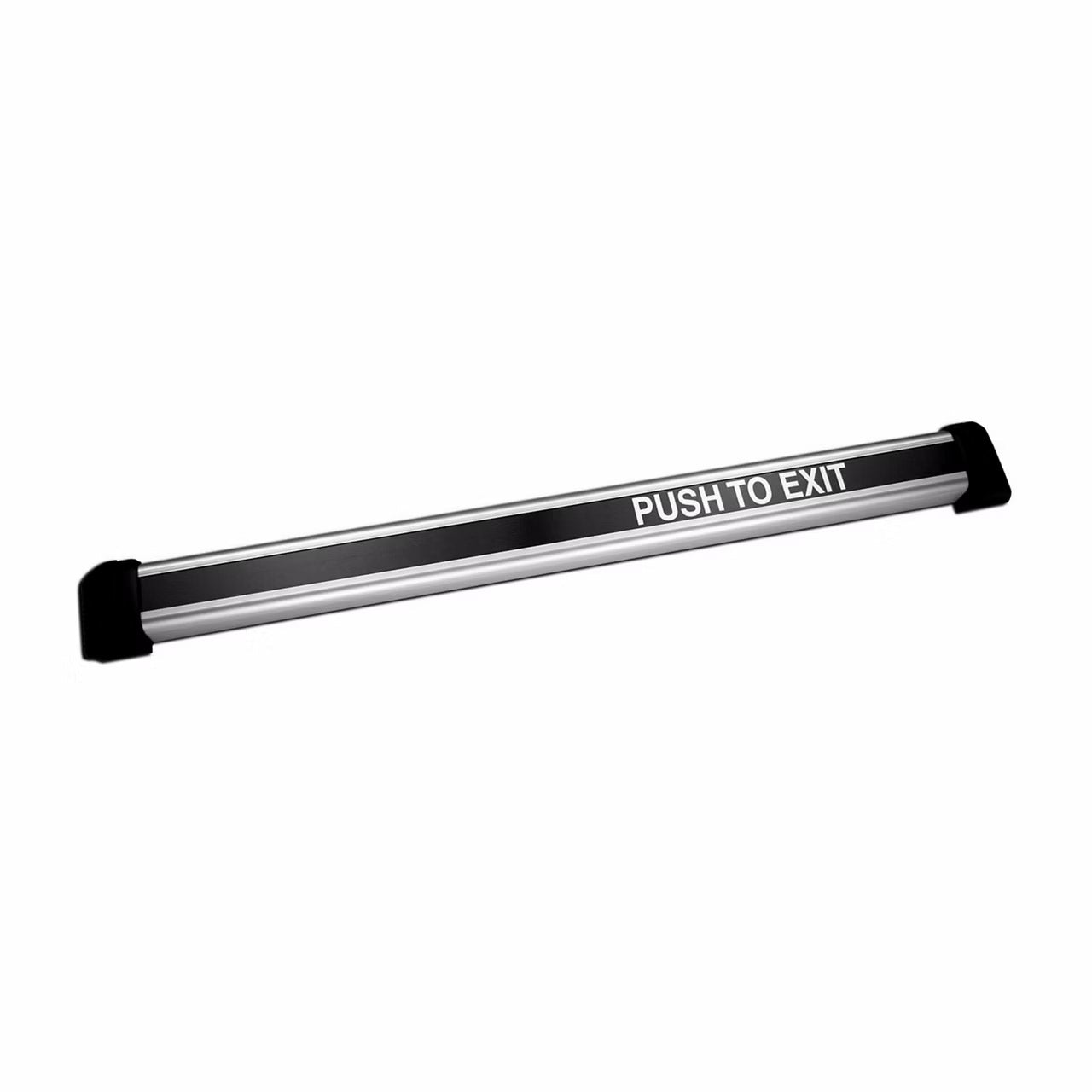

Securitron DSB Dual Sense Bar

SKU: DSB-BK
$ 355.10

The Dual Sense Bar (DSB) is for use on magnetically locked, non-fire-rated doors. Specifically designed to address the most current building and life safety codes, the DSB features two independent switch circuits to release the lock. Simply touching the bar or engaging its mechanical movement will allow free egress. For indoor use only, the DSB can be installed on metal, aluminum or wood doors of all types. Meets "no special tools or knowledge" requirements.

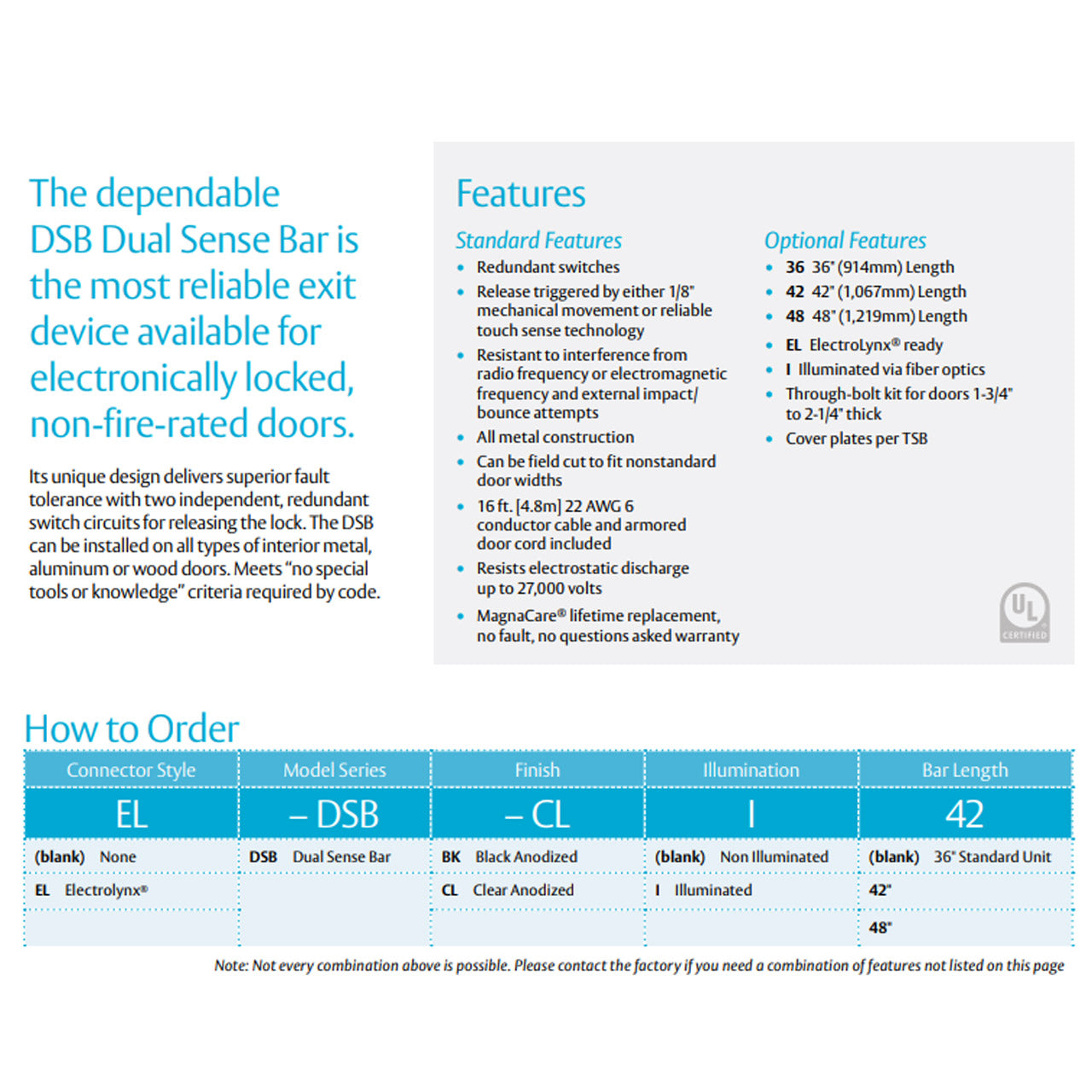

The dependable DSB Dual Sense Bar is the most reliable exit device available for electronically locked, non-fire-rated doors.

Product Features

  • Cover plates per DSB
  • Three standard lengths: 36 -36" [914mm] Length 42 -42" [1,067mm] Length 48 -48" [1,219mm] Length

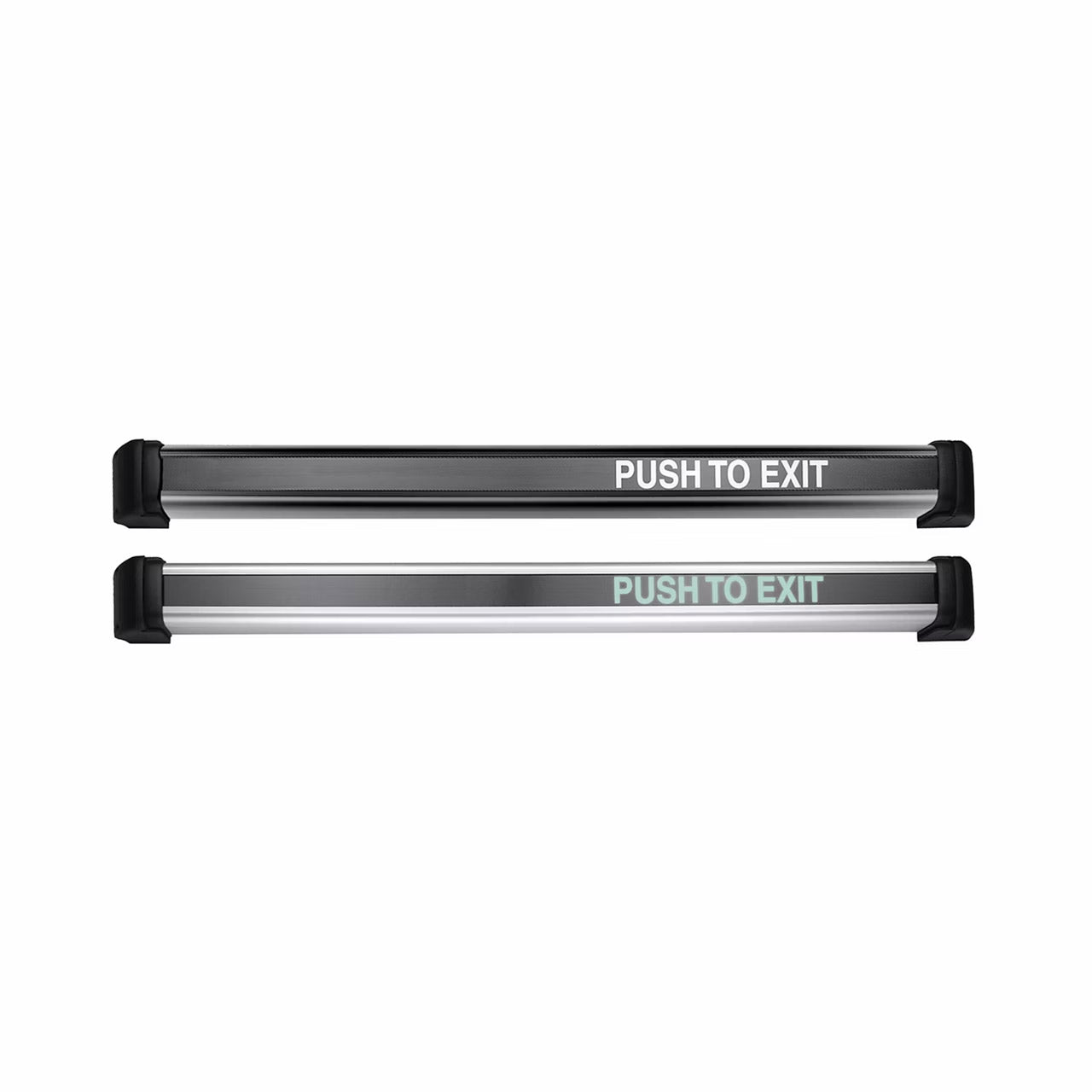

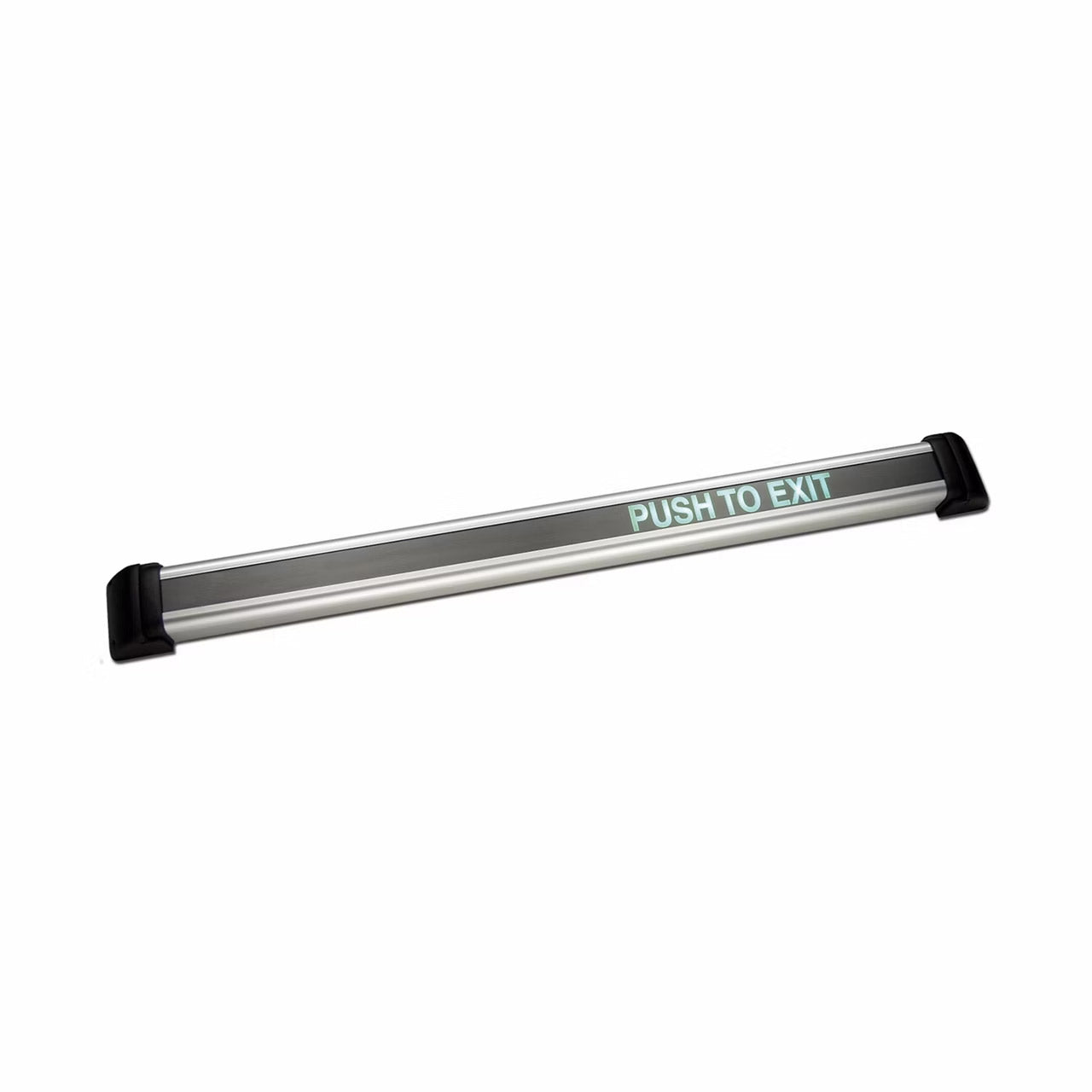

  • I - Illuminated "Push To Exit" via fiber optics
  • EL -Available ElectroLynx® ready
  • Through-bolt kit for doors 1-3/4" to 2-1/4" [44.5mm to 57mm] thick
  • Redundant switches
  • Release triggered by either 1/8" [3mm] mechanical movement or reliable touch sense technology
  • Resistant to interference from radio frequency or electromagnetic frequency and external impact/ bounce attempts
  • Resists electrostatic discharge up to 27,000 volts
  • All metal construction will stand up to rugged interior environments
  • Can be field cut to fit non-standard door widths
  • 16 ft [4.8m] 22AWG 6 conductor cable and armored door cord included
Electrical
  • Current 12v DC : 44
  • Current 24v DC : 44
  • Voltage : 12/24 VDC
Environmental
  • Maximum Operating Temperature (° F) : 120
  • Minimum Operating Temperature (° F) : 32
  • Operating Humidity : 10% to 90% RH

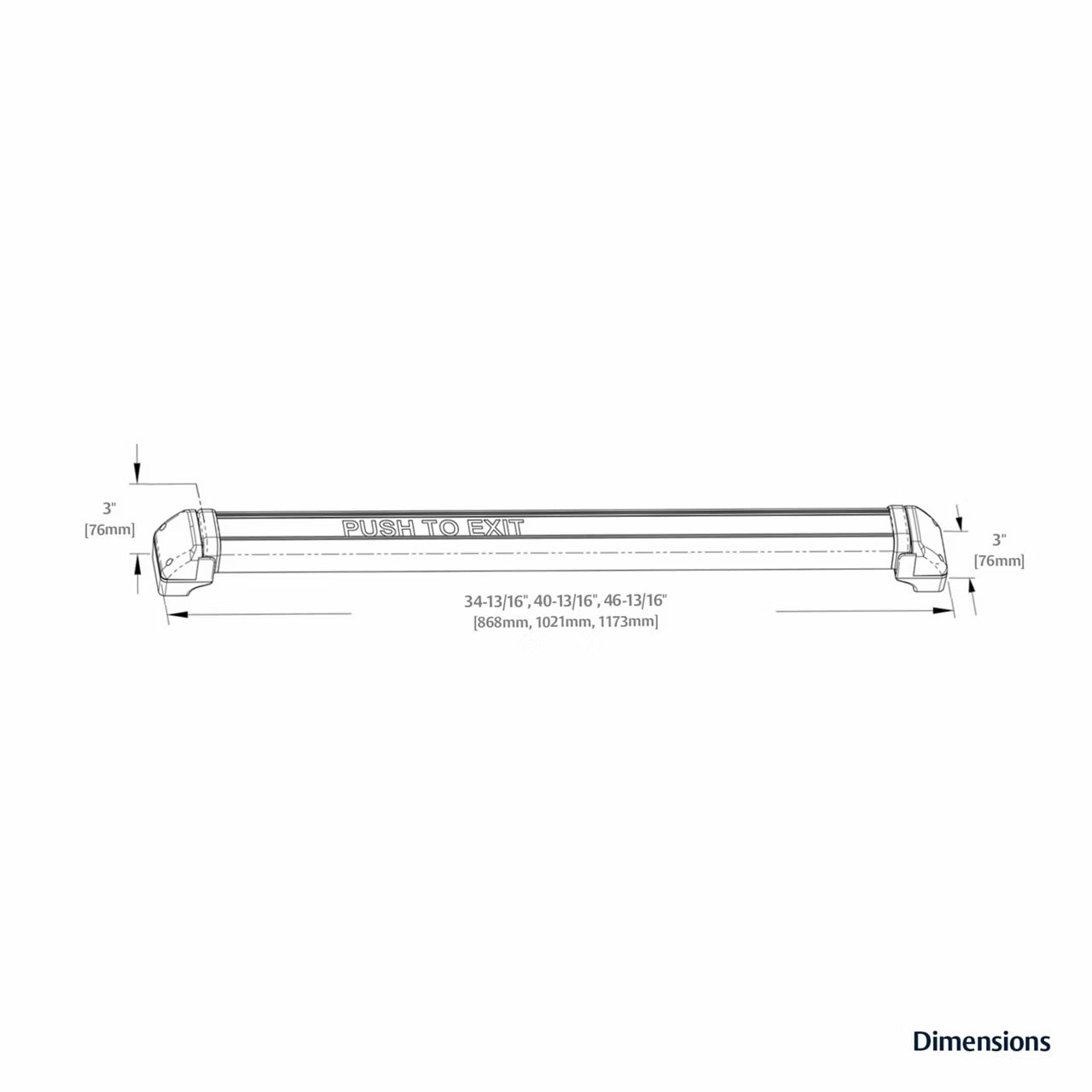

Weights & Dimensions
  • Shipping Weight (lbs) : 8
  • Height (in) : 3"
  • Depth (in) : 3"
Certifications
  • CAN/ULC-S533 Listed
  • CSA-C22.2 No. 205 Listed
  • NFPA 101 Compliant
  • UL294 Listed
