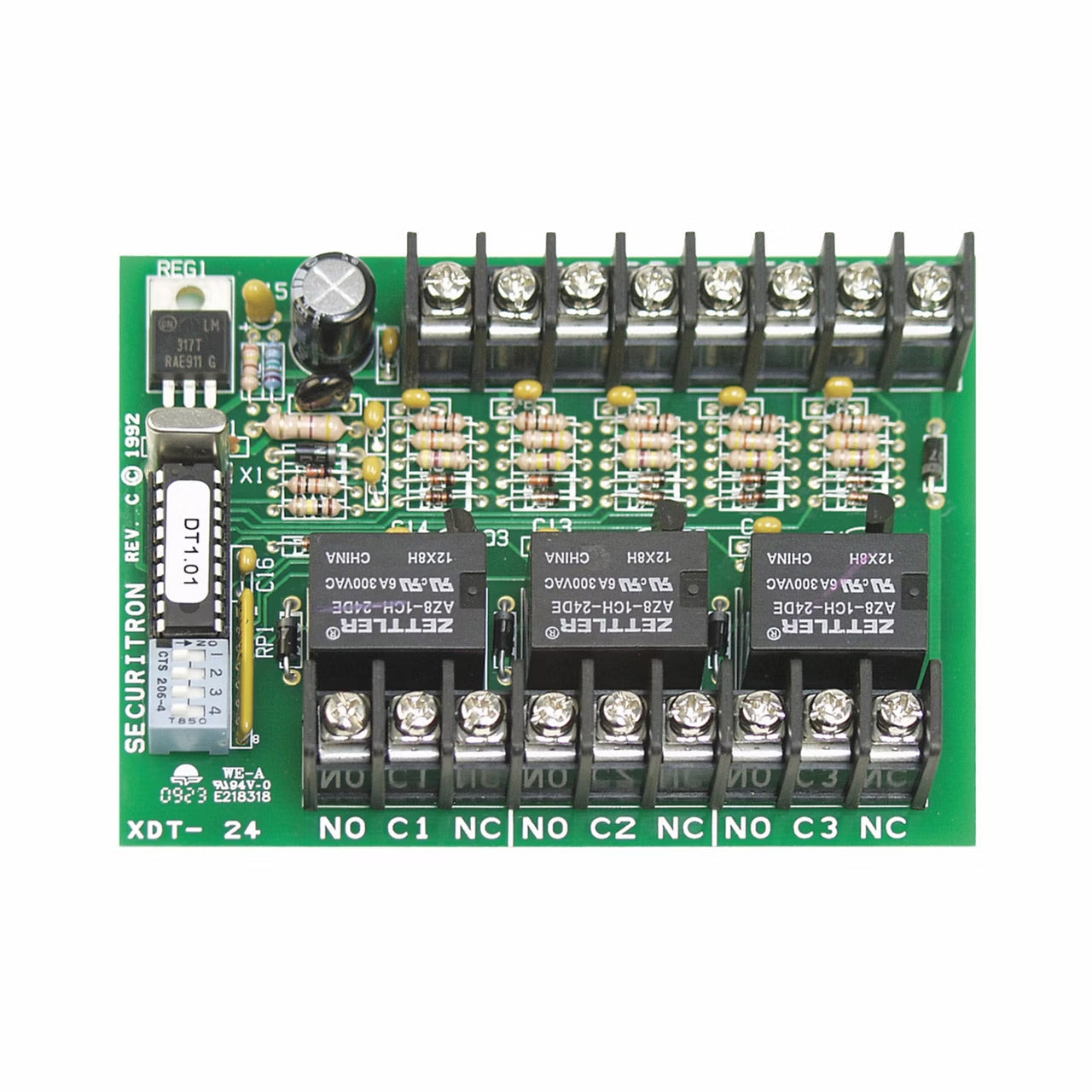

The DPA is designed to detect and deter a door from being left propped open. The DPA complements door position/door state detection with timed logic and relays that provide escalating alerts when a door is held, propped or unsecure after a defined time period. This unit promotes safety and loss prevention at ancillary exits for healthcare, commercial and retail facilities.
Product Features
- Multi-functional control timer that operates as a door prop alarm
- Monitors whether the door has been "propped" open
- Can detect attempts to tamper with lock or door status
- Includes three 5 Amp SPDT outputs providing local and remote signaling
- Bypass mode for valid access/egress needs

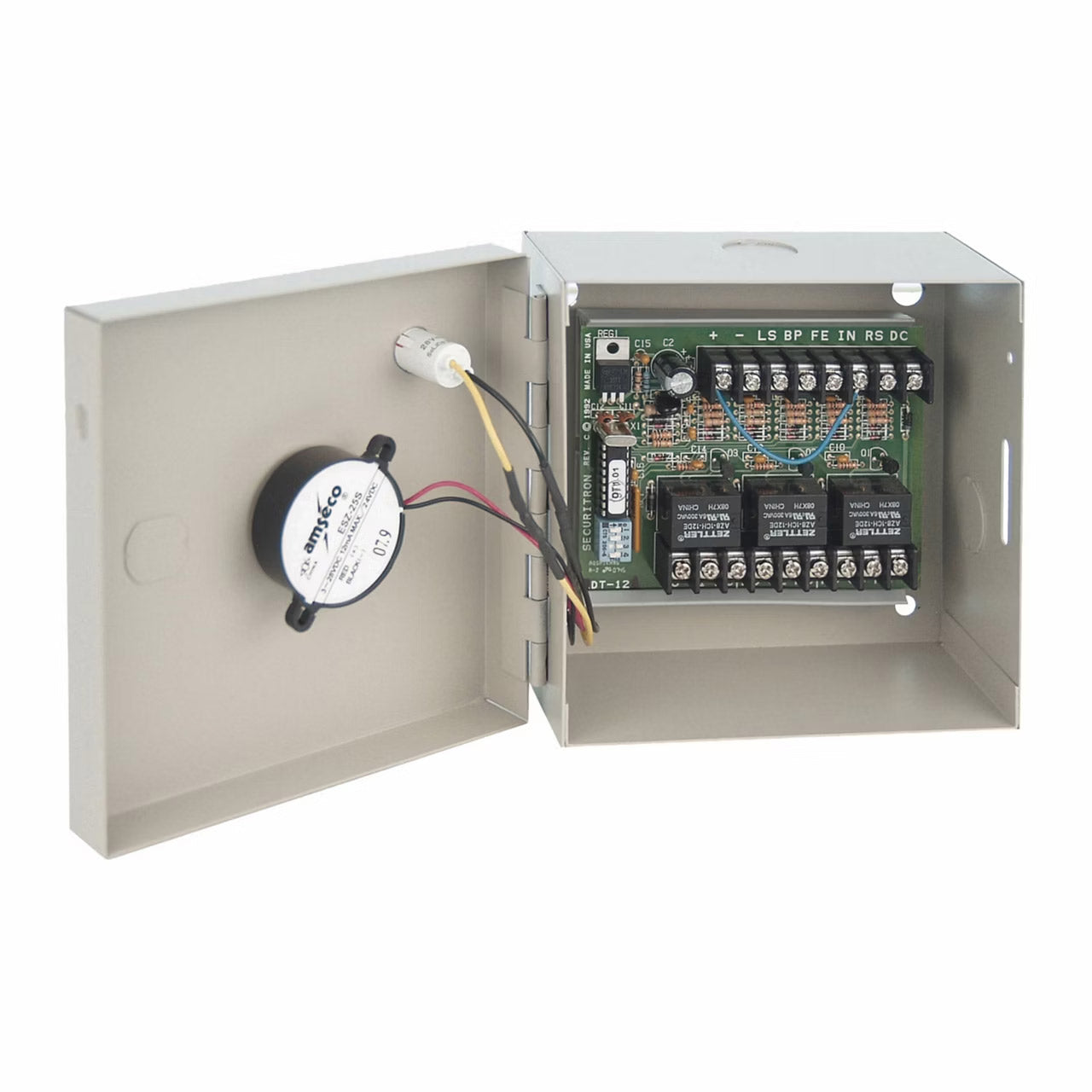

- BA-DPA models come with Piezo sounder and LED
- 12 or 24 VDC
Specifications
Electrical
Max draw 100 mA at 12 VDC
Max draw 50 mA at 24 VDC
5 A SPDT Relays
Environmental
Operating Temperature:
32˚ to 120˚ F [0˚ to 49˚ C]
Shipping Weight
2.05 lbs [0.93 kg
