Securitron DM62 Maglock

SKU: DM62
Regular price $ 738.00

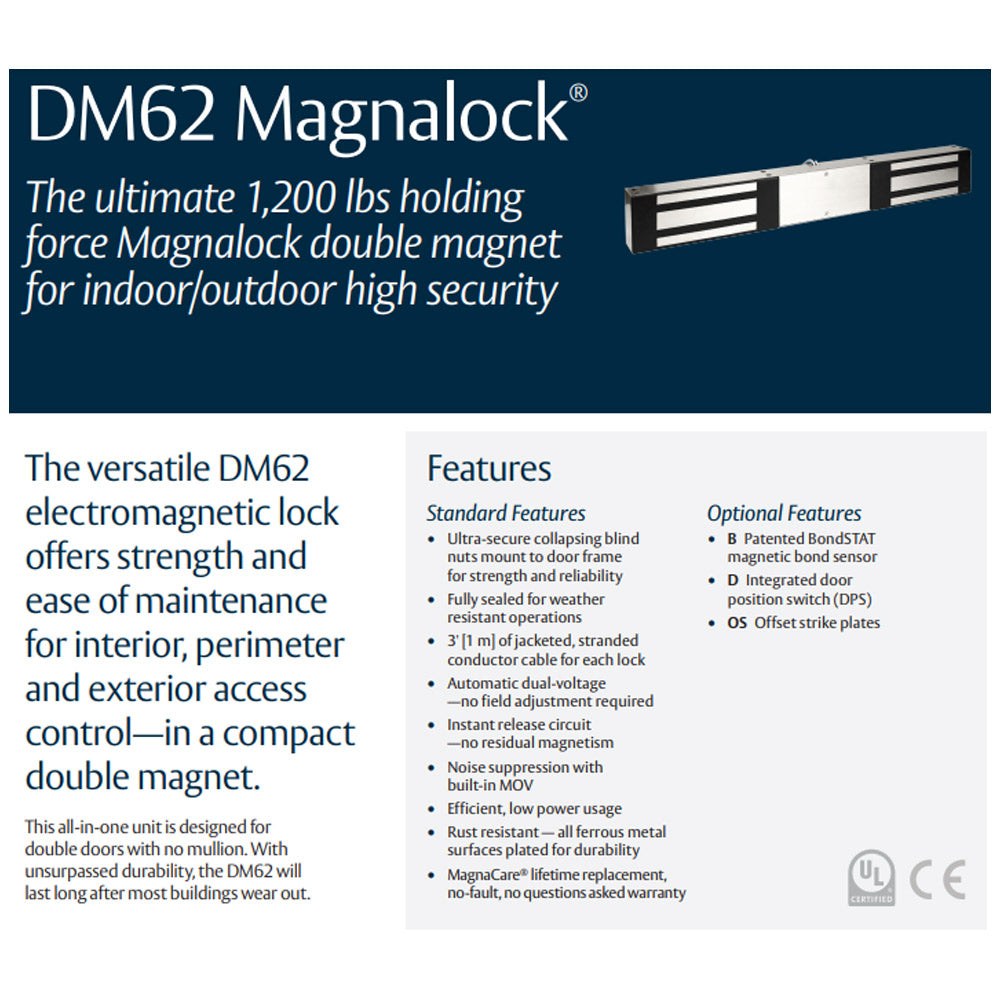

For double doors without a center mullion, the DM62 supplies two model 62 Magnalocks in a single, brushed stainless steel housing.



The ultimate 1,200 lbs. holding force Magnetic Lock double magnet for indoor/outdoor high security

The versatile Securitron DM62 electromagnetic lock offers strength and ease of maintenance for interior, perimeter and exterior access control—in a compact double magnet. This all-in-one unit is designed for double doors with no mullion. With unsurpassed durability, the Securitron DM62 will last long after most buildings wear out.

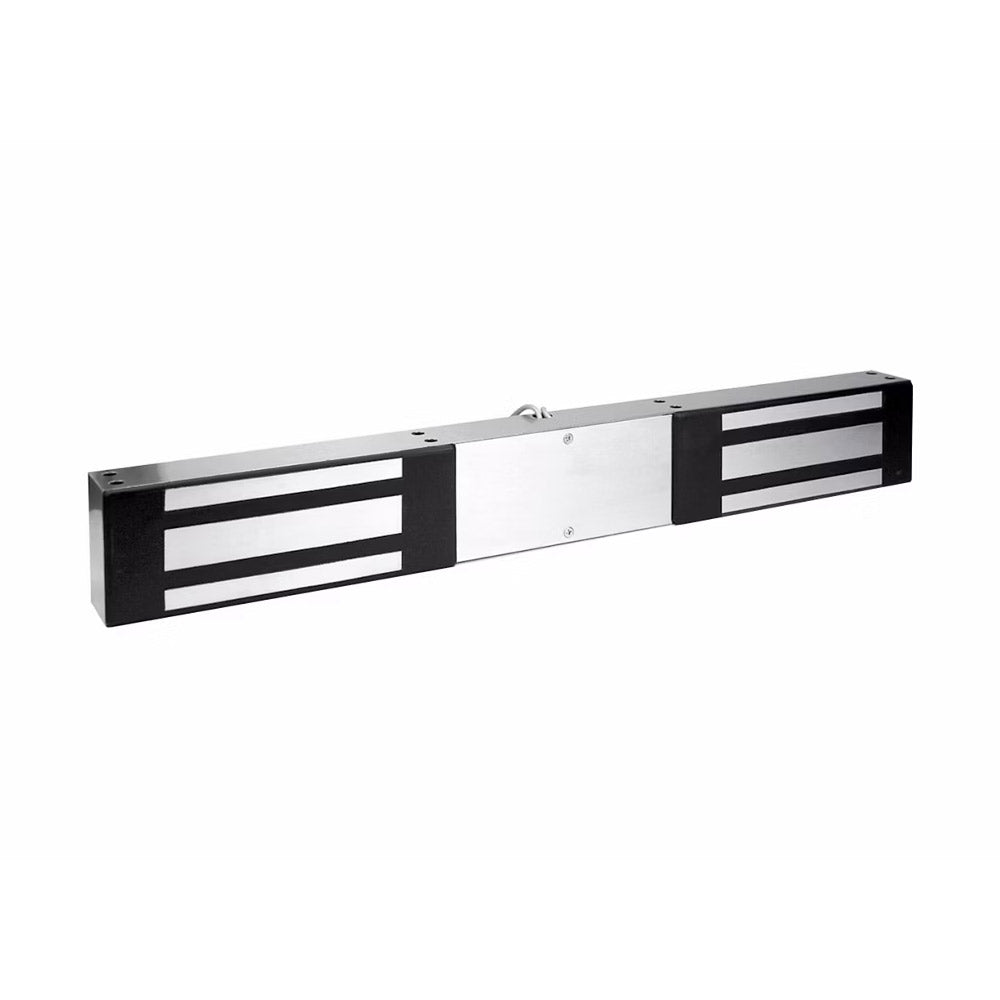

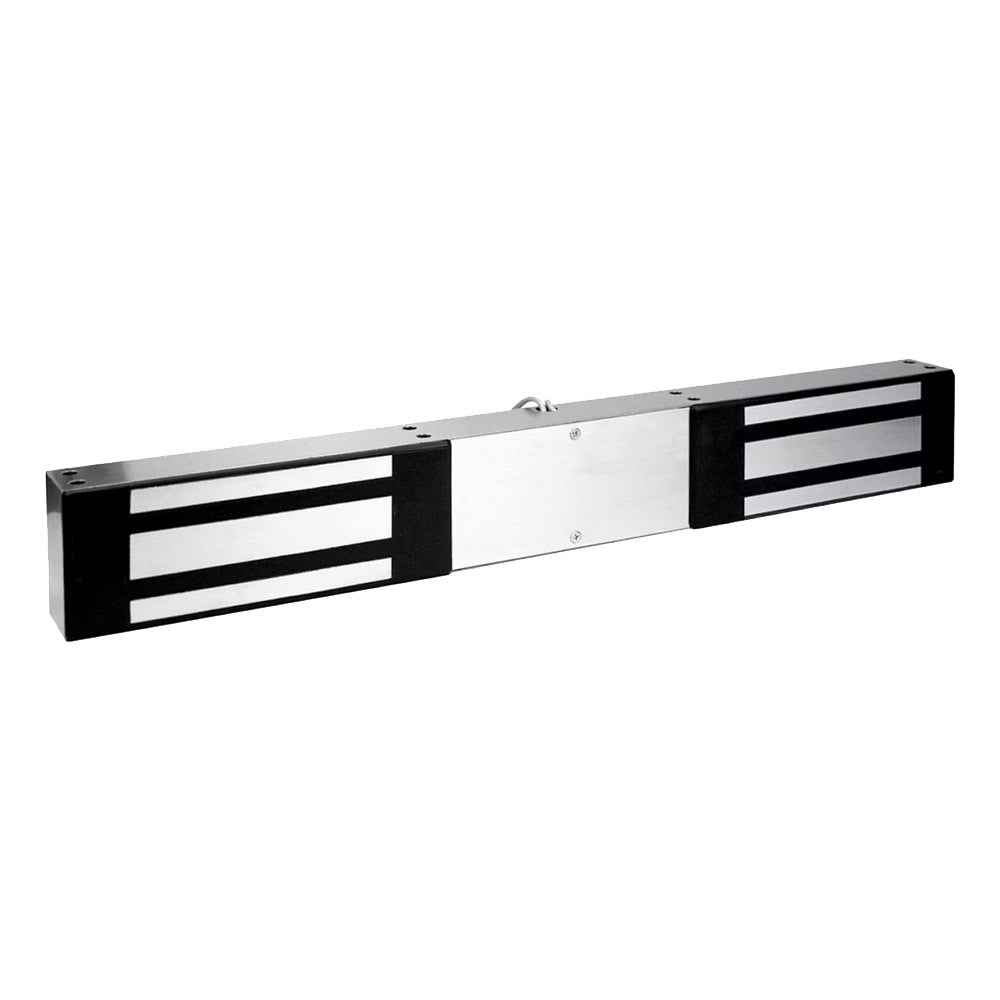

Securitron DM62 Electromagnetic Lock Feature Image 1
Securitron Surface Mount Feature Image

Product Features

  • Patented instant release circuit - no residual magnetism
  • Both locks can be controlled as one or individually
  • Surface mounts easily with minimal tools
  • Fully sealed electronics - tamper and weather resistant
  • Mounted using steel machine screws into blind finishing nuts
  • Architectural brushed stainless steel finish (US32D/630)
  • All ferrous metal surfaces plated to MIL specification
  • 36" of jacketed, stranded conductor cable for each lock
  • Automatic dual voltage - no field adjustment required
  • Lock options include BondSTAT magnetic bond sensor and integrated door position switch
Environmental
  • Maximum Operating Temperature (°F): 140
  • Minimum Operating Temperature (°F): -40
Electrical
  • Current 12v DC (mA): 250
  • Current 24v DC (mA): 150
  • Voltage: 12/24
Strength & Durability
  • Holding Force (lbs): 1200
  • Grade: Grade 2

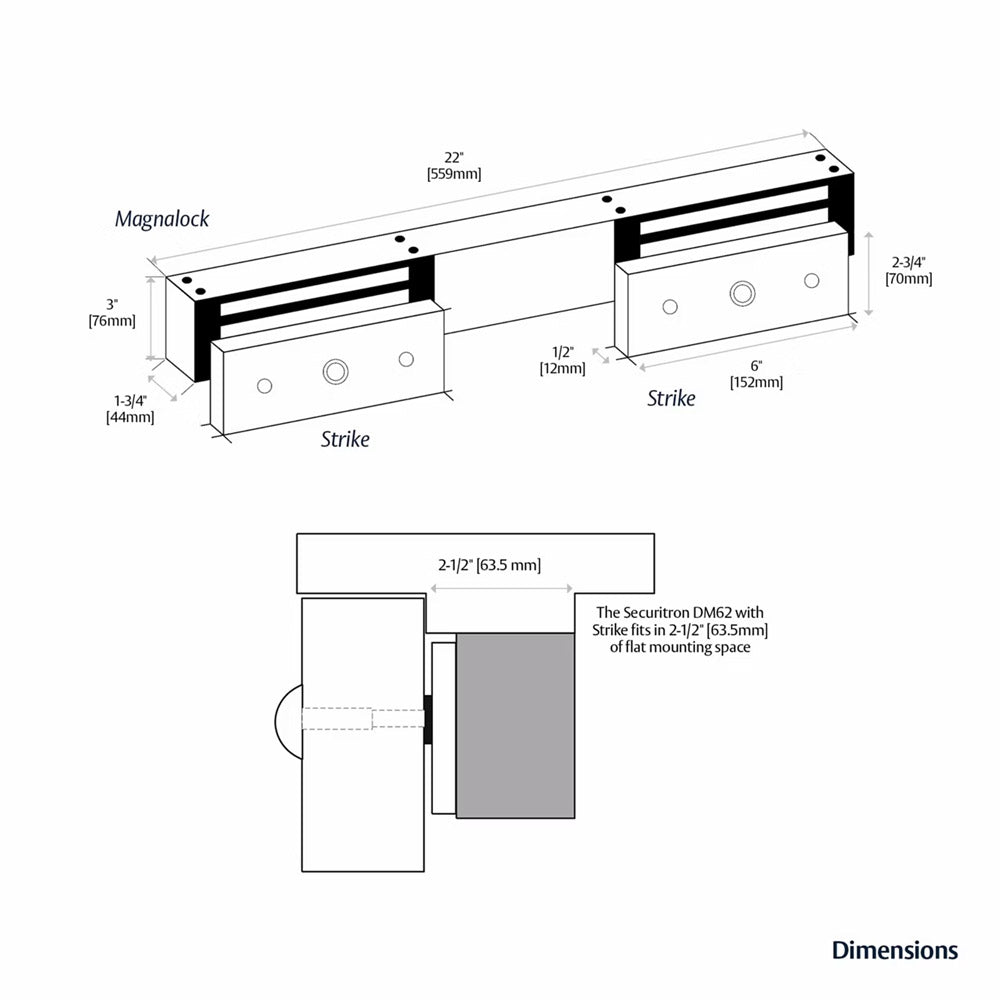

Weights & Dimensions
  • Magnet Depth (in): 2.75
  • Magnet Height (in): 3
  • Magnet Length (in): 22
  • Shipping Weight (lbs): 16
Ratings
  • Outdoor Rated: No
  • Fire Rated: Yes
  • Preload Capable: No
