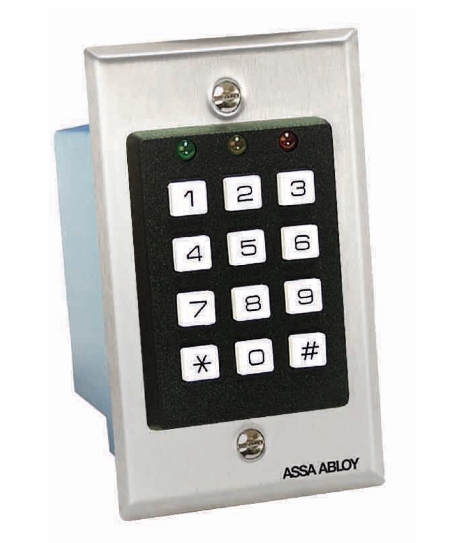

Securitron DK-16 Digital Keypad

SKU: DK-16
$ 299.00

The tamper-resistant keypad provides true ten-key operation for use and programming.

Secure, easy-to-program, single-door control system

The DK-16 digital keypad system provides medium/high security control of electric locks in a one or two-door application where both doors have the same control needs. The tamper-resistant 3x4 keypad provides true 10-key operation for use and programming. Encased in a separate enclosure for secure installation in a protected area, the controller offers REX input and relay output for lock control, alarm shunt or other interfaces.

Securitron DM62 Electromagnetic Lock Feature Image 1

Product Features

  • 12 key 3x4 keypad with engraved and paint filled numbers
  • Stainless steel plate
  • Red, green and yellow LEDs for status and programming feedback
  • Audible keystroke echo
  • Controller mounted in plastic enclosure
  • 59 users
  • User code and/or hard code disable feature
  • 5A DPDT relay output
  • Request to exit (REX) input
  • True 10 digit operation (keys are not paired), 3 LEDs and a beeper

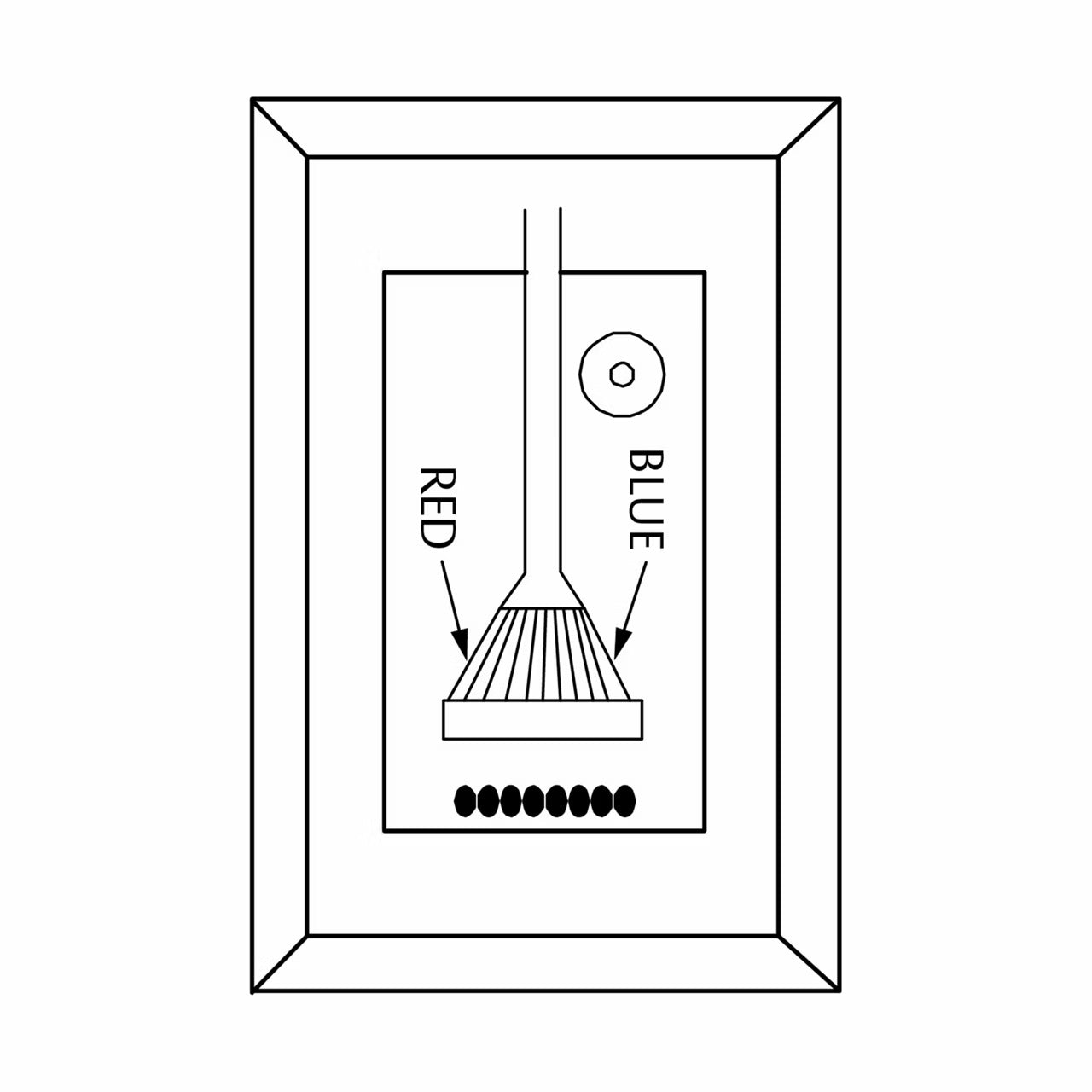

  • 16 ft [4.8m], 12 conductor, 22 gauge keypad cable
Environmental
  • Maximum Operating Temperature: 110
  • Minimum Operating Temperature: 32
  • Outdoor Rated: No

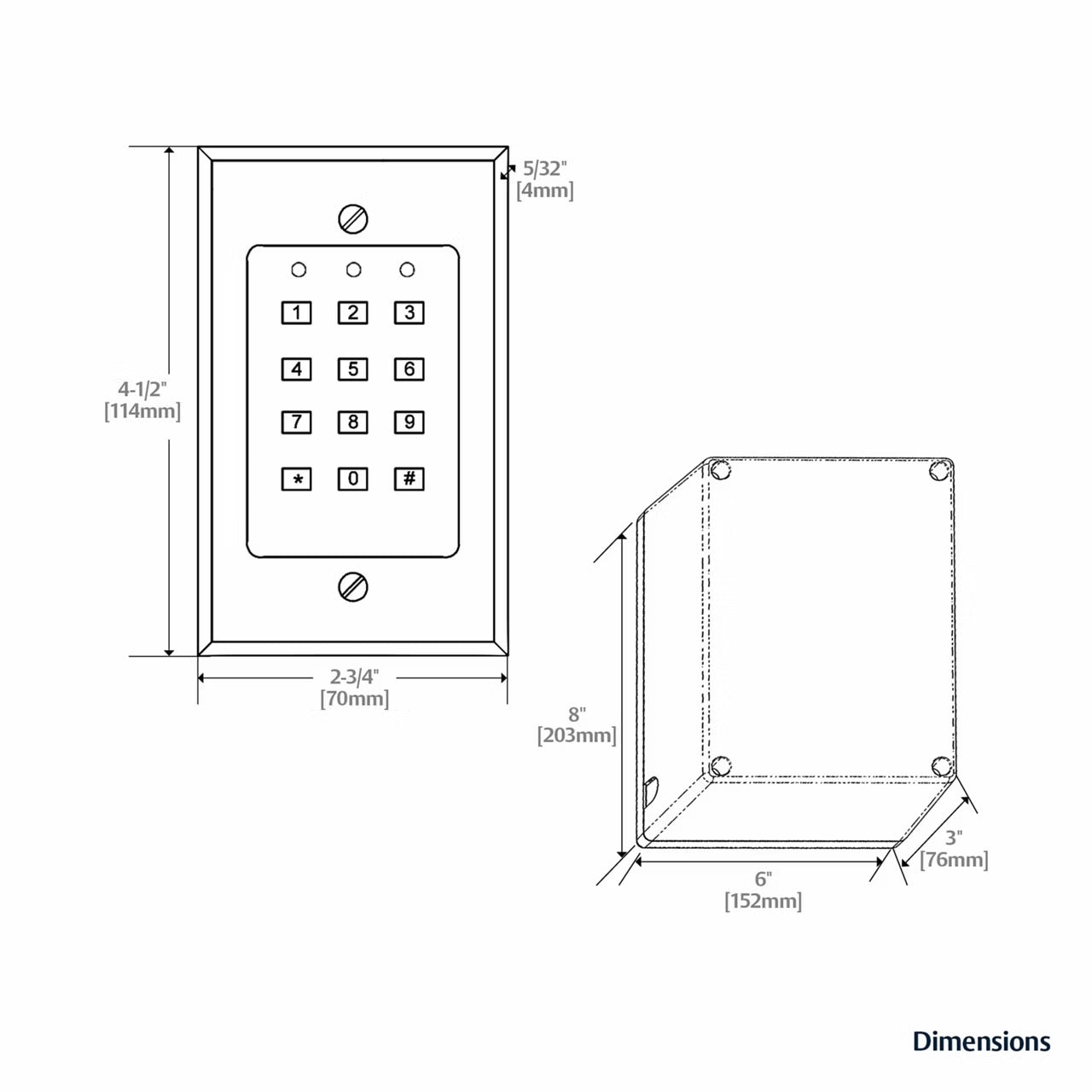

Weights & Dimensions
  • _Shipping Weight: 4.2
  • _Unit Box Depth [in]: 8.8
  • _Unit Box Height [in]: 12
  • _Unit Box Width [in]: 3.3
Electrical
  • Current 12v AC: 160
  • Current 12v DC: 160
  • Current 24v AC: 190
  • Current 24v DC: 190
  • Voltage: 12/24
General
  • Device Options: Keypad System
Documents

Securitron DK-16, DK-16-P Keypads Operating Manual

Securitron DK-16, DK-26 Keypads Quick Reference Guide

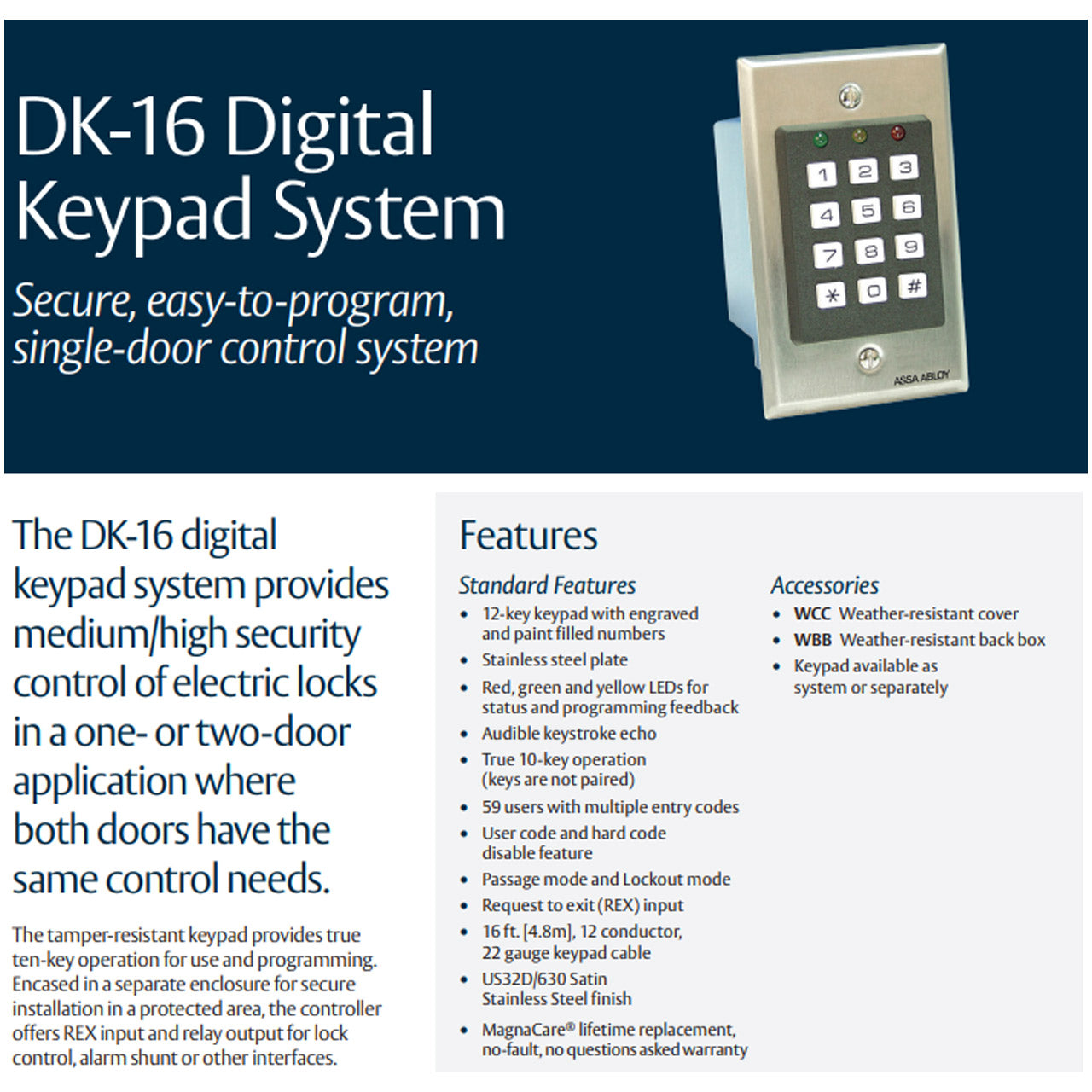

Securitron DK-16 Keypads Catalog Page
