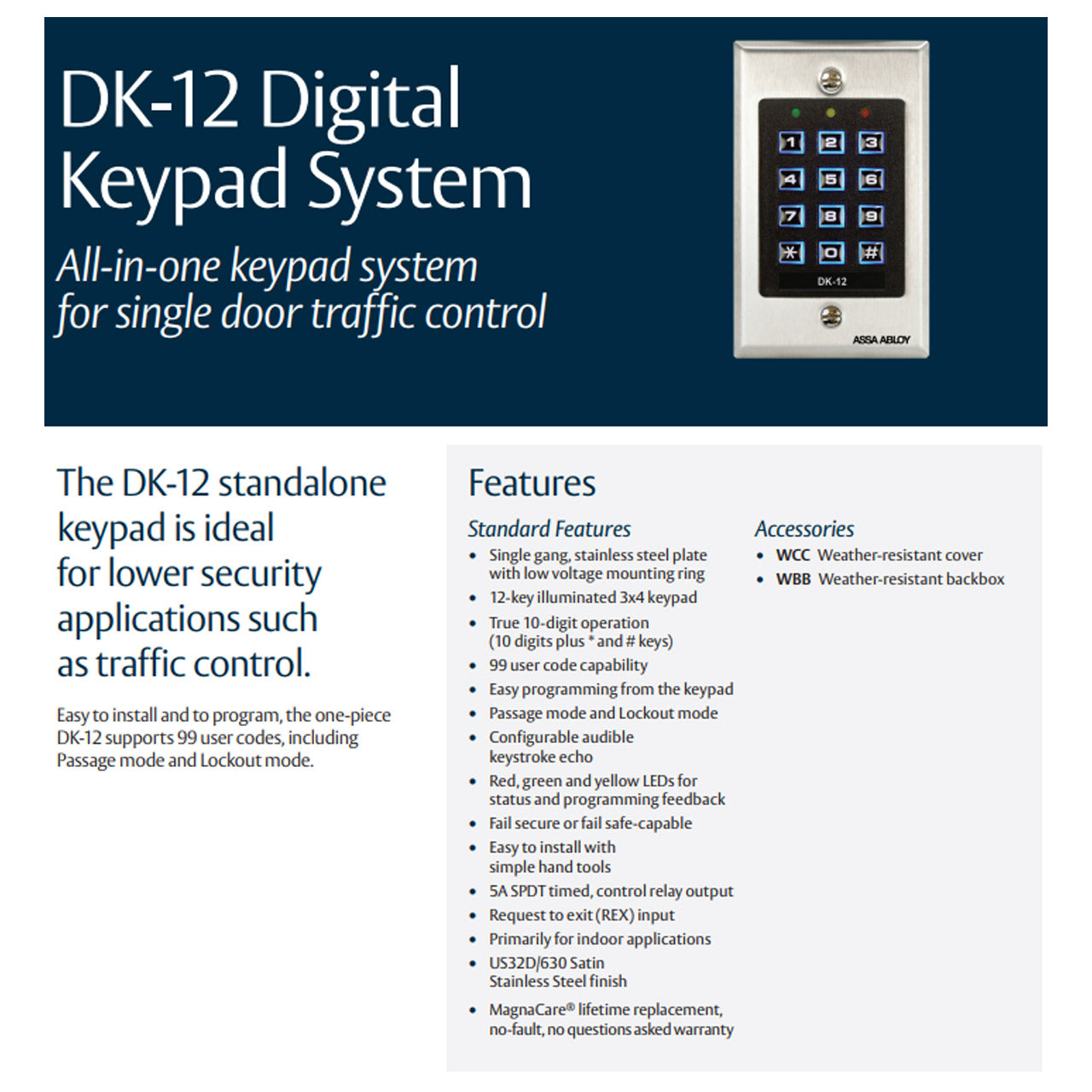

Product Features

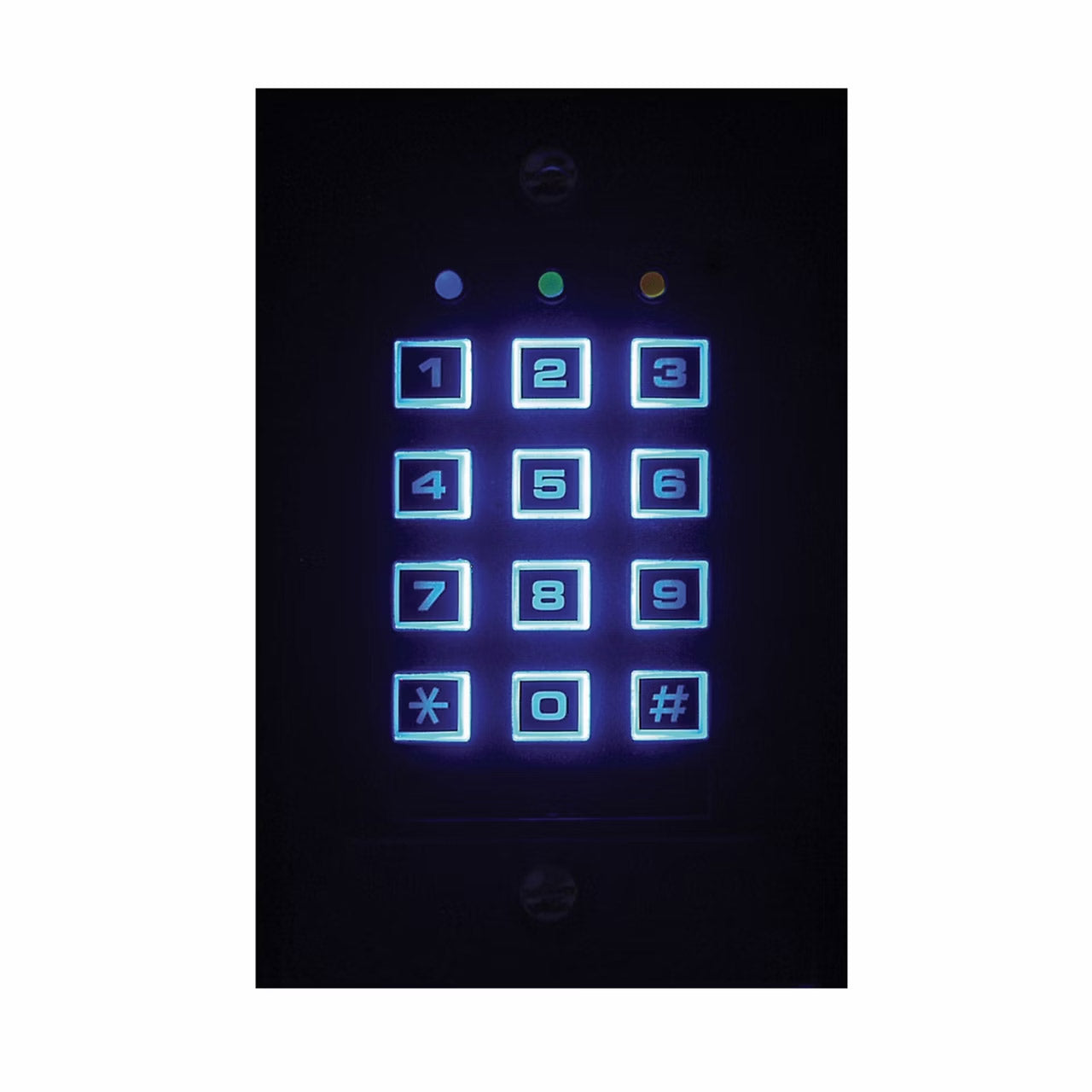

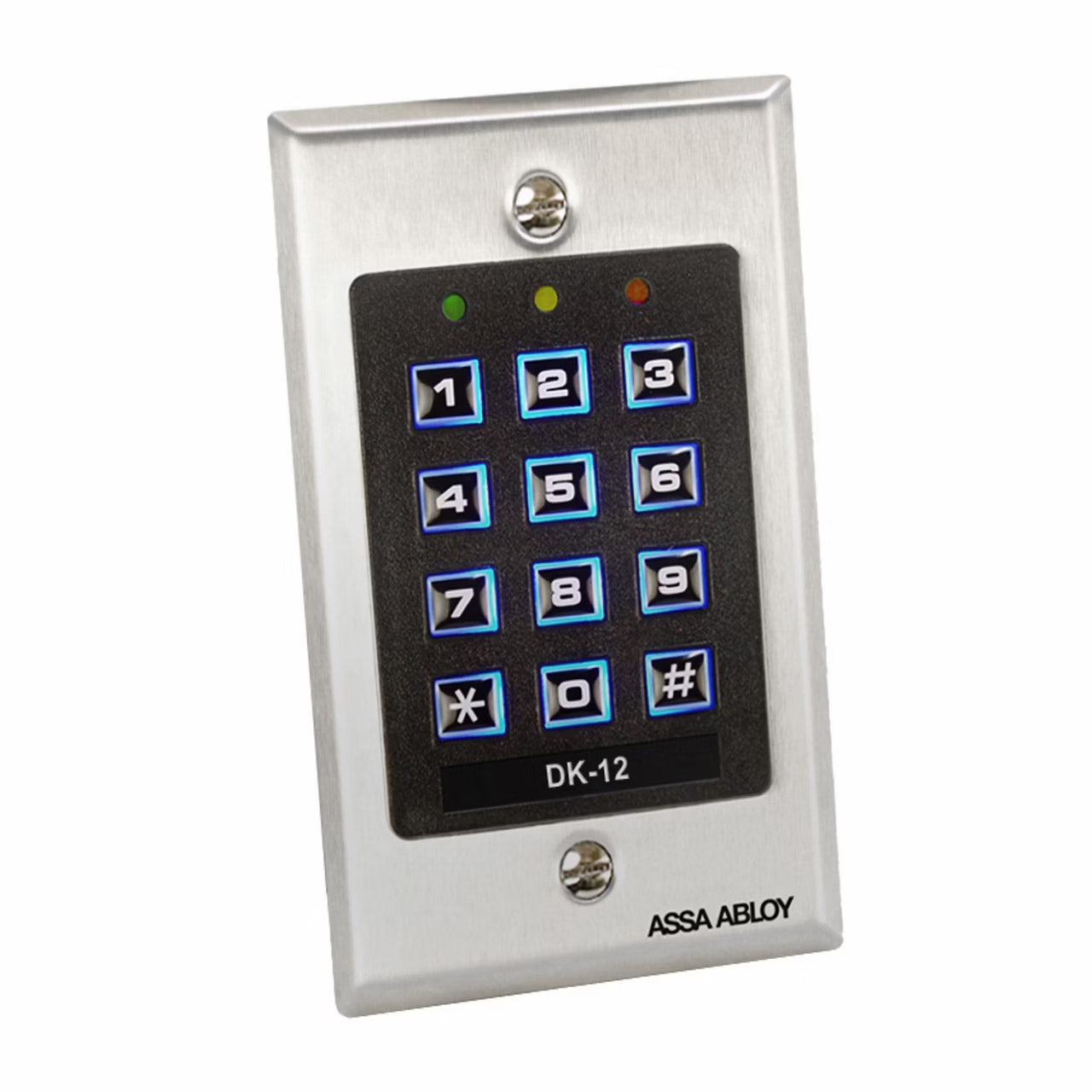

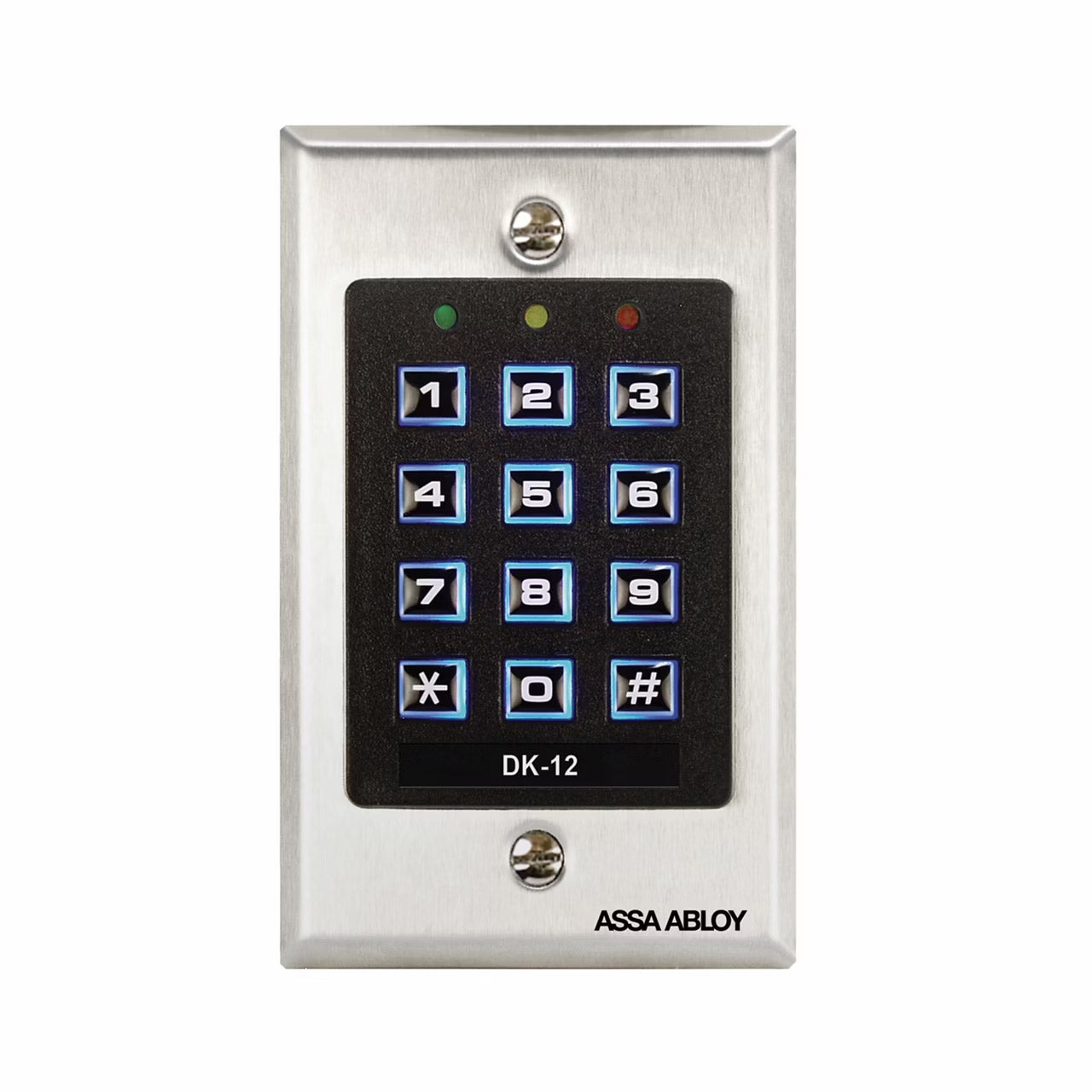

- Stainless steel backplate with 12 illuminated keys (10 digits + "*" and "#" keys)
- One piece digital keypad specifically designed for control of electric locks
- Easy to install with simple hand tools
- Operates on low voltage AC or DC current
- Audible keystroke echo
- Single gang, stainless steel plate with plastic backbox
- 99 user code capability which is programmable from the keypad
- Passage mode and Lockout mode
- 5 Amp SPDT timed, control relay output
- Red and Green LEDs are visible indicators
- Yellow LED provides programming prompt
- True 10 digit operation
- Optional weather cover available
- Request to Exit (REX) input
Environmental
- Maximum Operating Temperature: 140
- Minimum Operating Temperature: -10
- Outdoor Rated: No

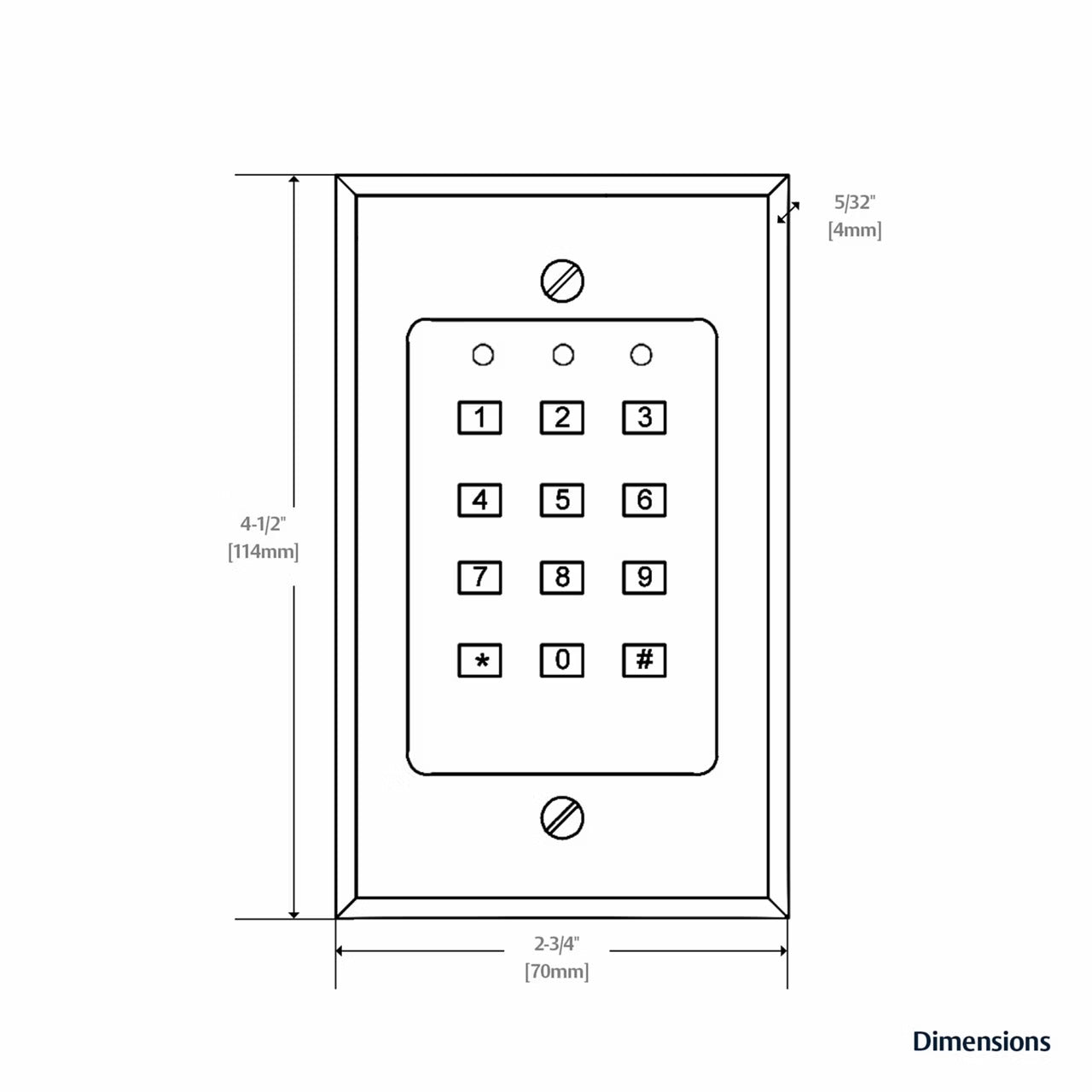

Weights & Dimensions
- _Shipping Weight: 1
- _Unit Box Depth [in]: 5.75
- _Unit Box Height [in]: 3.4
- _Unit Box Width [in]: 3.25
Electrical
- Current 12v AC: 325
- Current 12v DC: 100
- Current 24v AC: 325
- Current 24v DC: 100
- Voltage: 12/24
General
- Device Options: Stand Alone Keypad
