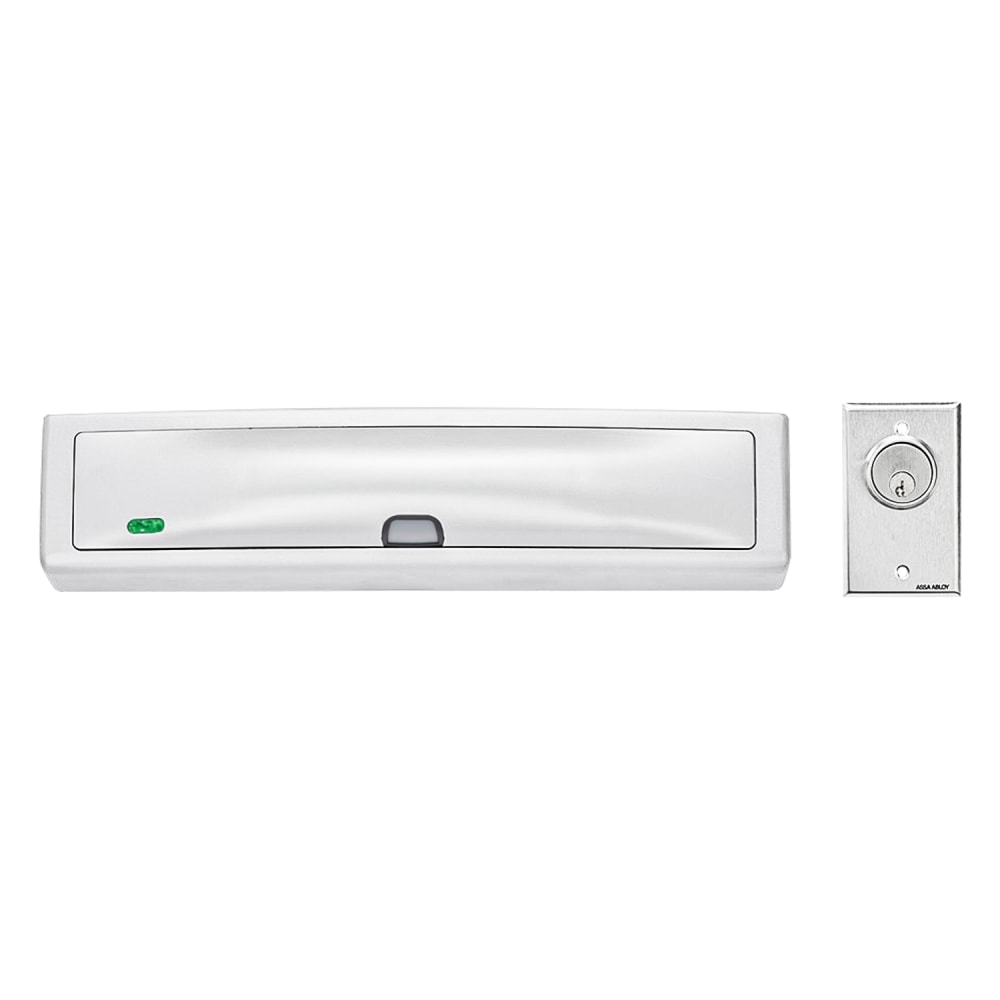

Highly configurable, strong, easy-to-mount. The latest in delayed egress technology.

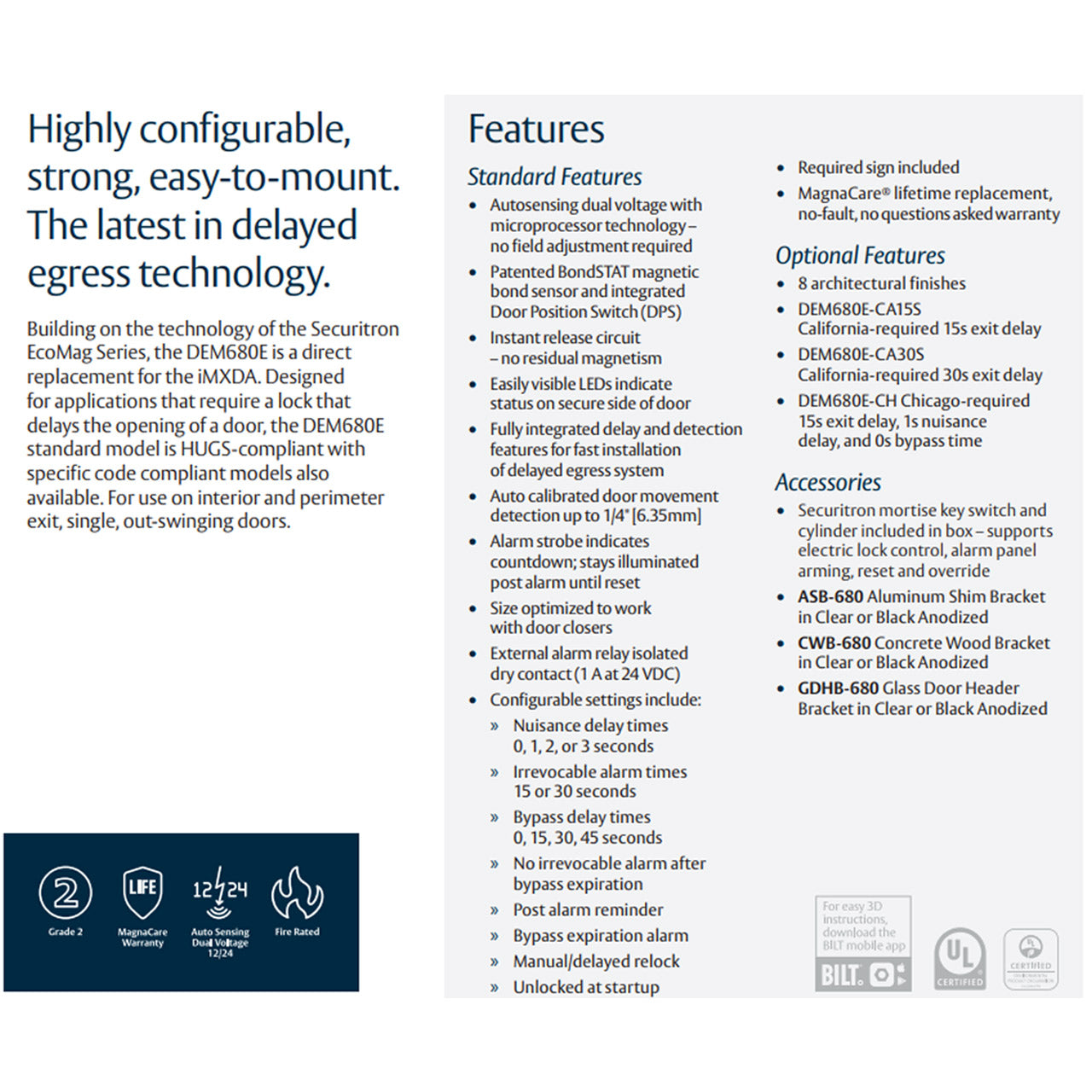

Features
Standard Features
Autosensing dual voltage with
microprocessor technology –
no field adjustment required
Patented BondSTAT magnetic
bond sensor and integrated
Door Position Switch (DPS)
Instant release circuit
– no residual magnetism
Easily visible LEDs indicate
status on secure side of door
Fully integrated delay and detection
features for fast installation
of delayed egress system
Auto calibrated door movement
detection up to 1/4" [6.35mm]
Alarm strobe indicates
countdown; stays illuminated
post alarm until reset
Size optimized to work
with door closers
External alarm relay isolated
dry contact (1 A at 24 VDC)
Configurable settings include:
x Nuisance delay times
0, 1, 2, or 3 seconds
x Irrevocable alarm times
15 or 30 seconds
x Bypass delay times
0, 15, 30, 45 seconds
x No irrevocable alarm after
bypass expiration
x Post alarm reminder
x Bypass expiration alarm
x Manual/delayed relock
x Unlocked at startup
Required sign included
MagnaCare® lifetime replacement,
no-fault, no questions asked warranty
Optional Features

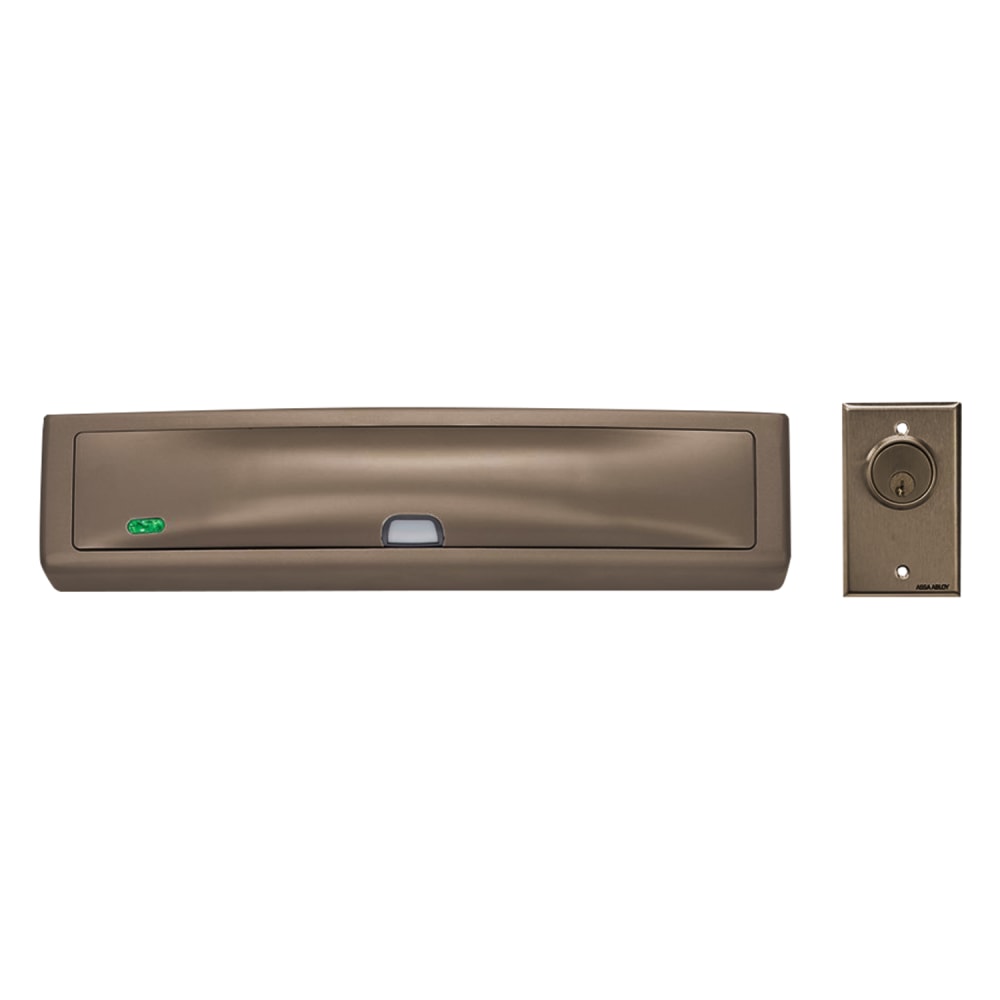

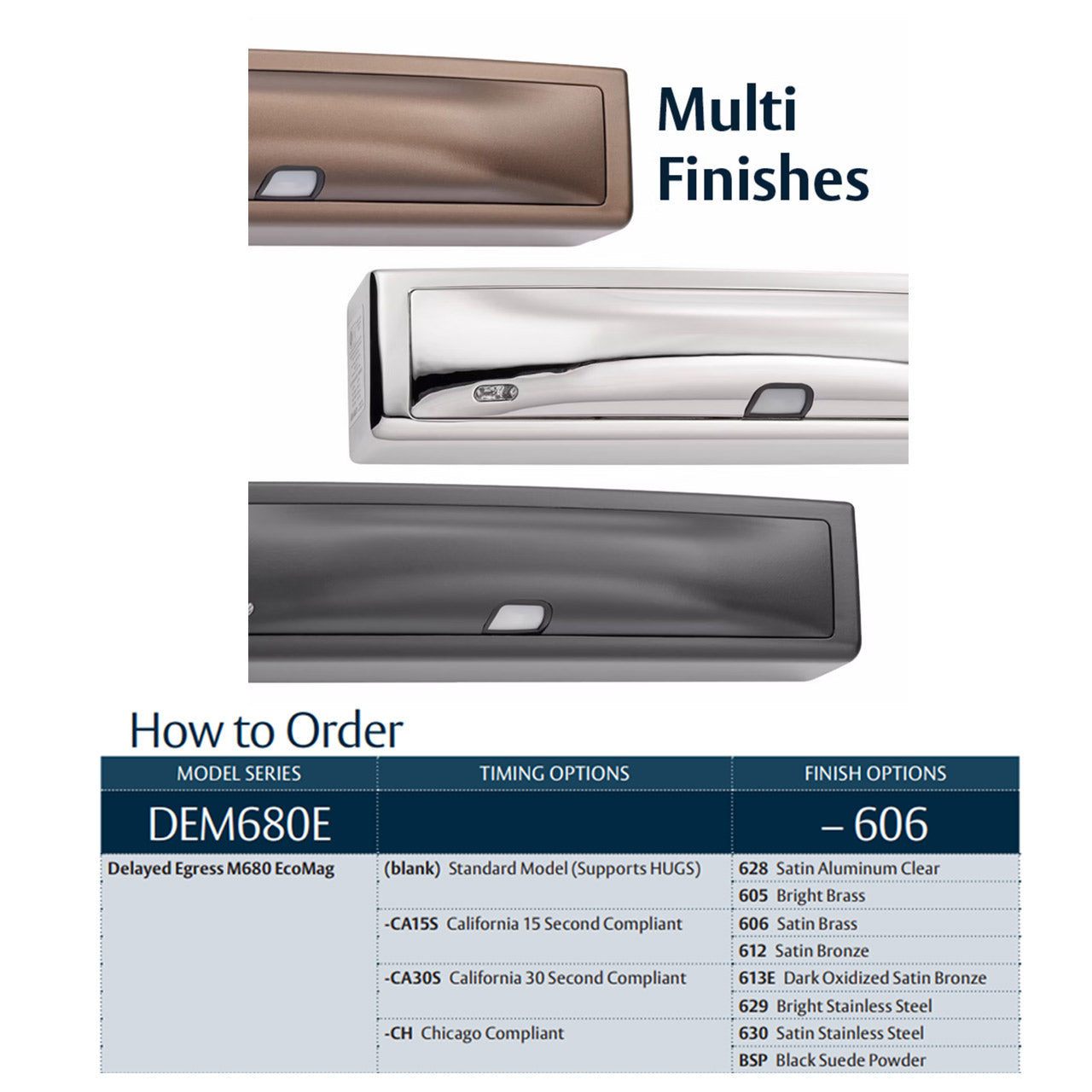

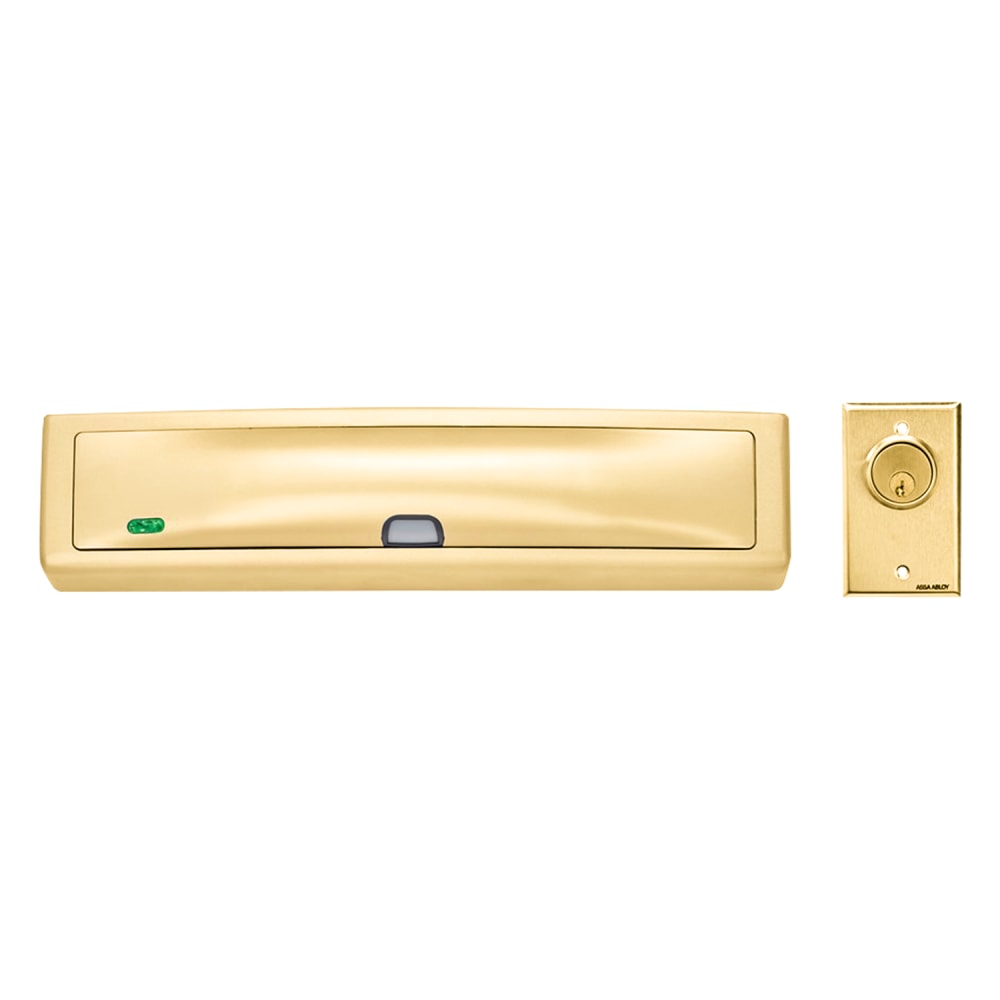

8 architectural finishes
DEM680E-CA15S
California-required 15s exit delay
DEM680E-CA30S
California-required 30s exit delay
DEM680E-CH Chicago-required
15s exit delay, 1s nuisance
delay, and 0s bypass time
Accessories

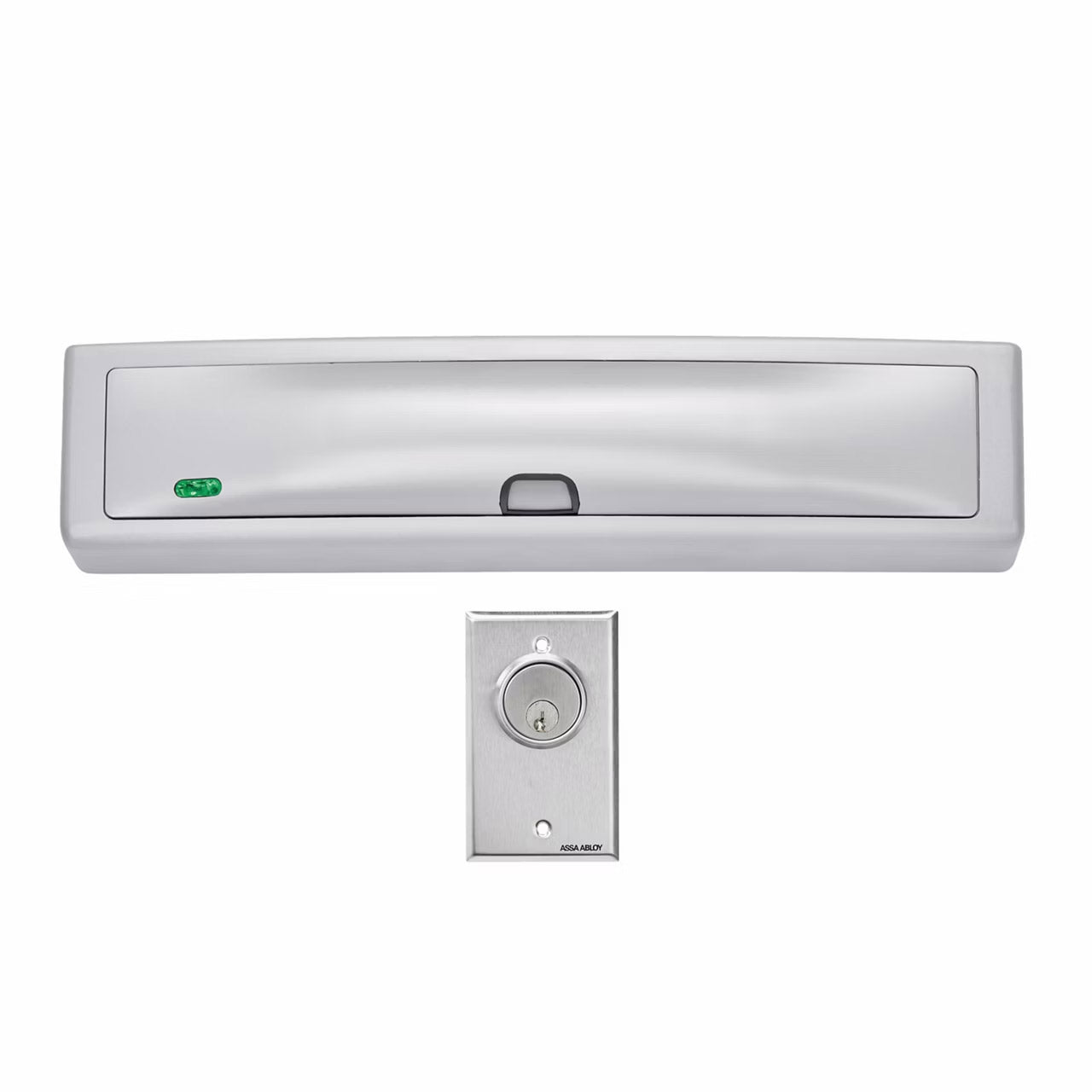

Securitron mortise key switch and
cylinder included in box – supports
electric lock control, alarm panel
arming, reset and override
ASB-680 Aluminum Shim Bracket
in Clear or Black Anodized
CWB-680 Concrete Wood Bracket
in Clear or Black Anodized
GDHB-680 Glass Door Header
Bracket in Clear or Black Anodized
