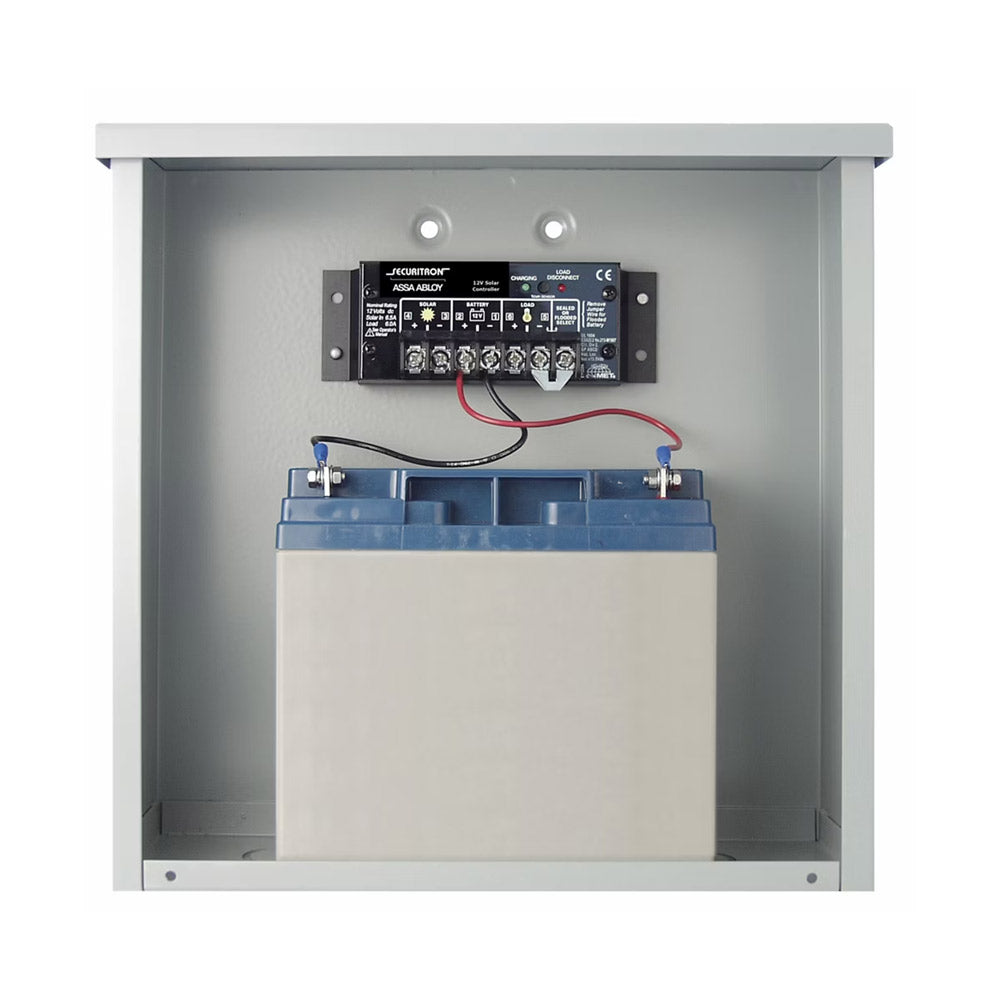

Securitron®'s BPSS is capable of powering most any single point access control device and fail secure lock (intermittent duty only) using sustainable solar and battery operated power. The BPSS is the only out-of-the-box solution specifically designed for remote electric lock control. Select the BPSS-10 or BPSS-20 (10 or 20 charging Watts respectively) based on the solar activity in the area/region where installed.
Product Features
- Complete out of the box Solar Power System designed specifically for use with Access Control Products
- Remote electronic locking of gates and out buildings
- Works with most fail secure electric locks
- Works with most keypad or card readers
- Available in 10W and 20W versions
- Outdoor Operation
- 100% Solid State Solar Controller
- Low voltage battery monitor to protect batteries from deep discharge

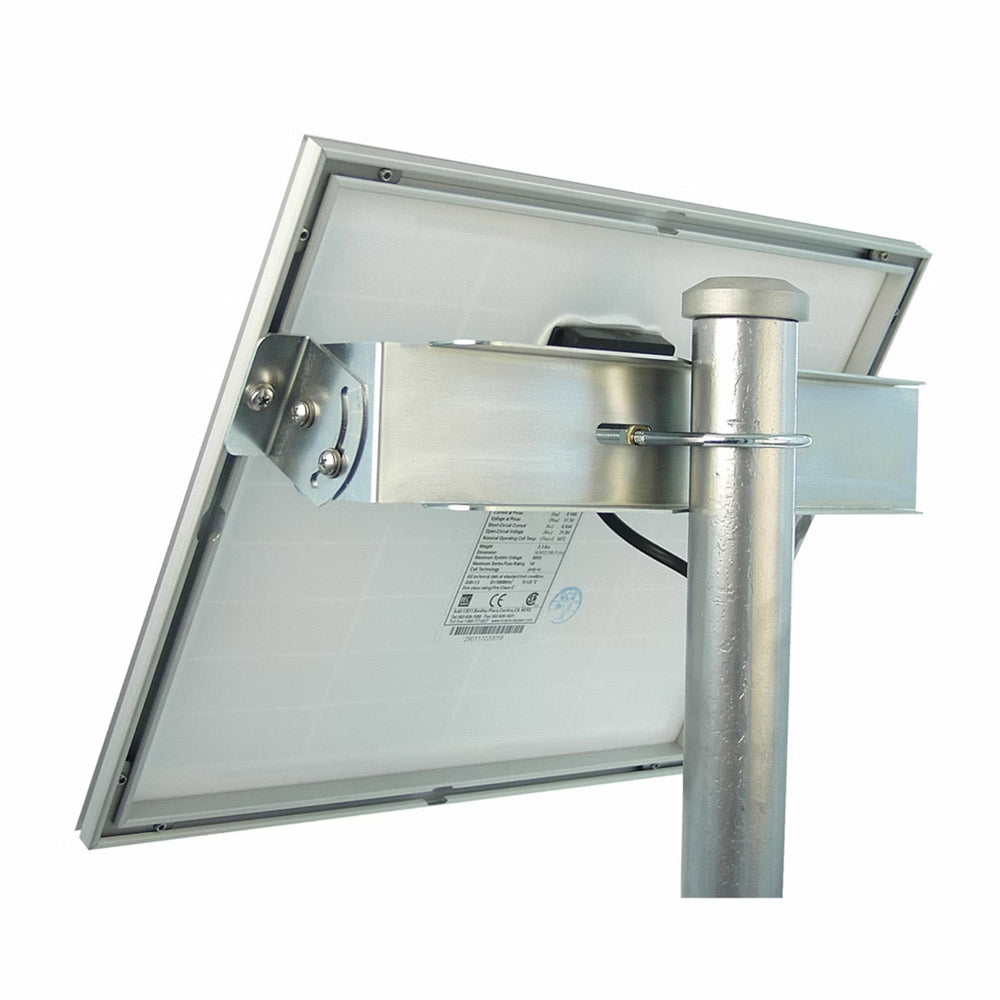

- Includes mounting brackets for power supply enclosure and solar panel
- Optional mounting brackets available to mount power supply enclosure to 3" diameter pole
- Optional solar wind kit available for high wind areas
Electrical
- Power Supply Type : Solar
- Output Voltage : 14-2/5
- Max Output Amps : 1-1/4
Environmental
- Maximum Operating Temperature (° F) : 113
- Minimum Operating Temperature (° F) : -4
- Outdoor Rated : Yes
Weights & Dimensions
- Max Shipping Weight (lbs) : 15
- Height (in) : 13-5/8"
- Width (in) : 12-1/2"
- Depth (in) : 4-7/16"
General
- LED : No
- Enclosure : Yes
