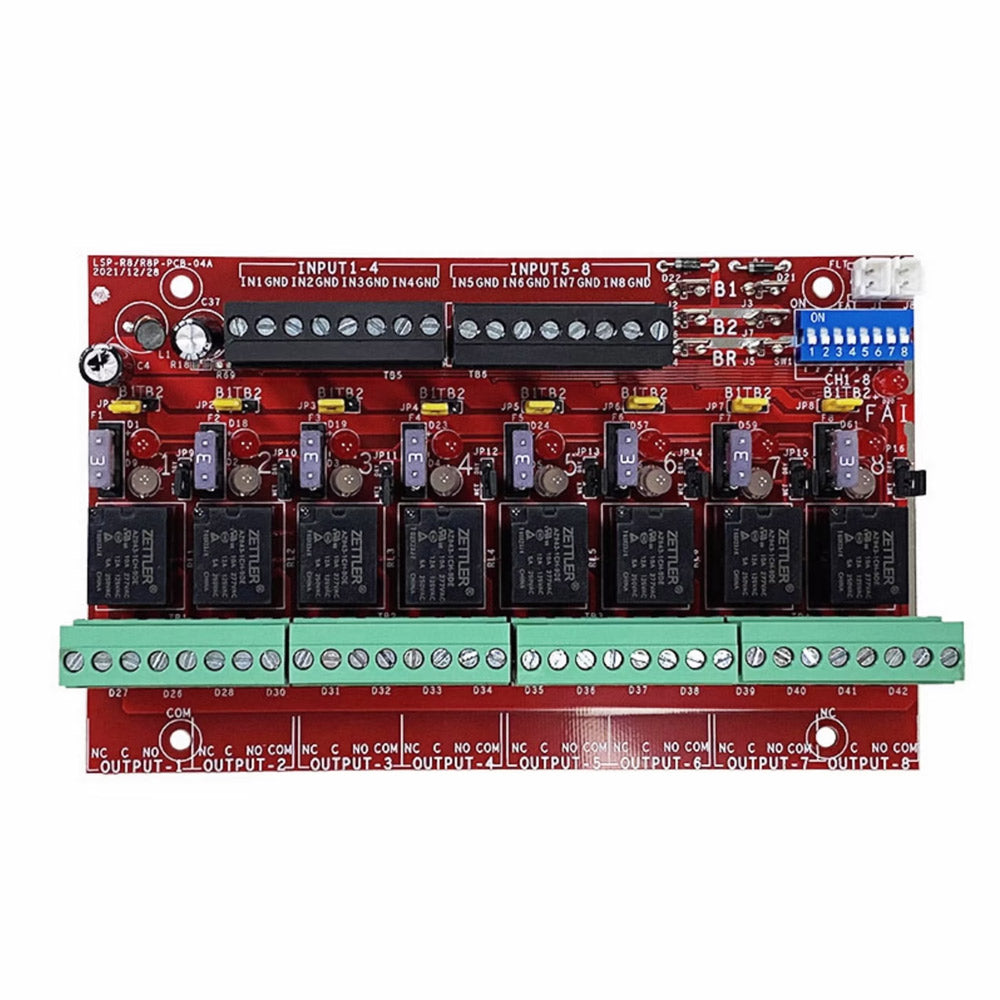

The R8 contains multiple relayed outputs for direct lock control and additional accessory power distribution. The R8 module provides eight access control inputs capable of NO dry contact or open collector activation. It also includes eight relay outputs, programmable for dry or wet contact or powered for failsafe or fail-secure locking devices.
Product Features
- Dual Buss architecture for field selectable Buss 1 or Buss 2 output
- 8 outputs for direct lock control and additional accessory power distribution
- Configurable for fail-safe, fail-secure and dry contact operation modes
- Output fault detection and reporting to the Securitron AQL power supply
- Visual indicators; relay activation per output - Red LED; Voltage level, Bi-color LED voltage indicators
- Multiple modules can be daisy chained to add additional outputs
- Multi-voltage ready when used with B100
- Snap-in style standoffs with fast-on connect cables for easy field installation
- Fiberglass PCB and high efficiency circuit generates less heat leading to a longer service
- MagnaCare® lifetime replacement, no-fault, no questions asked warranty
