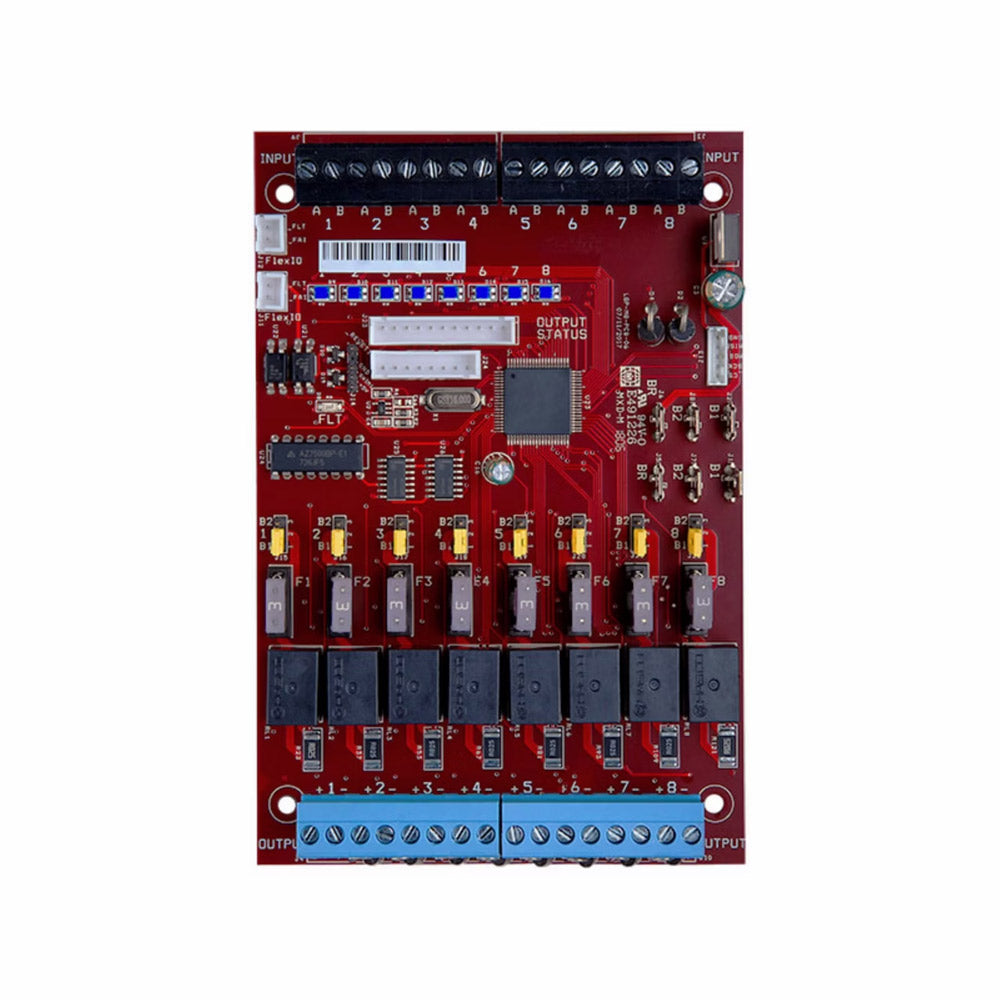

The M8 power control modules add 8 zones to a Securitron AQL power supply system for powering and monitoring locks, cameras, or other critical devices. The M8 MUST be used with Netlink network module. The M8 accepts either one or two voltage sources, either of which are selectable for each output. Each input is fully programmable via software to accept a voltage, dry contact, or open collector input. Each zone output is selectable via software for FAI operation, constant output, maglock output, or door strike outputs. Programmable voltages and current limits per output allow proactive detection of impending lock failure.
Product Features
- - 8 outputs for powering and monitoring locks, cameras, or other critical devices. - MUST be used with Netlink module. - Remote reset of individual outputs for power cycling devices. - Output cycle count detection allows proactive reporting of lock end-of-life.
- Dual Buss field selectable Buss 1 or Buss 2 output
- Multi-voltage when used with B100
- On-board fault detection reports to the AQL series power supply
- Each zone output is selectable via software for FAI operation, constant output, maglock output, or door strike outputs
- Multi-color LED visual indicators per output – Green: 12V | Blue: 24V | Yellow: Fault
- Snap-in style standoffs with fast-on connect cables for easy field installation
- MagnaCare® lifetime replacement, no-fault, no questions asked warranty
