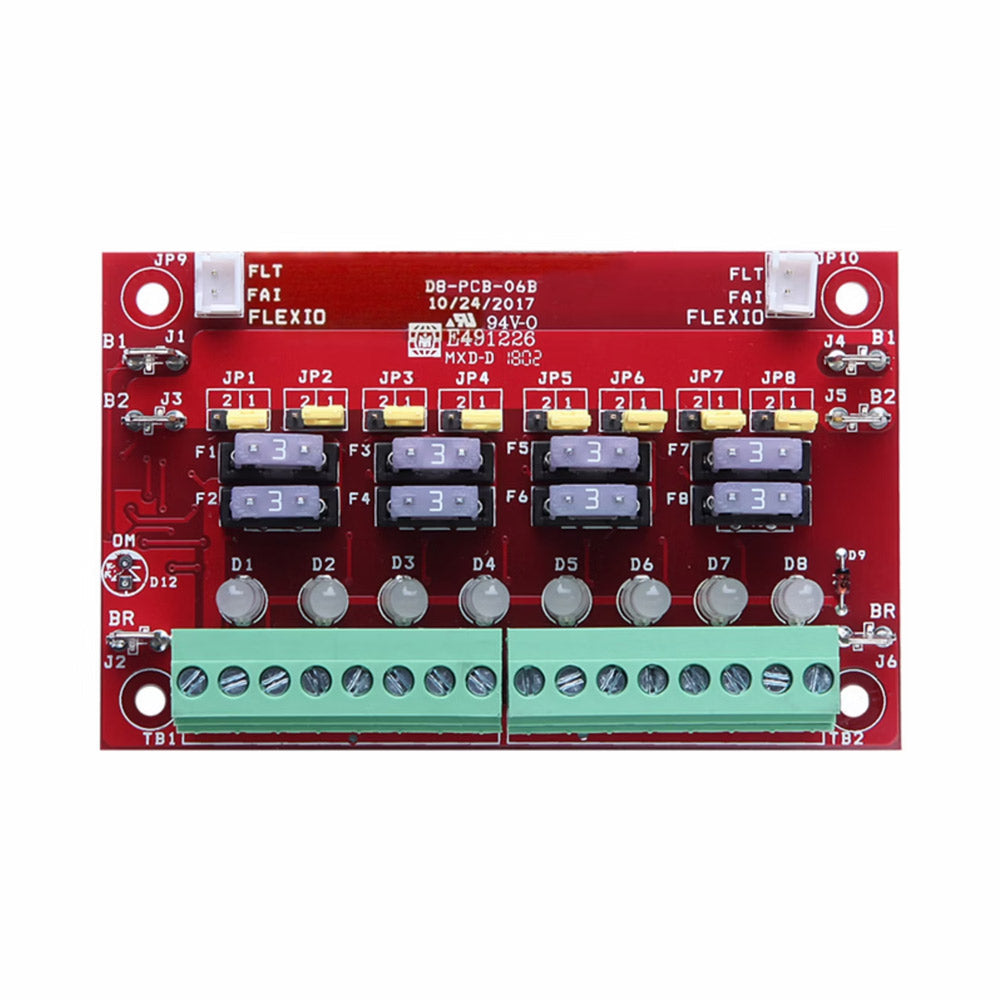

The Securitron AQL D8/D8P Distribution Module offers programmable outputs to either of the two voltages available when used in an Securitron AQL dual voltage power system or to the continuous output of the power supply when used in a single voltage system.
Product Features
- Dual Buss architecture for field selectable Buss 1 or Buss 2 output
- 8 outputs for auxiliary power distribution or direct lock control and additional accessory power distribution modules
- Output Protection: D8 ATM style fuse - 3 A/per output; D8P solid state circuit breaker - 2.5 A/per output
- DC Out visual indicators (Dual color LED per output - Green: 12 V | Blue: 24 V)
- Multiple modules can be daisy chained to add additional outputs
- Multi-voltage ready when used with B100
- Snap-in style standoffs with fast-on connect cables for easy field installation
- Fiberglass PCB and high efficiency circuit generates less heat leading to a longer service and lower MTBF
- MagnaCare® lifetime replacement, no-fault, no questions asked warranty
