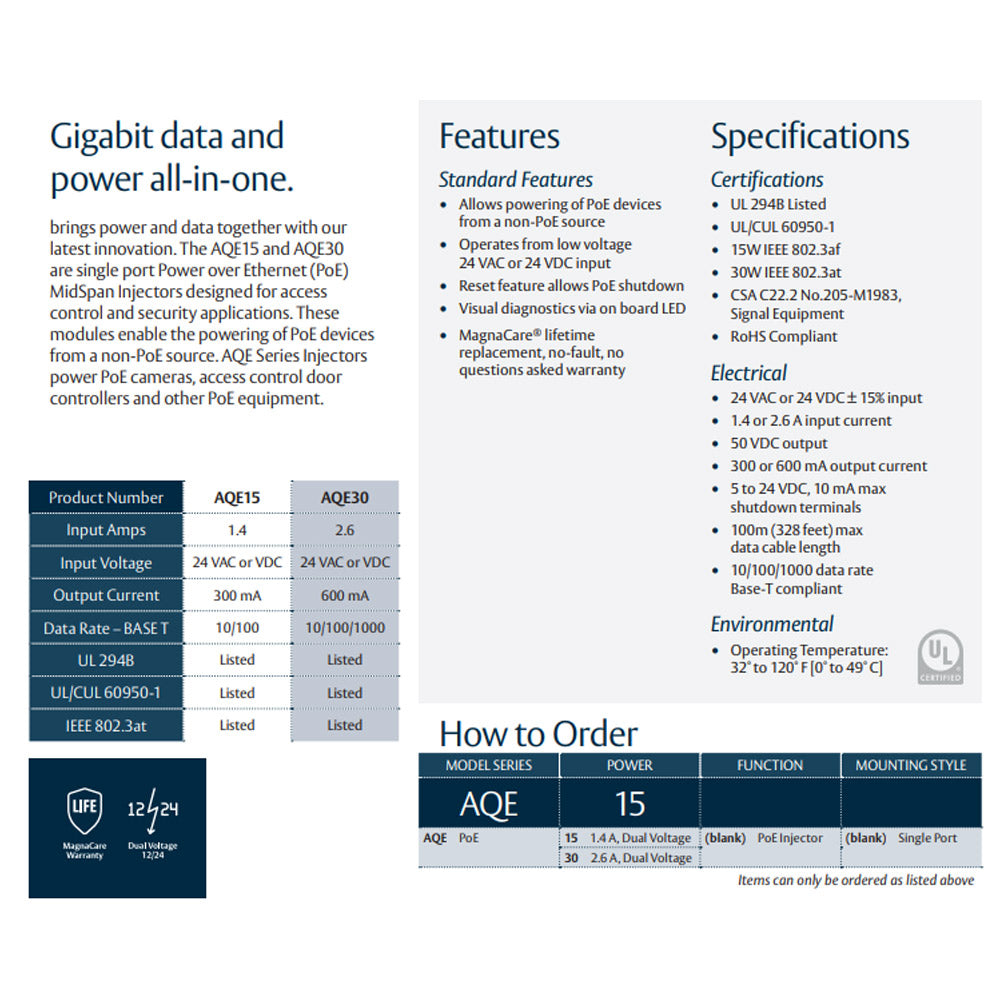

Gigabit data and power all-in-one.

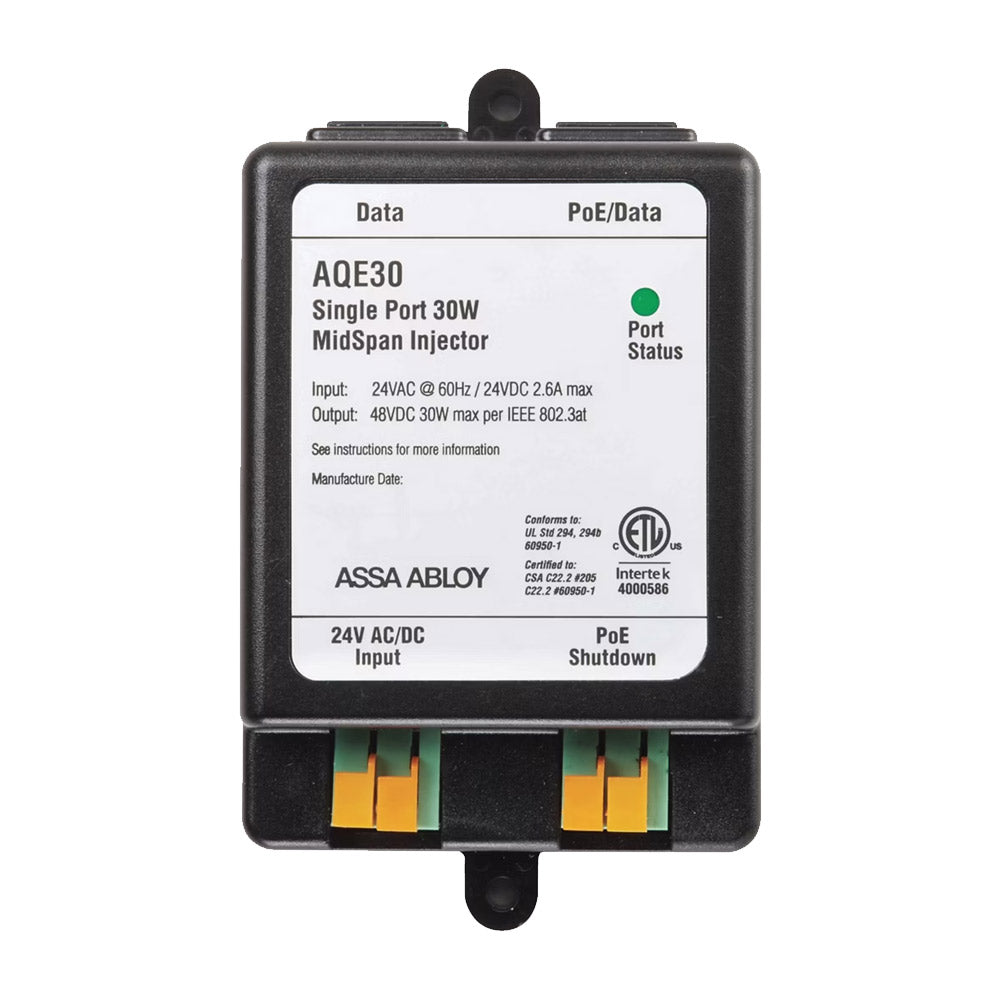

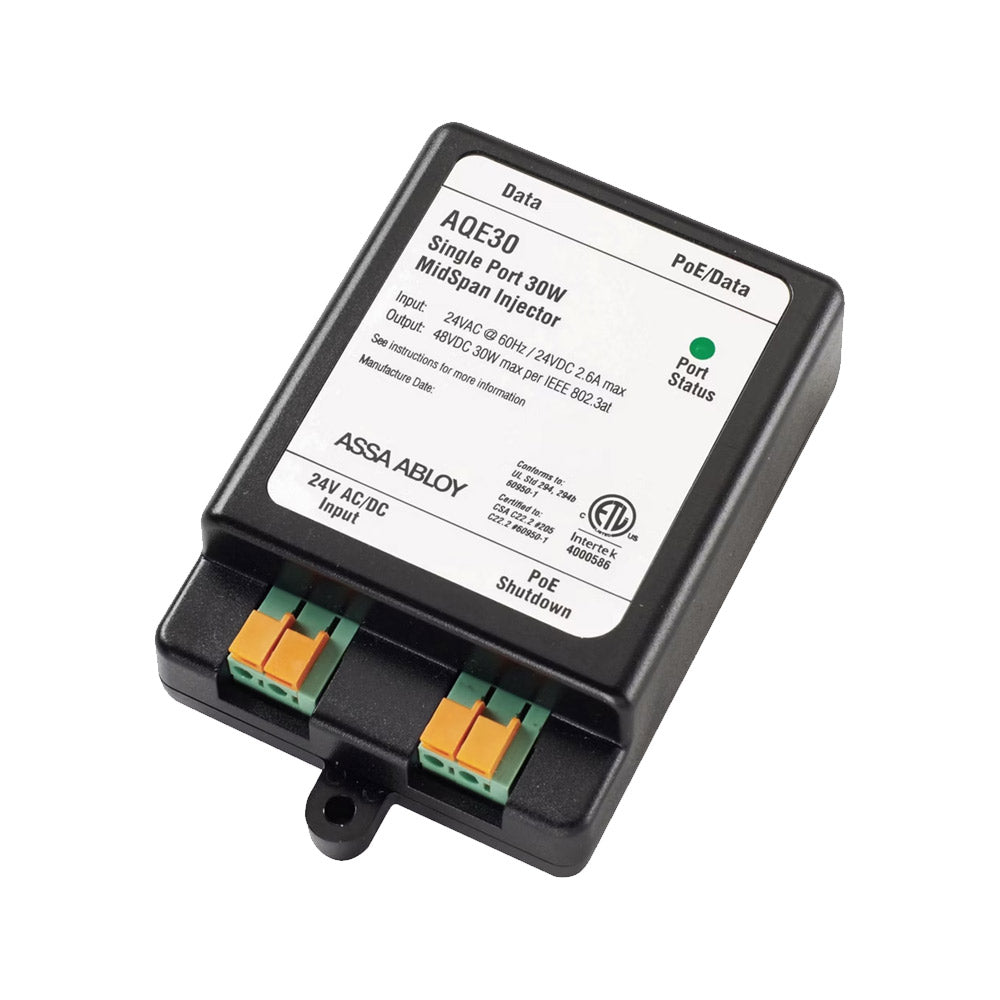

Securitron brings power and data together with our latest innovation. The AQE15 and AQE30 are single port Power over Ethernet (PoE) MidSpan Injectors designed for access control and security applications. These modules enable the powering of PoE devices from a non-PoE source. AQE Series Injectors power PoE cameras, access control door controllers and other PoE equipment.
Product Features
- Allows powering of PoE devices from a non-PoE source
- Operates from low voltage 24VAC or 24VDC input
- Reset feature allows PoE shutdown
- Visual diagnostics via on board LED
- Input Voltage : 24
- Input Current AC : 1.4 or 2.6 A
- Input Current DC : 1.4 or 2.6 A
- Output Current : 300 or 600 mA
- Data Rate : 10/100/1000 data rate Base-T
- Output Voltage : 50 VDC output
- Cable Length : 328 ft.
- Maximum Operating Temperature : 120
- Minimum Operating Temperature : 32
- UL Listed : Yes
- RoHS Compliant : Yes

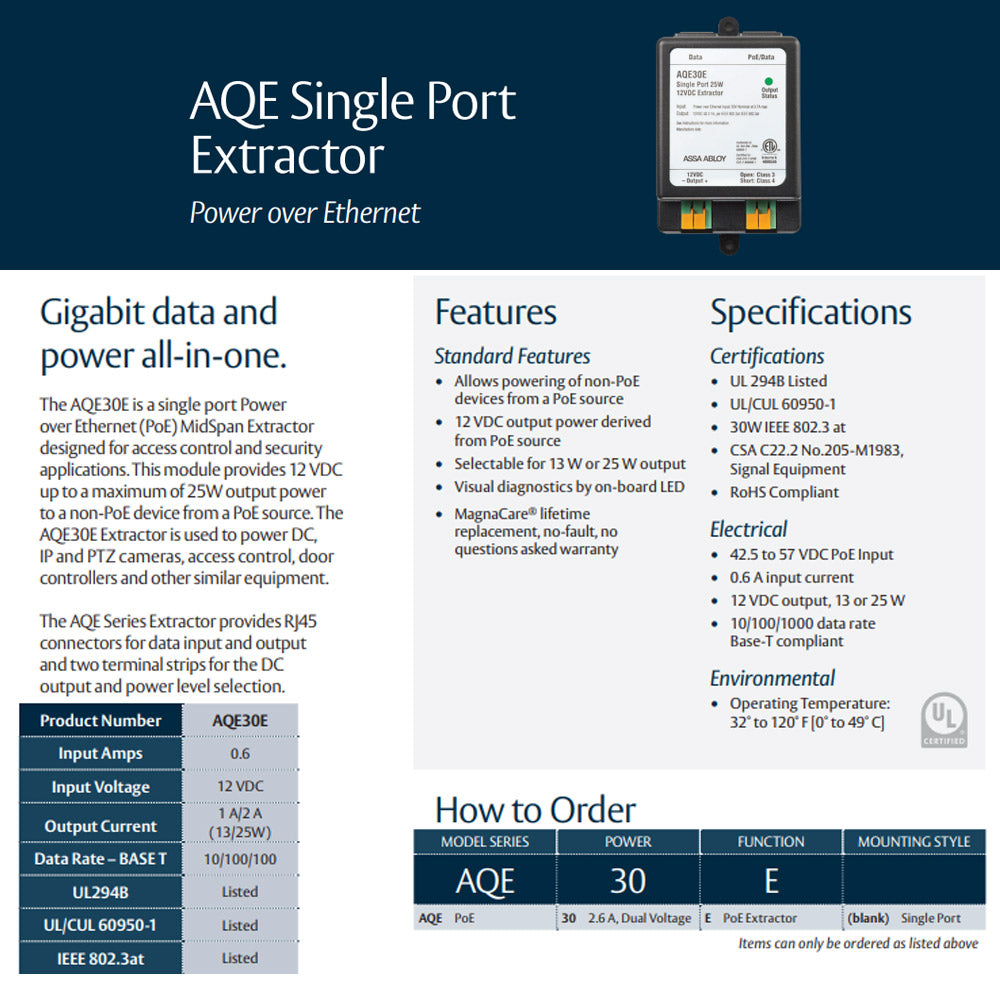

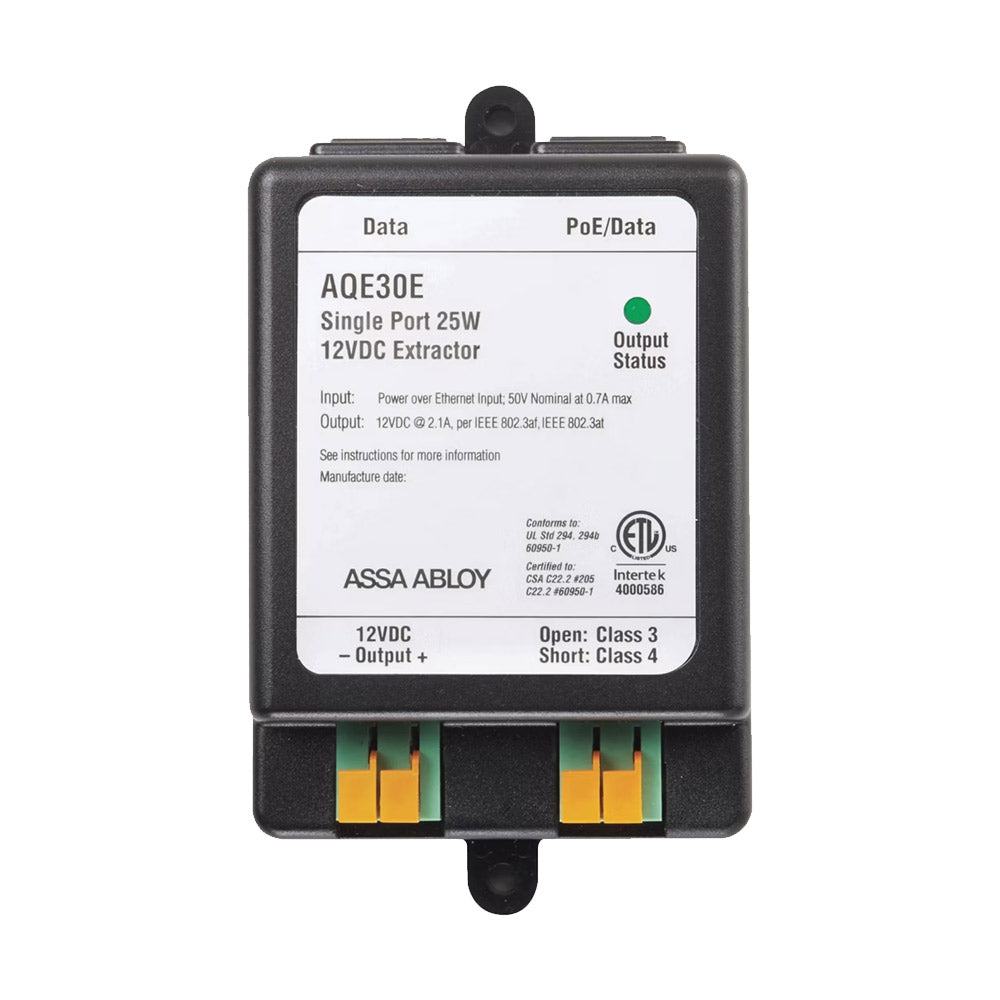

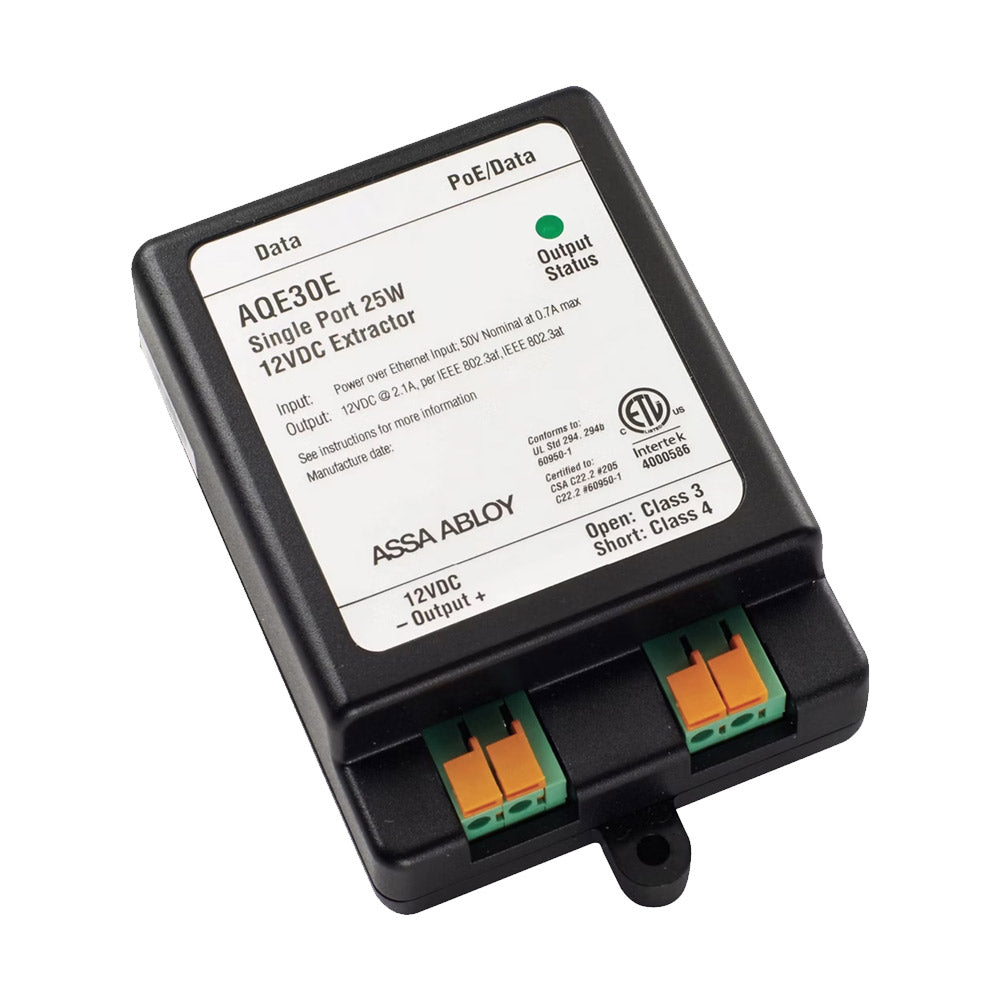

The Securitron AQE30E is a single port Power over Ethernet (PoE) MidSpan Extractor designed for access control and security applications. This module provides 12VDC up to a maximum of 25W output power to a non-PoE device from a PoE source. The AQE30E Extractor is used to power DC IP and PTZ cameras, access control, door controllers and other similar equipment. The AQE Series Extractor provides RJ45 connectors for data input and output and two terminal strips for the DC output and power level selection.
Product Features
- Allows powering of non-PoE devices from a PoE source
- 12VDC output power derived from PoE source
- Selectable for 13W or 25W output
- Reset feature allows PoE shutdown
- Visual diagnostics by on-board LED
- PoE Friendly : Yes
- Input Current DC : .6 Amps
- Output Voltage : 12 VDC, 13 or 25 W
- Data Rate : 10/100/1000 data rate Base-T compliant
- Output Current 12v DC (Amps) : 1 A
- Output Current 24v DC (Amps) : 2 A
- Minimum Operating Temperature : 32
- Maximum Operating Temperature : 120
- UL Listed : Yes
- Certified : Yes
