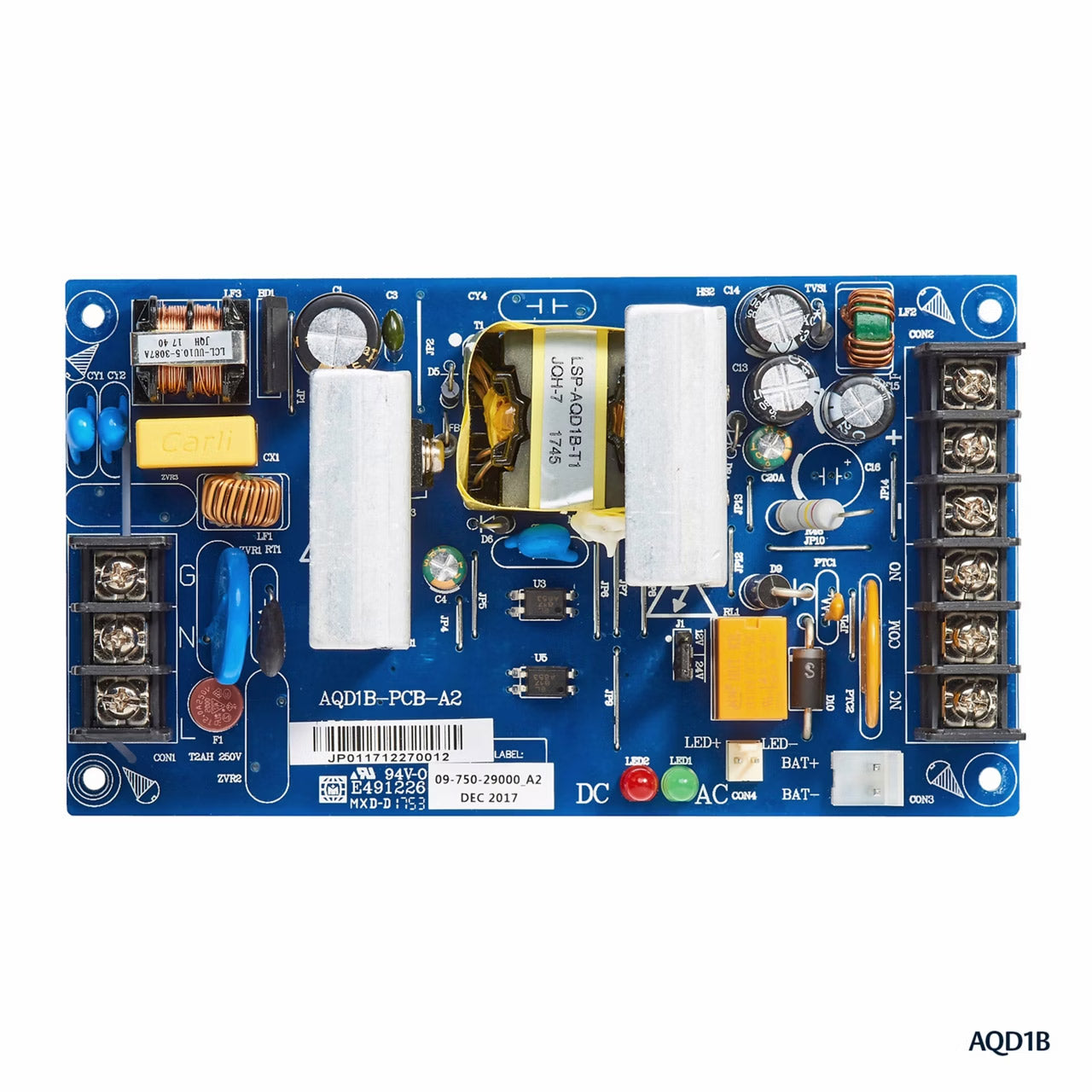

The Securitron AQD1 Series of switching power supplies are dual voltage, UL listed, supervised units. These units are field selectable with an integrated battery charger. They provide 1 Amp at 12VDC or 24VDC continuous, with up to 16 independently controlled power limited outputs.
Product Features
- All combinations of AQ power supplies and distribution boards are UL listed
- Dual voltage 12 or 24 VDC field selectable continuous output
- Up to 82% efficiency which results in decreased operating costs and lengthens the lifespan of electronics
- Tolerates brownout or overvoltage input ± 15% of nominal voltage
- Thermal shutdown protection with auto restart
- Circuit breaker protects against overcurrent and reverse battery faults
- Integrated battery charging circuit prevents overvoltage on locking devices
- Available with a single relay fire trigger or individually triggered relayed outputs
