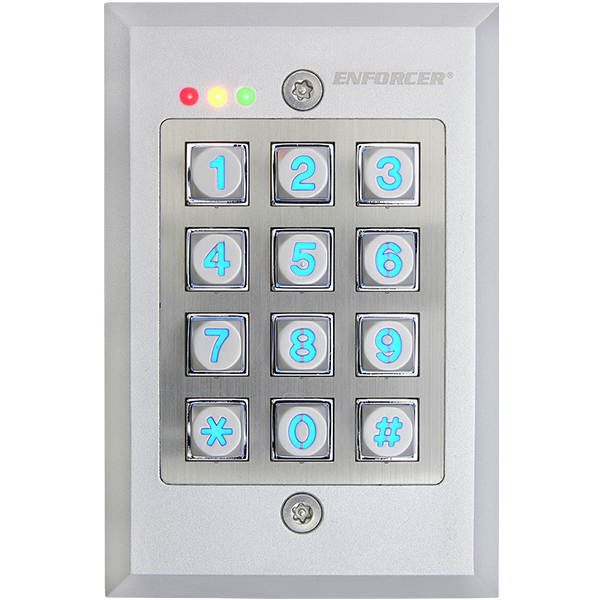

Seco-Larm SK-1123-FDQ Vandal Resistant Flush-Mount Keypad
Skip to product information
Load image 1 in gallery view
Seco-Larm
Seco-Larm SK-1123-FDQ Vandal Resistant Flush-Mount Keypad
SKU:
SK-1123-FDQ
Regular price
$ 90.00
Product variants
Default Title - $ 90.00
−
Decrease quantity for Seco-Larm SK-1123-FDQ Vandal Resistant Flush-Mount Keypad
Quantity
+
Increase quantity for Seco-Larm SK-1123-FDQ Vandal Resistant Flush-Mount Keypad
Add to cart
Description
Vandal Resistant Flush-Mount Access Control Keypad
12~24 VAC/VDC auto-adjusting operation
Up to 1,000 possible user codes (000~999) programmable for output #1 and 100 (001~100) for output #2
Up to 50 (01~50) possible temporary visitor codes, which can be programmed for one-time or limited-time use (1~99 hours)
Output #1: Form C relay, 1A@30VDC max.
Output #2: Transistor ground, 100mA@24VDC
Outputs #1 and #2 can be programmed to activate for up to 99,999 seconds (nearly 28 hours)
Tamper output: N.C. Dry contact, 50mA@24VDC max
Mounts to standard single-gang back box
IP66 Weatherproof rating
Keypad illuminates when a button is pressed; backlight can be programmed for FULL or AUTO in standby mode
All features are programmed directly from the keypad: No need for an external programmer
EEPROM Memory protects programmed information in case of power loss
Up to 50 (01~50) duress codes for output #1, 10 (01~10) for output #2
Duress code signals a silent alarm if an authorized user is forced to open the door under duress
Egress input lets users exit the premises without keying in the code
Door sensor input for anti-tailgating operation
Interlocking input for connecting to a second keypad
Operating Voltage
12~24 VDC/VAC
Current Draw – Standby
15mA@12VDC
Current Draw – Keypress
40mA@12VDC
Current Draw – Output 1 Active
65mA@12VDC
Current Draw – Output 1 & 2 Active
66mA@12VDC
Current Draw – Total Max
100mA@12VDC
Output- #2 Transistor Ground
100mA@24VDC
Output 1
1A@30VDC
Output – Duress
100mA@24VDC
Output – Interlock
100mA@24VDC
Output- Tamper
50mA@24VDC
IP Rating
Weatherproof IP66
Input – Egress
N.O. Ground
Input – Door Sensor
N.C. Ground
Input – Door Inhibit
N.O. Ground
Operating Temperature
-4°~158° F (-20°~70° C)
Operating Humidity
5~95% Non-condensing
Dimensions
4-3/4″x3-1/8″x1-13/16″ (120x80x46mm)
Weight
16.2-oz (300g)
PRODUCT INFORMATION SHEET (PI)
DOWNLOAD FILE
MANUAL
DOWNLOAD FILE
USER CONTROL CHART
DOWNLOAD FILE
