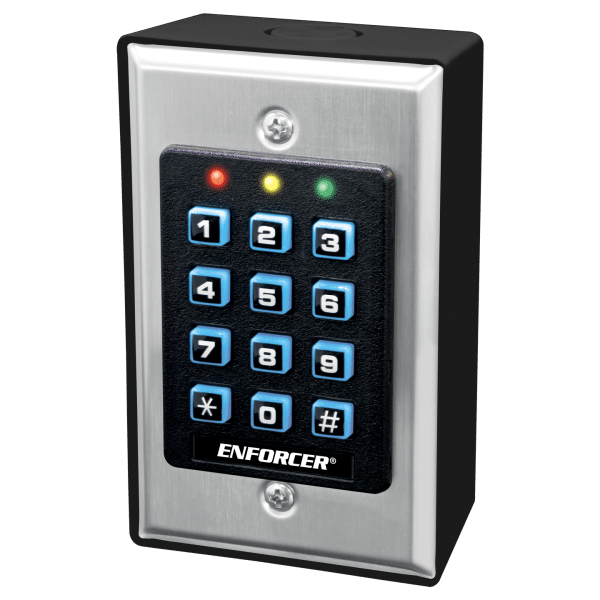

Seco-Larm SK-1011-SDQ Keypad

by Seco-Larm
$ 42.99

Indoor Access Control Keypad

The ENFORCER SK-1011-SDQ is a single-output, indoor access control keypad that doesn’t scrimp on the important features. It supports up to 1,000 users and 50 temporary visitors and can be surface mounted with the included back box or flush mounted in a standard single-gang back box. It includes a tamper alarm, and a backlit keypad for ease of use at night or in dark areas.

  • 12~24 VDC/VAC Auto-adjusting operation
  • Up to 1,000 possible user codes (000~999)
  • Up to 50 (01~50) possible temporary visitor codes, which can be programmed for one-time or limited-time use (1~99 hours)
  • Form C relay, 1A@30VDC max. can be programmed to activate for up to 99,999 seconds (nearly 28 hours)
  • Tamper output N.C. Dry contact, 50mA@24VDC max.
  • Mounts to a standard single-gang back box (surface-mount back box included)
  • All features are programmed directly from the keypad with no need for an external programmer
  • EEPROM Memory protects programmed information in case of power loss
  • Egress input lets users exit the premises without keying in the code
  • Data I/O terminal for split-series setup providing added security
  • Expansion port for future optional features
  • Always-on backlit keypad
Operating Voltage 12~24 VDC/VAC
Current Draw Standby: 15mA
Keypress: 30mA
Output 1 active: 55mA
Total (max.): 90mA
Outputs Output 1, Form C: 1A@30VDC
Tamper:50mA@24VDC
Egress Inputs N.O. ground
Operating Humidity 5~95% Non-condensing
Operating Temperature -4°~158° F (-20°~70° C)
Dimensions (including back box) 4-5/8″x2-7/8″x1-15/16″ (117x73x49 mm)
Weight 6-oz (170 g)
