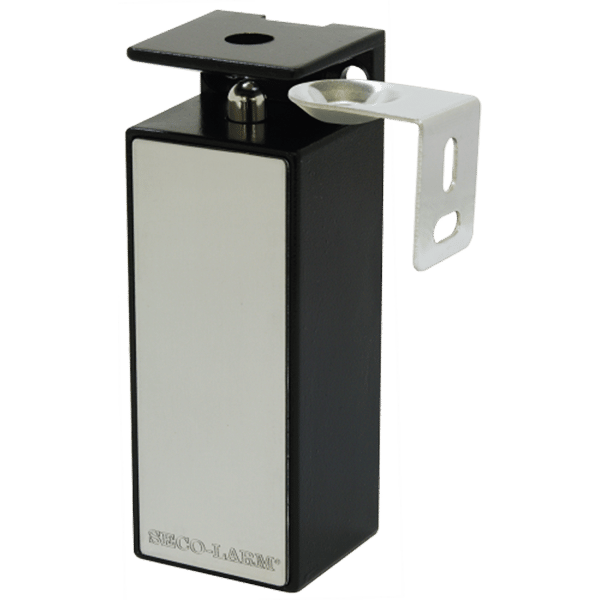

Electric Deadbolt Cabinet Lock
The SECO-LARM Electric Deadbolt Cabinet Lock provides security for lockers, cabinets, cases, and drawers. Dual voltage settings and on-site reversible fail-safe/fail-secure operation offers flexibility and easy installation. The built-in lock status sensor allows for monitoring whether the cabinet doors are locked.
- Electronically secure lockers, cabinets, cases, and drawers
- Lock status sensor allows for monitoring whether doors or drawers are locked
- Selectable fail-safe/fail-secure operation
- Operating voltage: 12/24 VDC
- Current draw: 300mA@12VDC and 150mA@24VDC
- Mounting hardware included
| Operation | Fail-safe / Fail-secure |
| Contact Switch | NO/NC. |
| Current Draw | 300mA@12VDC, 150mA@24VDC |
| Lock Status Rating | 1A@30VDC |
| Lock status | Micro-switch |
| Operating Voltage | 12/24 VDC |
| Door Status | Reed switch, 10W (Max) |
| Door Status Max Switching Contact | 0.5A |
| Dimensions | 3-1/4” x 1-3/16” x 1-1/8” (82x30x28 mm) |
