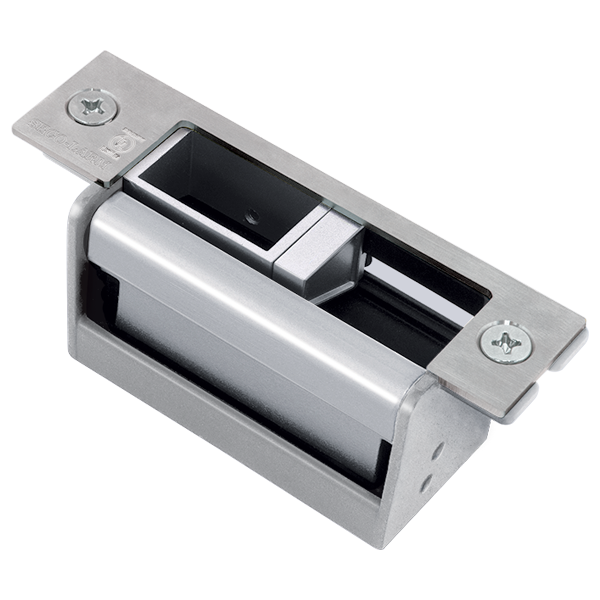

Electric Door Strike with Vertical Adjustment
The SECO-LARM SD-996C-NUVQ Electric Door Strike with Vertical Adjustment is compatible with a wide range of lock types including cylindrical, mortise, and mortise exit devices and can be configured for use in wood, aluminum, or metal doors. Included are various ANSI-sized faceplates to match the door lock type. The strike is easily field-configurable for fail-safe or fail-secure applications.
- UL 294 and 1034 Listed
- 12/24 VDC Operation
- Vertical adjustable deadbolt opening, sliding shim keeper, and deadlatch ramp accommodates a wide range of lock types
- Accommodates deadbolts up to 1″
- Field selectable for fail-safe or fail-secure

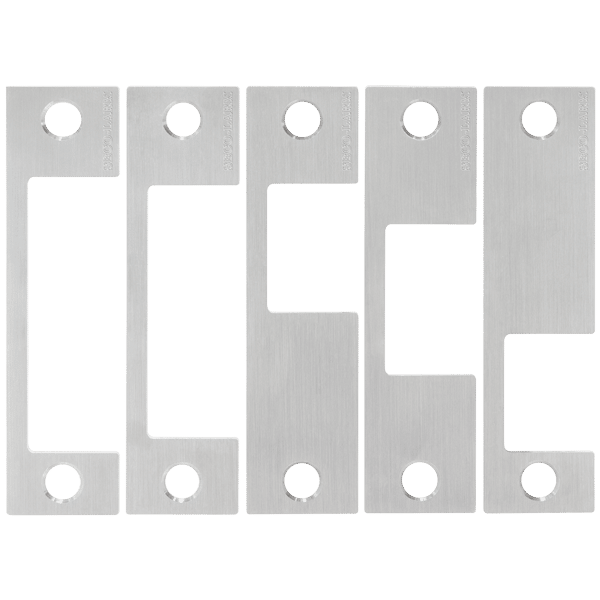

- Includes 5 different stainless-steel faceplates
- Includes trim plate to hide gaps in installation
- Reversible non-handed design
- Static strength – 1,000 lbs. (454kg)
- Tested to 250,000 cycles (UL Tested)
- Low current draw: 300mA@12VDC & 150mA@24VDC
| Operating Voltage | 12/24 VDC |
| Current Draw | 300mA@12VDC, 150mA@24VDC |
| Latch Throw | 1” (25mm) max with 1/8” (3mm) door gap |
| Static Strength | 1,000 lbs. (454kg) |
| Dynamic strength | 33 ft-lbs. (4.56 m-kgs) |
| Operating Temperature | 14°F~113°F (-10°~45° C) |
| Operating Humidity | 0~85% |
| Dimensions | 1-13/16”x1-5/8”x3-5/16” (47x42x84 mm) |
