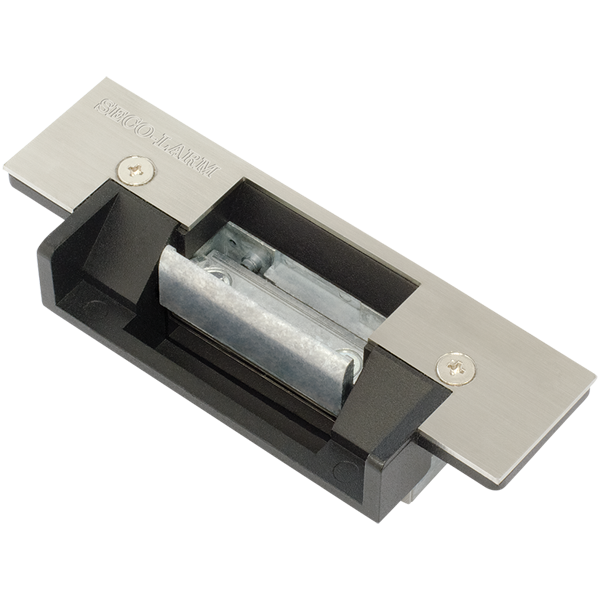

Reversible Electric Door Strike w horizontal adjustment for wood & metal doors, fail secure
-
1/4” Horizontal keeper adjustment compensates for installation difficulties such as warped doors, different-sized latch bolts, etc.
- Unique design accommodates both wood and metal doors
- Fail-secure operation
- Reversible for right or left-handed doors
- Durable stainless-steel faceplate
- Miniature lock body for easier installation
- Corrosion-resistant case and moving parts
- Complete mounting hardware included
- Screw terminals for ease of wiring
- Operating voltage: 8~16VAC/12VDC
- 1,000-lb (453kg) Jaw strength
- Tested to 500,000 cycles
- Current draw: 750mA@12VDC
- Keeper depth: 21/32” (16.8mm)
- Latch depth: 3/4” (19mm)
- Strike depth: 11/2″ (38mm)
- ANSI Faceplate size: 47/8“x11/4“x1/8” (124x32x3.2 mm)
- Optional ANSI Faceplate SD-995RE-21Q
| Operating Voltage |
8~16 VAC/12VDC |
| Operation |
Fail-secure |
| Current Draw |
800mA@16VAC, 750mA@12VDC |
| Latch Throw |
5/8″ (16mm) |
| Jaw Strength |
1,000-lb (453kg) |
| Design |
Reversible Non-Handed |
| Strike Depth |
1-1/2″ overall (38mm) |
| Adjustable Keeper |
Max. 1/4″ (6mm) |
| Operating Temperature |
14°F~113°F (-10°~45° C) |
| Dimensions |
4-7/8″x1-1/4″x1/8″ (124x32x3.2 mm) (Faceplate) |
| Weight |
10.3-oz (292g) |
