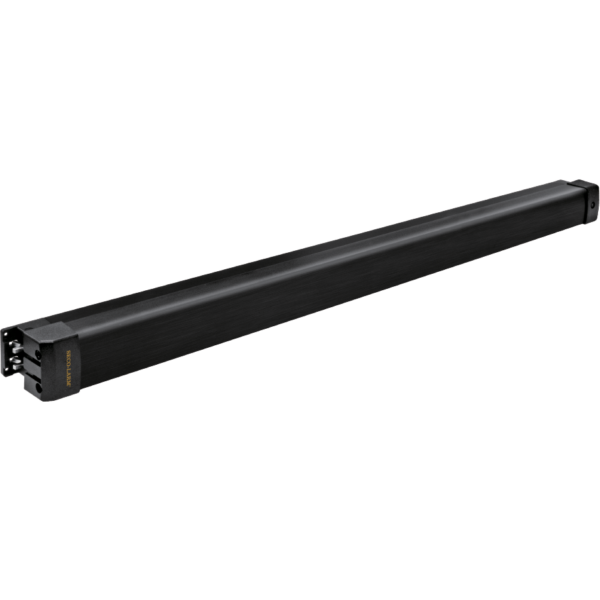

Seco-Larm SD-961B-36GSQ Solenoid-Actuated Push Bar, Black

SKU: SD-961B-36GSQ
Regular price $ 492.20

Solenoid-Actuated Push Bar, Black

ENFORCER Electromechanical Push Bars feature a double-locking spindle for stronger and more secure locking. All models include a cylinder lock for keyed entry and some models offer solenoid-actuation to allow unlocking and relocking by an access control device.

  • Double-locking spindle (stronger and more secure)
  • Aluminum alloy construction, reversible, non-handed
  • Fail-secure operation (but can be opened from inside by pressing the bar)
  • Lock status monitoring for indicating status
  • Mortise lock cylinder and keys included to release the lock from the outside
  • Dogging latch on push bar to hold open
  • Includes all needed hardware for typical installations
  • Solenoid-actuation allows unlocking and relocking by an access device
  • Solenoid is rated for both continuous and intermittent operation
Operating voltage 12~24 VDC/VAC
Current draw 1.5A (0.5A after 3s)
Endurance Over 500,000 cycles
Housing Anodized aluminum
For doors 36″ (91.5cm), min. 327/8″ (83.5cm), wood or metal
Relay rating Form C, 5A@125VAC
Mode Fail-secure
Dimensions 2 7/16″x2 9/16″x35 1/16″ (61.5x65x890 mm)
