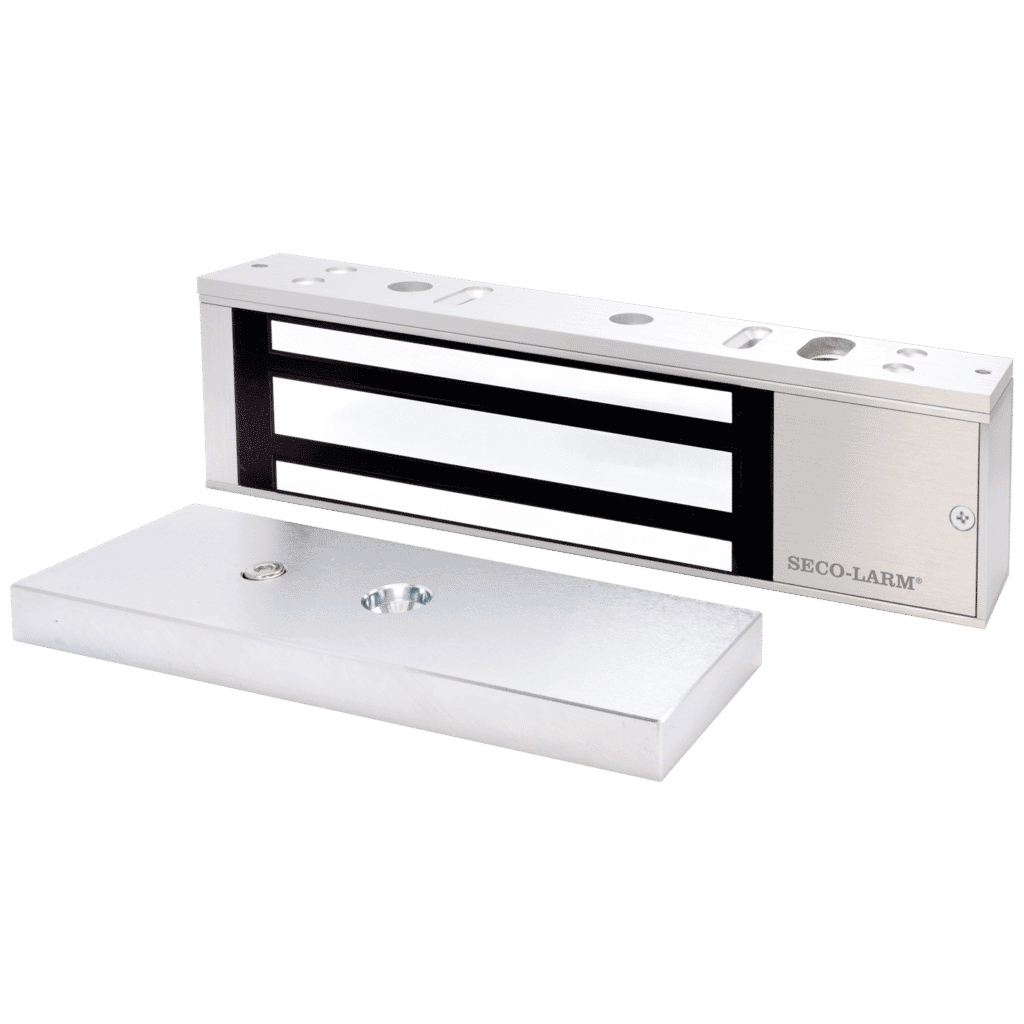

The E-941Sx series of electromagnetic locks is the ideal way to secure a door against unauthorized entry. When power is applied to the electromagnetic lock, it creates an extremely strong magnetic field. The electromagnet is strongly attracted to the steel armature plate which is mounted on the secured door. Once the electromagnet is deactivated, the secured door will function normally without any residual magnetism.
E-941SA-1200
Single-door Electromagnetic Lock with 1,200-lb (545kg) holding force. 12 or 24 VDC operation. UL, CUL listed.
E-941SA-1K2PQ
Single-door Electromagnetic Lock with 1,200-lb (545kg) holding force. 12 or 24 VDC operation. Bond Sensor & LED. UL, CUL listed.
E-941SA-1K2DPSQ
1200 Pound Electromagnetic Lock with DPS
E-941SA-1K2PD
Single-door Electromagnetic Lock with 1,200-lb (545kg) holding force. Two-colored LED, status sensor relay output, delay timer (1~78 sec).
- 1,200-lb (545kg) Holding force
- No residual magnetism
- MOV Surge protection
- Anodized aluminum housing (US 28)
- Adjustable mounting bracket
- Complete mounting hardware for typical installations

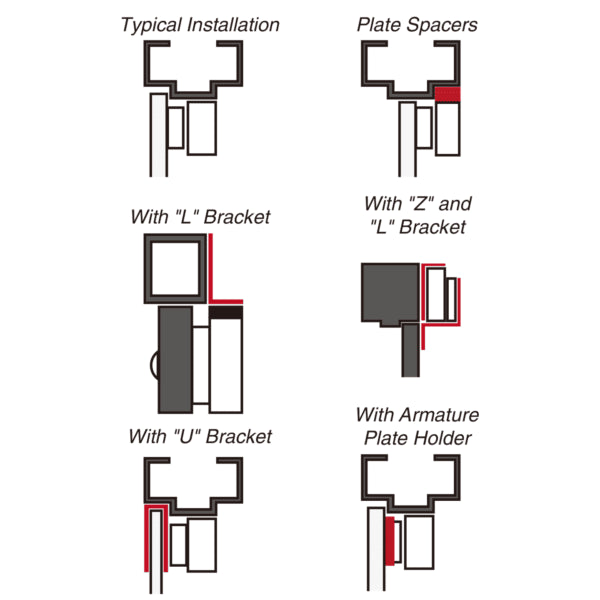

- Additional brackets available for easy mounting or atypical situations
- Detachable faceplate for easy access to wiring
- 12/24VDC Selectable
- Multiple UL listings
-
- UL294 Access Control System Units – USA
- UL1034 Burglary Resistant Electric Lock – USA
- UL864 Fire Alarm Systems – USA
- UL10C Positive Pressure Fire Test – USA
- UL10B Fire Test of Door Assemblies – USA
- ULC-S104 Fire Test of Door Assemblies – Canada
- Lifetime limited warranty*
*Warranty applies in the USA and Canada only. Contact SECO-LARM for details.
Operating voltage |
12 /24 VDC (selectable |
Current draw |
500mA@12VDC, 250mA@24VDC |
Door thickness (max.) |
1-13/16″ (46mm) |
Holding force |
1,200-lb (545kg) |

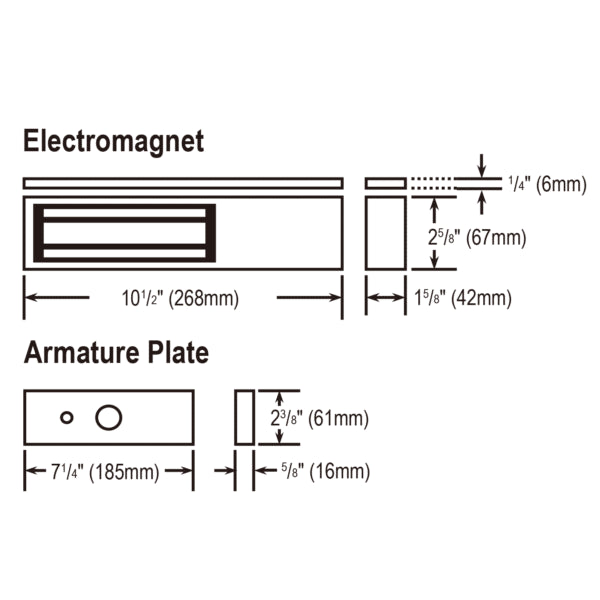

Dimensions – Magnet |
10-1/2″x2-5/8″x1-9/16″ (267x67x40 mm) |
Dimensions – Mounting Plate |
10-1/2″x1-9/16″x1/4″ (267x40x5.5 mm) |
Dimensions – Armature Plate |
7-1/4″x2-3/8″x5/8″ (185x61x16 mm) |
Operating humidity |
0~85 (non-condensing) |
Operating temperature |
32°~120° F (0°~49° C) |
Lock surface temperature |
≤ Ambient temperature ± 68° F (20° C) |
Destructive attack |
Level I |
Line security |
Level I |
Standby power |
Level I |
Endurance |
Level IV |
Weight |
4-lb 6-oz (2kg) |
UL 1034 Rating
Static strength |
1,000-lb |
Dynamic strength |
70 ft-lb |
Endurance |
250,000 cycles |
