The E-941Dx series of electromagnetic locks is the ideal way to secure a door against unauthorized entry. When power is applied to the electromagnetic lock, it creates an extremely strong magnetic field. The electromagnet is strongly attracted to the steel armature plate which is mounted on the secured door. Once the electromagnet is deactivated, the secured door will function normally without any residual magnetism.

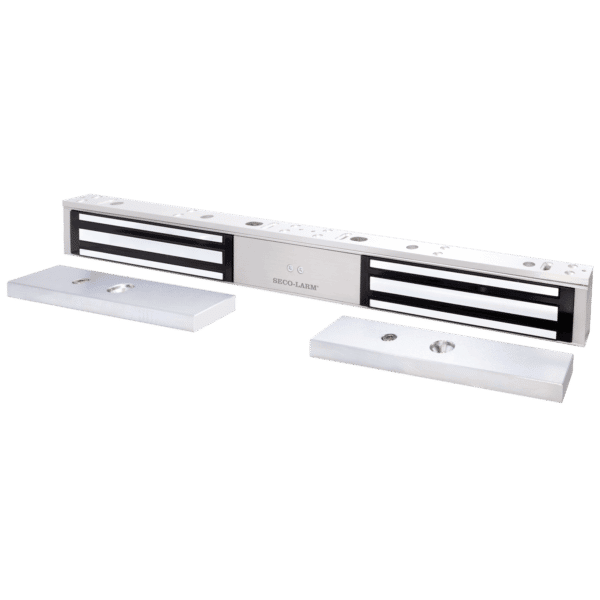

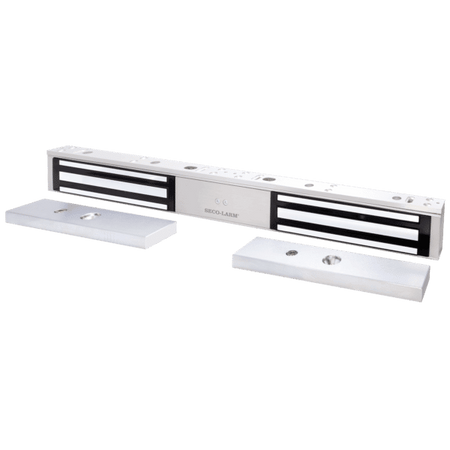

E-941DA-600Q
600LB Double Maglock UL listed
E-941DA-600PQ
600LB Double Maglock with bond sensor and status LED, UL listed

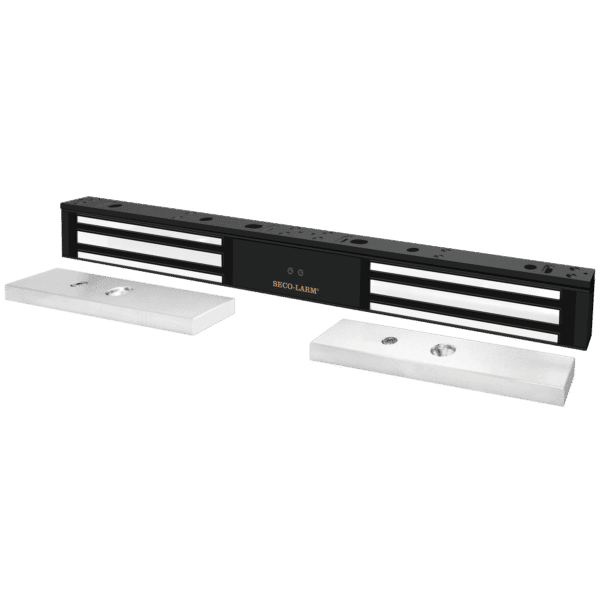

E-941DB-600PQ
Black 600LB Double Maglock with bond sensor and status LED, UL listed
- 600-lb (272kg) Holding force per door
- MOV surge protection
- Adjustable mounting bracket
- Complete mounting hardware for typical installations

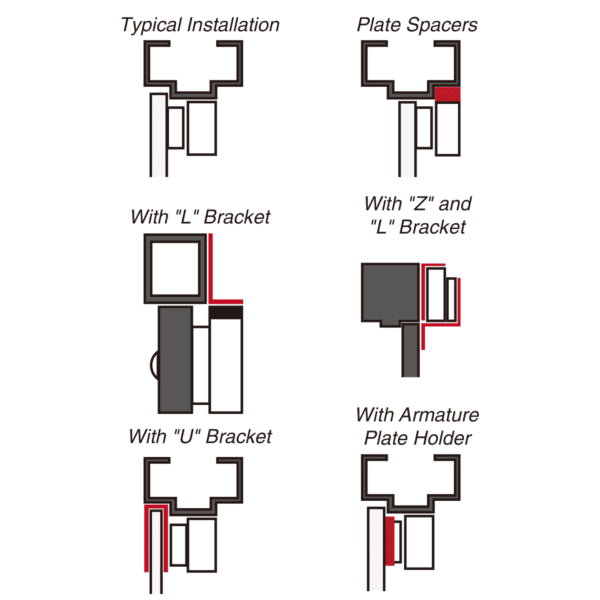

- “L” bracket and “Z” brackets available for easy mounting
- Detachable faceplate
- 12/24VDC selectable
| Holding force | 600-lb (272kg) per door |
| Operating voltage | 12 /24 VDC (selectable) |
| Current draw | 500mA@12VDC per door (1A total) 270mA@24VDC per door (540mA total) |
| Operating temperature | 32º~120º F (0º~49º C) |

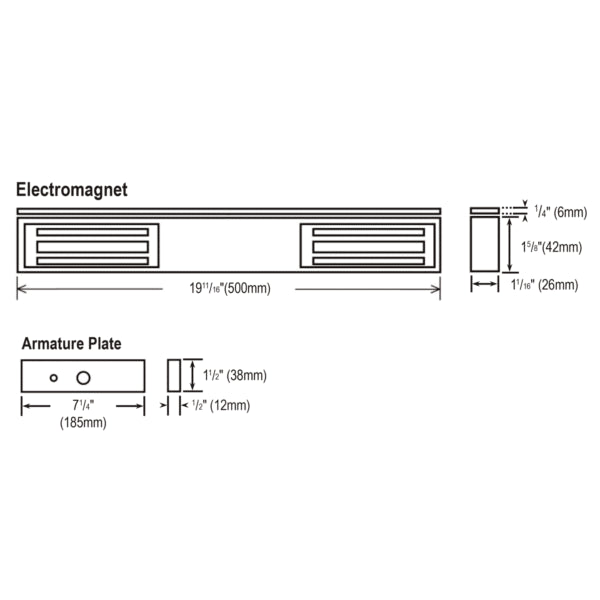

| Electromagnet dimensions | 19-11/16″x1-11/16″x1″ (500x43x25 mm) |
| Armature dimensions | 7-1/4″x1-1/2″x1/2″(185x38x12 mm) |
| Weight | 9-lb (4kg) |
| Destructive attack | Level I |
| Line security | Level I |
| Standby power | Level I |
| Endurance | Level IV |
.
Product Information Sheet (PI) (pdf, 274KB)
MANUAL (pdf, 747KB)
Mounting Template (pdf, 42KB)
