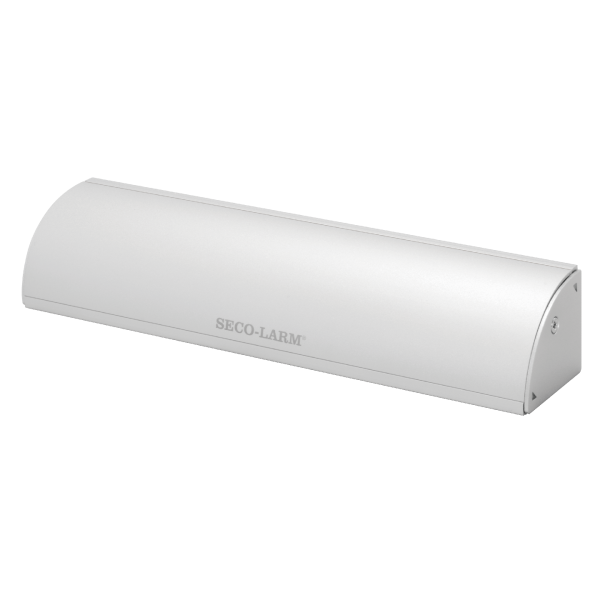

Compatible with SECO-LARM Rim Strikes.
| Material | Aluminum |
| Dimensions | 11-1/16″x9x1-7/8″ (42.2×228.5×48.2 mm) |
| Weight | 11.3-oz (320g) |

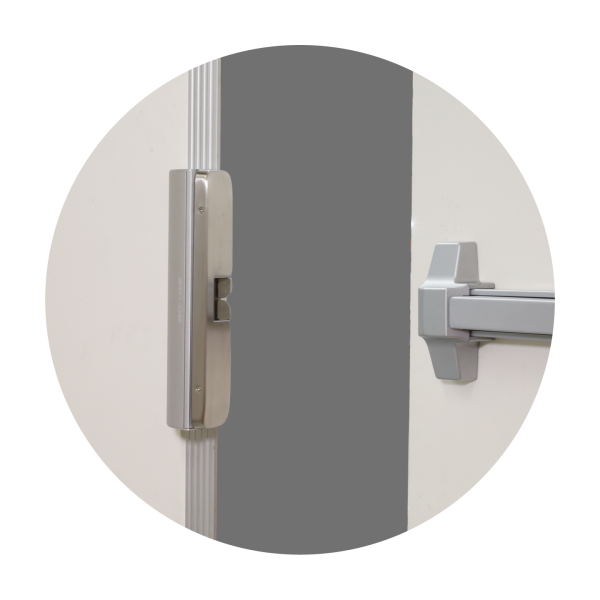

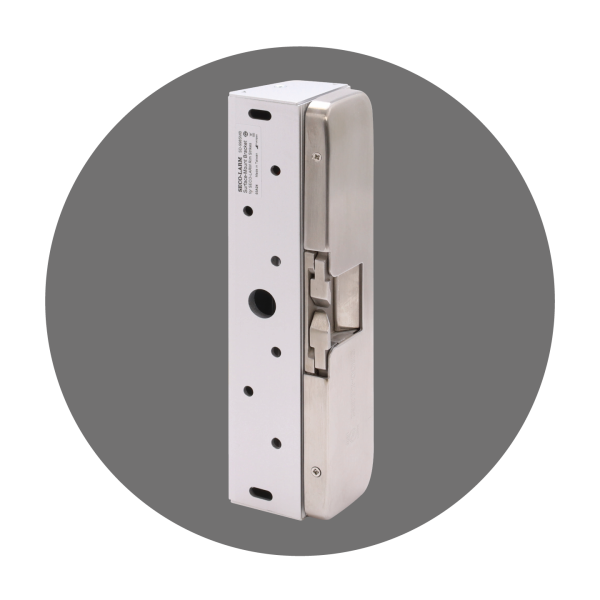

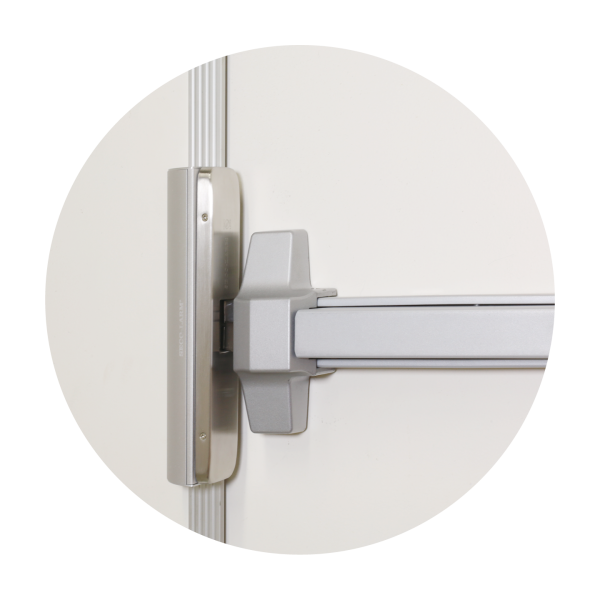

The SECO-LARM Surface-Mount Electric Rim Strike designed with the strength and durability for use with rim-type exit devices with a Pullman latch bolt (3/4″ throw). The strike features 12/24 VDC operating voltage, selectable fail-safe/fail-secure operation, horizontal adjustment, and a surface-mount metal housing, eliminating the need for frame cutting during installation.
| Operating Voltage | 12/24 VDC |
| Current Draw | 540mA@12VDC , 270mA@24VDC |
| Latch Throw | 3/4″ |
| Static Strength | 1,500-lb (6673N) |
| Dynamic strength | 70ft-lb (95J) |
| Endurance | 250,000 cycles (UL Tested), Level IV |
| Destructive attack | Level I |
| Line security | Level I |
| Standby power | Level I |
| Operating Temperature | 14~120 F (-10~49 C) |
| Operating Humidity | 0~85% |
| Dimensions | 9″x1-3/4″x3/4″ (229x45x19 mm) |
The SECO-LARM Surface-Mount Electric Rim Strike designed with the strength and durability for use with rim-type exit devices with a Pullman latch bolt (1/2″ throw). The strike features 12/24 VDC operating voltage, selectable fail-safe/fail-secure operation, horizontal adjustment, and a surface-mount metal housing, eliminating the need for frame cutting during installation.
| Operating Voltage | 12/24 VDC |
| Current Draw | 540mA@12VDC , 270mA@24VDC |
| Latch Throw | 1/2″ |
| Static Strength | 1,500-lb (6673N) |
| Dynamic strength | 70ft-lb (95J) |
| Endurance | 250,000 cycles (UL Tested), Level IV |
| Destructive attack | Level I |
| Line security | Level I |
| Standby power | Level I |
| Operating Temperature | 14°~120° F (-10°~49° C) |
| Operating Humidity | 0~85% |
| Dimensions | 9″x1-3/4″x1/2″ (229x45x13 mm) |
| Type | Sealed Housing Weatherproof Outdoor Digital Access Keypad |
| Number of User Codes | Up to 1,010 |
| Operating Voltage | 12~24 VAC/VDC |
| Current Draw – Standby | 64mA@12VDC |
| Current Draw- Active | 92~120mA@12VDC |
| Relay Outputs (2) | 1A@30VDC, Form C, NO/COM/NC |
| IP Rating | Weatherproof IP65 |
| Egress Inputs | 2, N.O. Ground |
| Door Sensor Input | N.C. Ground |
| Tamper Sensor | Optical |
| Keypad LED Life | 60,000 hours (over 6.8 years) |
| Operating Temperature | -4°~122° F (-20°~50° C) |
| Dimensions | 4-3/4″x3″x7/8″ (120x76x22 mm), 6″ x 1-3/4″ x 15/16″ (152 x 44 x 24 mm) |
| Weight | 1-lb 2-oz (510g) |
The E-941Dx series of electromagnetic locks is the ideal way to secure a door against unauthorized entry. When power is applied to the electromagnetic lock, it creates an extremely strong magnetic field. The electromagnet is strongly attracted to the steel armature plate which is mounted on the secured door. Once the electromagnet is deactivated, the secured door will function normally without any residual magnetism.
*Warranty applies in the USA and Canada only. Contact SECOLARM for details.
| Holding force | 1200-lb (545kg) per door |
| Operating voltage | 12 /24 VDC (selectable) |
| Current draw | 500mA@12VDC per door (1A total) 270mA@24VDC per door (540mA total) |
| Operating temperature | 32º~120º F (0º~49º C) |
| Electromagnet dimensions | 21″ x 2-5/8″ x 1-5/8″ (536x67x42 mm) |
| Armature dimensions | 7-1/4″x2-3/8″x5/8″(185x61x16 mm) |
| Weight | 21-lb (10kg) |
| Destructive attack | Level I |
| Line security | Level I |
| Standby power | Level I |
| Endurance | Level IV |
The E-941Sx series of electromagnetic locks is the ideal way to secure a door against unauthorized entry. When power is applied to the electromagnetic lock, it creates an extremely strong magnetic field. The electromagnet is strongly attracted to the steel armature plate which is mounted on the secured door. Once the electromagnet is deactivated, the secured door will function normally without any residual magnetism.
*Warranty applies in the USA and Canada only. Contact SECO-LARM for details.
| Operating voltage | 12/24 VDC (selectable) |
| Current draw | 500mA@12VDC, 250mA@24VDC |
| Door thickness (max.) | 2″ (50mm) |
| Holding force | 600-lb (272kg) |
| Dimensions – Magnet | 9-13/16″x1-11/16″x1″ (250x43x25 mm) |
| Dimensions – Armature Plate | 7-1/4″x1-1/2″x1/2″ (185x38x12 mm) |
| Operating humidity | 0~85 (non-condensing) |
| Operating temperature | 32°~120° F (0°~49° C) |
| Lock surface temperature | ≤ Ambient temperature ± 68° F (20° C) |
| Destructive attack | Level I |
| Line security | Level I |
| Standby power | Level I |
| Endurance | Level IV |
| Weight | 4-lb 6-oz (2kg) |
UL 1034 Rating
| Static strength | 500-lb |
| Dynamic strength | 50 ft-lb |
| Endurance | 250,000 cycles |
