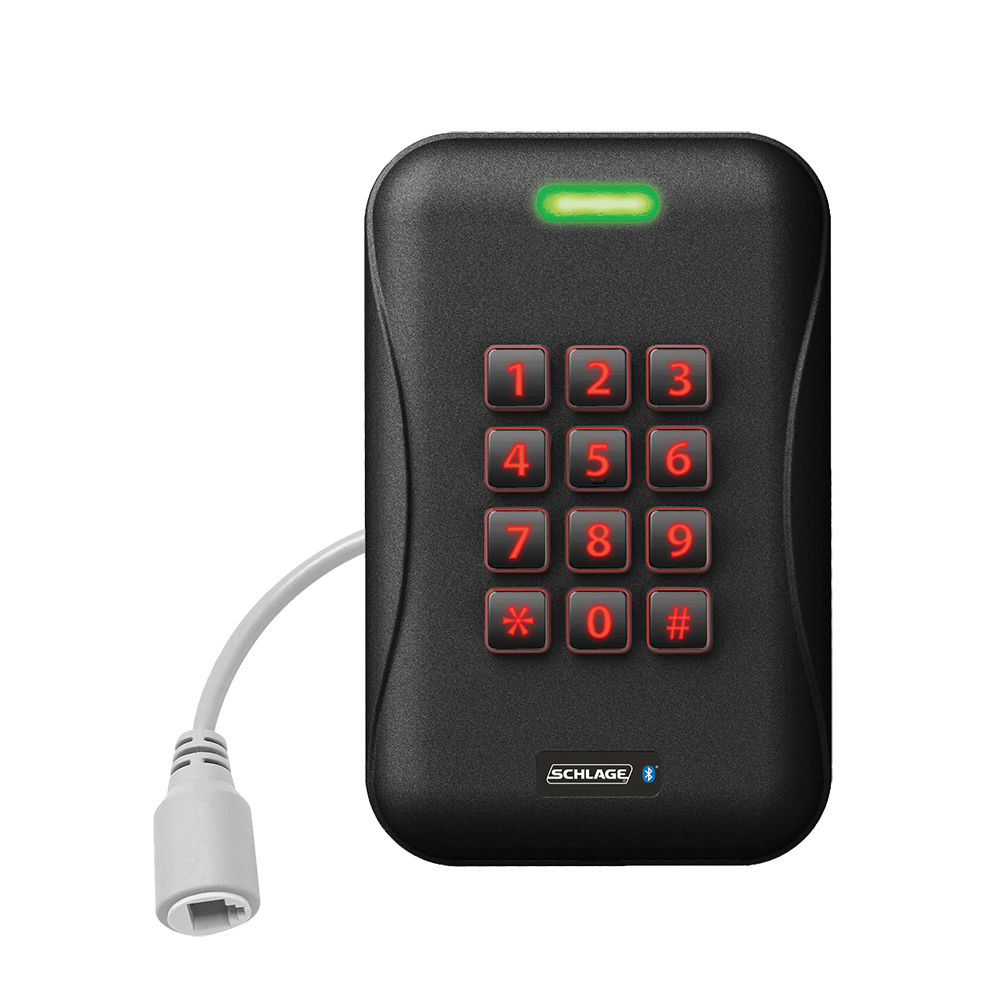

Schlage RCK15 IP Reader With Keypad

SKU: RCK15
$ 958.88
The RCK15 wall mount with keypad is a next-generation IP reader controller designed for scalable and flexible real-time access control in perimeter and high security applications. The all-in-one device leverages the comprehensive ecosystem from Schlage and offers simplified architecture, installation and integration into open PACS solutions, including Pure Access Cloud.

Security

  • Electronics bring more visibility and control to the opening
  • Communication is secured using industry standard TLS 1.2 encryption
  • Tamper detection via accelerometer senses any type of altering and prevents a security breach with the reader
  • Accommodates interior, exterior, metal and non-metal installation environments



Efficiency

  • Commission via ENGAGE™ mobile app for easy configuration
  • Local mode results in faster response times, less network traffic and reduced host system loading
  • Connects to existing IT networks via a single PoE cable, reducing install time by eliminating need to run separate power to the door



Convenience

  • Three configurable inputs; Door Position (DPS), Request to Exit (REX), and Auxiliary (AUX)
  • Designed with technology to support Bluetooth, NFC and smart credentials for flexible migration paths
  • Credential parity standard with Schlage readers and wireless locks; ISONAS credential parity is a factory orderable option (specify CE-5902-0403)

Modes and capacity

  • Host mode: real time connectivity; unlimited credentials, events, time schedules, and holidays capacity*
  • Local mode: decisions made at the device when connection is offline or configured to local; 64,000 credentials, 5,000 events and 32 time schedules

* Host capacity is based on your host programming; contact your support team



Communications standards

  • 10/100 Ethernet, half or full duplex
  • Cat5e, Cat6 or better cable
  • Network host or client modes supported
  • DHCP addressing supported
  • Transport Layer Security (TLS) version 1.2



Power options

  • Power over Ethernet (PoE), (IEEE 802.3af, Class 0)
  • DC power: 10-13 VDC; please note: 24 VDC is not approved for this device



Additional

  • Operating temperatures: -31 °F to 151 °F (-40 °C to 66 °C)
  • General purpose Request to Exit (REX) and Auxiliary (AUX)
  • LED signal for reader status
  • On/off audible indicator
  • Tamper detection via an accelerometer



For full electronic specifications, please reference the RC reader controller data sheet.
