Schlage PC Series Cylindrical Locks
The PC Series lock is a purpose-built grade 1 lock designed for commercial real estate, retail, and multifamily buildings.

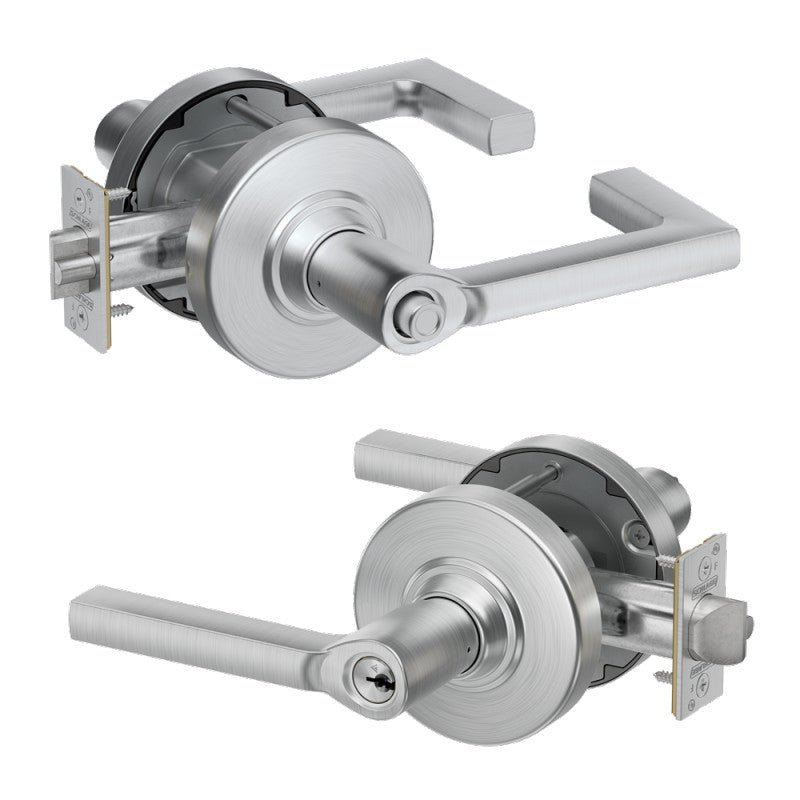

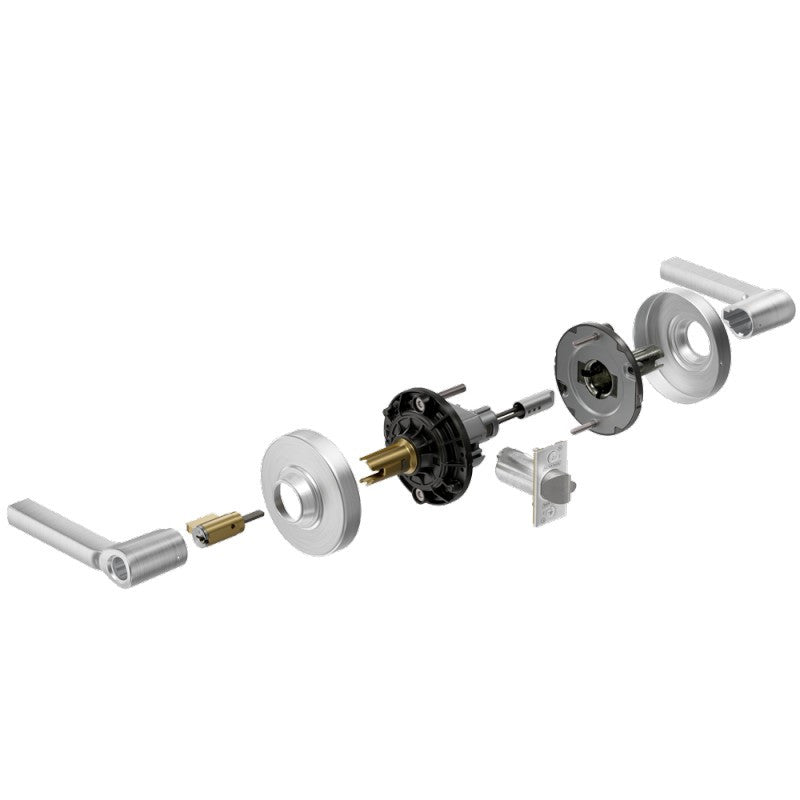

Purpose-built to serve the commercial real estate, retail, multifamily, and hospitality industries, Schlage Performance Series™ locks feature exceptional quality and style at a highly competitive price point. The PC Series cylindrical locks offer eight mechanical functions, made to meet Schlage’s rigorous quality standards. They bring together aesthetic options appropriate for the design-forward occupant touch points of these industries and the full range of Schlage key system security. You can use PC Series locks as part of a common aesthetic. They are made to suite with other Allegion products to present a quality, complete door hardware solution and provide a consistent user experience throughout your building or complex. With the PC Series, you can speedily install the lock with the common cylindrical ANSI 161 door prep, pre-assembled install-assist design, and a no-adjustment chassis that fits the full door range.
Technical Specs
-
Fire Rated: Yes
-
Handing: Non-Handed
-
Std. Strike Height: 4-7/8"
-
Std. Strike Width: 1-1/4"
-
Std. Latch Backset Dim: 2-3/4"
-
Std. Strike Type: ANSI Strike
-
Lever/Knob Design Family: Curved Lever
-
Door Thickness: 1-3/8" to 1-3/4"
-
Function Family: Entrance/Office
-
Cylinder Type: SFIC Prep, Less Core
-
Function: PC50-Entrance/Office Lock
-
ANSI Function: F82
-
Rose/Escutcheon Design: 3-11/25" Rose Diameter
-
Rose/Escutcheon Dimensions: 3-11/25" Diameter
Security
- Certified to ANSI/BHMA Grade 1 operational and security standards
- UL listed for 3-hour fire door
- Patented Everest 29™ S123 keyway is provided standard which prohibits unauthorized key duplication
- Lock monitoring options; Mechanical Request to Exit (RX) kits sold seperately
- Restricted geographically exclusive Primus upgraded security options offer advanced key control and exceptional physical security
- Compatible with over 7 different non-Schlage key systems
Aesthetics

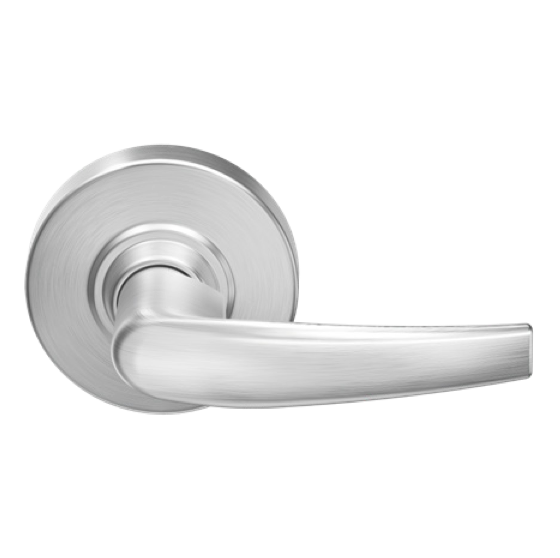

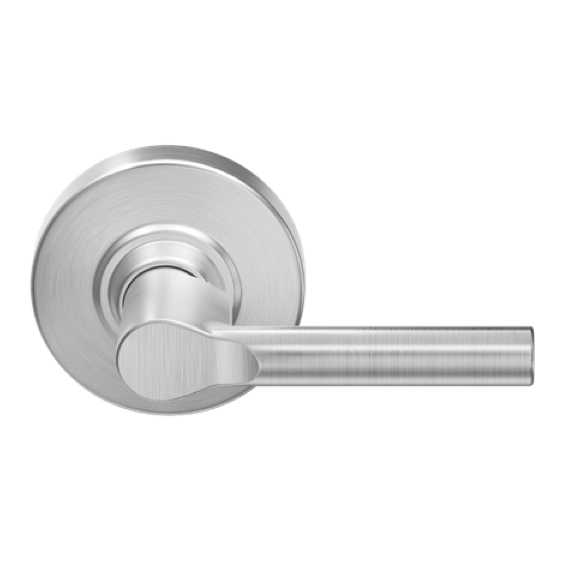

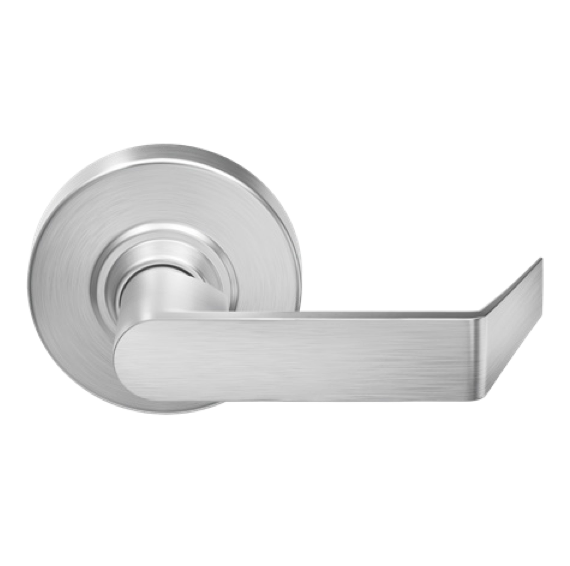

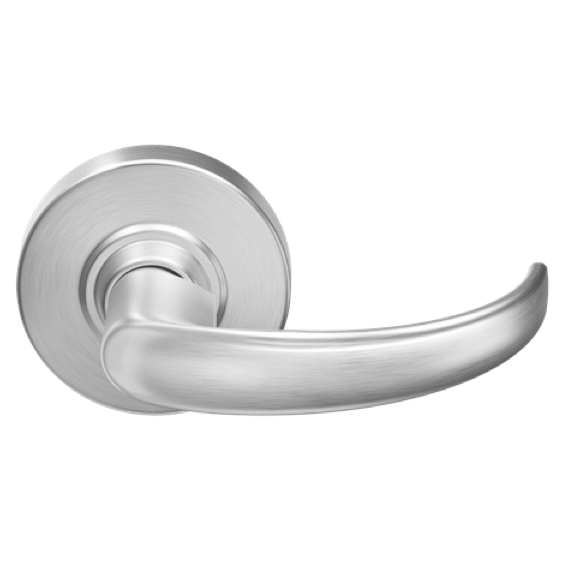

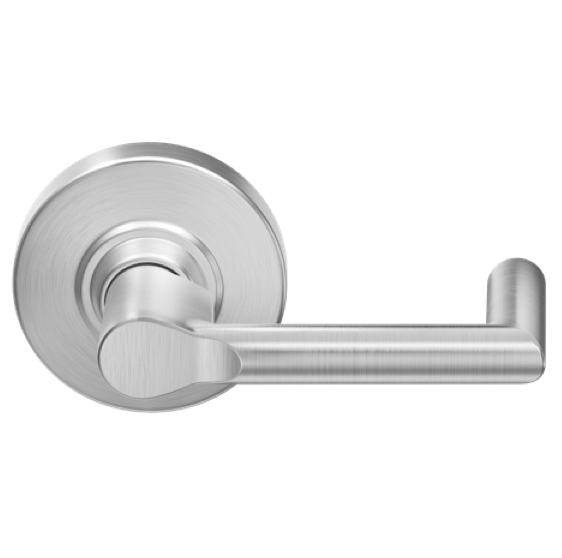

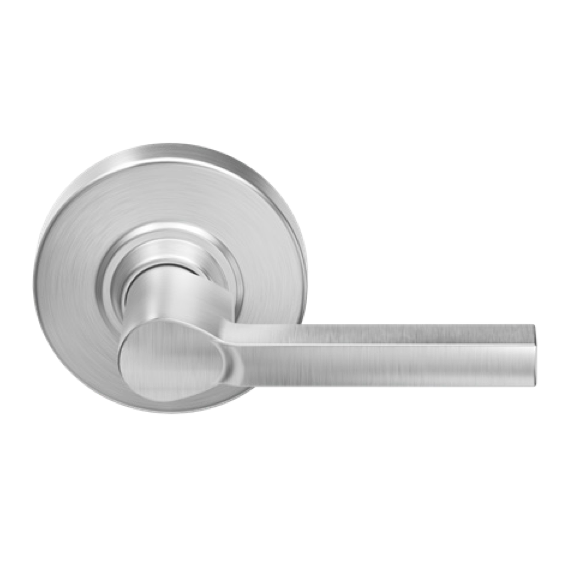

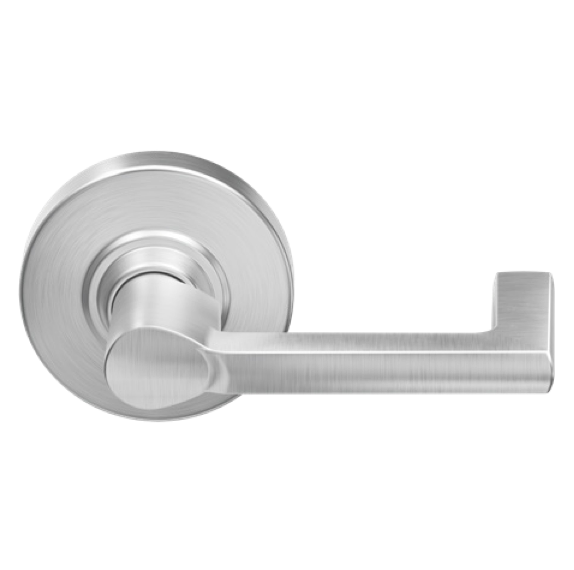

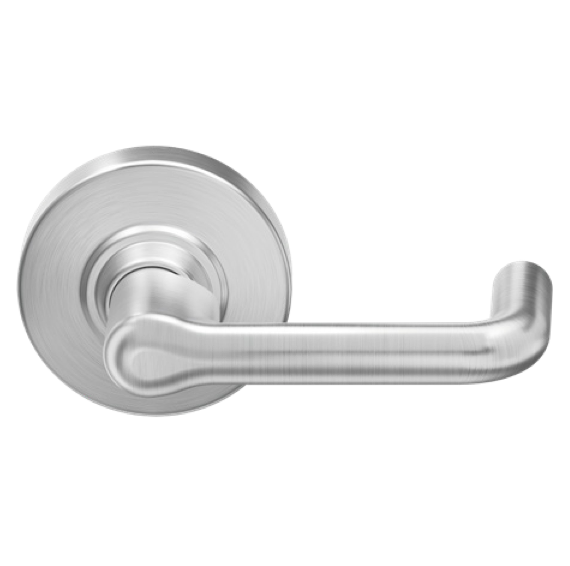

- Eight lever styles constructed of solid zinc offer a strong-yet-comfortable feel
- Snap on wrought brass rose eliminates exposed screws
- Suites with PM Series, PT Series, and ALX Series Grade 2 cylindrical locks and more
- All levers suite with Von Duprin exit devices
- Six available finishes across all levers and trims; Satin Chrome, Satin Nickel, Bright Chrome, Matte Black, Aged bronze, Oil Rubbed Bronze
Functions
- Eight mechanical functions include 4 keyed, 2 non-keyed, 2 dummy
- Keyed; Entrance, Entrance/Office, Storeroom, Classroom Lock Exterior Lockdown,
- Non-keyed; Passage latch, Bed/Bath Privacy
- Dummy: Single and Double Dummy
Built to Perform
- Every Schlage lock undergoes intensive testing to determine its ANSI grade level including: cycle, resistance, door impact, warped door and bolt strength tests
- 5-year mechanical warranty
Product Specs
- Subcategory:Mortise Locks
- Product Group:Mechanical Locks
- Series:PC Series
- Function Description:Levers only-both sides; latchbolt only; Latchbolt retracted by lever from either side at all times
- Grade:Grade 1
- Keyed Function:Non-Keyed
- Handle Type:Lever
- Standard Strike:10-072 1-1/4" x 4-7/8" Square Corner Strike, Box (1-3/16" Lip Length)
- Keyed:No
- ANSI/BHMA:F82
- Product Subgroup:Mortise Locks and Trim
- Product Type:Mortise Locks
- Commercial/Residential:Commercial
- Lock Type:Mortise
- Lock Function:Entrance/Office
- IMAP Policy:Yes
- Product Attribute:Mortise Locks
- Electronic:No
- Product Model:PC50
- Product Function:Entrance/Office Lock
- Door Hand Direction:Field Reversible
- Door Thickness Range:1-3/4"
- Product Category:Mechanical Locks
- Backset (Distance):2-3/4"
- Department:Door Hardware
