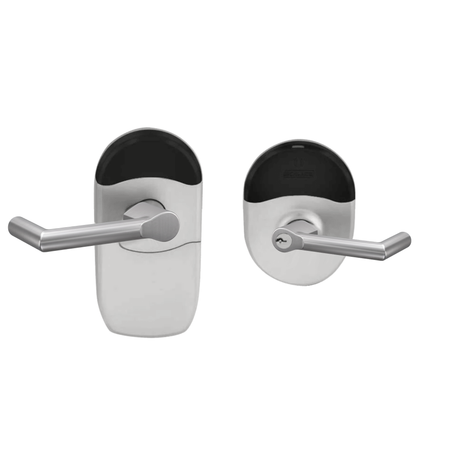

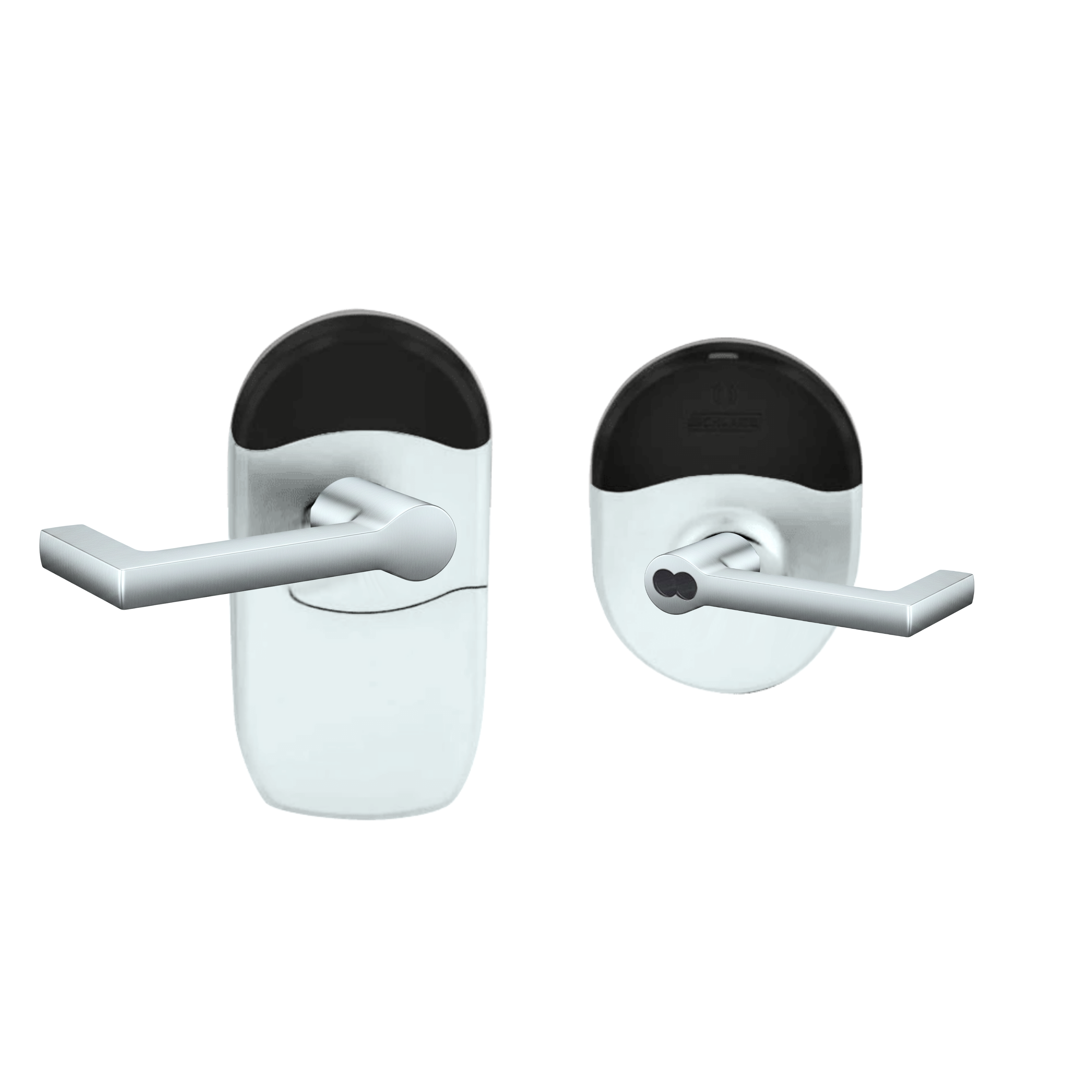

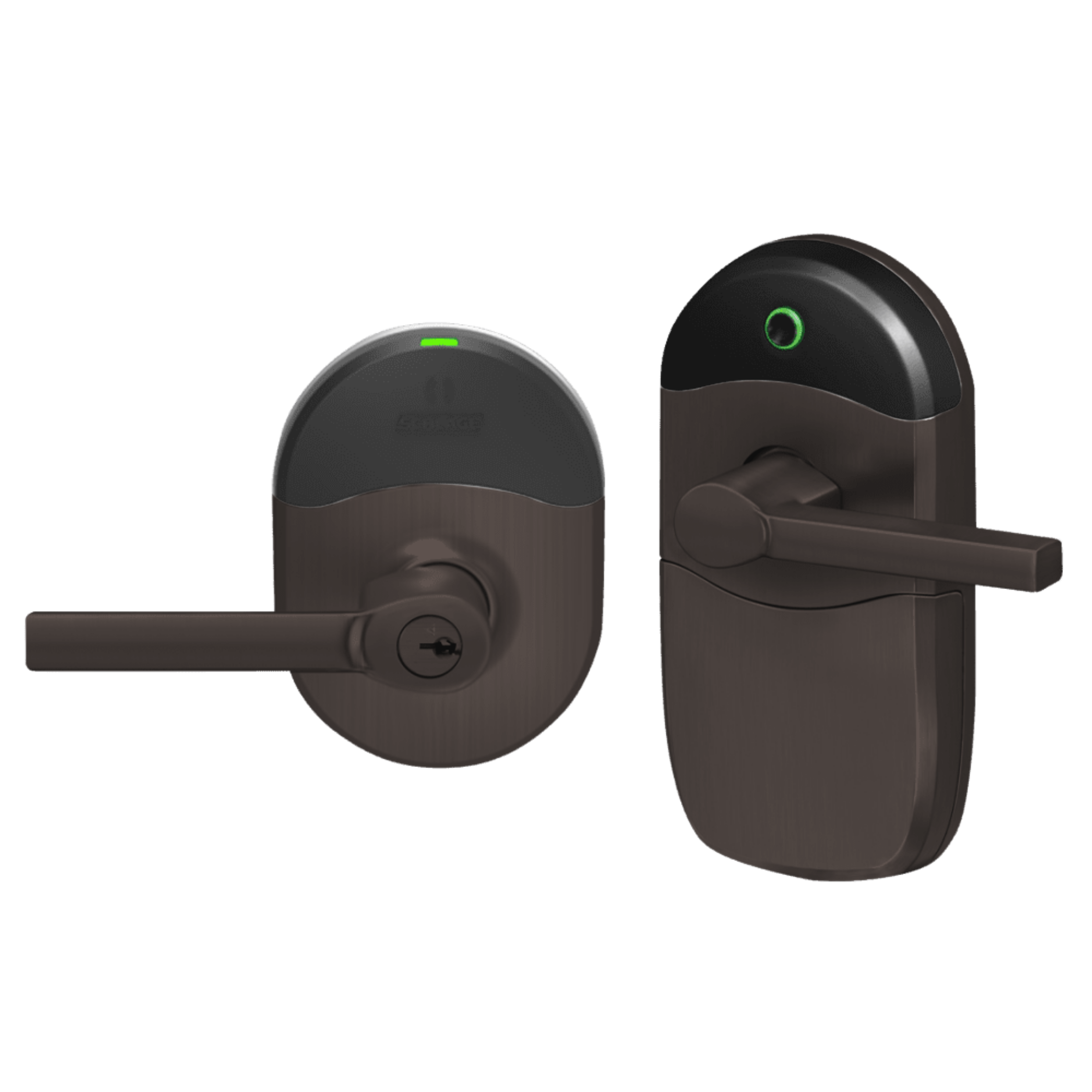

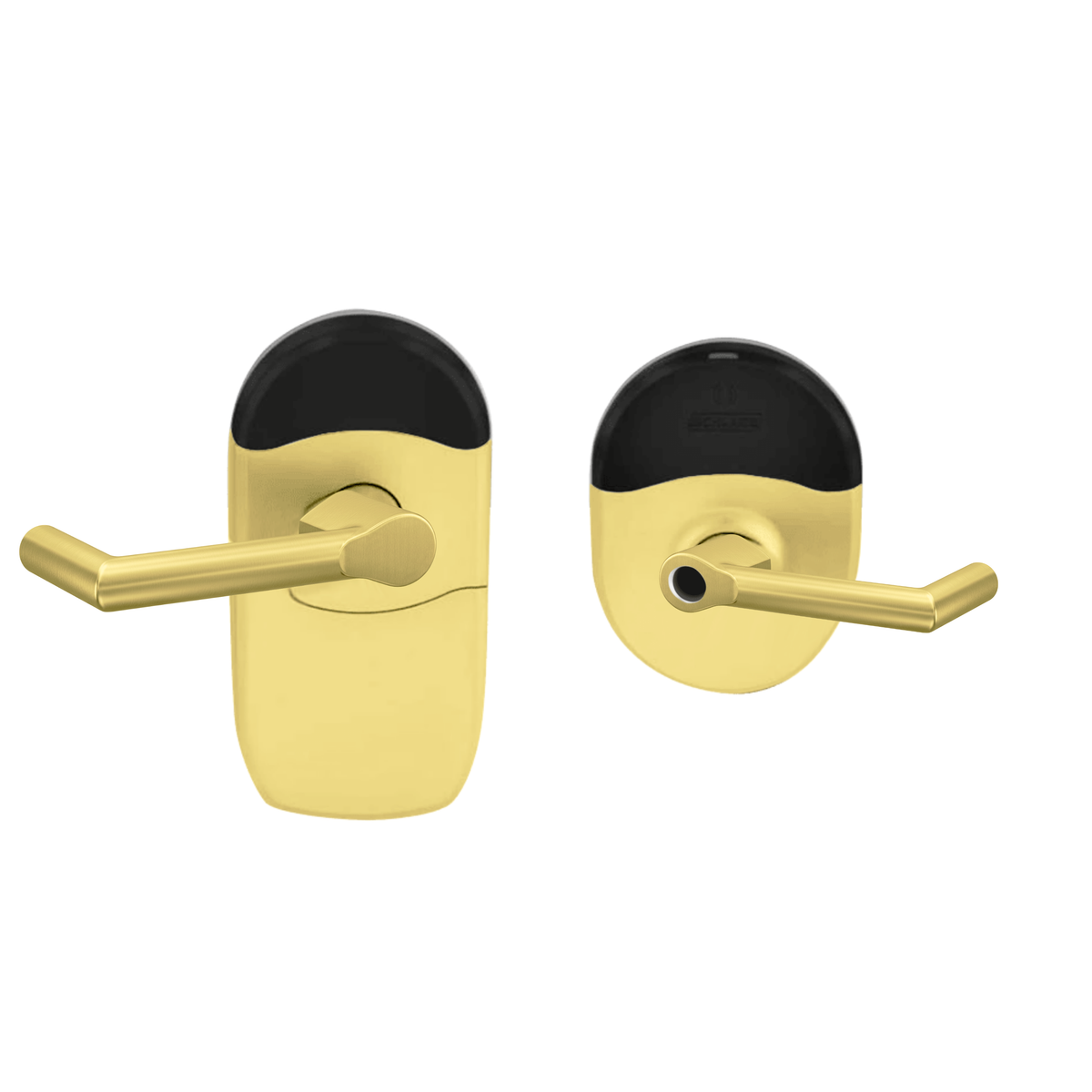

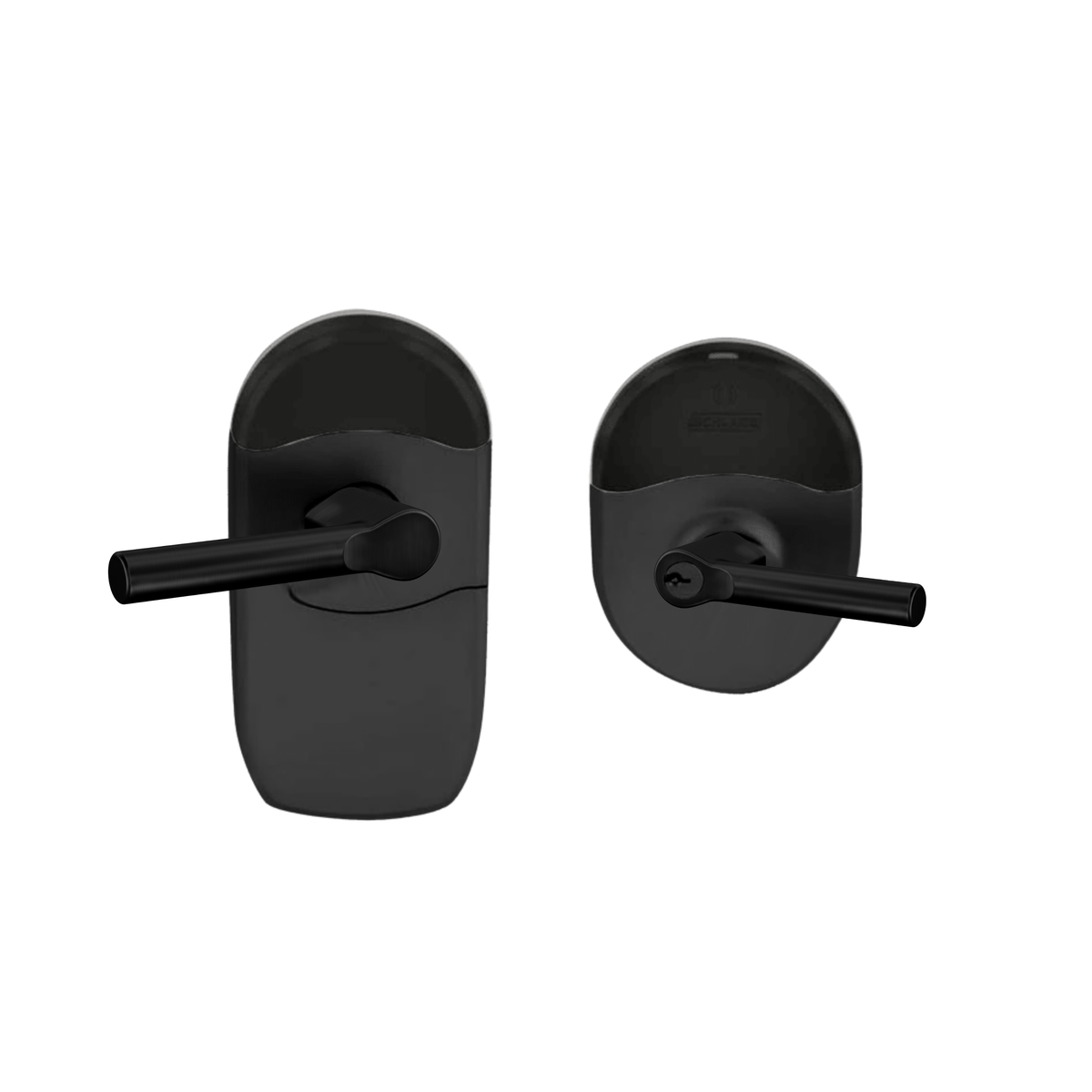

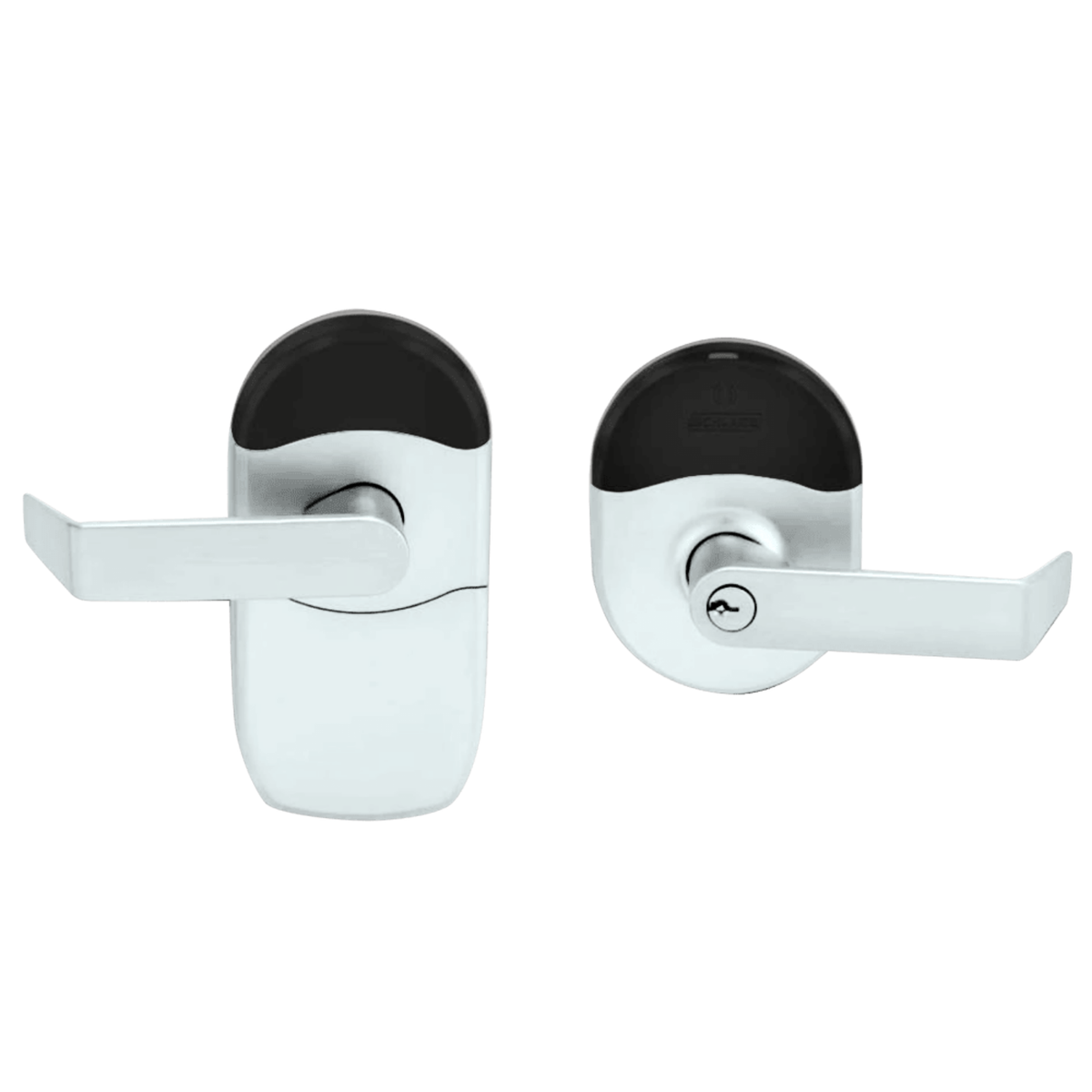

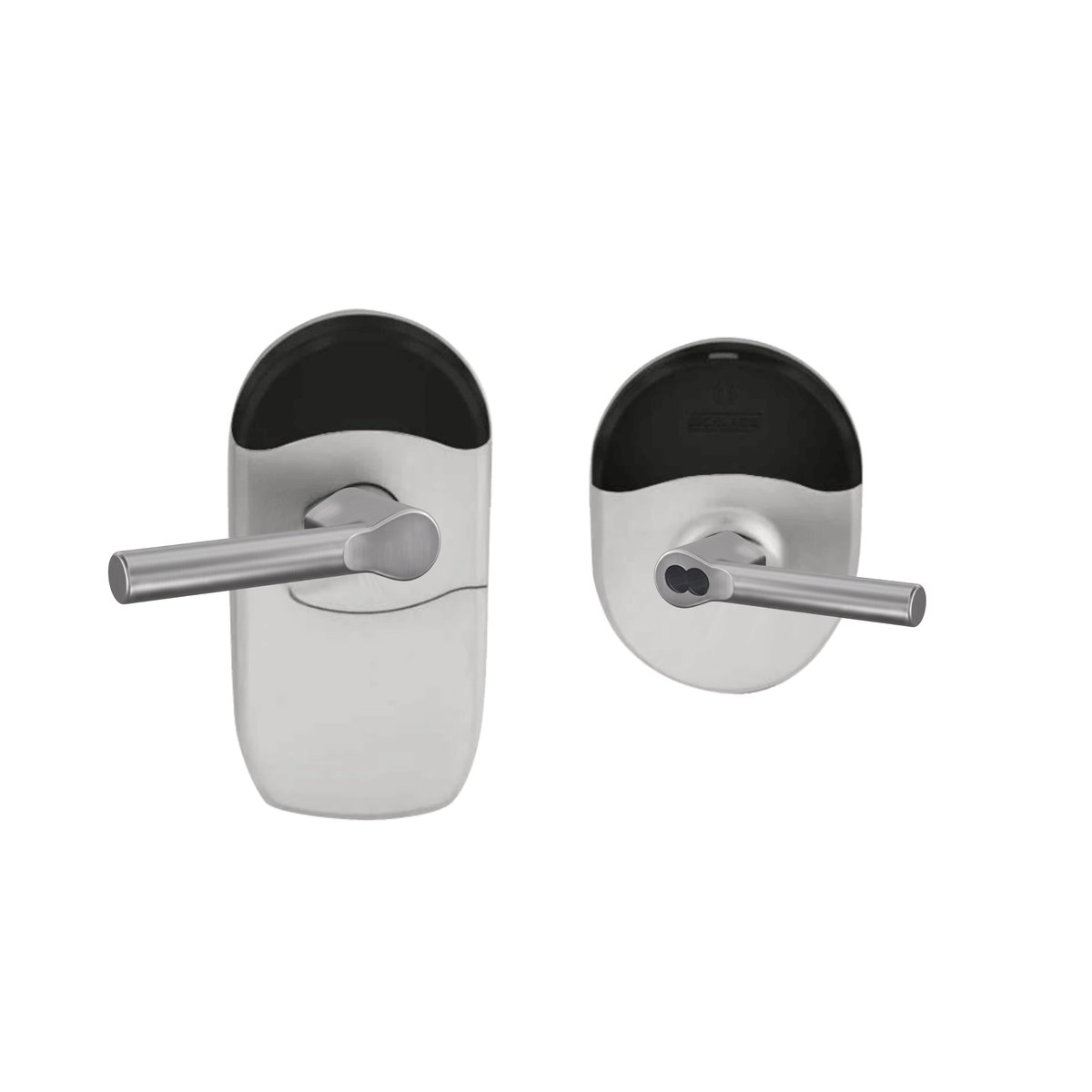

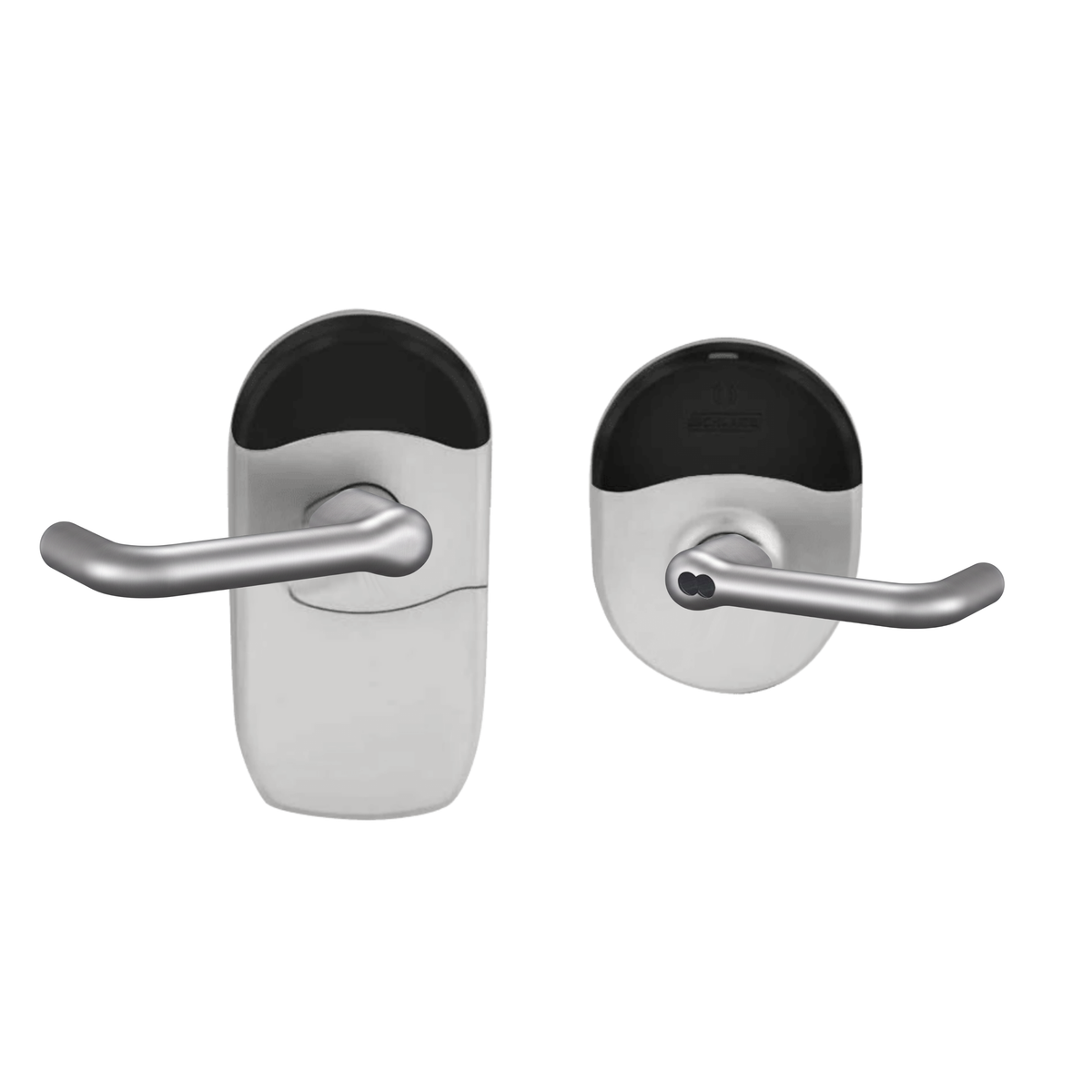

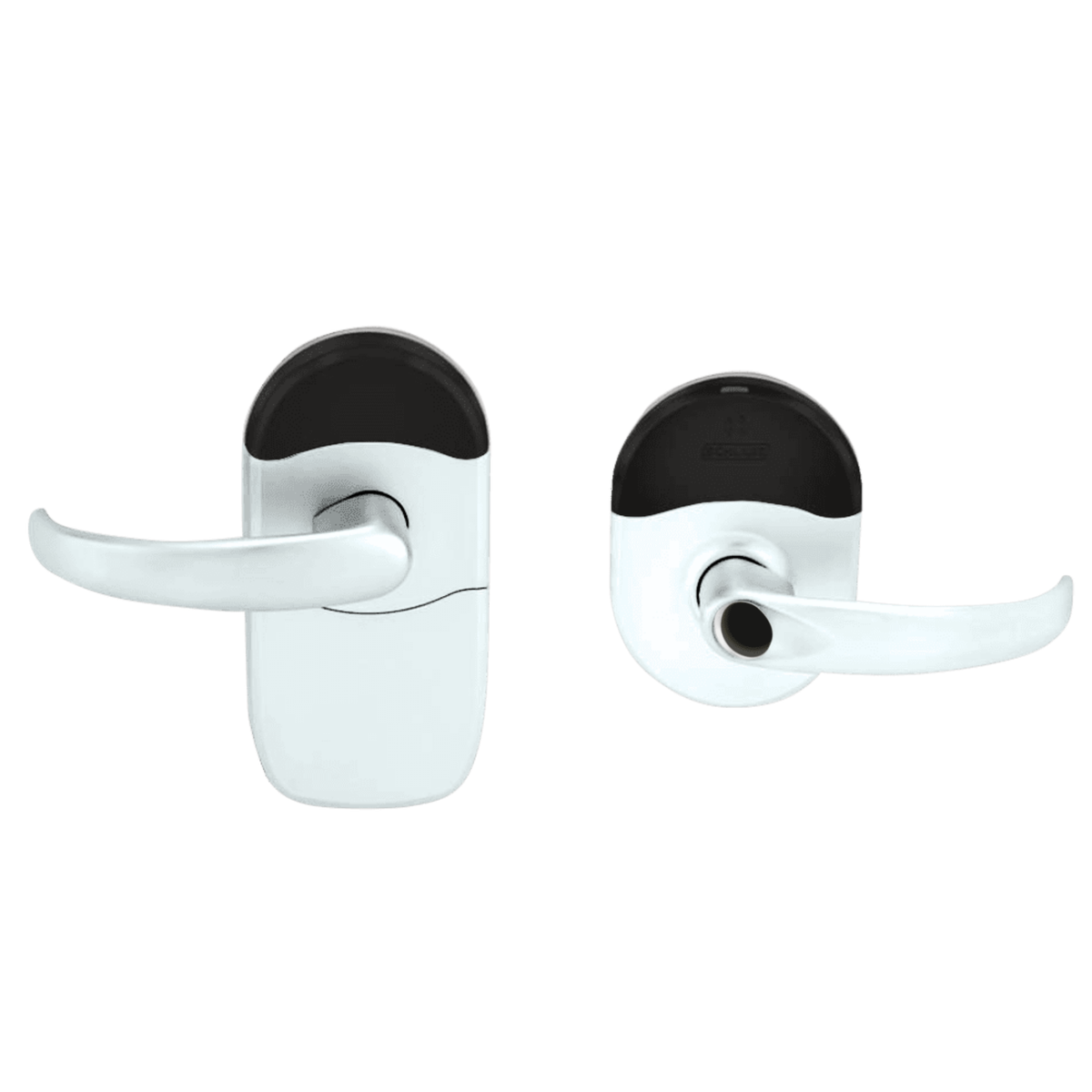

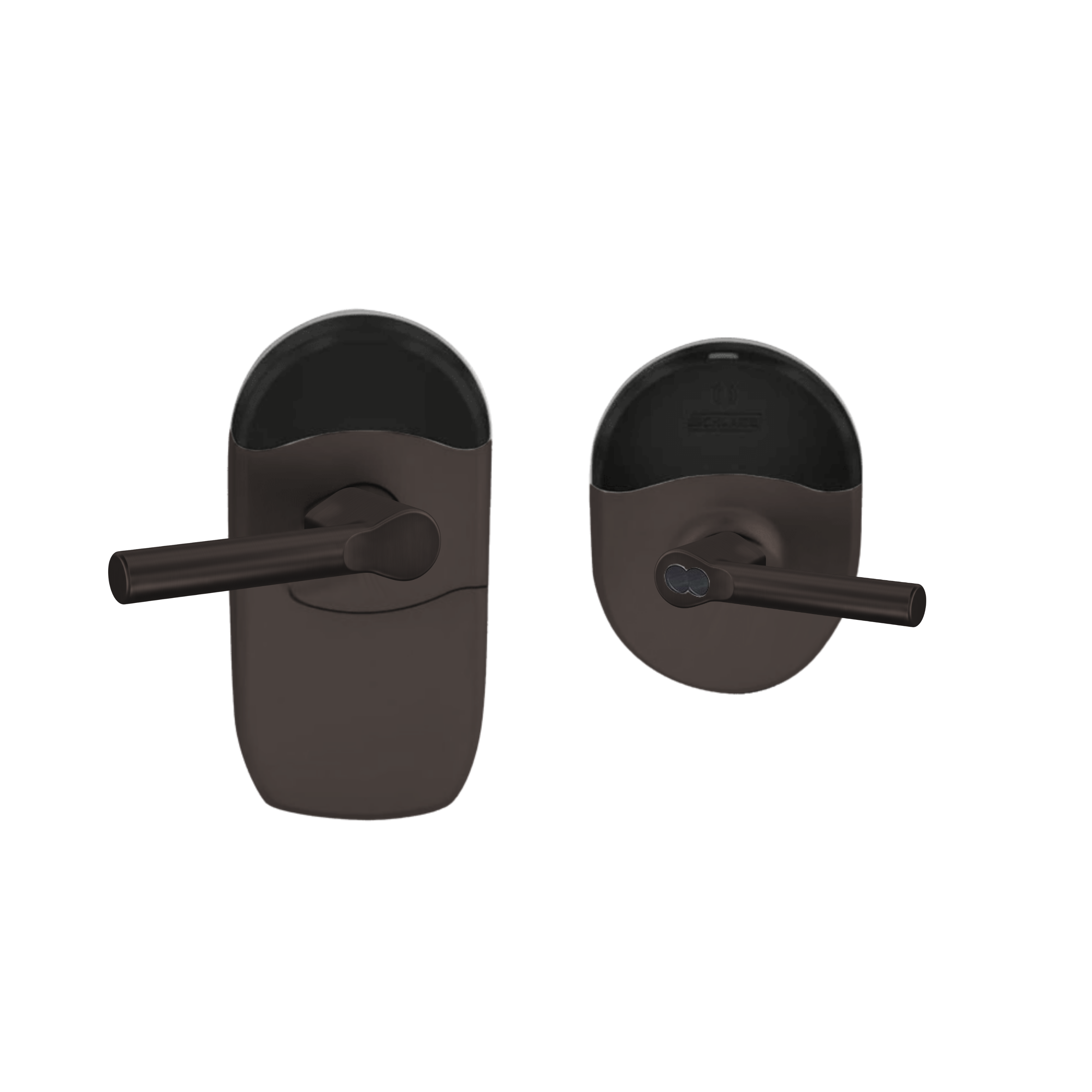

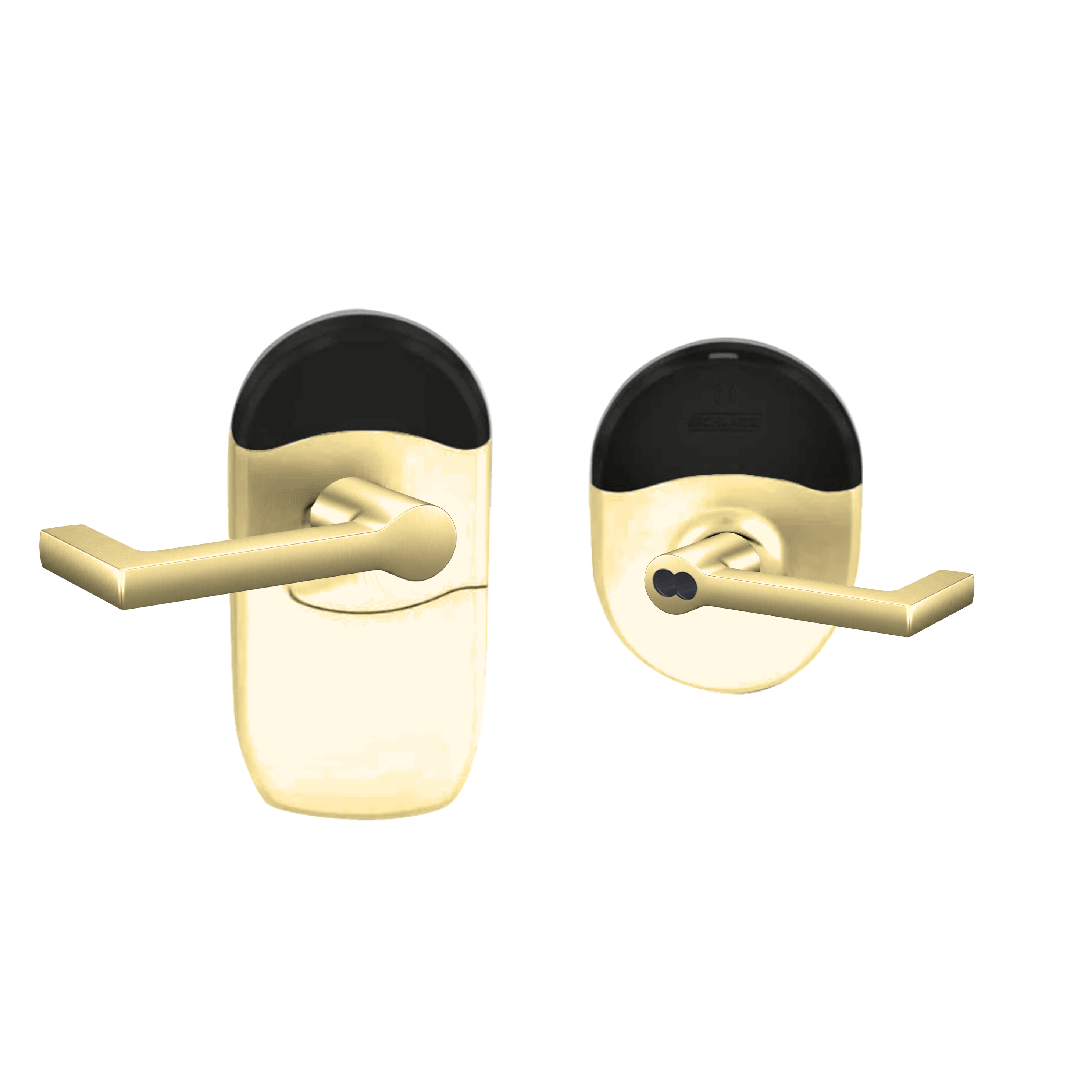

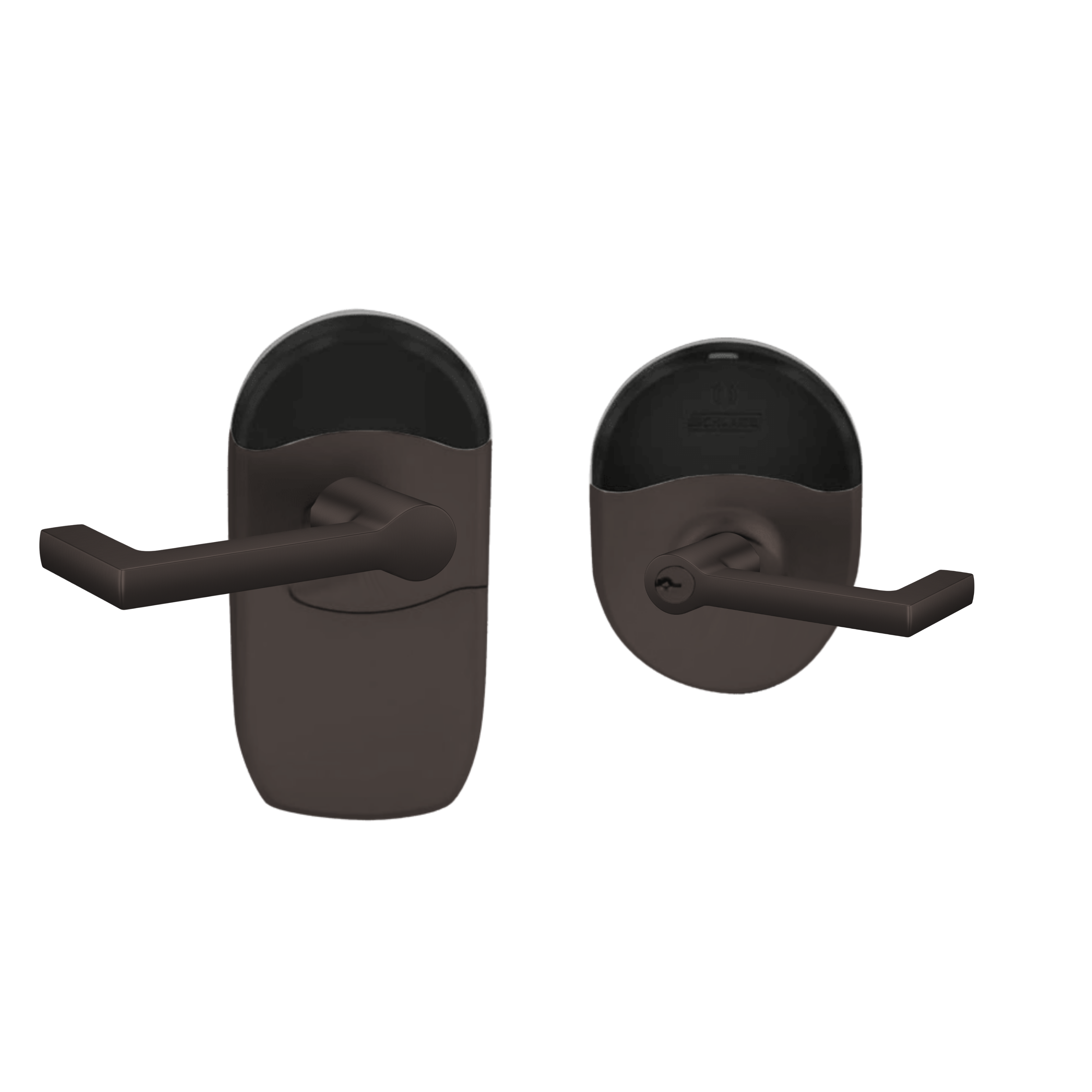

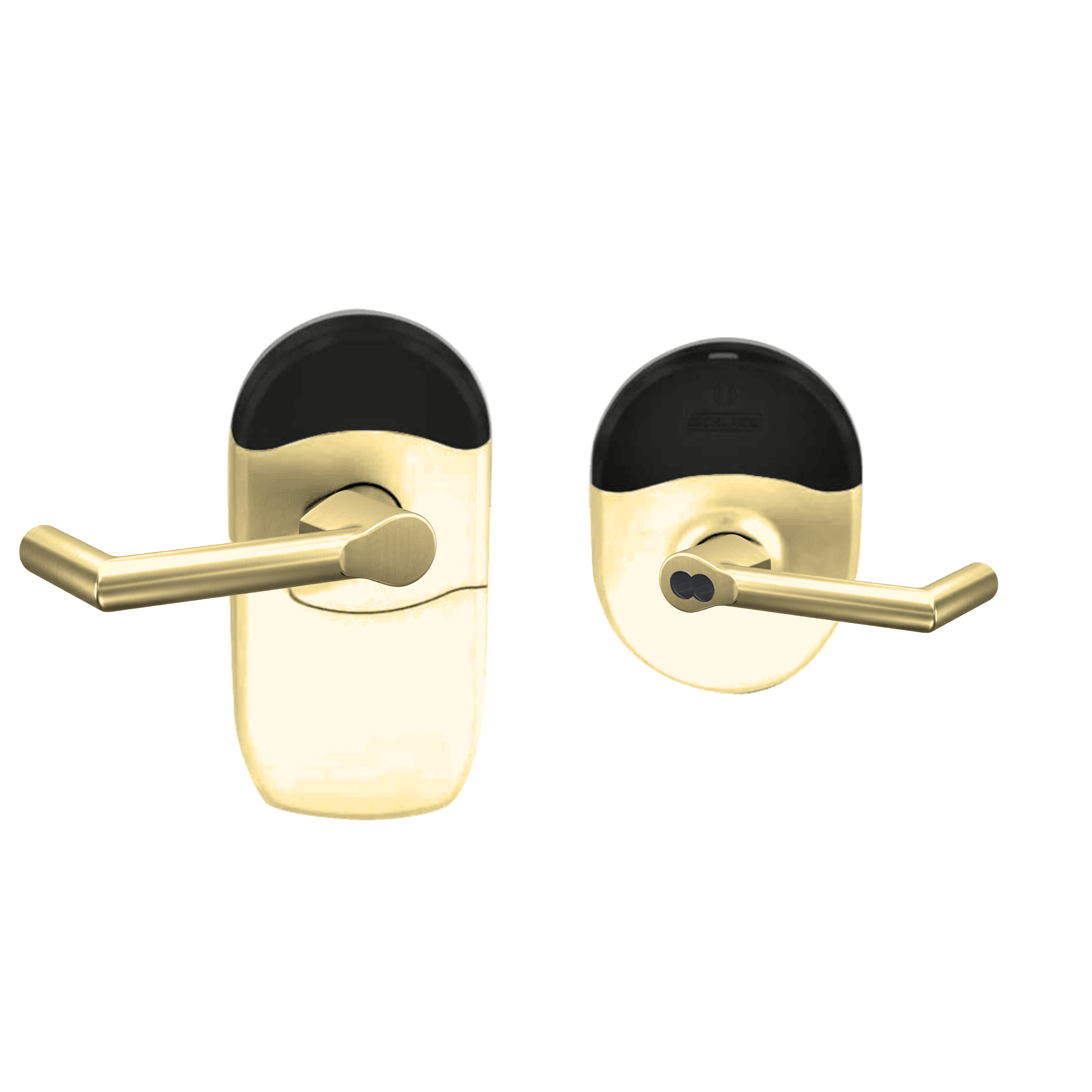

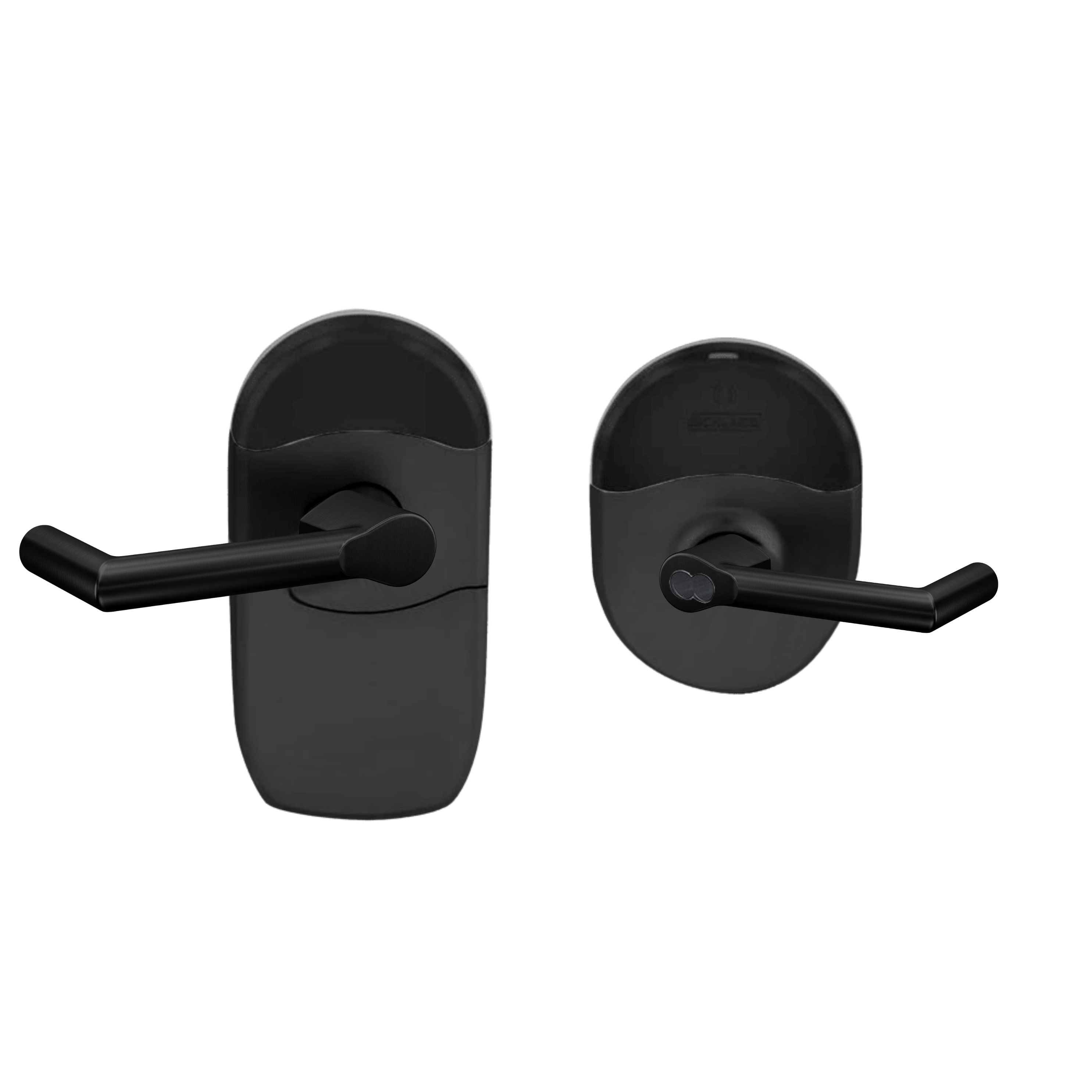

Schlage NDEB Wireless Lock W/Engage Technology

by Schlage
$ 775.00

500+ IN STOCK.


US Lock Supply is a leading distributor for Schlage wireless products.

2-3/8" Backset

Gateway Link

The Schlage NDE wireless locks can be managed from anywhere using ENGAGE™ web and mobile applications.

The NDE design packages the cylindrical lock, credential reader, and access control sensors together in to a small footprint that is both easy to install and affordable. The NDE enables the use of both proximity (125 kHz) and/or smart (13.56 MHz) credentials which feature a much higher level of security and versatility.

NDE electronic wireless locks can be managed with other wireless locks including Schlage Control™ and LE. NDE locks can be updated immediately at the door using a smart phone or tablet. For even greater efficiency, NDE locks can be connected to a Wi-Fi network for overnight updates. Please visit the ENGAGE™ web and mobile app page for additional details.


  • Electronics bring more visibility and control to the opening
  • Reads high security smart (13.56 MHz) as well as proximity (125 kHz) credentials
  • Built on proven Schlage ND Series, Grade 1 mechanical lock


  • Updates can be made immediately at the door, or automatically when connected to the Wi-Fi network
  • Set automatic lock and unlock schedules, user schedules and holidays
  • Suites with Schlage mechanical and electrified ND Series locks with many common parts


  • Works with same credential used on the building perimeter
  • Smart credentials can be used for vending and other applications
  • Standard cylindrical 161L prep; installs in minutes with a Phillips screwdriver

NDE wireless locks can be managed with ENGAGE™ web and mobile applications.

  • ANSI/BHMA A156.25-2013 (Indoor/Outdoor)
  • ANSI/BHMA A156.2-2011, Series 4000, Grade 1
  • UL 294
  • UL 10C
  • CSA C22.2 No. 205-M1983
  • FCC Part 15
  • IC RSS-210
  • ADA
  • RoHS
  • ICC ANSI A117.1

Electronic Access Control Catalog

NDE wireless lock data sheet

Engage web and mobile app data sheet

Schlage ENGAGE WiFi Requirements Technical Application Solution Sheet

Schlage ENGAGE 6.1 User Guide
