Security
- Exceeds ANSI/BHMA Grade 1 operational and security standards
- UL listed for 3-hour fire door
- Vandlgard® option allows the outside lever to rotate freely up or down to prevent damage from excessive force while in a locked state
- Lead lining for use in X-ray or other rooms with radiation concerns
- Patented Everest 29™ S123 keyway is provided standard which prohibits unauthorized key duplication
- Restricted geographically exclusive Primus upgraded security options offer advanced key control and exceptional physical security
Aesthetics
- Nine lever styles constructed of solid zinc offer a strong-yet-comfortable feel
- Snap on rose eliminates exposed screws
- Suites perfectly with ND Series electrified cylindrical and ALX Series Grade 2 cylindrical locks
- All levers suite with Von Duprin exit devices
- Nine available finishes with option for antimicrobial coating

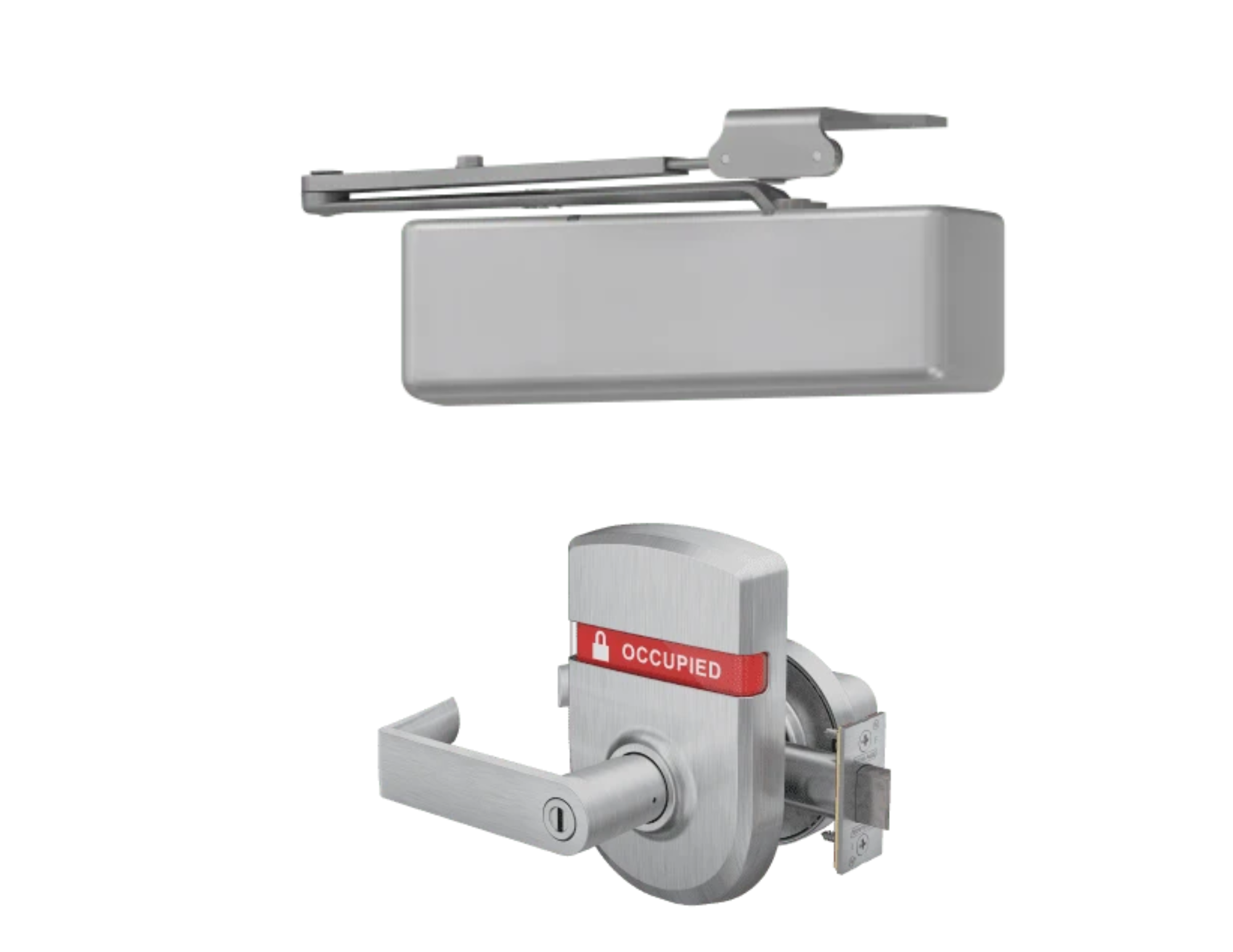

- 180-degree visibility indicator trim option for locked/unlocked status available on eight functions
- Lock status indication trim option uses red and white backgrounds to ensure quick readability for color-blind individuals (see ND Series Grade 1 Cylindrical Indication Trim for details)
- Two ND Series electrified cylindrical lock functions also available (see separate web page for details)
Built to Last
- Schlage's most robust Grade 1 cylindrical lock
- Every Schlage lock undergoes intensive testing to determine its ANSI grade level including: cycle, resistance, door impact, warped door and bolt strength tests
This heavy-duty closer is LCN’s most durable surface-mounted closer, designed for the most demanding applications. And now, external enhancements make installation and maintenance faster and more accurate. While the internal design remains unchanged, providing the same quality, reliability and durability for which the 4040XP cast iron closer in well known.
Your time is valuable. Maximize it with LCN.
Overview
High-traffic doors call for heavy-duty closers
The 4040XP Series is LCN’s most popular door closer—and for good reason. This durable non-handed, surface-mounted heavy-duty closer, is designed for the most demanding high-use-and-abuse applications as well as for easy installation and maintenance. With new enhancements made to the 4040XP, installers and service technicians can have confidence in how to install and adjust the door closer properly—ultimately, maximizing the life of the product.
It’s ANSI/BHMA A156.4 Grade 1 rated and meets ADA reduced opening force requirements. It’s cUL listed and UL listed for self-closing doors without hold-open and boasts a 30-year limited warranty.
The 4040XP Series features include standard non-handed plastic cover, with optional plated finish available for cover, arm and fasteners. Materials include high-strength cast-iron cylinder, forged steel arm, double heat-treated steel pinion and full complement, low friction bearing for rugged reliability in high-traffic installations. LCN peel-n-stick templates assure quick and accurate installation, and the LCN Green Dial takes the guesswork out of spring power adjustments.
Ease of Installation and Adjustment
- Tight tolerances in manufacturing for accuracy and precision
- Peel-n-stick template for quick and accurate installation
- Updated! LCN Green Dial to take the guesswork out of spring power adjustments
- New! Patent-pending positive stop to improve staking and prevent the screw from being backed out
- New! Patent-pending regulation valve indicators that add a visual reference for screw adjustment location
-
New! Labeled regulation valves and diagram of door swing to make adjustments faster, easier and consistent
Quality and Durability
- Cast iron cylinder for rugged performance, longer life and maximum control
- Single-piece, heat-treated forged steel arms to withstand bending and breaking
- Heat-treated 1-1/2" diameter piston for extra hardiness and strength
- Double heat-treated steel pinion with 11/16” journal diameter for greater wear-resistance
- Full complement bearings with minimum 0.5” height that wear more evenly and are less susceptible to leakage
- All-weather Liquid X fluid for consistent performance through every season, regardless of temperature changes
- Independent speed adjustments for greater door control
- Non-PRV (pressure relief valve) design to minimize risk of property damage, injury, increased maintenance and liability exposure
- Updated! Redesigned snap-fit cover with patent-pending retention fit
- Powder coat finish that lasts longer than spray lacquer
- 30-year warranty
Flexibility
- Universal non-handed design that enables it to fit more applications with a single product
- Full ranges of mount and arm options, including hinge pull side, push side top jamb and push side parallel arm
- Adjustable spring sizes 1-6
