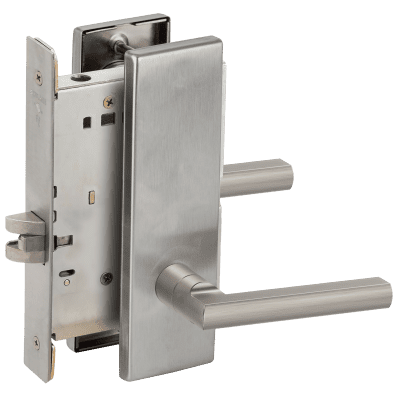

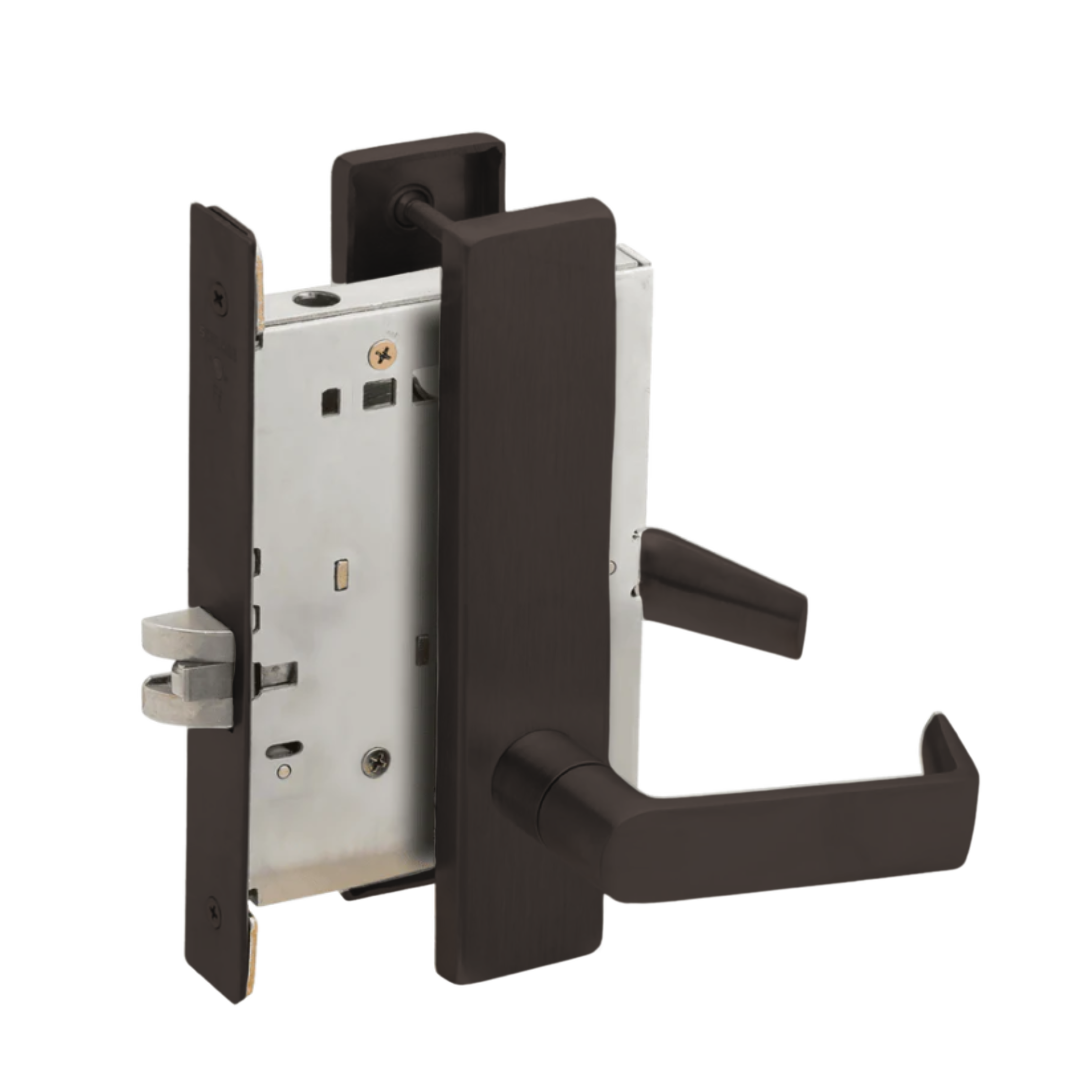

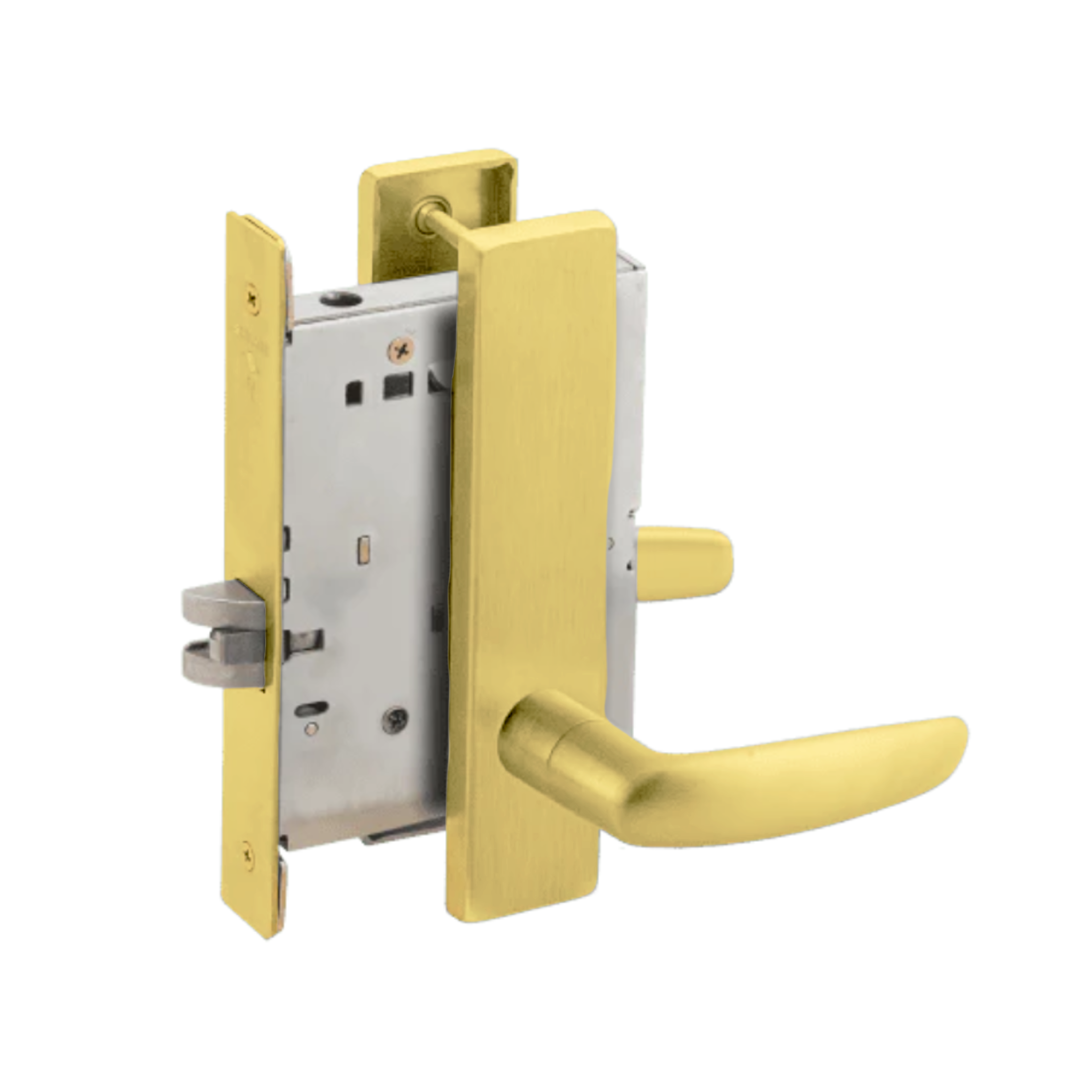

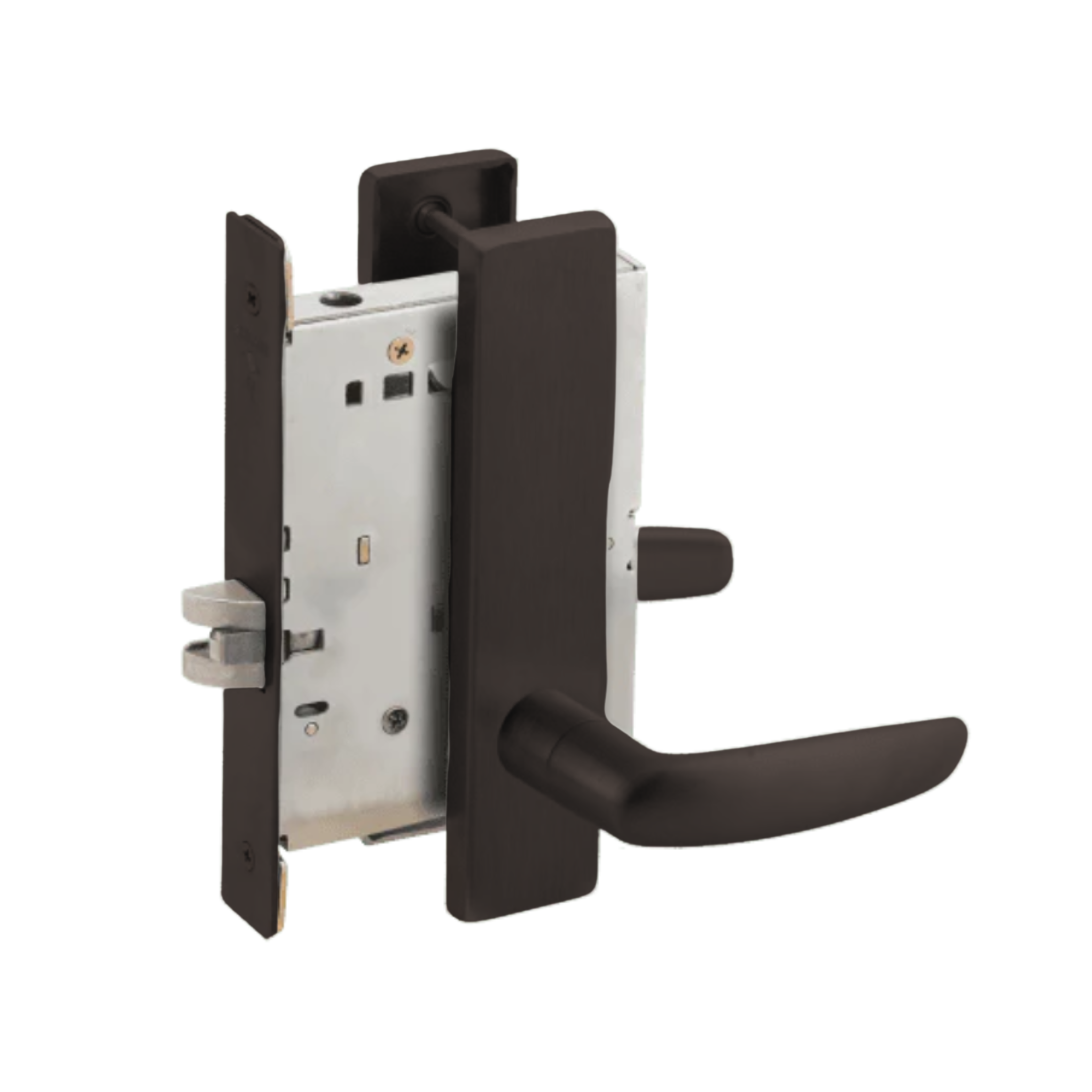

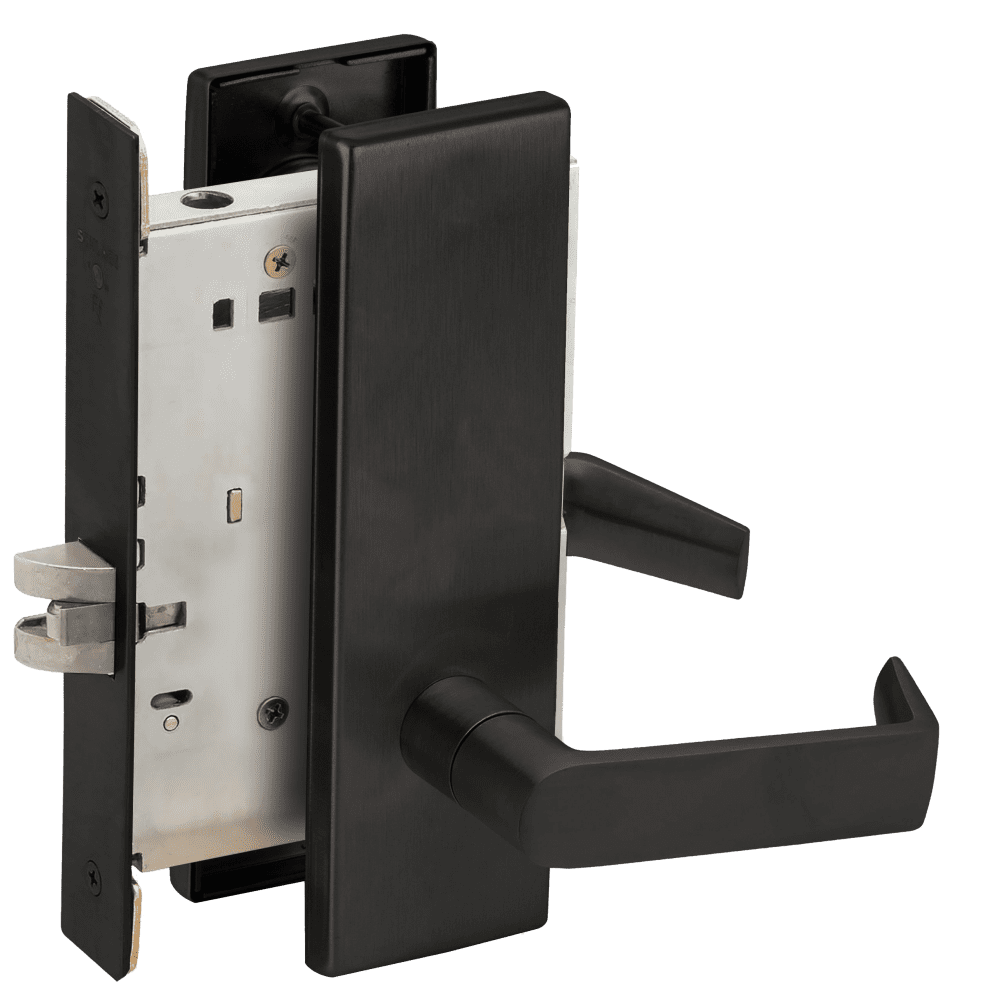

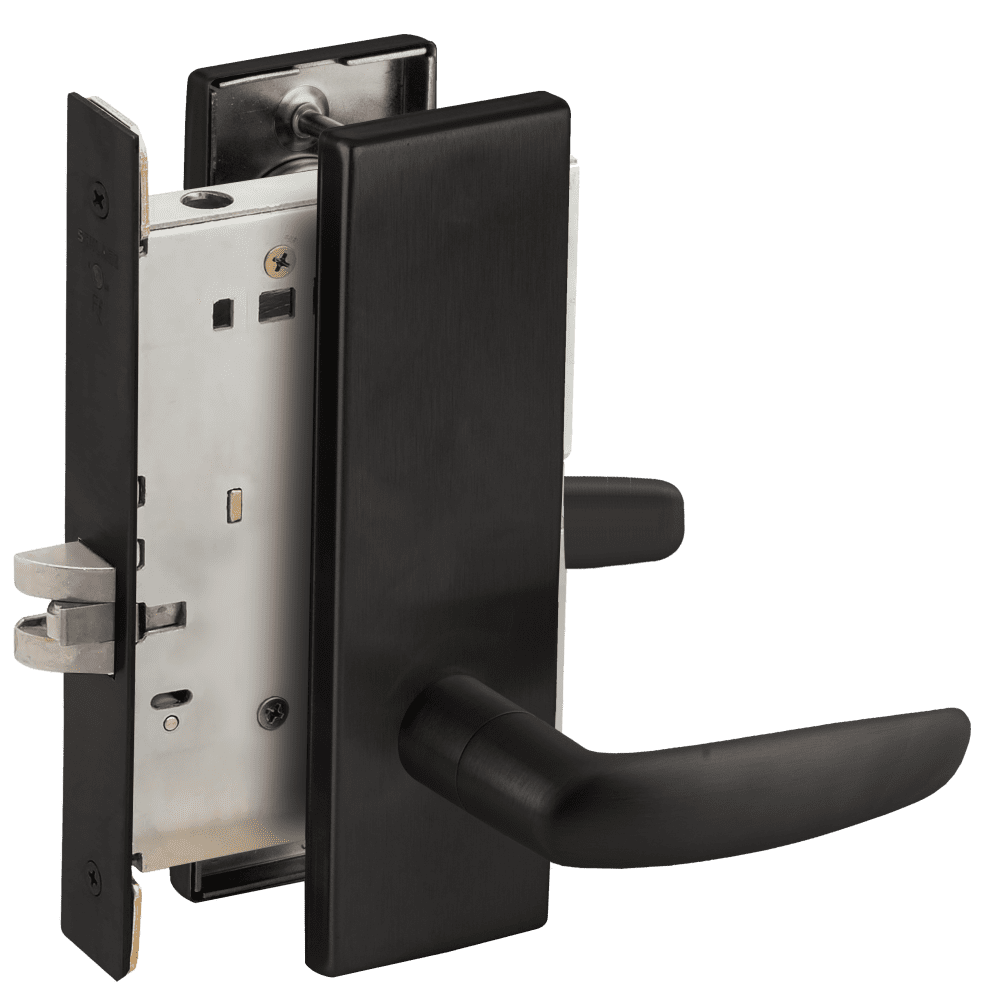

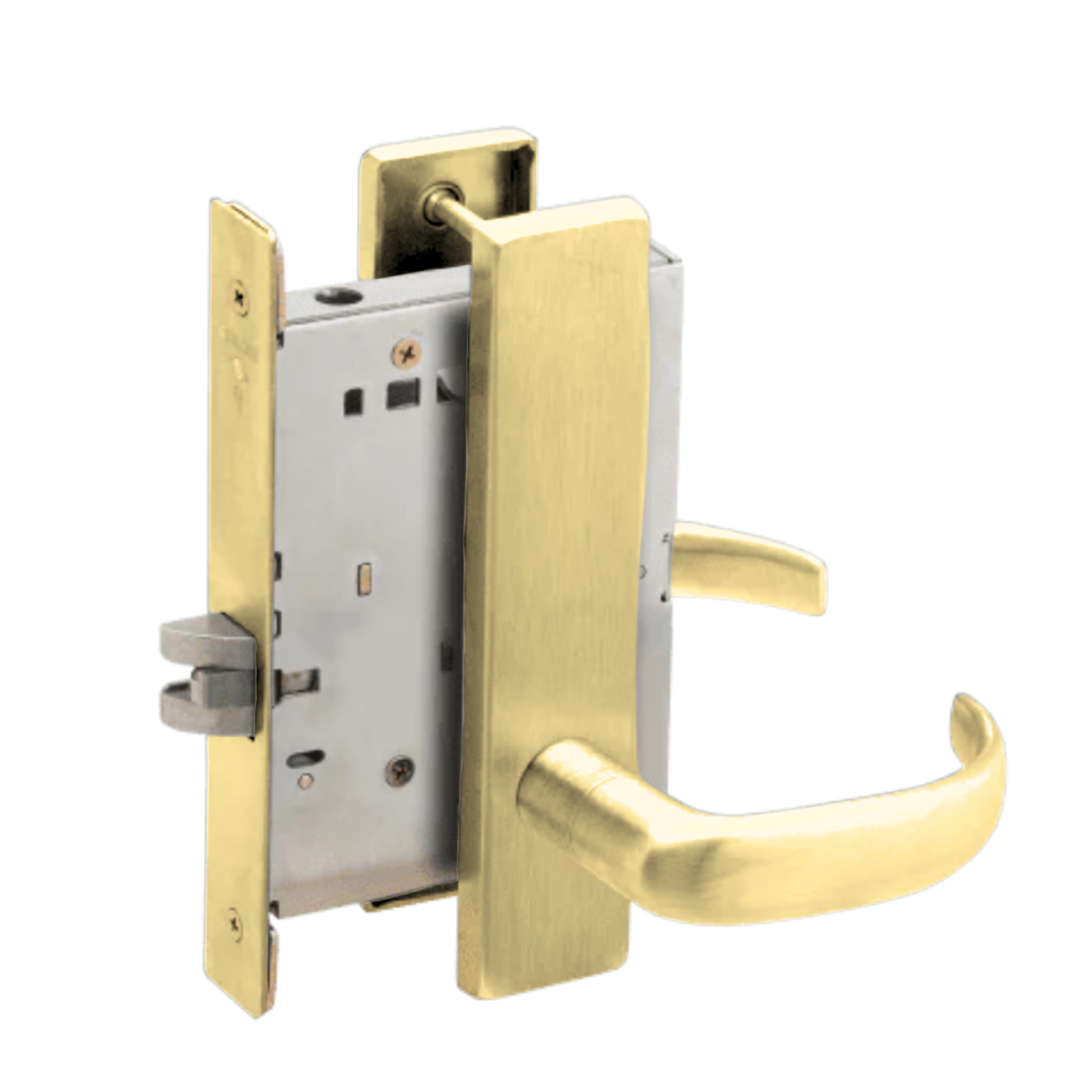

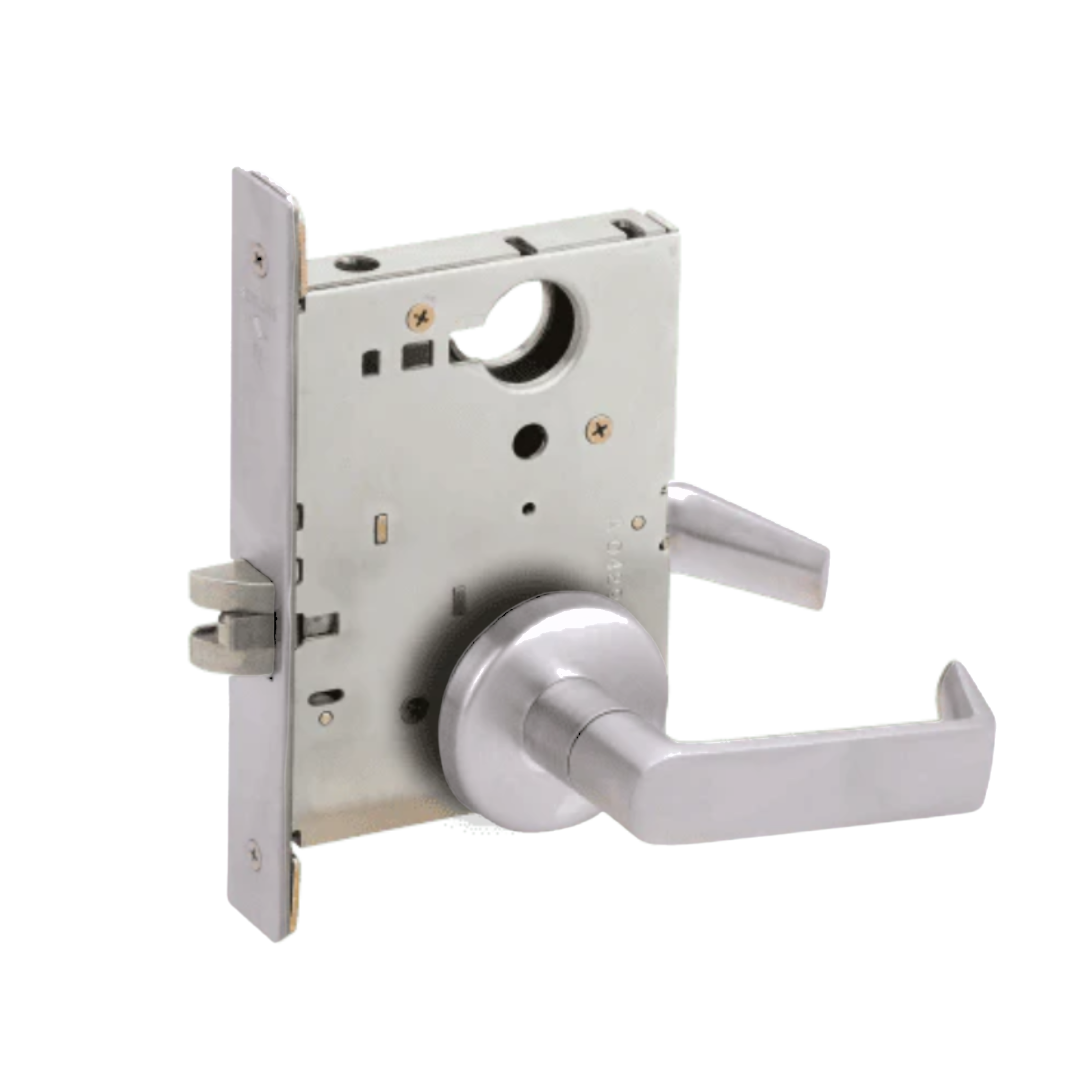

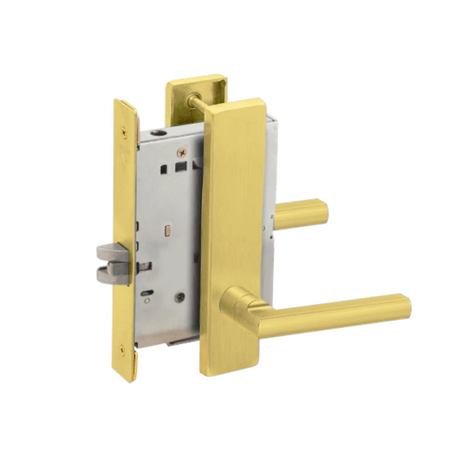

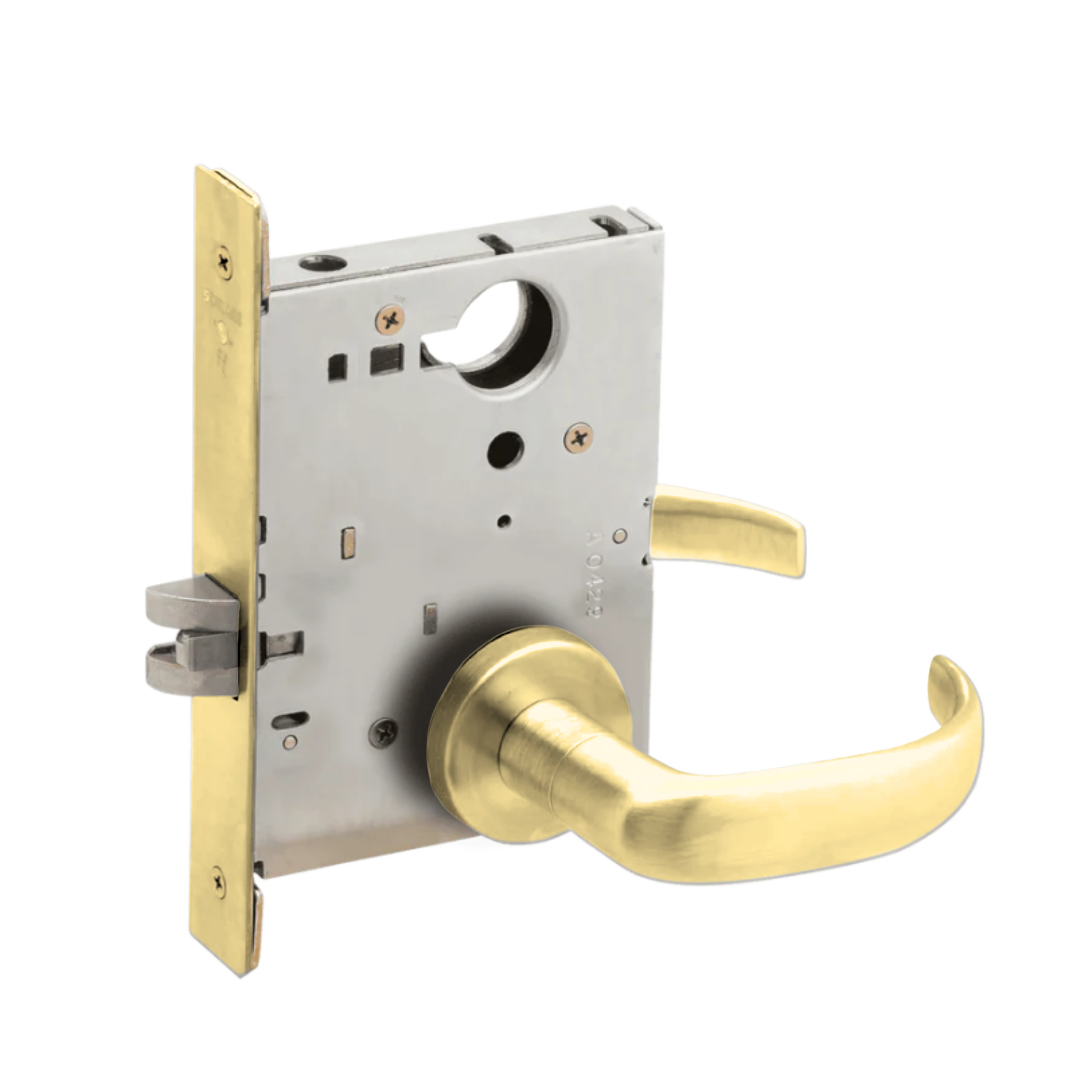

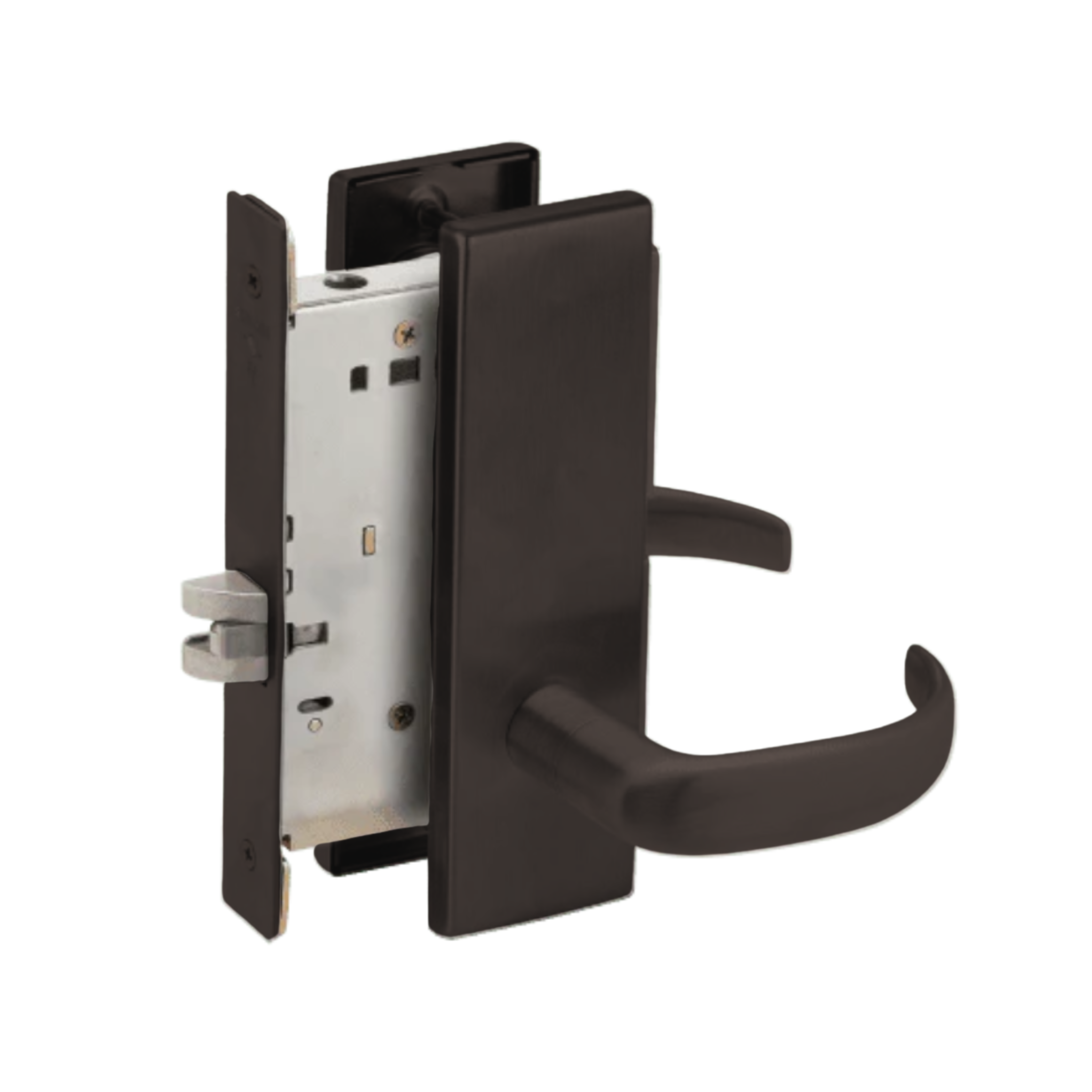

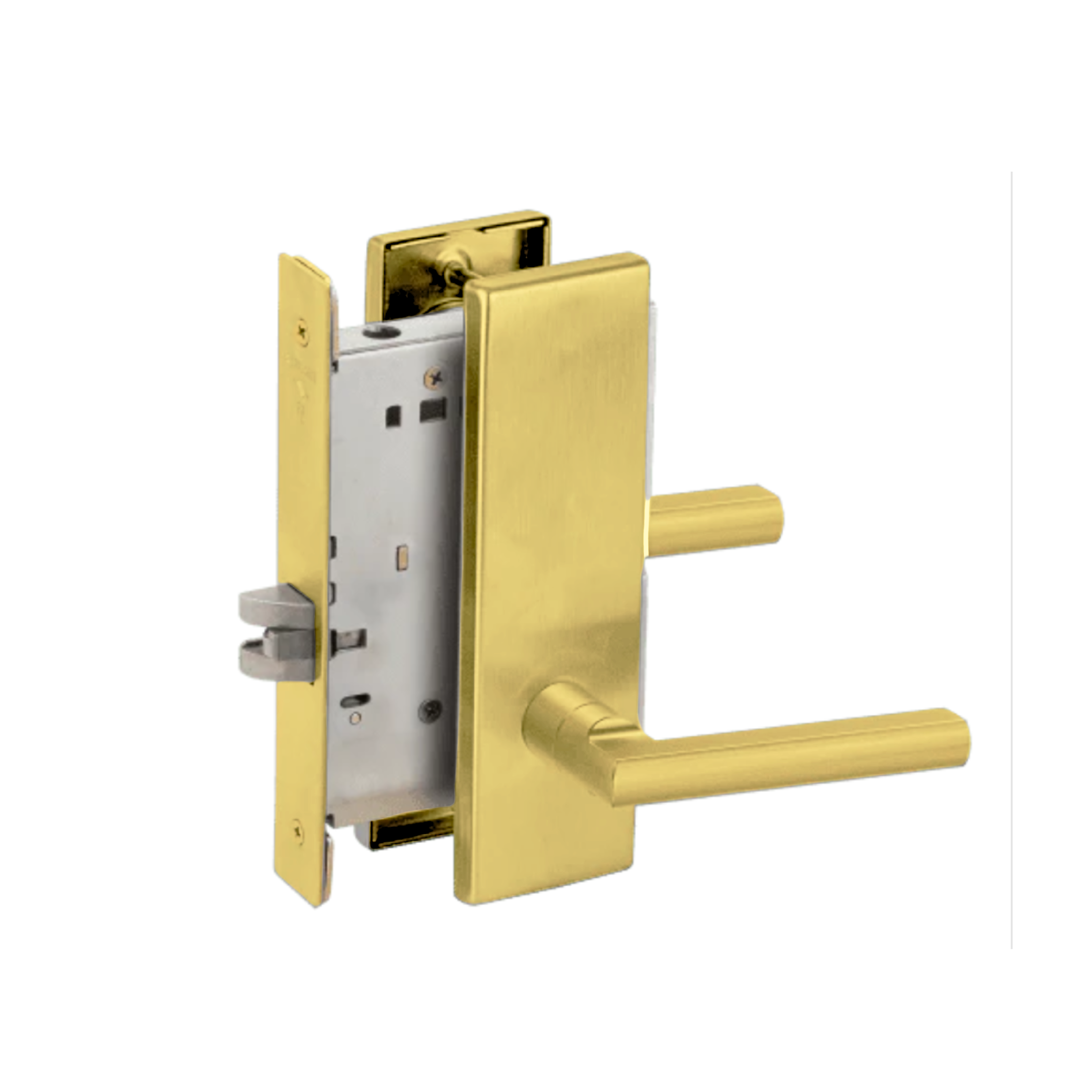

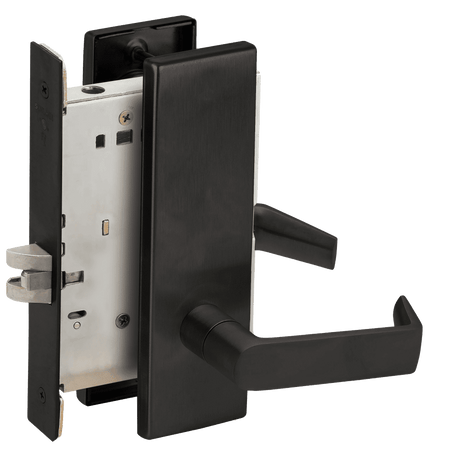

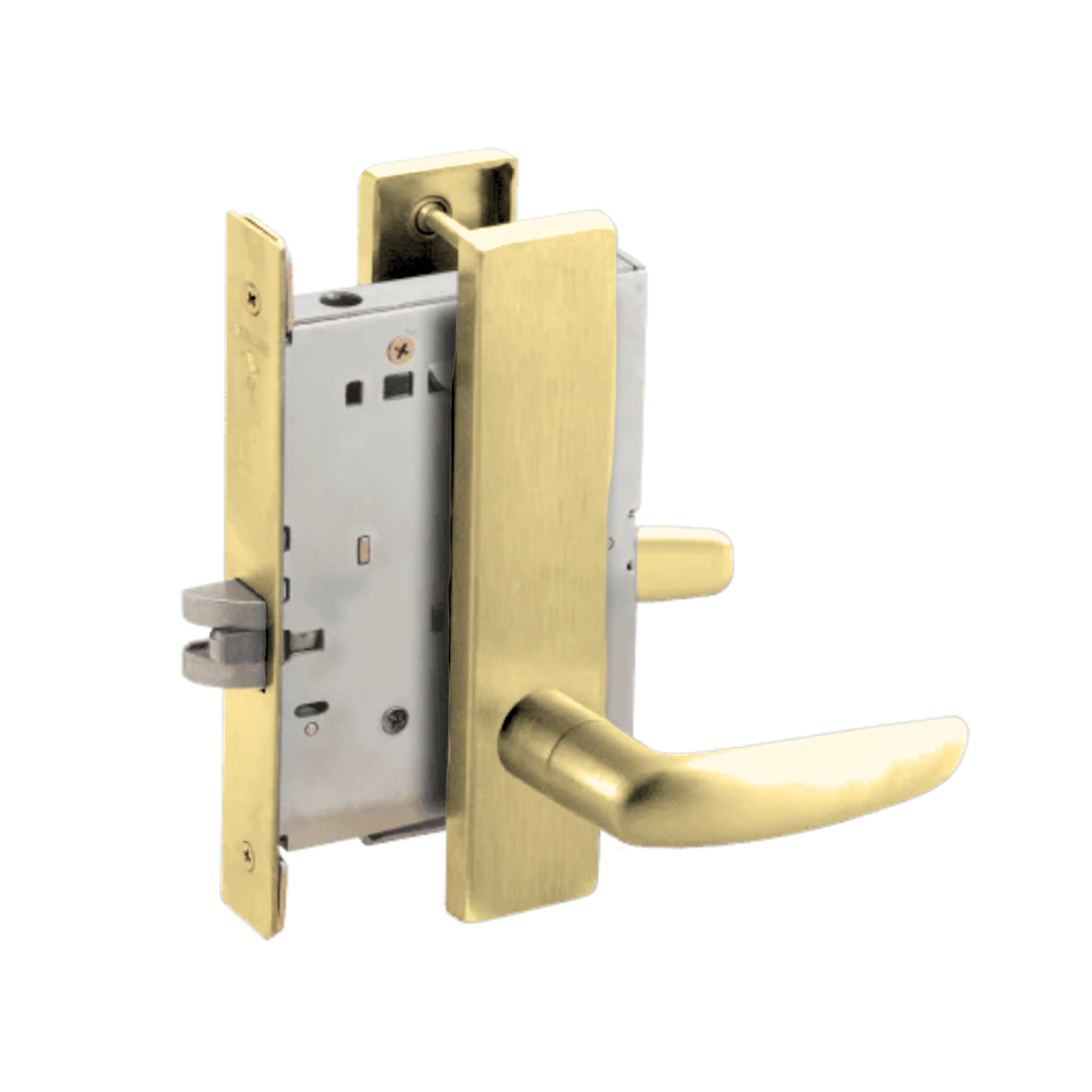

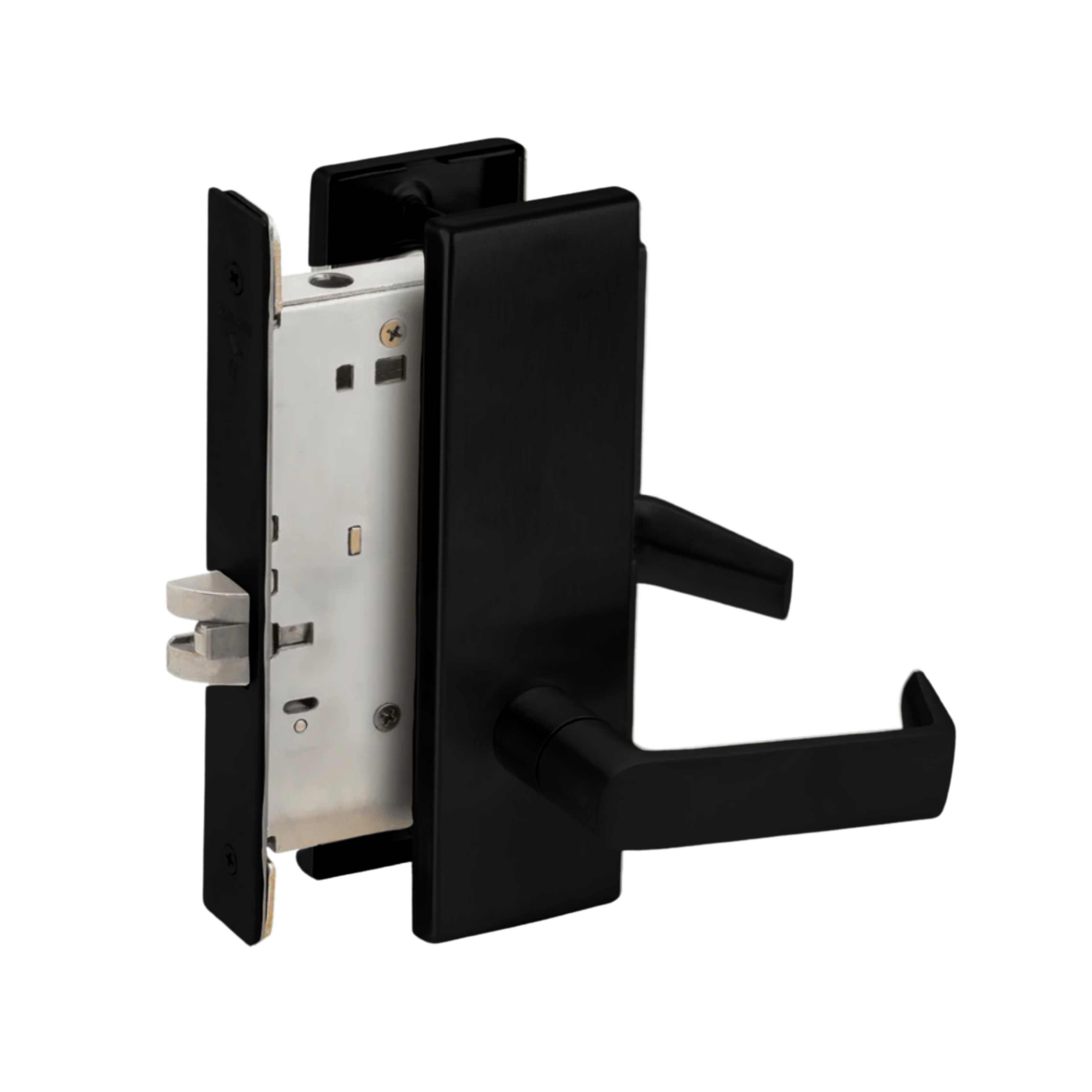

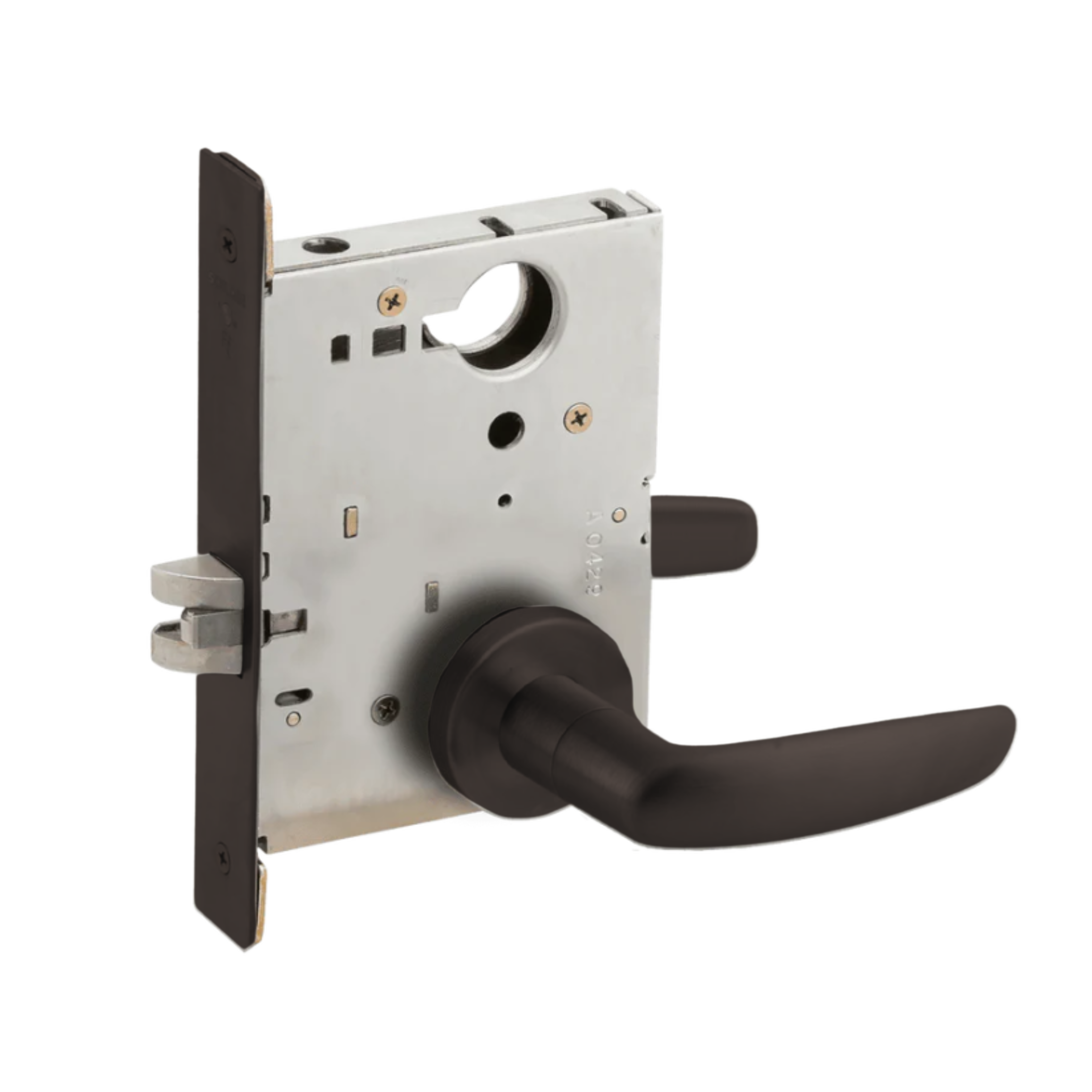

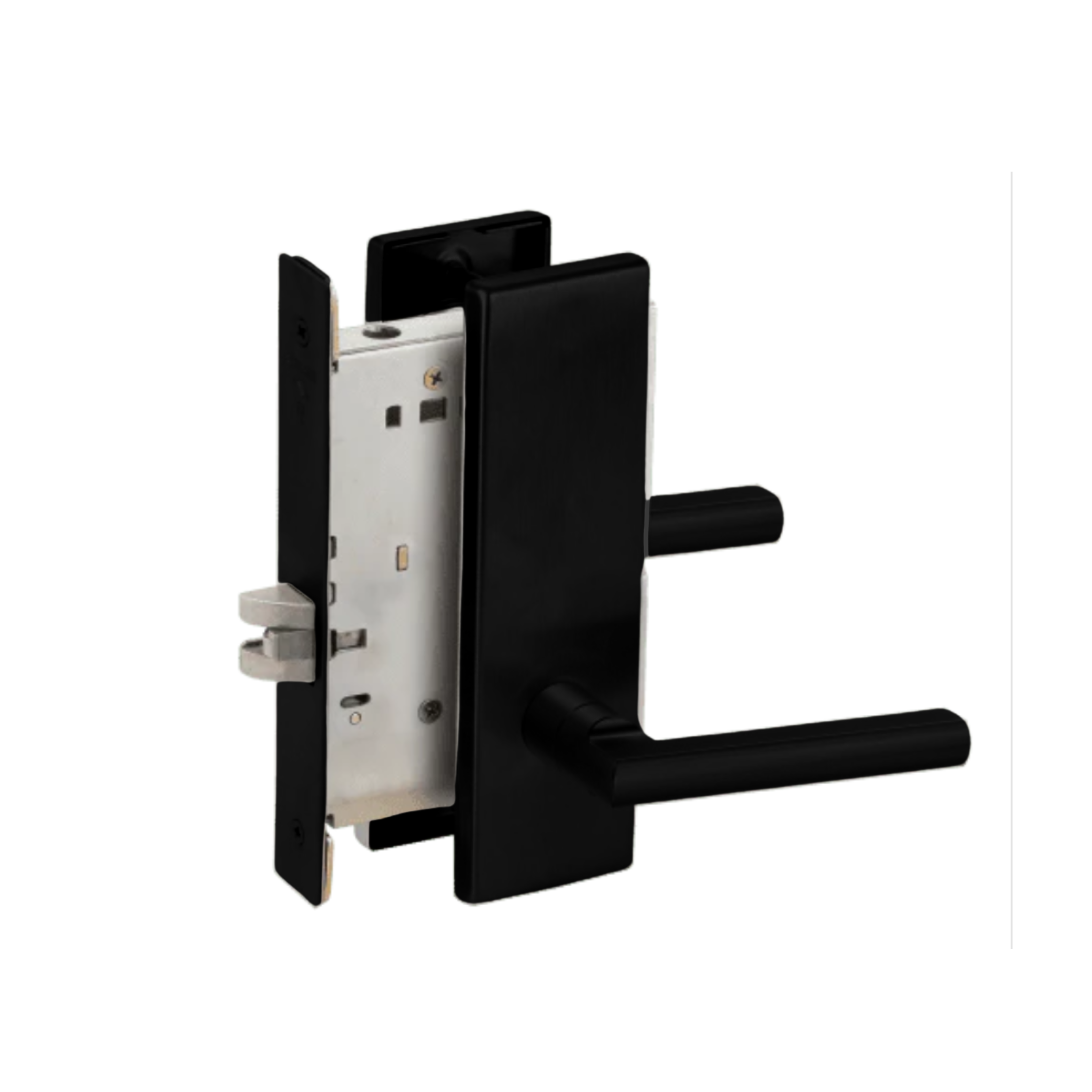

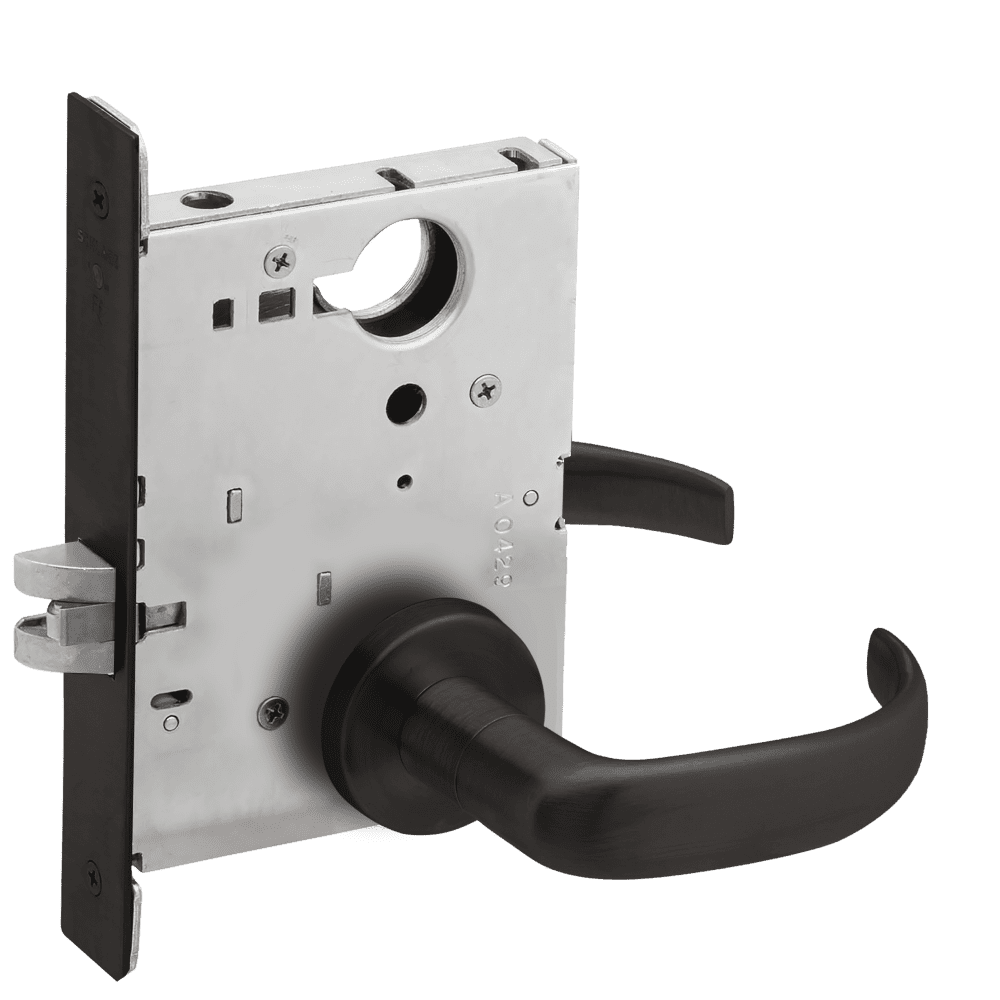

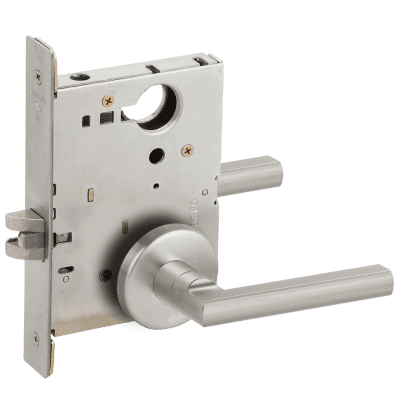

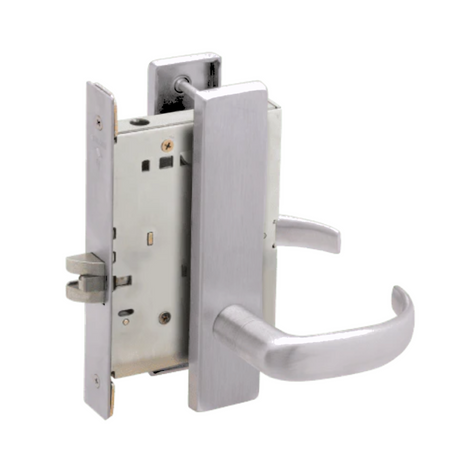

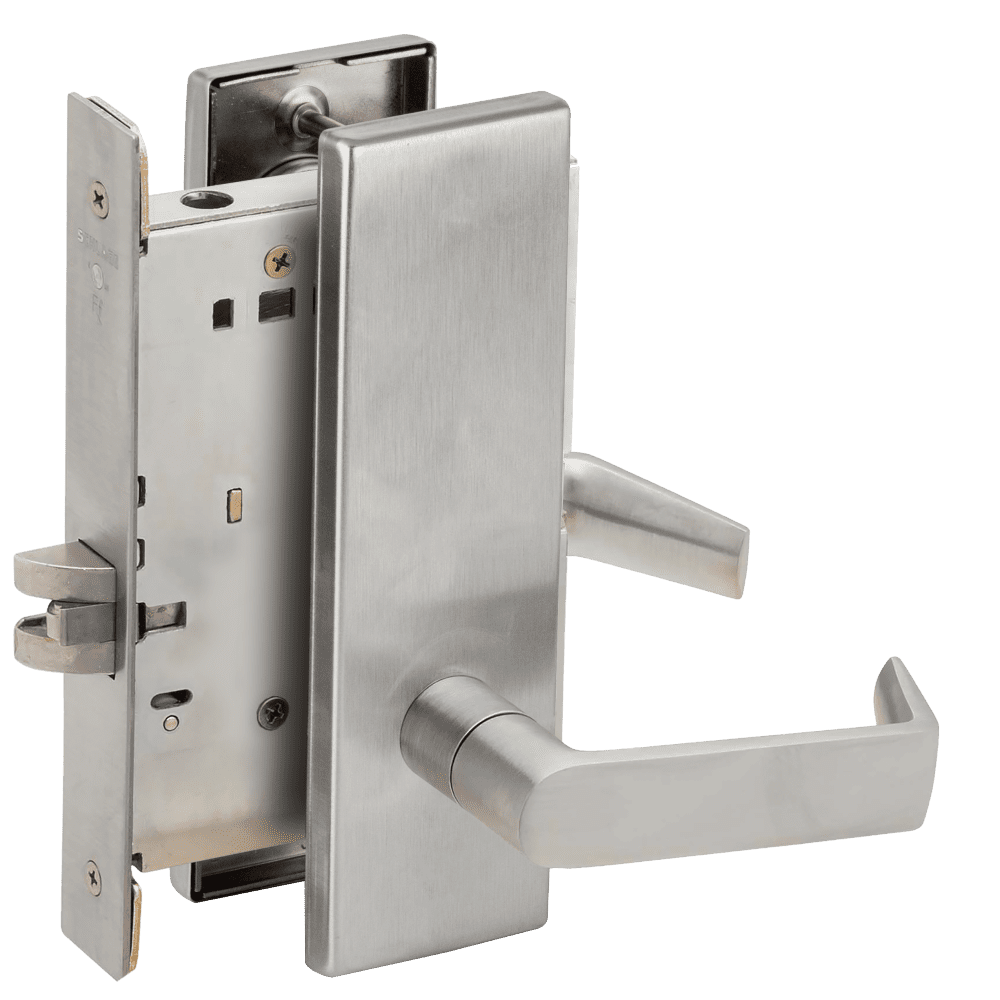

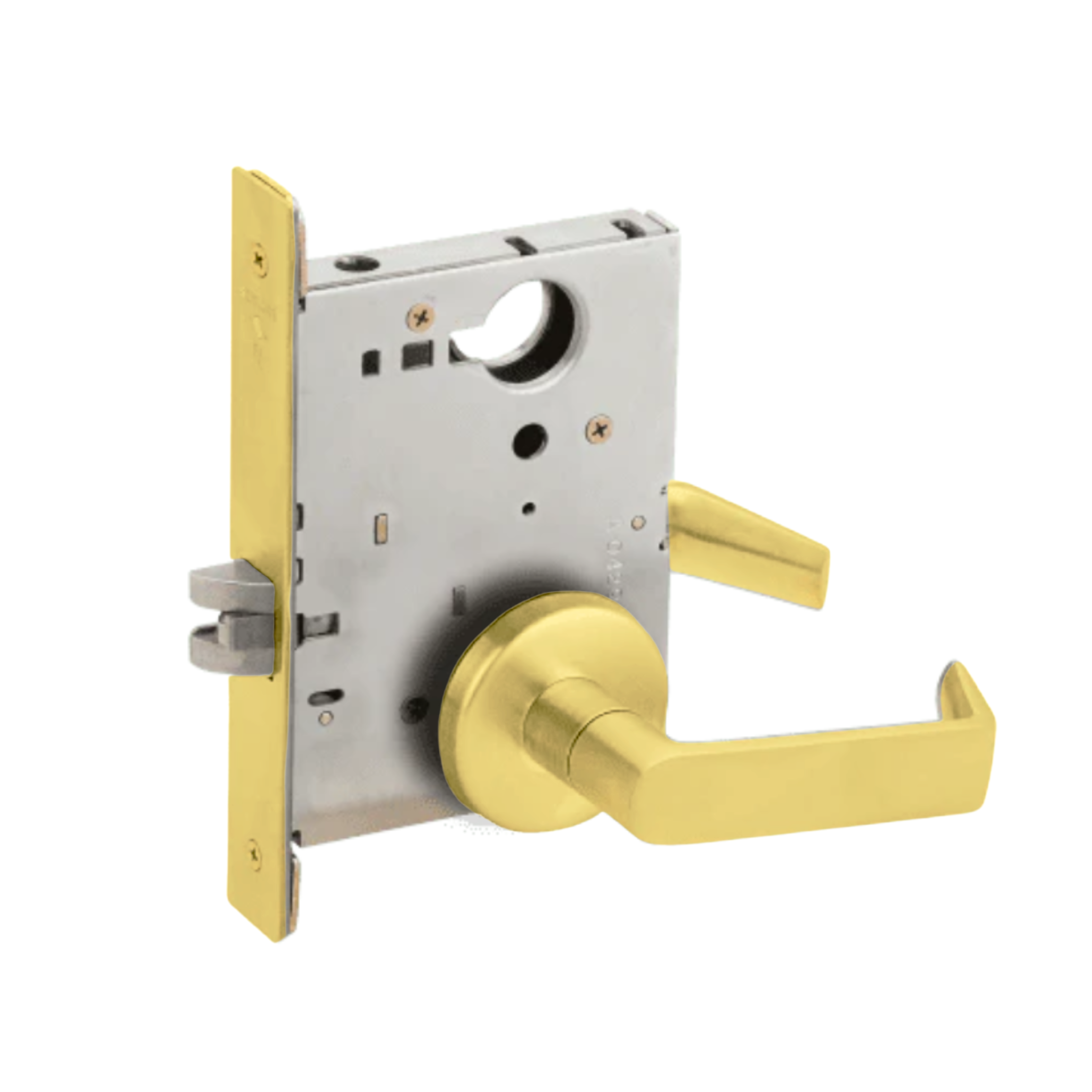

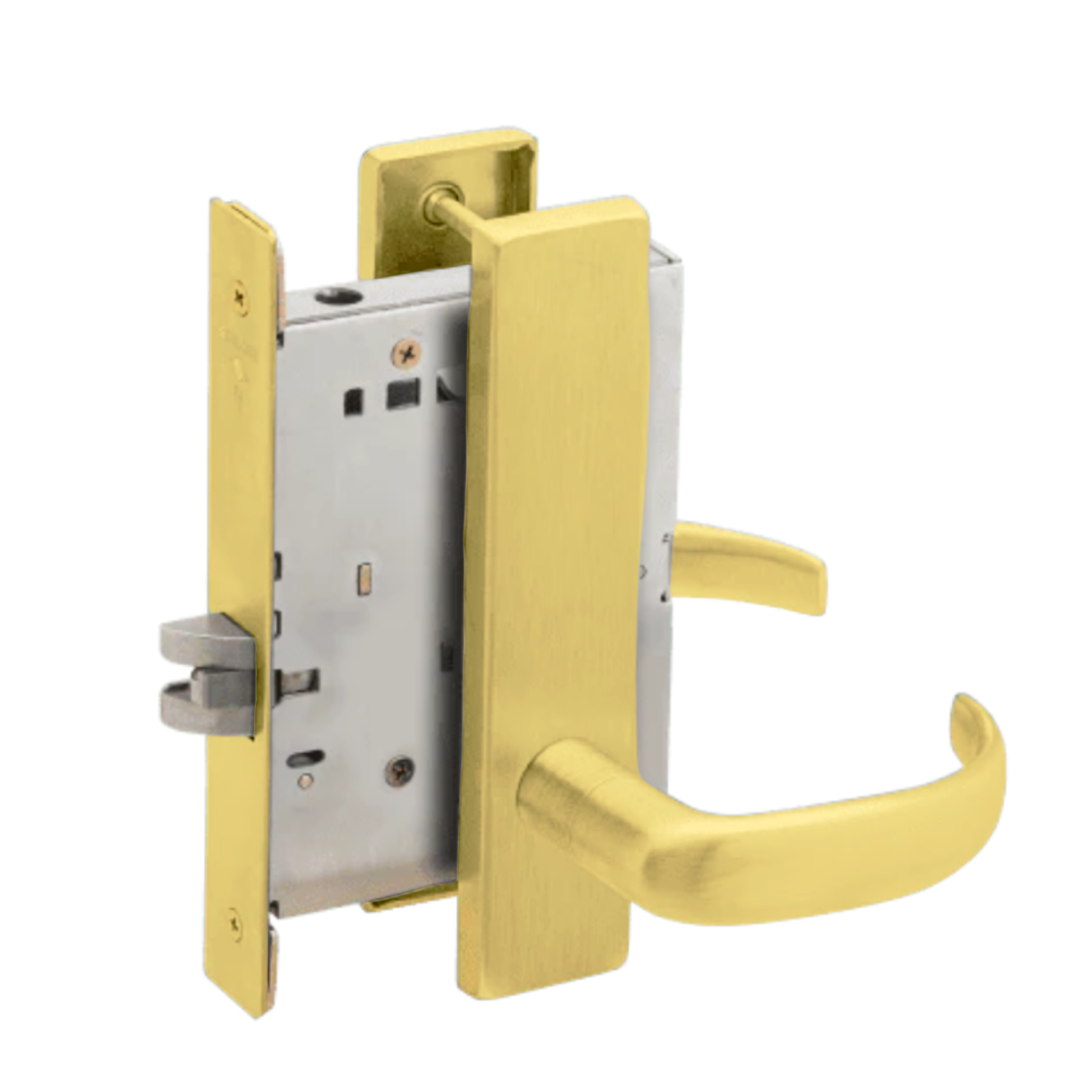

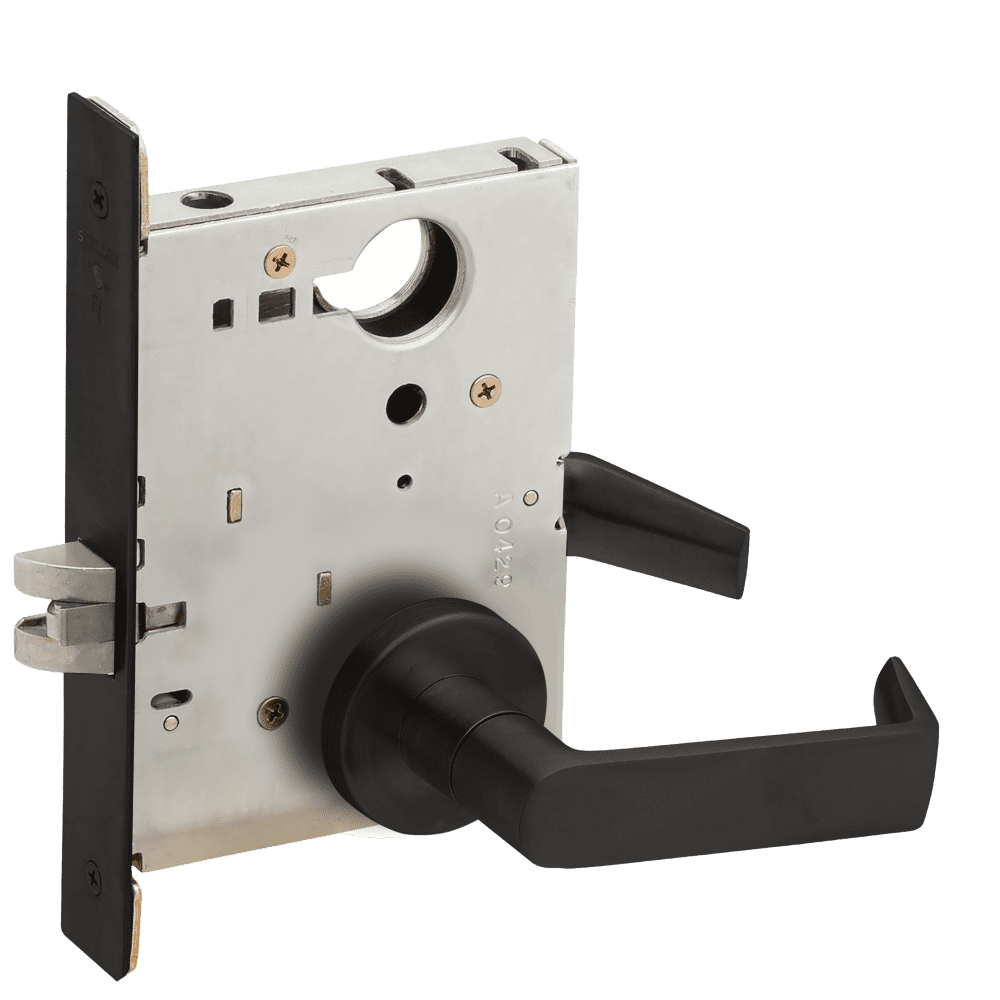

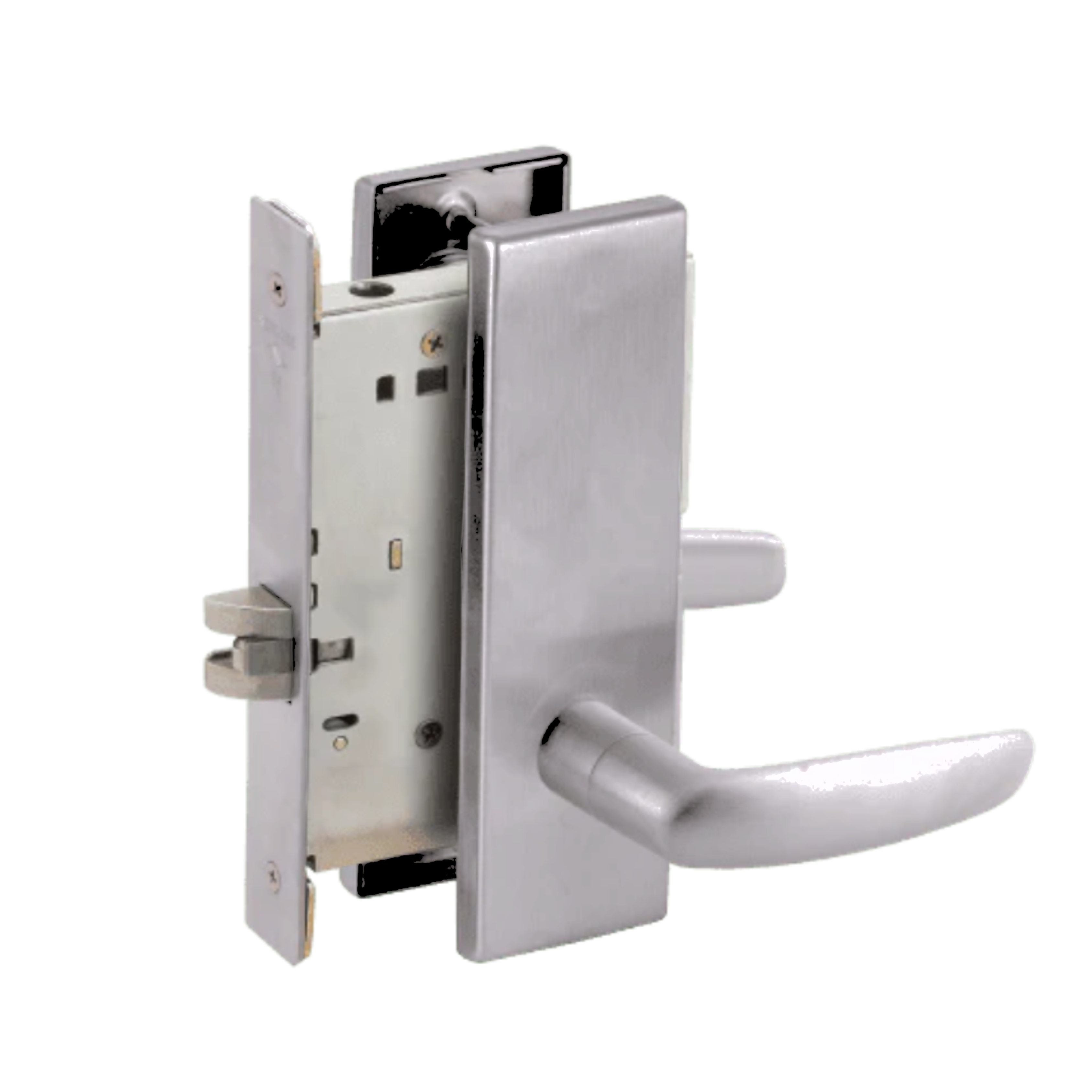

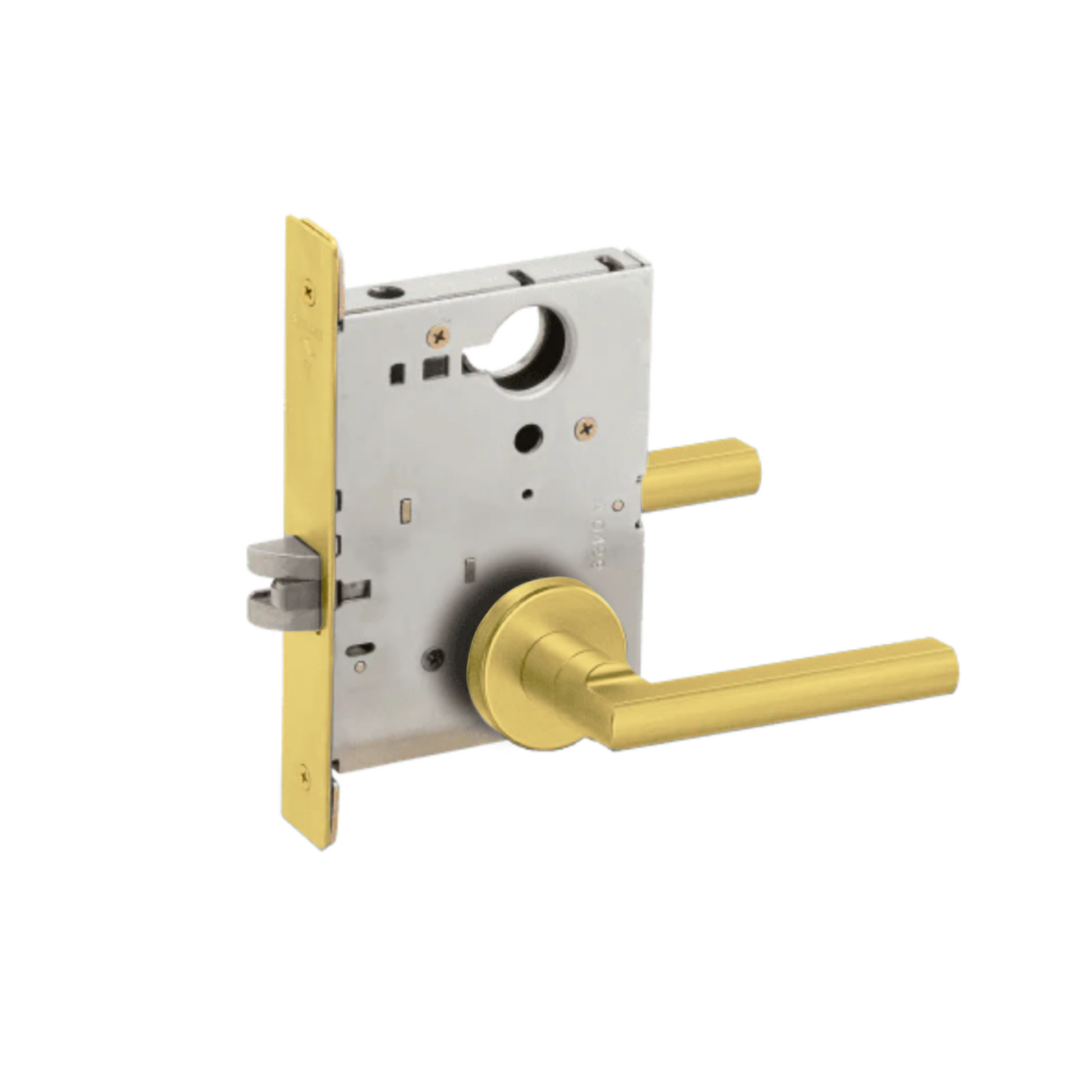

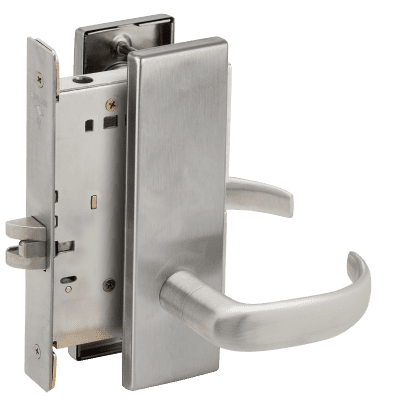

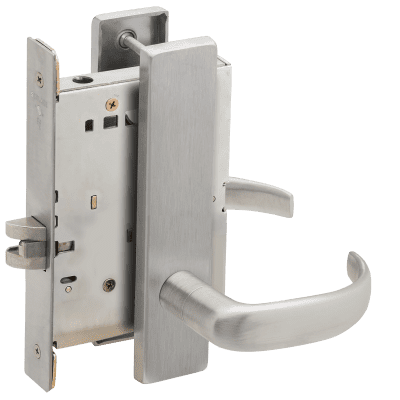

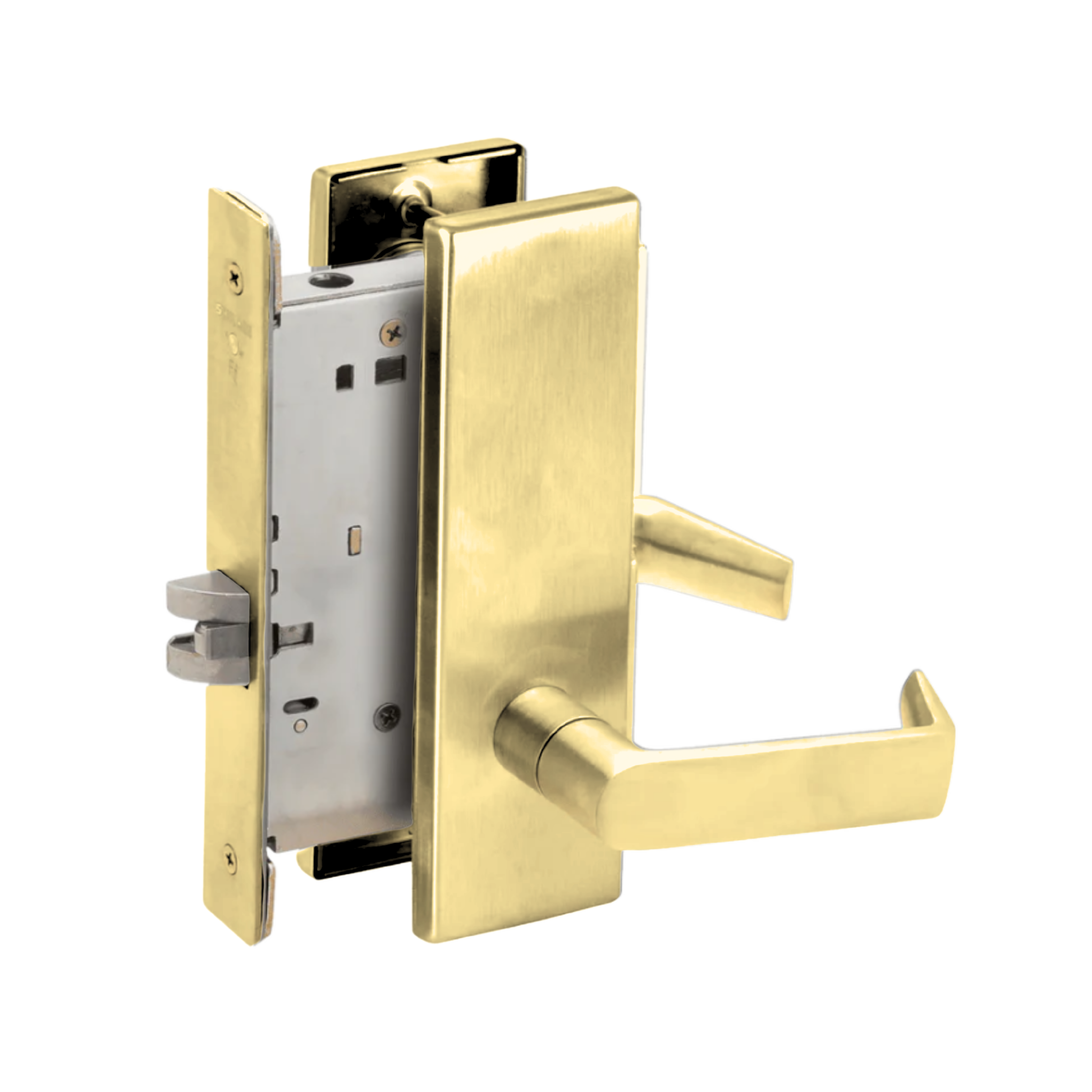

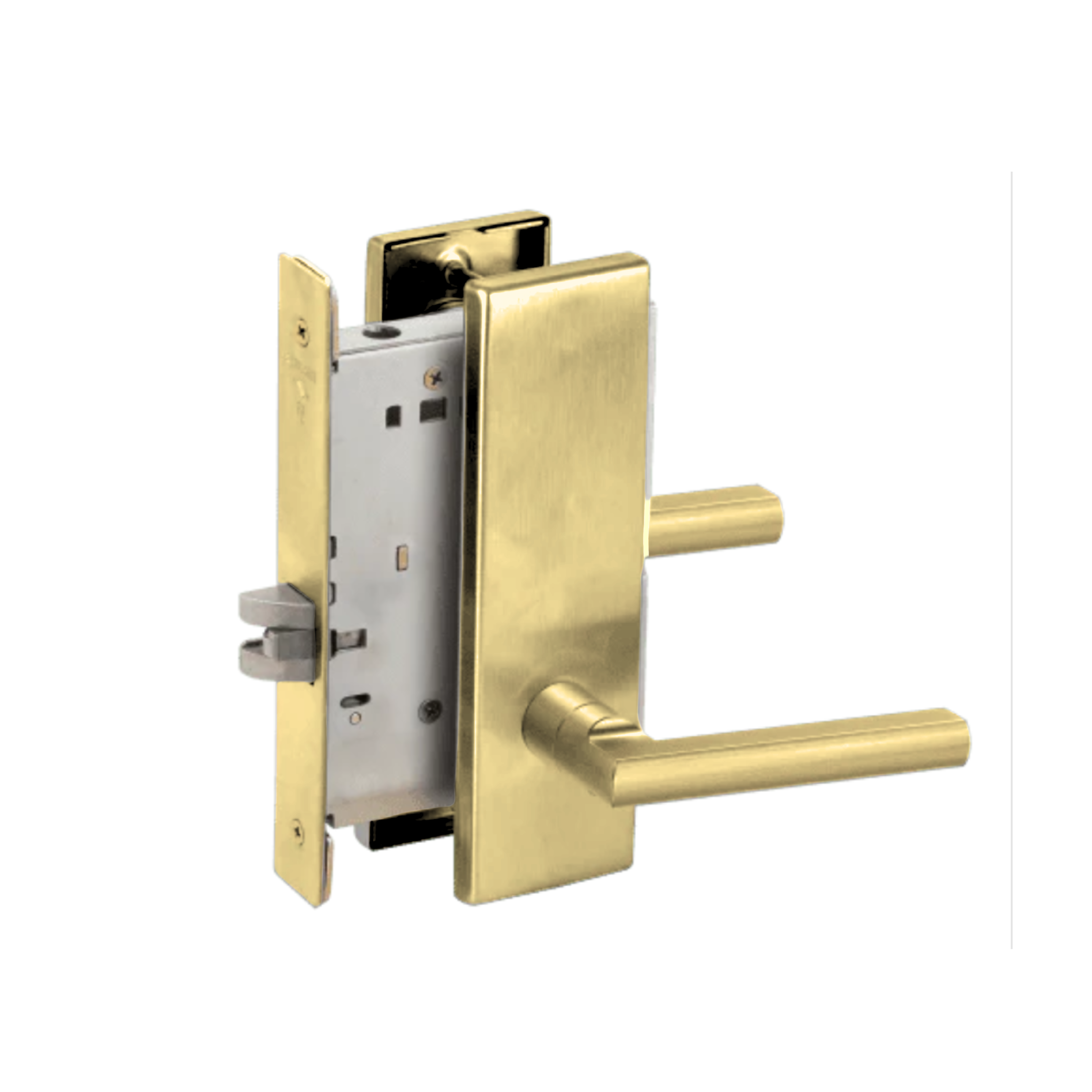

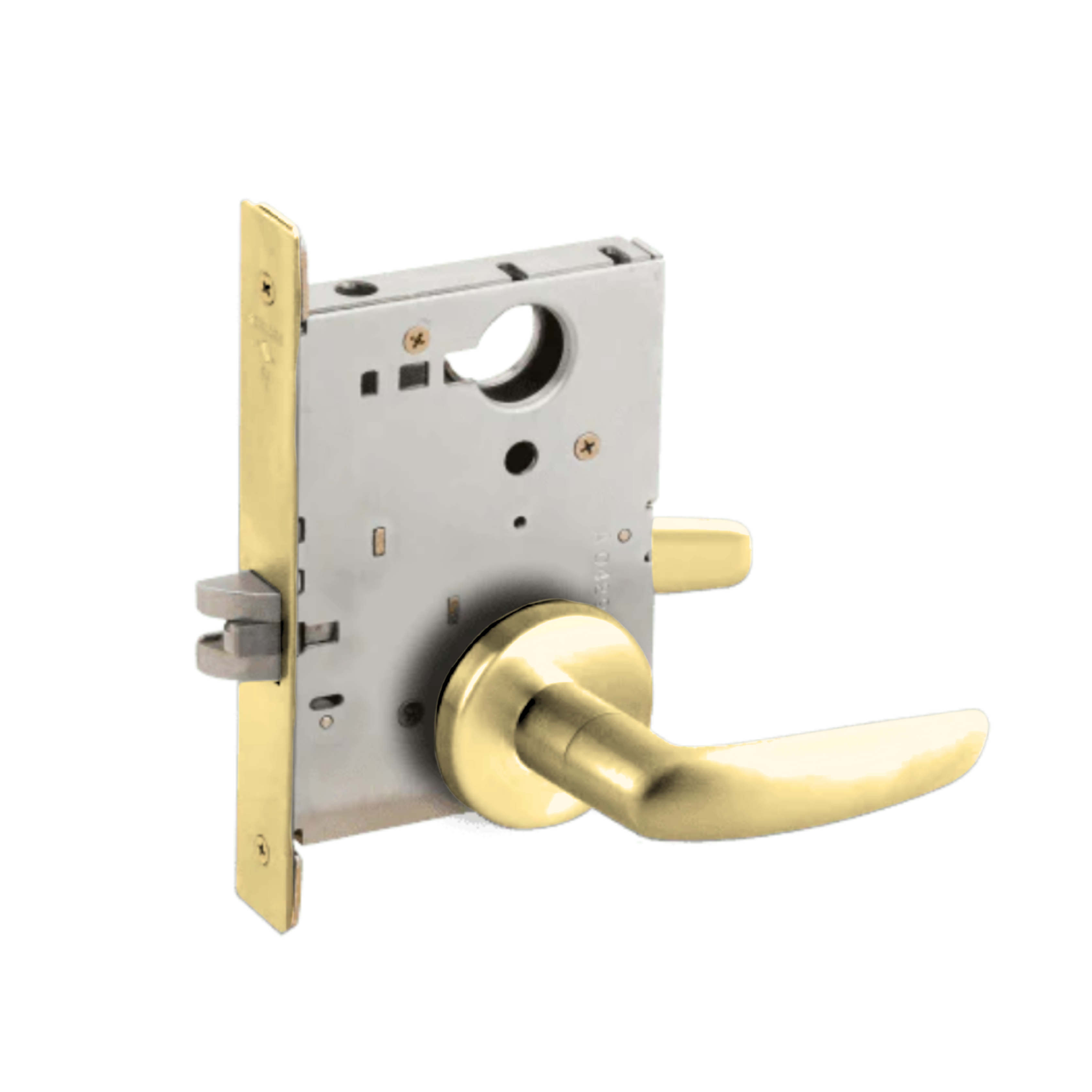

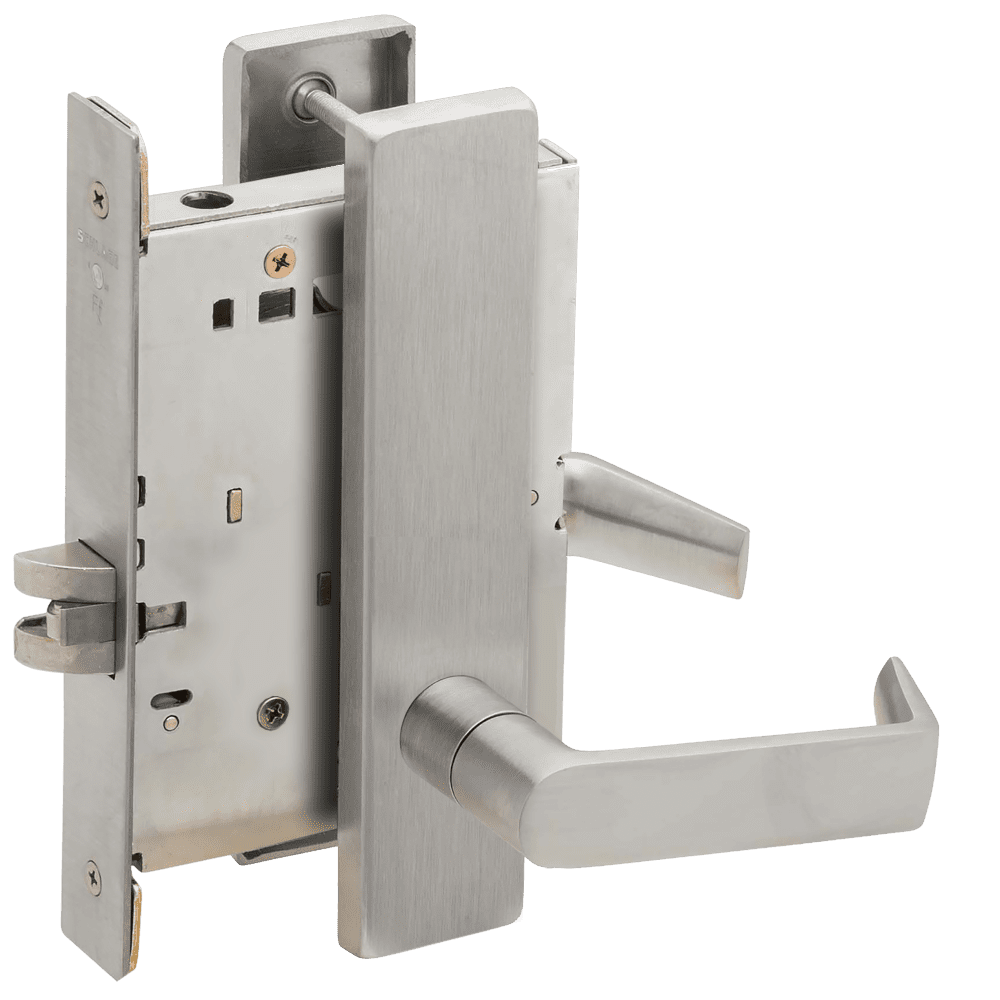

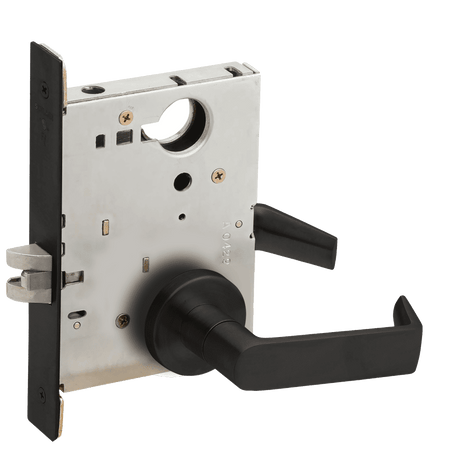

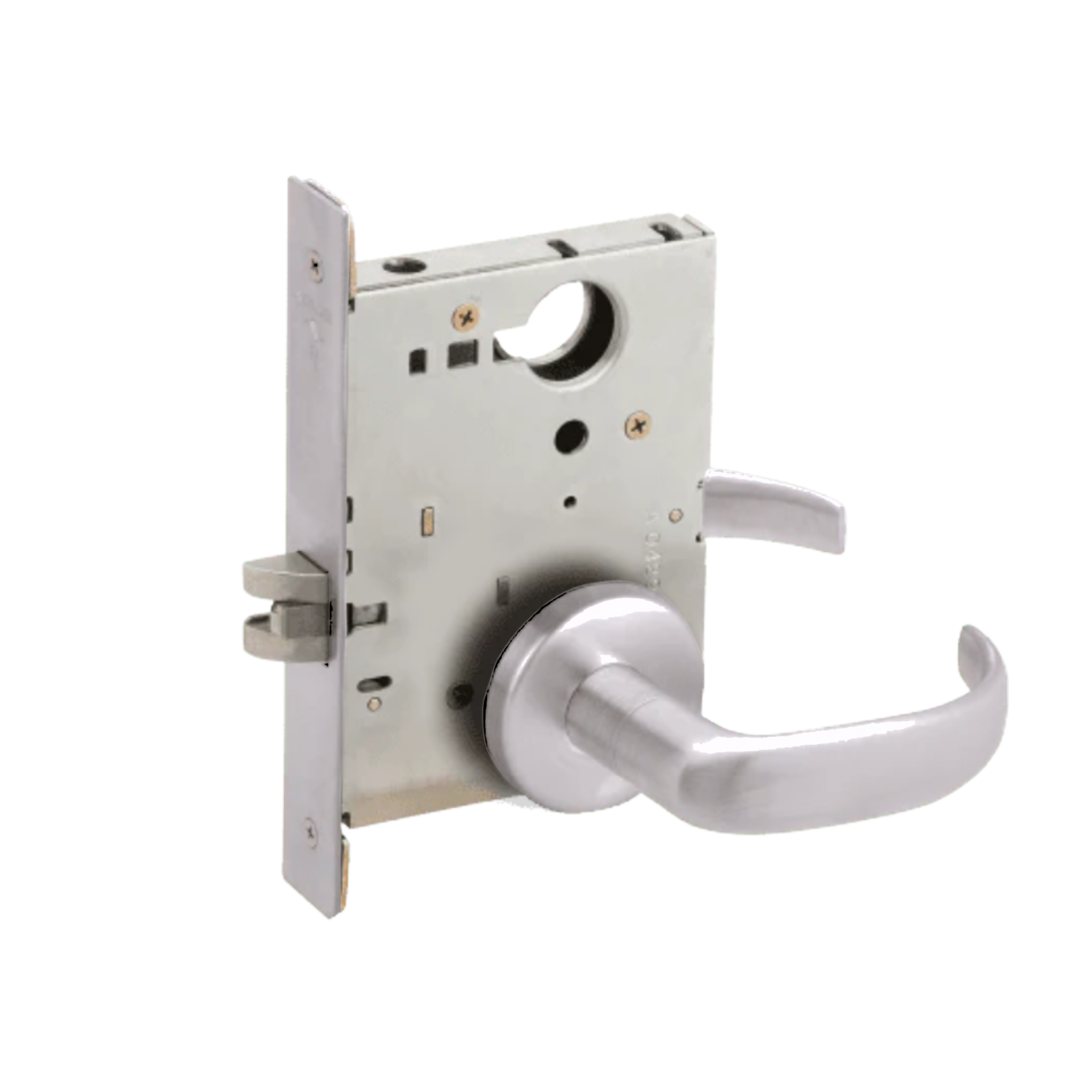

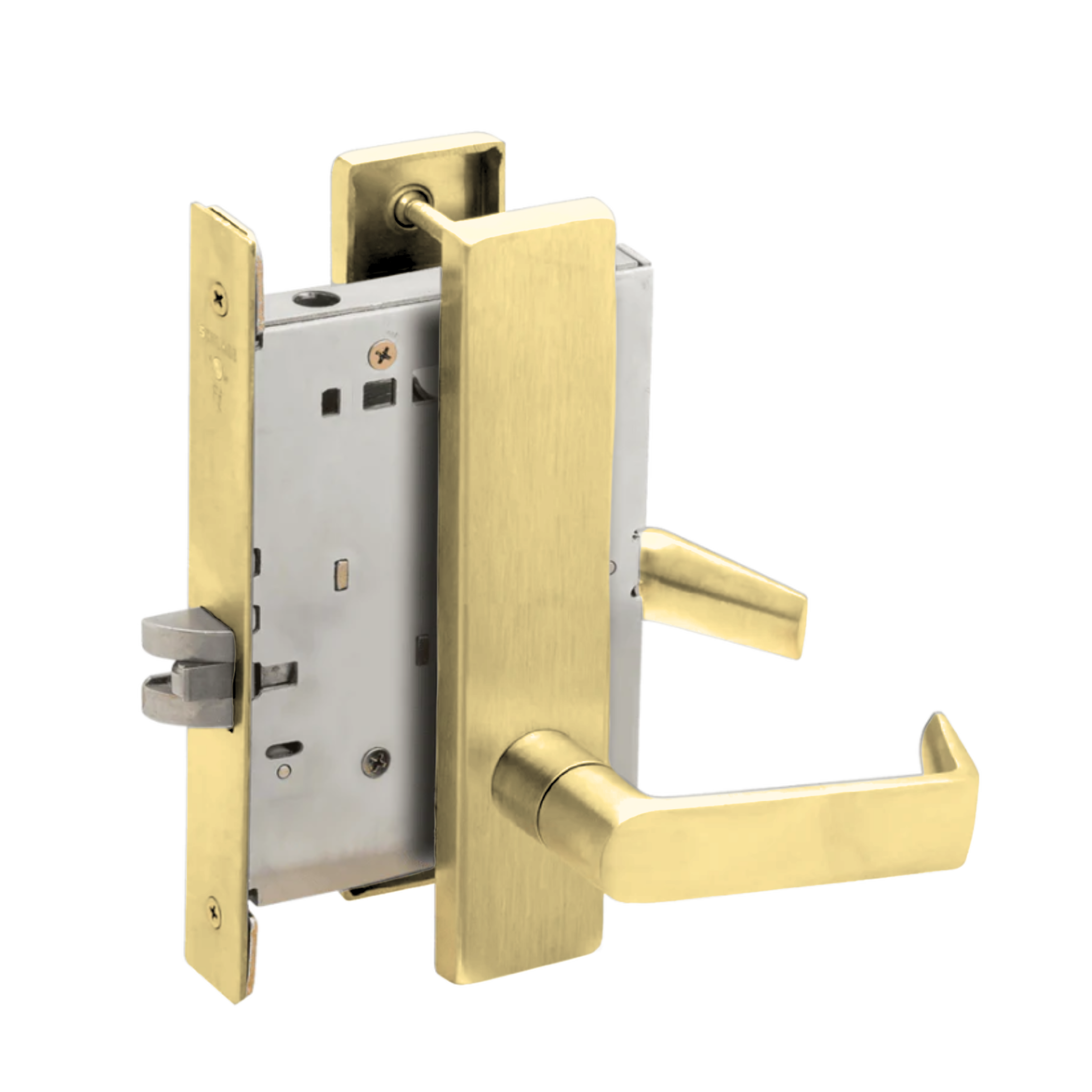

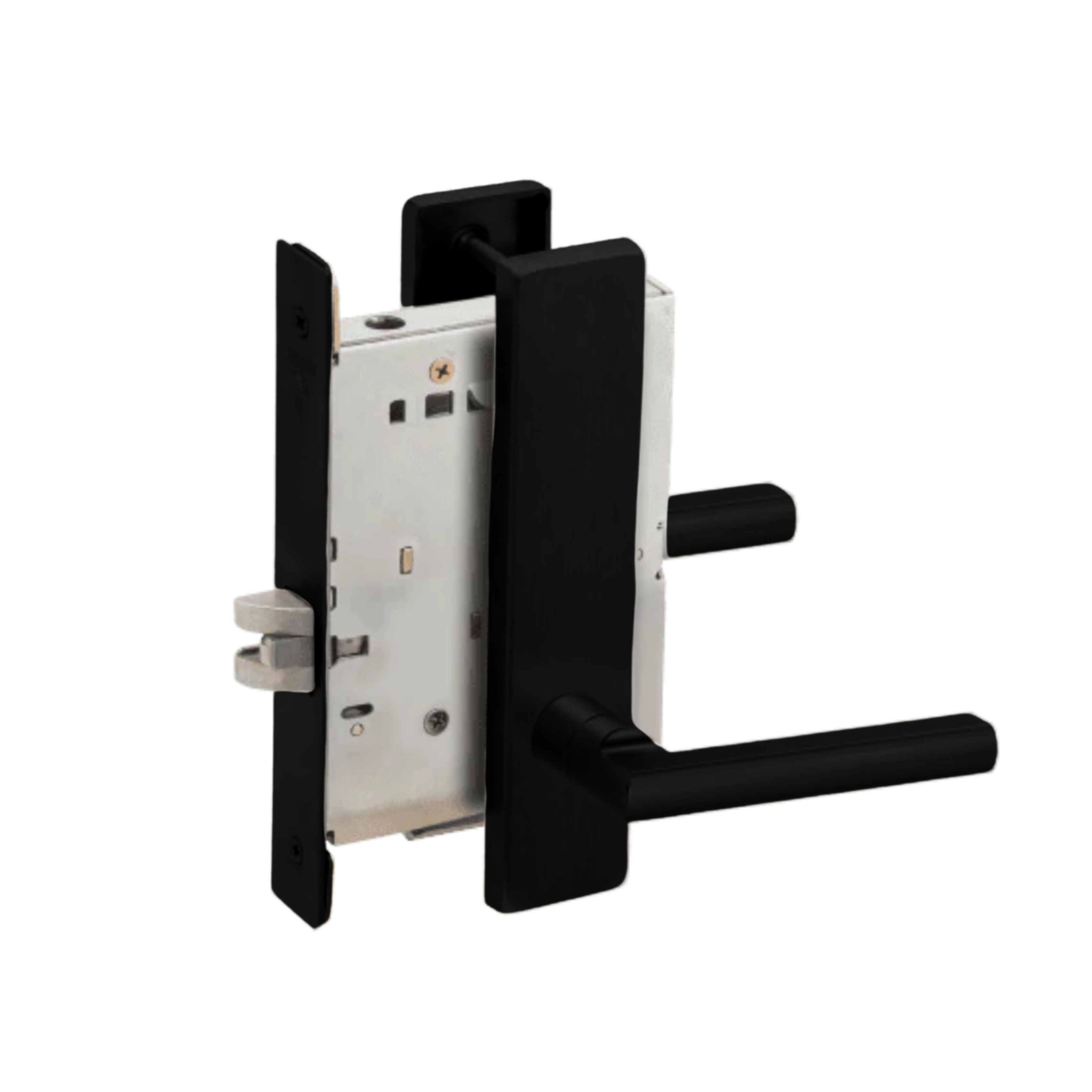

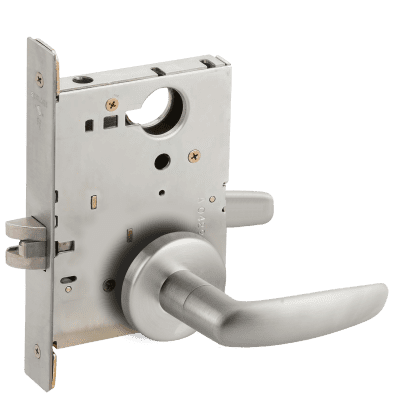

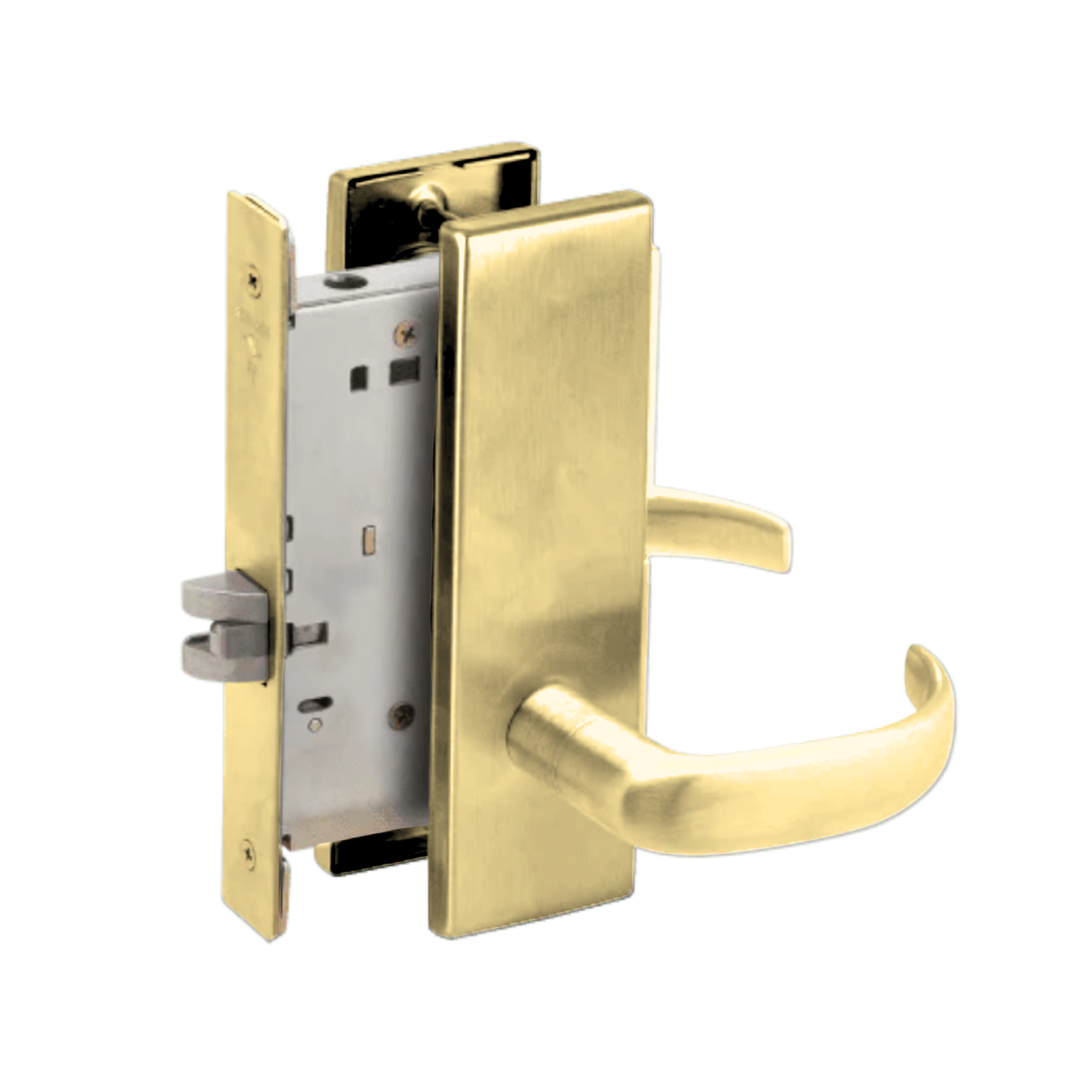

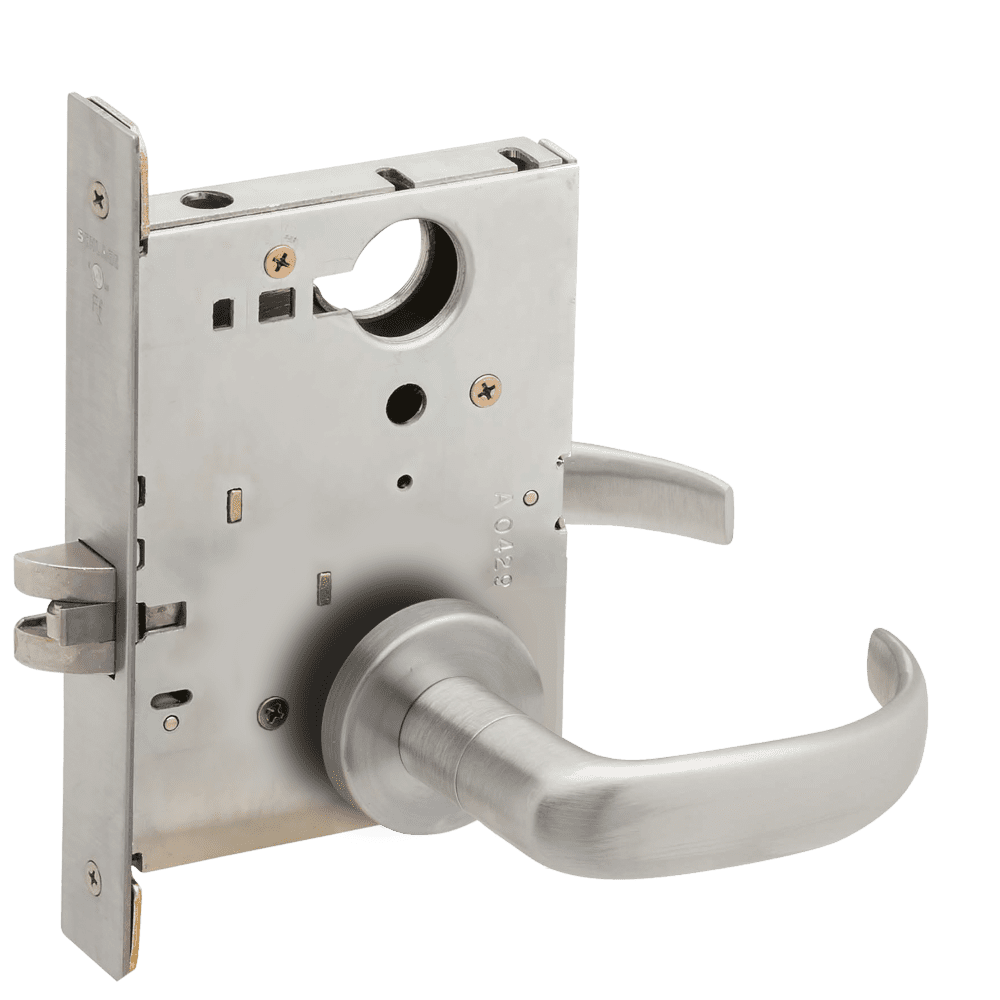

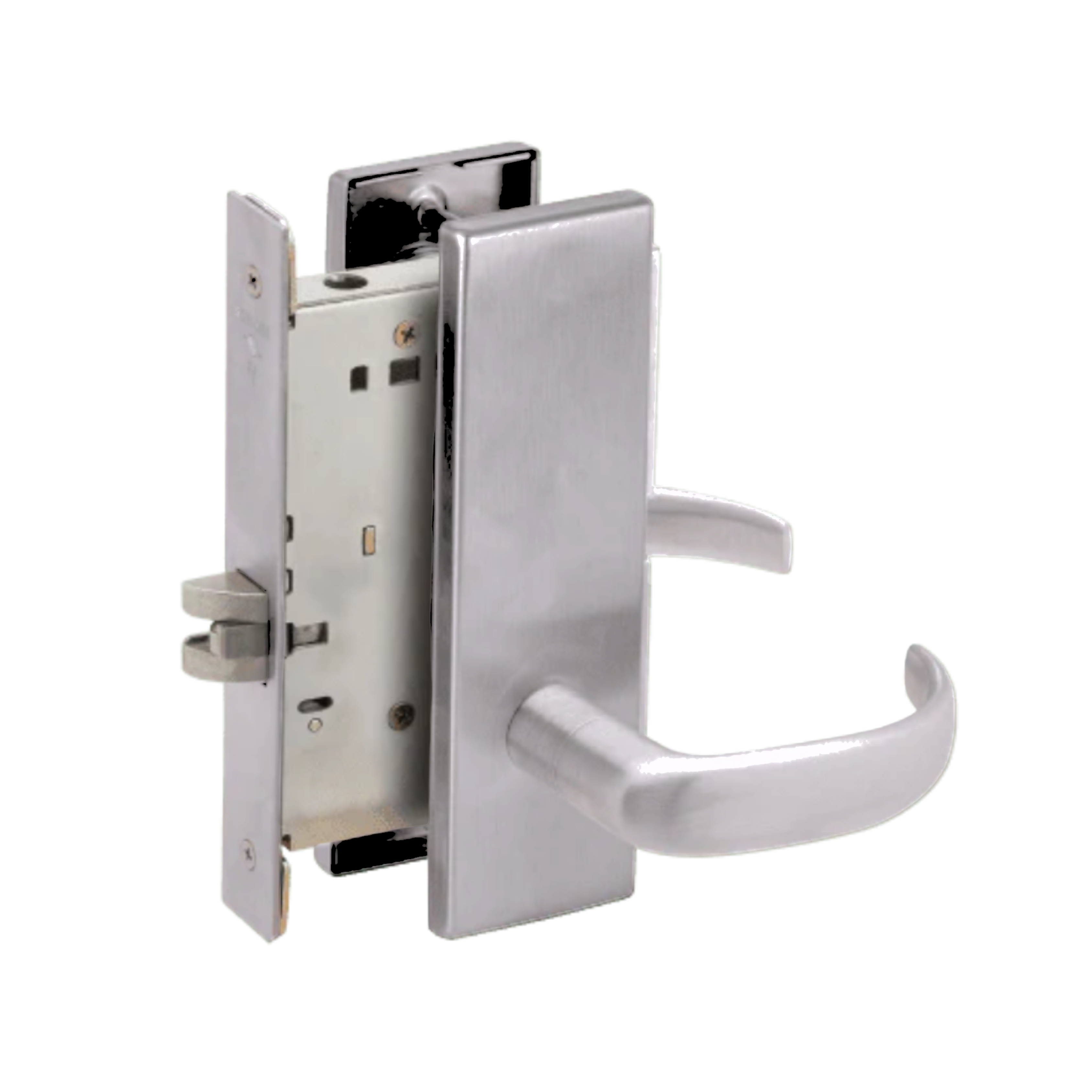

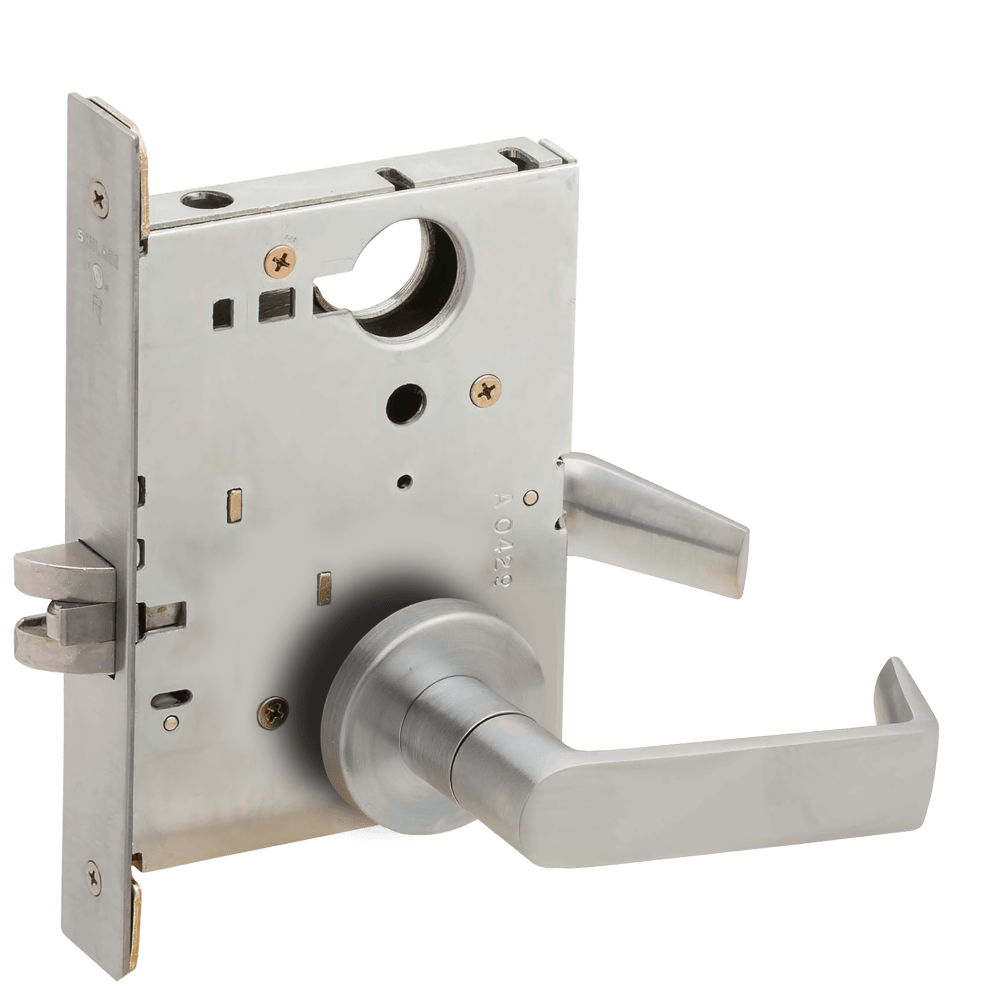

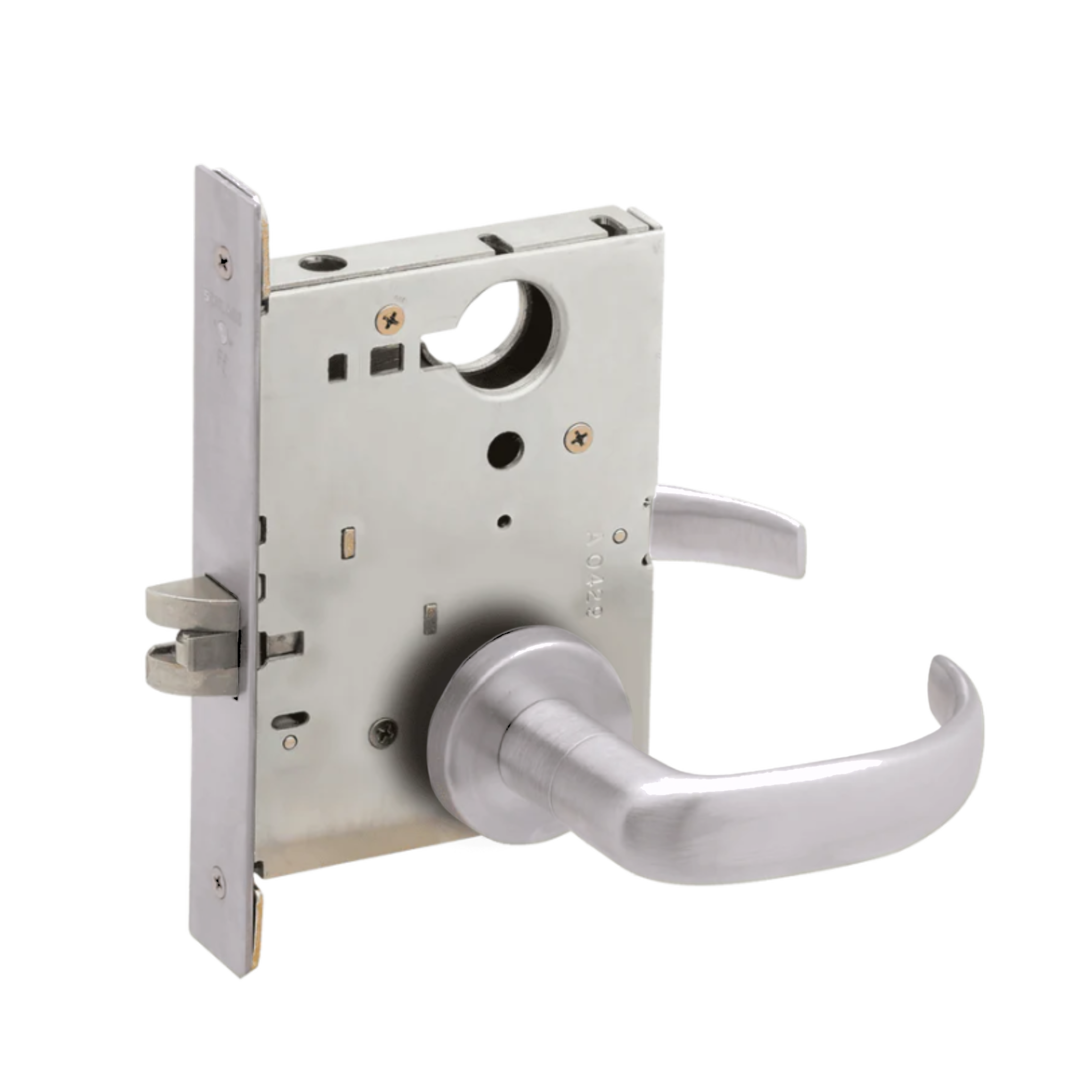

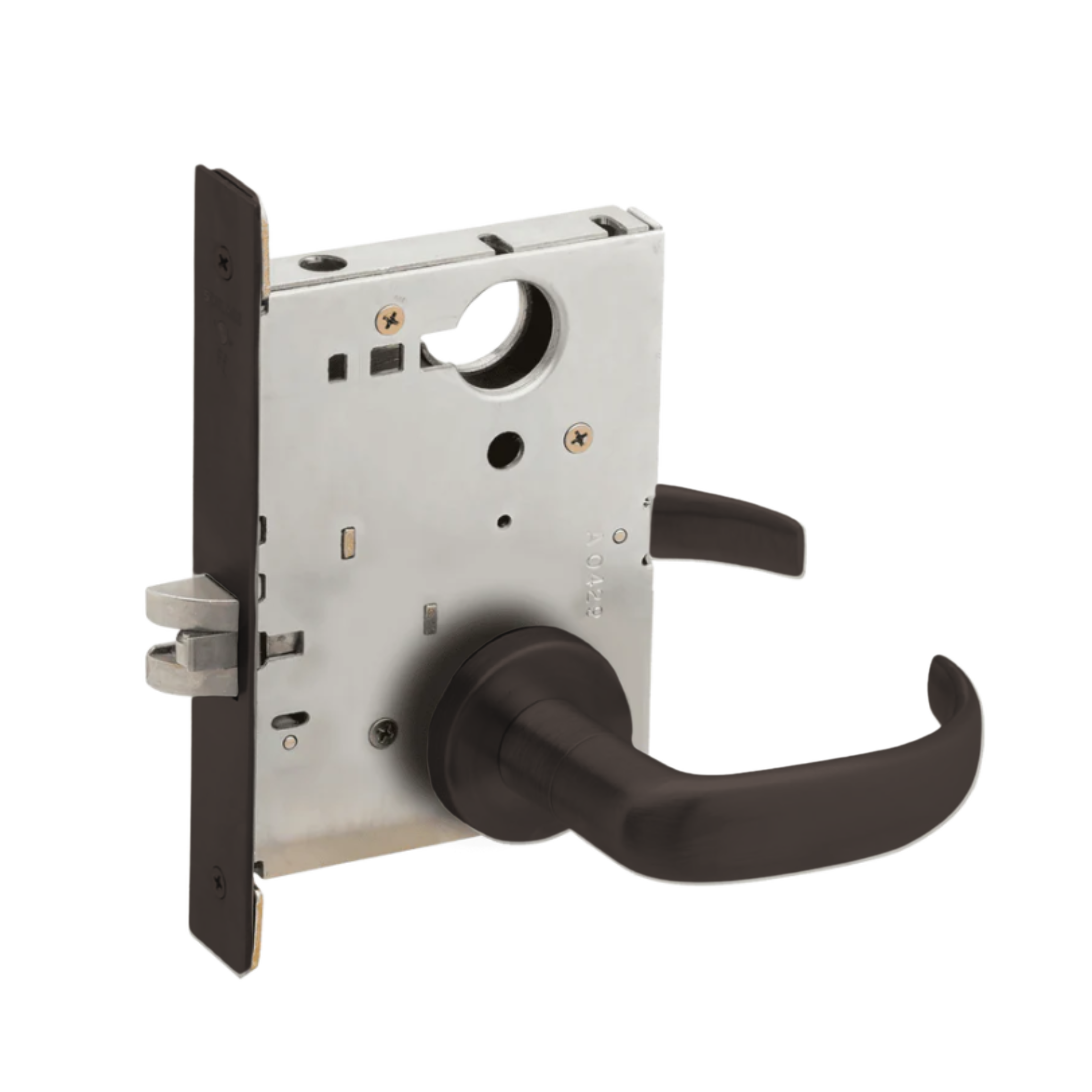

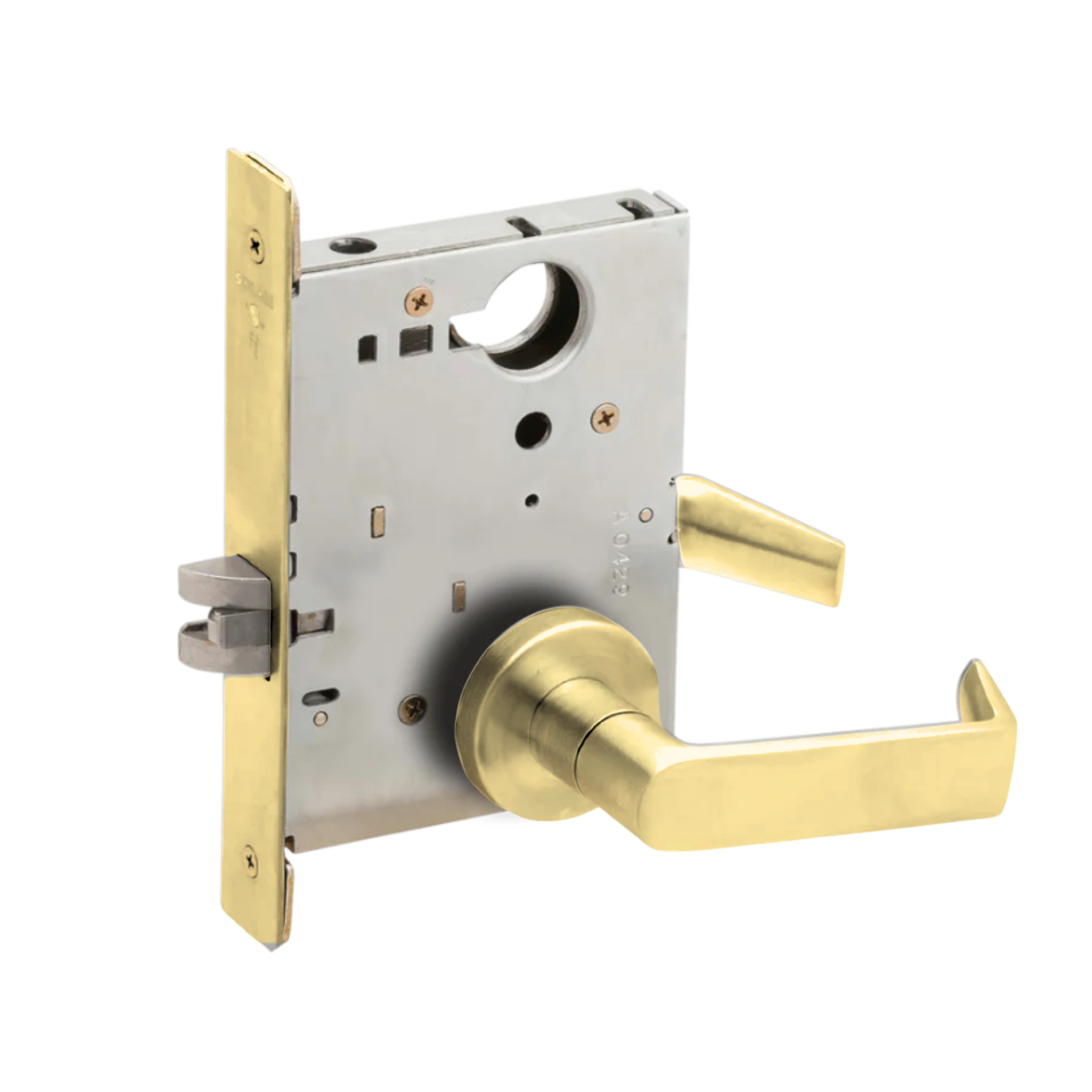

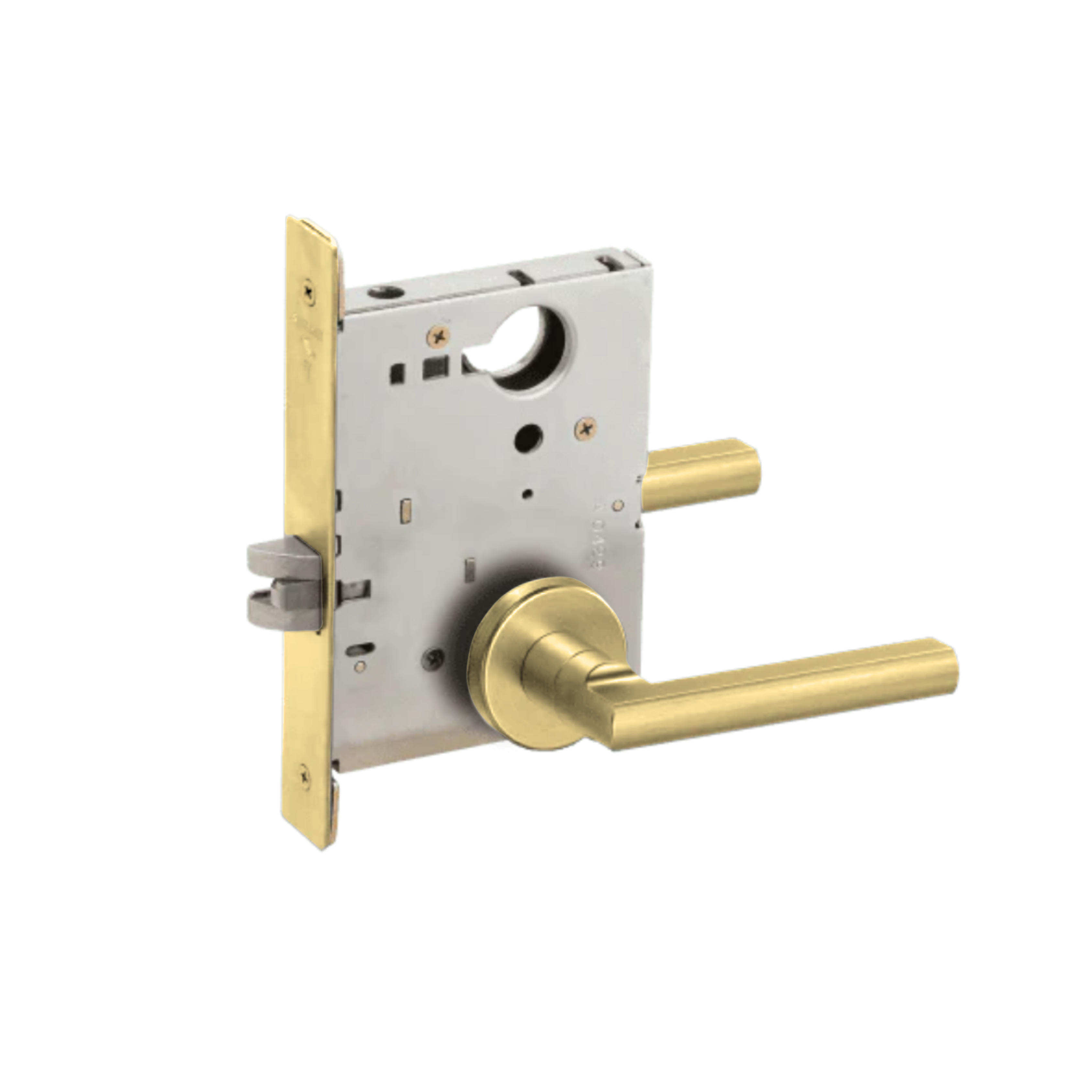

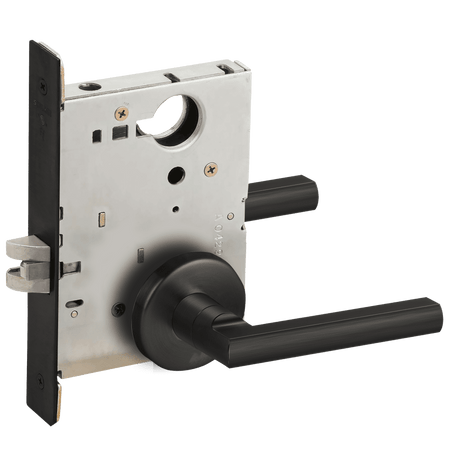

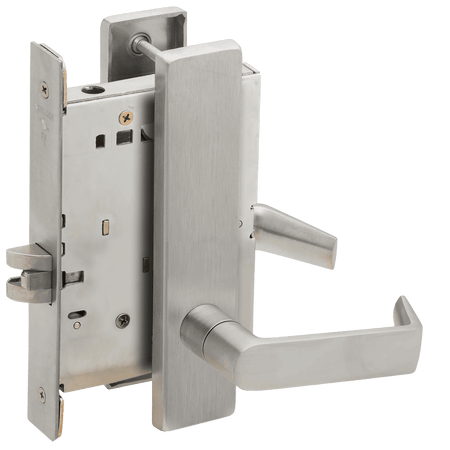

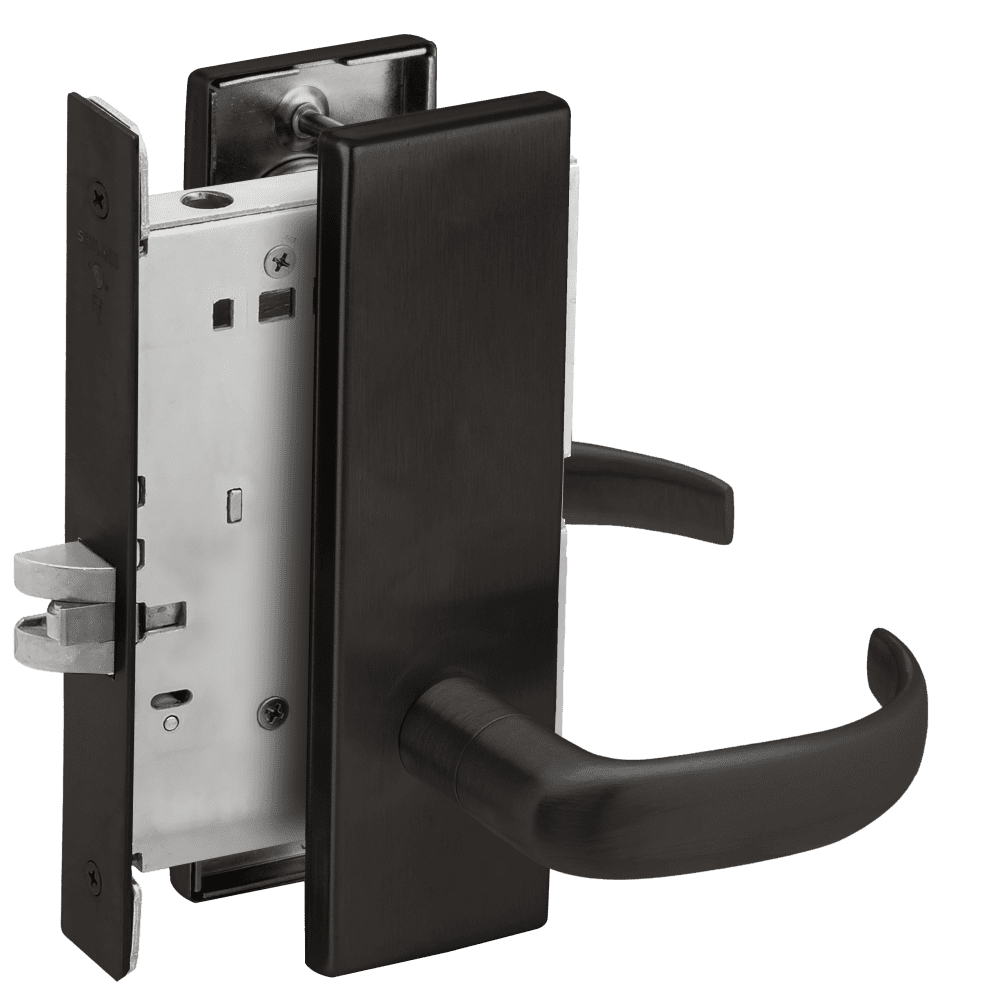

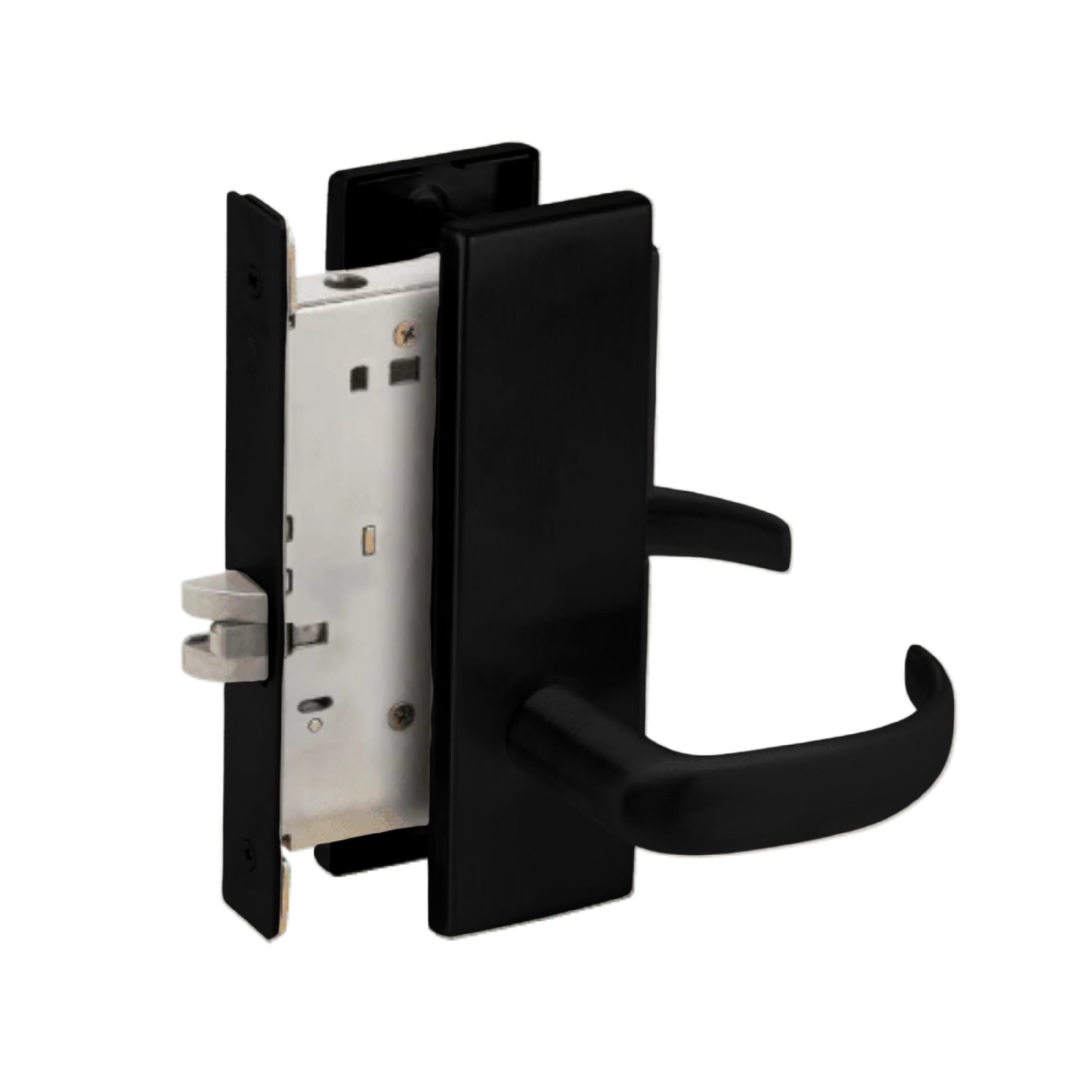

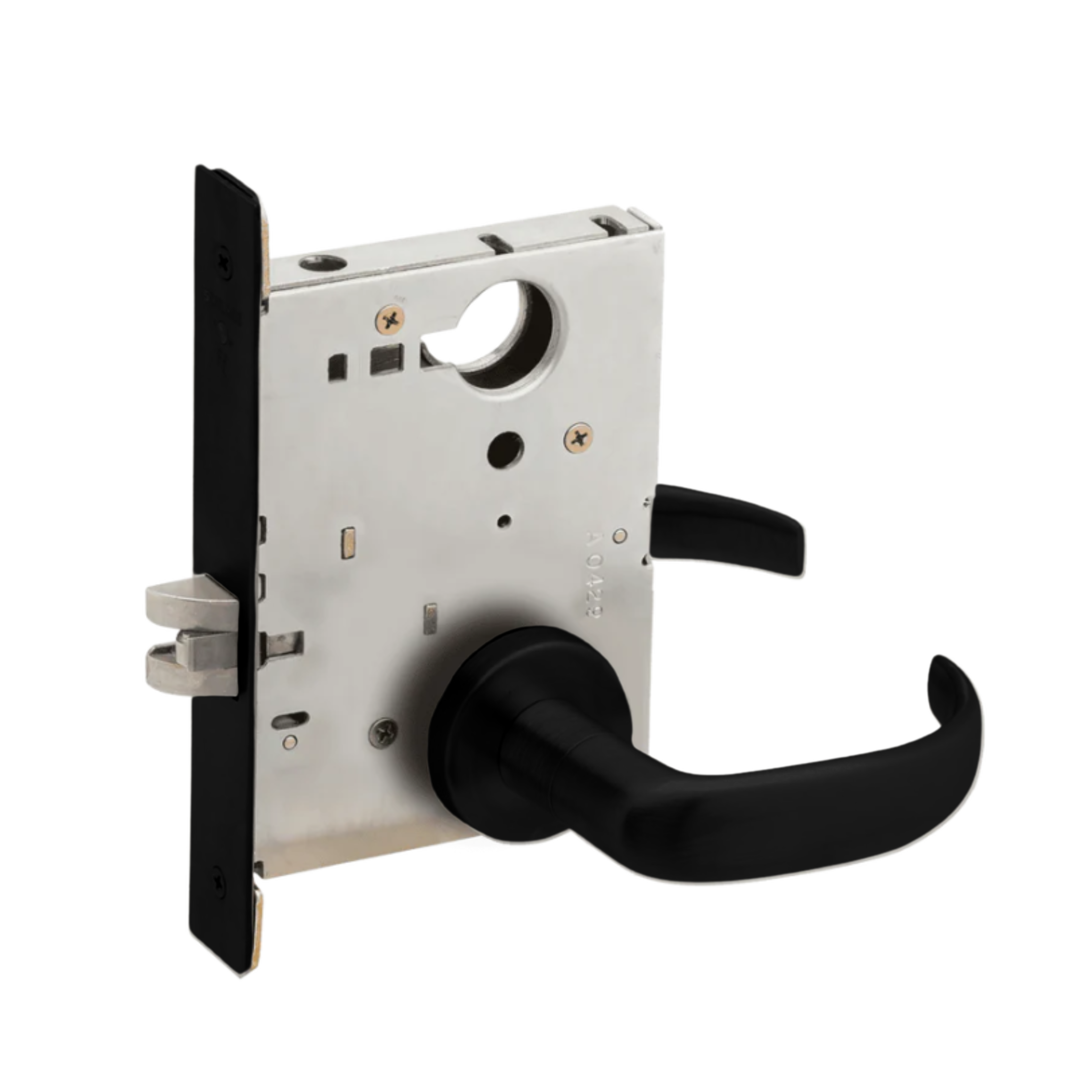

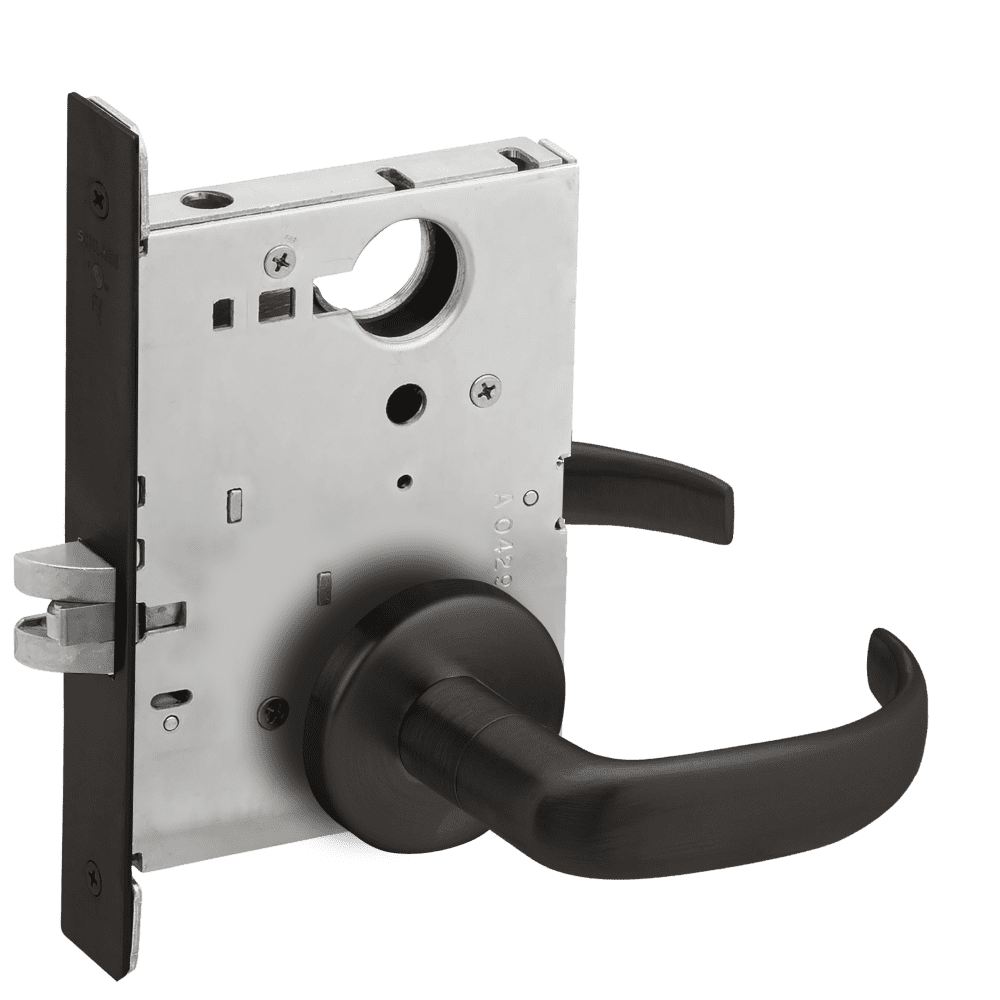

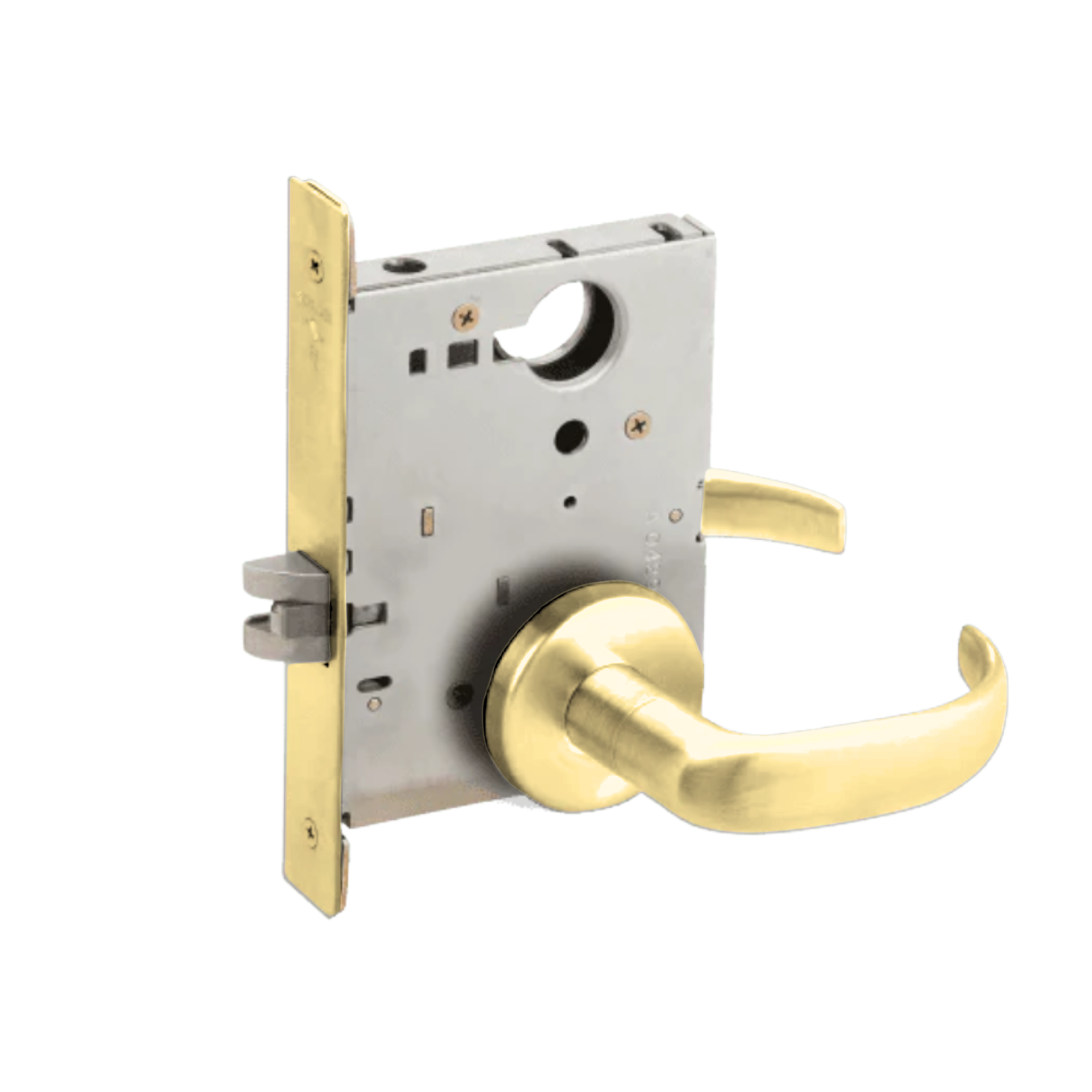

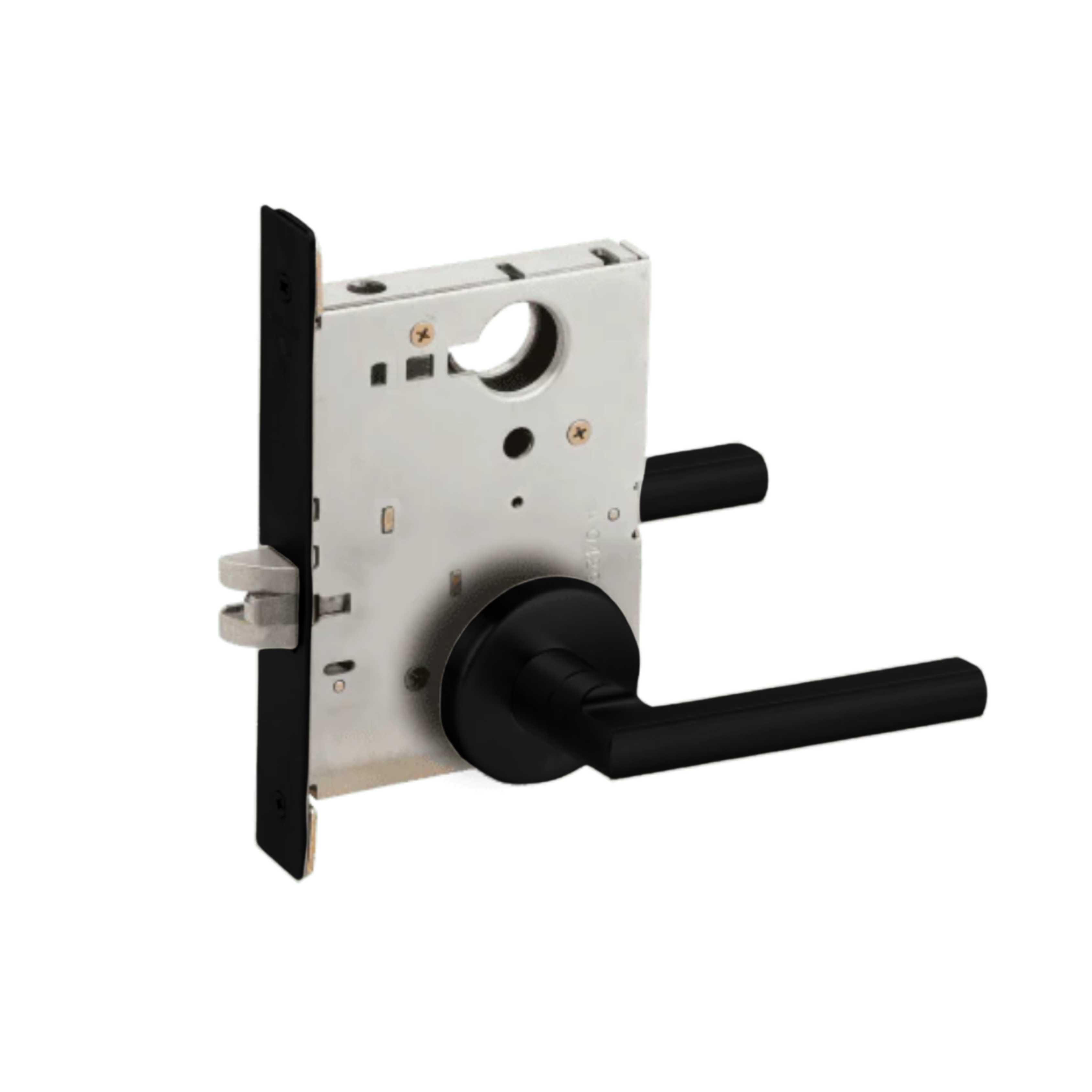

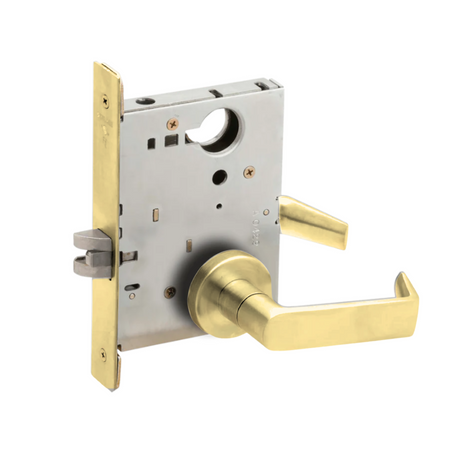

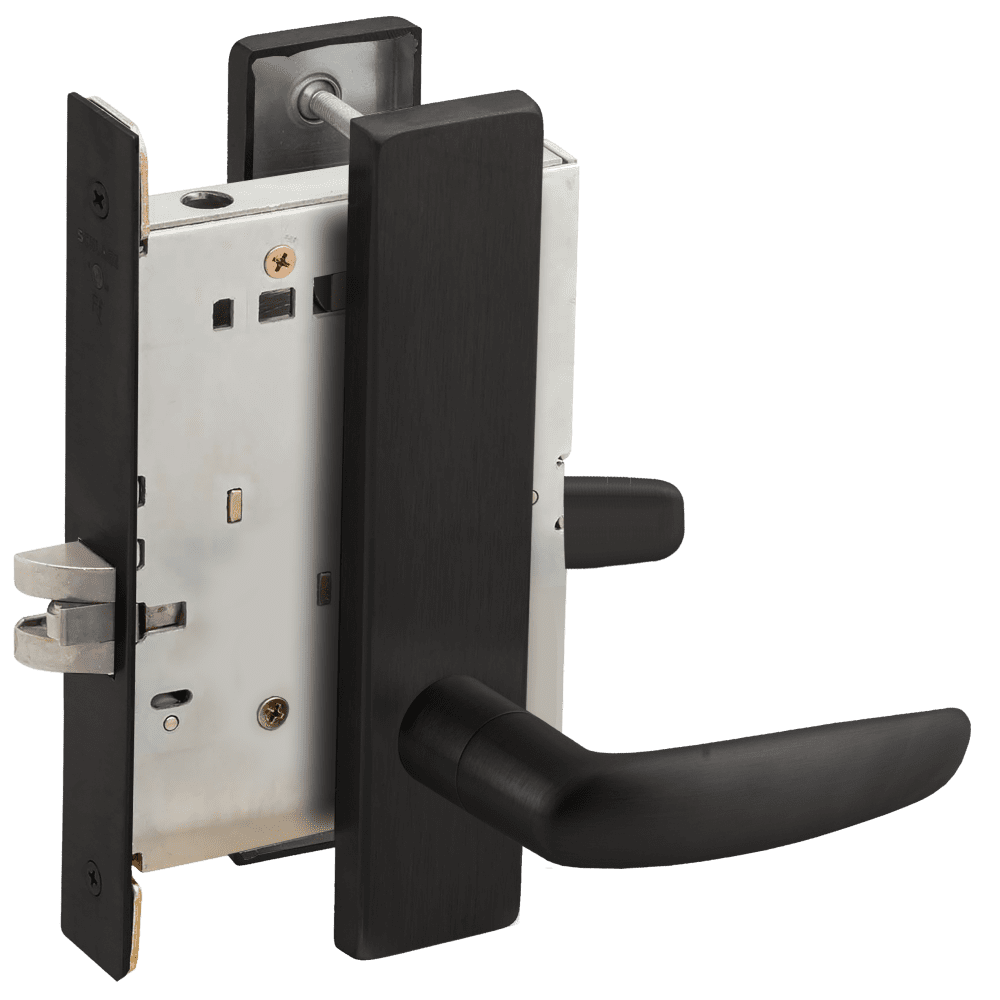

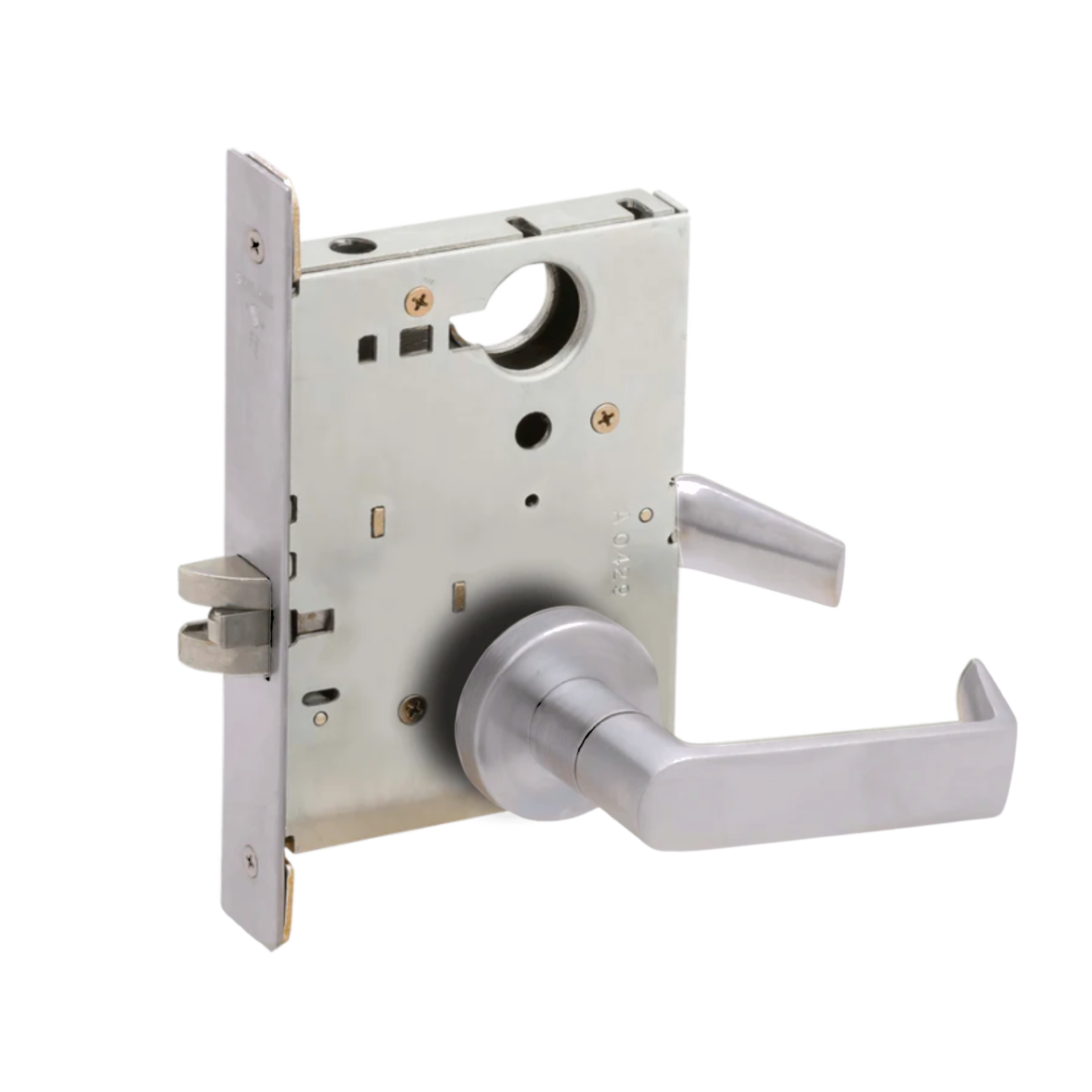

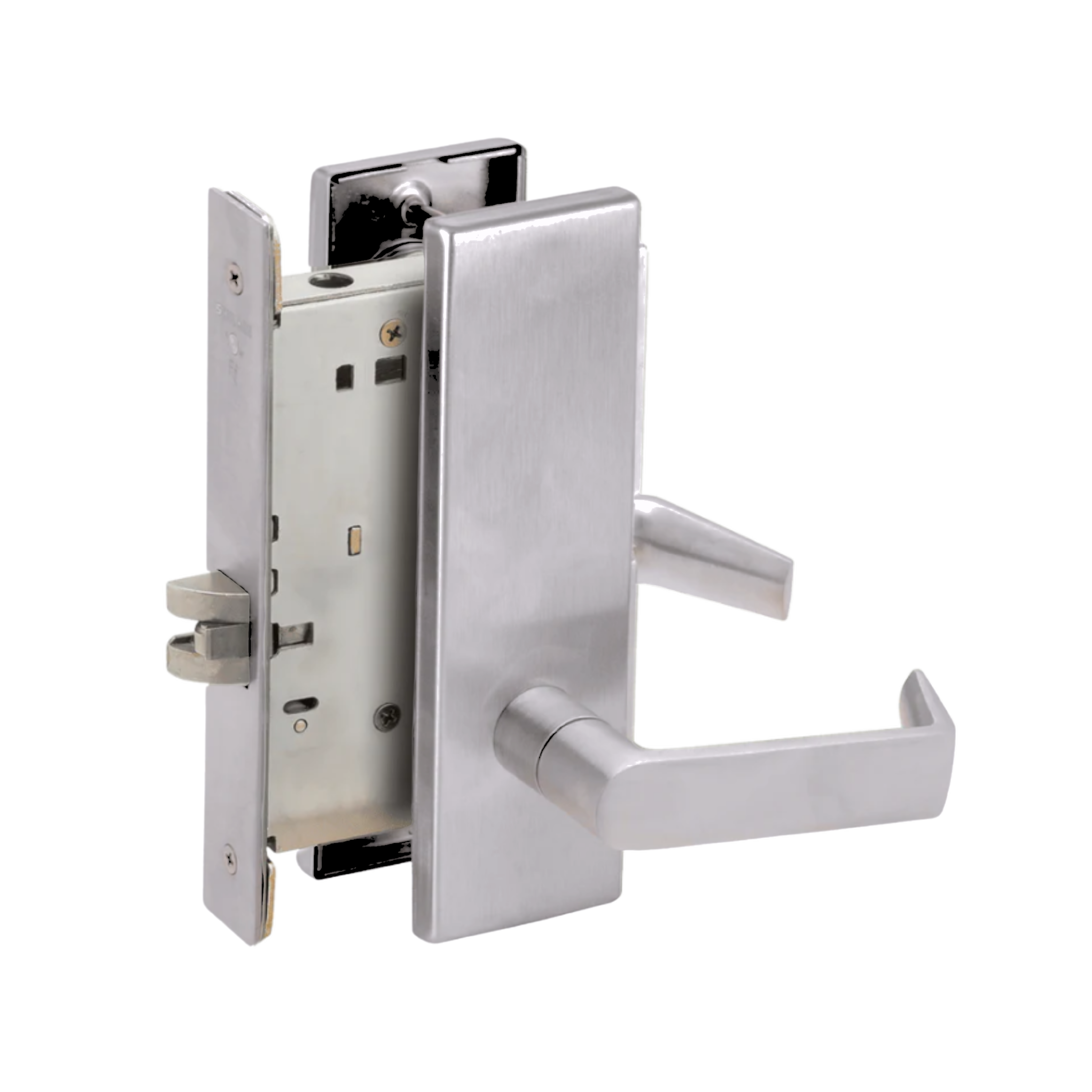

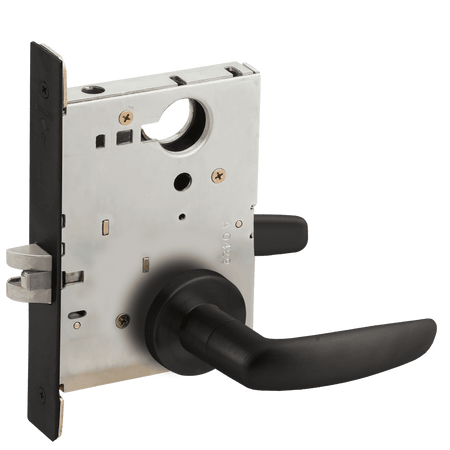

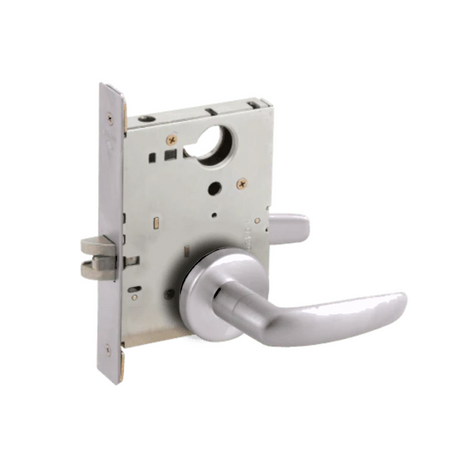

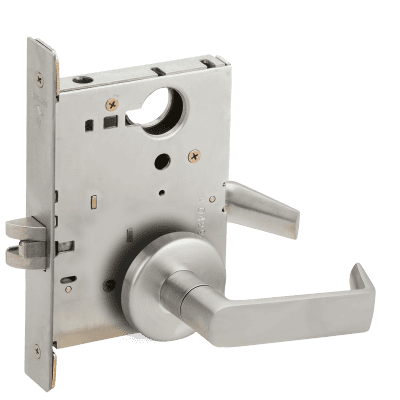

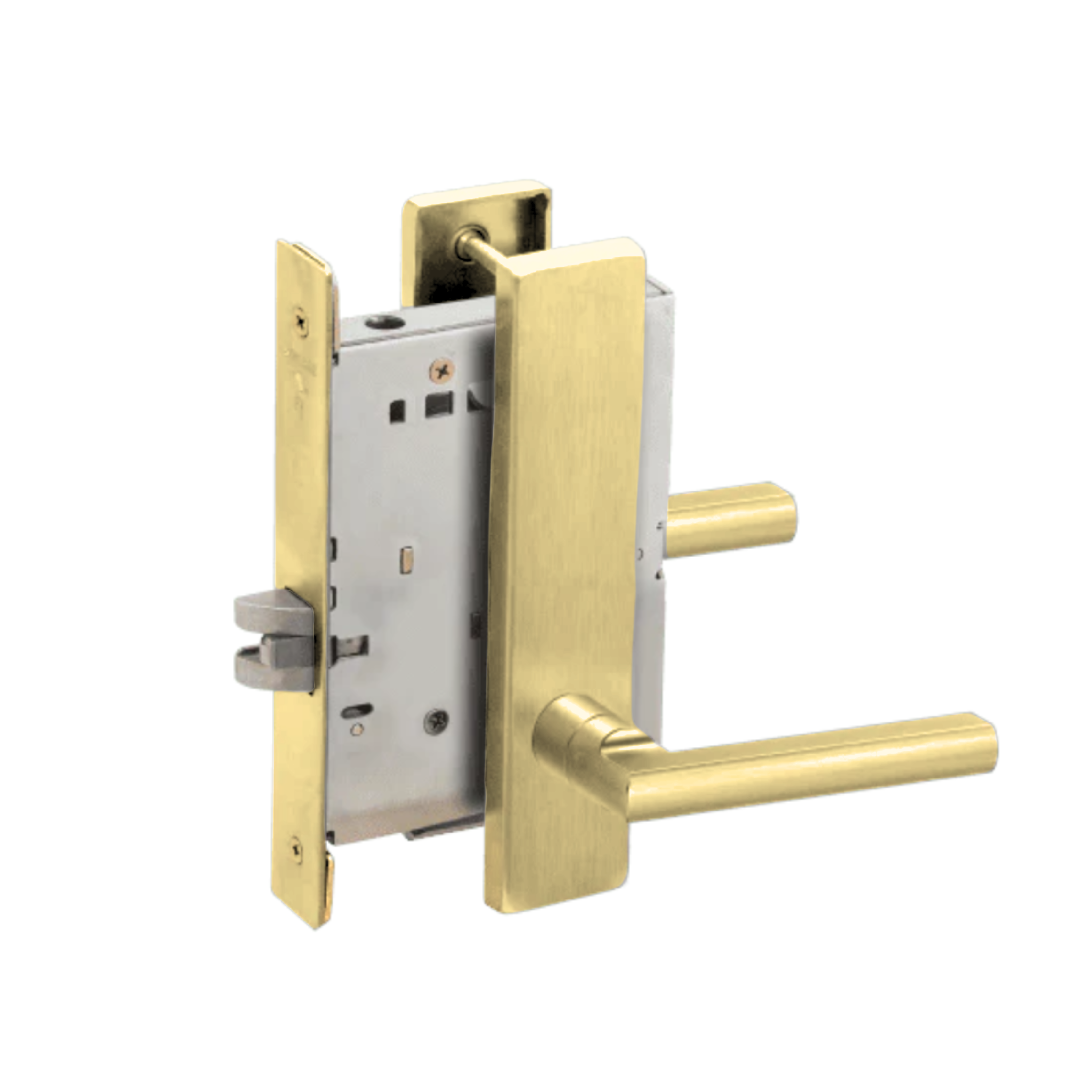

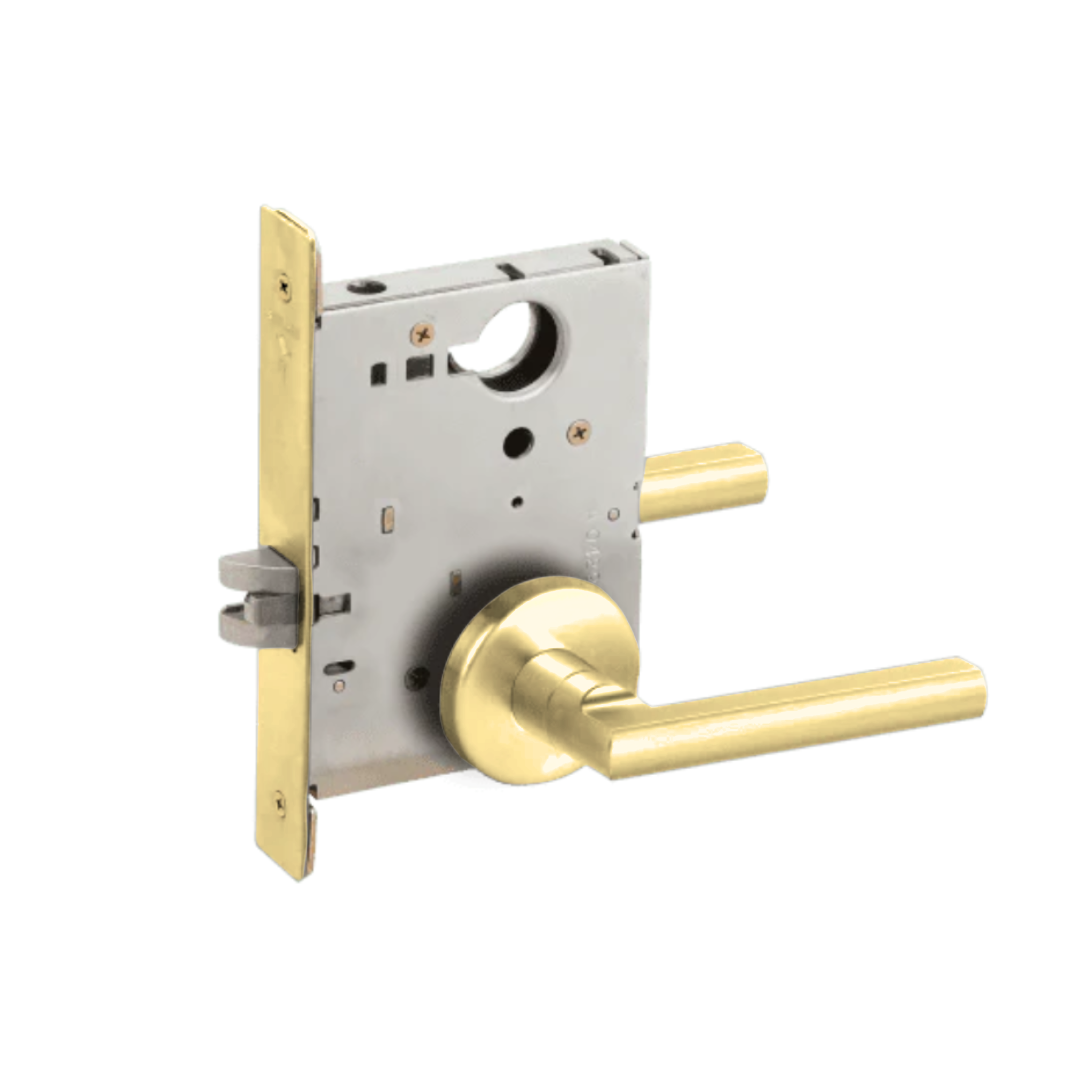

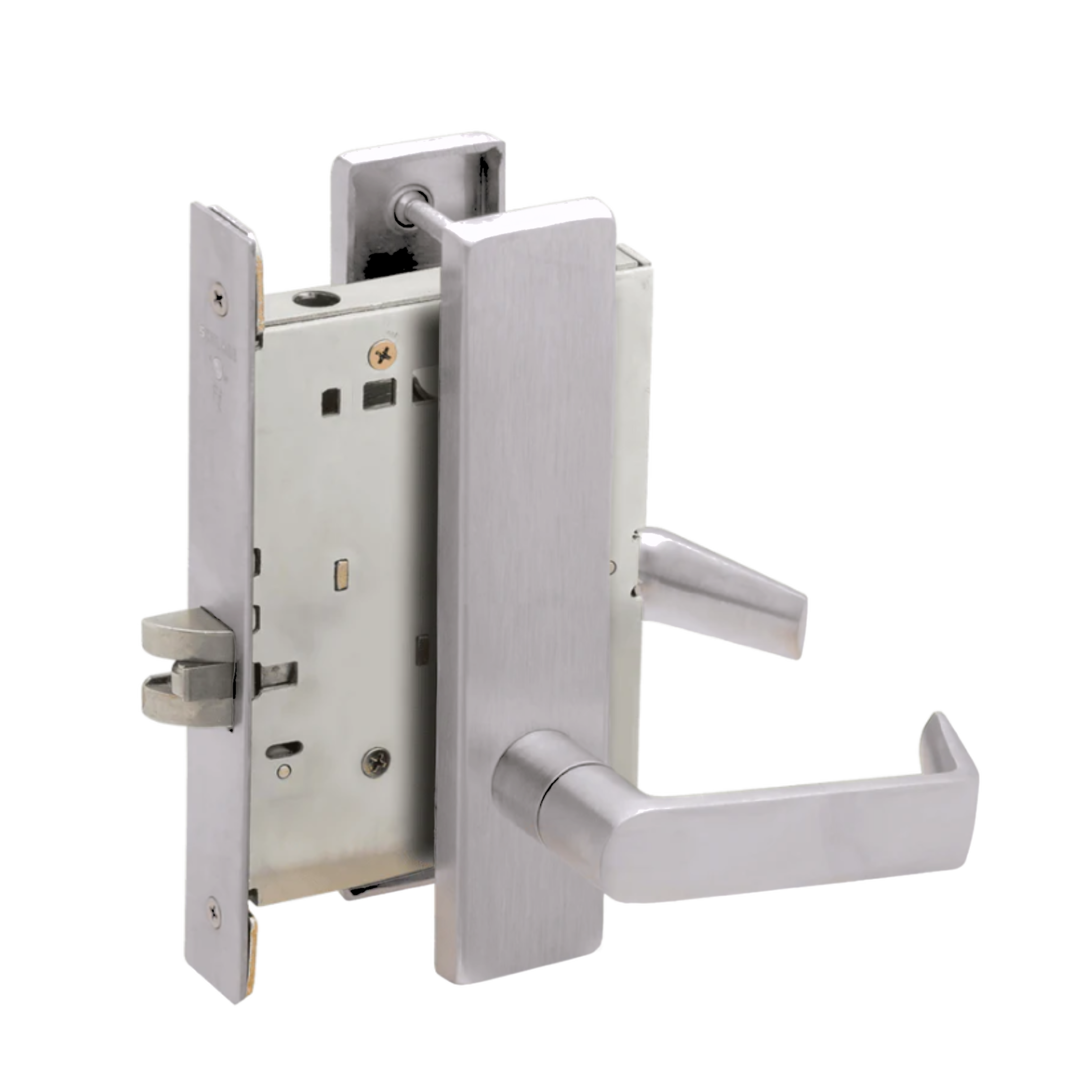

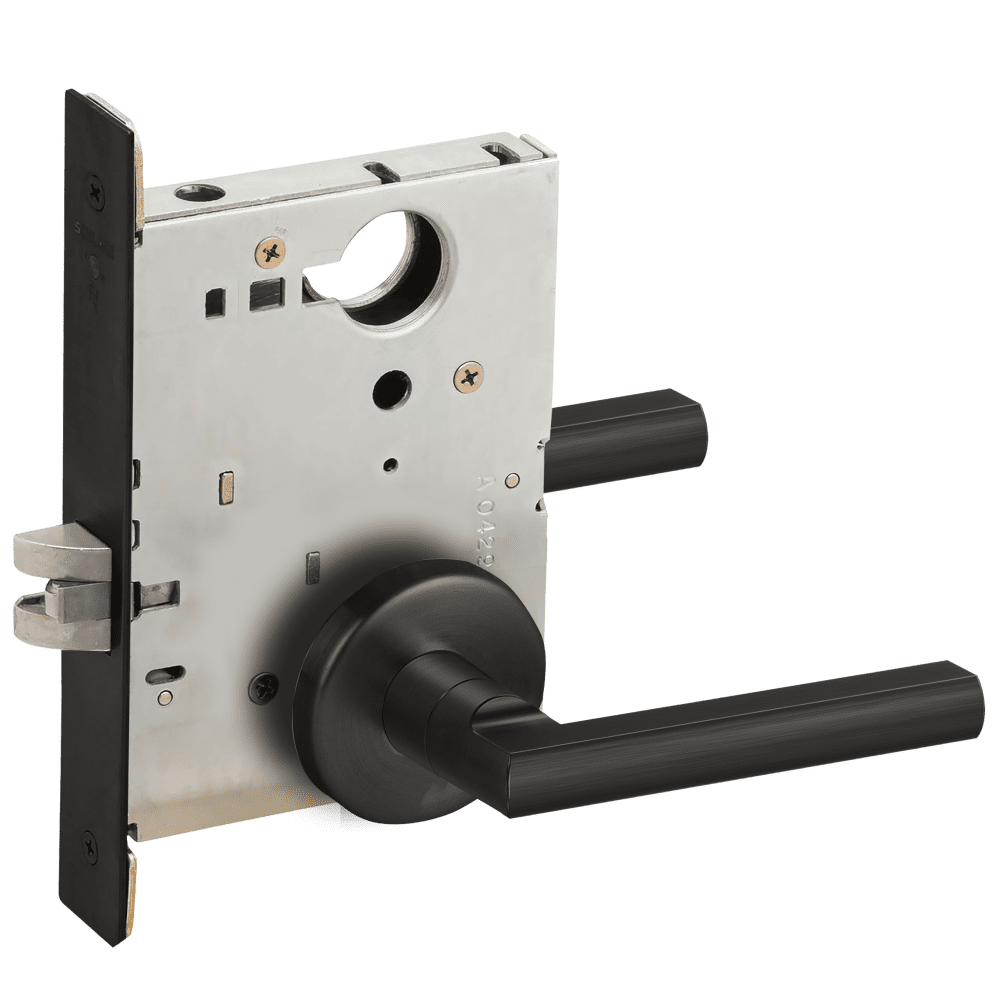

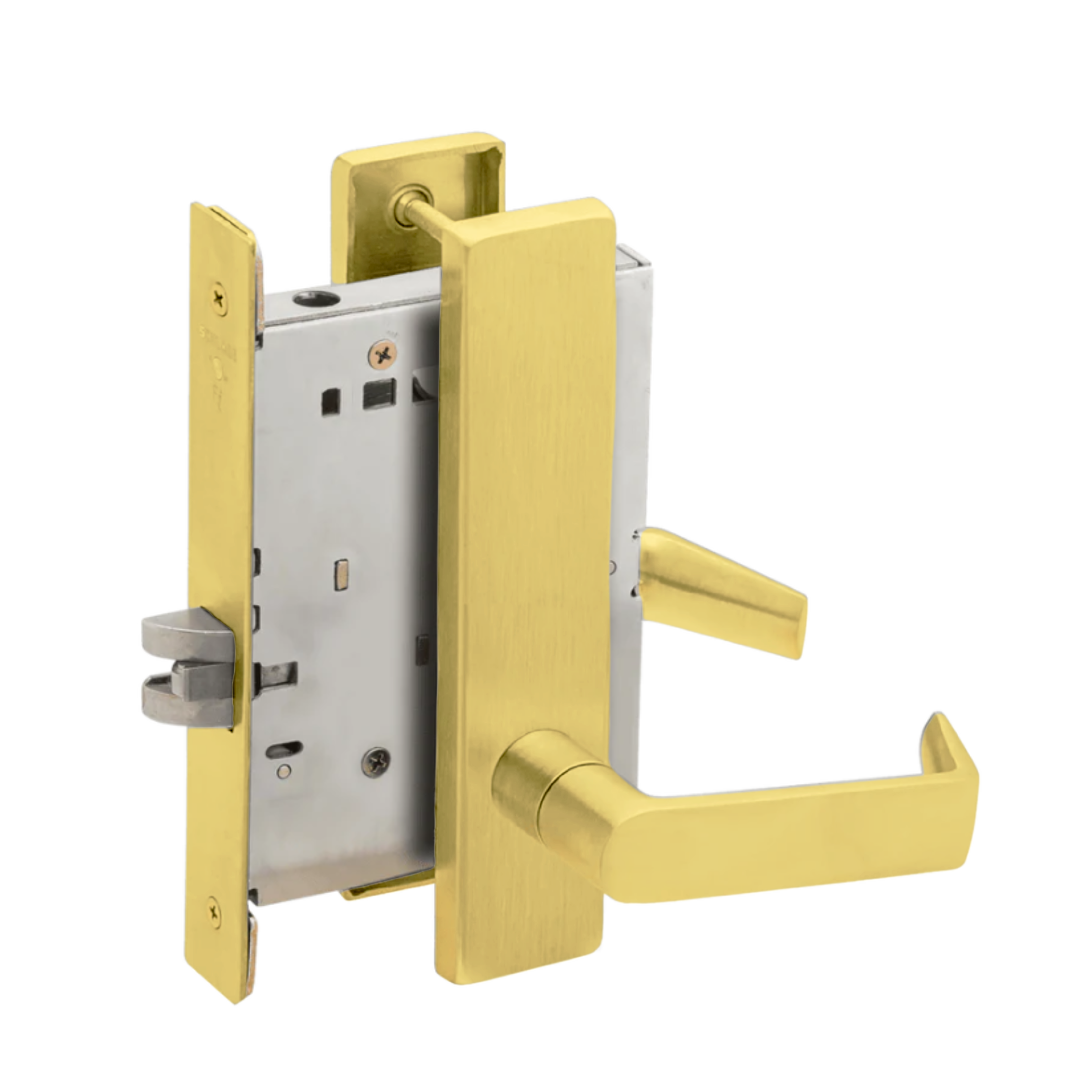

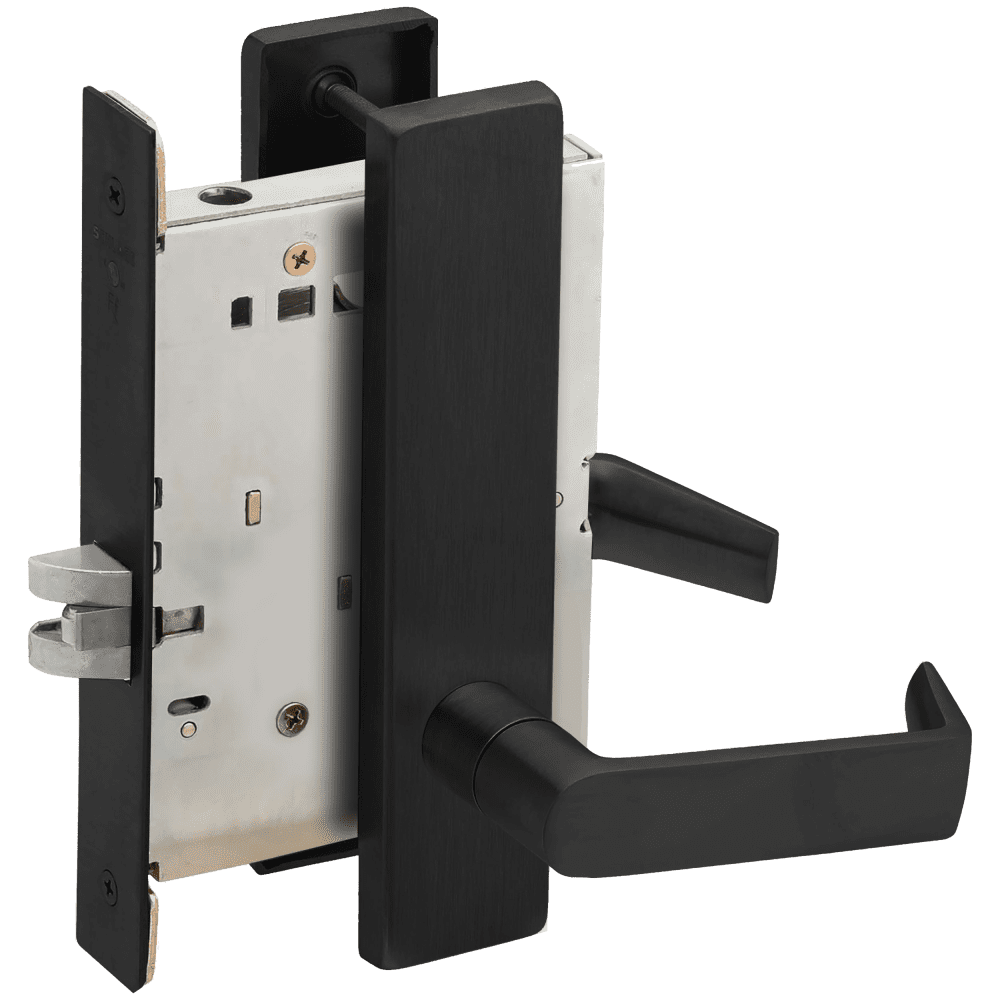

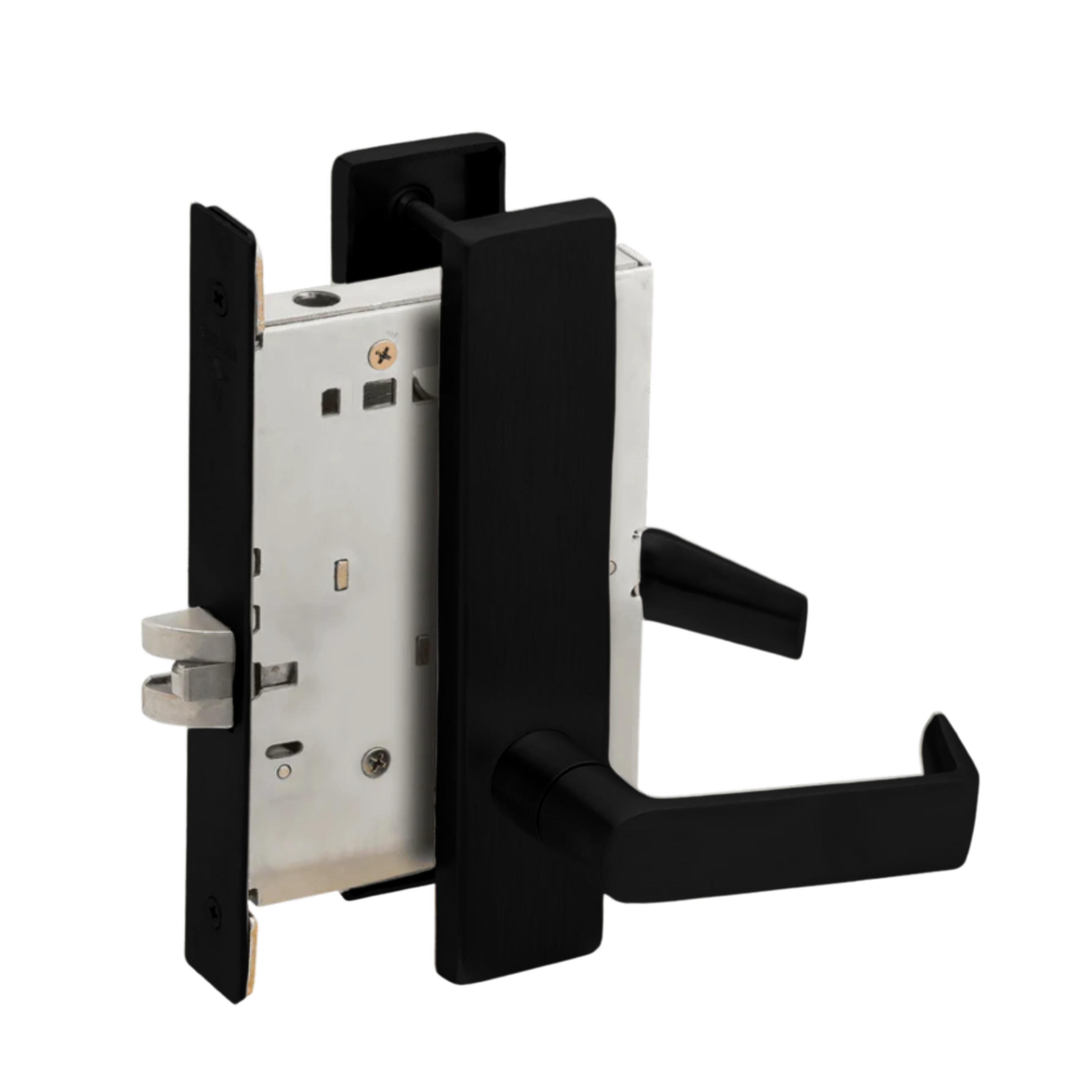

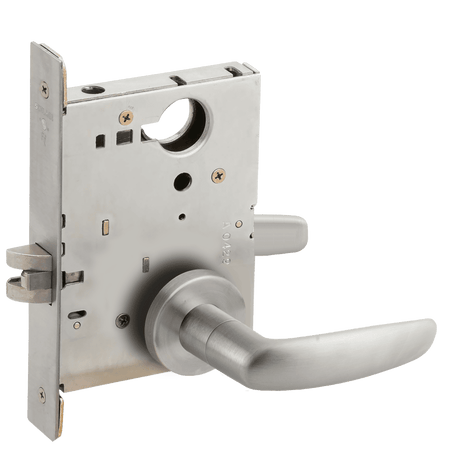

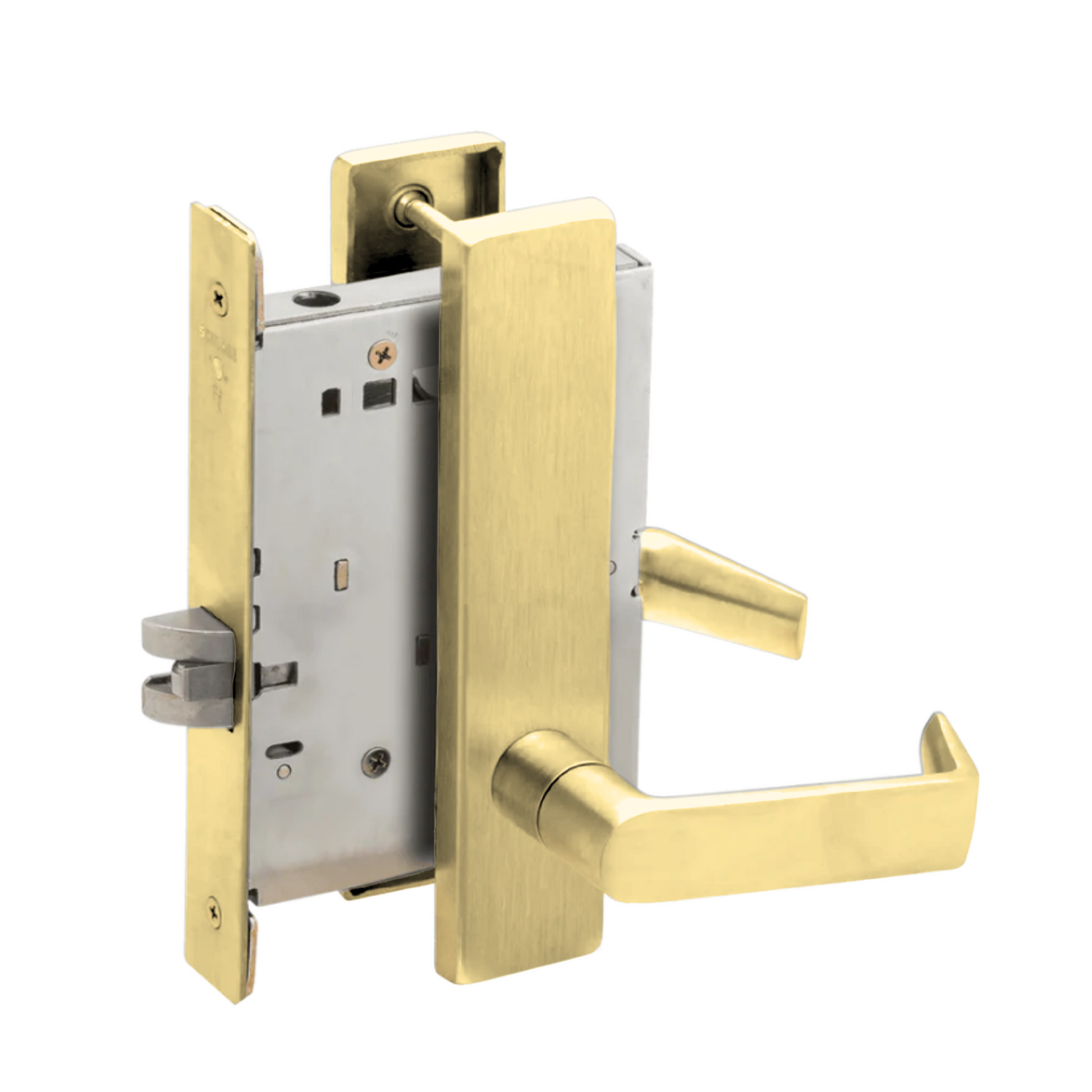

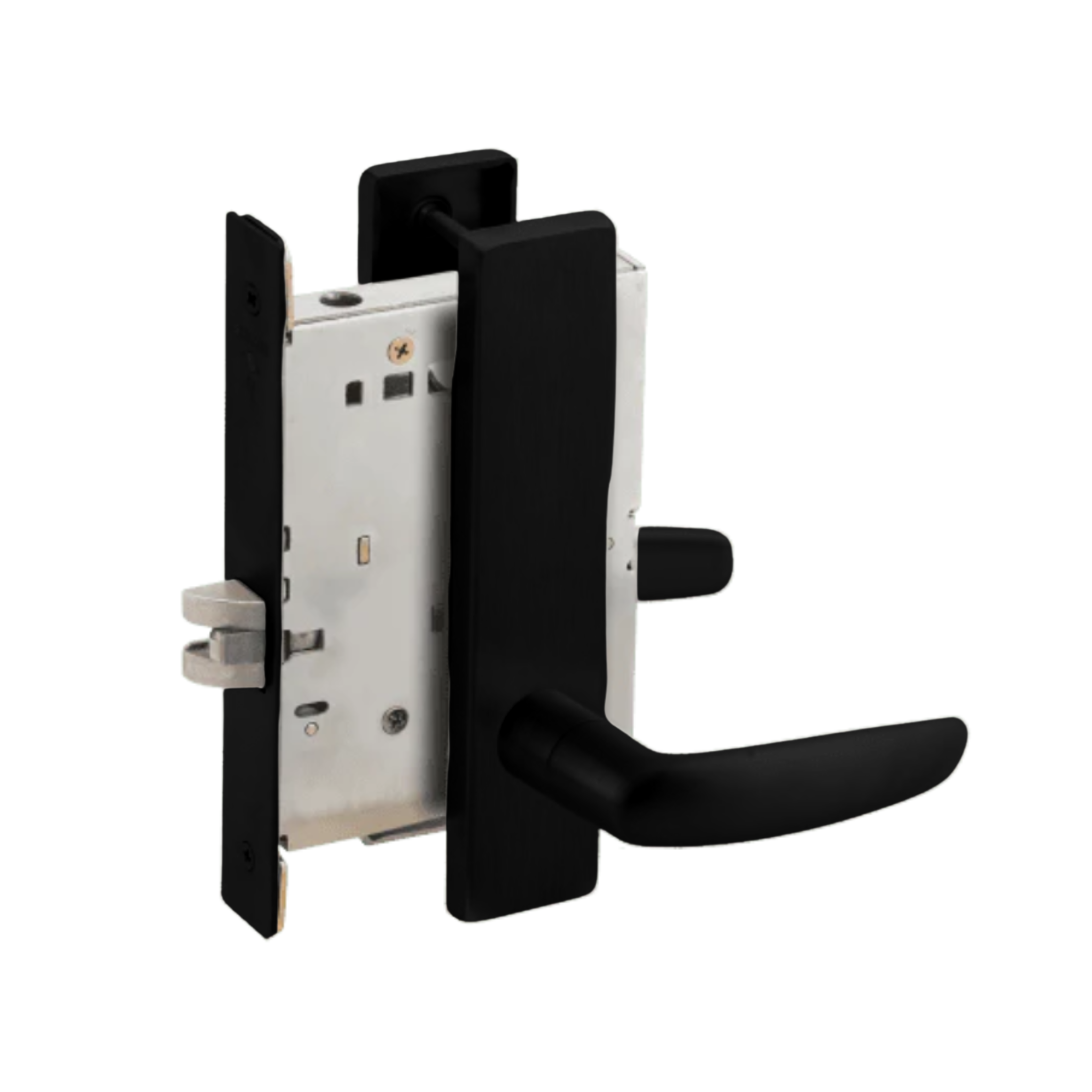

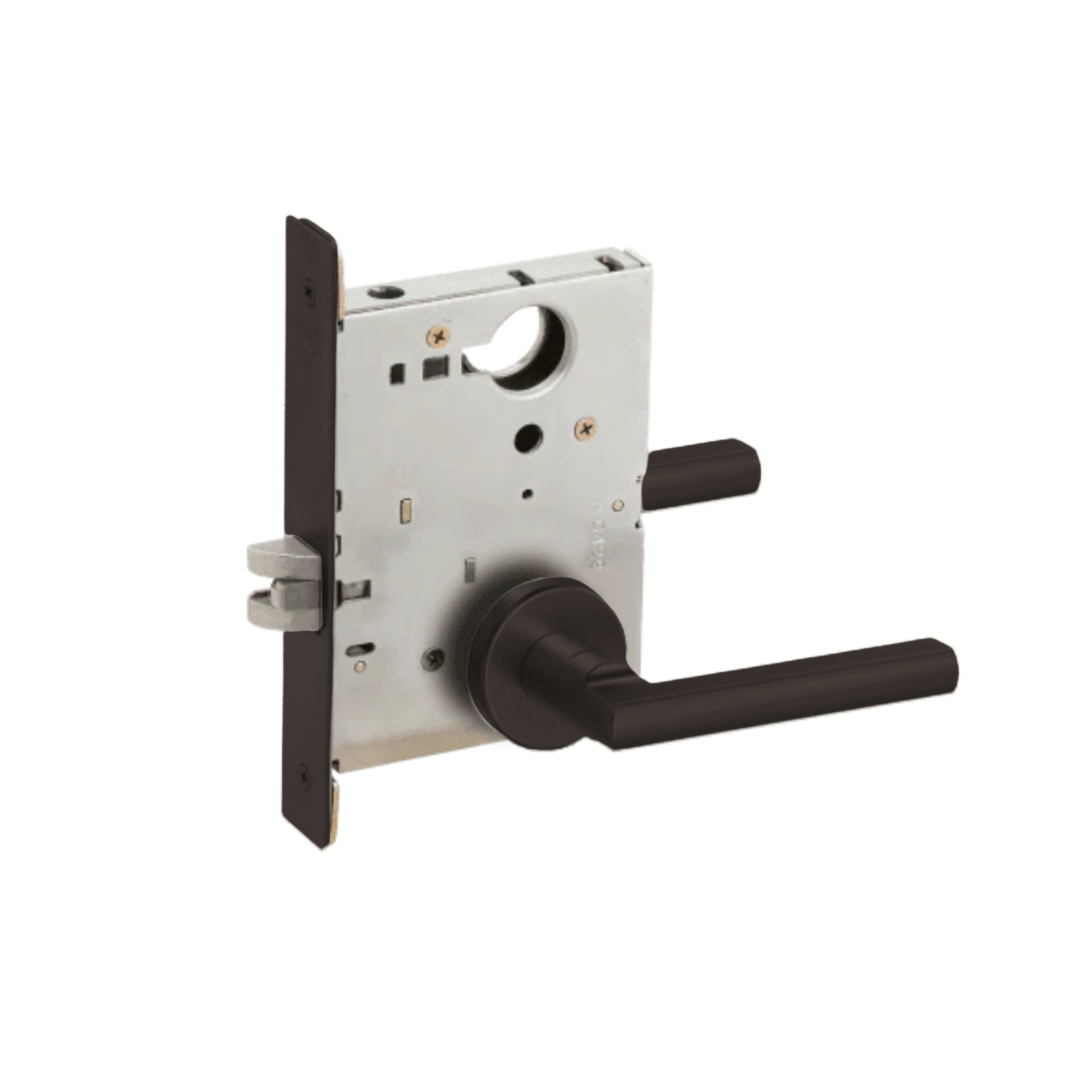

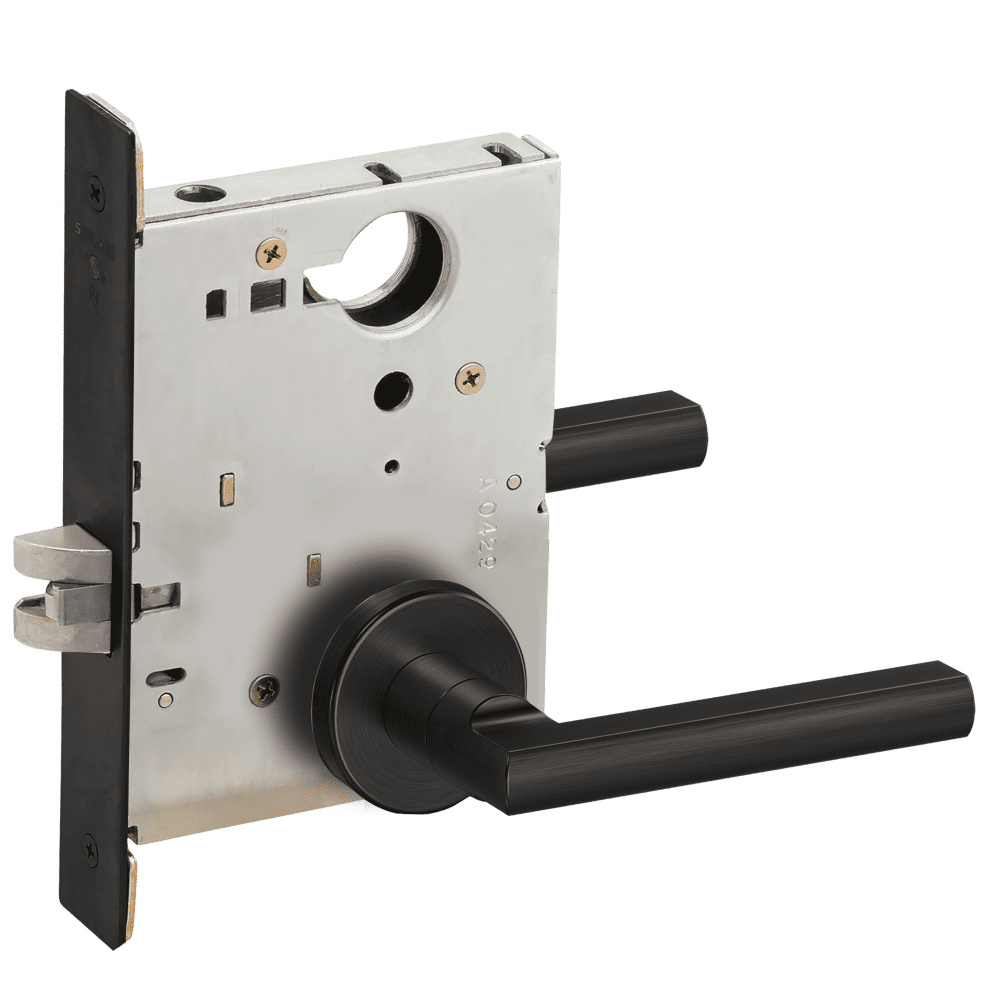

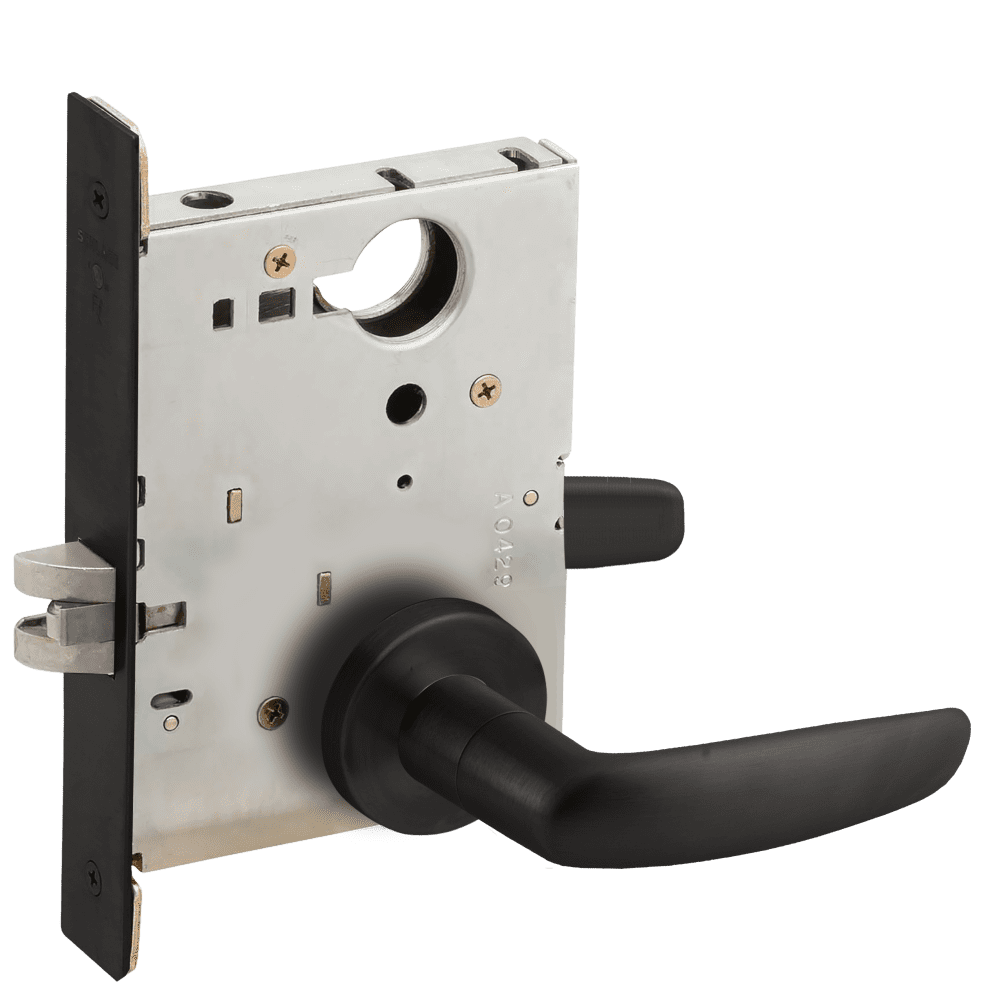

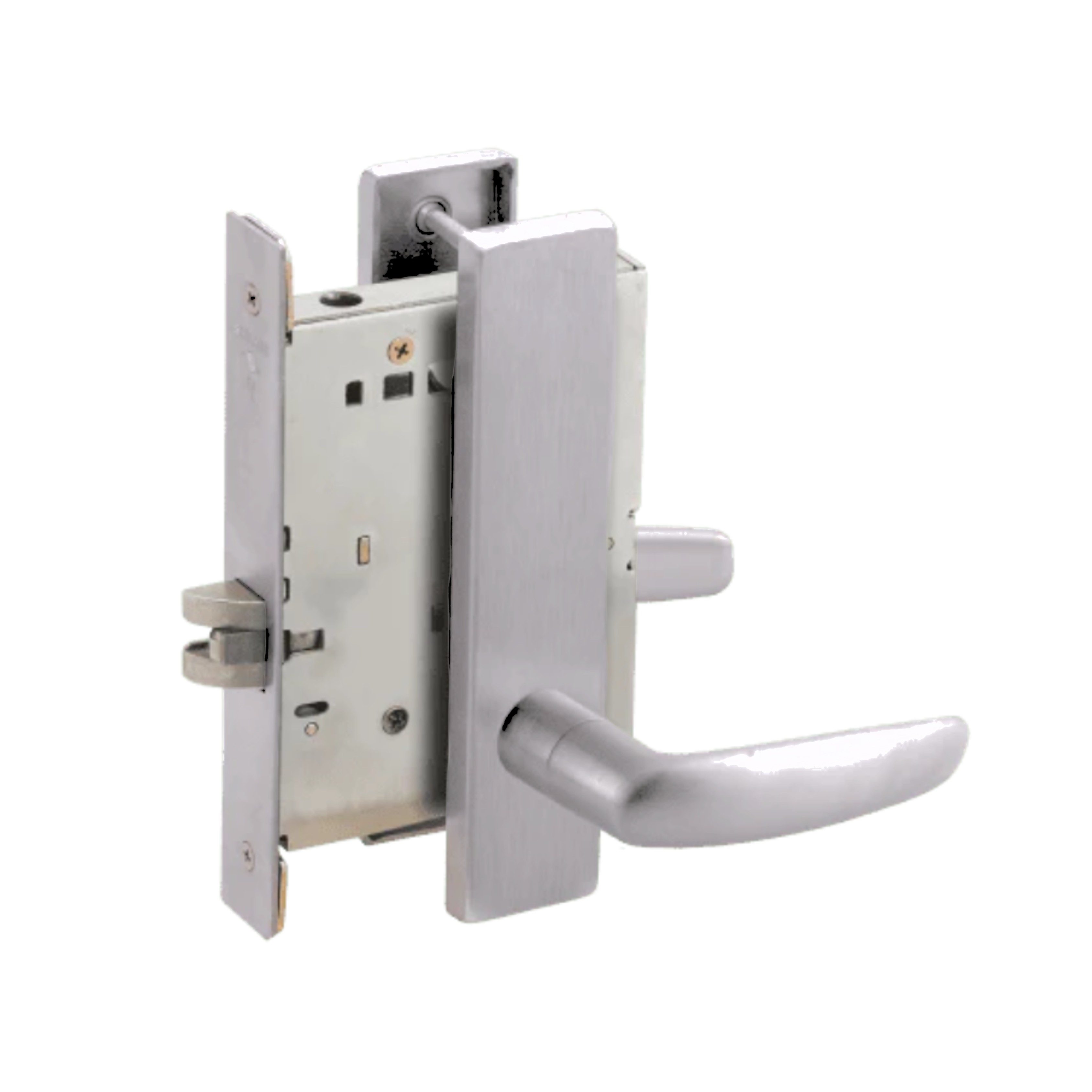

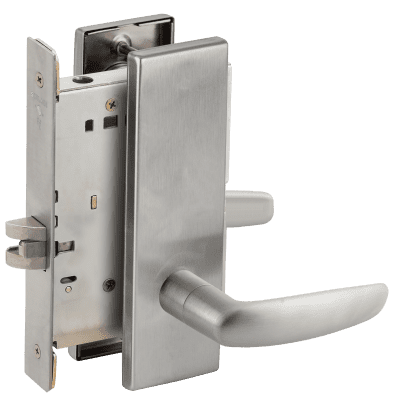

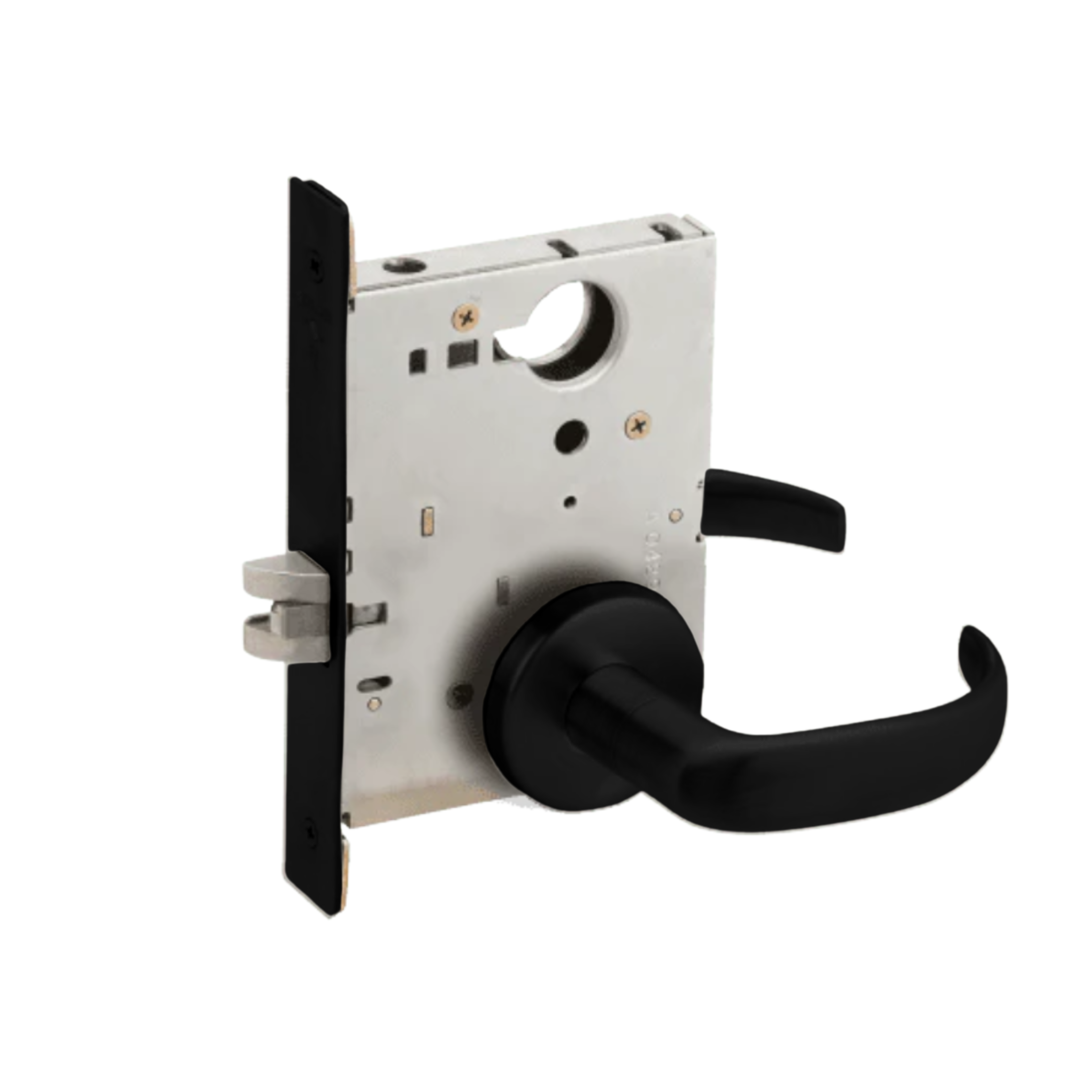

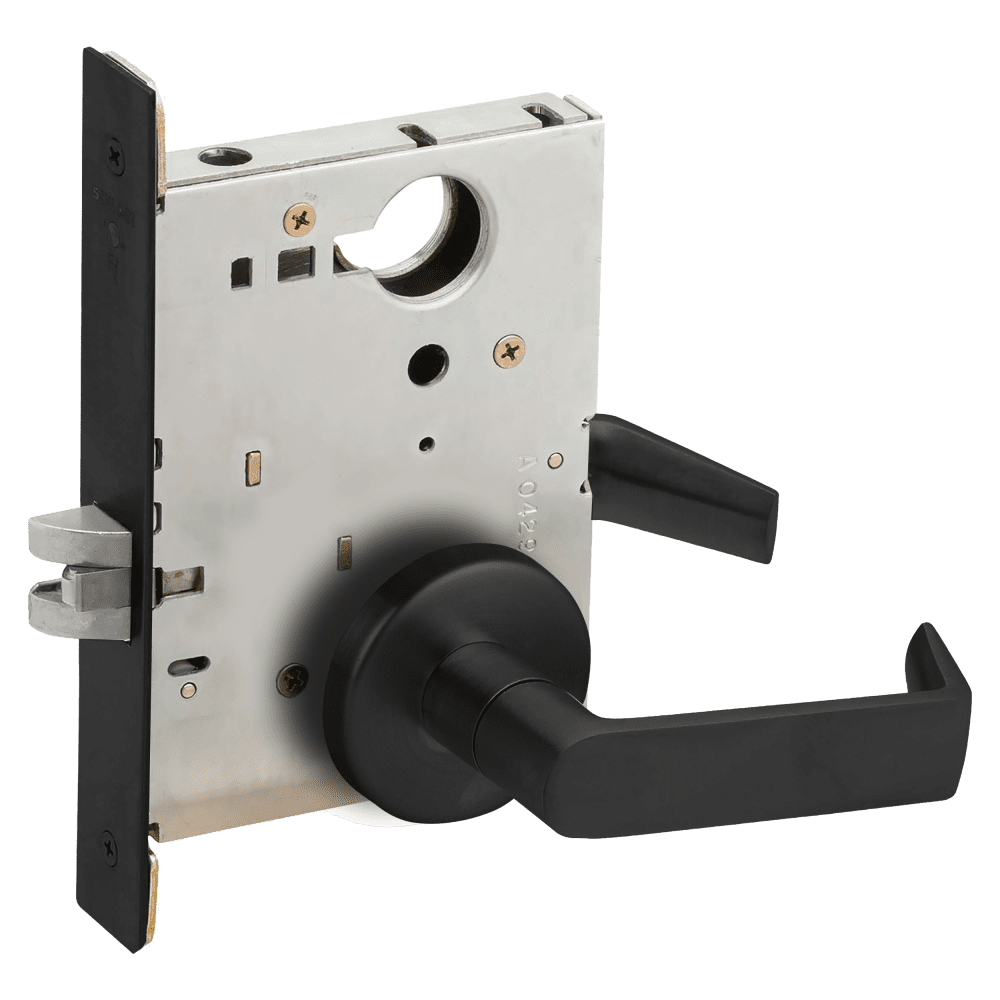

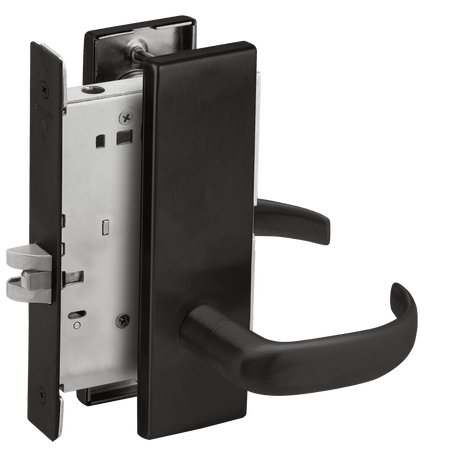

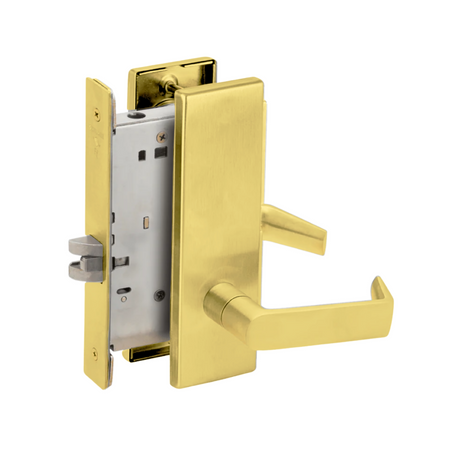

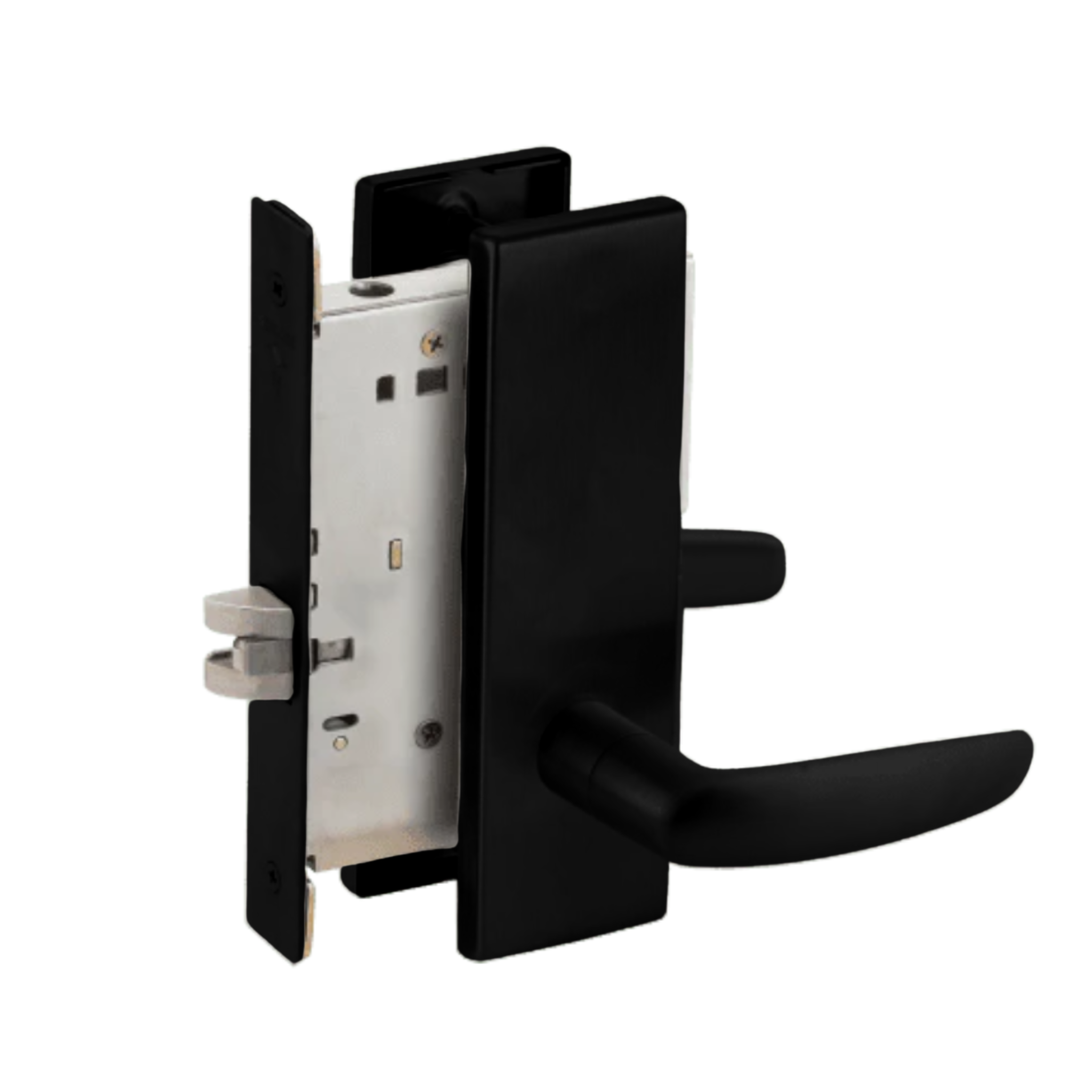

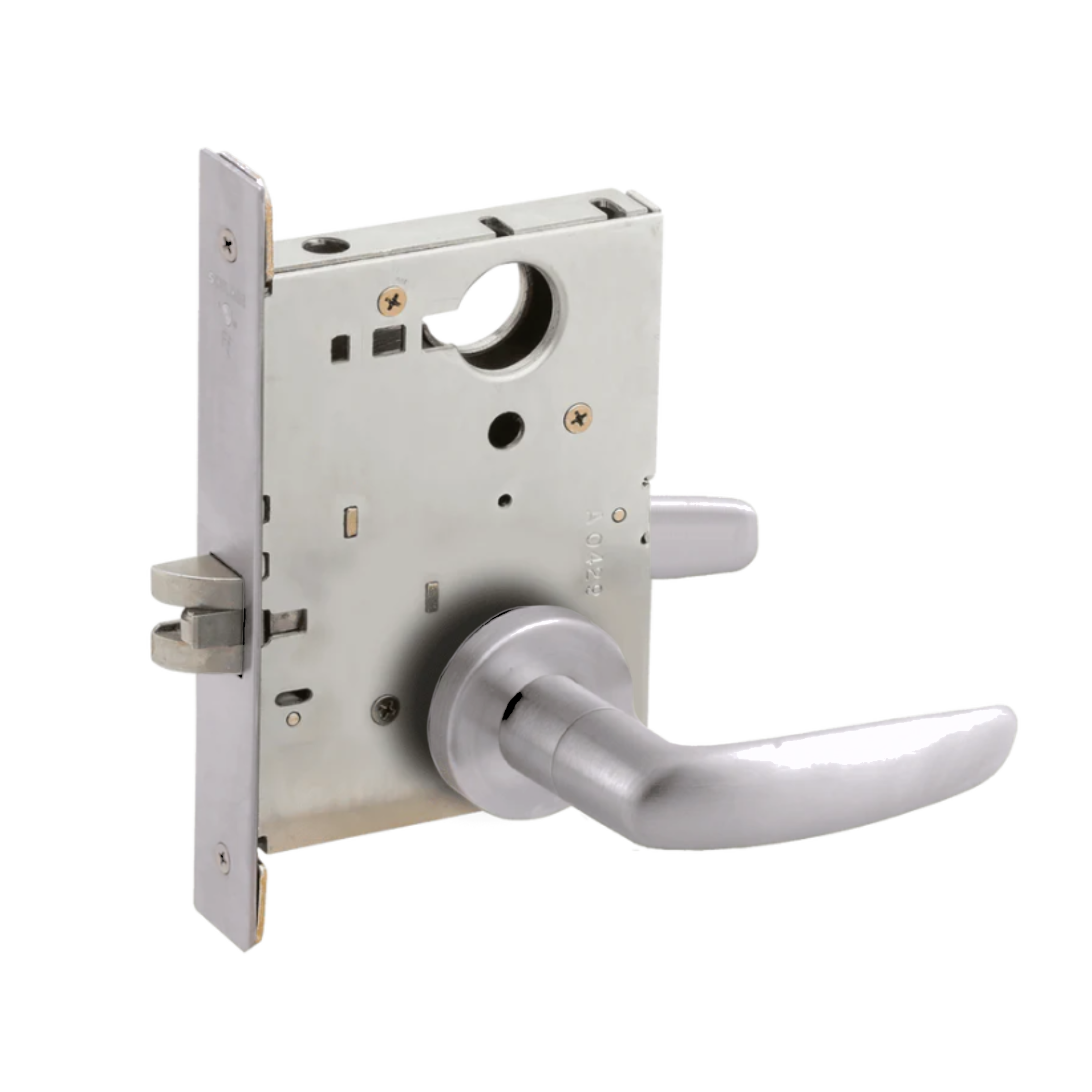

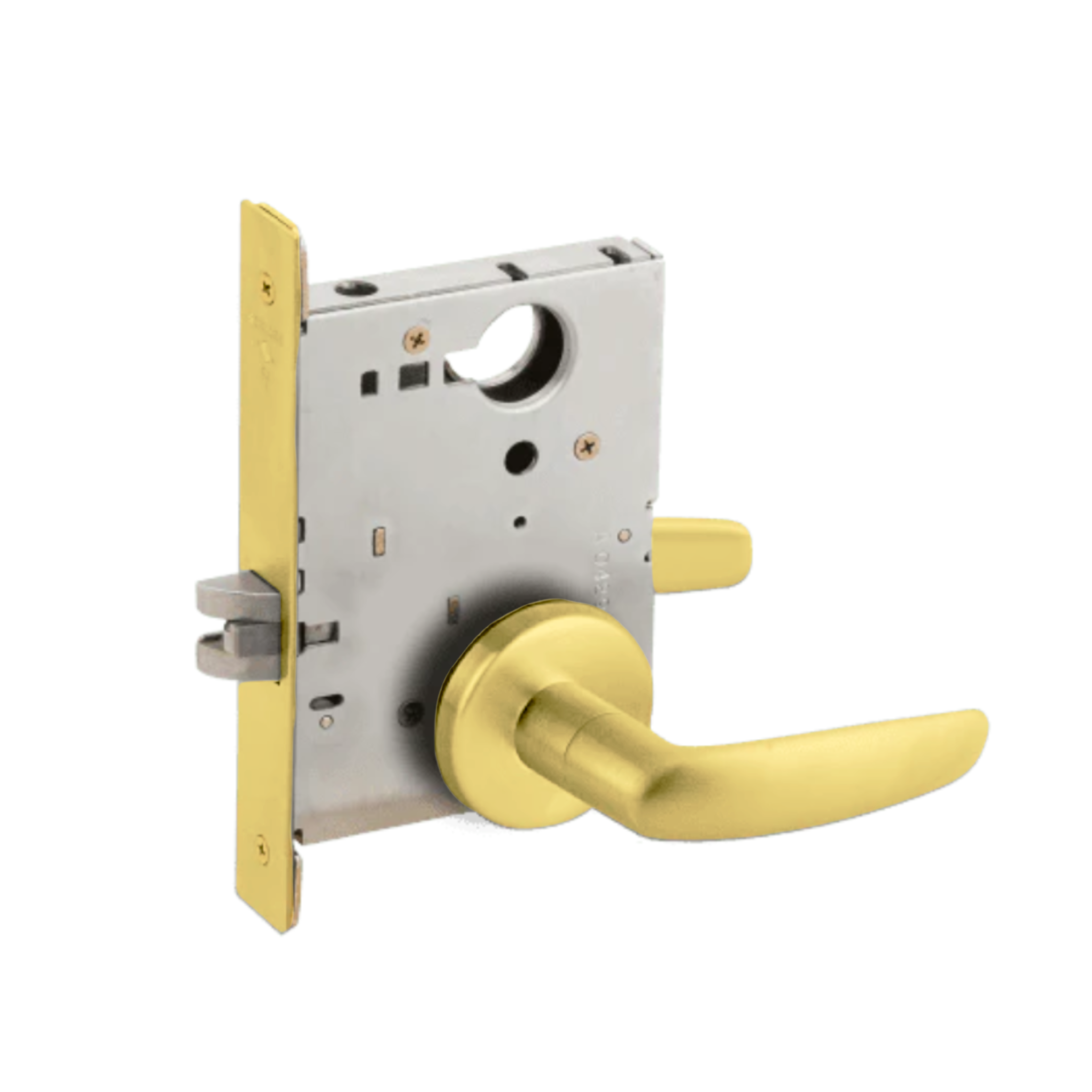

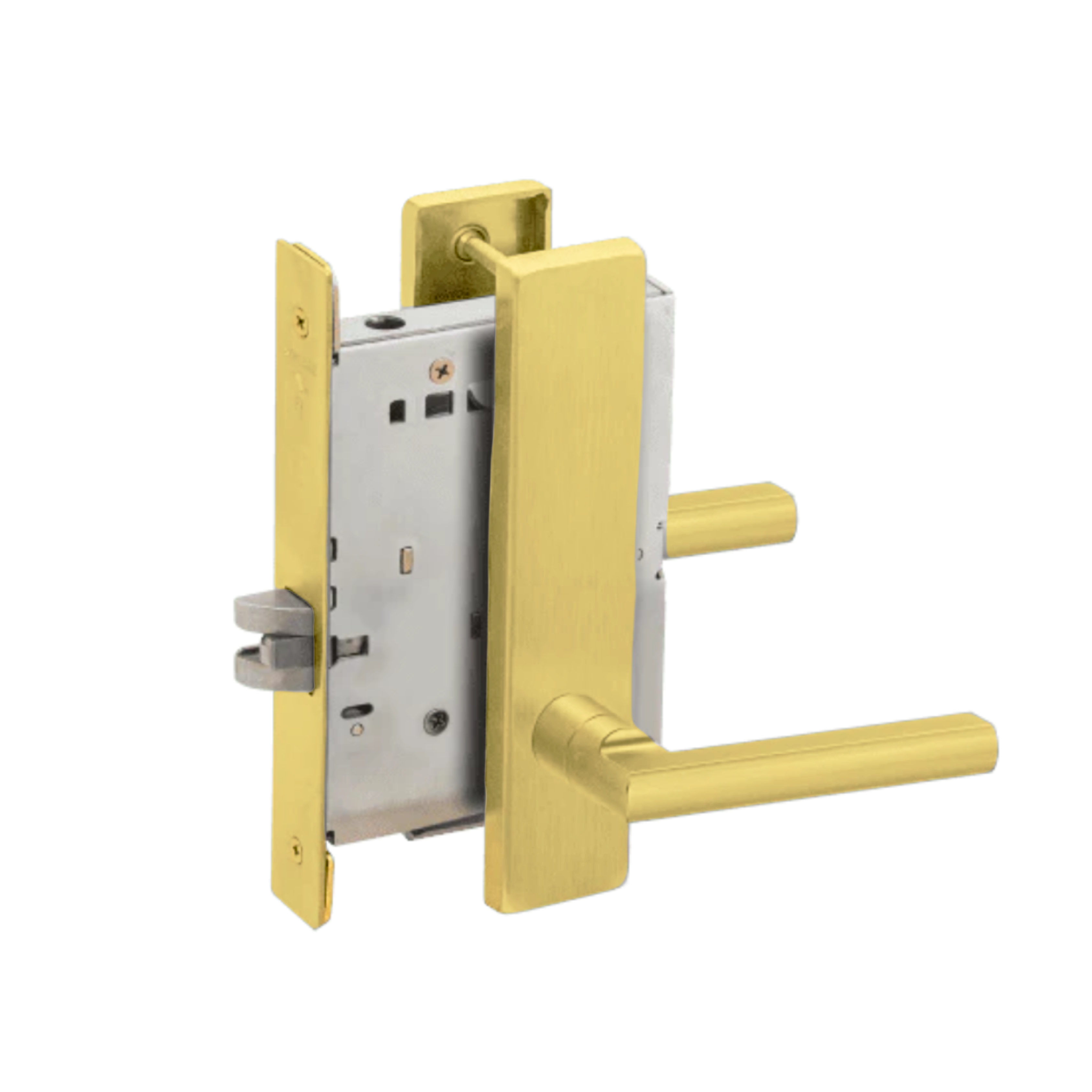

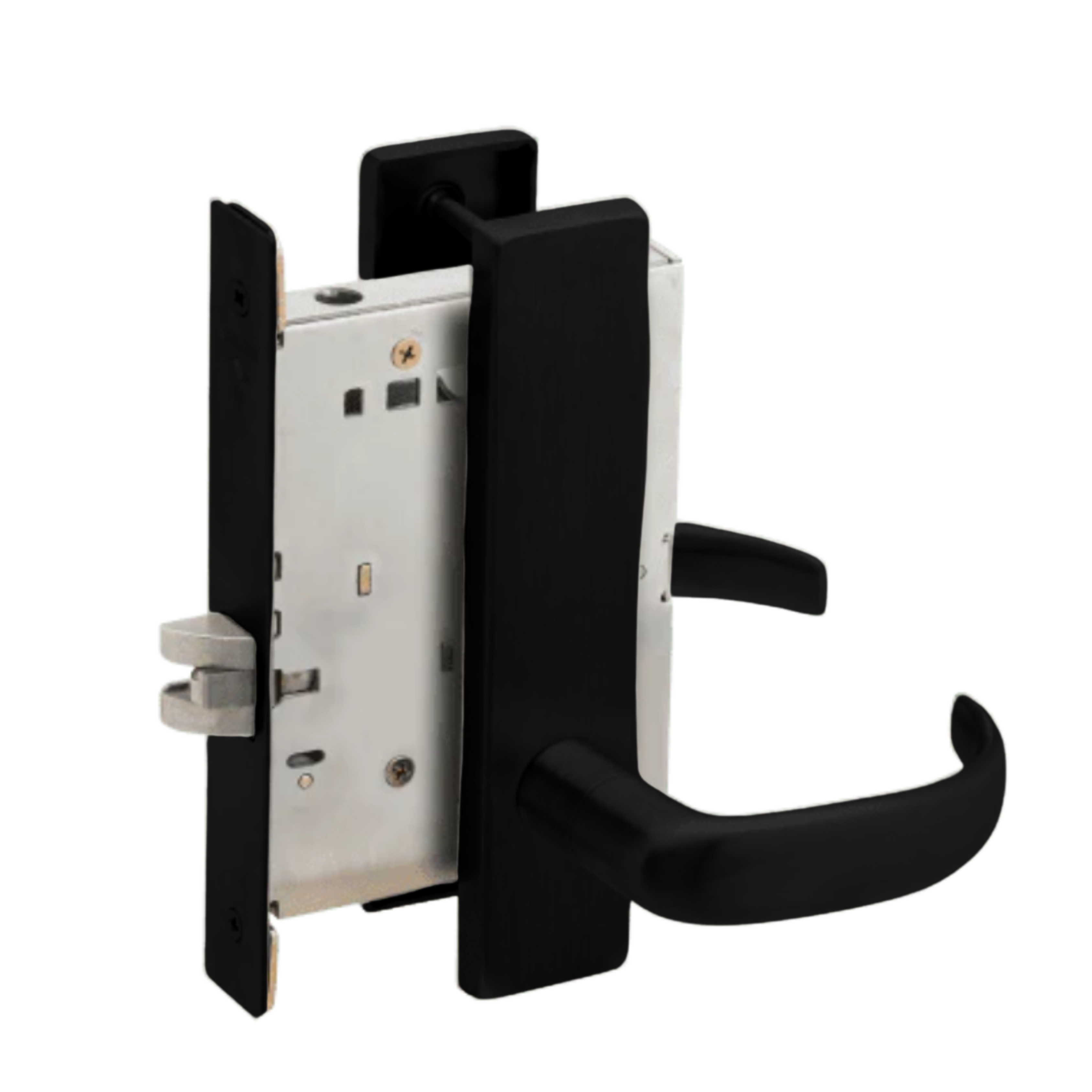

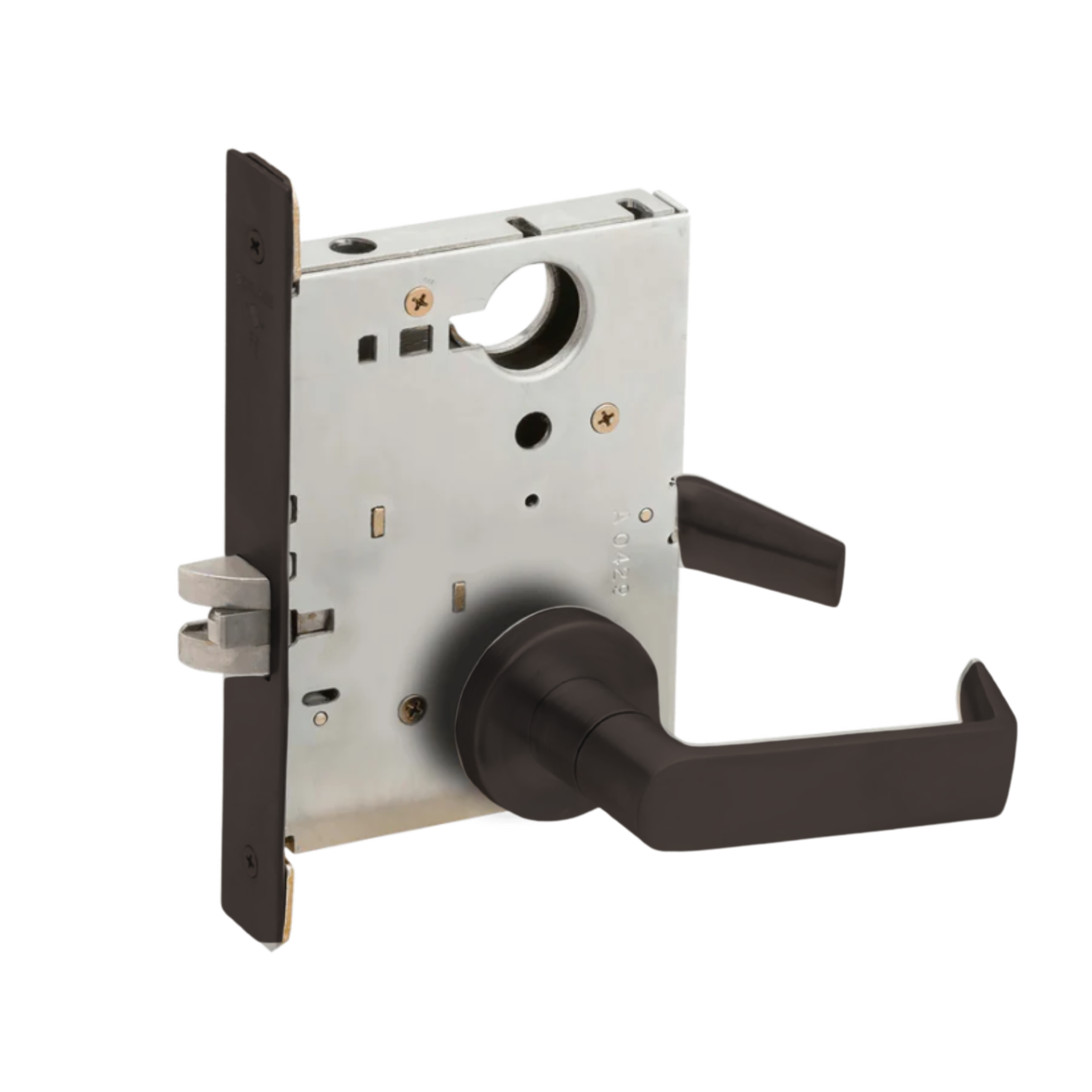

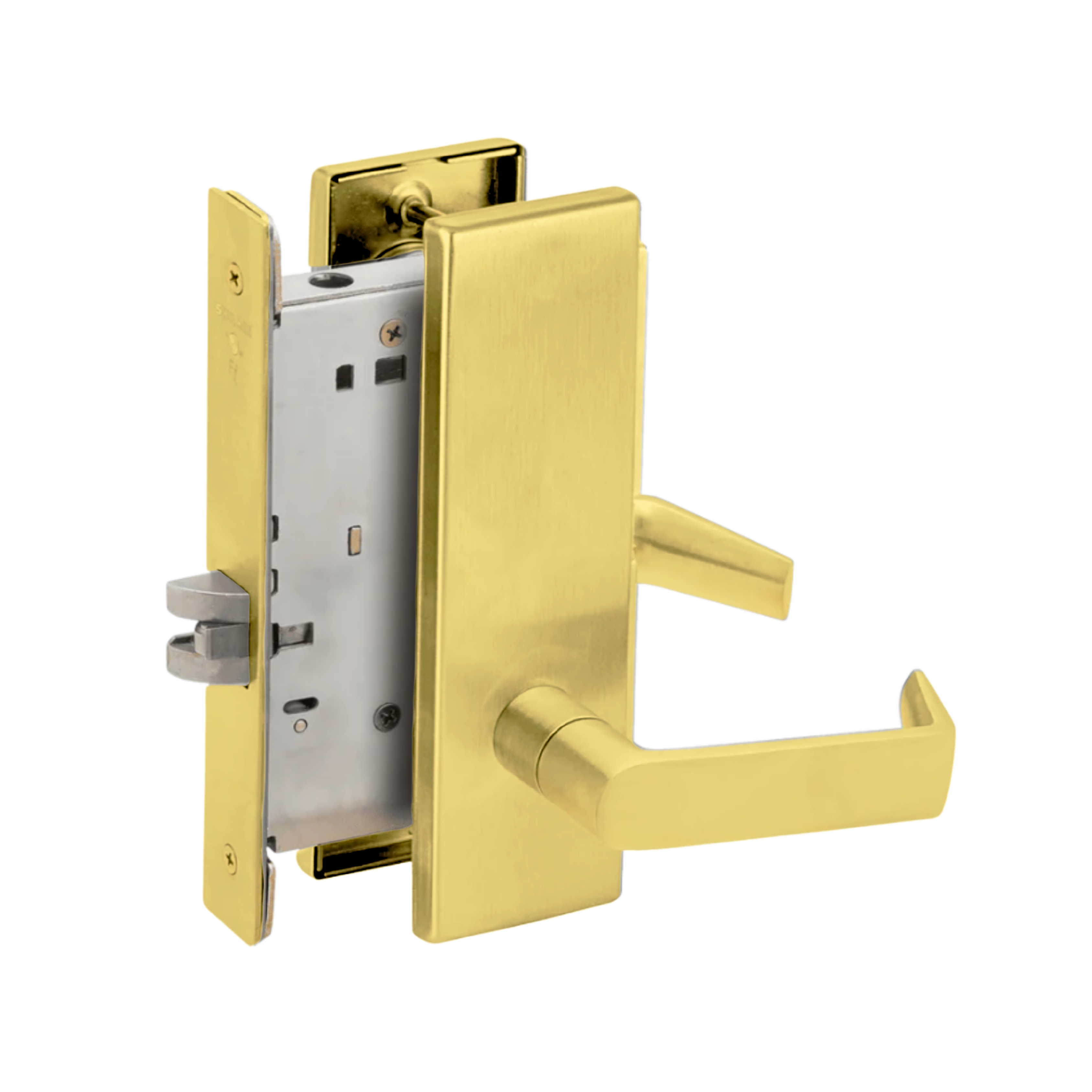

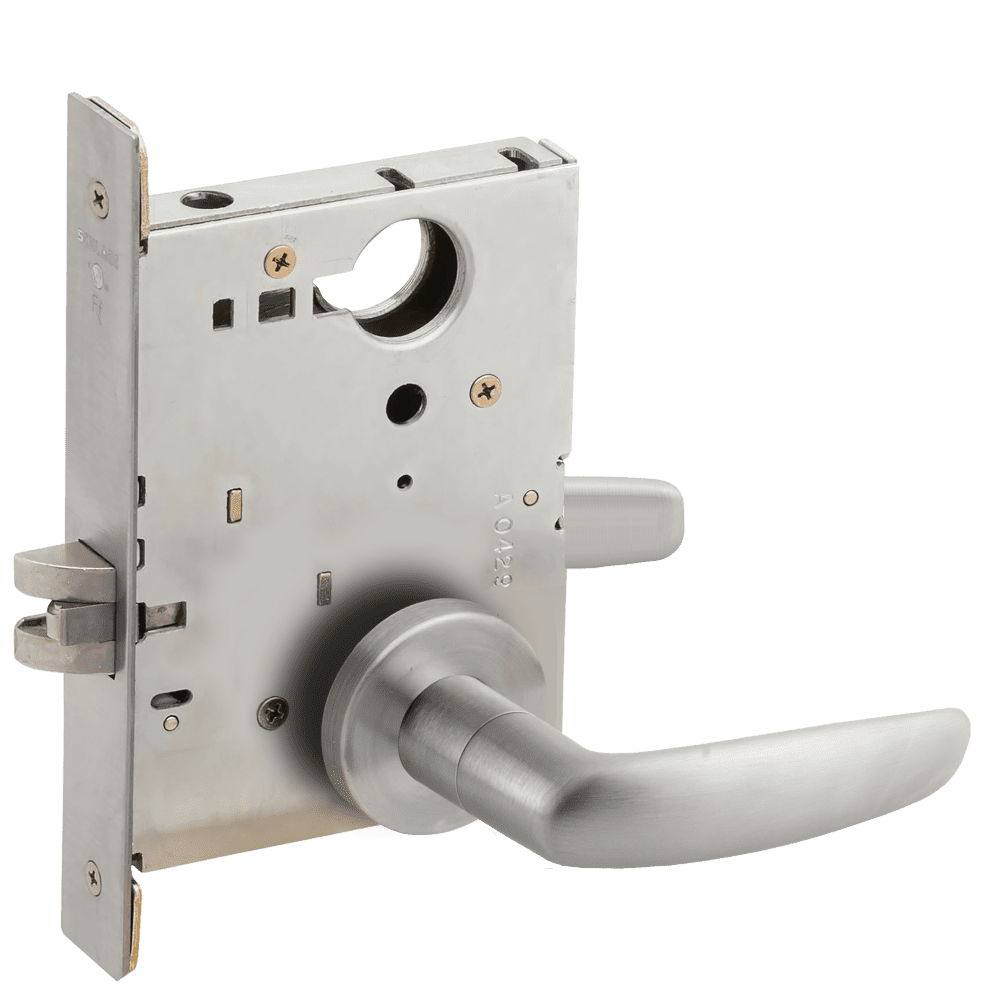

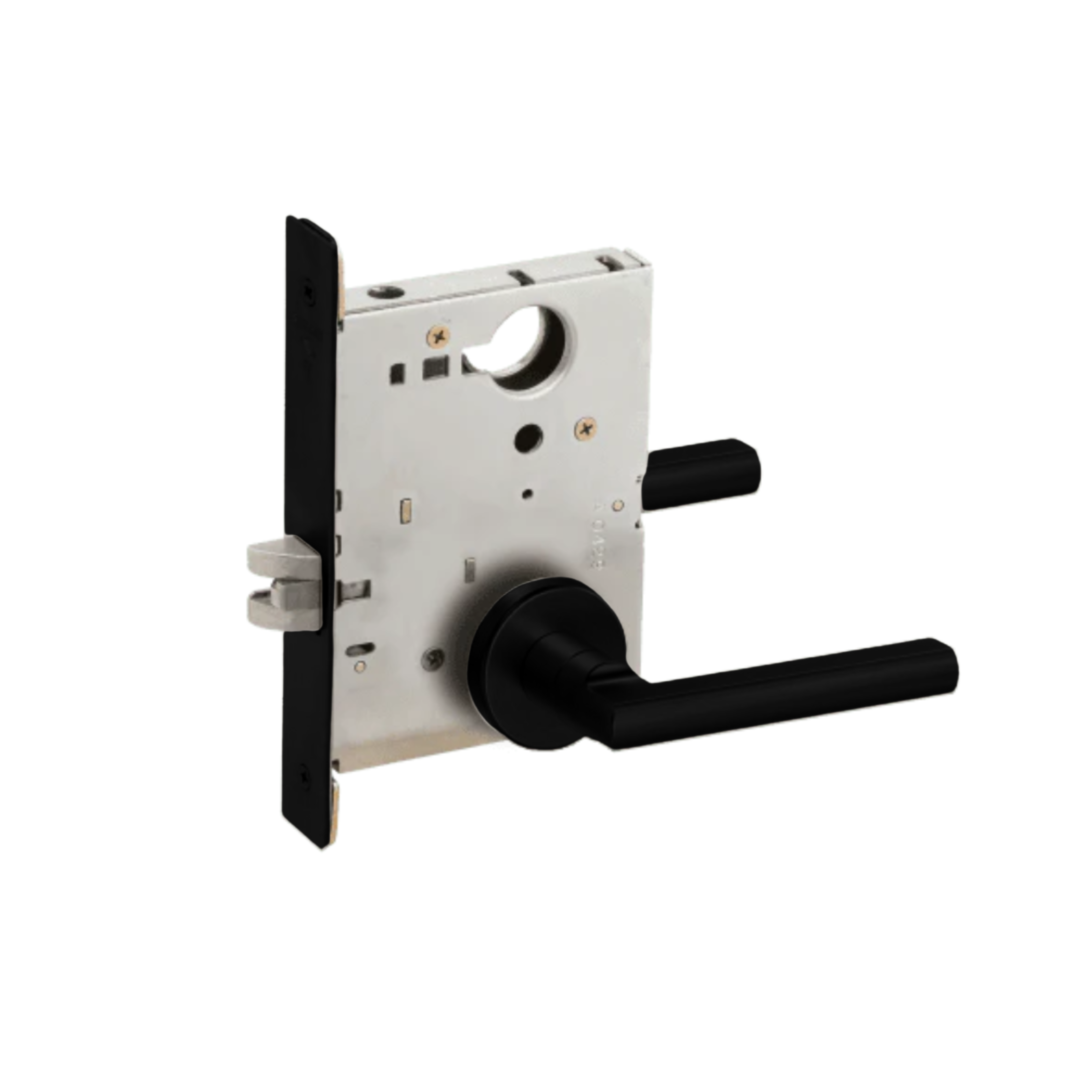

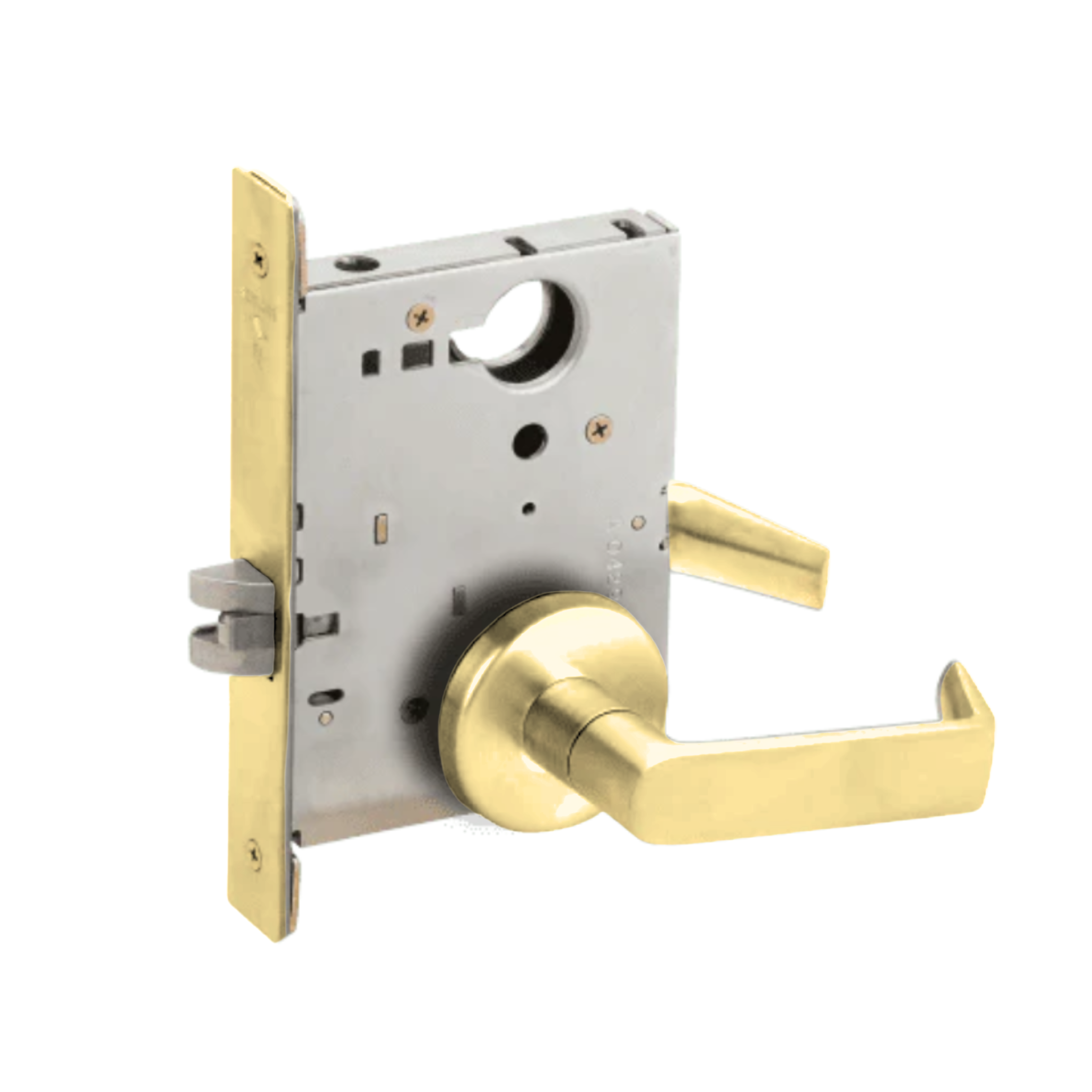

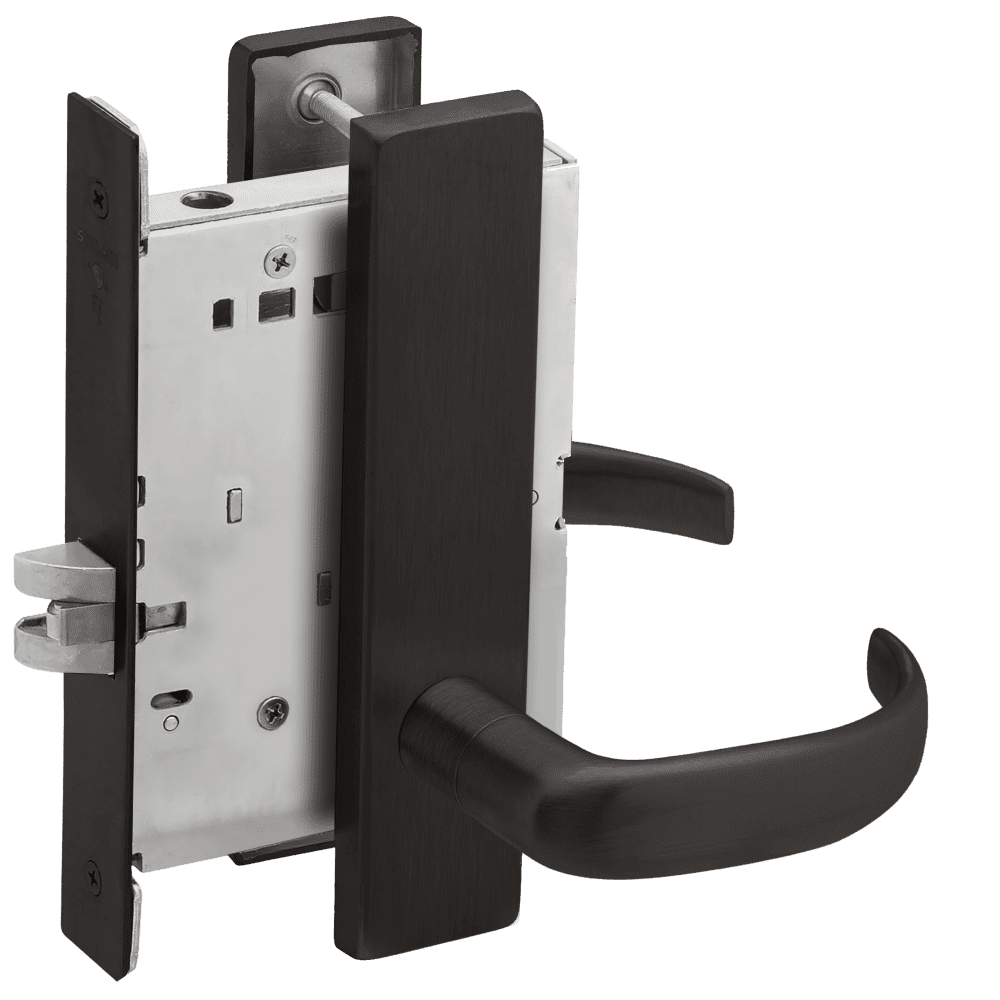

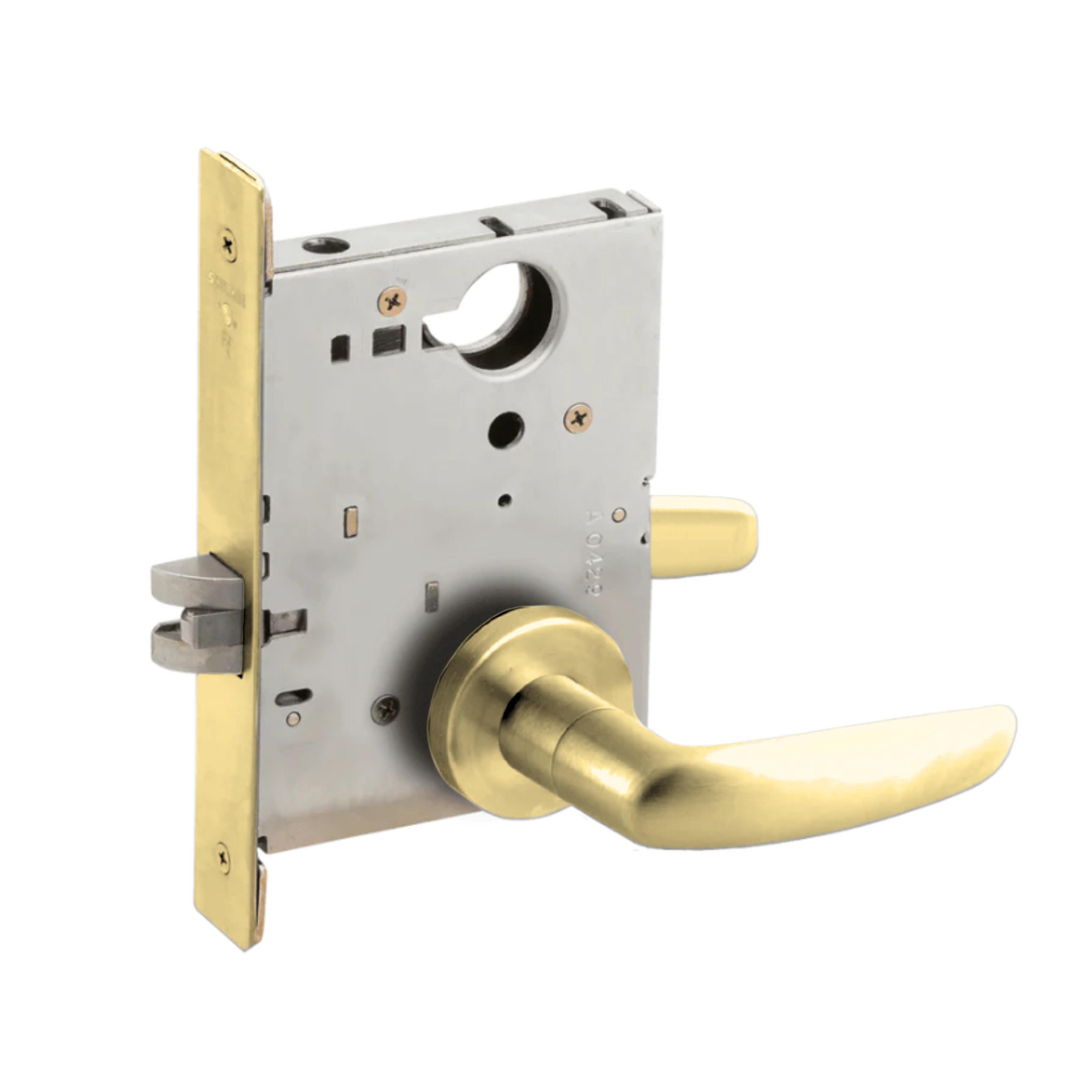

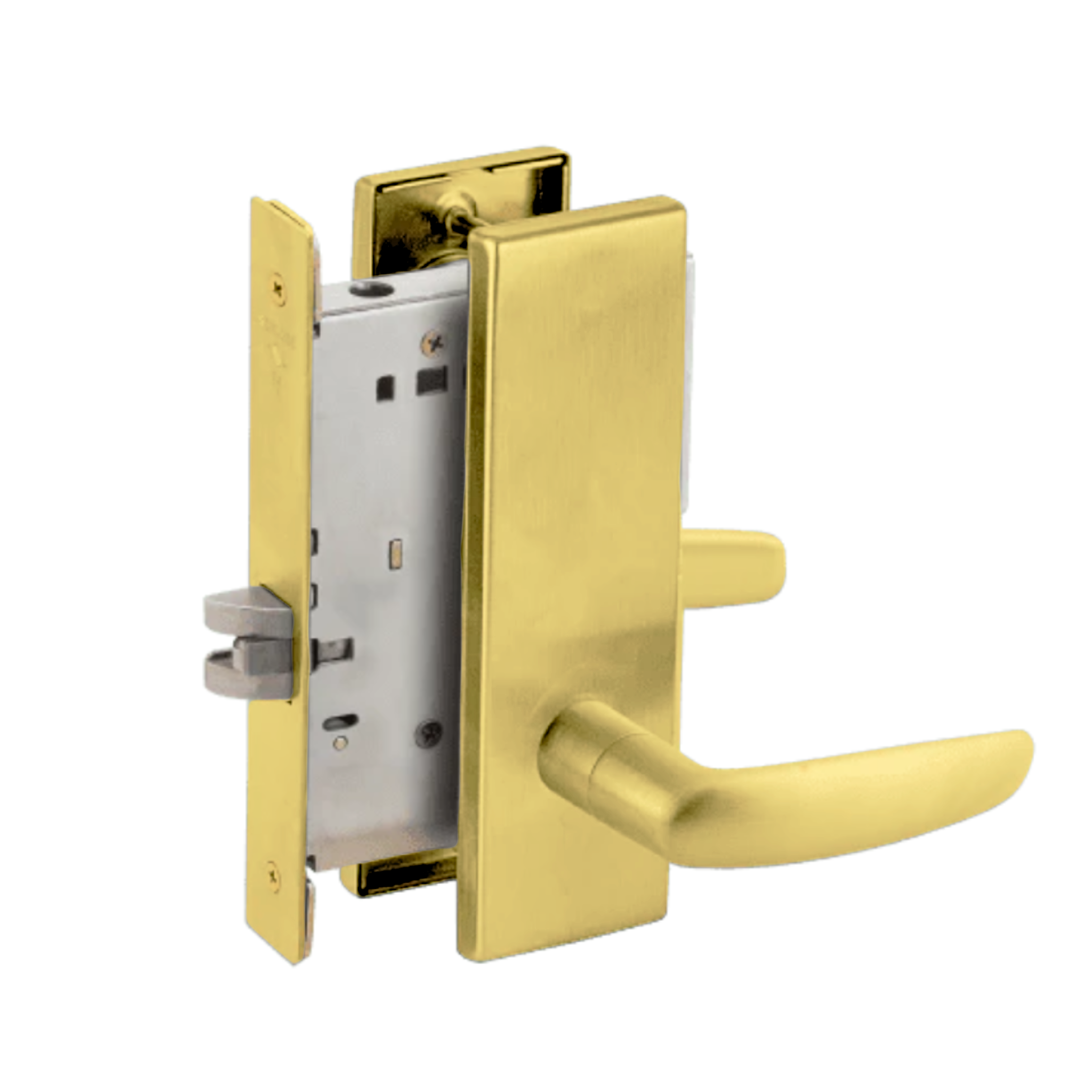

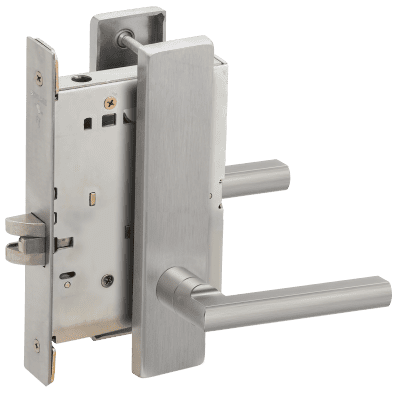

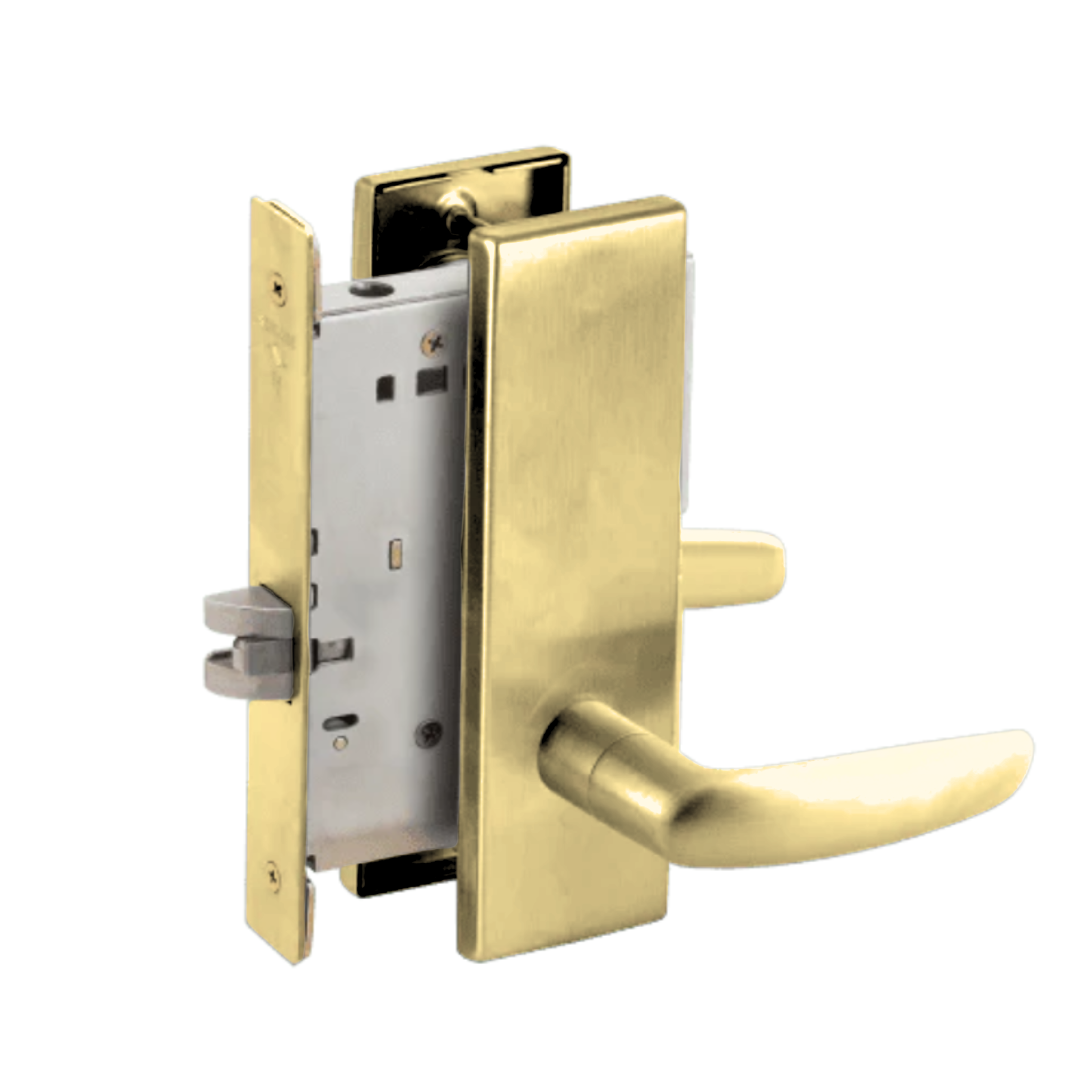

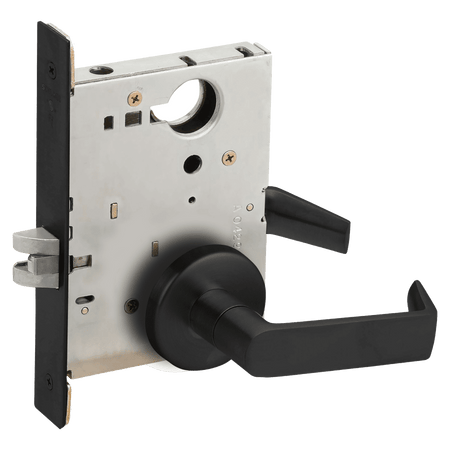

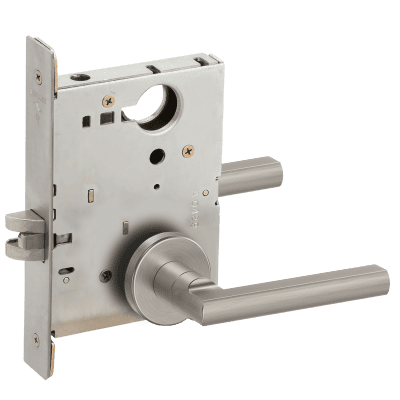

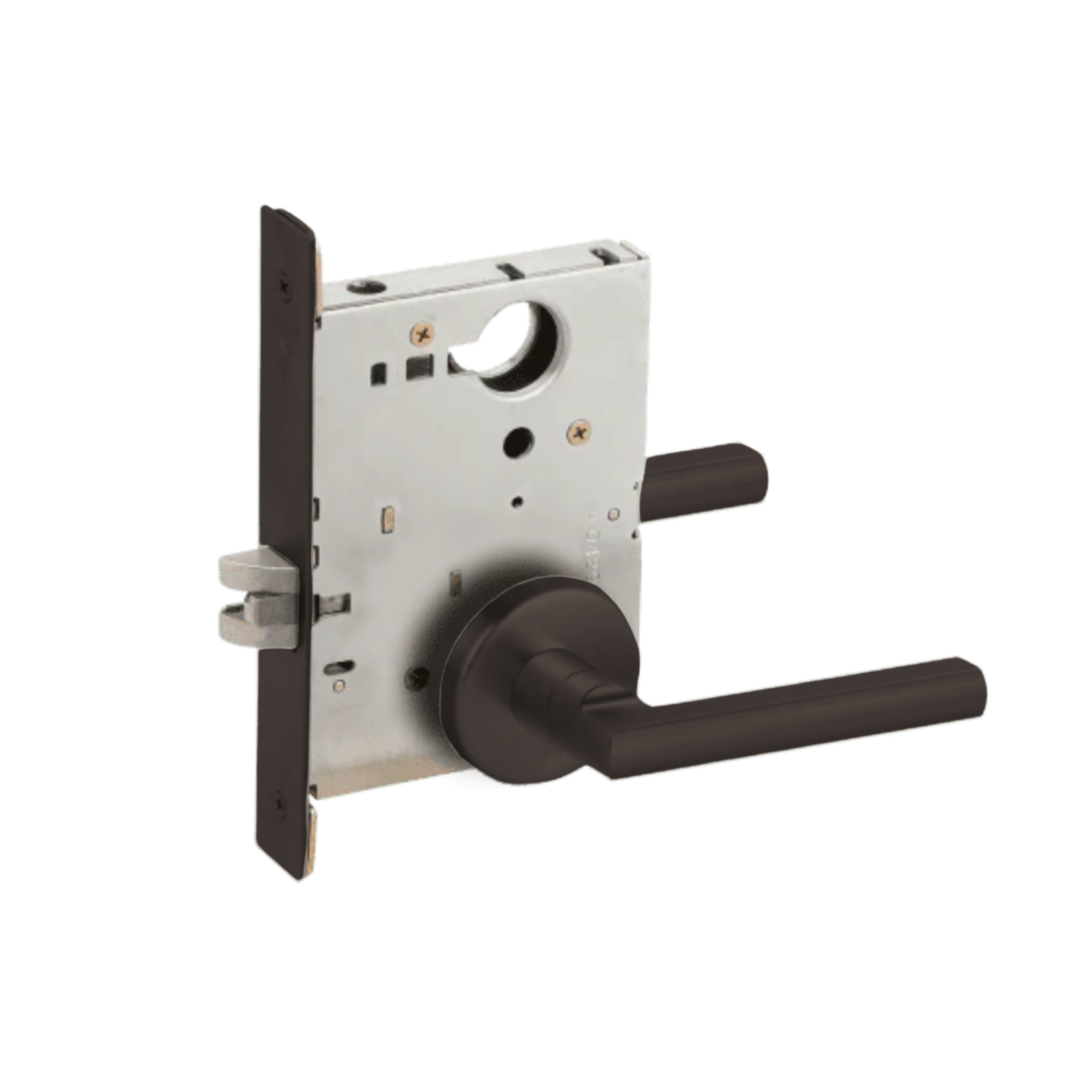

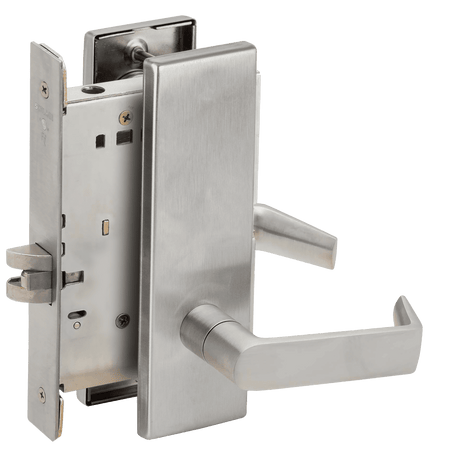

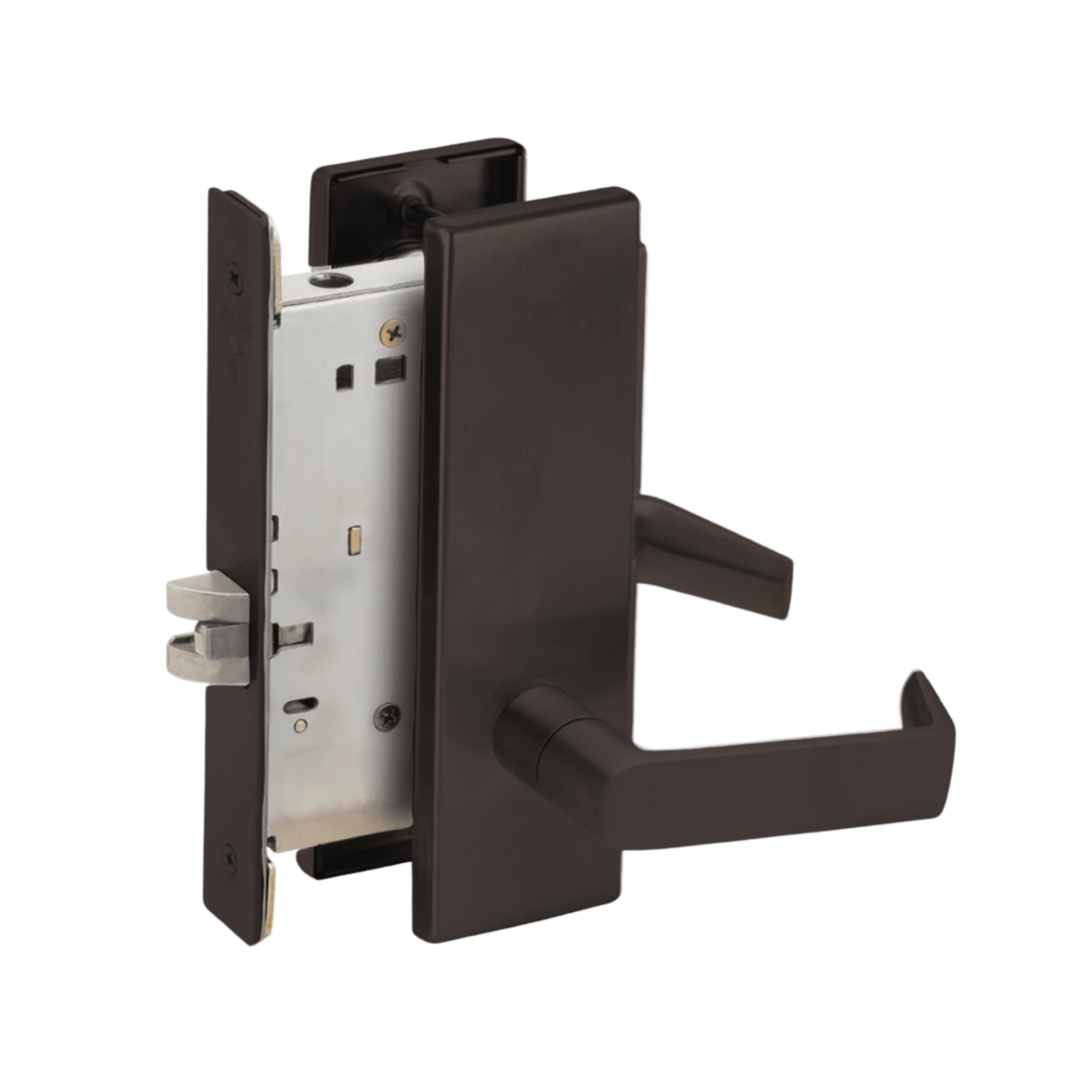

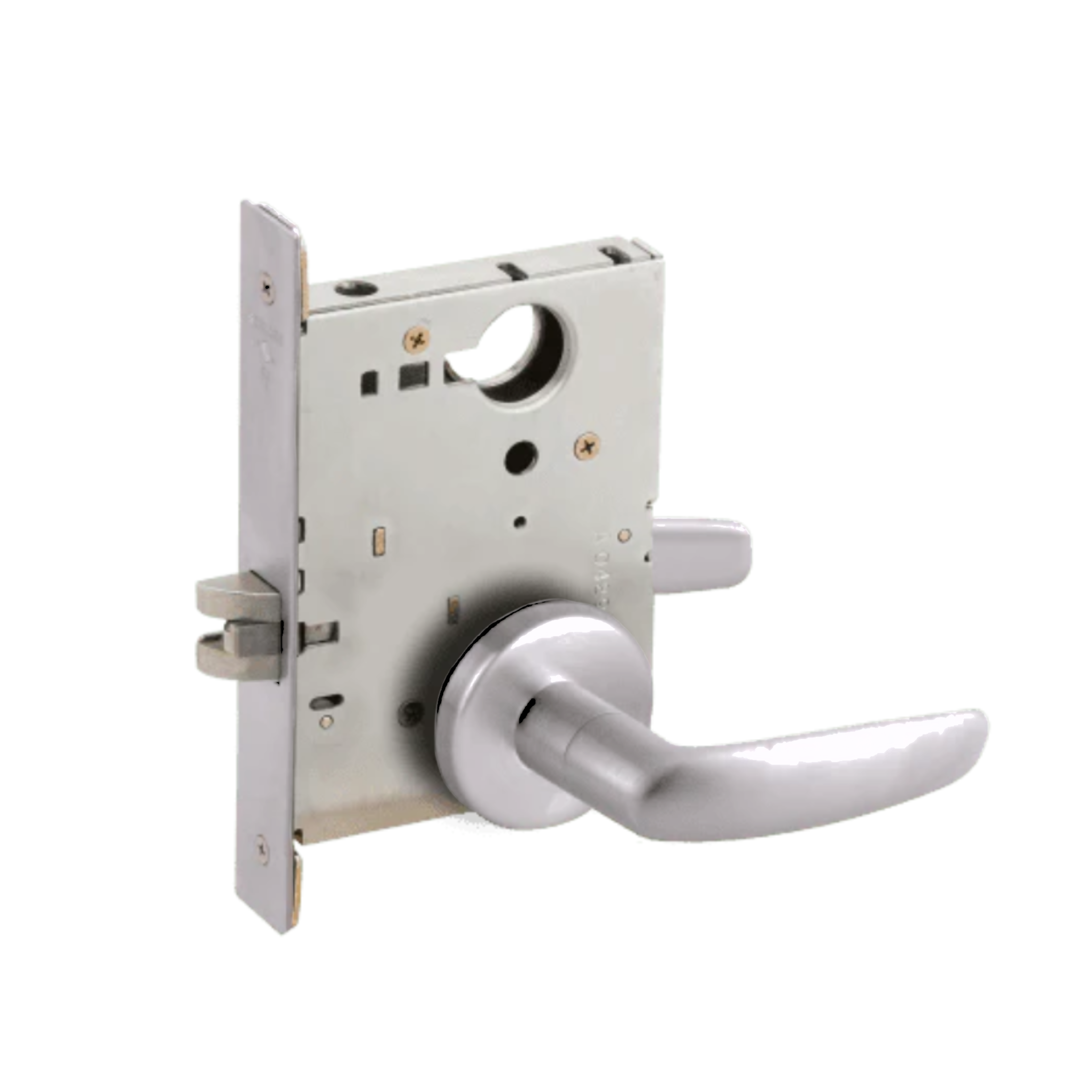

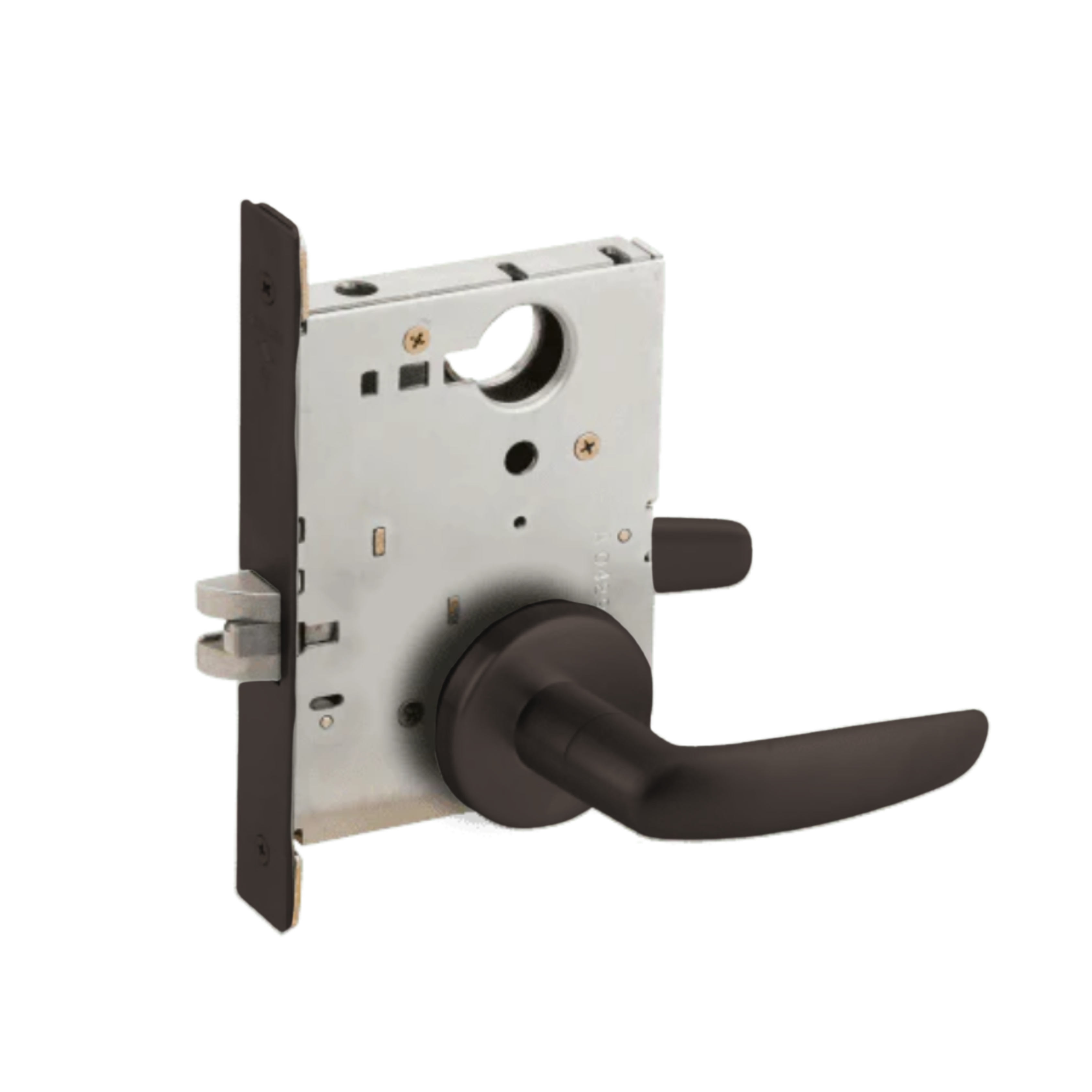

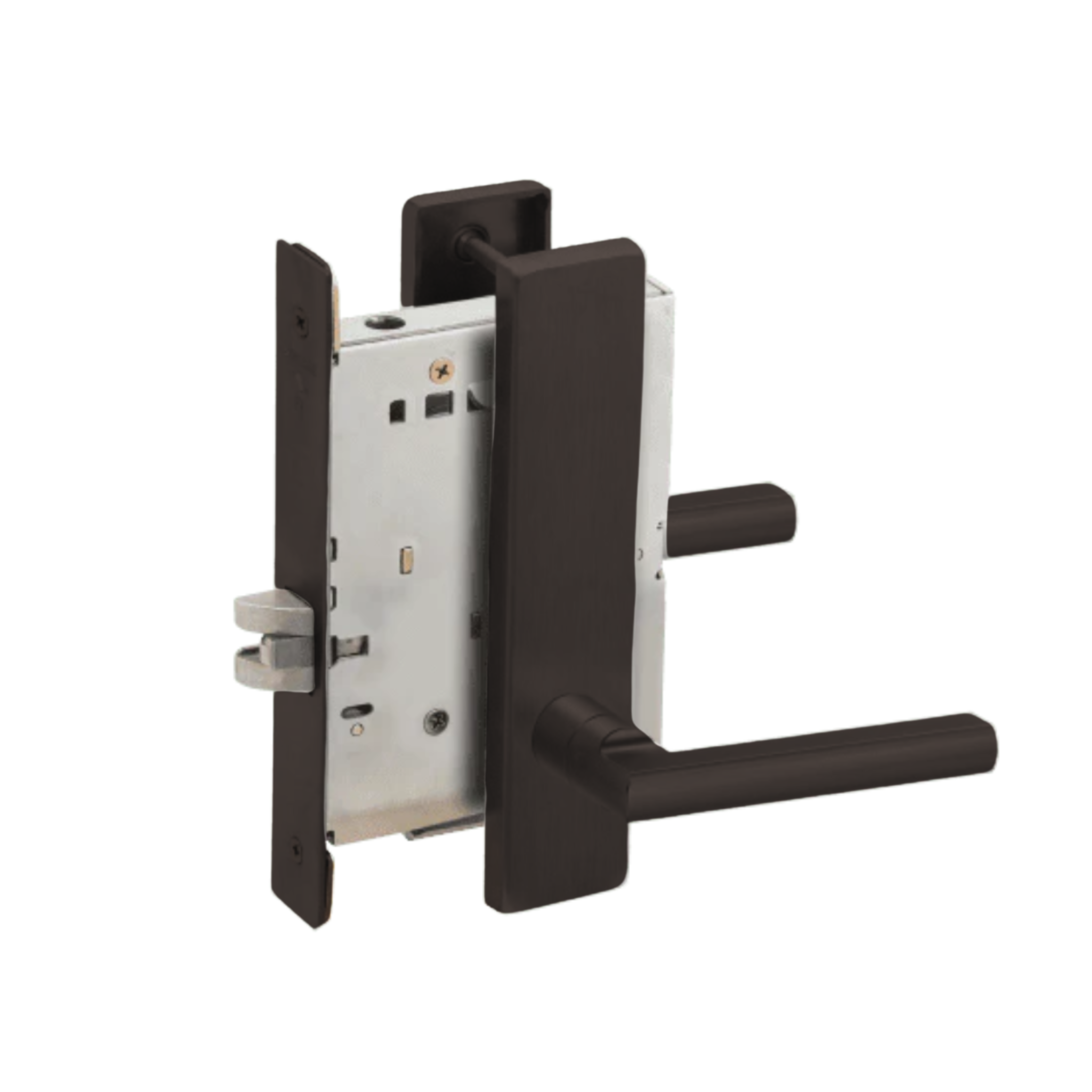

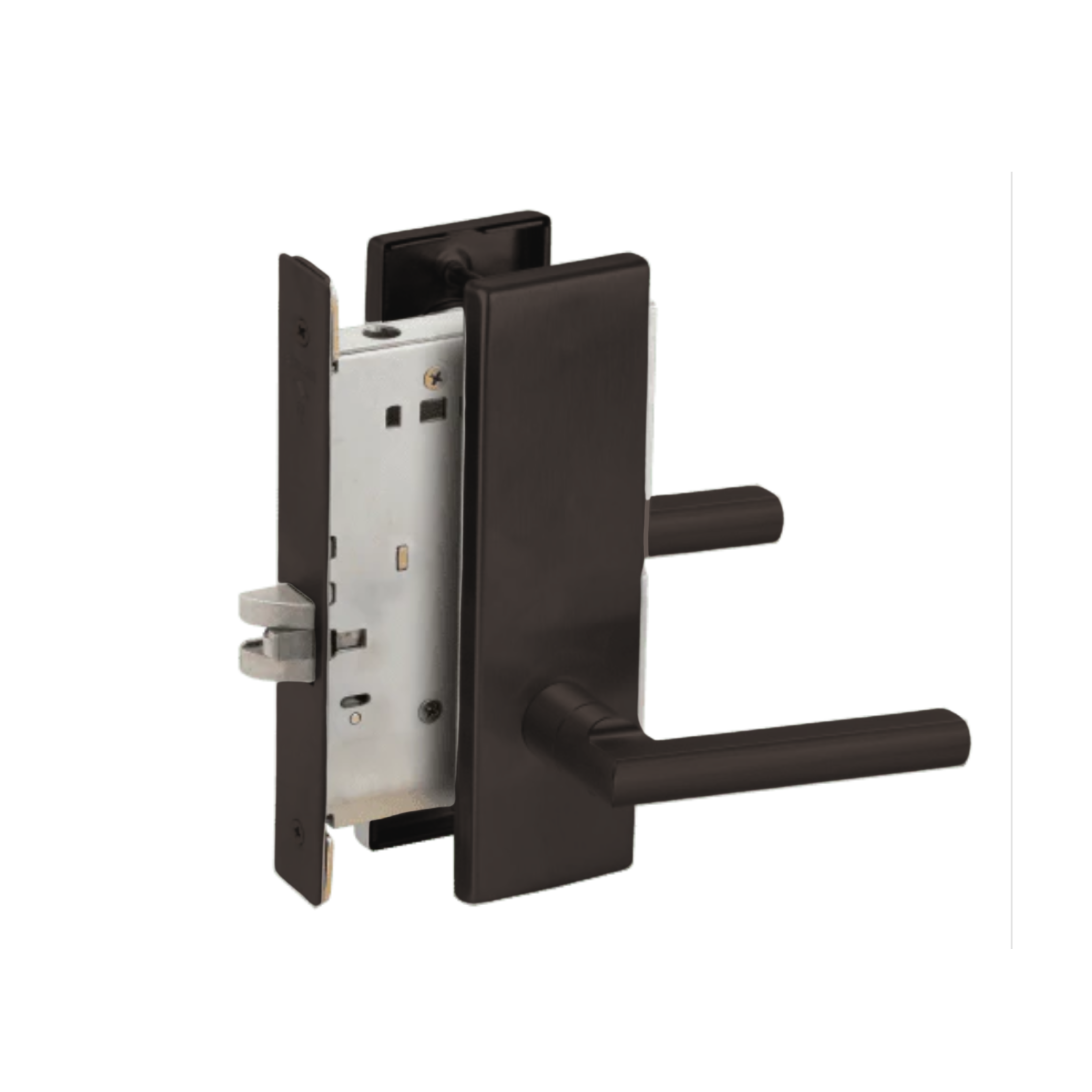

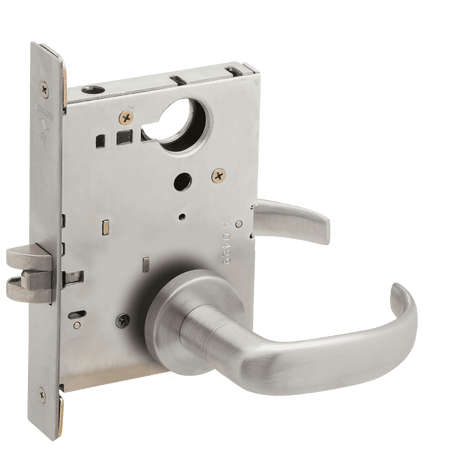

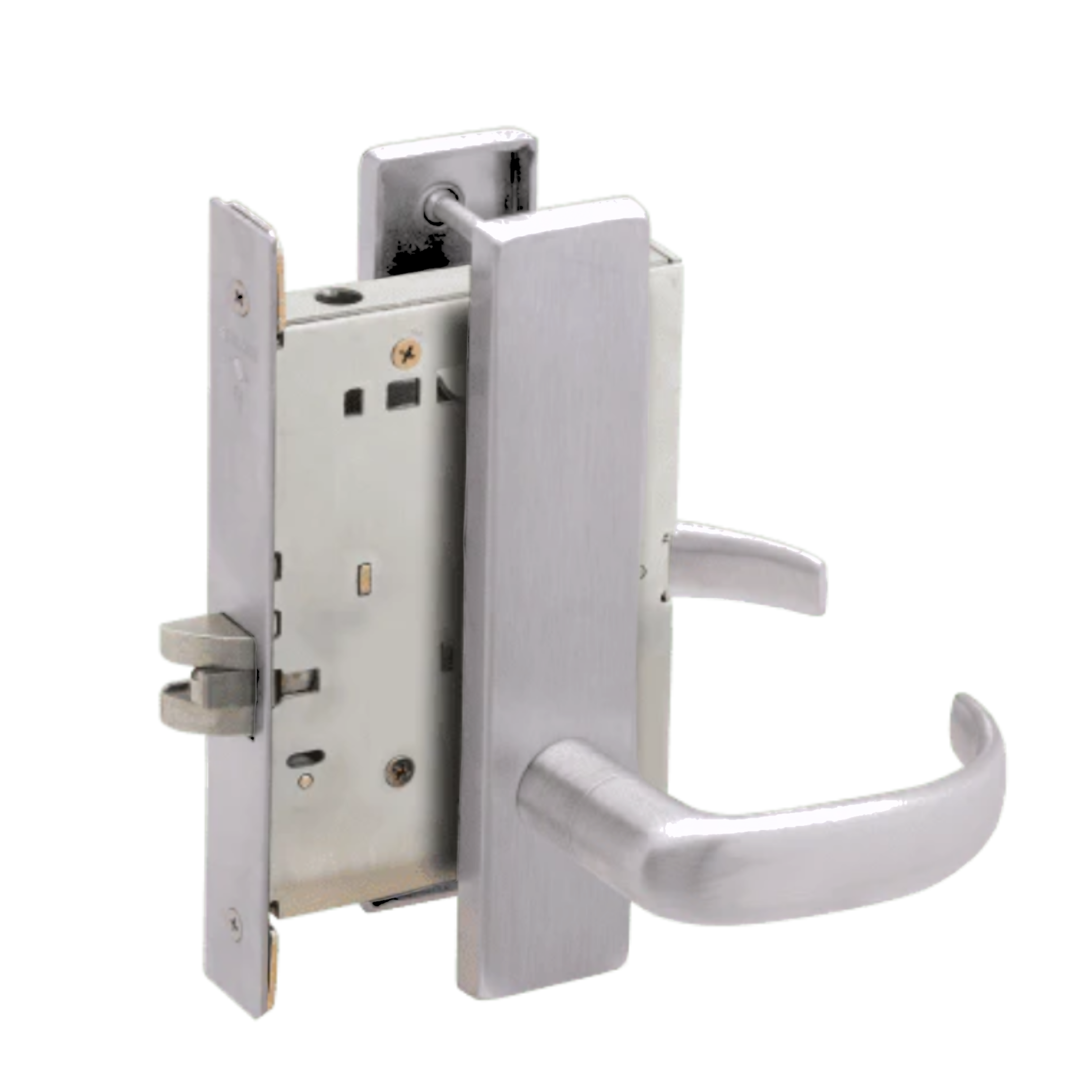

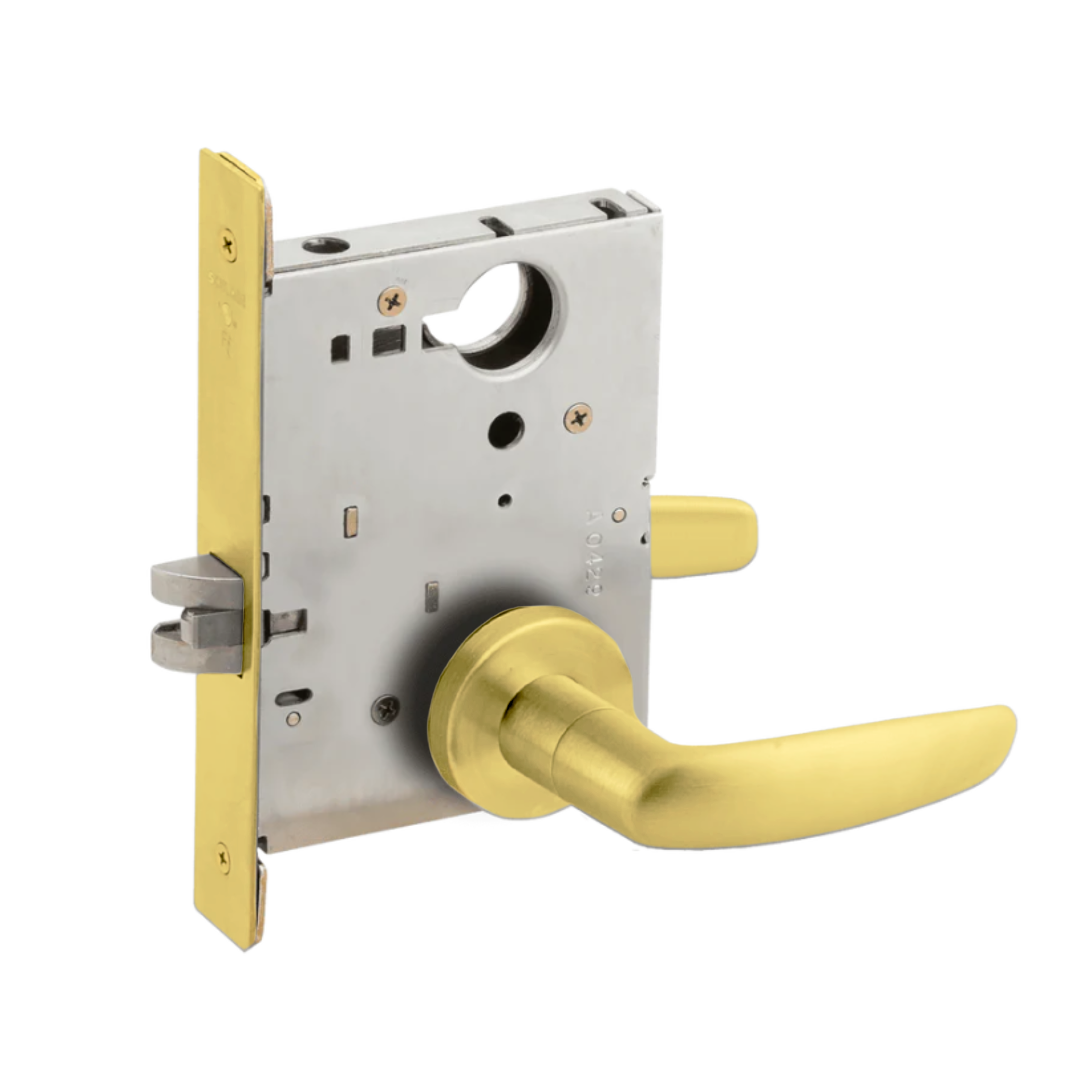

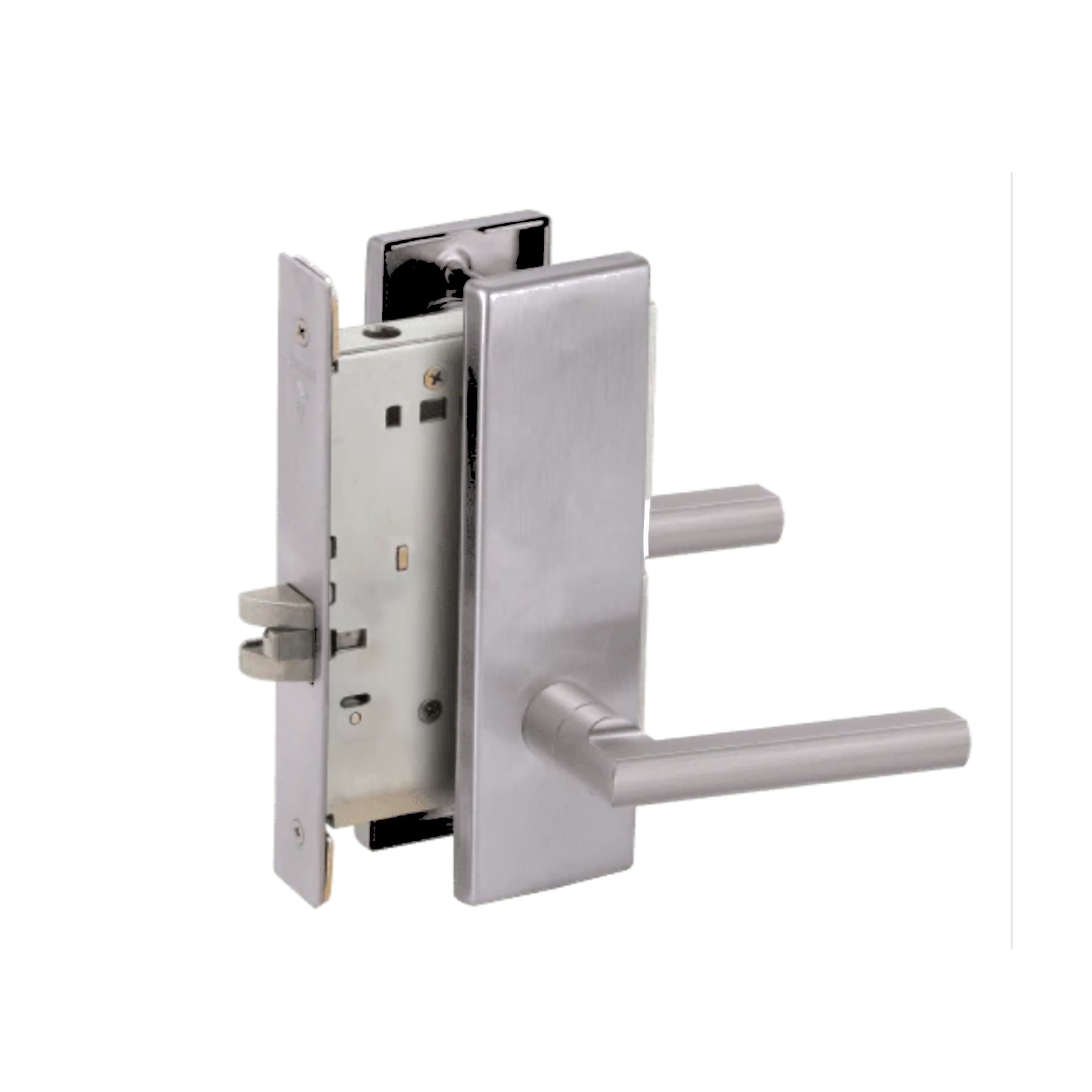

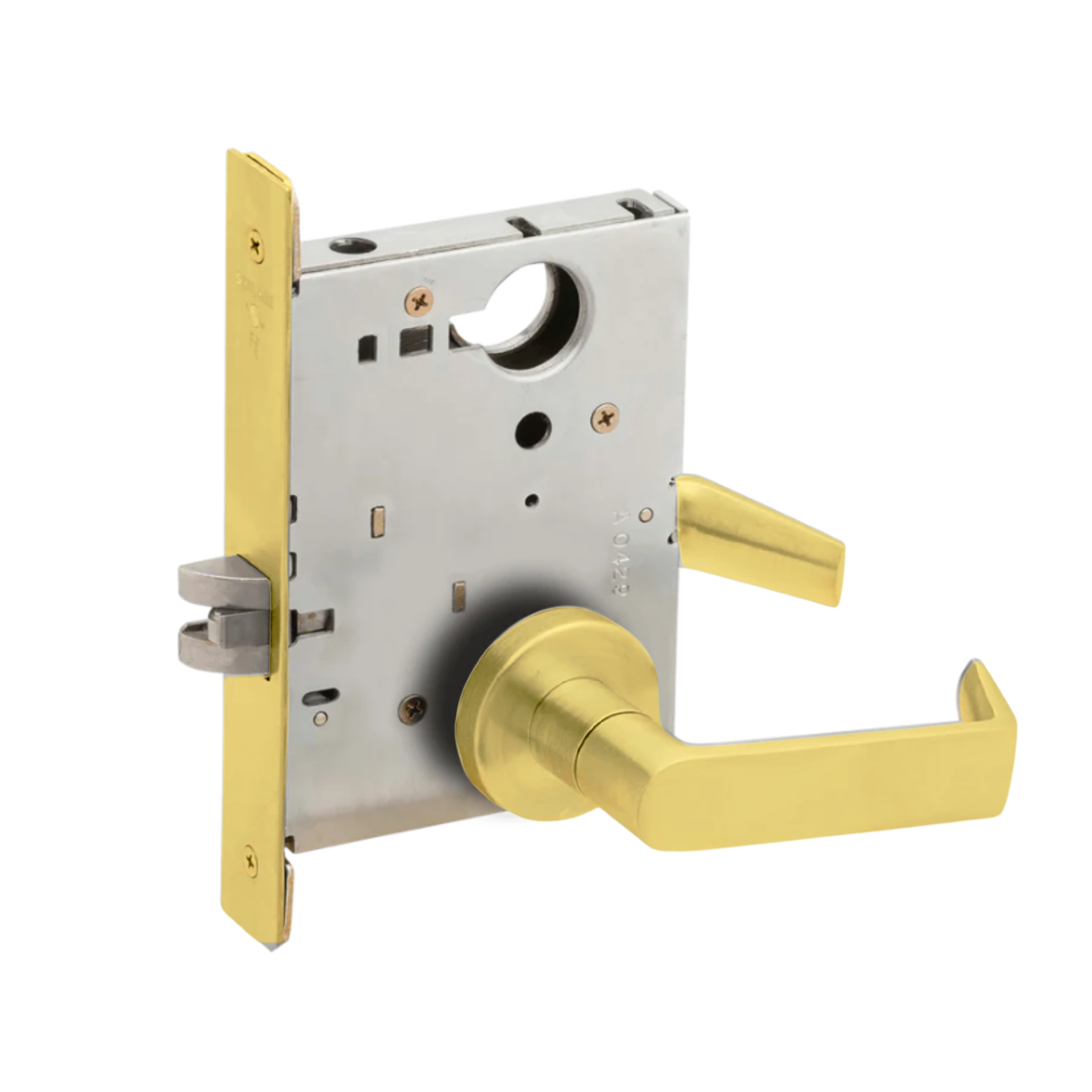

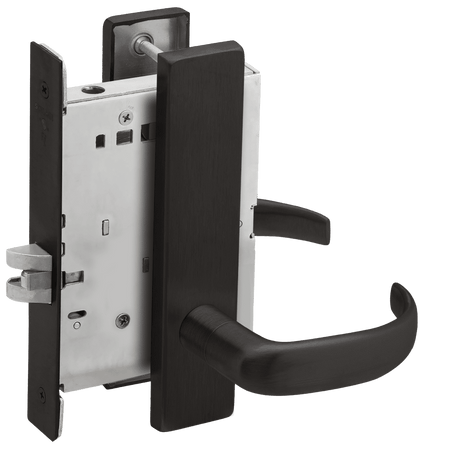

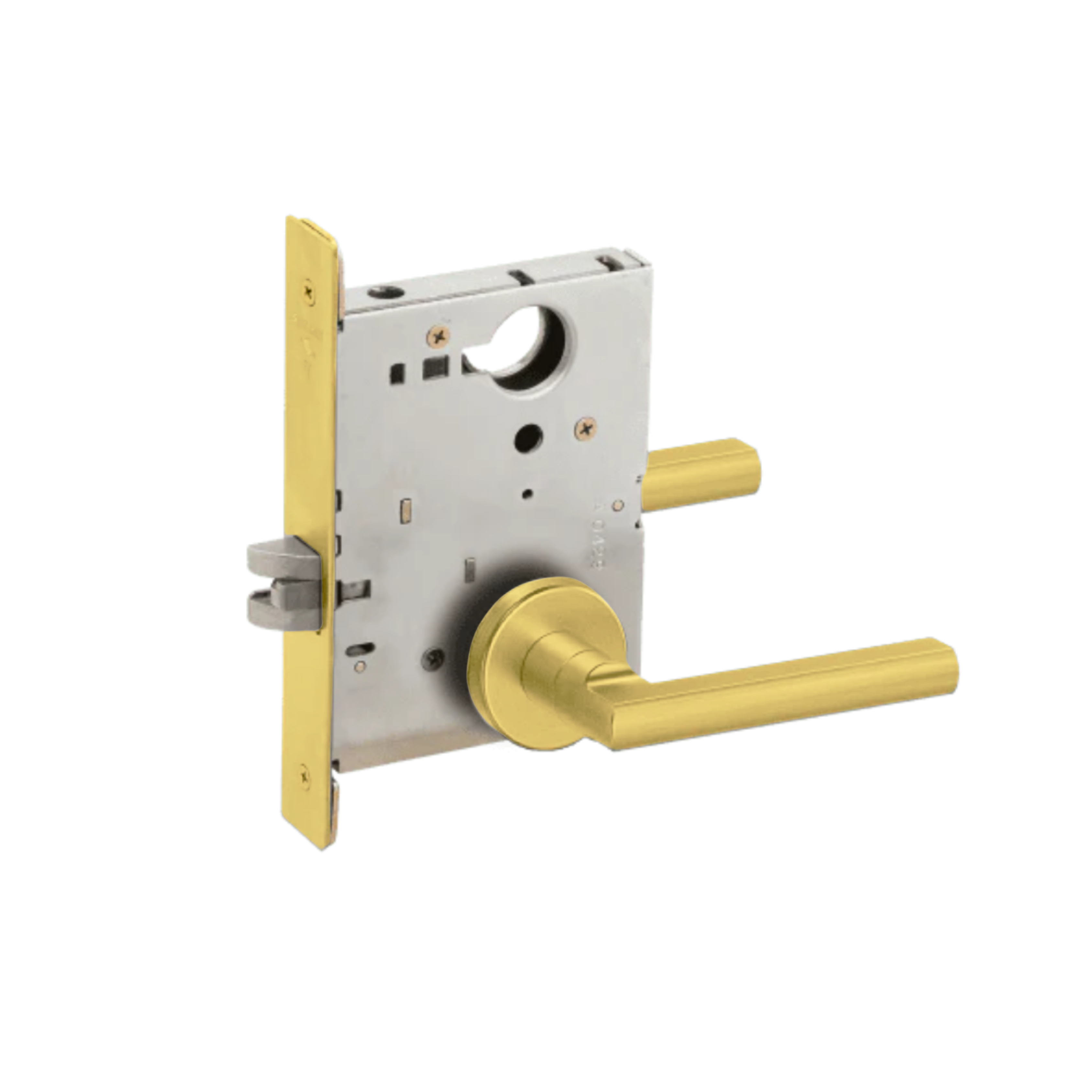

Schlage L9010 - Passage Latch Mortise Set

Name: Schlage L9010 - Passage Latch Mortise Set
Brand: Schlage
SKU: L9010-06A-626
Price: 753.0 USD
Availability: InStock

SKU: L9010-06A-626

$ 753.00

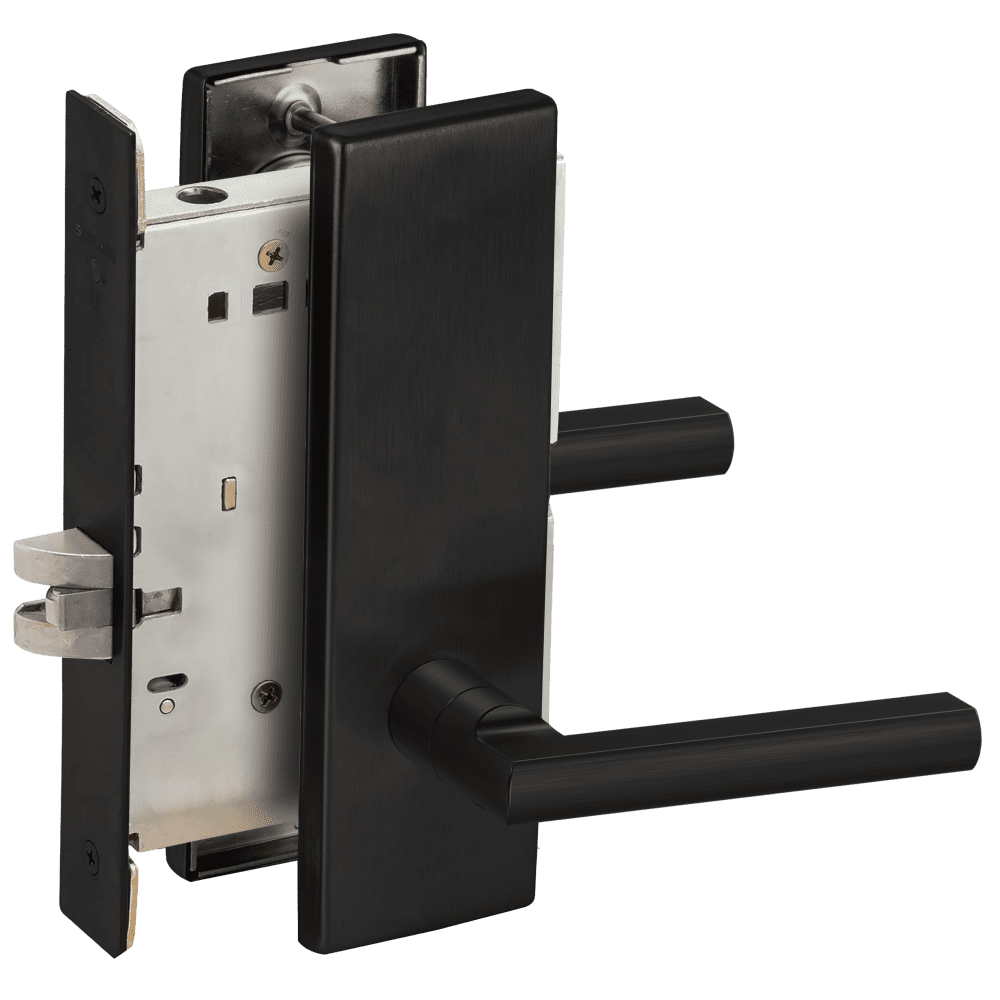

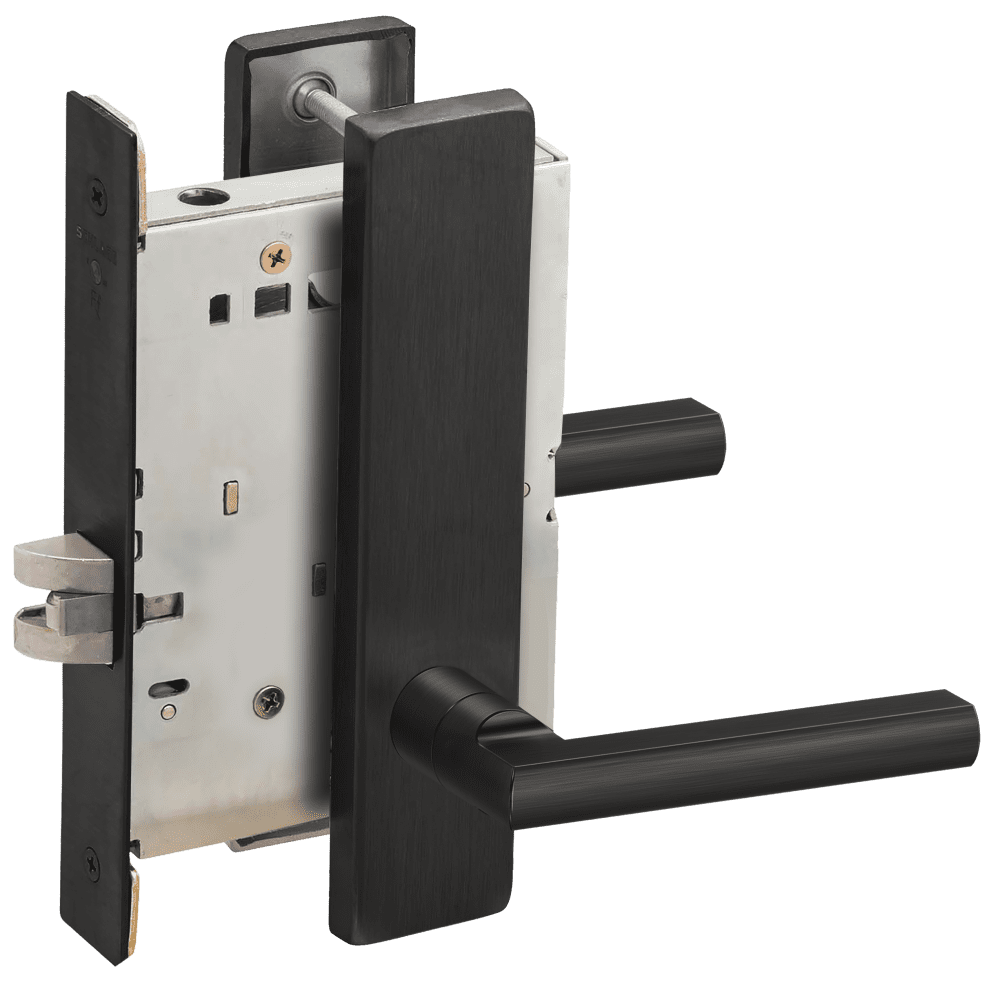

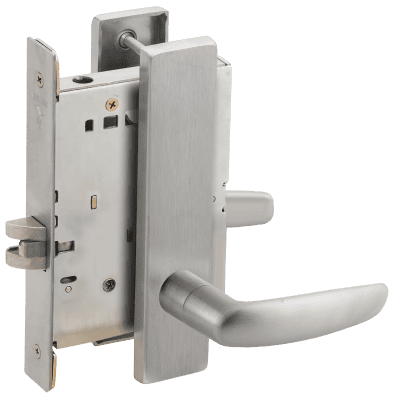

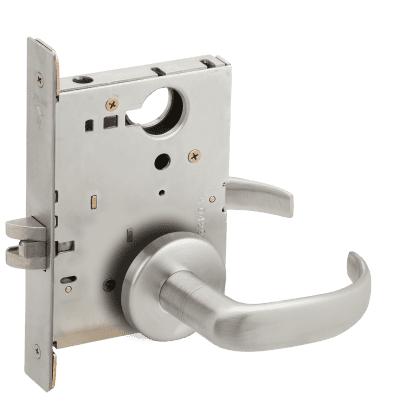

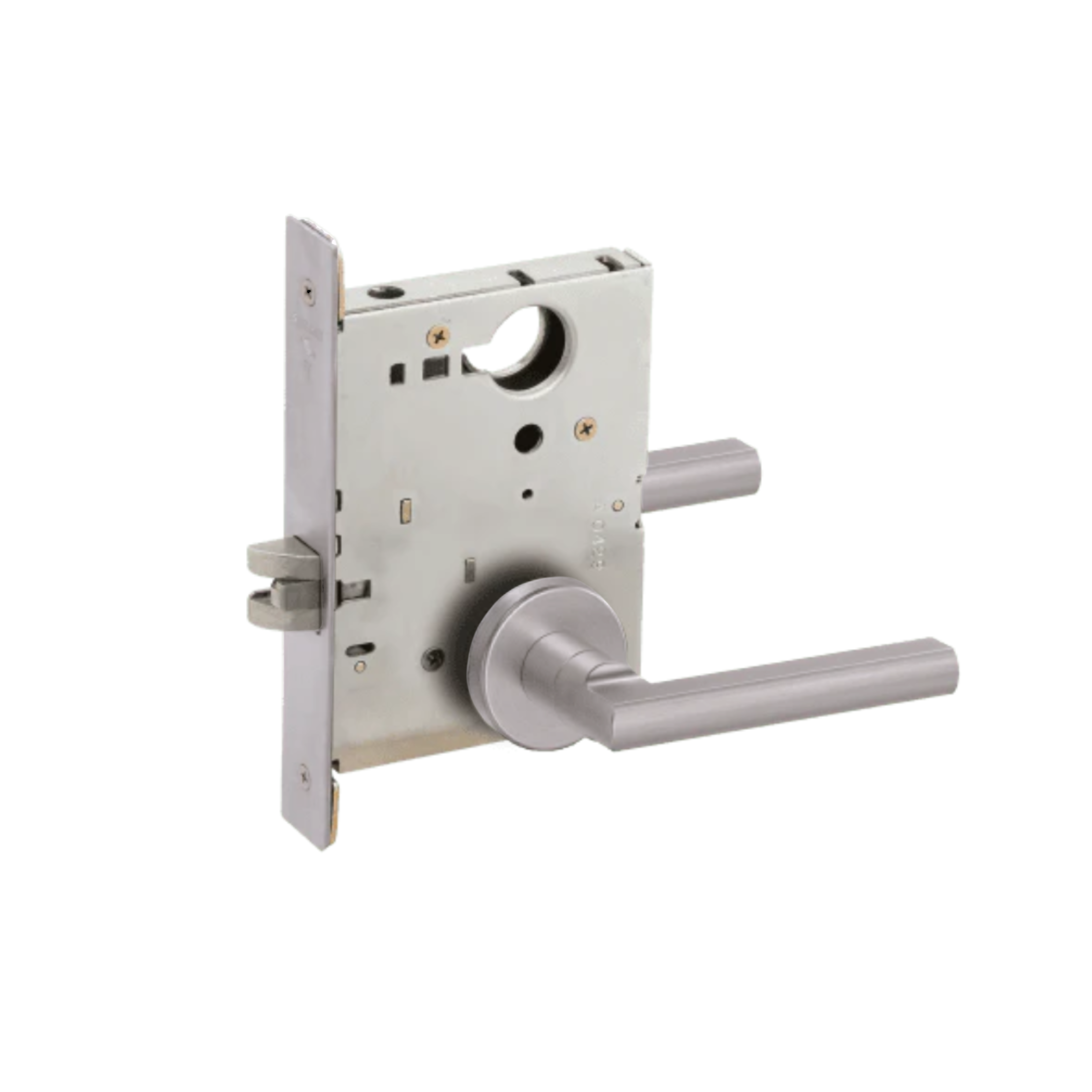

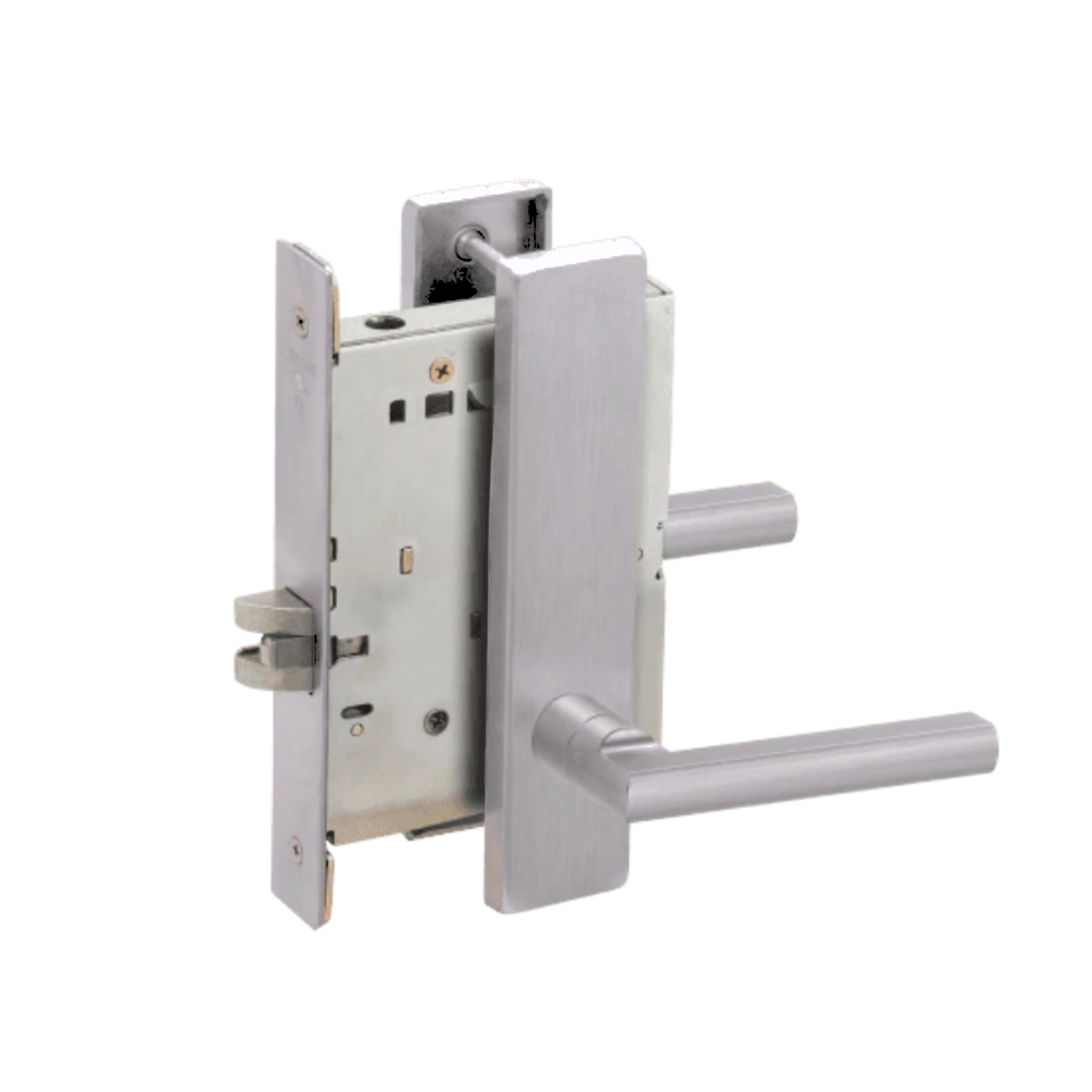

Product variants

Features & Benefits

Security

Tested and certified to ANSI/BHMA Grade 1 operational and security standards
UL listed for 3-hour fire door; spring-loaded fusible link inside lock case provides fail secure mode in case of fire
Deadbolt features include anti-saw pin in bolt to prevent cut-through
Security blocking hub prevents lock access by removing levers
Vandlgard® option allows the outside lever to rotate freely down to prevent damage from excessive force while in a locked state
Lock monitoring options include request to exit (RX), latchbolt (LX), door position (DPS), and deadbolt (DM) (availability varies by function)
Patented Everest 29™ S123 keyway is provided standard which prohibits unauthorized key duplication
Restricted geographically exclusive Primus upgraded security options offer advanced key control and exceptional physical security

Aesthetics

33 lever styles constructed of solid brass or solid stainless steel offer a strong-yet-comfortable feel
Additional style options include two knobs, five roses, and two escutcheons
12 available finishes (depending on lever style) with options for antimicrobial coating
Locking lever bushing eliminates exposed screws on inside levers
180-degree visibility indicator trim option for locked/unlocked status available for most functions
Lock status indication trim option uses red and white backgrounds to ensure quick readability for color blind individuals (see L Series Grade 1 Mortise Indication Trims web page for details)
All levers suite with Von Duprin exit devices, along with related products: electrified L Series mortise lock, multipoint locks, and LT Series tubular locks

Functions

“The Original” universal lock case allows creation of 7 functions from a single lock body
42 keyed and non-keyed functions
Six mechanical functions offer optional key override of the inside thumbturn when it is being held in the locked position to stop unwanted barricade situations
Nine L Series electrified mortise lock functions (see separate web page for details)
Ten mortise deadbolt functions (see separate web pages for details)
Custom functions available - contact us for information

Built to Last

Two piece anti-friction tongue in latch bolt reduces wear
Breakaway spindle keeps door secured in the event of vandalism
Field reversible latch bolt allows handing change without opening case
Every Schlage lock undergoes intensive testing to determine its ANSI grade level including: cycle, resistance, door impact, warped door and bolt strength tests

All functions listed beginning with L/LV can be ordered with or without Vandlgard option. Functions with 180-degree visibility indicator trim options are marked (*). See L Series Grade 1 Mortise Indication Trims for details. Optional key override is a safety feature, available on six functions, that allows the outside key to retract the deadbolt and/or latchbolt, depending on function, to override the inside thumbturn when it is being held in the locked position.

Non-keyed functions

L9010 Passage latch (ANSI F01)
L9025 Exit or communicating lock (ANSI F31)
L/LV9040 Bath/bedroom privacy lock (ANSI F22) (*)
L/LV9040 with XL11-446 Privacy with thumbturn both sides (*)
L/LV9044 Privacy with coin turn outside (*)
L9412 with XL11-907 Exit lock with deadbolt
L/LV9440 Privacy with deadbolt (ANSI F19) (*)
L/LV9444 Privacy with deadbolt and coin turn outside (*)

Non-keyed dummy functions

L0170 Half dummy trim
L0172 Full dummy trim
L9110 with XL11-741 Full dummy trim with active levers
L9175 Half dummy trim with lock case
L9176 Full dummy trim with lock case

Keyed non-deadbolt functions

Single cylinder

L9026 Exit lock with cylinder
L/LV9050 Entrance/office lock (ANSI F04) (*)
L/LV9056 Entrance/office lock with automatic unlocking (*) and optional key override feature
L/LV9070 Classroom lock (ANSI F05) (*)
L/LV9076 Classroom holdback lock (ANSI F06) (*)
L/LV9080 Storeroom lock (ANSI F07) and optional key override feature
L/LV9081 Accessible storeroom lock

Double cylinder

L/LV9060 Apartment entrance lock (ANSI F09) (*)
L9066 with XL11-897 Store lock
L/LV9071 Classroom security lock (ANSI F32) (*)
L/LV9077 Classroom security holdback lock (*)
L/LV9082 Institution lock (ANSI F30)

Keyed deadbolt functions

Single cylinder

L/LV9453 Entrance/office lock with deadbolt (ANSI F20)
L/LV9456 Corridor lock with deadbolt (ANSI F13) (*) and optional key override feature
L9460 with XL11-635 Cylinder x thumbturn deadbolt with fixed levers (*)
L9460 with XL11-886 Cylinder x thumbturn deadbolt with inside active lever (*)
L9464 with XL11-886 Single cylinder deadbolt with inside active lever (*)
L9465 Closet/storeroom lock (*)
L9473 Dormitory/bedroom lock (ANSI F21) (*)
L/LV9480 Storeroom lock with deadbolt (*) and optional key override feature
L/LV9485 Faculty/hotel restroom lock with deadbolt (*) and optional key override feature
L9485 with XL11-557 Prison function lock
L/LV9486 Faculty/hotel restroom lock with chevron indicator and optional key override feature
L9496 Corridor lock with chevron indicator and optional key override feature

Double cylinder

L/LV9457 Classroom security lock with deadbolt (ANSI F33) (*)
L/LV9458 Classroom security lock with deadbolt and auxiliary latch(ANSI F34) (*)
L9462 with XL11-886 Double cylinder deadbolt with active inside lever (*)
L9466 Utility room/storeroom lock (F14) (*)
L/LV9482 with XL11-543 Institution lock with deadbolt

Mortise deadbolt functions

Six L Series small case mortise deadbolt functions also availalble (see separate web page for details)
Four L Series mortise deadbolt functions in standard mortise case size also availalble (see separate web page for details)

Chassis

Case: Cold Rolled Steel (CRS) with corrosion resistant zinc dichromate plating
Case size: 4-7/16" x 6 1/16" x 1" (113 mm x 154 mm x 25 mm)
Spacing: knob or lever to cylinder 3-7/8" (98 mm); knob or lever to thumbturn hub 2-11/16" (68 mm)
Door thickness: 1-3/4" (44 mm) standard; 1-3/8" (35 mm) minimum; specify door thickness if over 1-3/4" and position in door (EE, EI, EO, ED)
Field reversible handing

Trim Options

33 lever designs made of forged brass or cast Stainless Steel
Two knob designs made of heavy-duty wrought brass or Stainless Steel
See Healthcare Solutions or Lock Status Indication Trims for other trim options
Knurled tactile warning available on 02, 03, M51, M52, and M81 lever designs; milled tactile warning available on 01, 05, 06, 07, 12, 17, 18, ME1, ME2, and ME3 lever designs
L escutcheons: 7 15⁄16” x 1 3⁄4” x 7⁄16” (202 mm x 44 mm x 11 mm); cold-forged brass and Stainless Steel
N escutcheons: 7 7⁄8” x 2 1⁄2” x 7⁄16” (200 mm x 64 mm x 11 mm); heavy wrought reinforced brass, and Stainless Steel
Roses: A 2-1/8" (54 mm), B 2-9/16" (65 mm) , C 2-5/8" (67 mm) - wrought brass and stainless steel; AVA 2-5/8" (67 mm) and MER 2-5/8" (67 mm) - forged brass
Combinations: available with knob or lever on both sides or in combination; roses cannot be combined with escutcheons
Available 1/8" thick lock case lead lining option for use in X-ray or other rooms with radiation concern
Three thumbturn styles available: standard ADA, large ADA (not available on L9463), and basic

Latches

Backset: 2-3/4" (70 mm) only
Armor: Standard - 1-1⁄4" x 8" x 7⁄32" (32 mm x 203 mm x 6 mm); Optional - 1-1⁄16" x 8" x 7⁄32" (27 mm x 203 mm x 6 mm)
Deadbolt: 1" (25 mm) throw stainless steel
Latch: 3⁄4" (19 mm) throw stainless steel with anti-friction tongue
Strike: ANSI curved lip strike 1-1⁄4" x 4-7⁄8" (32 mm x 124 mm) standard; dust box included
Strike lip length: 1-3⁄16" (30 mm); optional strike lip lengths - 7⁄8", 1", 1-1⁄2", 1-3⁄4", and 2"

View the Schlage L Series catalog to see all specifications and certifications.

Meets BAA (Buy American Act)
L9000: tested and certified under ANSI/BHMA A156.13, Grade 1 Security and Operational
UL listed for 3-hour fire door (except L9076 and L9077)
With interchangeable core cylinders: Grade 2 security
With concealed shell cylinder: A156.13 Grade 1 operational and security
ANSI/ASTM F476-76 Grade 40, UL listed
L400: tested and certified under ANSI/BHMA A156.36 Grade 1
California Referenced Standards Code: all levers with a return to door of 1/2" (64 mm) or less comply
UL/cUL listed for A label single doors, 4' x 10' and pairs 8' x 10'; letter F and UL symbol on latch front indicate listing
Electrified functions are UL19X listed for single-point locking applications
UL437 listed locking cylinder optional: specify Primus 20-500 Series cylinder
Miami-Dade NOA's and Florida Building Commission Listings
Meet ADA requirements
