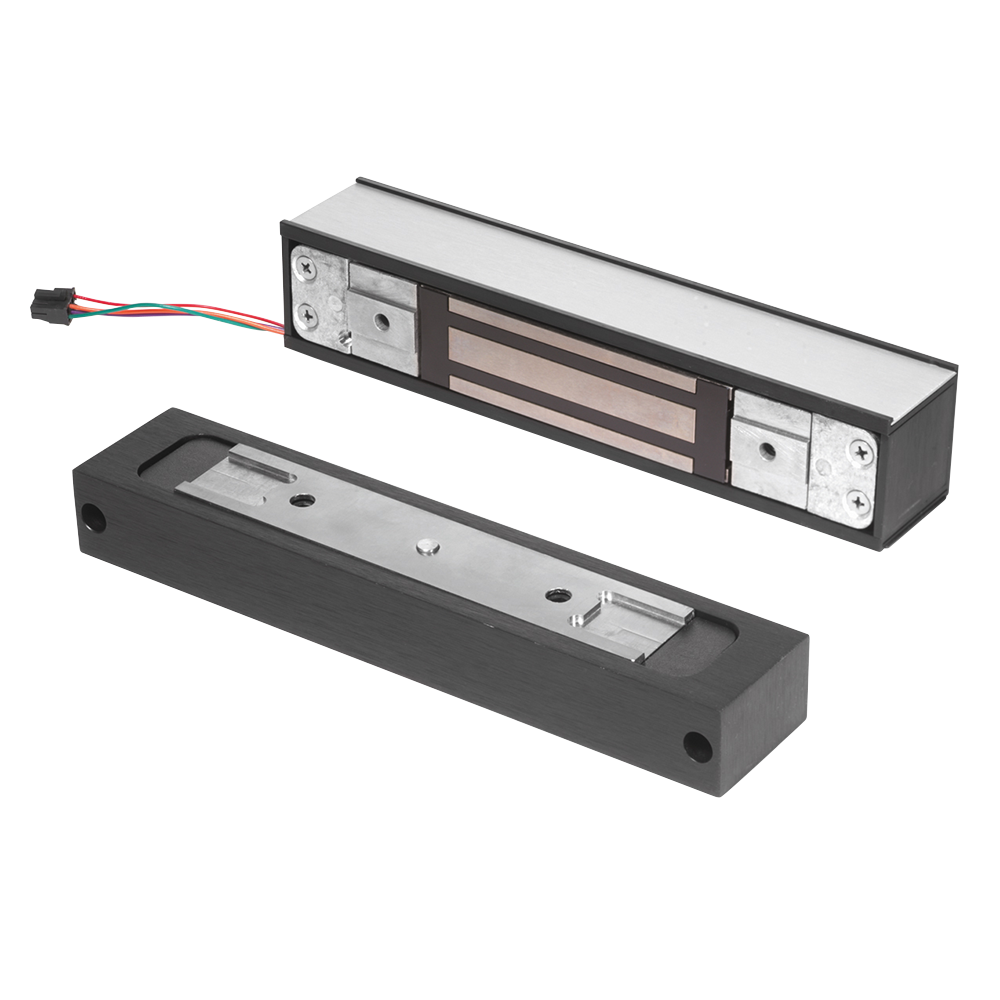

Shear lock with 3,000 lb. hold force rating for surface mounted inswinging and outswinging doors.
Applications
- Maximum security: 3,000 lb. rated hold force
- Surface mounted shear locks for outswinging (GF3000SM) and inswinging (GF3000TJ) doors
Installation
- Automatic voltage selection (AVS) for 12 and 24 VDC
- Able to jump a 3/16" gap - no in-rush current
Integration
- Connect to most access control systems
- Optional door position switch and magnetic bond sensor
All GF3000 Surface Models
- All models offer optional magnetic bond sensor (MBS) and door status monitor
- Input voltage: auto selected 12/24 VDC (filtered and regulated)
- Microprocessor controlled
- Adjustable relocking time delay 2-30 seconds

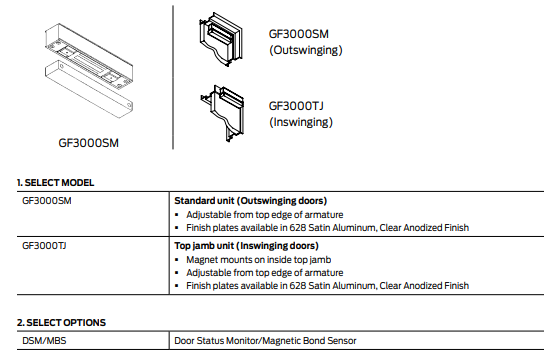

Surface mounted - for outswinging doors
- GF3000SM with 3,000 lb. hold force for use on outswinging doors
- Current draw: .90A @ 12 VDC; .45A @ 24 VDC
- Dimensions - lock housing: 1-1/4" H x 9-13/16" L x 1-1/2" D
- Dimensions - armature housing: 1-3/8" H x 8-3/8" L x 1/2" D
- Weight: 9 lbs.
Top jamb - for inswinging doors
- GF3000TJ with 3,000 lb. hold force for use on inswinging doors
- Current draw: .90A @ 12 VDC; .45A @ 24 VDC
- Dimensions - lock housing: 1-1/4" H x 9-13/16" L x 1-1/2" D
- Dimensions - armature housing: 1-3/8" H x 8-3/8" L x 1/2" D
- Weight: 9 lbs.
Operating temperature
- 0° to 49°C (32° to 120° F)
Finish
- Surface mount models come in satin black, anodized housing
