Overview

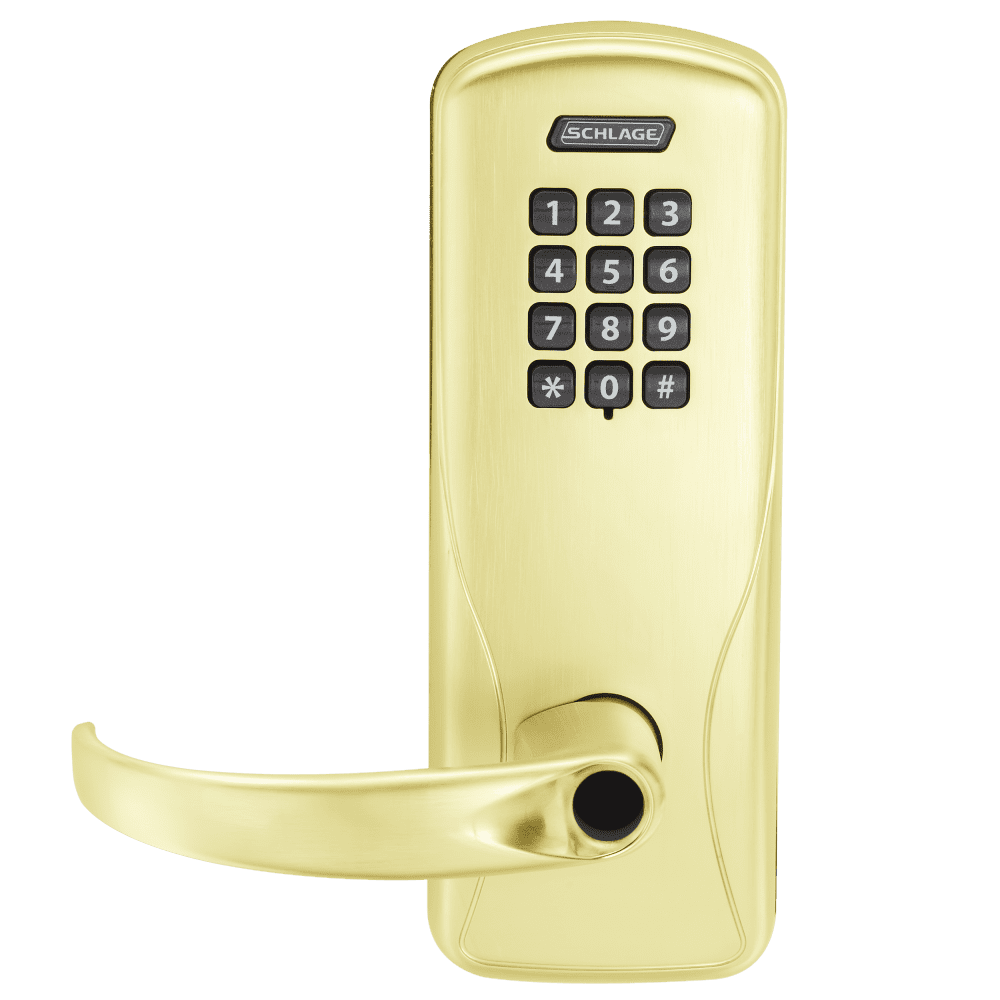

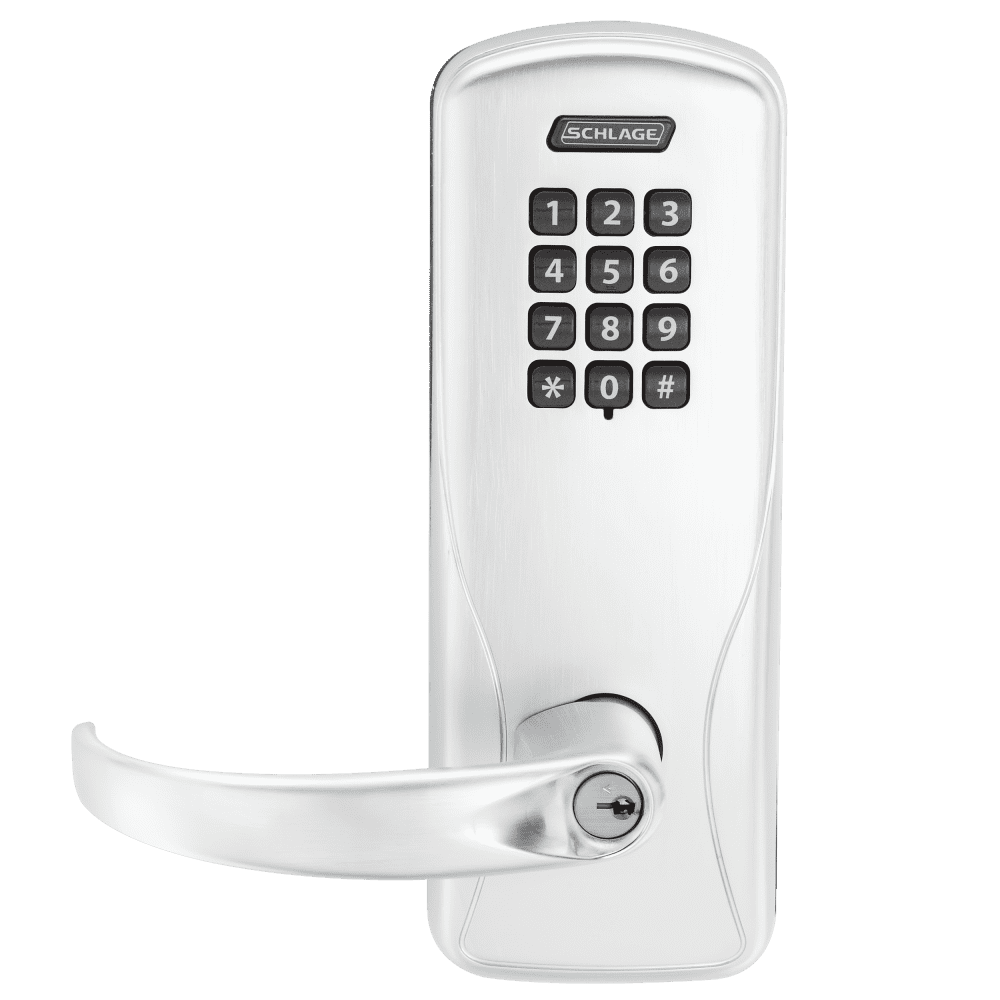

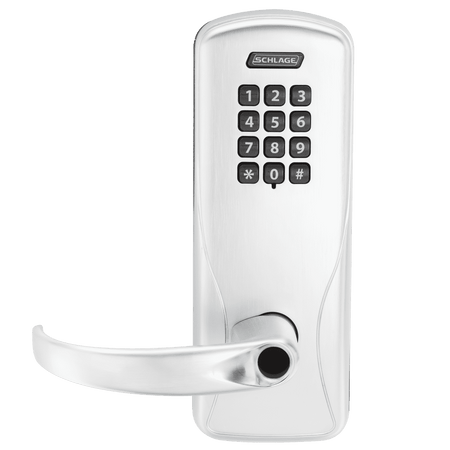

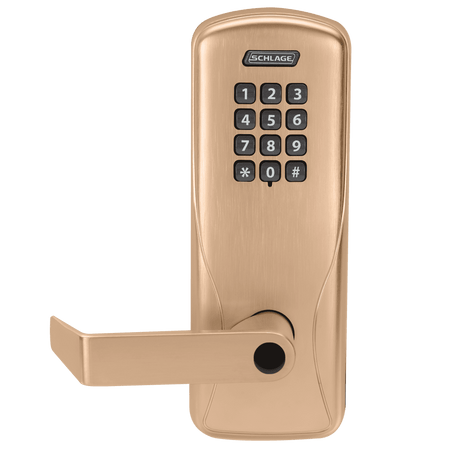

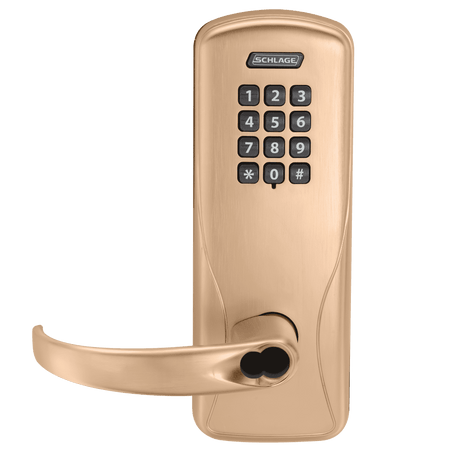

The CO Series provides ideal solutions for customers seeking the added security and convenience of electronic access control without the cost or complexity of a fully networked system. Within this group is CO-100, a standalone lock that is manually programmable. User rights are stored on the lock with unique PIN codes assigned to each user. This minimizes the number of mechanical keys issued which protects the integrity of your key system. PIN codes can be easily added or deleted at anytime, right at the door.

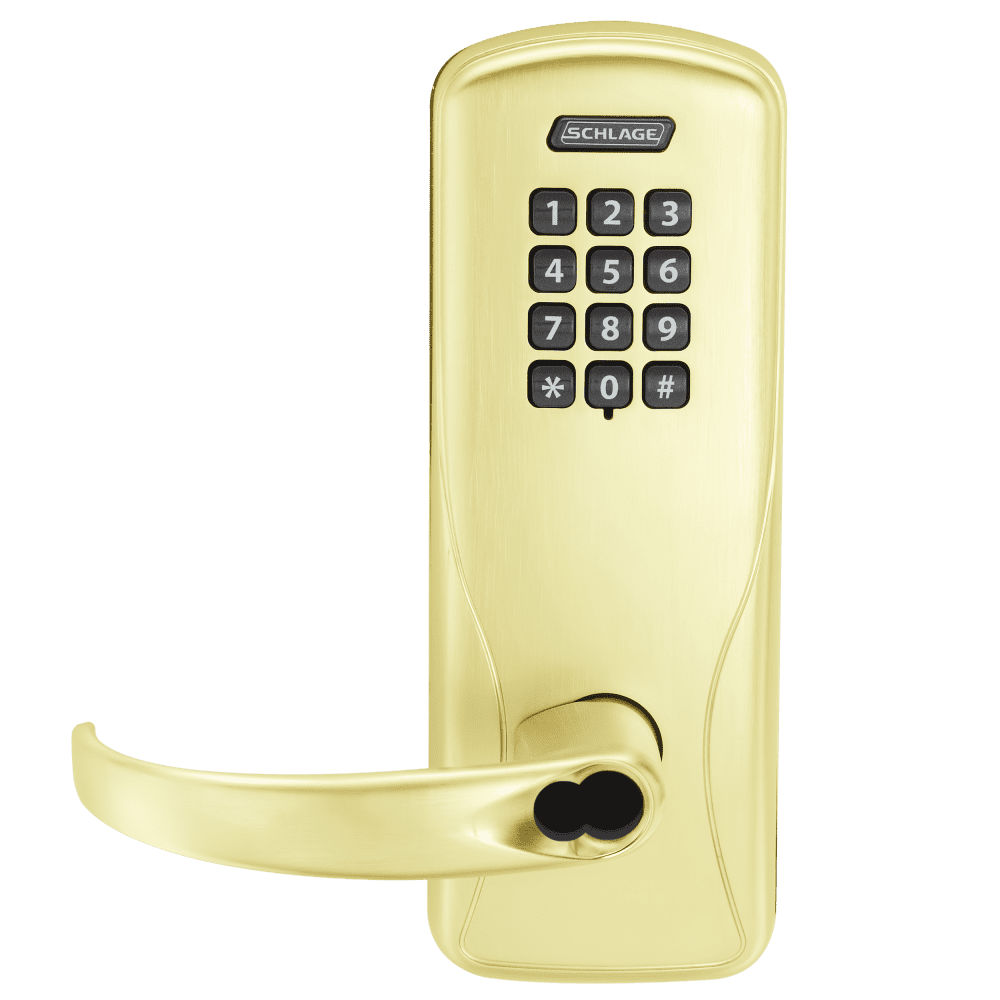

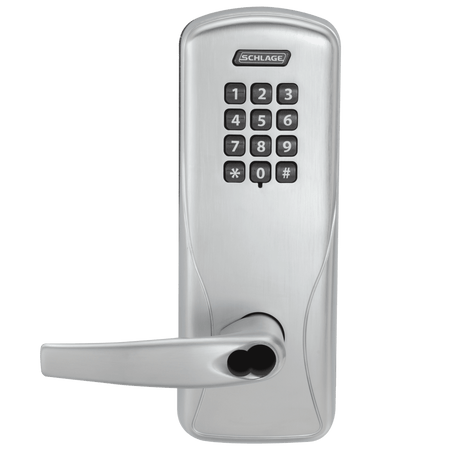

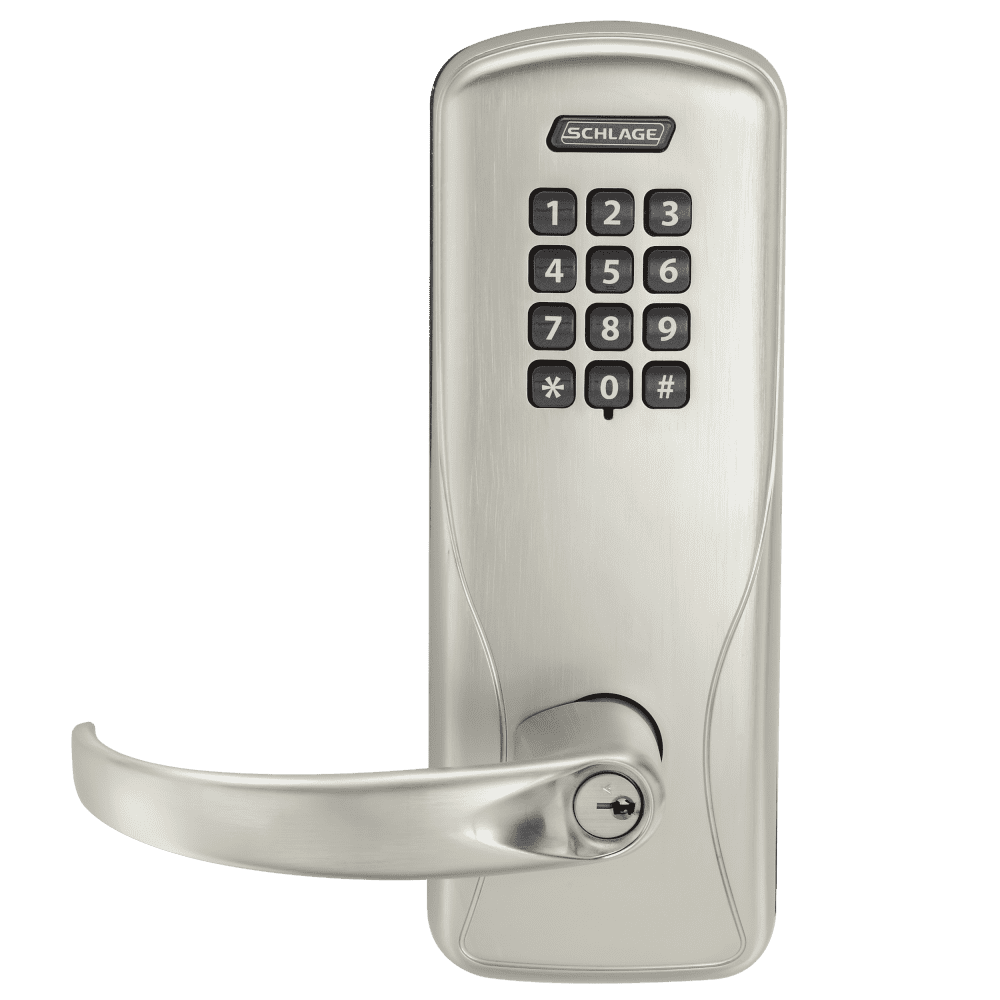

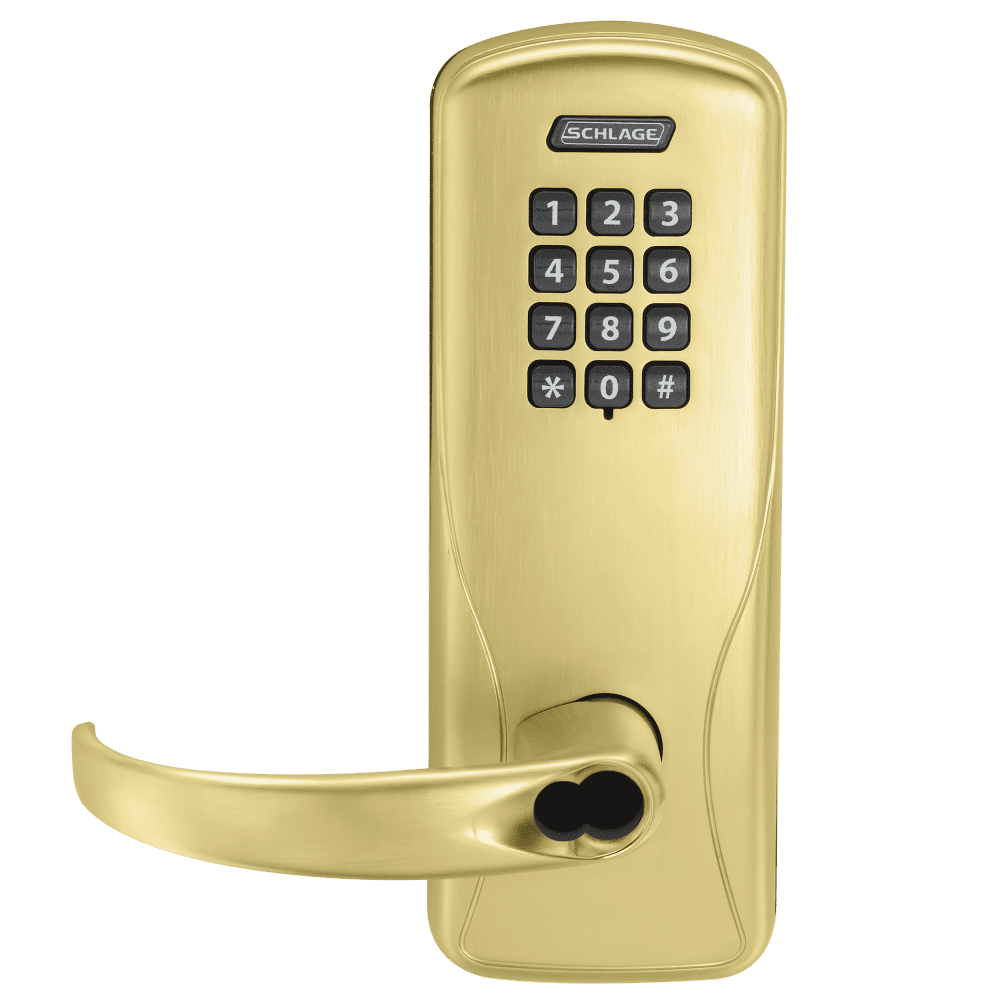

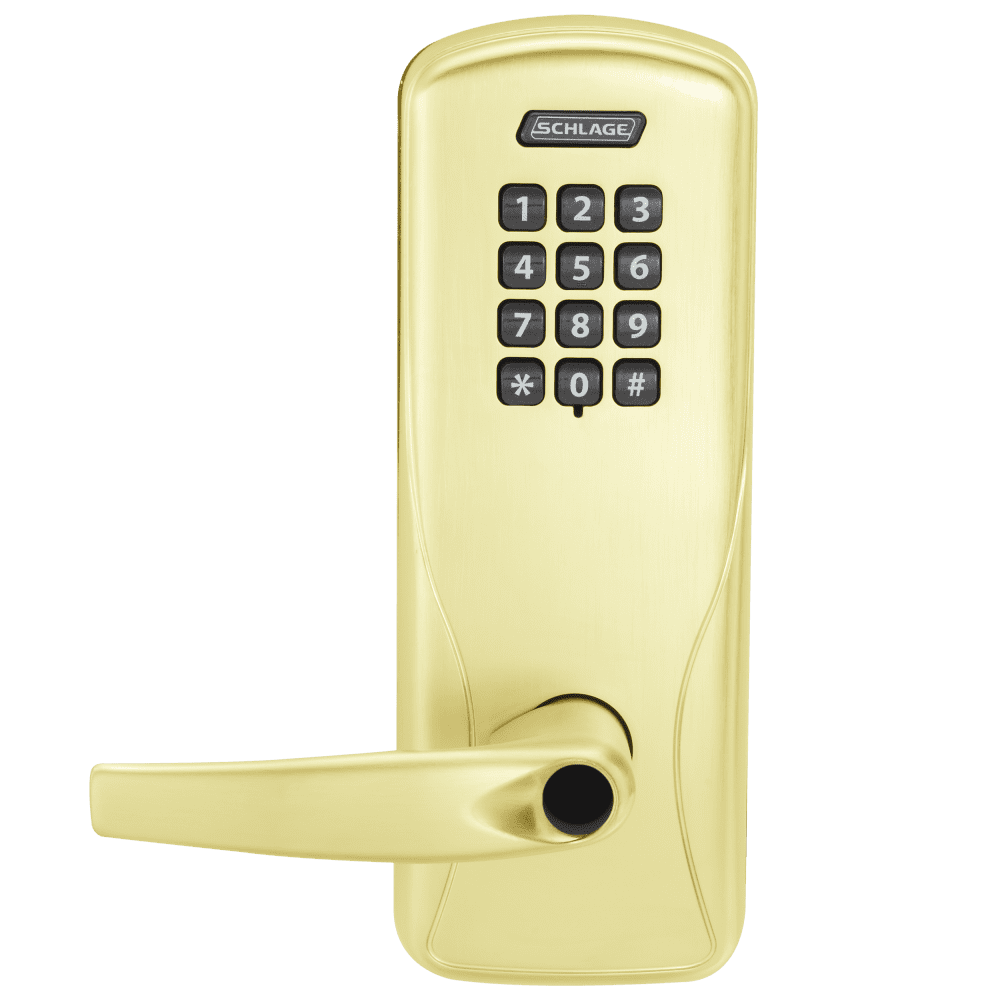

The CO-100 from Schlage is versatile enough to use anywhere. In the classroom/storeroom function, it is rated full outdoor and can be used for
gate or breezeway access. CO-100 privacy function locks can be programmed to show occupancy indication for applications such as dressing areas or bathrooms. And office/classroom function locks can be set up for remote release making them perfect for vestibules or waiting rooms. Cylindrical, mortise, mortise deadbolt, and exit trim chassis options are available. The series is compatible with many popular brands of exit devices and offered in a wide variety of finishes and levers to suite with your existing hardware. Mechanical key override is standard and compatible with multiple cylinder types. CO Series has been tested to the highest standards in the industry to ensure the quality and reliability you have come to expect from Schlage. The CO Series is ANSI/BHMA A156.25 (full outdoor1), ANSI/BHMA Grade 1 certified and UL 294 Listed
They are ideal for:
- Visitor pass through/common areas
- Vestibules or reception area doors controlled by remote release
- Pool gates, breezeways and other outdoor applications
- Maintenance areas
- Supply closets/equipment rooms
- Workout rooms
- Restrooms/bathrooms
- Dressing/fitting rooms
- Maternity/nursing rooms
- Other private rooms needing occupancy indication
Security
- Helps to minimize key distribution to ensure the integrity of the key system over time
- Classroom/storeroom function can be used to secure doors and gates indoors and out
- Office and privacy function options for application on interior or perimeter doors
- Available with Schlage’s full complement of key cylinder options including levers designed for compatibility with many other OEM cylinders
- Compatible with most major brands of exit devices
Efficiency
- Manages up to 500 unique 3-6 digit PIN codes with user rights stored on the lock
- Utilize existing master key system
- Low lifetime cost of ownership
Convenience
- PIN codes can be issued and revoked quickly, right at the keypad
- Normal, toggle, pass through, and freeze programming options
- Occupancy indication programmable option available on privacy function locks
- Up to 2 years battery life with status indicator for easy maintenance
Certifications
- ANSI/BHMA A156.25 full outdoor (70 function)
- ANSI/BHMA, Grade 1
- UL 294
- UL 10C
- UL Canada
- FCC Part 15
- ADA
Meets or exceeds
- Cylindrical - ANSI/BHMA A156.2, Series 4000, Grade 1
- Mortise - ANSI/BHMA A156.13, Series 1000, Grade 1
- Exit trim - ANSI/BHMA A156.3

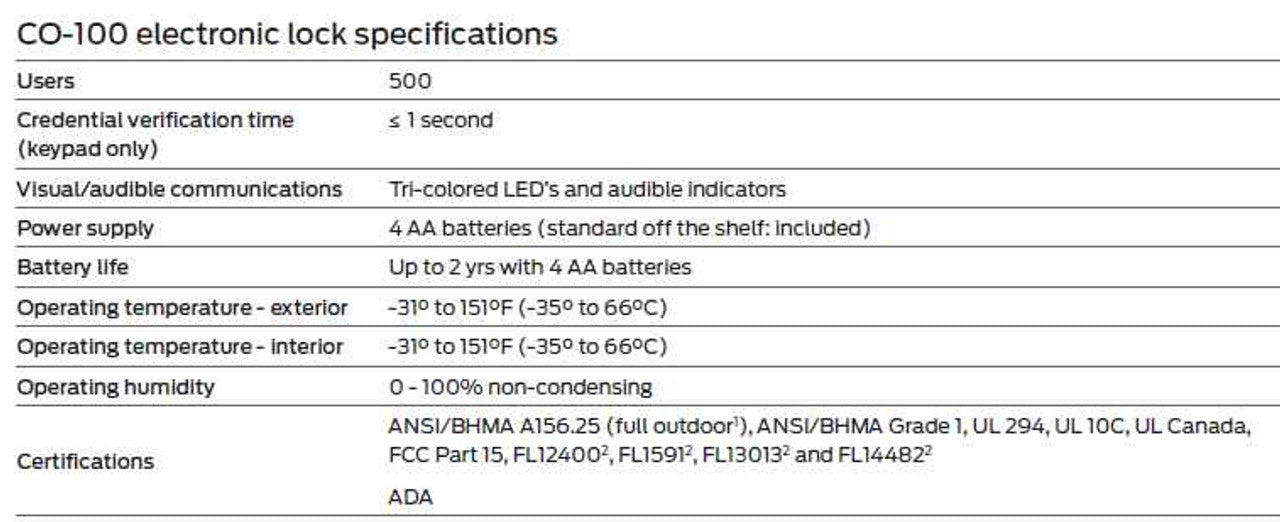

For full electronic specifications please reference the CO-100 data sheet.
Reader options
- Keypad only
User verification
- Capable of credential verification <1 second
- Up to 500 users
- Remote release available on Office function locks
Programming options
Basic users can:
- Enter assigned PIN code to unlock door momentarily from normally locked state
Managers can:
- Be assigned toggle code priveges to change the lock to an unlocked state and back when desired
- Assign or delete basic user PIN codes
Administrators can:
- Assign or delete basic user PIN codes
- Change programming codes
- Adjust desired relock delay from 1-120 seconds
- Put lock into freeze state that cannot be toggled
- Use a pass-through code to momentarily unlock regardless of current state
- Disable or enable remote features like release or occupancy indication where available
Additional
- Programmable privacy function option provides lighted occupancy indication when in use
- Battery life - up to 2 years with 4 AA batteries
- Exterior Temp: -31° to 151°F (-35° to 66°C)
- Interior Temp: 32° to 120°F (0° to 49°C) (battery)
- Humidity: 0 - 100% non-condensing
For full mechanical specifications please reference the CO-100 data sheet.

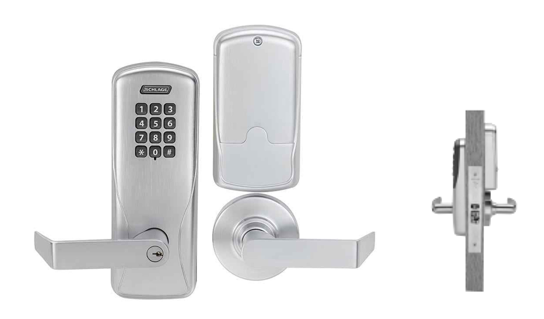

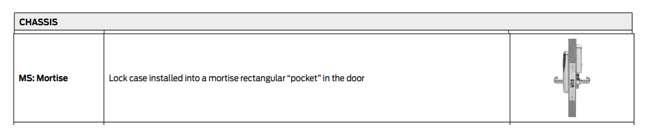

Chassis
- Cylindrical
- Mortise
- Exit trim
- Each offered with LED status indicator
Cylinder and keys
- Standard keyway: Schlage 6-pin Everest 29 S123 with two patented keys
- Classic and restricted keyways, master keying and grand master keying options
- Key-in-lever, FSIC, and SFIC cylinder options
- Less cylinder options to fit common Sargent®, Corbin Russwin®, Medeco®, Yale® and Falcon® cylinders
Functions
- Storeroom with Keypad Reader; manually programmed
