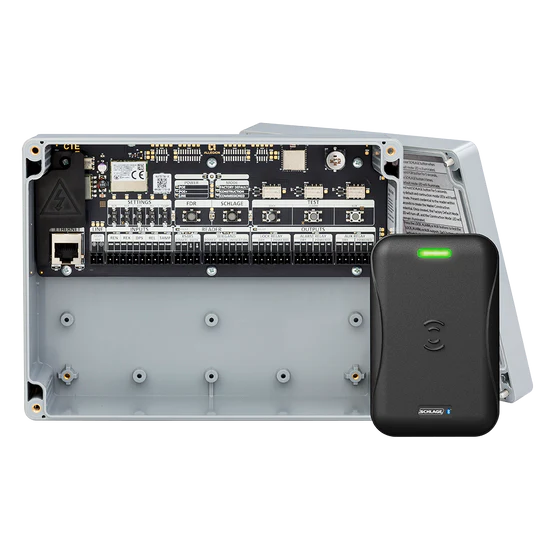

Designed for flexibility, the CTE ENGAGE single door controller is ideal for multifamily, commercial mixed use, narrow stile and retail storefront applications. It allows perimeter and common area openings to be managed in a single system along with Schlage Control® smart deadbolts, NDE cylindrical and LE mortise wireless locks.

The CTE is sold with a Schlage® MTB mobile enabled multi-technology credential reader (MTB11-485 or MTB15-485) and is designed to interface with an electrified lock, electromagnetic lock, electric strike, automatic operator or exit device to control an opening.

The CTE single door controller is designed for flexibility and can be managed with ENGAGE mobile apps or with one of our Physical Access Control Software (PACS) Alliance Member systems.

Security

• Electronics bring more visibility and control to the opening

• Allows an up to 5,000  users with audit trail of up to 2,000 events
• Inputs include door position (DPS), request to exit (REX), request to enter (REN) and remote release (REL)

Efficiency

• Manage users and assign access privileges from virtually anywhere

• Send updates wirelessly at the CTE with the ENGAGE™ mobile application on a Bluetooth® enabled smart phone or tablet. Or leverage the existing Wi-Fi network to send periodic updates without visiting the lock
• Supports holidays and time zones to enable auto lock and unlock during specified periods

Convenience

• Works with most proximity or high security Schlage smart credentials(^1)

• Compatible with Schlage MTB11-485 and MTB15-485 readers

Reader

• Requires Schlage MTB11 or MTB15 Reader


Communication standards

• Bluetooth low energy (version 4.2)

• 2.4 GHz Wi-Fi® (IEEE 802.11b/g/n)
• WPA2, WPA, WEP, 802.1x (PEAP)
• Transport Layer Security (TLS) version 1.2
• Advanced Encryption Standard (AES), 256-bit

Connectivity options

• Mobile (send updates at CTE)

• Wi-Fi access point (automatic daily updates)
• ENGAGE Gateway, IP to host (Networked wireless reader interface)
• No Tour with MT20W and smart credential or mobile credential (consult your access control software provider for specific support)

Additional

• Operating temperatures: -31 °F to 151 °F (-35 °C to 66 °C)

• Operating humidity 0 - 100% non-condensing
• Dimensions 2.96″ x 5.89″  x 7.86″
• BLE communication range:  Up to 30’ in typical building environments
• For signal inputs as well as power inputs/outputs see the CTE data sheet

For full electronic specifications, please reference the CTE data sheet
