Home » Rixson HM27 - 3/4" Offset, Hollow Metal Door And Frame Prep, Heavy Duty
Rixson

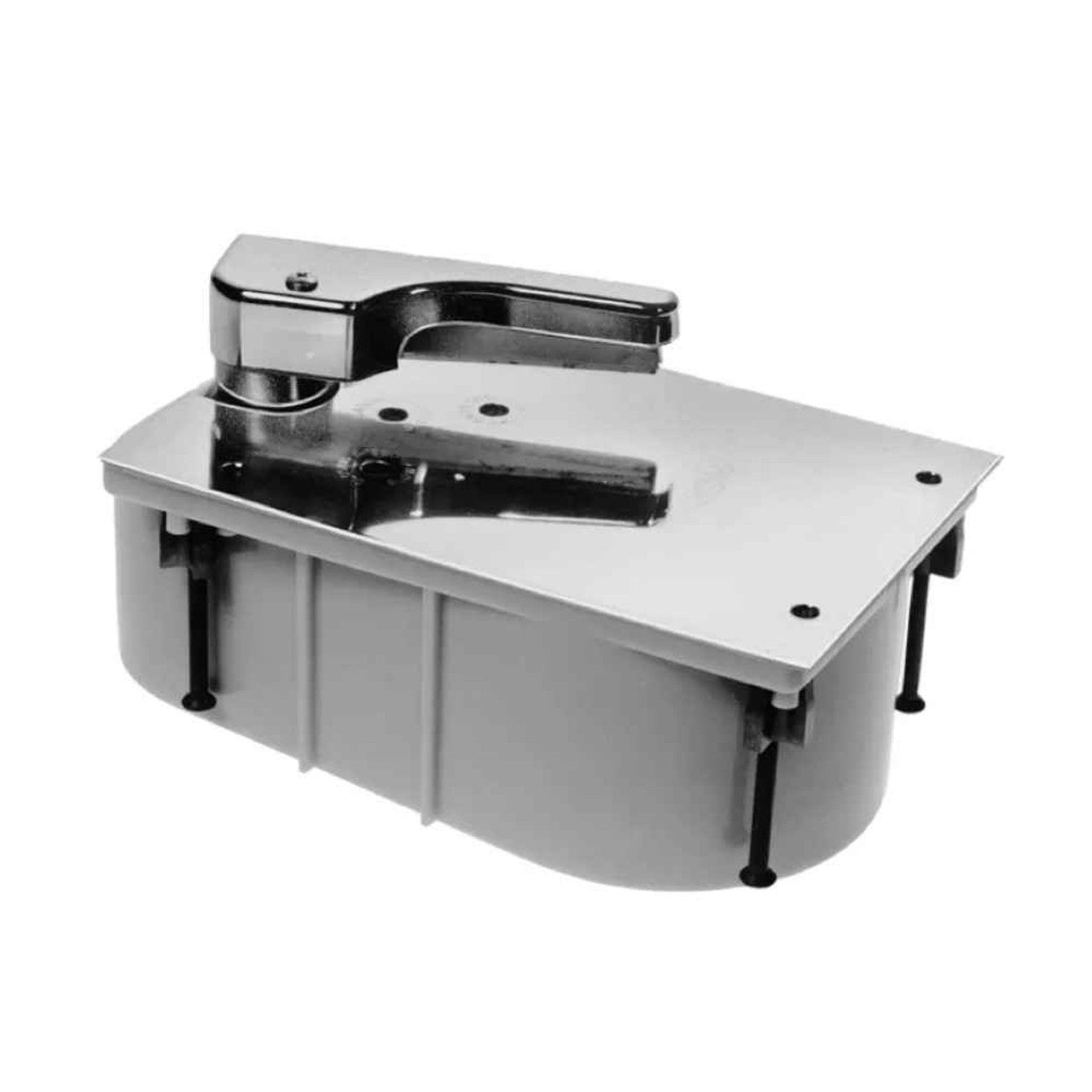

Rixson HM27 - 3/4" Offset, Hollow Metal Door And Frame Prep, Heavy Duty

SKU: HM27-90N-RH-626
$ 2,238.60

MODEL HM27 | 3/4" OFFSET HUNG FLOOR CLOSERS

The Norton Rixson HM27 Series is a 3/4" offset-hung floor closer designed for 1-3/4" hollow metal door and frame installation for interior or exterior doors weighing up to 250lbs.

PRODUCT FEATURES

  • HM27 floor closer, non-hold open
  • Single acting, handed
  • Exterior or interior doors
  • 1-3/4" hollow metal doors/frames
  • Designed for stock hollow metal doors and frames with standard weight 4-1/2" hinge preparation
  • Available non-hold open (N) or selective hold open (S) at the same degree as dead stop
  • Built-in positive dead stop prevents doors from swinging beyond the desired opening degree; specify 85°, 90°, 95°
  • Separate independent valves for closing speed, latch speed, and backcheck
  • Maximum door swing 95
  • Available with floor plate or threshold installation
  • Cycolac, rust-proof cement case
  • Includes three special steel 4-1/2" ball bearing standard weight hinges with 3/4" offset doors over 90" in height warrant an additional hinge
  • Surface-mounted bottom arm with thru-bolts
  • Furnished with 1/2 wood and full machine screws
  • Door width up to 4' 0" (1219mm)
  • Door weighs up to 250lbs.

BENEFITS

  • An aesthetically appealing way to support and control the door
  • Heavy-duty closer constructed with robust materials and internal components for long life and consistent operation
  • Heavy-duty hardened one-piece steel spindle designed to provide a positive dead stop
  • Built-in positive dead stop prevents the door from swinging beyond the desired opening degree
  • Multiple valves provide precision adjustment and enhanced control
  • The weight of the door is supported by the floor closer
  • Closer has a tapered spindle and uses a unique bottom arm

SPECIFICATIONS

  • Closer Type: Floor
  • Maximum Door Weight: 250 lbs
  • Warranty: 10-year limited warranty

CERTIFICATIONS

  • ANSI/BHMA A156.4, Grade 1
  • Buy American Act
  • Certain models meet ANSI A117.1 (PH prefix)
  • Trade Agreement Act (TAA)

RESOURCES & DOWNLOADS

Norton Rixson 427N 3/4" Offset Heavy Duty Floor Closer Catalog
Norton Rixson 427N 3/4" Offset Heavy Duty Floor Closer Installation
Norton Rixson Warranty
