Rixson 428 - Center Hung, Single Acting, Patch Fittings

SKU: 428-90N-RH-626
$ 1,972.80

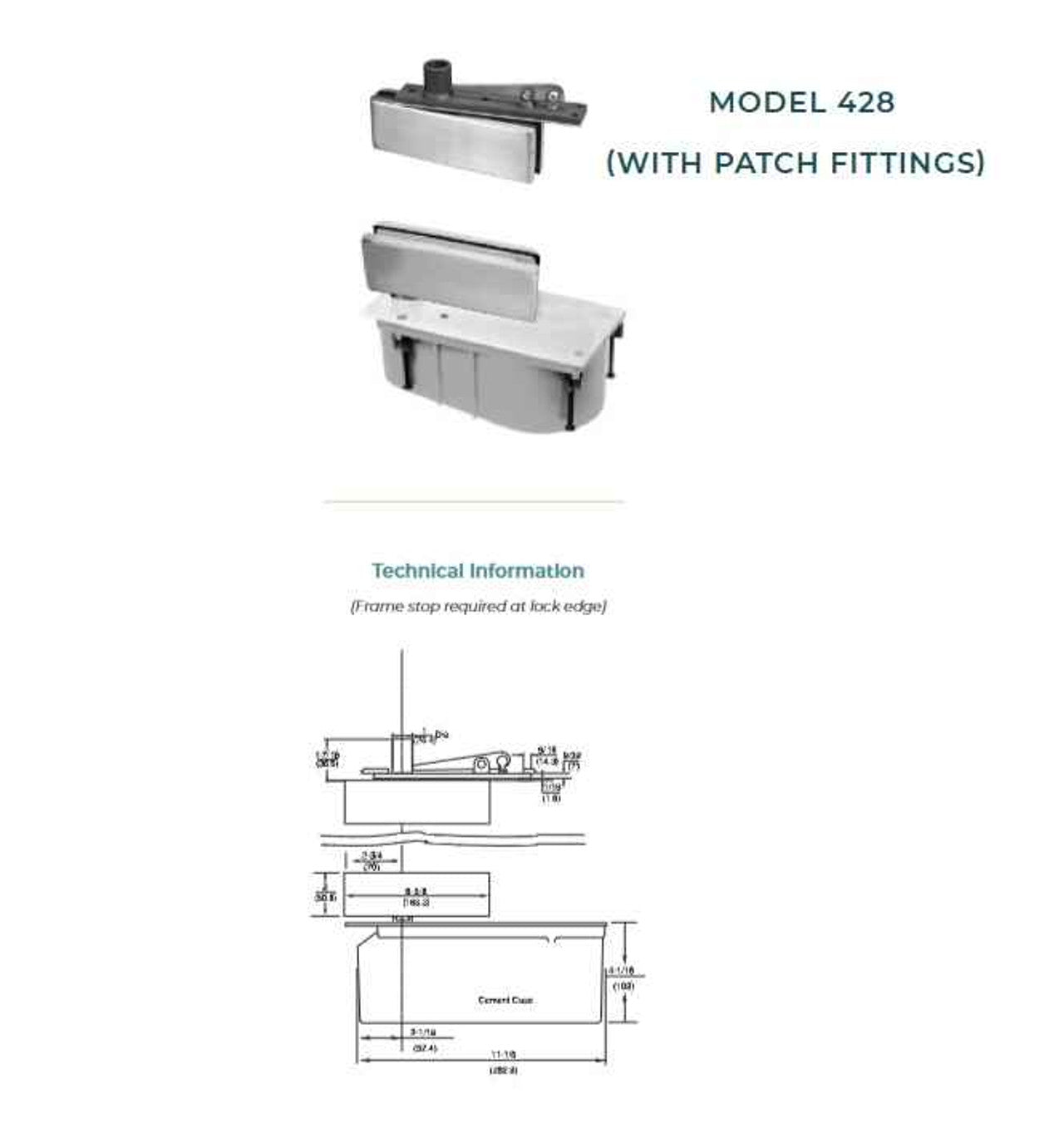

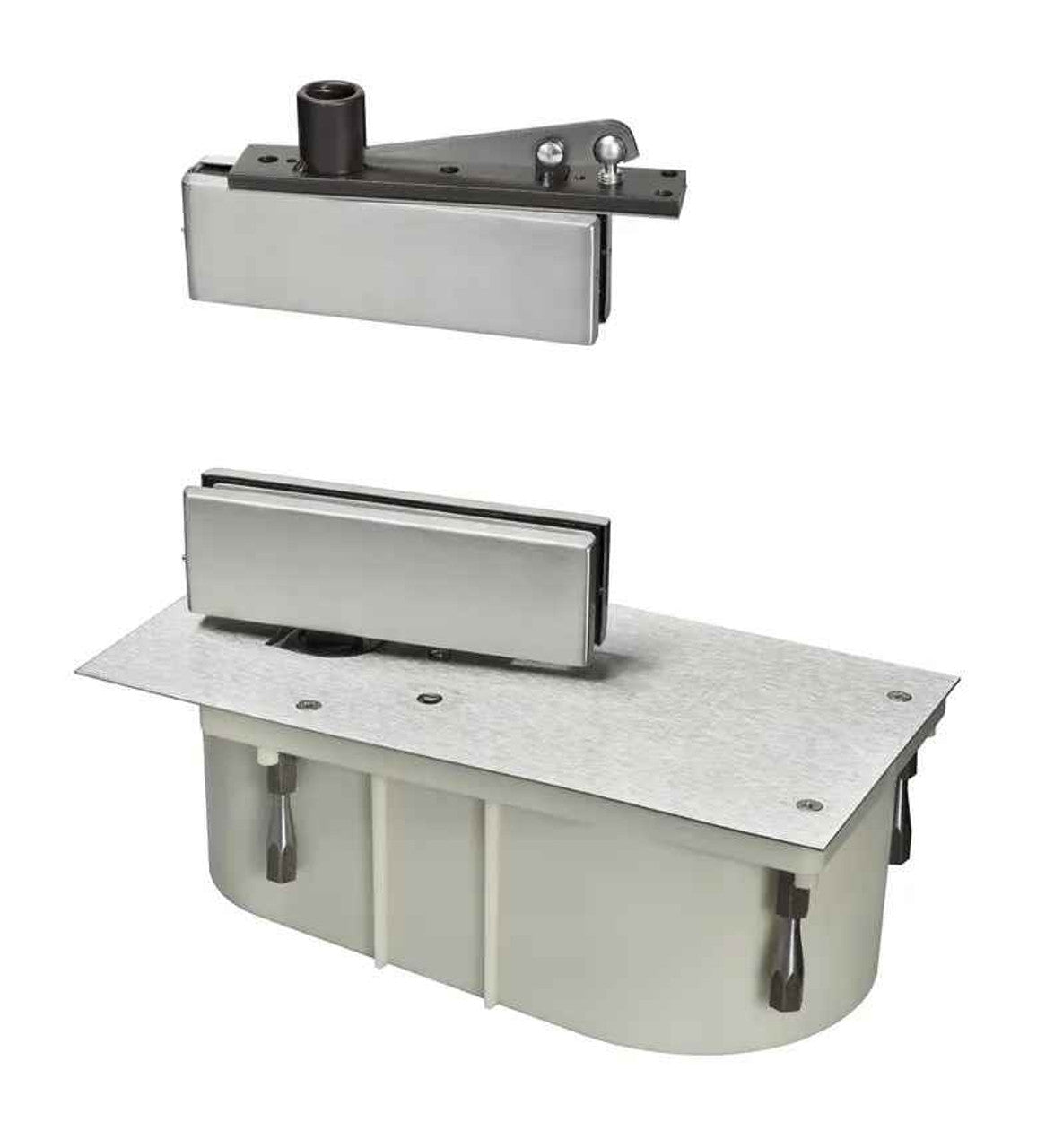

MODEL 428 (WITH PATCH FITTINGS) | CENTER HUNG, SINGLE ACTING FLOOR CLOSERS

The Norton Rixson 428 Series is a single-acting, center-hung floor closer designed for standard glass door installation for full-glass interior or exterior doors weighing up to 325lbs.

PRODUCT FEATURES

  • 328 floor closer, non-hold open
  • Single acting, handed
  • Exterior or interior doors
  • Glass doors with patch fittings
  • Available non-hold open (N) or selective hold open (S) at the same degree as dead stop
  • Built-in positive dead stop prevents doors from swinging beyond the desired opening degree; specify 85°, 90°, 95°, or 105°
  • No arm or top pivot included
  • Separate and independent valves for closing speed, latch speed, and backcheck
  • Cycolac, rust-proof cement case
  • Not allowed for fire-rated doors
  • Frame stop required on the header at lock side; if not supplied by the frame manufacturer, Norton Rixson 60131 recommended
  • Floor plate standard (for threshold application, an extended spindle is required)
  • Patch fittings by others (Norton Rixson will provide spindle configuration to fit – provide details when ordering)
  • Door sizes up to 3'2" x 8'0"
  • The door weighs up to 325lbs.

BENEFITS

  • Heavy-duty closer constructed with robust materials and internal components for long life and consistent operation
  • An aesthetically appealing way to support and control the door
  • Heavy-duty hardened one-piece steel spindle designed to provide a positive dead stop
  • Built-in positive dead stop prevents the door from swinging beyond the desired opening degree
  • Concealment in-floor provides vandal resistance
  • Multiple valves provide precision adjustment and enhanced control
  • The weight of the door is supported by the floor closer

SPECIFICATIONS

  • Closer Type: Floor
  • Maximum Door Weight: 325 lbs
  • Warranty: 10-year limited warranty

CERTIFICATIONS

  • Certain models meet ANSI A117.1 (PH prefix)
