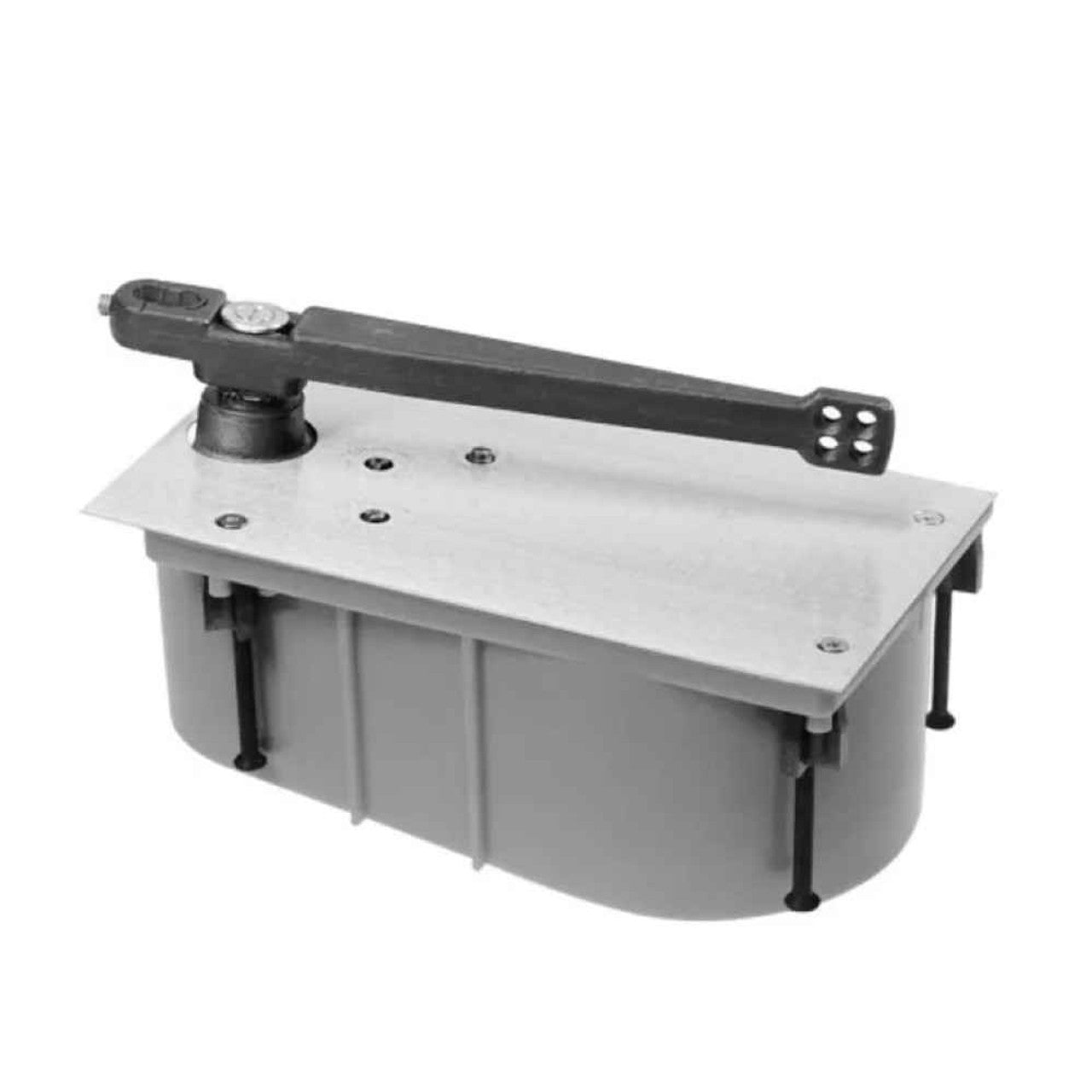

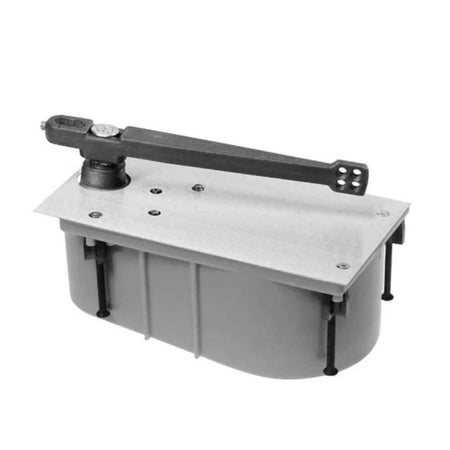

Rixson 28 - Center Hung, Single Acting Heavy-Duty Floor Closer

SKU: 28-90N-RH-626
$ 1,644.60

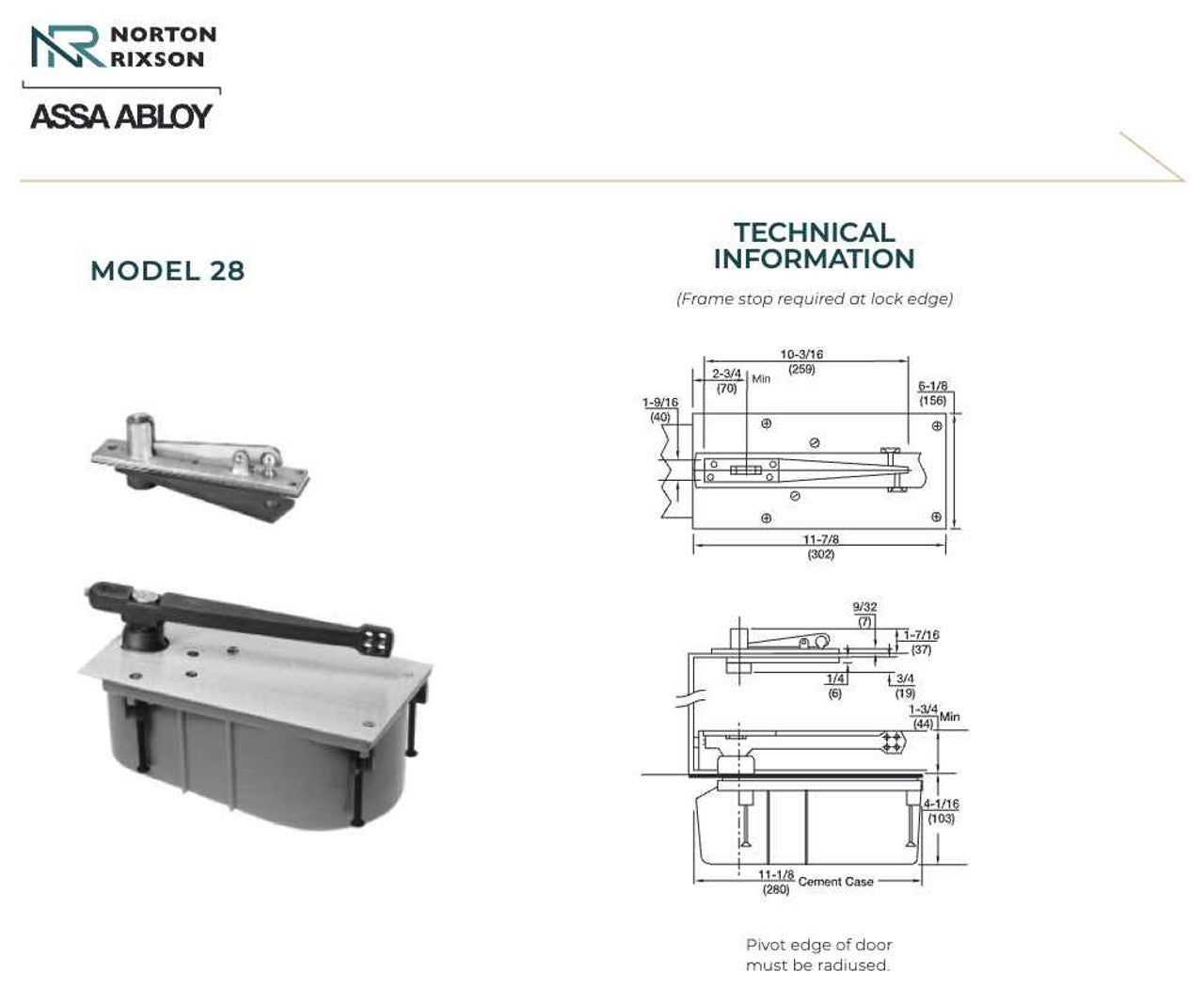

MODEL 28 | CENTER HUNG, SINGLE ACTING FLOOR CLOSER

The Norton Rixson 28 Series is a single-acting, center-hung floor closer designed with a centering arm with adjustable screws for interior or exterior doors weighing up to 350lbs. This allows the closer to be removed without demounting the door for threshold applications.

PRODUCT FEATURES

  • 28 floor closer, non-hold open, closer - less all parts
  • Single acting, handed
  • Exterior or interior doors
  • Available non-hold open (N) or selective hold open (S) at the same degree as dead stop
  • Built-in positive dead stop prevents doors from swinging beyond the desired opening degree; specify 85°, 90°, 95° or 105°
  • Centering arm with adjusting screws in face of door
  • Cycolac, rust-proof cement case
  • Not allowed for fire-rated doors
  • Frame stop required on the header at lock side; if not supplied by frame manufacturer, Norton Rixson 60131 recommended
  • Extended spindles available in 1/2" increments up to 2" longer than standard
  • Optional arm reinforcement bracket for wood doors, prefix W
  • The door weighs up to 350lbs.
  • 554 concealed arm is designed to eliminate visible adjusting screws on face of door; arm bolt locks arm to closer spindle; adjustments made through heel of door

BENEFITS

  • Heavy-duty closer constructed with robust materials and internal components for long life and consistent operation
  • An aesthetically appealing way to support and control the door
  • Heavy-duty hardened one-piece steel spindle designed to provide a positive dead stop
  • Built-in positive dead stop prevents the door from swinging beyond the desired opening degree
  • Concealment in-floor provides vandal resistance
  • Multiple valves provide precision adjustment and enhanced control
  • The weight of the door is supported by floor closer

SPECIFICATIONS

  • Closer Type: Floor
  • Maximum Door Weight: 350 lbs
  • Traffic Rating: High Traffic
  • Warranty: 10-year limited warranty

CERTIFICATIONS

  • ANSI/BHMA A156.4, Grade 1
  • Certain models meet ANSI A117.1 (PH prefix)

RESOURCES & DOWNLOADS

Norton Rixson 28N Series Heavy Duty Floor Closer Catalog
Norton Rixson 28N Series Heavy Duty Floor Closer Installation
Norton Rixson Warranty
