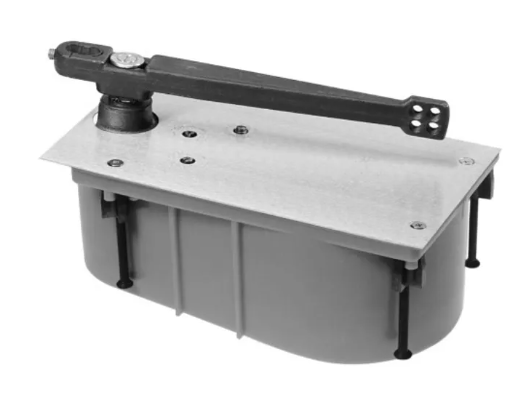

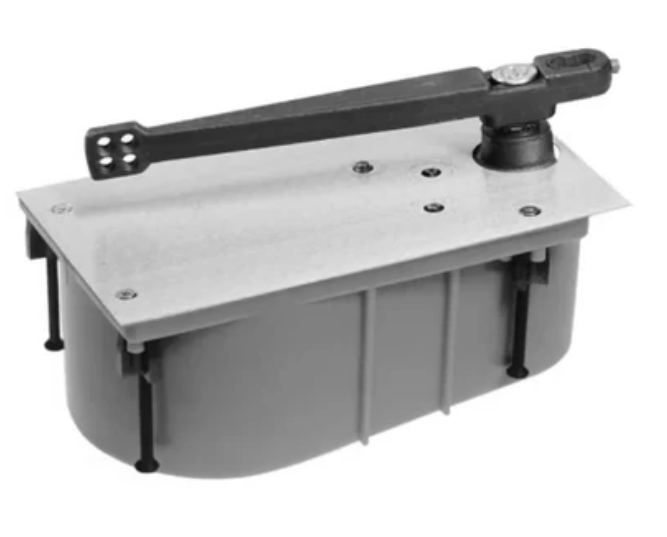

Rixson 28 LAP Floor Closer Less All Parts

The 28 is a single-acting, center-hung floor closer designed with a centering arm with adjustable screws for interior or exterior doors weighing up to 350lbs. This allows the closer to be removed without demounting the door for threshold applications.

Product overview

Features

• Single acting, handed

• Exterior or interior doors

• 340 top pivot included

• Built-in positive dead stop prevents doors from swinging beyond the desired opening degree; specify 85°, 90°, 95° or 105°

• Centering arm with adjusting screws in face of door

• Separate and independent valves for closing speed, latch speed, and backcheck

• Cycolac, rust-proof cement case

• Not allowed for fire rated doors

• Frame stop required on the header at lock side; if not supplied by frame manufacturer, Norton Rixson 60131 recommended

• Extended spindles available in 1/2" increments up to 2" longer than standard

• Optional arm reinforcement bracket for wood doors, prefix W

• Sizes up to 4' 0" x 8' 6"

• Door weight up to 350lbs.

• 554 concealed arm is designed to eliminate visible adjusting screws on face of door; arm bolt locks arm to closer spindle; adjustments made through heel of door

Benefits

• Heavy duty closer constructed with robust materials and internal components for long life and consistent operation

• Aesthetically appealing way to support and control the door

• Heavy-duty hardened one-piece steel spindle designed to provide positive dead stop

• Built-in positive dead stop prevents door from swinging beyond the desired opening degree

• Concealment in-floor provides vandal resistance

• Multiple valves provide precision adjustment and enhanced control

• Weight of door is supported by floor closer

Specifications

• Closer Type: Floor

• Maximum Door Weight: 350 lbs

• Traffic Rating: High Traffic

• Warranty: 10-year limited warranty

Certifications

• ANSI/BHMA A156.4, Grade 1

• Buy American Act*

• *Domestic Sourcing regulations vary greatly within Federal, state and local government agencies and therefore certain restrictions may apply. Please contact BAACompliance.Americas@assaabloy.com for additional information.

• Certain models meet ANSI A117.1 (PH prefix)
