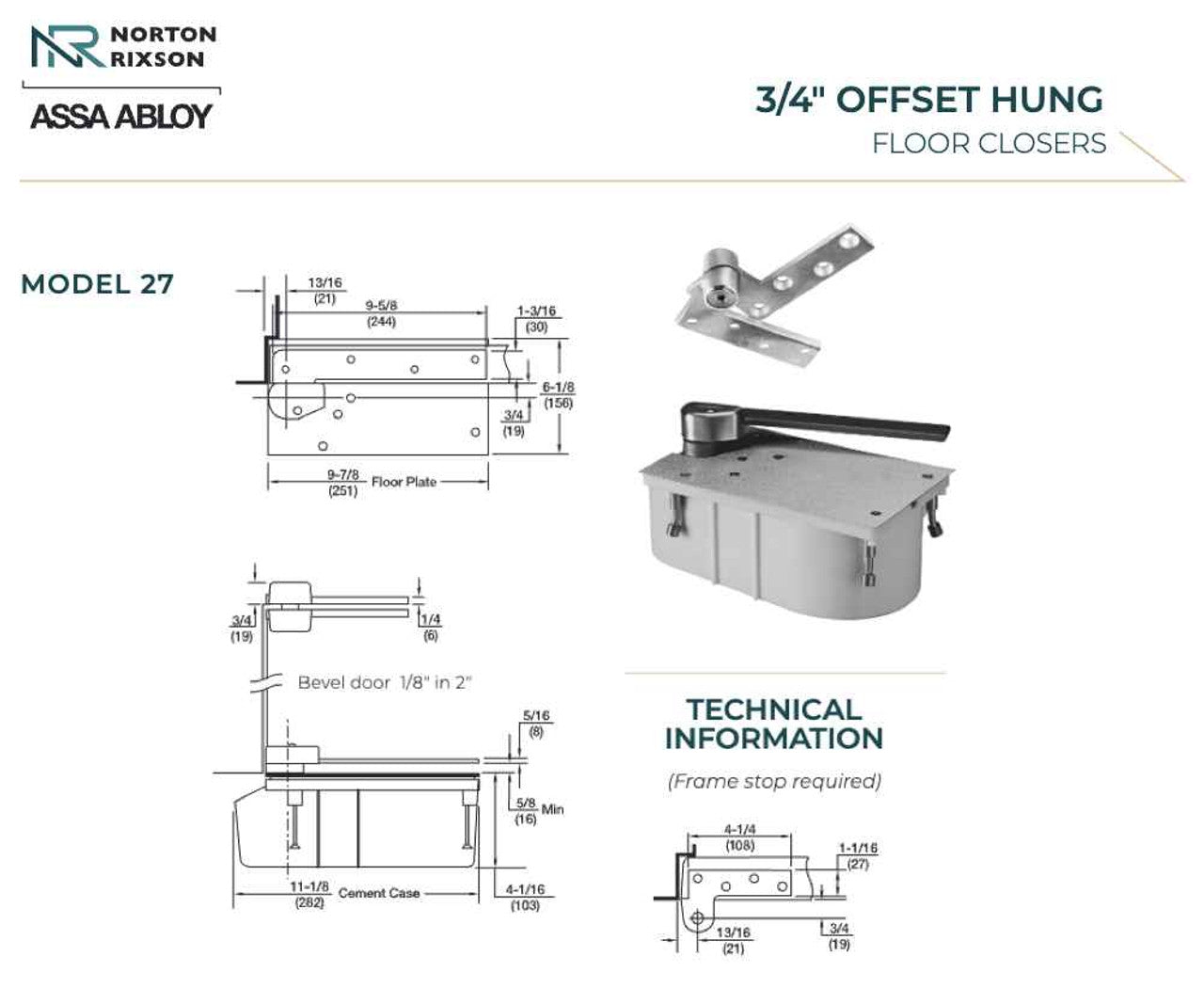

MODEL 27 | 3/4" OFFSET HUNG FLOOR CLOSERS
The Norton Rixson 27 Series is a 3/4" offset-hung floor closer designed for standard door frame installation for interior or exterior doors weighing up to 450lbs.
PRODUCT FEATURES
- 27 floor closer, 3/4" Offset, non-hold open.
- Single acting, handed
- Exterior or interior doors
- 180 top pivot included
- M19 intermediate pivots required (order separately)
- Torx (Security screws). Only provided for screws visible. (order separately)
-
Available
non-hold open (N) or selective hold open (S) at the same degree as dead stop - Built-in positive dead stop prevents doors from swinging beyond the desired opening degree; specify 85°, 90°, 95°, or 105°
- Separate independent valves for closing speed, latch speed, and backcheck
- Vertical door adjustment
- Available with floor plate or threshold installation
- Cycolac, rust-proof cement case
- Doors 60" to 90" in height should use one intermediate pivot - each additional 30" warrants another intermediate pivot
- Extended spindles available in 1/2" increments up to 2" longer than standard
- Available 1-1/2" offset, for doors with 3/4" cladding or frames with applied molding (max door weight 250lbs.)
- Door width up to 4 0"
- The door weighs up to 450lbs.
BENEFITS
- An aesthetically appealing way to support and control the door
- Heavy-duty closer constructed with robust materials and internal components for long life and consistent operation
- Heavy-duty hardened one-piece steel spindle designed to provide a positive dead stop
- Built-in positive dead stop prevents the door from swinging beyond the desired opening degree
- Multiple valves provide precision adjustment and enhanced control
- The weight of the door is supported by the floor closer
SPECIFICATIONS
- Closer Type: Floor
- Maximum Door Weight: 450 lbs.
- Traffic Rating: High Traffic
- Warranty: 10-year limited warranty
CERTIFICATIONS
- ANSI/BHMA A156.4, Grade 1
- Certain models are UL Listed (F prefix)
- Certain models meet ANSI A117.1 (PH prefix)
- Fire rated for 20-minute labeled doors (suffix -20)
