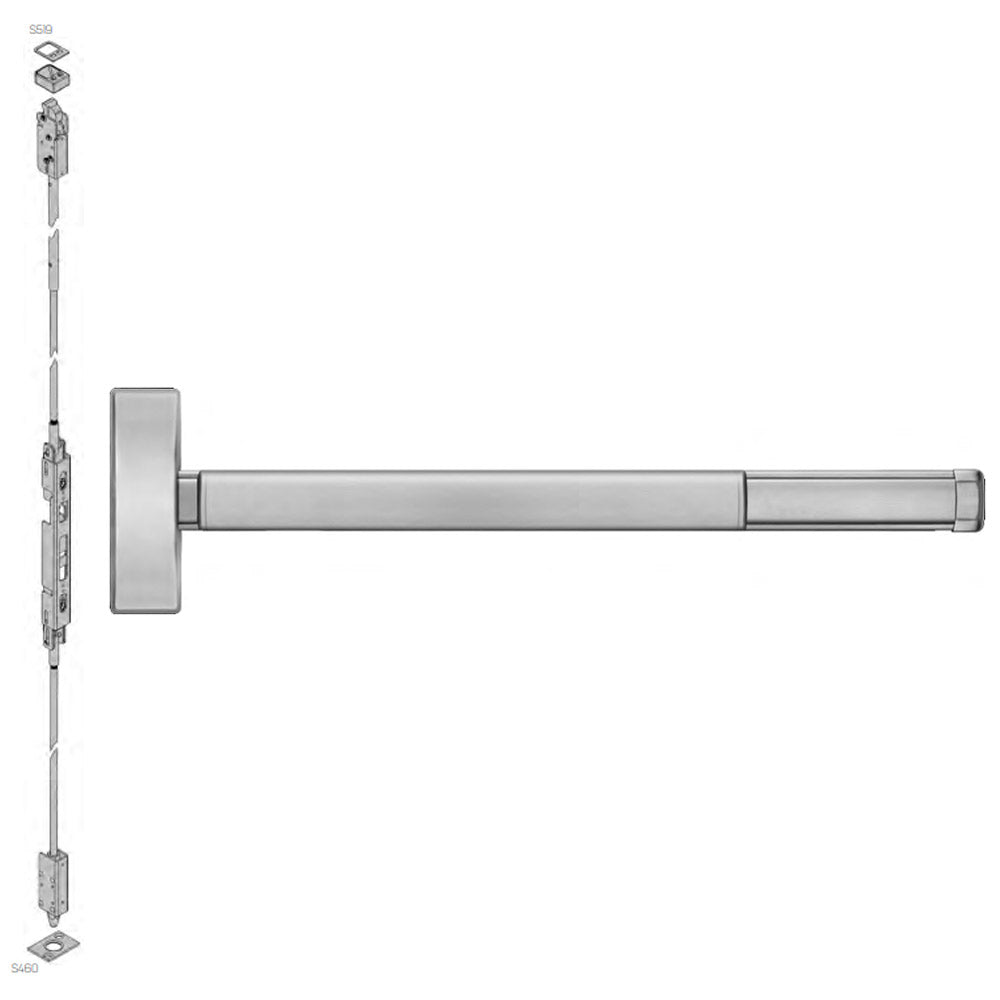

Precision (PHI) 2803 Series Wide Stile, Reversible Concealed Vertical Rod Device - 36"/48" Key Retracts Latchbolt

Precision 2800 Series – Reversible Concealed Vertical Rod Exit Device

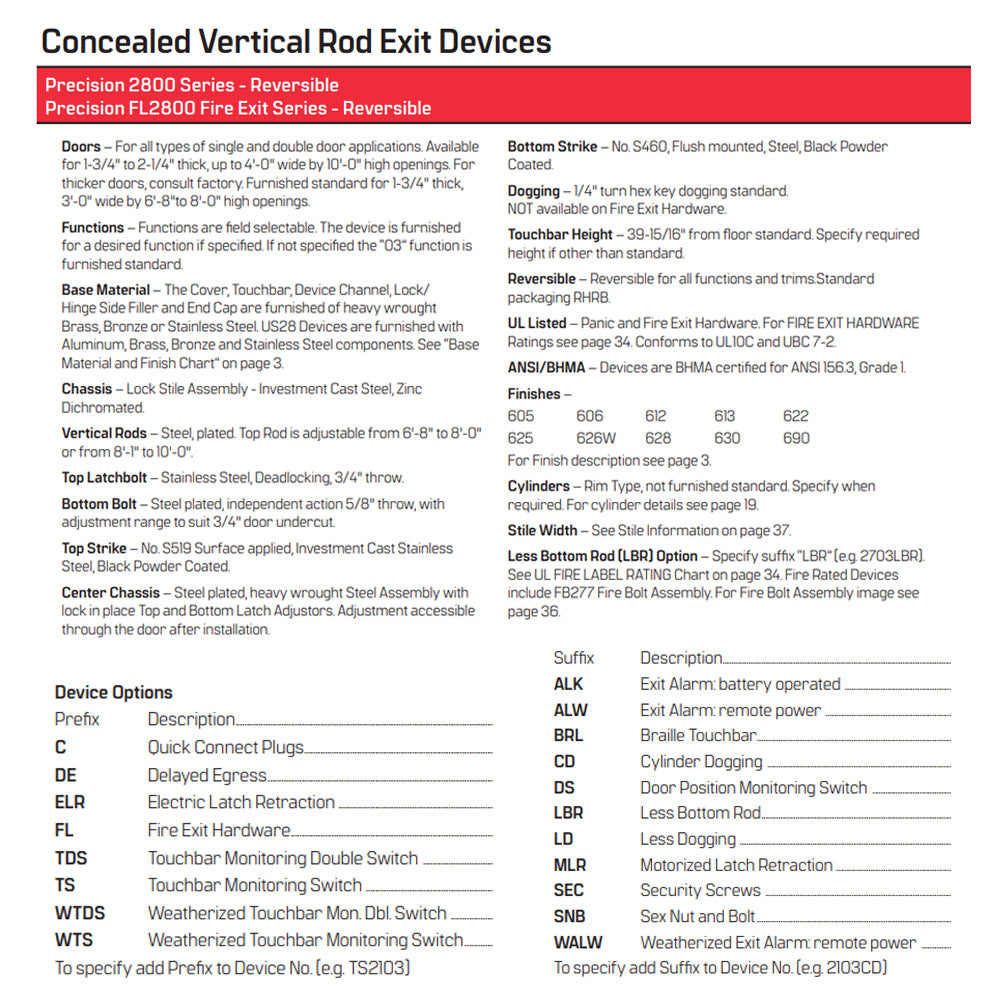

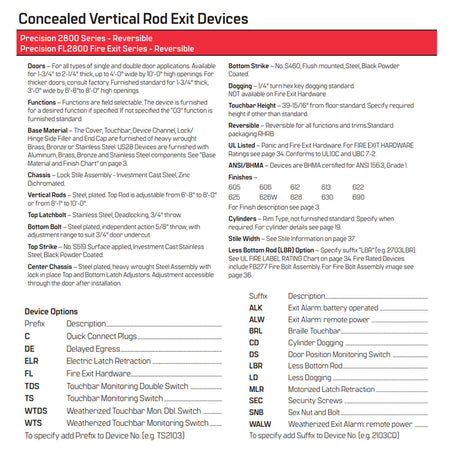

The Precision 2800 Series is a reversible concealed vertical rod exit device engineered for strength, versatility, and reliability. Designed for high-performance egress on single and double door applications, it delivers smooth operation, durable construction, and clean architectural aesthetics suitable for commercial, institutional, and industrial use.

Key Features

• Versatile Door Compatibility: Fits doors 1-3/4" to 2-1/4" thick, up to 4'-0" wide by 10'-0" high. Standard configuration suits 3'-0" wide by 6'-8" to 8'-0" high openings. For thicker doors, consult factory.

• Field-Selectable Functions: Offers flexibility to configure the device’s function on-site for easy customization.

• Precision Engineering:

  • Vertical Rods: Plated steel construction, adjustable to fit varying door heights (6'-8" to 10'-0").

  • Top Latchbolt: Stainless steel, deadlocking, 3/4" throw for secure engagement.

  • Bottom Bolt: Independent action 5/8" throw, adjustable for 3/4" door undercut.

  • Top Strike: S519 surface-applied, investment cast stainless steel, black powder coated for durability.

  • Center Chassis: Heavy wrought steel assembly with top and bottom latch adjustors accessible through the door after installation.

• Reversible Design: Fully reversible for all functions and trims, providing flexible installation and simplified inventory.

Device Options

Enhance performance with a range of optional upgrades:

• Quick Connect Plugs (C)

• Delayed Egress (DE)

• Electric Device (E)

• Electric Latch Retraction (ELR)

• Windstorm & Hurricane Code Device (HC)

• Monitoring Switches (LDS, LS, TDS, TS, WTDS, WTS)

• Motorized Latch Retraction (MLR)

• Wireless Access Management System (Q)

Available Finishes

Choose from a wide selection of premium architectural finishes to complement any environment:

• 605 (US3): Polished Brass, Clear Coated

• 606 (US4): Satin Brass, Clear Coated

• 612 (US10): Satin Bronze, Clear Coated

• 613 (US10B): Dark Oxidized Satin Bronze

• 622 (US19): Black, Powder Coated

• 625 (US26): Polished Chromium Plated

• 626W (US26D): Satin Chrome, Weatherized

• 628 (US28): Satin Aluminum, Clear Anodized

• 630 (US32D): Satin Stainless Steel

• 630AM (US32D): Satin Stainless Steel, Antimicrobial

• 690 (US20): Dark Bronze, Powder Coated

Precision 2800 Series Exit Devices provide robust performance, seamless adjustability, and superior craftsmanship — the perfect concealed solution for doors requiring reliable, code-compliant egress with refined aesthetics.
