Best

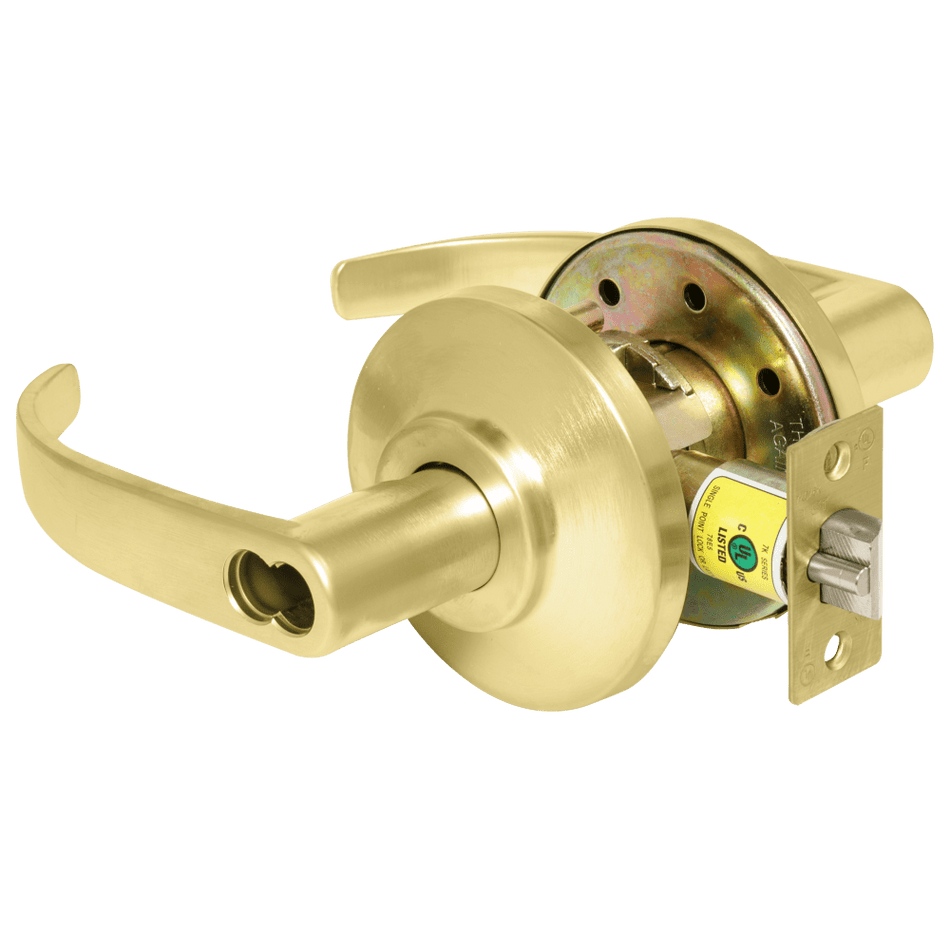

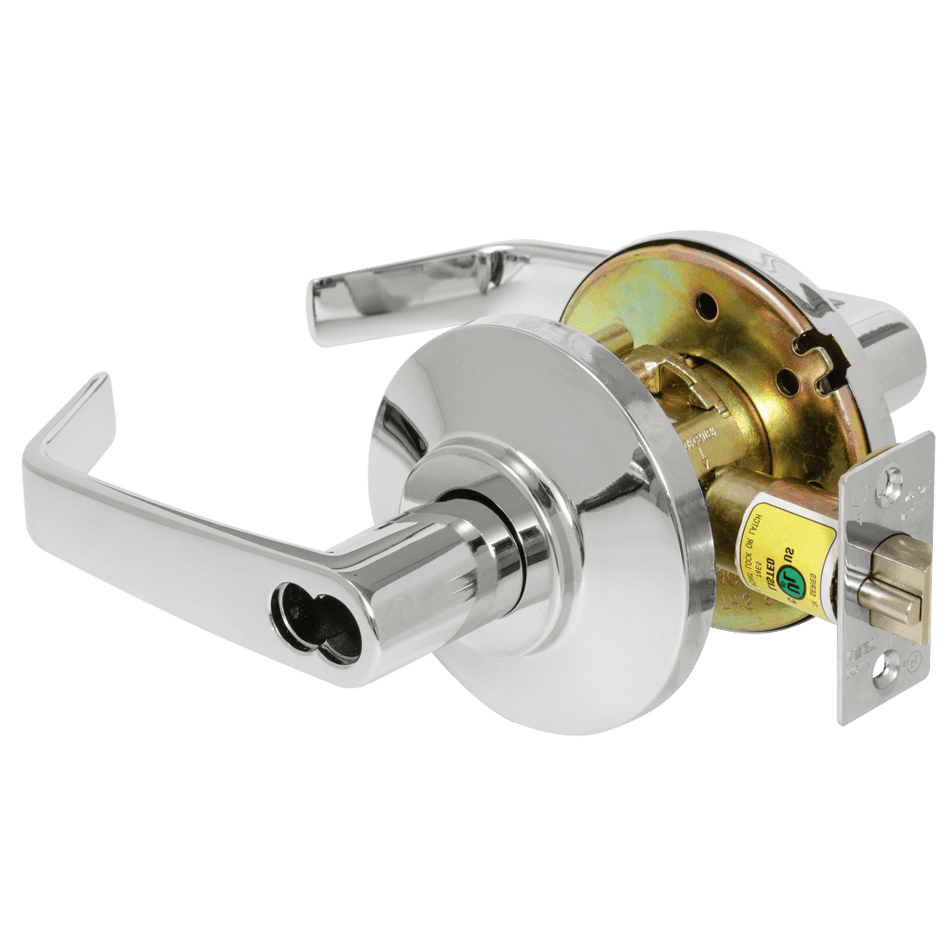

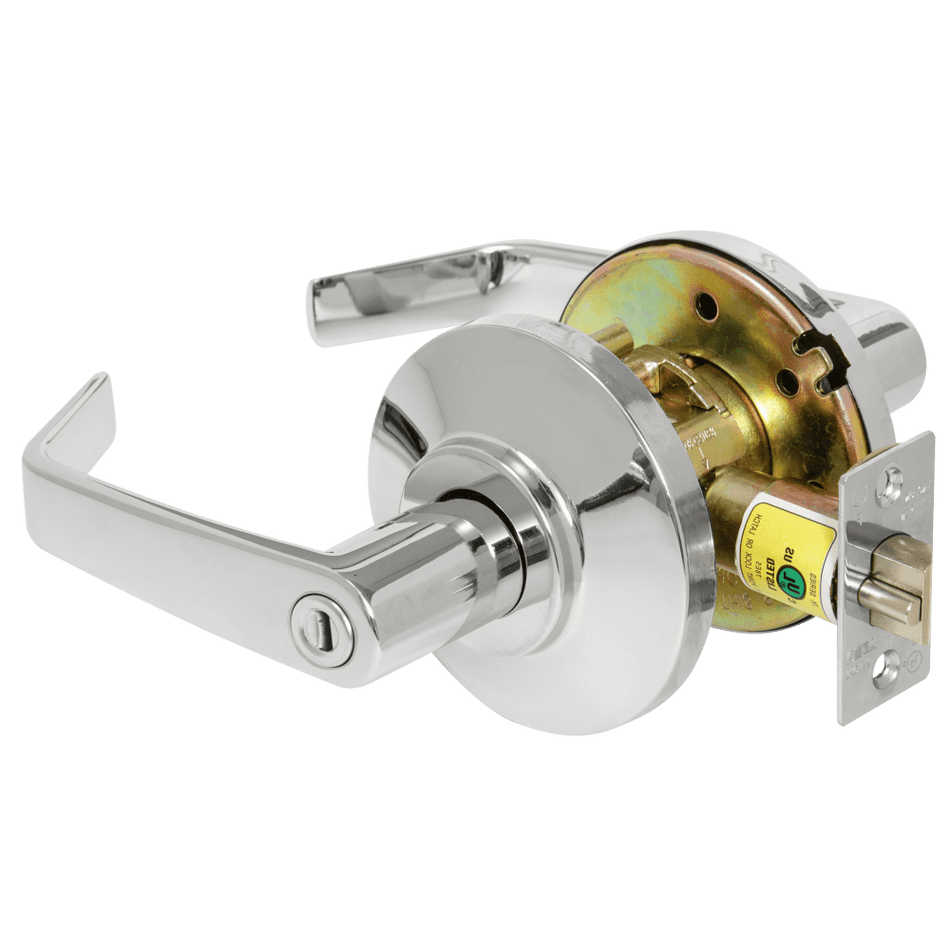

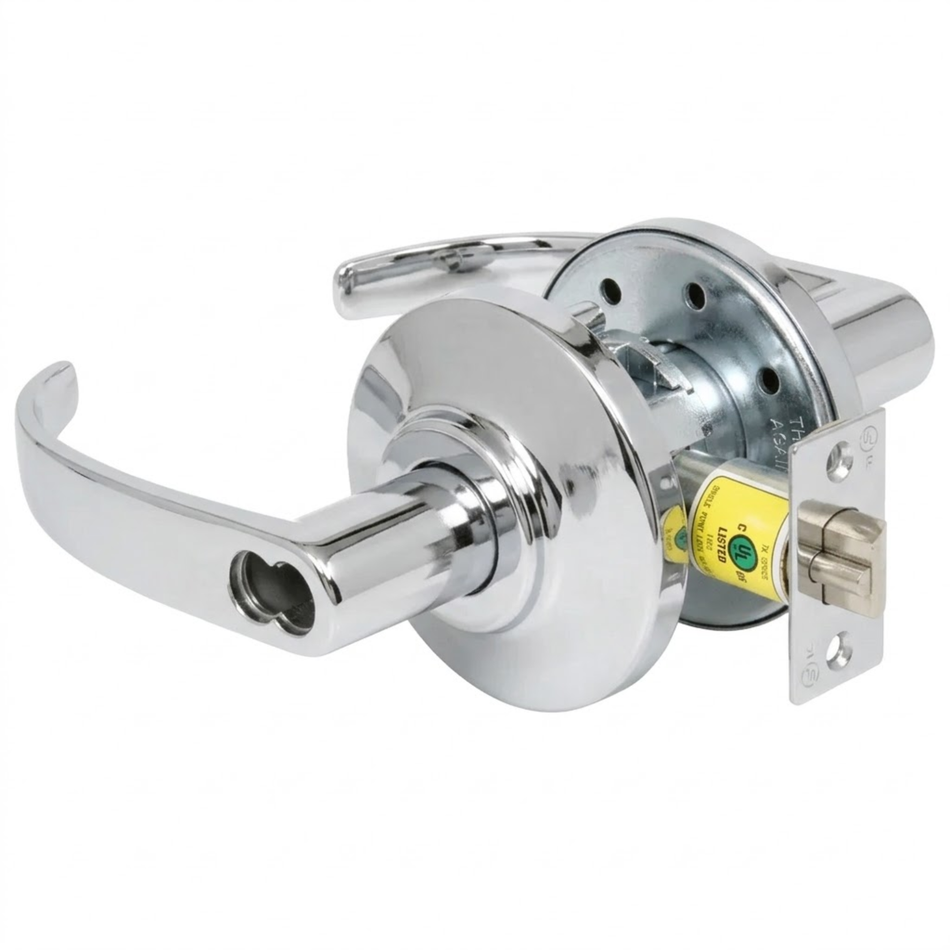

Best 7KC 37 D Storeroom Lock

Best 7KC 37 D Storeroom Lock

by Best
$ 225.00



Best 7KC 37 D Storeroom Lever Lock In Stock In Most Functions & Finishes



Best 7KC Catalog

The BEST 7KC Series, a Grade 2 cylindrical lever set, is a popular choice for commercial office spaces, college dorms and military bases. This medium-duty cylindrical lock fits a standard door prep. And because it’s comparable to the BEST 9K lever set, it’s been specified at times for heavy-duty residential applications.



Reliable Strength

The BEST 7KC series exceeds ANSI Grade 2 requirements. Design features like through-bolt mounting studs provide strength and increased torque resistance for reliable long-term performance.



Dependable Durability

We designed the 7KC lock series for long product life in standard traffic applications, including features like a robust hub and torsion springs for extra resistance to lever sag. All 7KC internal components are treated for corrosion resistance, which ensures a longer, more reliable performance life.



Secure Design

Security is built-in to the 7KC, with features like requiring core removal before keyed levers may be removed, a snap-on inside rose concealing mounting screws and no exposed keeper holes on keyed levers.



Easy Installation and Retrofit

Each 7KC lock is pre-assembled, and its cylindrical chassis fits common door preparation, making, installation quick and easy. Retrofit and rekeying are also simple, thanks to compatibility with conventional key-in-knob cylinders. BEST interchangeable cores allow for easy rekeying without removing the levers.



• Cylindrical chassis to fit common door preparation.
• Standard and Drive-in latches available.
• Through-bolt mounting studs increase torque resistance.
• Quick rekeying with BEST interchangeable core.
• No exposed keeper hole on keyed levers for
increased security.
• Hub torque spring provides extra resistance to lever sag.
• Snap-on inside rose (no exposed mounting screws).
• Keyed lever is removable only after removal of core.
• Internal steel mechanisms are corrosion treated for
normal atmospheric conditions.
• ADA–Americans With Disabilities Act: 7KC series – The design and operation
of the BEST® cylindrical lock meets the intent of the standard for ANSI A117.1
section 404.2.6 and Illinois Accessibility Standard 400.310 (j)(8).
• Lockset reversible for either hand of door without removing keyed lever.
• Underwriters Laboratories®: 7KC series – Listed by Underwriters Laboratories
for use on 3 Hr, A label for single (4’ x 8’) doors.
• Builders Hardware Manufacturers Association:
7KC series – Listed by BHMA for A156.2, Series 4000, Grade 2.
• ADA–Americans With Disabilities Act: 7KC series – The design and operation of the BEST®
cylindrical lock meets the intent of the standard for ANSI A117.1 section 404.2.6 and Illinois
• Accessibility Standard 400.310 (j)(8).
• California State Fire Marshal: 7KC - series 14 & 15 lever conforms with California Title 24.

7KC Series FAQs

7KC Series Catalog

7KC Sell Sheet

7KC Series Service Manual

Cylindrical Adaptations Catalog

EAD & DHW Warranty Statement



FAQ

Q: What is the BEST 7KC?
A: The BEST 7KC is a grade 2 cylindrical lever set that was introduced to the
commercial market in 2001. The BEST 7KC lever set is comparable to the BEST 9K
lever set, however is a Grade 2 lockset, opposed to the 9K Grade 1 rating.


Q: Why is it called 7KC opposed to 7K?
A: The current BEST grade 2 cylindrical lever set series is called 7KC. Prior to
launching the 7KC cylindrical lock set in 2001, BEST offered a 7K tubular lock set. The
7K was a completely different lock with different components, door prep guidelines,
etc. The 7K product is no longer available in the market. The “C” was added to the
new 7K cylindrical product offering to differentiate the old tubular 7K from the new
cylindrical 7KC.


Q: In what type of applications is the 7KC primarily used?
A: The 7KC is very popular in commercial offices spaces, college dorms, and military
bases. The 7KC has also been seen in heavy duty residential applications even though
it far exceeds residential requirements.


Q: Does the 7KC fit the standard door prep?
A: Yes, the 7KC fits the standard door prep (161). With the use of the ATB option, the
7KC will also fit the Schlage ND80 door prep.


Q: How long does it take to install the 7KC?
A: Once the door is prepped, installation is a simple 3-step process: Step 1: Install latch;
Step 2: Install preassembled chassis and outside lever; Step 3: Install inside trim and
lever. The entire installation process takes an average of 2 minutes. Since the 7KC
has only three individual parts, and our packaging is designed with the installer in
mind, installation for the 7KC product can be done quickly, efficiently and accurately
ultimately reducing install related errors and call-backs.


Q: What door thickness range can the 7KC accommodate?
A: The 7KC comes preset from the factory to fit 1 3/4" thick doors but can be field
adjusted to fit 1 3/8" – 2" thick doors.


Q: What back sets are available for the 7KC?
A: The 7KC can be ordered with a 2 3/8, 2 3/4", 3 9/4", or 5" back set dead locking
latch. The standard latch front is 1" in width; however, a 1 1/8" latch front is available
to order with the 2 3/4"back set. A drive-in latch is also available on 2 3/8” and 2
3/4"back sets.


Q: What differentiates the 7KC from other grade 2 cylindrical locks?
A: The 7KC is known for its durability and meets several grade 1 requirements. The
7KC is available in numerous functions and finishes whereas it is common to offer
just a few basic functions and finishes for grade 2 locks.


Q: What functions are offered for the 7KC?
A: The 7KC is available in 3 single key functions (i.e., entrance, storeroom &
classroom) and 4 keyless functions (i.e., passage, exit, privacy & single dummy trim).


Q: What finishes are offered for the 7KC?
A: The 7KC is available in 6 finishes: Standard (626), Satin (606, 612, 613), and Bright
(605, 625).


Q: What is the lead time for a 7KC?
A: The average lead time for a 7KC is less than 2 weeks.


Q: What warranty does the 7KC have?
A: The 7KC has a 3 year warranty.


Q: What is the standard core for the 7KC?
A: The standard core is the BEST SFIC (Small Format Interchangeable Core).


Q: Do you have 7KC levers to fit competitive core offerings?
A: Yes, we offer levers to fit the Schlage Non-IC (Non- Interchangeable Core).

Best 7KC 37 AB Entrance Lock

Best 7KC 37 AB Entrance Lock

by Best
$ 225.00



Best 7KC 37 AB Entrance Lever Lock In Stock In Most Functions & Finishes



Best 7KC Catalog

The BEST 7KC Series, a Grade 2 cylindrical lever set, is a popular choice for commercial office spaces, college dorms and military bases. This medium-duty cylindrical lock fits a standard door prep. And because it’s comparable to the BEST 9K lever set, it’s been specified at times for heavy-duty residential applications.



Reliable Strength

The BEST 7KC series exceeds ANSI Grade 2 requirements. Design features like through-bolt mounting studs provide strength and increased torque resistance for reliable long-term performance.



Dependable Durability

We designed the 7KC lock series for long product life in standard traffic applications, including features like a robust hub and torsion springs for extra resistance to lever sag. All 7KC internal components are treated for corrosion resistance, which ensures a longer, more reliable performance life.



Secure Design

Security is built-in to the 7KC, with features like requiring core removal before keyed levers may be removed, a snap-on inside rose concealing mounting screws and no exposed keeper holes on keyed levers.



Easy Installation and Retrofit

Each 7KC lock is pre-assembled, and its cylindrical chassis fits common door preparation, making, installation quick and easy. Retrofit and rekeying are also simple, thanks to compatibility with conventional key-in-knob cylinders. BEST interchangeable cores allow for easy rekeying without removing the levers.



• Cylindrical chassis to fit common door preparation.
• Standard and Drive-in latches available.
• Through-bolt mounting studs increase torque resistance.
• Quick rekeying with BEST interchangeable core.
• No exposed keeper hole on keyed levers for
increased security.
• Hub torque spring provides extra resistance to lever sag.
• Snap-on inside rose (no exposed mounting screws).
• Keyed lever is removable only after removal of core.
• Internal steel mechanisms are corrosion treated for
normal atmospheric conditions.
• ADA–Americans With Disabilities Act: 7KC series – The design and operation
of the BEST® cylindrical lock meets the intent of the standard for ANSI A117.1
section 404.2.6 and Illinois Accessibility Standard 400.310 (j)(8).
• Lockset reversible for either hand of door without removing keyed lever.
• Underwriters Laboratories®: 7KC series – Listed by Underwriters Laboratories
for use on 3 Hr, A label for single (4’ x 8’) doors.
• Builders Hardware Manufacturers Association:
7KC series – Listed by BHMA for A156.2, Series 4000, Grade 2.
• ADA–Americans With Disabilities Act: 7KC series – The design and operation of the BEST®
cylindrical lock meets the intent of the standard for ANSI A117.1 section 404.2.6 and Illinois
• Accessibility Standard 400.310 (j)(8).
• California State Fire Marshal: 7KC - series 14 & 15 lever conforms with California Title 24.

7KC Series FAQs

7KC Series Catalog

7KC Sell Sheet

7KC Series Service Manual

Cylindrical Adaptations Catalog

EAD & DHW Warranty Statement



FAQ

Q: What is the BEST 7KC?
A: The BEST 7KC is a grade 2 cylindrical lever set that was introduced to the
commercial market in 2001. The BEST 7KC lever set is comparable to the BEST 9K
lever set, however is a Grade 2 lockset, opposed to the 9K Grade 1 rating.


Q: Why is it called 7KC opposed to 7K?
A: The current BEST grade 2 cylindrical lever set series is called 7KC. Prior to
launching the 7KC cylindrical lock set in 2001, BEST offered a 7K tubular lock set. The
7K was a completely different lock with different components, door prep guidelines,
etc. The 7K product is no longer available in the market. The “C” was added to the
new 7K cylindrical product offering to differentiate the old tubular 7K from the new
cylindrical 7KC.


Q: In what type of applications is the 7KC primarily used?
A: The 7KC is very popular in commercial offices spaces, college dorms, and military
bases. The 7KC has also been seen in heavy duty residential applications even though
it far exceeds residential requirements.


Q: Does the 7KC fit the standard door prep?
A: Yes, the 7KC fits the standard door prep (161). With the use of the ATB option, the
7KC will also fit the Schlage ND80 door prep.


Q: How long does it take to install the 7KC?
A: Once the door is prepped, installation is a simple 3-step process: Step 1: Install latch;
Step 2: Install preassembled chassis and outside lever; Step 3: Install inside trim and
lever. The entire installation process takes an average of 2 minutes. Since the 7KC
has only three individual parts, and our packaging is designed with the installer in
mind, installation for the 7KC product can be done quickly, efficiently and accurately
ultimately reducing install related errors and call-backs.


Q: What door thickness range can the 7KC accommodate?
A: The 7KC comes preset from the factory to fit 1 3/4" thick doors but can be field
adjusted to fit 1 3/8" – 2" thick doors.


Q: What back sets are available for the 7KC?
A: The 7KC can be ordered with a 2 3/8, 2 3/4", 3 9/4", or 5" back set dead locking
latch. The standard latch front is 1" in width; however, a 1 1/8" latch front is available
to order with the 2 3/4"back set. A drive-in latch is also available on 2 3/8” and 2
3/4"back sets.


Q: What differentiates the 7KC from other grade 2 cylindrical locks?
A: The 7KC is known for its durability and meets several grade 1 requirements. The
7KC is available in numerous functions and finishes whereas it is common to offer
just a few basic functions and finishes for grade 2 locks.


Q: What functions are offered for the 7KC?
A: The 7KC is available in 3 single key functions (i.e., entrance, storeroom &
classroom) and 4 keyless functions (i.e., passage, exit, privacy & single dummy trim).


Q: What finishes are offered for the 7KC?
A: The 7KC is available in 6 finishes: Standard (626), Satin (606, 612, 613), and Bright
(605, 625).


Q: What is the lead time for a 7KC?
A: The average lead time for a 7KC is less than 2 weeks.


Q: What warranty does the 7KC have?
A: The 7KC has a 3 year warranty.


Q: What is the standard core for the 7KC?
A: The standard core is the BEST SFIC (Small Format Interchangeable Core).


Q: Do you have 7KC levers to fit competitive core offerings?
A: Yes, we offer levers to fit the Schlage Non-IC (Non- Interchangeable Core).

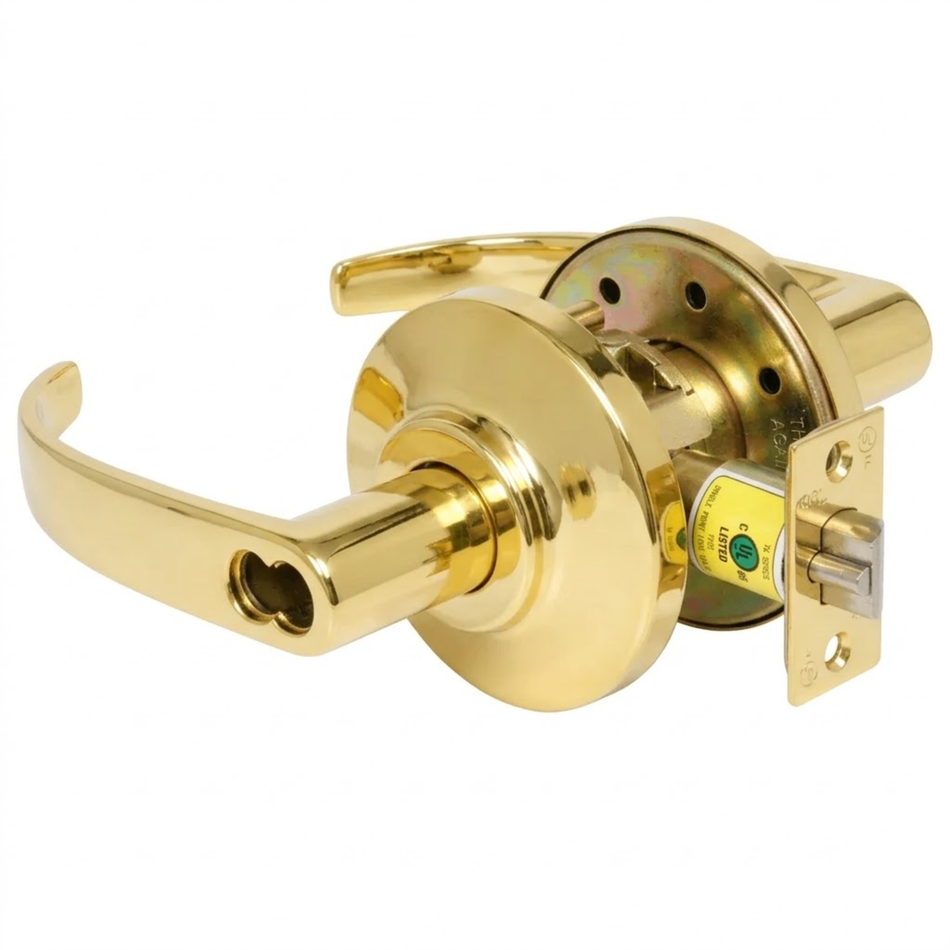

Best 7KC 37 R Classroom Lock

Best 7KC 37 R Classroom Lock

by Best
$ 225.00



Best 7KC 37 R Classroom Lever Lock In Stock In Most Functions & Finishes



Best 7KC Catalog

The BEST 7KC Series, a Grade 2 cylindrical lever set, is a popular choice for commercial office spaces, college dorms and military bases. This medium-duty cylindrical lock fits a standard door prep. And because it’s comparable to the BEST 9K lever set, it’s been specified at times for heavy-duty residential applications.



Reliable Strength

The BEST 7KC series exceeds ANSI Grade 2 requirements. Design features like through-bolt mounting studs provide strength and increased torque resistance for reliable long-term performance.



Dependable Durability

We designed the 7KC lock series for long product life in standard traffic applications, including features like a robust hub and torsion springs for extra resistance to lever sag. All 7KC internal components are treated for corrosion resistance, which ensures a longer, more reliable performance life.



Secure Design

Security is built-in to the 7KC, with features like requiring core removal before keyed levers may be removed, a snap-on inside rose concealing mounting screws and no exposed keeper holes on keyed levers.



Easy Installation and Retrofit

Each 7KC lock is pre-assembled, and its cylindrical chassis fits common door preparation, making, installation quick and easy. Retrofit and rekeying are also simple, thanks to compatibility with conventional key-in-knob cylinders. BEST interchangeable cores allow for easy rekeying without removing the levers.



• Cylindrical chassis to fit common door preparation.
• Standard and Drive-in latches available.
• Through-bolt mounting studs increase torque resistance.
• Quick rekeying with BEST interchangeable core.
• No exposed keeper hole on keyed levers for
increased security.
• Hub torque spring provides extra resistance to lever sag.
• Snap-on inside rose (no exposed mounting screws).
• Keyed lever is removable only after removal of core.
• Internal steel mechanisms are corrosion treated for
normal atmospheric conditions.
• ADA–Americans With Disabilities Act: 7KC series – The design and operation
of the BEST® cylindrical lock meets the intent of the standard for ANSI A117.1
section 404.2.6 and Illinois Accessibility Standard 400.310 (j)(8).
• Lockset reversible for either hand of door without removing keyed lever.
• Underwriters Laboratories®: 7KC series – Listed by Underwriters Laboratories
for use on 3 Hr, A label for single (4’ x 8’) doors.
• Builders Hardware Manufacturers Association:
7KC series – Listed by BHMA for A156.2, Series 4000, Grade 2.
• ADA–Americans With Disabilities Act: 7KC series – The design and operation of the BEST®
cylindrical lock meets the intent of the standard for ANSI A117.1 section 404.2.6 and Illinois
• Accessibility Standard 400.310 (j)(8).
• California State Fire Marshal: 7KC - series 14 & 15 lever conforms with California Title 24.

7KC Series FAQs

7KC Series Catalog

7KC Sell Sheet

7KC Series Service Manual

Cylindrical Adaptations Catalog

EAD & DHW Warranty Statement



FAQ

Q: What is the BEST 7KC?
A: The BEST 7KC is a grade 2 cylindrical lever set that was introduced to the
commercial market in 2001. The BEST 7KC lever set is comparable to the BEST 9K
lever set, however is a Grade 2 lockset, opposed to the 9K Grade 1 rating.


Q: Why is it called 7KC opposed to 7K?
A: The current BEST grade 2 cylindrical lever set series is called 7KC. Prior to
launching the 7KC cylindrical lock set in 2001, BEST offered a 7K tubular lock set. The
7K was a completely different lock with different components, door prep guidelines,
etc. The 7K product is no longer available in the market. The “C” was added to the
new 7K cylindrical product offering to differentiate the old tubular 7K from the new
cylindrical 7KC.


Q: In what type of applications is the 7KC primarily used?
A: The 7KC is very popular in commercial offices spaces, college dorms, and military
bases. The 7KC has also been seen in heavy duty residential applications even though
it far exceeds residential requirements.


Q: Does the 7KC fit the standard door prep?
A: Yes, the 7KC fits the standard door prep (161). With the use of the ATB option, the
7KC will also fit the Schlage ND80 door prep.


Q: How long does it take to install the 7KC?
A: Once the door is prepped, installation is a simple 3-step process: Step 1: Install latch;
Step 2: Install preassembled chassis and outside lever; Step 3: Install inside trim and
lever. The entire installation process takes an average of 2 minutes. Since the 7KC
has only three individual parts, and our packaging is designed with the installer in
mind, installation for the 7KC product can be done quickly, efficiently and accurately
ultimately reducing install related errors and call-backs.


Q: What door thickness range can the 7KC accommodate?
A: The 7KC comes preset from the factory to fit 1 3/4" thick doors but can be field
adjusted to fit 1 3/8" – 2" thick doors.


Q: What back sets are available for the 7KC?
A: The 7KC can be ordered with a 2 3/8, 2 3/4", 3 9/4", or 5" back set dead locking
latch. The standard latch front is 1" in width; however, a 1 1/8" latch front is available
to order with the 2 3/4"back set. A drive-in latch is also available on 2 3/8” and 2
3/4"back sets.


Q: What differentiates the 7KC from other grade 2 cylindrical locks?
A: The 7KC is known for its durability and meets several grade 1 requirements. The
7KC is available in numerous functions and finishes whereas it is common to offer
just a few basic functions and finishes for grade 2 locks.


Q: What functions are offered for the 7KC?
A: The 7KC is available in 3 single key functions (i.e., entrance, storeroom &
classroom) and 4 keyless functions (i.e., passage, exit, privacy & single dummy trim).


Q: What finishes are offered for the 7KC?
A: The 7KC is available in 6 finishes: Standard (626), Satin (606, 612, 613), and Bright
(605, 625).


Q: What is the lead time for a 7KC?
A: The average lead time for a 7KC is less than 2 weeks.


Q: What warranty does the 7KC have?
A: The 7KC has a 3 year warranty.


Q: What is the standard core for the 7KC?
A: The standard core is the BEST SFIC (Small Format Interchangeable Core).


Q: Do you have 7KC levers to fit competitive core offerings?
A: Yes, we offer levers to fit the Schlage Non-IC (Non- Interchangeable Core).

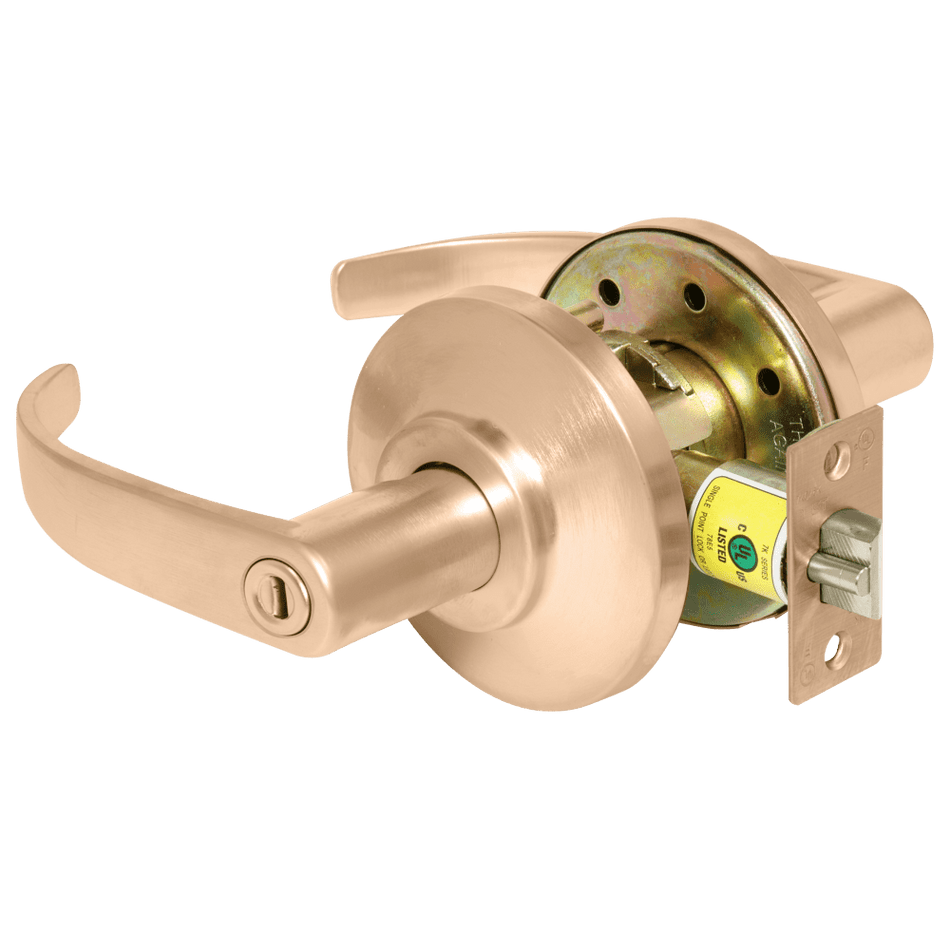

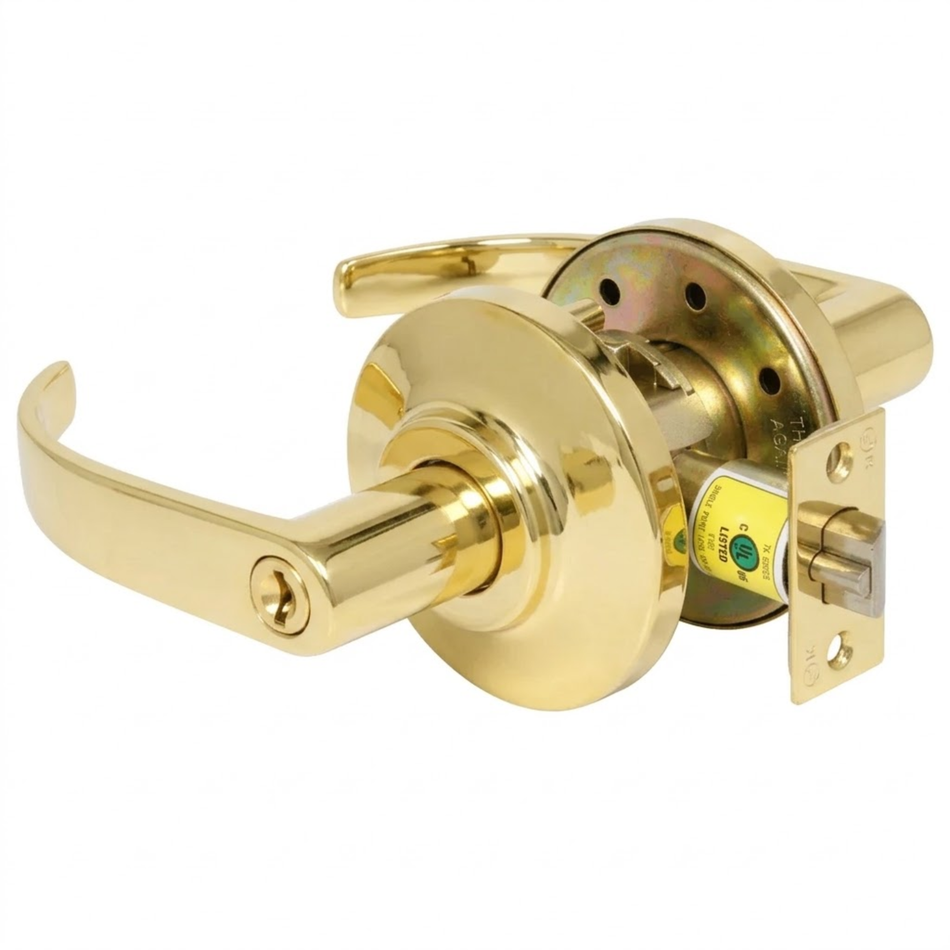

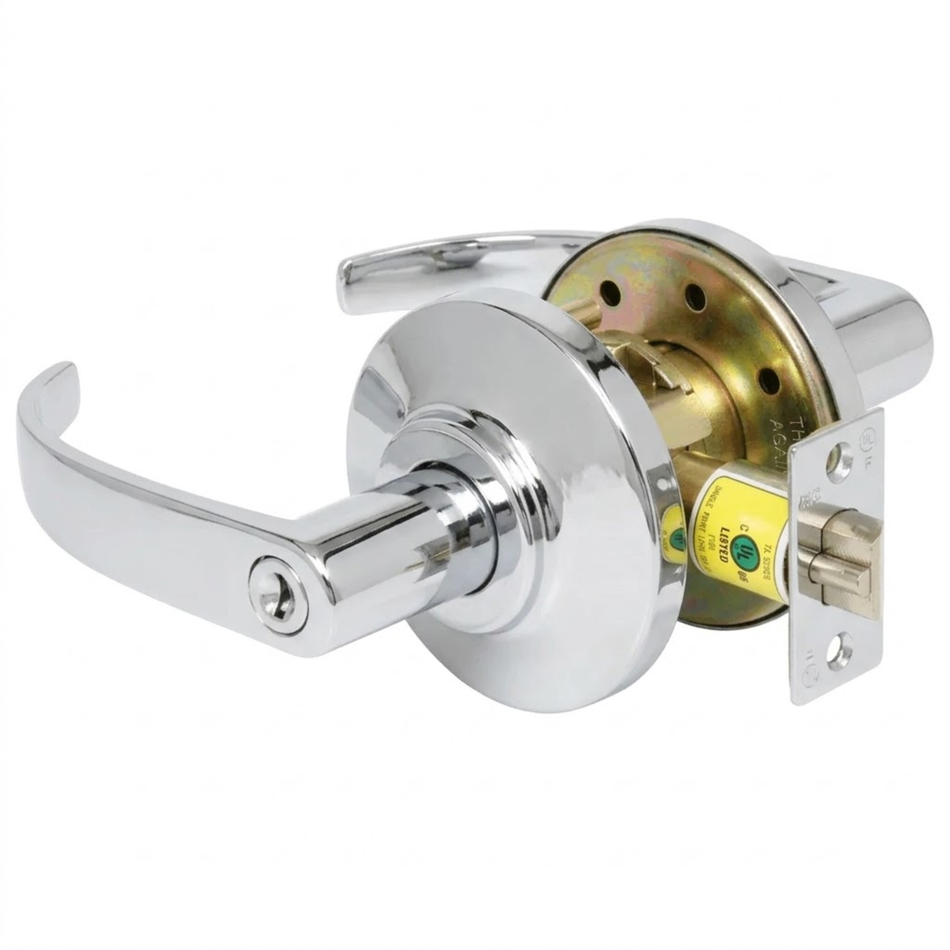

Best 7KC 30 L Privacy Lock

Best 7KC 30 L Privacy Lock

by Best
$ 182.00



Best 7KC 30 L Privacy Lever Lock In Stock In Most Functions & Finishes



Best 7KC Catalog

The BEST 7KC Series, a Grade 2 cylindrical lever set, is a popular choice for commercial office spaces, college dorms and military bases. This medium-duty cylindrical lock fits a standard door prep. And because it’s comparable to the BEST 9K lever set, it’s been specified at times for heavy-duty residential applications.



Reliable Strength

The BEST 7KC series exceeds ANSI Grade 2 requirements. Design features like through-bolt mounting studs provide strength and increased torque resistance for reliable long-term performance.



Dependable Durability

We designed the 7KC lock series for long product life in standard traffic applications, including features like a robust hub and torsion springs for extra resistance to lever sag. All 7KC internal components are treated for corrosion resistance, which ensures a longer, more reliable performance life.



Secure Design

Security is built-in to the 7KC, with features like requiring core removal before keyed levers may be removed, a snap-on inside rose concealing mounting screws and no exposed keeper holes on keyed levers.



Easy Installation and Retrofit

Each 7KC lock is pre-assembled, and its cylindrical chassis fits common door preparation, making, installation quick and easy. Retrofit and rekeying are also simple, thanks to compatibility with conventional key-in-knob cylinders. BEST interchangeable cores allow for easy rekeying without removing the levers.



• Cylindrical chassis to fit common door preparation.
• Standard and Drive-in latches available.
• Through-bolt mounting studs increase torque resistance.
• Quick rekeying with BEST interchangeable core.
• No exposed keeper hole on keyed levers for
increased security.
• Hub torque spring provides extra resistance to lever sag.
• Snap-on inside rose (no exposed mounting screws).
• Keyed lever is removable only after removal of core.
• Internal steel mechanisms are corrosion treated for
normal atmospheric conditions.
• ADA–Americans With Disabilities Act: 7KC series – The design and operation
of the BEST® cylindrical lock meets the intent of the standard for ANSI A117.1
section 404.2.6 and Illinois Accessibility Standard 400.310 (j)(8).
• Lockset reversible for either hand of door without removing keyed lever.
• Underwriters Laboratories®: 7KC series – Listed by Underwriters Laboratories
for use on 3 Hr, A label for single (4’ x 8’) doors.
• Builders Hardware Manufacturers Association:
7KC series – Listed by BHMA for A156.2, Series 4000, Grade 2.
• ADA–Americans With Disabilities Act: 7KC series – The design and operation of the BEST®
cylindrical lock meets the intent of the standard for ANSI A117.1 section 404.2.6 and Illinois
• Accessibility Standard 400.310 (j)(8).
• California State Fire Marshal: 7KC - series 14 & 15 lever conforms with California Title 24.

7KC Series FAQs

7KC Series Catalog

7KC Sell Sheet

7KC Series Service Manual

Cylindrical Adaptations Catalog

EAD & DHW Warranty Statement



FAQ

Q: What is the BEST 7KC?
A: The BEST 7KC is a grade 2 cylindrical lever set that was introduced to the
commercial market in 2001. The BEST 7KC lever set is comparable to the BEST 9K
lever set, however is a Grade 2 lockset, opposed to the 9K Grade 1 rating.


Q: Why is it called 7KC opposed to 7K?
A: The current BEST grade 2 cylindrical lever set series is called 7KC. Prior to
launching the 7KC cylindrical lock set in 2001, BEST offered a 7K tubular lock set. The
7K was a completely different lock with different components, door prep guidelines,
etc. The 7K product is no longer available in the market. The “C” was added to the
new 7K cylindrical product offering to differentiate the old tubular 7K from the new
cylindrical 7KC.


Q: In what type of applications is the 7KC primarily used?
A: The 7KC is very popular in commercial offices spaces, college dorms, and military
bases. The 7KC has also been seen in heavy duty residential applications even though
it far exceeds residential requirements.


Q: Does the 7KC fit the standard door prep?
A: Yes, the 7KC fits the standard door prep (161). With the use of the ATB option, the
7KC will also fit the Schlage ND80 door prep.


Q: How long does it take to install the 7KC?
A: Once the door is prepped, installation is a simple 3-step process: Step 1: Install latch;
Step 2: Install preassembled chassis and outside lever; Step 3: Install inside trim and
lever. The entire installation process takes an average of 2 minutes. Since the 7KC
has only three individual parts, and our packaging is designed with the installer in
mind, installation for the 7KC product can be done quickly, efficiently and accurately
ultimately reducing install related errors and call-backs.


Q: What door thickness range can the 7KC accommodate?
A: The 7KC comes preset from the factory to fit 1 3/4" thick doors but can be field
adjusted to fit 1 3/8" – 2" thick doors.


Q: What back sets are available for the 7KC?
A: The 7KC can be ordered with a 2 3/8, 2 3/4", 3 9/4", or 5" back set dead locking
latch. The standard latch front is 1" in width; however, a 1 1/8" latch front is available
to order with the 2 3/4"back set. A drive-in latch is also available on 2 3/8” and 2
3/4"back sets.


Q: What differentiates the 7KC from other grade 2 cylindrical locks?
A: The 7KC is known for its durability and meets several grade 1 requirements. The
7KC is available in numerous functions and finishes whereas it is common to offer
just a few basic functions and finishes for grade 2 locks.


Q: What functions are offered for the 7KC?
A: The 7KC is available in 3 single key functions (i.e., entrance, storeroom &
classroom) and 4 keyless functions (i.e., passage, exit, privacy & single dummy trim).


Q: What finishes are offered for the 7KC?
A: The 7KC is available in 6 finishes: Standard (626), Satin (606, 612, 613), and Bright
(605, 625).


Q: What is the lead time for a 7KC?
A: The average lead time for a 7KC is less than 2 weeks.


Q: What warranty does the 7KC have?
A: The 7KC has a 3 year warranty.


Q: What is the standard core for the 7KC?
A: The standard core is the BEST SFIC (Small Format Interchangeable Core).


Q: Do you have 7KC levers to fit competitive core offerings?
A: Yes, we offer levers to fit the Schlage Non-IC (Non- Interchangeable Core).

Best 7KC 30 N Passage Lock

Best 7KC 30 N Passage Lock

by Best
$ 166.00



Best 7KC 30 N Passage Lever Lock In Stock In Most Functions & Finishes



Best 7KC Catalog

The BEST 7KC Series, a Grade 2 cylindrical lever set, is a popular choice for commercial office spaces, college dorms and military bases. This medium-duty cylindrical lock fits a standard door prep. And because it’s comparable to the BEST 9K lever set, it’s been specified at times for heavy-duty residential applications.



Reliable Strength

The BEST 7KC series exceeds ANSI Grade 2 requirements. Design features like through-bolt mounting studs provide strength and increased torque resistance for reliable long-term performance.



Dependable Durability

We designed the 7KC lock series for long product life in standard traffic applications, including features like a robust hub and torsion springs for extra resistance to lever sag. All 7KC internal components are treated for corrosion resistance, which ensures a longer, more reliable performance life.



Secure Design

Security is built-in to the 7KC, with features like requiring core removal before keyed levers may be removed, a snap-on inside rose concealing mounting screws and no exposed keeper holes on keyed levers.



Easy Installation and Retrofit

Each 7KC lock is pre-assembled, and its cylindrical chassis fits common door preparation, making, installation quick and easy. Retrofit and rekeying are also simple, thanks to compatibility with conventional key-in-knob cylinders. BEST interchangeable cores allow for easy rekeying without removing the levers.



• Cylindrical chassis to fit common door preparation.
• Standard and Drive-in latches available.
• Through-bolt mounting studs increase torque resistance.
• Quick rekeying with BEST interchangeable core.
• No exposed keeper hole on keyed levers for
increased security.
• Hub torque spring provides extra resistance to lever sag.
• Snap-on inside rose (no exposed mounting screws).
• Keyed lever is removable only after removal of core.
• Internal steel mechanisms are corrosion treated for
normal atmospheric conditions.
• ADA–Americans With Disabilities Act: 7KC series – The design and operation
of the BEST® cylindrical lock meets the intent of the standard for ANSI A117.1
section 404.2.6 and Illinois Accessibility Standard 400.310 (j)(8).
• Lockset reversible for either hand of door without removing keyed lever.
• Underwriters Laboratories®: 7KC series – Listed by Underwriters Laboratories
for use on 3 Hr, A label for single (4’ x 8’) doors.
• Builders Hardware Manufacturers Association:
7KC series – Listed by BHMA for A156.2, Series 4000, Grade 2.
• ADA–Americans With Disabilities Act: 7KC series – The design and operation of the BEST®
cylindrical lock meets the intent of the standard for ANSI A117.1 section 404.2.6 and Illinois
• Accessibility Standard 400.310 (j)(8).
• California State Fire Marshal: 7KC - series 14 & 15 lever conforms with California Title 24.

7KC Series FAQs

7KC Series Catalog

7KC Sell Sheet

7KC Series Service Manual

Cylindrical Adaptations Catalog

EAD & DHW Warranty Statement



FAQ

Q: What is the BEST 7KC?
A: The BEST 7KC is a grade 2 cylindrical lever set that was introduced to the
commercial market in 2001. The BEST 7KC lever set is comparable to the BEST 9K
lever set, however is a Grade 2 lockset, opposed to the 9K Grade 1 rating.


Q: Why is it called 7KC opposed to 7K?
A: The current BEST grade 2 cylindrical lever set series is called 7KC. Prior to
launching the 7KC cylindrical lock set in 2001, BEST offered a 7K tubular lock set. The
7K was a completely different lock with different components, door prep guidelines,
etc. The 7K product is no longer available in the market. The “C” was added to the
new 7K cylindrical product offering to differentiate the old tubular 7K from the new
cylindrical 7KC.


Q: In what type of applications is the 7KC primarily used?
A: The 7KC is very popular in commercial offices spaces, college dorms, and military
bases. The 7KC has also been seen in heavy duty residential applications even though
it far exceeds residential requirements.


Q: Does the 7KC fit the standard door prep?
A: Yes, the 7KC fits the standard door prep (161). With the use of the ATB option, the
7KC will also fit the Schlage ND80 door prep.


Q: How long does it take to install the 7KC?
A: Once the door is prepped, installation is a simple 3-step process: Step 1: Install latch;
Step 2: Install preassembled chassis and outside lever; Step 3: Install inside trim and
lever. The entire installation process takes an average of 2 minutes. Since the 7KC
has only three individual parts, and our packaging is designed with the installer in
mind, installation for the 7KC product can be done quickly, efficiently and accurately
ultimately reducing install related errors and call-backs.


Q: What door thickness range can the 7KC accommodate?
A: The 7KC comes preset from the factory to fit 1 3/4" thick doors but can be field
adjusted to fit 1 3/8" – 2" thick doors.


Q: What back sets are available for the 7KC?
A: The 7KC can be ordered with a 2 3/8, 2 3/4", 3 9/4", or 5" back set dead locking
latch. The standard latch front is 1" in width; however, a 1 1/8" latch front is available
to order with the 2 3/4"back set. A drive-in latch is also available on 2 3/8” and 2
3/4"back sets.


Q: What differentiates the 7KC from other grade 2 cylindrical locks?
A: The 7KC is known for its durability and meets several grade 1 requirements. The
7KC is available in numerous functions and finishes whereas it is common to offer
just a few basic functions and finishes for grade 2 locks.


Q: What functions are offered for the 7KC?
A: The 7KC is available in 3 single key functions (i.e., entrance, storeroom &
classroom) and 4 keyless functions (i.e., passage, exit, privacy & single dummy trim).


Q: What finishes are offered for the 7KC?
A: The 7KC is available in 6 finishes: Standard (626), Satin (606, 612, 613), and Bright
(605, 625).


Q: What is the lead time for a 7KC?
A: The average lead time for a 7KC is less than 2 weeks.


Q: What warranty does the 7KC have?
A: The 7KC has a 3 year warranty.


Q: What is the standard core for the 7KC?
A: The standard core is the BEST SFIC (Small Format Interchangeable Core).


Q: Do you have 7KC levers to fit competitive core offerings?
A: Yes, we offer levers to fit the Schlage Non-IC (Non- Interchangeable Core).

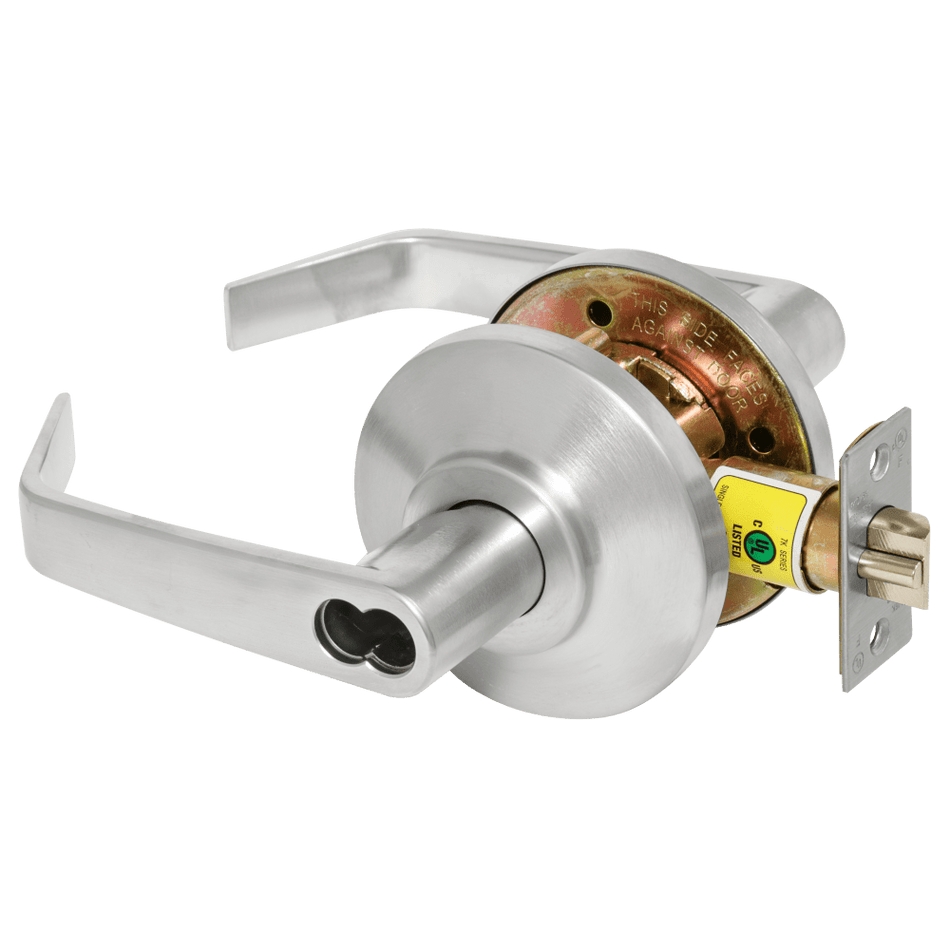

Best 9K 37 R Classroom Lock

Best 9K 37 R Classroom Lock

by Best
$ 471.00

 Best 9K 37 R Classroom Lever Locks Are In Stock In Most Functions & Styles.

9K Catalog

Quick installation, proven reliability and enhanced safety all make the 9K the grade 1 cylindrical lock of choice for many. But its wide compatibility with most large format interchangeable cores, regardless of brand, make it a legend. Whether you want to upgrade old hardware or fit out a new facility, the 9K is a great match.



Hardened Steel Through-Bolt Studs

Maximum lever torque resistance that stands up to the hardiest hands.



Proven Reliability

Tested to exceed 20 times the BHMA Grade 1 criteria witnessed by UL. Independently tested to 50 times BHMA Grade 1 criteria.



Quick and Easy Installation

Pre-assembled heavy-duty chassis for easy installation right out of the box.



Intruder Deterrence

Secure classroom doors quickly from the inside during an emergency.



Cast Construction Lock Hub

Solid lock foundation protects against abuse and everyday wear.



Low-Profile Rose Design

Elegant, consistent, ADA-compliant lever operation in a variety of settings.



Easily Adaptable

Works with most existing non-interchangeable and large format interchangeable cores. No redrilling or rekeying needed.



Durability

The BEST 9k has exceeded 50 million cycles and counting, ensuring the premium performance and strength you need.



9K Series Sell Sheet

9K Series Intruder Function Sell Sheet

9K Series FAQs

9K Series Catalog

9K Cylindrical Adaptations Sell Sheet

9K Series Service Manual

Cylindrical Adaptations Catalog

Antimicrobial Protected Door Hardware Brochure

Agion® Antimicrobial Finish for Healthier Door Hardware

9K Cylindrical Green Circle Certificate

Electrified 9K Green Circle Certificate

EAD & DHW Warranty Statement



FAQ



Q: What is the 9K and when was it introduced?
A: Initially designed from the BEST 8K knob-set platform, the 9K paved the
way for an Americans with Disabilities Act – ADA compliant cylindrical lock
portfolio.
Utilizing extensive customer feedback, the lock assembly was redesigned
and subsequently launched as the 9K Varsity Series in 1994. Eventually we
dropped the Varsity name from the 9K nomenclature. However, the new
redesigned 9K Series incorporates the following industry leading features:
• Pre-assembled heavy duty chassis – Quick & easy installation
• Hardened steel thru-bolt studs – Maximum lever torque resistance
• Low profile rose design – ADA friendly lever operation
• Cast construction lock hub – solid lock foundation

Q: What are thru-bolt studs?
A: Studs that pass through the door outside the 2 1/8" diameter hole that
provide added strength to the lock. Please refer to the image on page 1.

Q: What is a chassis?
A: The primary housing (body of the lock) that everything operates off
of that sits inside the 2 1/8" diameter hole in the door. Please refer to the
image on page 1.

Q: What kind of chassis does the 9K have?
A: The 9K chassis has two solid cast hubs for added strength and a single
piece lever sleeve. This single piece lever sleeve is more durable and
reduces installation time.

Q: What is a sleeve (aka spindle)?
A: The sleeve/spindle is the supporting structure for the lever handles
that sits inside the hub. The 9K incorporates a longer sleeve for added
functional support. Please refer to the image on page 1.

Q: How long does it take to install the 9K?
A: Once the door is prepped, it is a three step process (Step 1: Install latch
Step 2: Install preassembled chassis & outside lever Step 3: Install inside
lever). That process takes an average of two minutes. Since we only have
3 parts and our packaging is designed with the installer in mind, installation
can be done quickly, efficiently, and accurately.

Q: What door thickness range can the 9K accommodate?
A: The 9K comes preset from the factory to fit 1 3/4" thick doors. Using the
machined grooves in the thru-bolt studs as a guide, the lock assembly can
be field adjusted to accommodate doors up to 2 1/4" thick.

Q: What enables the 9K to withstand high lever torque?
A: The outside lever sleeve and the tabs on the latch are made from a
high quality steel alloy that has been heat treated to strict specifications
enabling it to withstand excessive lever torque. These components provide
an integral part of strength to the 9K.

Q: What is different about the aesthetics of the 9K?
A: The 9K has a low profile, slim rose design that is preferred by our
customers. The 9K houses the springs in the chassis instead of the rose
making the springs more reliable and less susceptible to breakage. In
addition, our slimmer rose allows for more space to grasp the lever which
is in line with ADA requirements.

Q: Does the 9K make a lot of noise when in use?
A: Since our high quality springs are housed within the chassis as opposed
to within the rose, the 9K is a much quieter product.

Q: Is the 9K susceptible to lever droop?
A: The quality of the springs in addition to a recent retooling of the levers,
hubs, chassis, and sleeves has reduced common lever droop issues
to minimal, best in class levels. We have increased monitoring during
manufacturing to maintain top factory standards.

Q: Does the 9K come with a core?
A: The 9K comes less core (LC) standard from the factory.

Q: What is the standard core for the 9K?
A: The standard core is the BEST SFIC (Small Format Interchangeable
Core).

Q: Do you have 9K levers to fit competitive core offerings?
A: Yes, we offer levers to fit the Schlage LFIC (Large Format
Interchangeable Core) as well as the following Non-IC (NonInterchangeable Core): Medeco, Yale, Sargent and Corbin Russwin.

Q: What is the difference between interchangeable cores (IC)
and non-interchangeable cores (Non-IC)?
A: Interchangeable cores can be installed and removed from the outside
through the use of a control key. Noninterchangeable cores must be
installed and removed by first taking the lever off. Interchangeable cores
have a figure 8 design whereas non-interchangeable cores have a single
hole design.

Q: Can you change from a Non-IC lock to an IC lock or vice versa?
A: No. The chassis’s are built completely different from one to the other.
The lever won’t stay on if you try to switch them. You must first understand
if the customer needs or wants an IC or a Non-IC system.
Best 9K 37 D Storeroom Lock

Best 9K 37 D Storeroom Lock

by Best
$ 471.00

 Best 9K 37 D Storeroom Lever Locks Are In Stock In Most Functions & Styles.

9K Catalog

Quick installation, proven reliability and enhanced safety all make the 9K the grade 1 cylindrical lock of choice for many. But its wide compatibility with most large format interchangeable cores, regardless of brand, make it a legend. Whether you want to upgrade old hardware or fit out a new facility, the 9K is a great match.



Hardened Steel Through-Bolt Studs

Maximum lever torque resistance that stands up to the hardiest hands.



Proven Reliability

Tested to exceed 20 times the BHMA Grade 1 criteria witnessed by UL. Independently tested to 50 times BHMA Grade 1 criteria.



Quick and Easy Installation

Pre-assembled heavy-duty chassis for easy installation right out of the box.



Intruder Deterrence

Secure classroom doors quickly from the inside during an emergency.



Cast Construction Lock Hub

Solid lock foundation protects against abuse and everyday wear.



Low-Profile Rose Design

Elegant, consistent, ADA-compliant lever operation in a variety of settings.



Easily Adaptable

Works with most existing non-interchangeable and large format interchangeable cores. No redrilling or rekeying needed.



Durability

The BEST 9k has exceeded 50 million cycles and counting, ensuring the premium performance and strength you need.



9K Series Sell Sheet

9K Series Intruder Function Sell Sheet

9K Series FAQs

9K Series Catalog

9K Cylindrical Adaptations Sell Sheet

9K Series Service Manual

Cylindrical Adaptations Catalog

Antimicrobial Protected Door Hardware Brochure

Agion® Antimicrobial Finish for Healthier Door Hardware

9K Cylindrical Green Circle Certificate

Electrified 9K Green Circle Certificate

EAD & DHW Warranty Statement



FAQ



Q: What is the 9K and when was it introduced?
A: Initially designed from the BEST 8K knob-set platform, the 9K paved the
way for an Americans with Disabilities Act – ADA compliant cylindrical lock
portfolio.
Utilizing extensive customer feedback, the lock assembly was redesigned
and subsequently launched as the 9K Varsity Series in 1994. Eventually we
dropped the Varsity name from the 9K nomenclature. However, the new
redesigned 9K Series incorporates the following industry leading features:
• Pre-assembled heavy duty chassis – Quick & easy installation
• Hardened steel thru-bolt studs – Maximum lever torque resistance
• Low profile rose design – ADA friendly lever operation
• Cast construction lock hub – solid lock foundation

Q: What are thru-bolt studs?
A: Studs that pass through the door outside the 2 1/8" diameter hole that
provide added strength to the lock. Please refer to the image on page 1.

Q: What is a chassis?
A: The primary housing (body of the lock) that everything operates off
of that sits inside the 2 1/8" diameter hole in the door. Please refer to the
image on page 1.

Q: What kind of chassis does the 9K have?
A: The 9K chassis has two solid cast hubs for added strength and a single
piece lever sleeve. This single piece lever sleeve is more durable and
reduces installation time.

Q: What is a sleeve (aka spindle)?
A: The sleeve/spindle is the supporting structure for the lever handles
that sits inside the hub. The 9K incorporates a longer sleeve for added
functional support. Please refer to the image on page 1.

Q: How long does it take to install the 9K?
A: Once the door is prepped, it is a three step process (Step 1: Install latch
Step 2: Install preassembled chassis & outside lever Step 3: Install inside
lever). That process takes an average of two minutes. Since we only have
3 parts and our packaging is designed with the installer in mind, installation
can be done quickly, efficiently, and accurately.

Q: What door thickness range can the 9K accommodate?
A: The 9K comes preset from the factory to fit 1 3/4" thick doors. Using the
machined grooves in the thru-bolt studs as a guide, the lock assembly can
be field adjusted to accommodate doors up to 2 1/4" thick.

Q: What enables the 9K to withstand high lever torque?
A: The outside lever sleeve and the tabs on the latch are made from a
high quality steel alloy that has been heat treated to strict specifications
enabling it to withstand excessive lever torque. These components provide
an integral part of strength to the 9K.

Q: What is different about the aesthetics of the 9K?
A: The 9K has a low profile, slim rose design that is preferred by our
customers. The 9K houses the springs in the chassis instead of the rose
making the springs more reliable and less susceptible to breakage. In
addition, our slimmer rose allows for more space to grasp the lever which
is in line with ADA requirements.

Q: Does the 9K make a lot of noise when in use?
A: Since our high quality springs are housed within the chassis as opposed
to within the rose, the 9K is a much quieter product.

Q: Is the 9K susceptible to lever droop?
A: The quality of the springs in addition to a recent retooling of the levers,
hubs, chassis, and sleeves has reduced common lever droop issues
to minimal, best in class levels. We have increased monitoring during
manufacturing to maintain top factory standards.

Q: Does the 9K come with a core?
A: The 9K comes less core (LC) standard from the factory.

Q: What is the standard core for the 9K?
A: The standard core is the BEST SFIC (Small Format Interchangeable
Core).

Q: Do you have 9K levers to fit competitive core offerings?
A: Yes, we offer levers to fit the Schlage LFIC (Large Format
Interchangeable Core) as well as the following Non-IC (NonInterchangeable Core): Medeco, Yale, Sargent and Corbin Russwin.

Q: What is the difference between interchangeable cores (IC)
and non-interchangeable cores (Non-IC)?
A: Interchangeable cores can be installed and removed from the outside
through the use of a control key. Noninterchangeable cores must be
installed and removed by first taking the lever off. Interchangeable cores
have a figure 8 design whereas non-interchangeable cores have a single
hole design.

Q: Can you change from a Non-IC lock to an IC lock or vice versa?
A: No. The chassis’s are built completely different from one to the other.
The lever won’t stay on if you try to switch them. You must first understand
if the customer needs or wants an IC or a Non-IC system.
Best 9K 37 AB Entrance Lock

Best 9K 37 AB Entrance Lock

by Best
$ 471.00

 Best 9K 37 AB Entrance Lever Locks Are In Stock In Most Functions & Styles.

9K Catalog

Quick installation, proven reliability and enhanced safety all make the 9K the grade 1 cylindrical lock of choice for many. But its wide compatibility with most large format interchangeable cores, regardless of brand, make it a legend. Whether you want to upgrade old hardware or fit out a new facility, the 9K is a great match.



Hardened Steel Through-Bolt Studs

Maximum lever torque resistance that stands up to the hardiest hands.



Proven Reliability

Tested to exceed 20 times the BHMA Grade 1 criteria witnessed by UL. Independently tested to 50 times BHMA Grade 1 criteria.



Quick and Easy Installation

Pre-assembled heavy-duty chassis for easy installation right out of the box.



Intruder Deterrence

Secure classroom doors quickly from the inside during an emergency.



Cast Construction Lock Hub

Solid lock foundation protects against abuse and everyday wear.



Low-Profile Rose Design

Elegant, consistent, ADA-compliant lever operation in a variety of settings.



Easily Adaptable

Works with most existing non-interchangeable and large format interchangeable cores. No redrilling or rekeying needed.



Durability

The BEST 9k has exceeded 50 million cycles and counting, ensuring the premium performance and strength you need.



9K Series Sell Sheet

9K Series Intruder Function Sell Sheet

9K Series FAQs

9K Series Catalog

9K Cylindrical Adaptations Sell Sheet

9K Series Service Manual

Cylindrical Adaptations Catalog

Antimicrobial Protected Door Hardware Brochure

Agion® Antimicrobial Finish for Healthier Door Hardware

9K Cylindrical Green Circle Certificate

Electrified 9K Green Circle Certificate

EAD & DHW Warranty Statement



FAQ



Q: What is the 9K and when was it introduced?
A: Initially designed from the BEST 8K knob-set platform, the 9K paved the
way for an Americans with Disabilities Act – ADA compliant cylindrical lock
portfolio.
Utilizing extensive customer feedback, the lock assembly was redesigned
and subsequently launched as the 9K Varsity Series in 1994. Eventually we
dropped the Varsity name from the 9K nomenclature. However, the new
redesigned 9K Series incorporates the following industry leading features:
• Pre-assembled heavy duty chassis – Quick & easy installation
• Hardened steel thru-bolt studs – Maximum lever torque resistance
• Low profile rose design – ADA friendly lever operation
• Cast construction lock hub – solid lock foundation

Q: What are thru-bolt studs?
A: Studs that pass through the door outside the 2 1/8" diameter hole that
provide added strength to the lock. Please refer to the image on page 1.

Q: What is a chassis?
A: The primary housing (body of the lock) that everything operates off
of that sits inside the 2 1/8" diameter hole in the door. Please refer to the
image on page 1.

Q: What kind of chassis does the 9K have?
A: The 9K chassis has two solid cast hubs for added strength and a single
piece lever sleeve. This single piece lever sleeve is more durable and
reduces installation time.

Q: What is a sleeve (aka spindle)?
A: The sleeve/spindle is the supporting structure for the lever handles
that sits inside the hub. The 9K incorporates a longer sleeve for added
functional support. Please refer to the image on page 1.

Q: How long does it take to install the 9K?
A: Once the door is prepped, it is a three step process (Step 1: Install latch
Step 2: Install preassembled chassis & outside lever Step 3: Install inside
lever). That process takes an average of two minutes. Since we only have
3 parts and our packaging is designed with the installer in mind, installation
can be done quickly, efficiently, and accurately.

Q: What door thickness range can the 9K accommodate?
A: The 9K comes preset from the factory to fit 1 3/4" thick doors. Using the
machined grooves in the thru-bolt studs as a guide, the lock assembly can
be field adjusted to accommodate doors up to 2 1/4" thick.

Q: What enables the 9K to withstand high lever torque?
A: The outside lever sleeve and the tabs on the latch are made from a
high quality steel alloy that has been heat treated to strict specifications
enabling it to withstand excessive lever torque. These components provide
an integral part of strength to the 9K.

Q: What is different about the aesthetics of the 9K?
A: The 9K has a low profile, slim rose design that is preferred by our
customers. The 9K houses the springs in the chassis instead of the rose
making the springs more reliable and less susceptible to breakage. In
addition, our slimmer rose allows for more space to grasp the lever which
is in line with ADA requirements.

Q: Does the 9K make a lot of noise when in use?
A: Since our high quality springs are housed within the chassis as opposed
to within the rose, the 9K is a much quieter product.

Q: Is the 9K susceptible to lever droop?
A: The quality of the springs in addition to a recent retooling of the levers,
hubs, chassis, and sleeves has reduced common lever droop issues
to minimal, best in class levels. We have increased monitoring during
manufacturing to maintain top factory standards.

Q: Does the 9K come with a core?
A: The 9K comes less core (LC) standard from the factory.

Q: What is the standard core for the 9K?
A: The standard core is the BEST SFIC (Small Format Interchangeable
Core).

Q: Do you have 9K levers to fit competitive core offerings?
A: Yes, we offer levers to fit the Schlage LFIC (Large Format
Interchangeable Core) as well as the following Non-IC (NonInterchangeable Core): Medeco, Yale, Sargent and Corbin Russwin.

Q: What is the difference between interchangeable cores (IC)
and non-interchangeable cores (Non-IC)?
A: Interchangeable cores can be installed and removed from the outside
through the use of a control key. Noninterchangeable cores must be
installed and removed by first taking the lever off. Interchangeable cores
have a figure 8 design whereas non-interchangeable cores have a single
hole design.

Q: Can you change from a Non-IC lock to an IC lock or vice versa?
A: No. The chassis’s are built completely different from one to the other.
The lever won’t stay on if you try to switch them. You must first understand
if the customer needs or wants an IC or a Non-IC system.

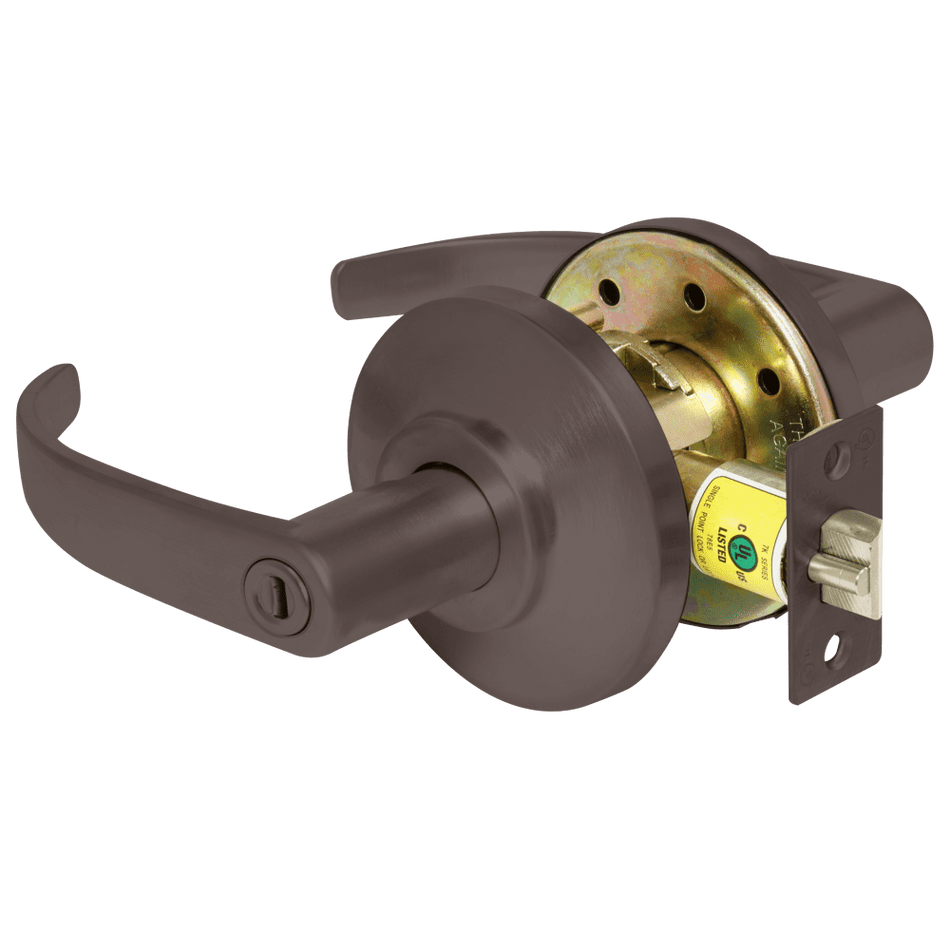

Best 9K 30 L Privacy Lock

Best 9K 30 L Privacy Lock

by Best
$ 380.00

 Best 9K 30 L Privacy Lever Locks Are In Stock In Most Functions & Styles.

9K Catalog

Quick installation, proven reliability and enhanced safety all make the 9K the grade 1 cylindrical lock of choice for many. But its wide compatibility with most large format interchangeable cores, regardless of brand, make it a legend. Whether you want to upgrade old hardware or fit out a new facility, the 9K is a great match.



Hardened Steel Through-Bolt Studs

Maximum lever torque resistance that stands up to the hardiest hands.



Proven Reliability

Tested to exceed 20 times the BHMA Grade 1 criteria witnessed by UL. Independently tested to 50 times BHMA Grade 1 criteria.



Quick and Easy Installation

Pre-assembled heavy-duty chassis for easy installation right out of the box.



Intruder Deterrence

Secure classroom doors quickly from the inside during an emergency.



Cast Construction Lock Hub

Solid lock foundation protects against abuse and everyday wear.



Low-Profile Rose Design

Elegant, consistent, ADA-compliant lever operation in a variety of settings.



Easily Adaptable

Works with most existing non-interchangeable and large format interchangeable cores. No redrilling or rekeying needed.



Durability

The BEST 9k has exceeded 50 million cycles and counting, ensuring the premium performance and strength you need.



9K Series Sell Sheet

9K Series Intruder Function Sell Sheet

9K Series FAQs

9K Series Catalog

9K Cylindrical Adaptations Sell Sheet

9K Series Service Manual

Cylindrical Adaptations Catalog

Antimicrobial Protected Door Hardware Brochure

Agion® Antimicrobial Finish for Healthier Door Hardware

9K Cylindrical Green Circle Certificate

Electrified 9K Green Circle Certificate

EAD & DHW Warranty Statement



FAQ



Q: What is the 9K and when was it introduced?
A: Initially designed from the BEST 8K knob-set platform, the 9K paved the
way for an Americans with Disabilities Act – ADA compliant cylindrical lock
portfolio.
Utilizing extensive customer feedback, the lock assembly was redesigned
and subsequently launched as the 9K Varsity Series in 1994. Eventually we
dropped the Varsity name from the 9K nomenclature. However, the new
redesigned 9K Series incorporates the following industry leading features:
• Pre-assembled heavy duty chassis – Quick & easy installation
• Hardened steel thru-bolt studs – Maximum lever torque resistance
• Low profile rose design – ADA friendly lever operation
• Cast construction lock hub – solid lock foundation

Q: What are thru-bolt studs?
A: Studs that pass through the door outside the 2 1/8" diameter hole that
provide added strength to the lock. Please refer to the image on page 1.

Q: What is a chassis?
A: The primary housing (body of the lock) that everything operates off
of that sits inside the 2 1/8" diameter hole in the door. Please refer to the
image on page 1.

Q: What kind of chassis does the 9K have?
A: The 9K chassis has two solid cast hubs for added strength and a single
piece lever sleeve. This single piece lever sleeve is more durable and
reduces installation time.

Q: What is a sleeve (aka spindle)?
A: The sleeve/spindle is the supporting structure for the lever handles
that sits inside the hub. The 9K incorporates a longer sleeve for added
functional support. Please refer to the image on page 1.

Q: How long does it take to install the 9K?
A: Once the door is prepped, it is a three step process (Step 1: Install latch
Step 2: Install preassembled chassis & outside lever Step 3: Install inside
lever). That process takes an average of two minutes. Since we only have
3 parts and our packaging is designed with the installer in mind, installation
can be done quickly, efficiently, and accurately.

Q: What door thickness range can the 9K accommodate?
A: The 9K comes preset from the factory to fit 1 3/4" thick doors. Using the
machined grooves in the thru-bolt studs as a guide, the lock assembly can
be field adjusted to accommodate doors up to 2 1/4" thick.

Q: What enables the 9K to withstand high lever torque?
A: The outside lever sleeve and the tabs on the latch are made from a
high quality steel alloy that has been heat treated to strict specifications
enabling it to withstand excessive lever torque. These components provide
an integral part of strength to the 9K.

Q: What is different about the aesthetics of the 9K?
A: The 9K has a low profile, slim rose design that is preferred by our
customers. The 9K houses the springs in the chassis instead of the rose
making the springs more reliable and less susceptible to breakage. In
addition, our slimmer rose allows for more space to grasp the lever which
is in line with ADA requirements.

Q: Does the 9K make a lot of noise when in use?
A: Since our high quality springs are housed within the chassis as opposed
to within the rose, the 9K is a much quieter product.

Q: Is the 9K susceptible to lever droop?
A: The quality of the springs in addition to a recent retooling of the levers,
hubs, chassis, and sleeves has reduced common lever droop issues
to minimal, best in class levels. We have increased monitoring during
manufacturing to maintain top factory standards.

Q: Does the 9K come with a core?
A: The 9K comes less core (LC) standard from the factory.

Q: What is the standard core for the 9K?
A: The standard core is the BEST SFIC (Small Format Interchangeable
Core).

Q: Do you have 9K levers to fit competitive core offerings?
A: Yes, we offer levers to fit the Schlage LFIC (Large Format
Interchangeable Core) as well as the following Non-IC (NonInterchangeable Core): Medeco, Yale, Sargent and Corbin Russwin.

Q: What is the difference between interchangeable cores (IC)
and non-interchangeable cores (Non-IC)?
A: Interchangeable cores can be installed and removed from the outside
through the use of a control key. Noninterchangeable cores must be
installed and removed by first taking the lever off. Interchangeable cores
have a figure 8 design whereas non-interchangeable cores have a single
hole design.

Q: Can you change from a Non-IC lock to an IC lock or vice versa?
A: No. The chassis’s are built completely different from one to the other.
The lever won’t stay on if you try to switch them. You must first understand
if the customer needs or wants an IC or a Non-IC system.
Best 9K 30 N Passage Lock

Best 9K 30 N Passage Lock

by Best
$ 328.00

 Best 9K 30 N Passage Lever Locks Are In Stock In Most Functions & Styles.

9K Catalog

Quick installation, proven reliability and enhanced safety all make the 9K the grade 1 cylindrical lock of choice for many. But its wide compatibility with most large format interchangeable cores, regardless of brand, make it a legend. Whether you want to upgrade old hardware or fit out a new facility, the 9K is a great match.



Hardened Steel Through-Bolt Studs

Maximum lever torque resistance that stands up to the hardiest hands.



Proven Reliability

Tested to exceed 20 times the BHMA Grade 1 criteria witnessed by UL. Independently tested to 50 times BHMA Grade 1 criteria.



Quick and Easy Installation

Pre-assembled heavy-duty chassis for easy installation right out of the box.



Intruder Deterrence

Secure classroom doors quickly from the inside during an emergency.



Cast Construction Lock Hub

Solid lock foundation protects against abuse and everyday wear.



Low-Profile Rose Design

Elegant, consistent, ADA-compliant lever operation in a variety of settings.



Easily Adaptable

Works with most existing non-interchangeable and large format interchangeable cores. No redrilling or rekeying needed.



Durability

The BEST 9k has exceeded 50 million cycles and counting, ensuring the premium performance and strength you need.



9K Series Sell Sheet

9K Series Intruder Function Sell Sheet

9K Series FAQs

9K Series Catalog

9K Cylindrical Adaptations Sell Sheet

9K Series Service Manual

Cylindrical Adaptations Catalog

Antimicrobial Protected Door Hardware Brochure

Agion® Antimicrobial Finish for Healthier Door Hardware

9K Cylindrical Green Circle Certificate

Electrified 9K Green Circle Certificate

EAD & DHW Warranty Statement



FAQ



Q: What is the 9K and when was it introduced?
A: Initially designed from the BEST 8K knob-set platform, the 9K paved the
way for an Americans with Disabilities Act – ADA compliant cylindrical lock
portfolio.
Utilizing extensive customer feedback, the lock assembly was redesigned
and subsequently launched as the 9K Varsity Series in 1994. Eventually we
dropped the Varsity name from the 9K nomenclature. However, the new
redesigned 9K Series incorporates the following industry leading features:
• Pre-assembled heavy duty chassis – Quick & easy installation
• Hardened steel thru-bolt studs – Maximum lever torque resistance
• Low profile rose design – ADA friendly lever operation
• Cast construction lock hub – solid lock foundation

Q: What are thru-bolt studs?
A: Studs that pass through the door outside the 2 1/8" diameter hole that
provide added strength to the lock. Please refer to the image on page 1.

Q: What is a chassis?
A: The primary housing (body of the lock) that everything operates off
of that sits inside the 2 1/8" diameter hole in the door. Please refer to the
image on page 1.

Q: What kind of chassis does the 9K have?
A: The 9K chassis has two solid cast hubs for added strength and a single
piece lever sleeve. This single piece lever sleeve is more durable and
reduces installation time.

Q: What is a sleeve (aka spindle)?
A: The sleeve/spindle is the supporting structure for the lever handles
that sits inside the hub. The 9K incorporates a longer sleeve for added
functional support. Please refer to the image on page 1.

Q: How long does it take to install the 9K?
A: Once the door is prepped, it is a three step process (Step 1: Install latch
Step 2: Install preassembled chassis & outside lever Step 3: Install inside
lever). That process takes an average of two minutes. Since we only have
3 parts and our packaging is designed with the installer in mind, installation
can be done quickly, efficiently, and accurately.

Q: What door thickness range can the 9K accommodate?
A: The 9K comes preset from the factory to fit 1 3/4" thick doors. Using the
machined grooves in the thru-bolt studs as a guide, the lock assembly can
be field adjusted to accommodate doors up to 2 1/4" thick.

Q: What enables the 9K to withstand high lever torque?
A: The outside lever sleeve and the tabs on the latch are made from a
high quality steel alloy that has been heat treated to strict specifications
enabling it to withstand excessive lever torque. These components provide
an integral part of strength to the 9K.

Q: What is different about the aesthetics of the 9K?
A: The 9K has a low profile, slim rose design that is preferred by our
customers. The 9K houses the springs in the chassis instead of the rose
making the springs more reliable and less susceptible to breakage. In
addition, our slimmer rose allows for more space to grasp the lever which
is in line with ADA requirements.

Q: Does the 9K make a lot of noise when in use?
A: Since our high quality springs are housed within the chassis as opposed
to within the rose, the 9K is a much quieter product.

Q: Is the 9K susceptible to lever droop?
A: The quality of the springs in addition to a recent retooling of the levers,
hubs, chassis, and sleeves has reduced common lever droop issues
to minimal, best in class levels. We have increased monitoring during
manufacturing to maintain top factory standards.

Q: Does the 9K come with a core?
A: The 9K comes less core (LC) standard from the factory.

Q: What is the standard core for the 9K?
A: The standard core is the BEST SFIC (Small Format Interchangeable
Core).

Q: Do you have 9K levers to fit competitive core offerings?
A: Yes, we offer levers to fit the Schlage LFIC (Large Format
Interchangeable Core) as well as the following Non-IC (NonInterchangeable Core): Medeco, Yale, Sargent and Corbin Russwin.

Q: What is the difference between interchangeable cores (IC)
and non-interchangeable cores (Non-IC)?
A: Interchangeable cores can be installed and removed from the outside
through the use of a control key. Noninterchangeable cores must be
installed and removed by first taking the lever off. Interchangeable cores
have a figure 8 design whereas non-interchangeable cores have a single
hole design.

Q: Can you change from a Non-IC lock to an IC lock or vice versa?
A: No. The chassis’s are built completely different from one to the other.
The lever won’t stay on if you try to switch them. You must first understand
if the customer needs or wants an IC or a Non-IC system.
