The 1600 Series door closers offer proven quality, performance and
reliability unmatched by the competition. A staple in the industry,
these ANSI/BHMA Grade 1 closers are designed for exterior or interior
doors. A full complement of regular and heavy-duty arms, brackets
and options make the 1600 Series closers ideal for virtually any
medium traffic, commercial application.

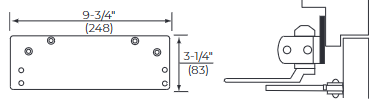

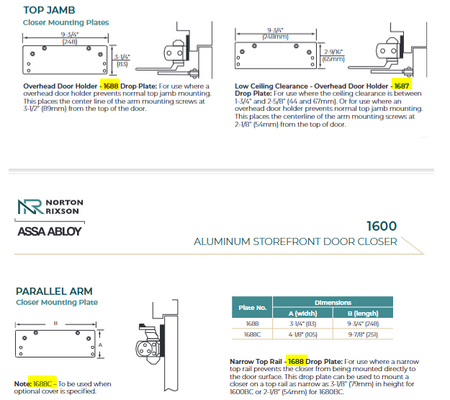

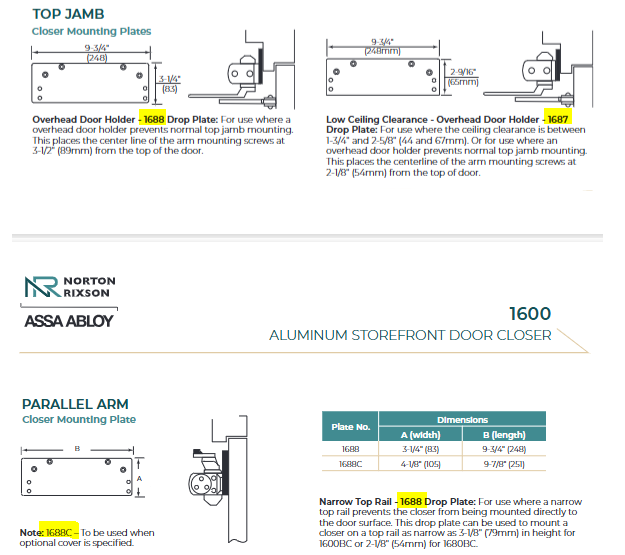

- 1688 Drop Plate: For use where a
overhead door holder prevents normal top jamb mounting.
This places the center line of the arm mounting screws at

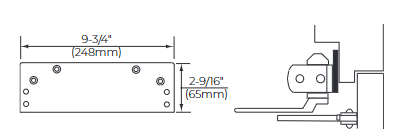

3-1/2" (89mm) from the top of the door. - Overhead Door Holder - 1687
Drop Plate: For use where the ceiling clearance is between
1-3/4" and 2-5/8" (44 and 67mm). Or for use where an
overhead door holder prevents normal top jamb mounting.
This places the centerline of the arm mounting screws at

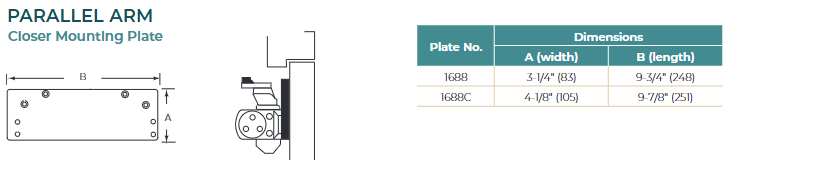

2-1/8" (54mm) from the top of door - 1688 Drop Plate: For use where a narrow
top rail prevents the closer from being mounted directly to
the door surface. This drop plate can be used to mount a
closer on a top rail as narrow as 3-1/8" (79mm) in height for
1600BC or 2-1/8" (54mm) for 1680BC.
