Norton 1601 Door Closer
Norton 1601 Door Closer
Norton 1601 Door Closer
Norton 1601 Door Closer
Norton 1601 Door Closer
Norton 1601 Door Closer

Norton 1601 Door Closer

by Norton
$ 104.00

"Excellent service, excellent price, excellent timing! Huge help in crazy construction business environment! Five stars! Would suggest us lock supply to anybody, no doubt about it." Regency Glass.

                          Compare The Norton 1601
Brand/Model #
US Lock Supply Comment
Dorma 7400
Great Closer
Falcon SC60
Highly Recommended
Norton 1601
Best In Class Closer
S. Parker 900
Good Imported Closer
Sargent 1130

Solid Closer
Yale 51

Solid Closer

Best Used In Medium To High Traffic Doors


US Lock Supply Stocks The Norton 1601 Closer In All Options & Finishes Ready To Ship Free On Orders Over $189.  Ideal for use with aluminum storefront doors and frames, these closers have a history of proven quality and tradition.

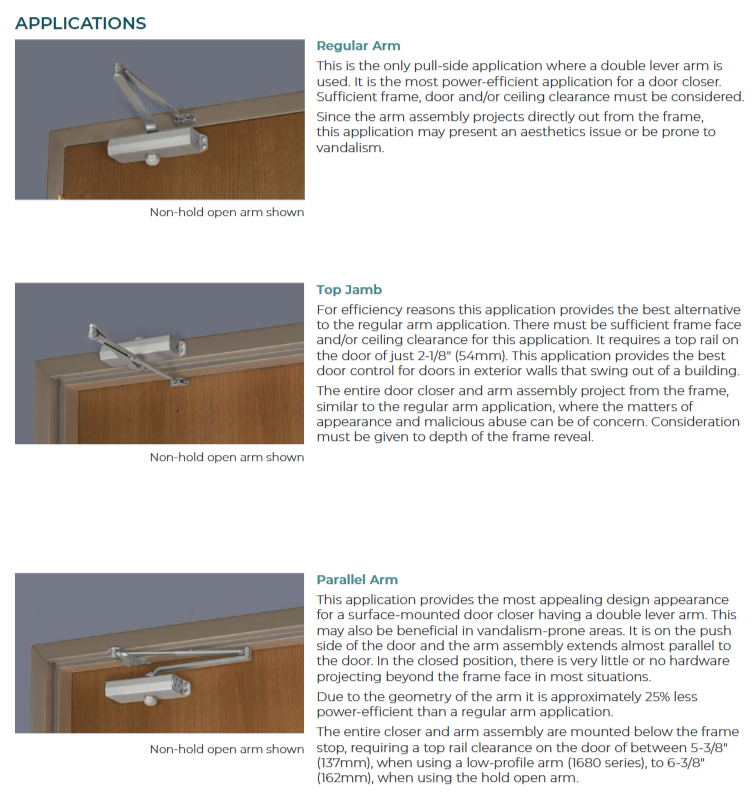

1601 Arm Options:

RW/PA Regular Arm
HW/PA Hold Open With Regular Arm

1601 Finishes:

689-Aluminum
690-Dark Bronze
691-Light Bronze
696-Satin Brass

Features

    • 1600BC: Sized springs 3 or 4
    • 1601: Adjustable spring sizes 3-6
    • 1601BF: Adjustable spring sizes 1-4
    • Exceeds 12 million cycles (witnessed and verified by UL)
    • Non-handed
    • Rack and pinion design
    • Cast aluminum body
    • 2-7/8" (73mm) projection
    • 1-3/8" (35mm) diameter piston
    • 5/8" (16mm) diameter pinion journals
    • Standard, separate and independent, latch, sweep and backcheck intensity valves
    • Tri-Style® packaging (regular arm, top jamb and parallel arm mounting)
    • All standard arm applications allow doors to swing 180°, conditions permitting
    • Staked valves

    Optional Features

    • Delayed action (in lieu of backcheck). Specify 1601DA or 1601BFDA
    • Corrosion-resistant model (non-hold open only). Specify 1601SS or 1601BFSS. (Not tri-packed)
    • Molded plastic cover. Specify suffix P
    • Heavy-duty arms: Parallel Rigid, CloserPlus®, CloserPlus Spring™, and Unitrol®
