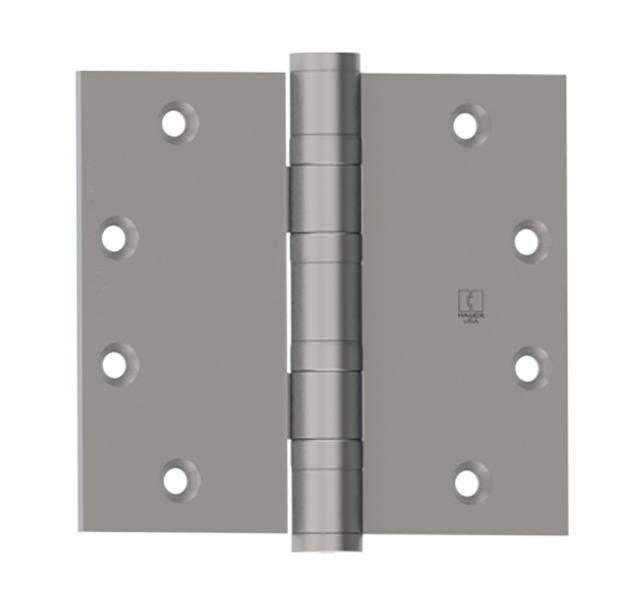

Hager BB1199 Heavy Weight Hinge
Hager BB1199 Heavy Weight Hinge
Hager BB1199 Heavy Weight Hinge

Hager BB1199 Heavy Weight Hinge

by Hager
Sold out
$ 62.00

SPECS

Certifications
  • ANSI A2111 (Brass), ANSI A5111 (Stainless Steel)
Finishes
  • US3, US4, US10, US10B, US15, US26, US26D, US32, US32D
Electric Modifications
  • EMN (Electric Monitor Only), ETW (Electric Through-Wire Only), ETM (Electric Through-Wire with Monitoring), Quick Connect
Box Quantity
  • 3
Case Quantity
  • 24
Features
  • Four ball bearings. Non-rising removable pin with tip and plug.
Fire Rating
  • Stainless steel model complies with NFPA80 requirements for use on fire rated door assemblies
Gauge
  • See Sizing Chart Options
Height
  • See Sizing Chart Options
Knuckles
  • 5
Material
  • Brass with Stainless Steel Pin, Stainless Steel with Stainless Steel Pin
Notes
  • Furnished with fastener hole locations that conform to standards approved by ANSI A156.7
Options
  • NRP (Non-removable pin)
  • Stamped with UL logo when ordered for export
Product Description
  • Full Mortise, Ball Bearing, Heavy Weight
Width
  • See Sizing Chart Option





TEMPLATES

Description File Number
T-Unequal Leaf Template t-unequal_leaf.pdf
Round Corner 4-1/2" - Template T311RC.pdf
Full Mortise Hinges - 5" - Template T315.pdf
Full Mortise Hinges - 127 mm - Template T315M.pdf
Reverse Safety Stud - 4 1/2" - Template T312.pdf
Reverse Safety Stud - 114 mm - Template T312M.pdf
6" T317.pdf
Reverse Safety Stud - 5" - Template T316.pdf
Reverse Safety Stud - 127 mm - Template T316M.pdf
5" x 1-3/4" Door Raised Barrel Hinge T-RB
4-1/2" x 1-3/4" Door Raised Barrel Beveled Hinges T-RBB
8" for 1-3/4" Door T318.pdf
8" for 2-1/2" Door T319.pdf
4-1/2" x 1-3/4" Raised Barrel Square Hinges T-RBS
Full Mortise Hinges - 114 mm - Template T311M.pdf
Full Mortise Hinges - 4 1/2" - Template T311.pdf
