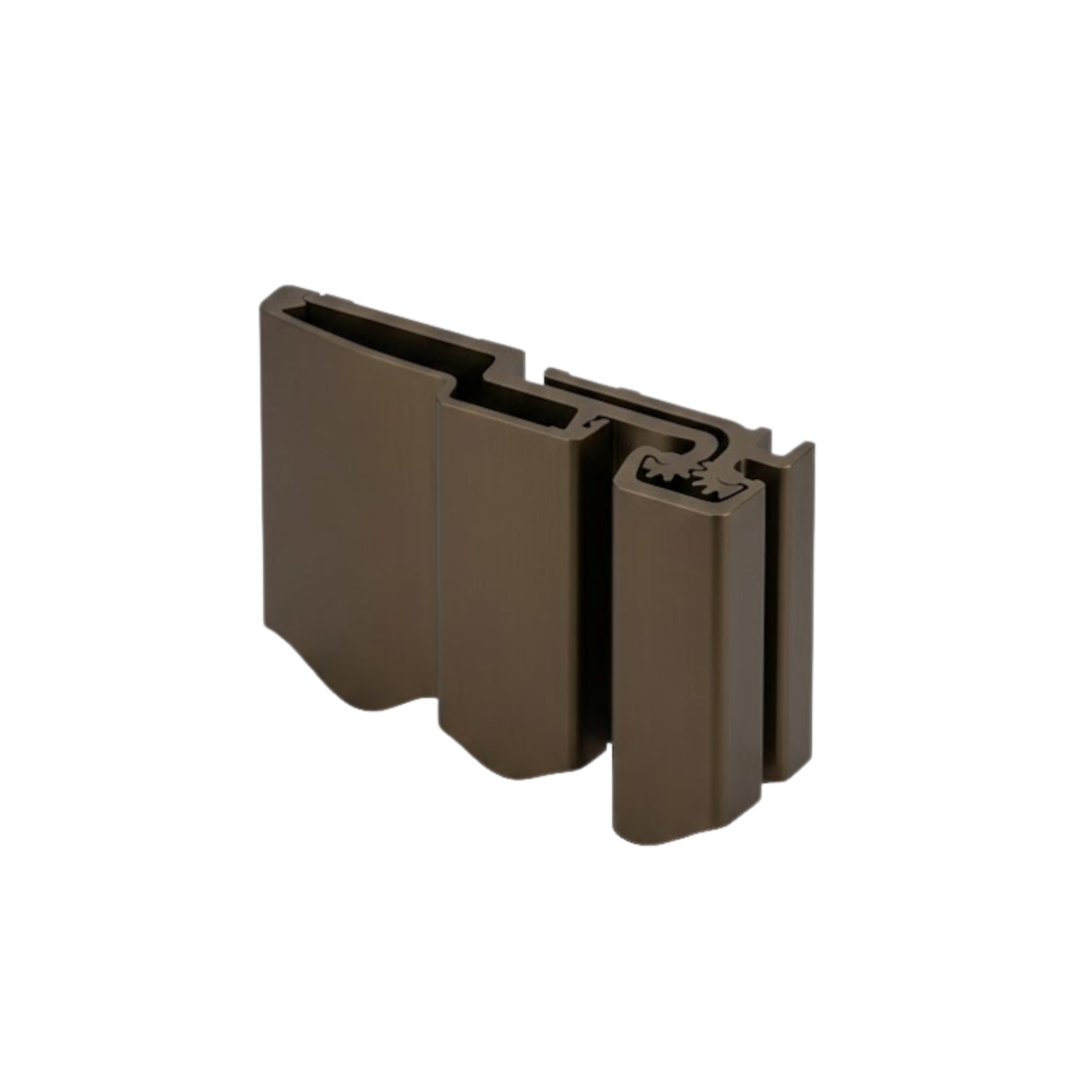

| Application: | - Can be used with any door and frame material - Security moldings - 1/32" (1 mm) inset |
| Clearance: | - 1/32" (1 mm) minimum recommended for hinge side - Plus standard lockside clearance - 1-5/8" (41 mm) minimum frame face required plus 3/16" (5 mm) rotational clearance |
| Fasteners: | - 1/4-20 x 1-1/4" Sexbolt (Screw + Post) - #12-24 X 11/16" Flat Head Self-Drill Screws |
| Length Options: | - Standard and Custom |
| Door Reinforcement: | - None required |
| Frame Reinforcement: | - None required to 200 lbs. Heavier weigh use 16-gauge channel. |
| Fire Rating: | - Up to 3 hr. metal and 90 min. wood composite (with studs) |
| Warranty: | - All Roton products have a lifetime warranty. When ordering electric Roton, the electric portion of the hinge has a one-year warranty. |
| Material: | - Aluminum 6063-T6 |
| Options: | - Hospital Tip |
| EPD: | - Roton Continuous Hinges Environmental Product Declaration |
| Description | File Number |
| 780-210 HD Template 119" Rev. April 2017 | 780210HD119-April-2017.pdf |
| 780-210 HD Template 95" Rev. April 2017 | 780210HD95-April-2017.pdf |
| 780-210 HD Template 85" Rev. April 2017 | 780210HD85-April-2017.pdf |
| 780-210 HD Template 83" Rev. April 2017 | 780210HD83-April-2017.pdf |
| 780-210 HD Template 79" Rev. April 2017 | 780210HD79-April-2017.pdf |
| Description | File Number |
| Installation Instructions for UL Fire-Rated Hinge Studs | 75006030 |
| 780-210HD Straight Hole Pattern Installation Instructions | 75007210_780210_RevS.PDF |
