Hager 4500 Rim Heavy Duty Exit Device

Heavy Duty Commercial

• ANSI/BHMA A156.3-2014 Grade 1
• UL305 Listed for Panic Hardware
• UL/cUL Listed for up to 3 hours for "A" label single doors
• UL10C Positive Pressure Rated
• UL10B Neutral Pressure Rated
• Warnock Hersey listed for up to 3 hours with fire rated removable mullion
• Complies with ANSI A117.1 for accessible buildings and facilities
• Miami-Dade County, Florida NOA #22-0816.08, Exp. Aug. 16, 2027

Stainless steel, zinc

• Hex key dogging standard on panic rated devices
• Cylinder dogging available on panic rated devices - specify "CD". 3902 Mortise cylinder with standard cam sold separately. Cylinder Length of 1-1/8" (29mm) - 1-3/8" (35mm) is required.

• 1-3/4" (44mm) - Standard
• Up to 3" except with night latch which has a max of 2-1/2".  Screwpack (SKU# 172214) is needed for use on doors over 2" thick with sleeve nuts or doors over 2-1/4" thick with trim.

• 36" (914mm) field sizeable to 30" (762 mm) panic-rated door and 28" (711mm) fire-rated door
• 48" (1219mm) field sizeable to 36" (914mm) panic- or fire-rated door
• Reference electrified exit device for door width specifications

• Flush end cap (zinc)

• Wood and machine screws
• Thru-bolts

• US3, US4, US10B, US26, US26D, US32D, BLK
• Trim is not available in US32D

01 - Exit Only (device)

3/4" (19mm) throw, pullman type with automatic dead-latching, stainless steel

Recommended to be used on appropriately reinforced doors

• 3" (76mm) in undogged position
• 2-5/8" (67mm) in dogged position

• 5-3/8" (137mm) - Minimum stile width required for single doors and standard 5/8" (16 mm) stop
• 4-7/8" (124mm) - Minimum stile width required for double door x surface vertical rod with double door strike
• 5-3/4" (146mm) - Minimum stile width required for double door and 2" (51 mm) mullion
• 5" (127mm) - Minimum stile width required for double doors with a middle rail and a 2" mullion
• All stile widths are measured from the door edge

• Stainless steel with plated rollers - Included standard with panic devices
• Solid stainless steel - Included standard with fire-rated devices
• Surface applied to frame with slotted holes for easy adjustment
• Double door strike for use with surface vertical rod and rim device available
• For Rim x Rim x Mullion the 4912 strike is required on a fire-rated opening

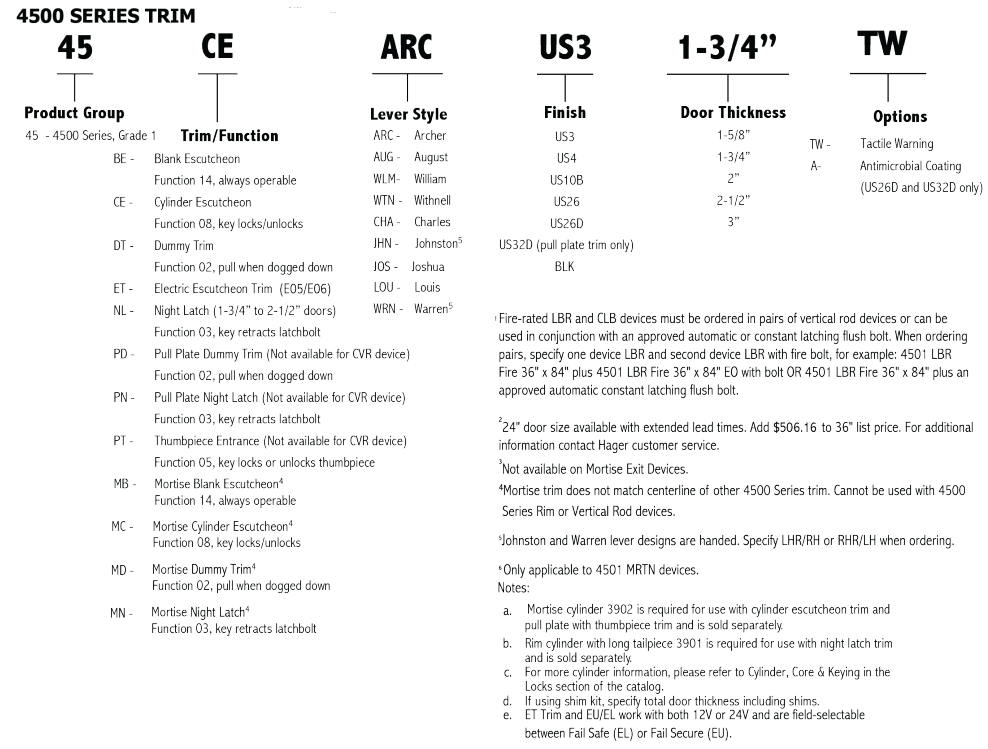

• Archer, August, Charles, Johnston, Joshua, Louis, Warren, William or Withnell lever with escutcheon
• Pull plate trim
• Rim cylinder x optional pull
• See additional options under Trim

Lifetime
