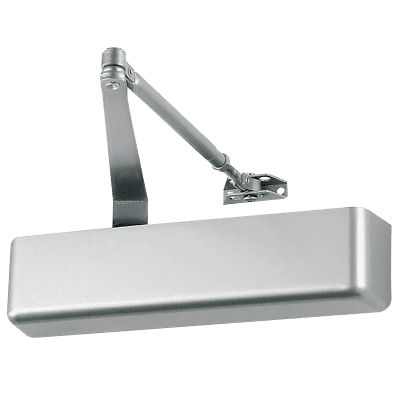

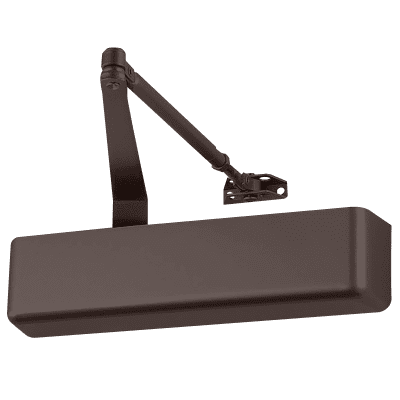

Falcon SC81 Door Closer

Falcon SC81 Door Closer

by Falcon
$ 101.99
US Lock Supply Stocks The Falcon SC81 Closer In All Finishes & Options Ready To Ship For Free On Orders Over $189.
The Falcon SC81 is a medium duty door closer used on medium traffic doors in facilities like health care offices, schools, offices, hospitals & more.
Finishes:
689-Aluminum
695-Dark Bronze
Arms:
RW/PA Regular Arm
HW/PA Hold Open With Regular Arm
HD/PA Heavy Duty With Parallel Arm
DS Dead Stop Arm
Falcon SC81 Data Sheet
Falcon Door Closer Catalog
Falcon SC81 Installation Instructions
Similar Items: Falcon SC91 | Falcon SC71

Specifications
  • Meets ANSI A117.1
  • UL Listed
  • 1 1/4" diameter piston
  • Closer mounts hinge side, top jamb or parallel arm when either the Rw/PA or Hw/PA arm is specified
  • Adjustable sizes 1-6
  • Single piece cast aluminum body
  • Non-handed for left or right swinging doors
  • Separate adjustable general speed, latch speed and backcheck
  • Heat-treated steel piston
  • Heat-treated pinion
  • Cover is high-impact UL Listed fire retardant plastic that meets UL 10C and UBC 7-2 (1997) fire test
  • UL 228 listed
  • UL 10C approved fluid
  • Universal screw pack
  • 10-year warranty

Certifications
The Falcon SC81 is UL approved and compliant with UL 10C and UBC 7-2 (1997) fire test. Additionally, the SC81 is designed to meet the Americans with Disabilities Act (ADA) and ANSI A117.1.
