Overview

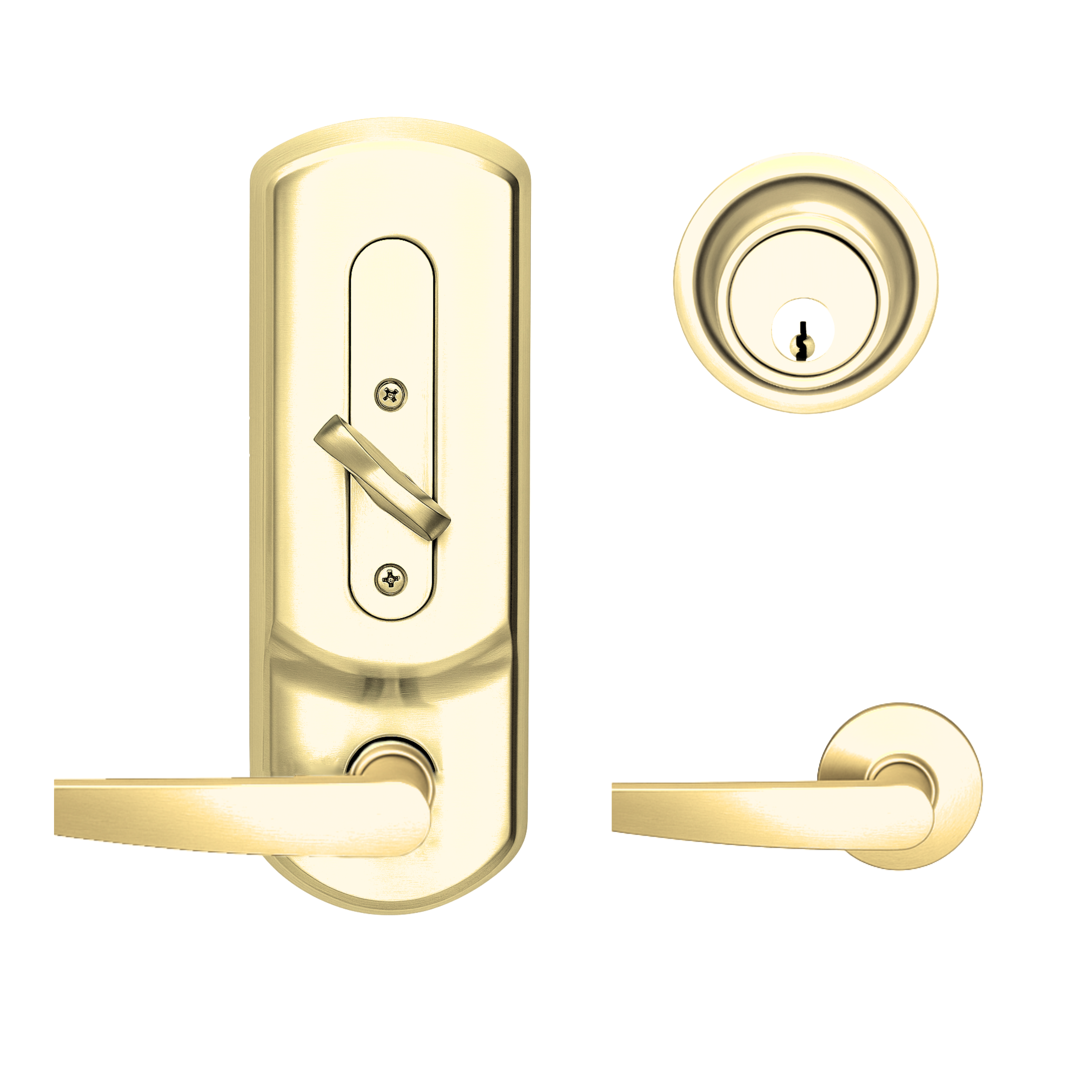

The H2 Series interconnected locks provide a single-motion egress and are ideal for multi-family, mixed-use and public restroom applications. The H2 Series features a single-motion egress (retracting both the latch and deadbolt simply by rotating the inside lever) to meet Life and Safety code requirements, while exceeding BHMA Grade 2 requirements for operational usage, security, cycle and finish.
Center to Center: Fits 4" or 5 1⁄2" (field adjustable) center to center door preps
- 8 lever styles and 6 finishes for suiting across other Falcon and Schlage products
- Entrance single lock and the public restroom with occupancy indicator functions are available
- Large inner plate that connects lock and deadbolt
- Exterior has the appearance of a tubular lock and deadbolt
- Supports 2-3⁄8" or 2-3⁄4" backsets
- 1-3⁄4" - 2" door range standard; 1-3⁄8" available
- Compatible with standard FSIC cores
- 10-year limited warranty
UL: listed 1-1/2 Hour B Label
- Available in:

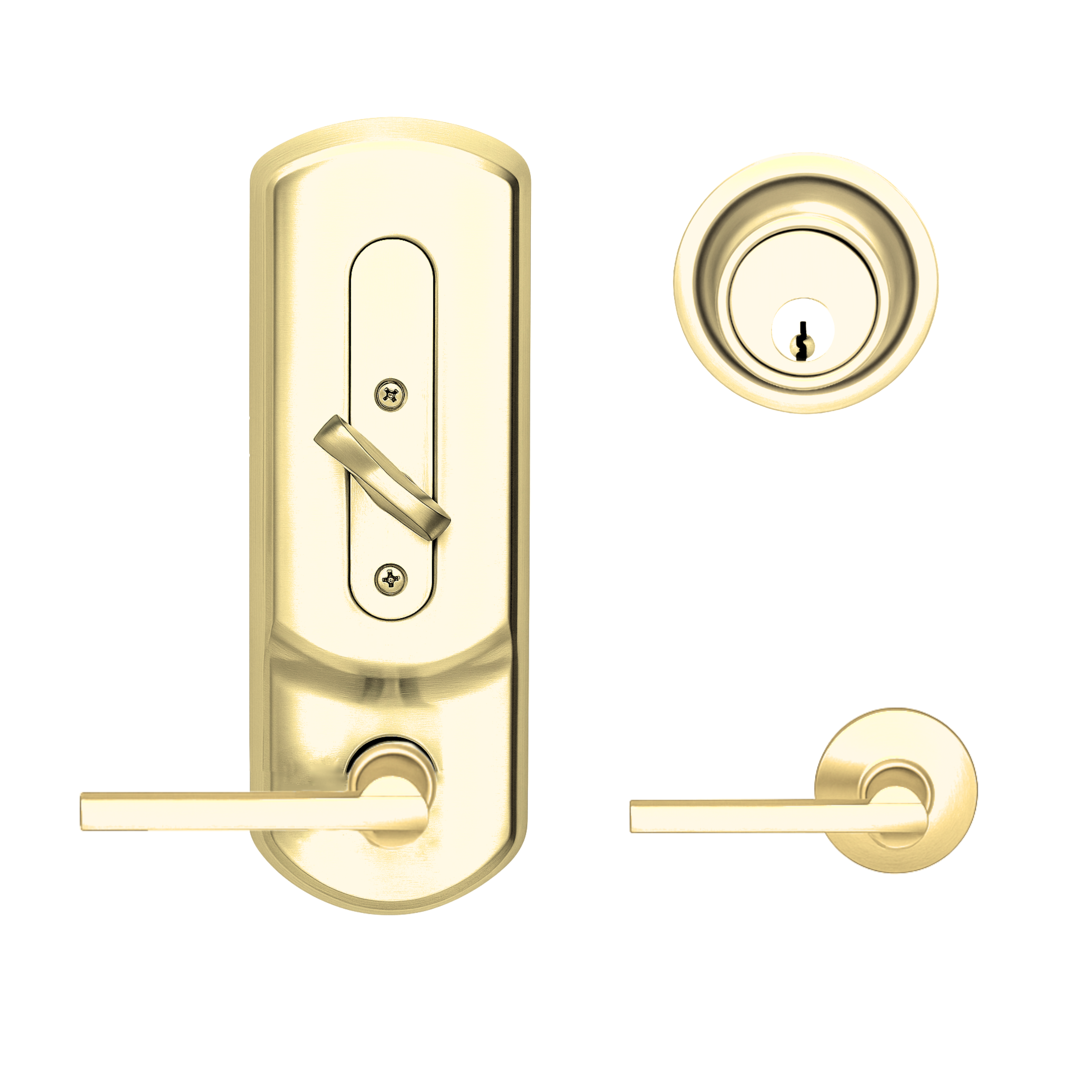

- Bright brass (605)
- Satin nickel (619)
- Matte black (622)
- Bright chrome (625)
- Satin chrome (626)
- Aged bronze (643e)
- Lever styles include:

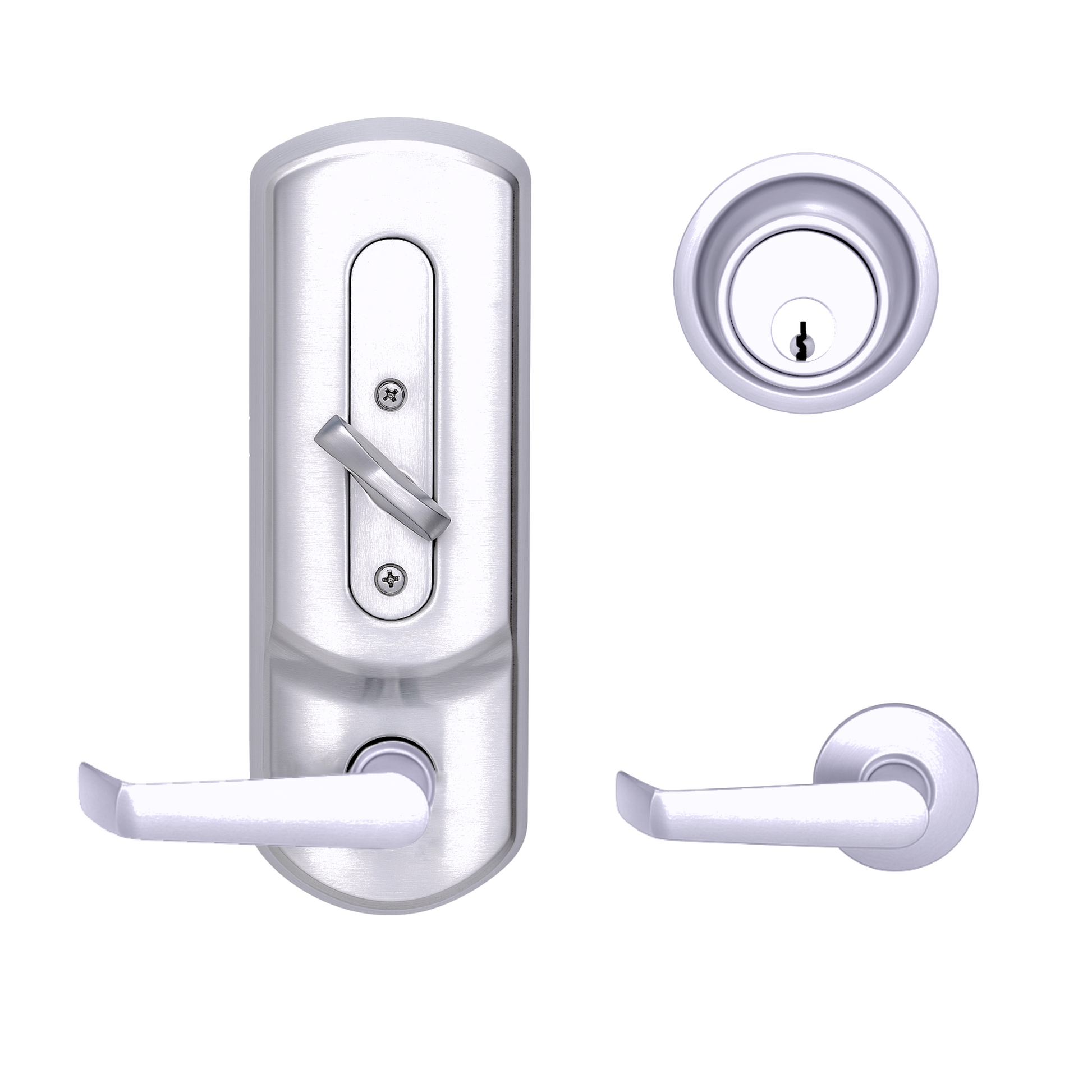

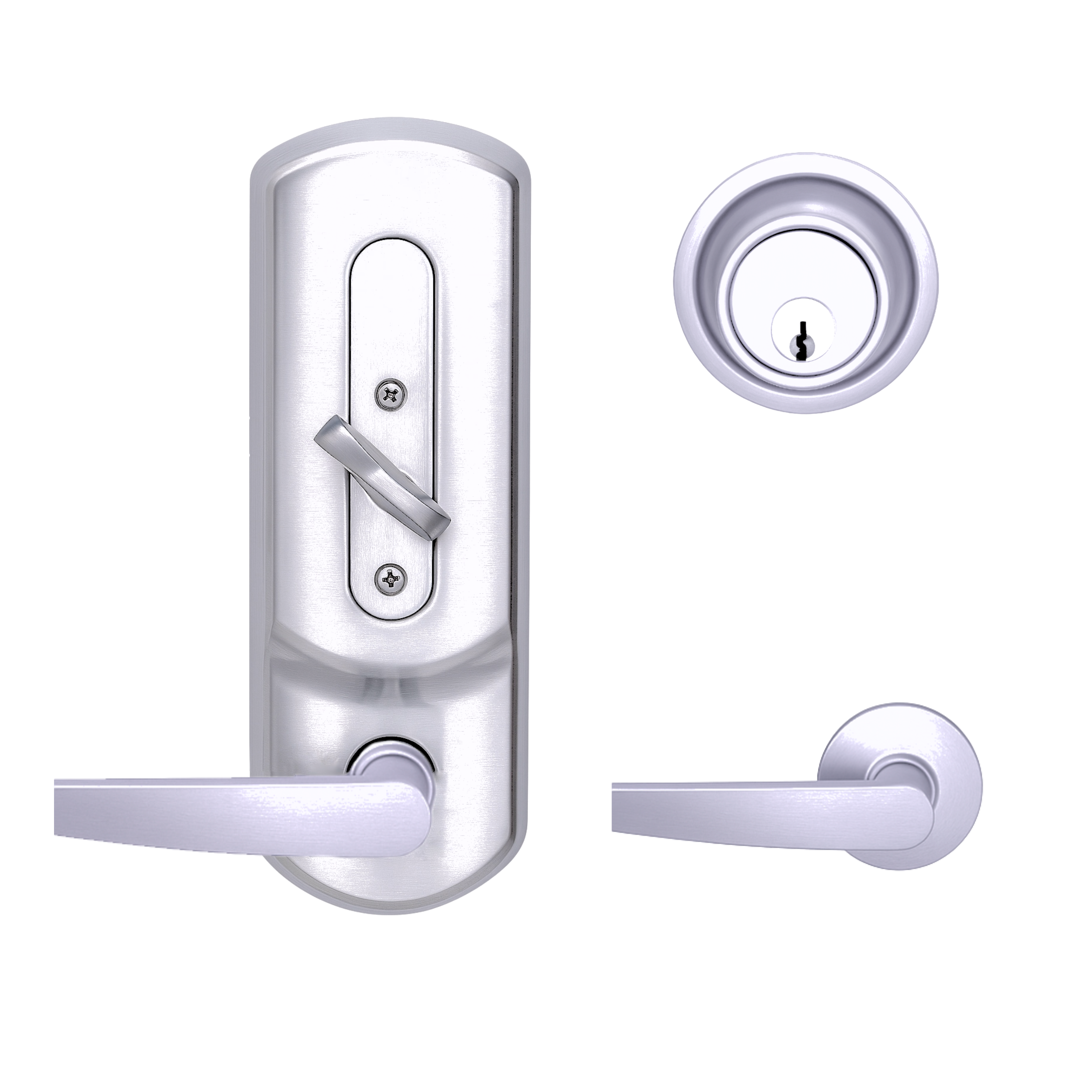

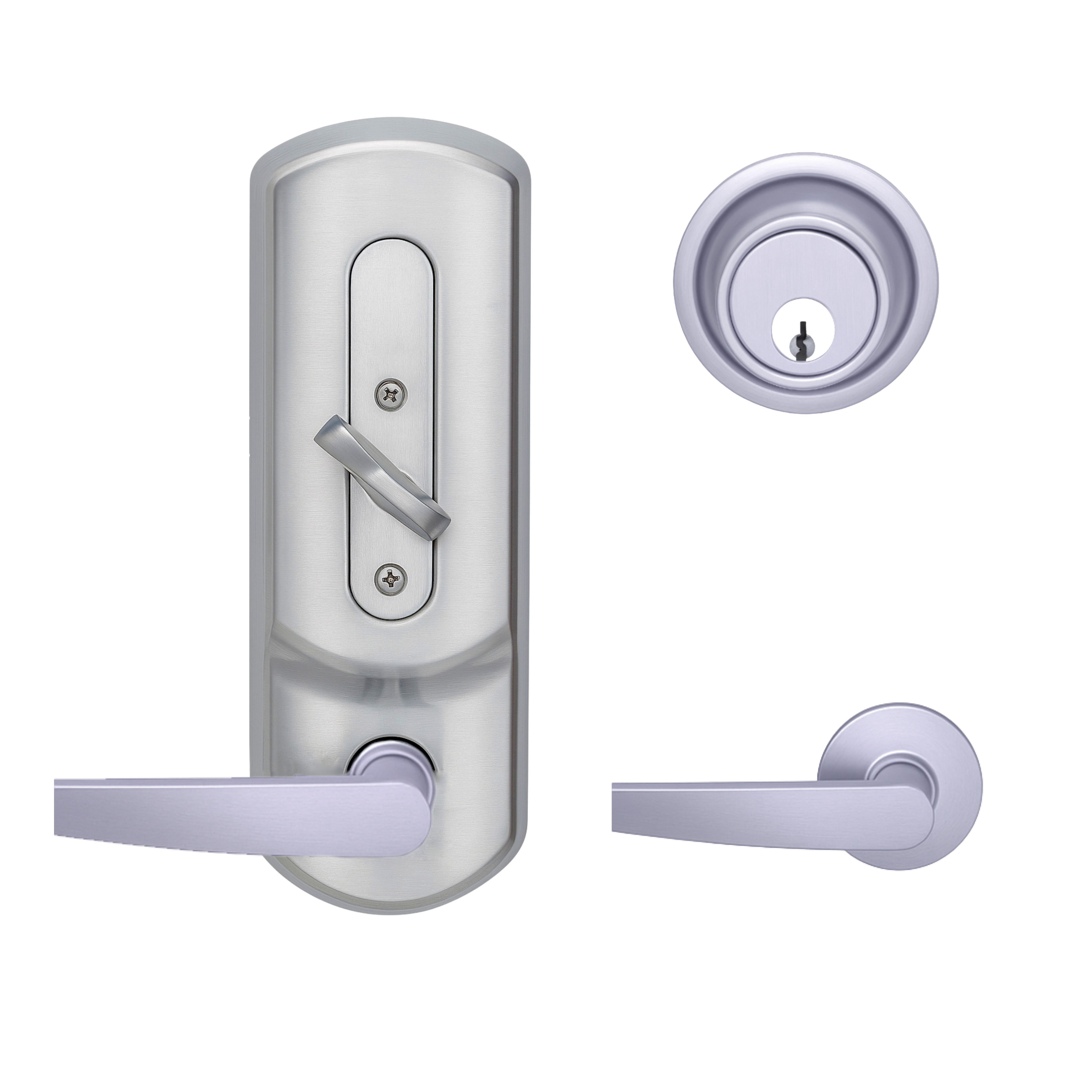

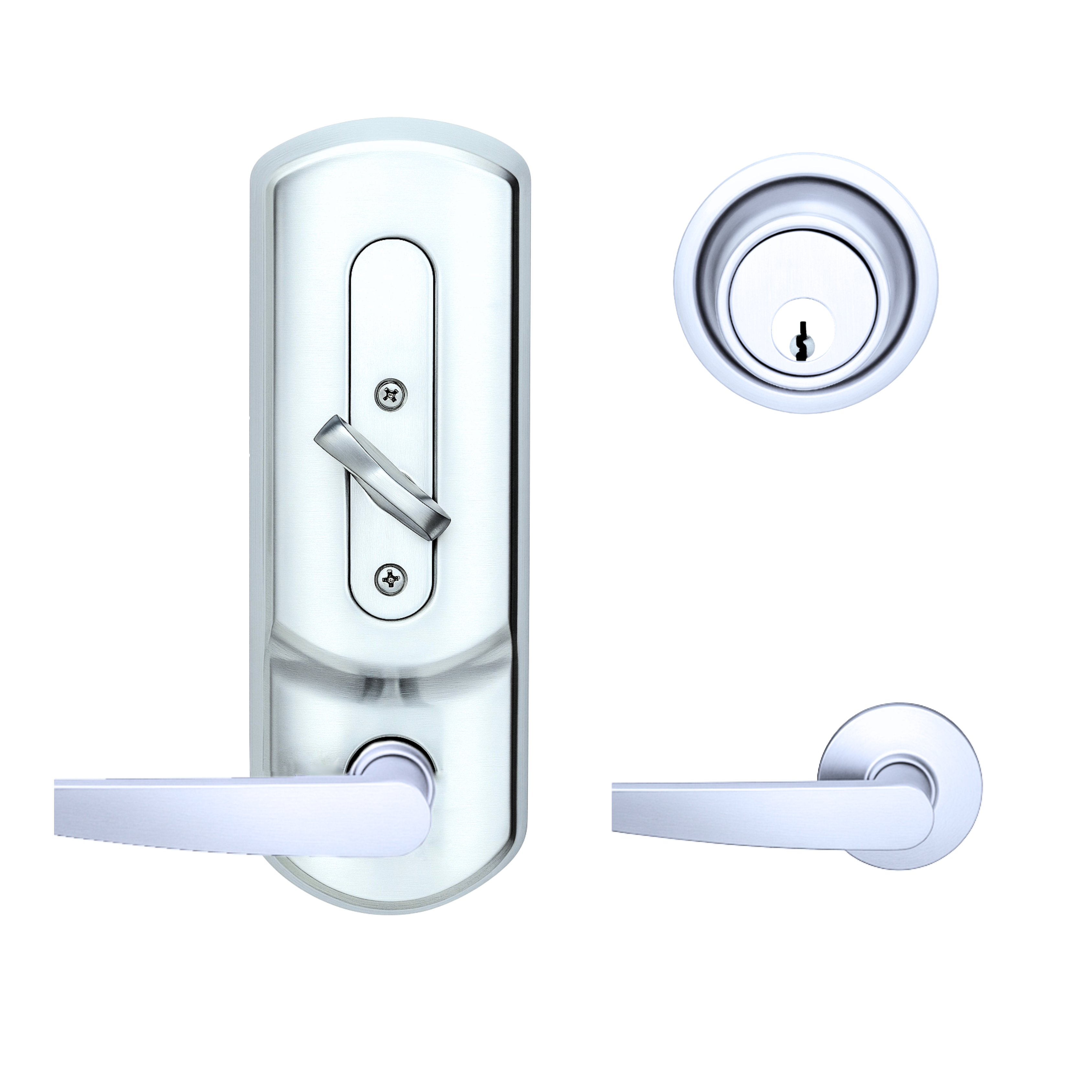

- Avalon

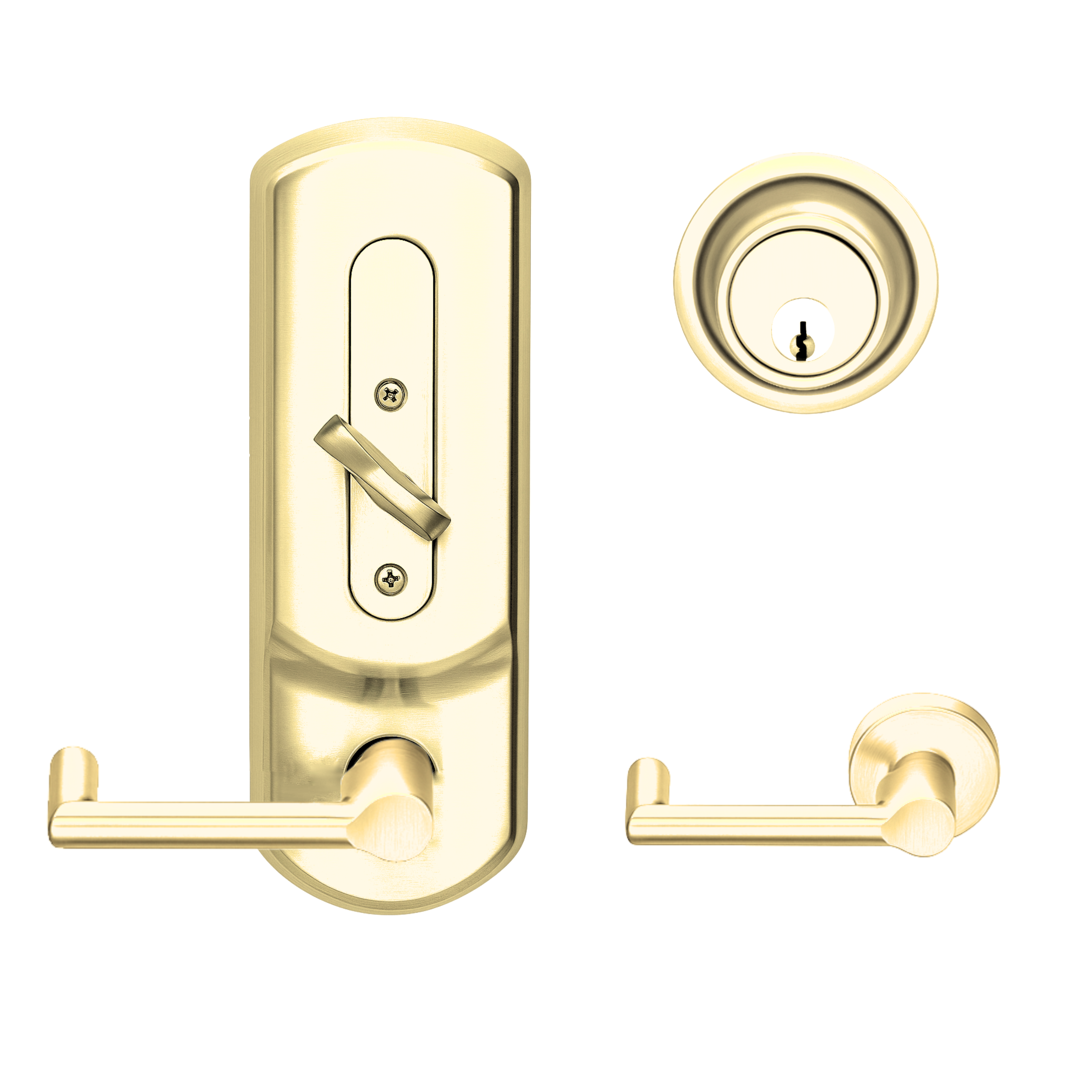

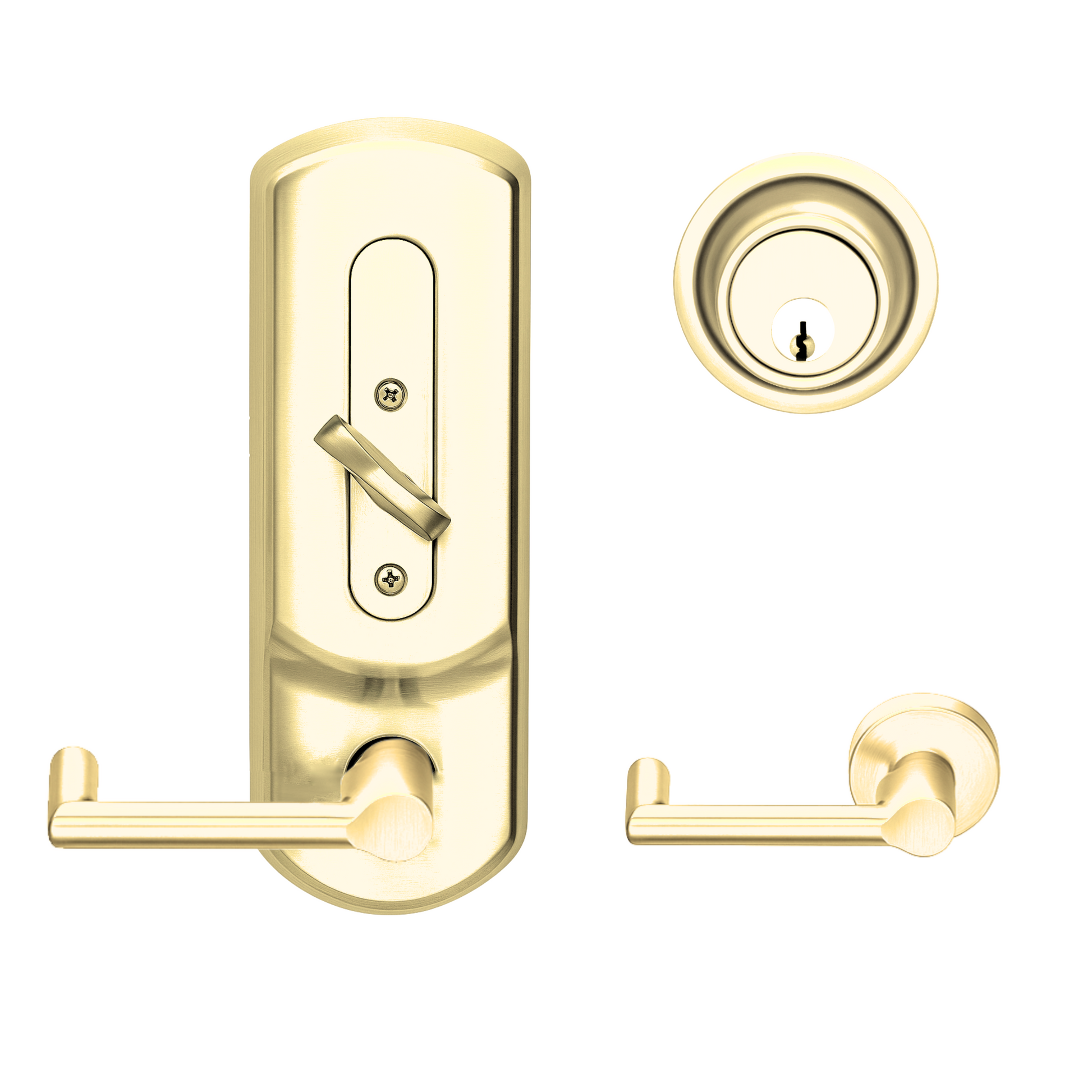

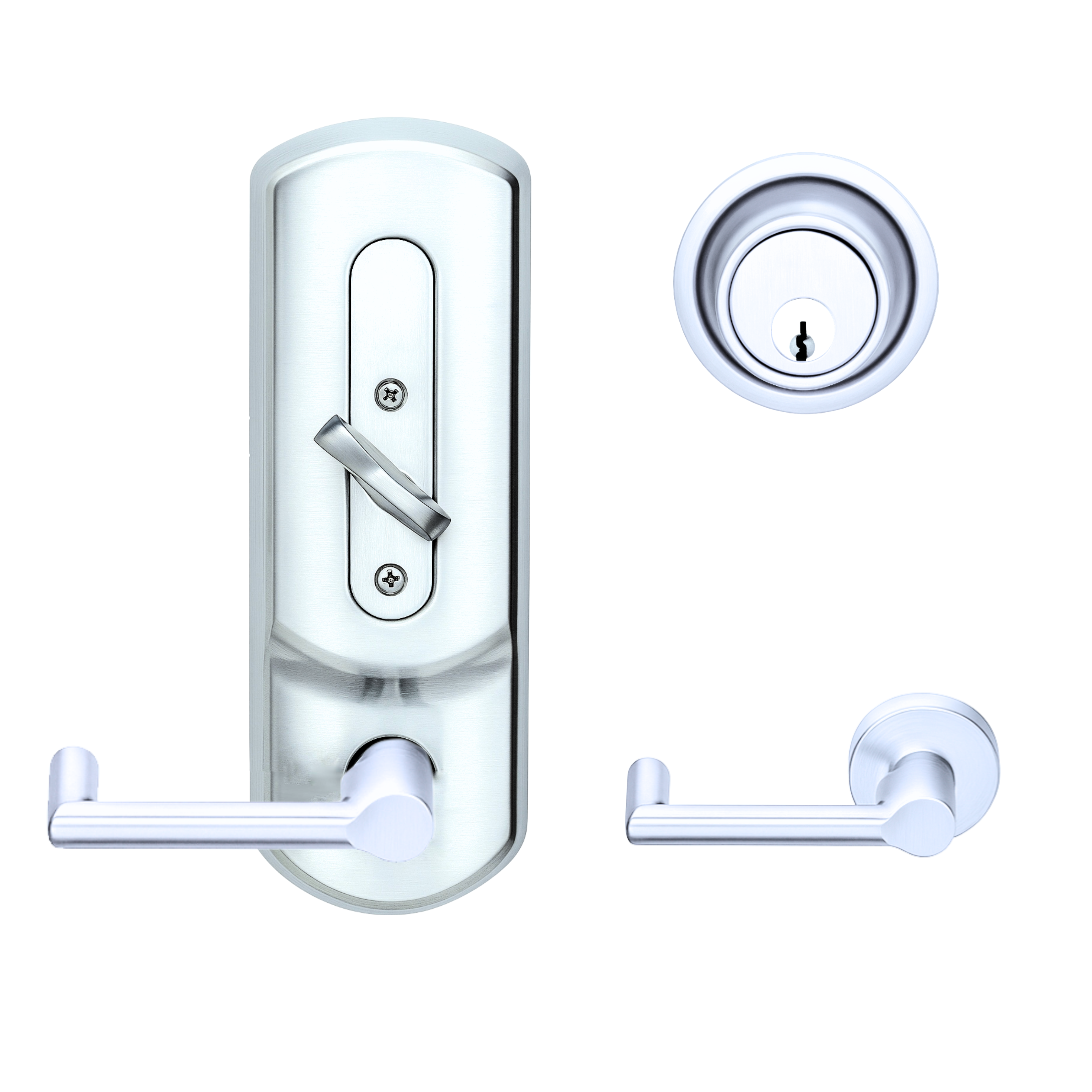

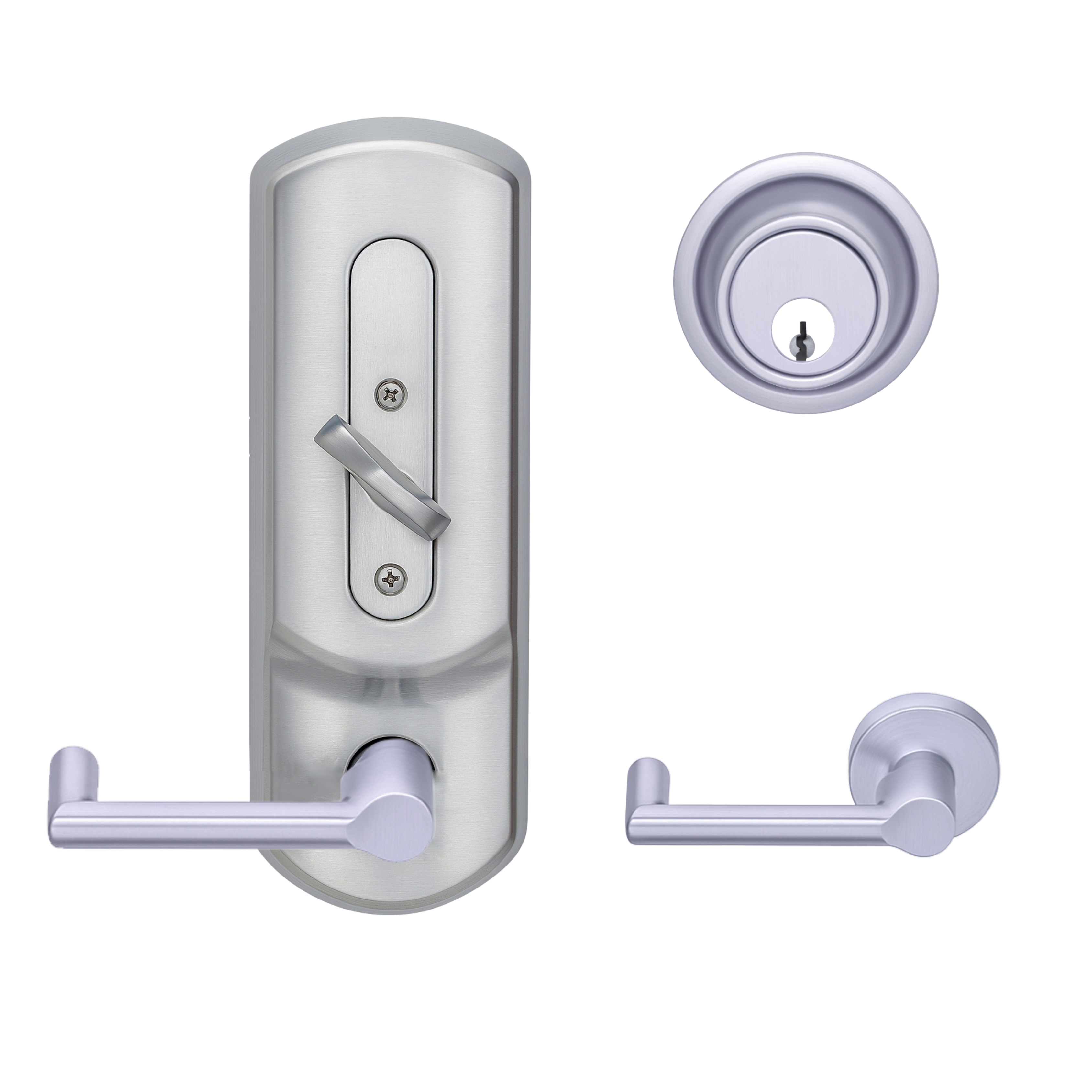

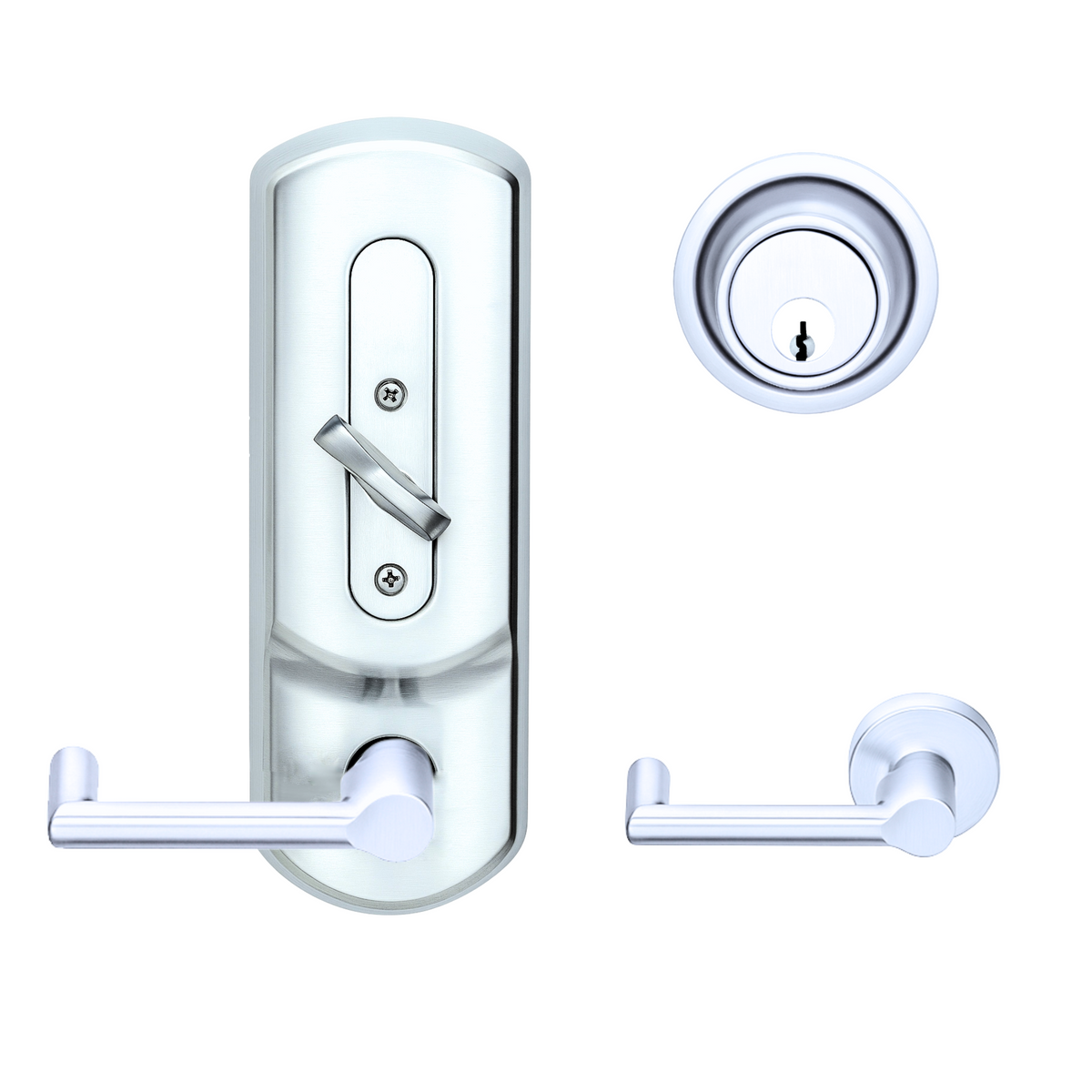

- Boardwalk

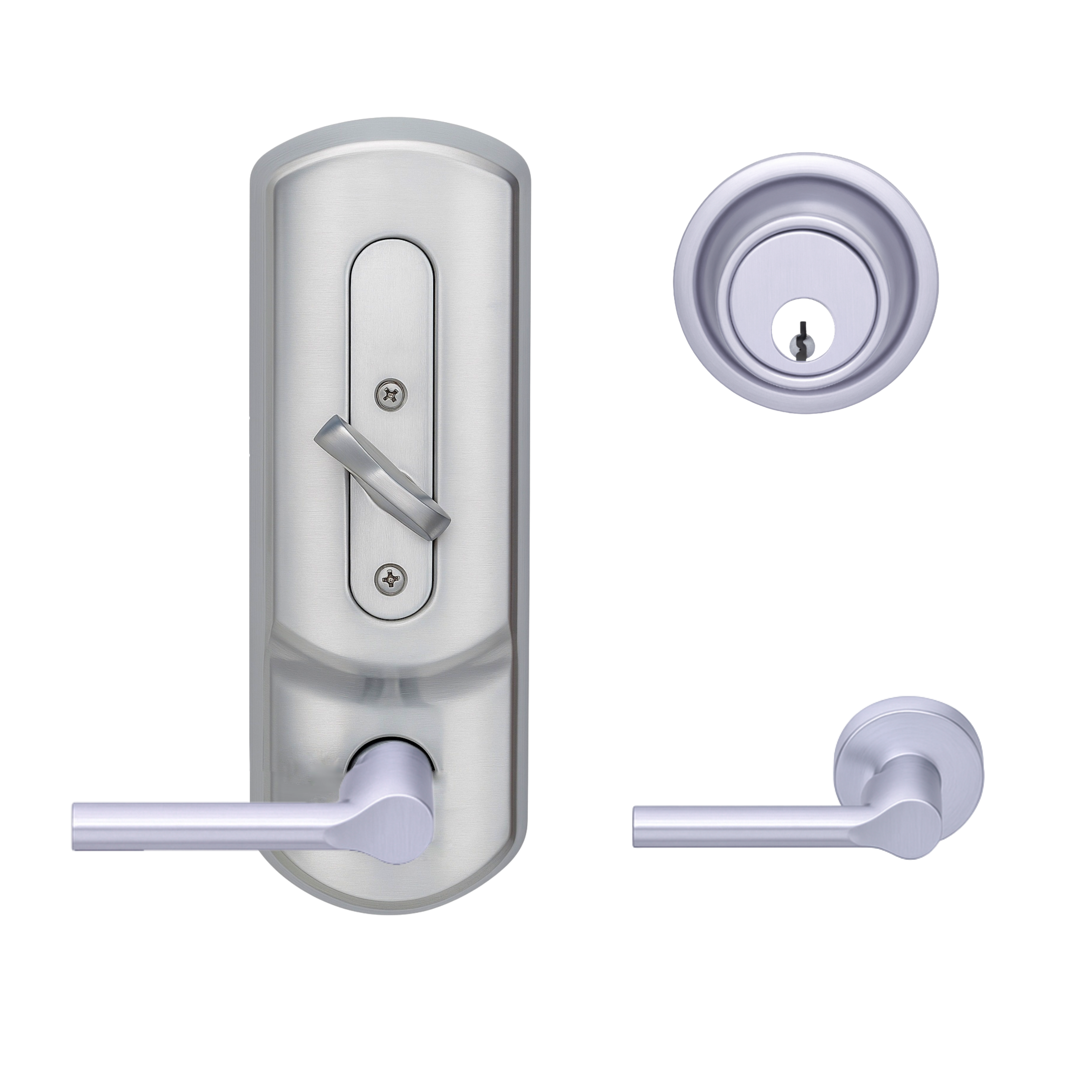

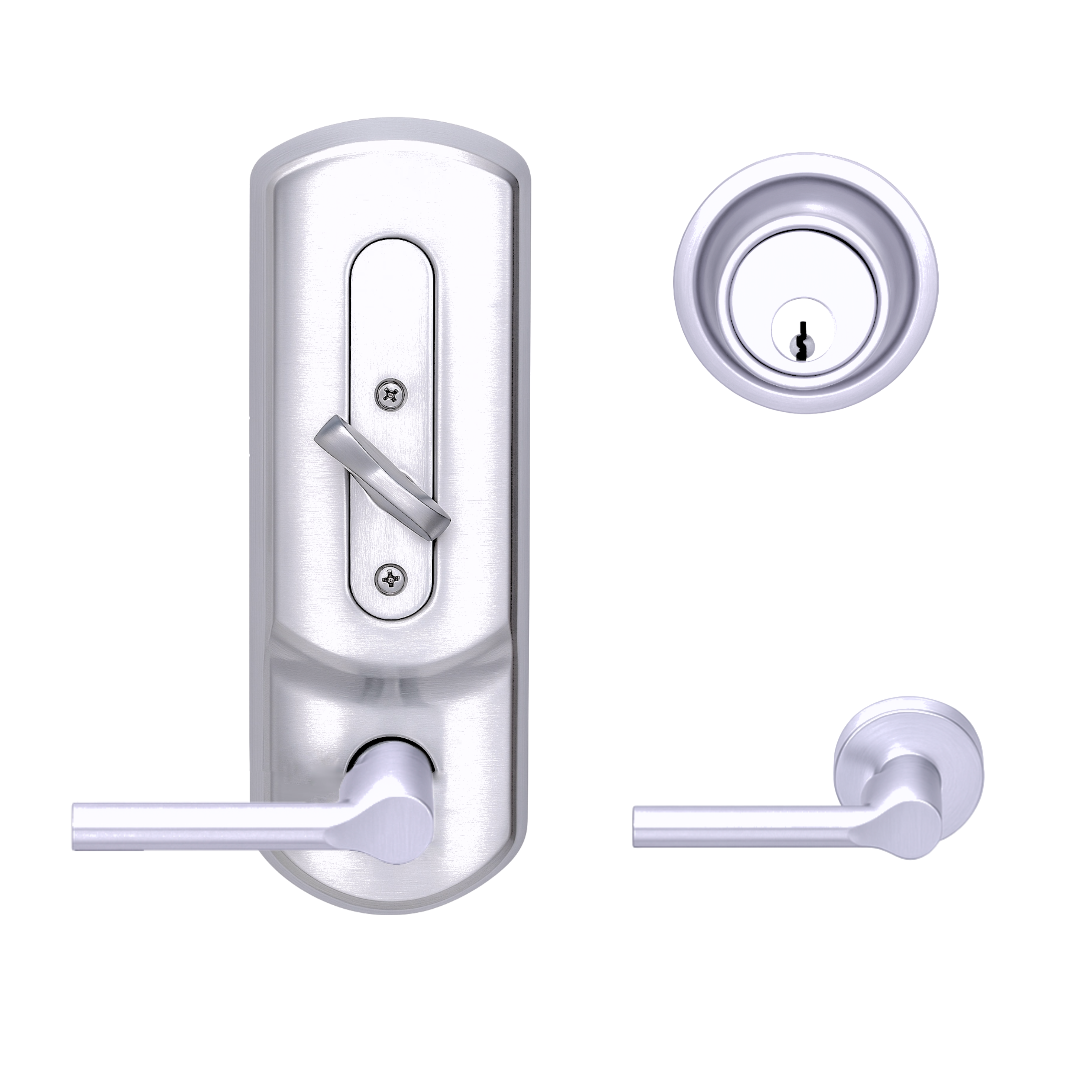

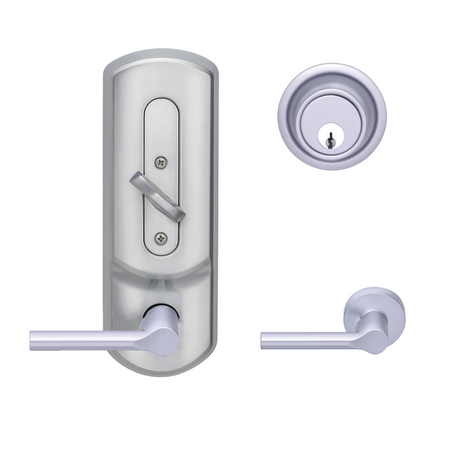

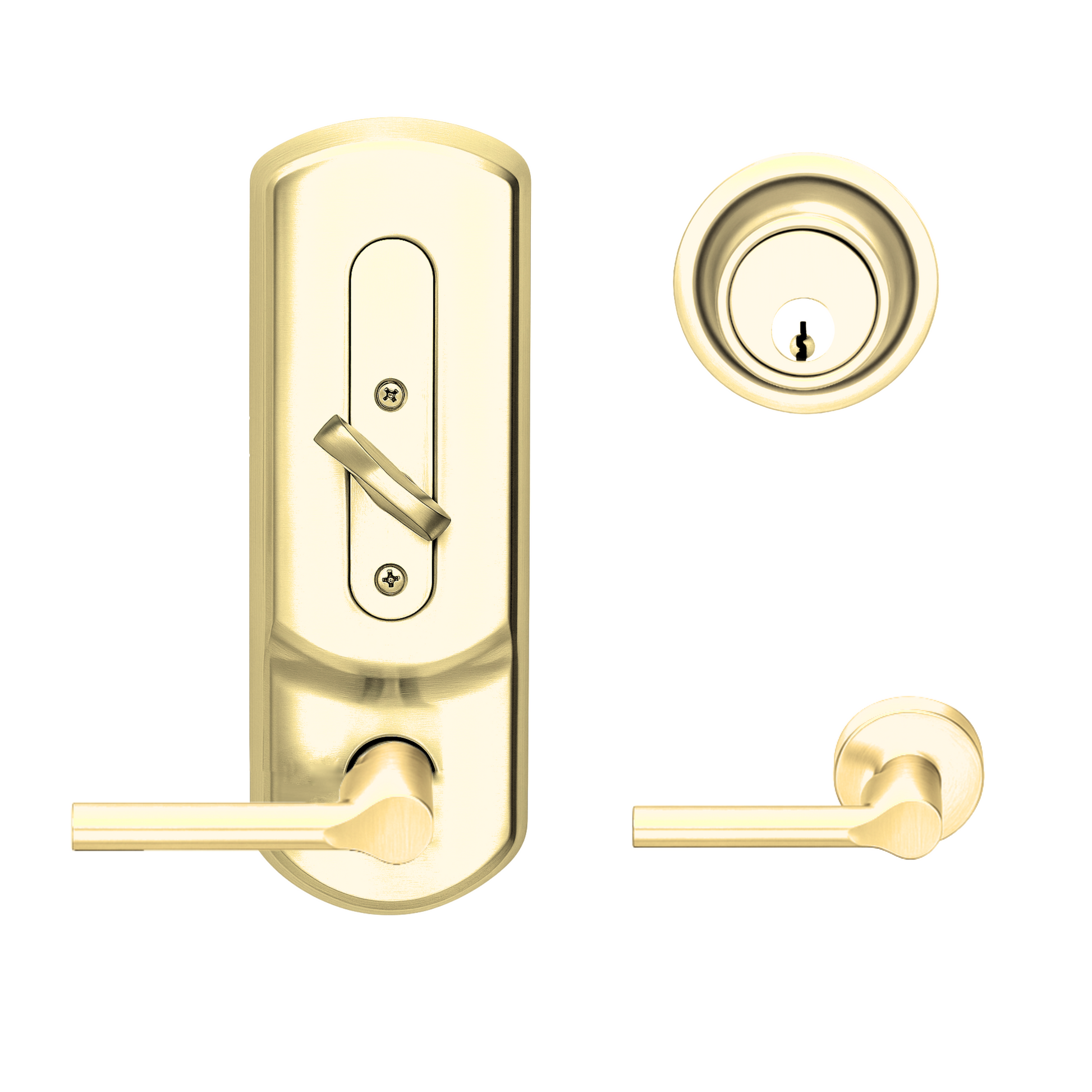

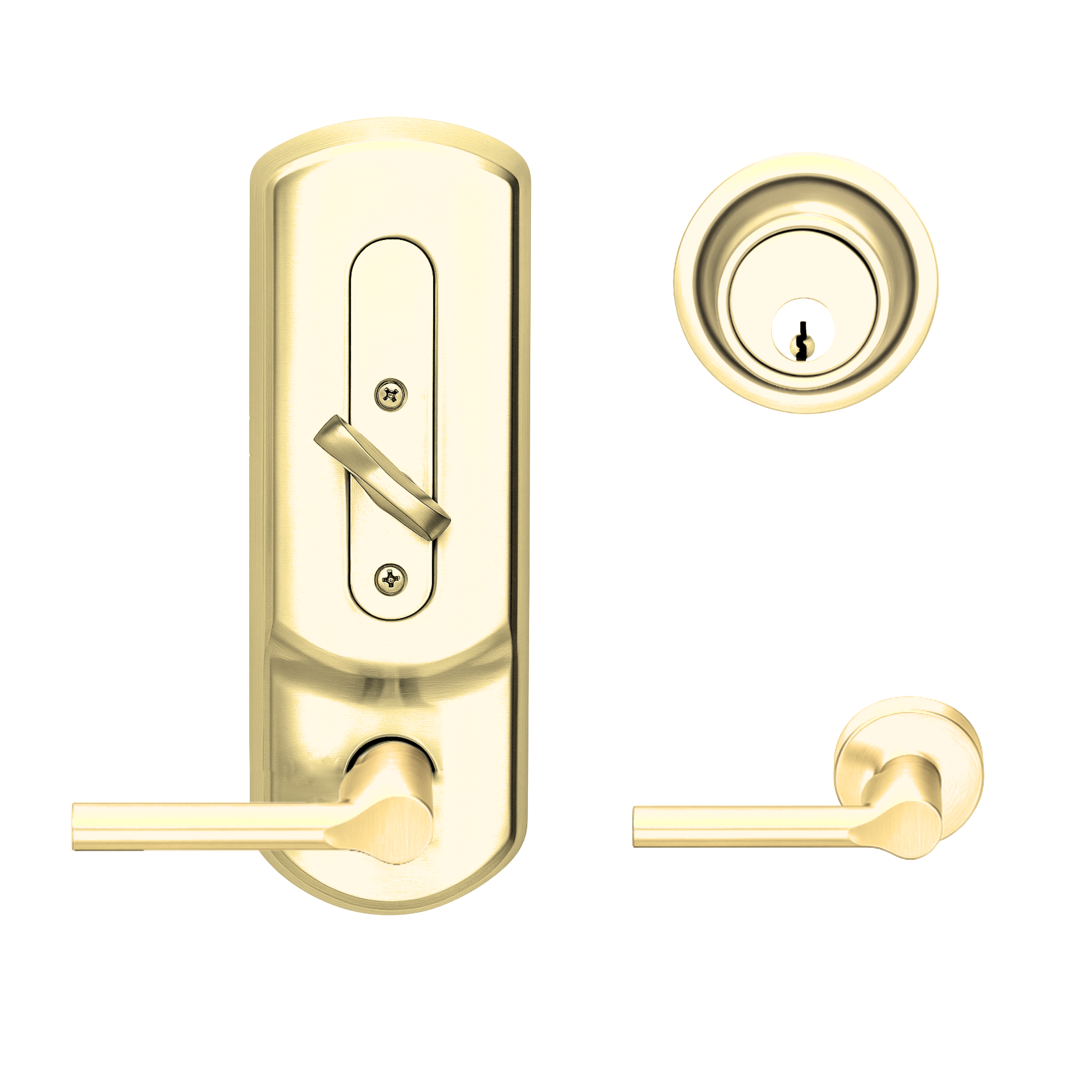

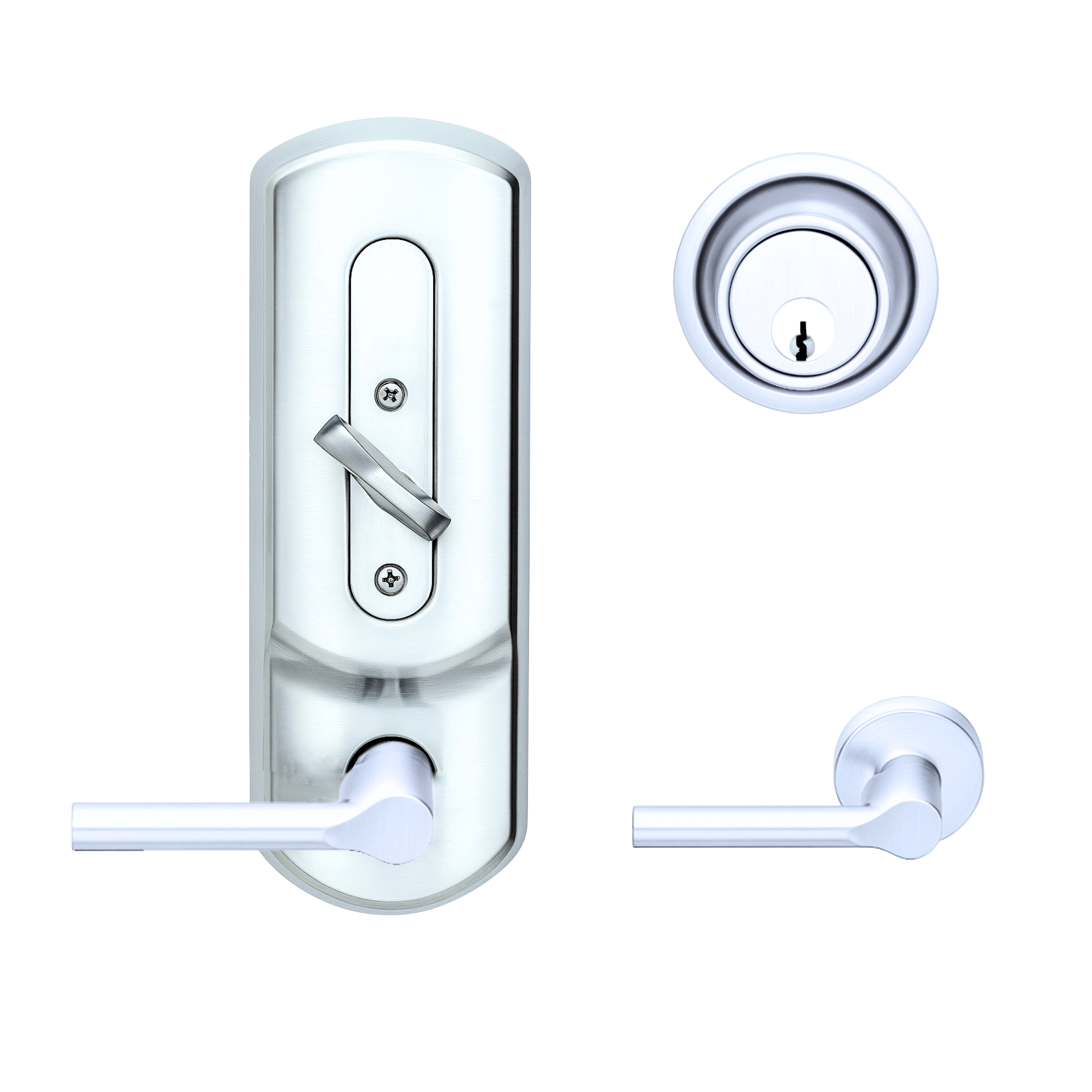

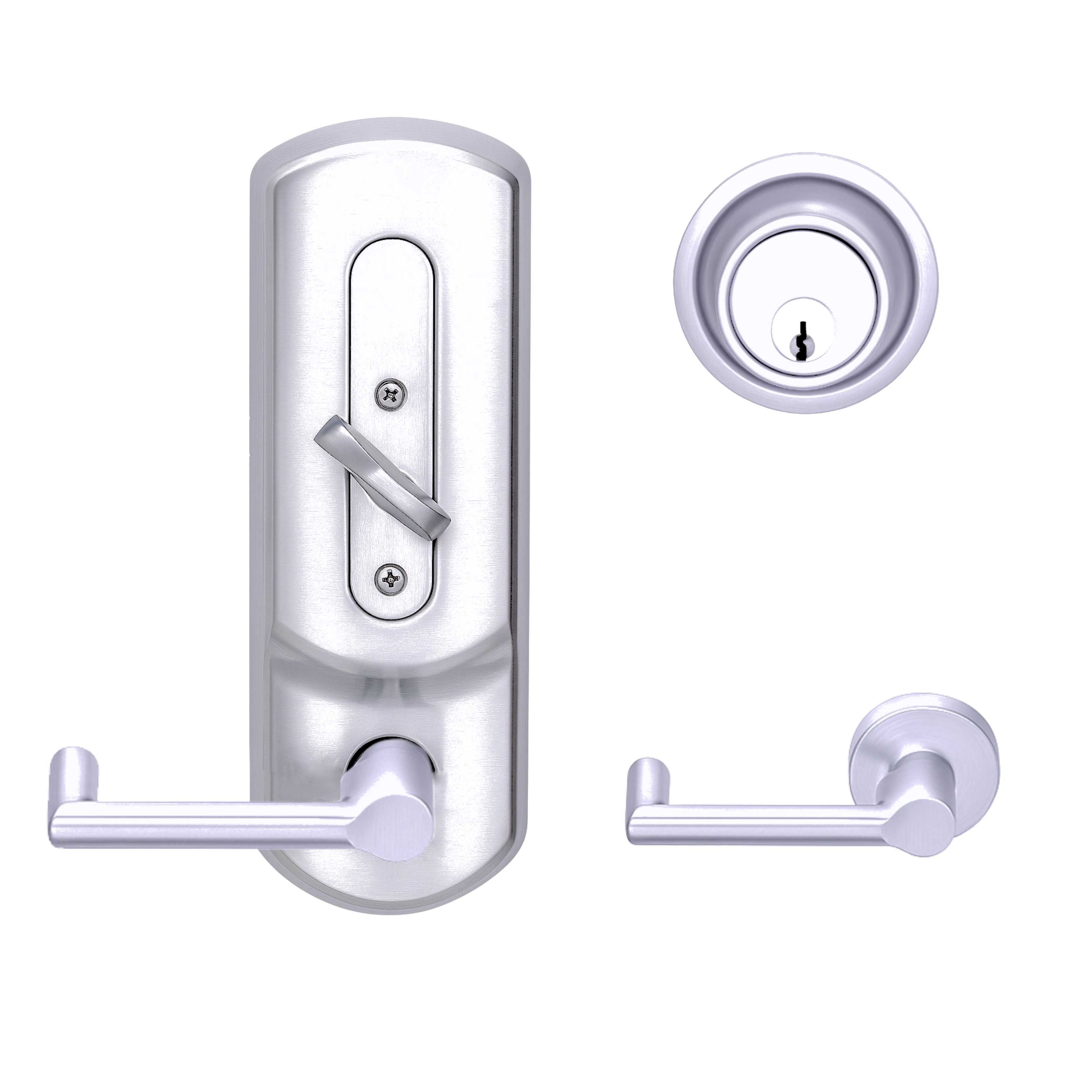

- Broadway

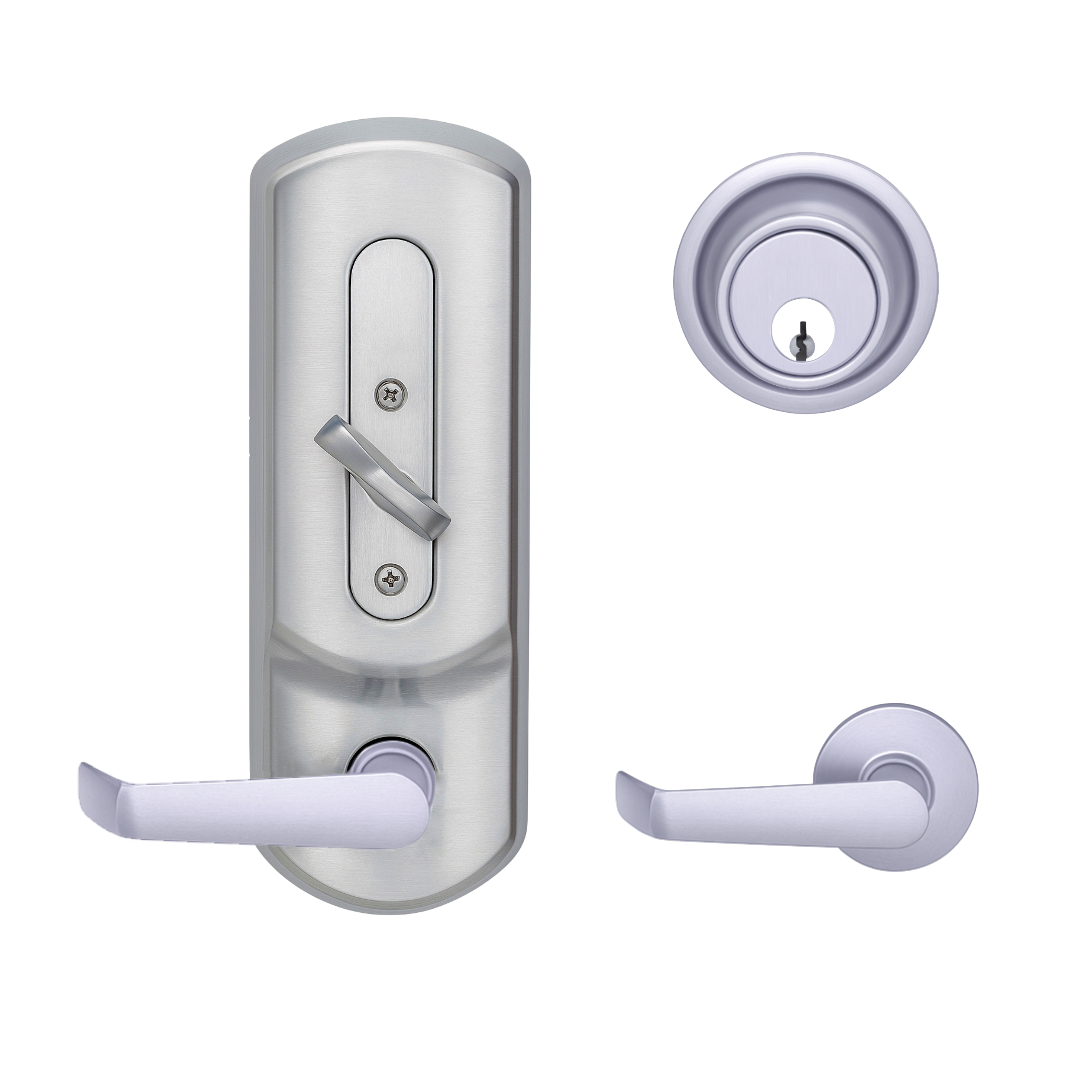

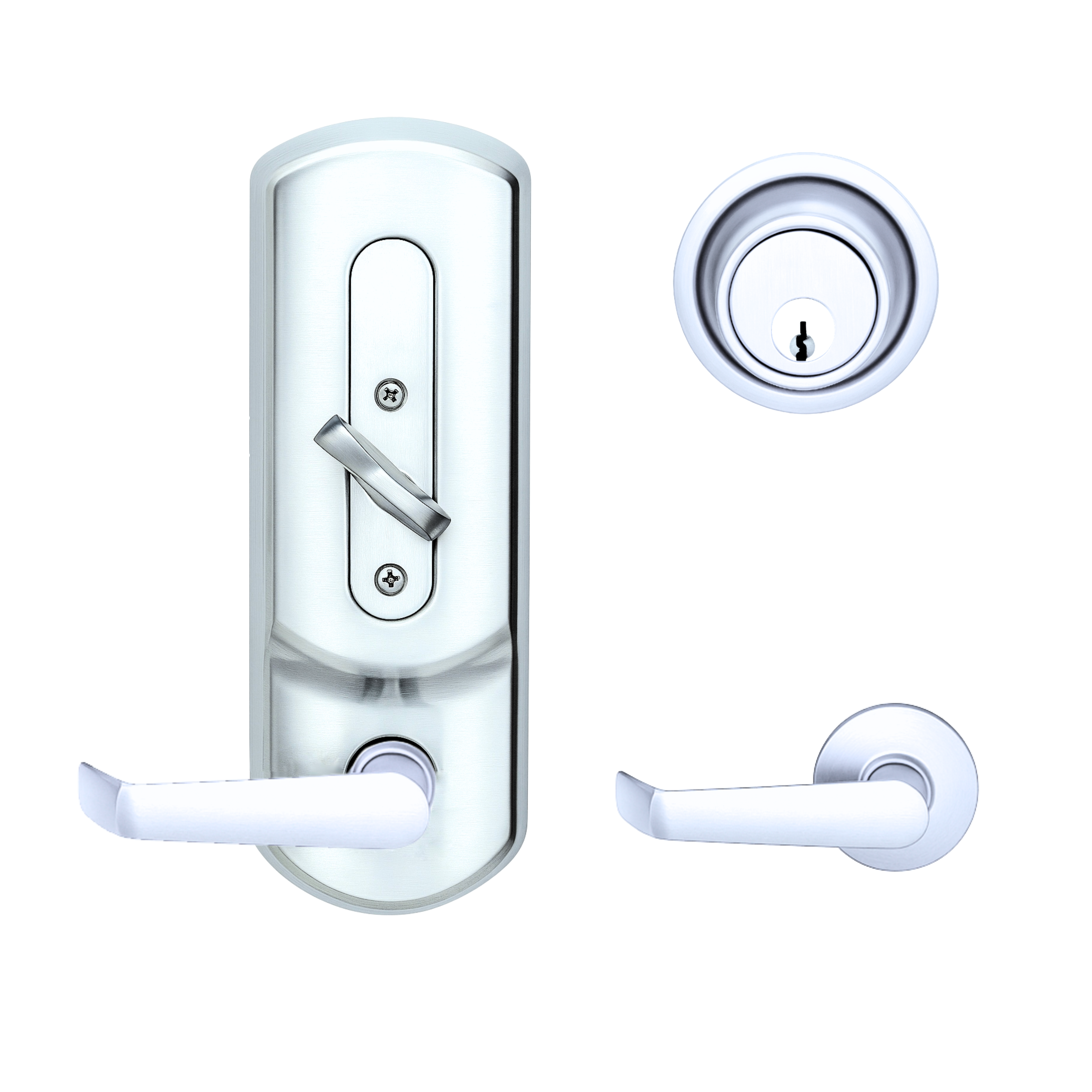

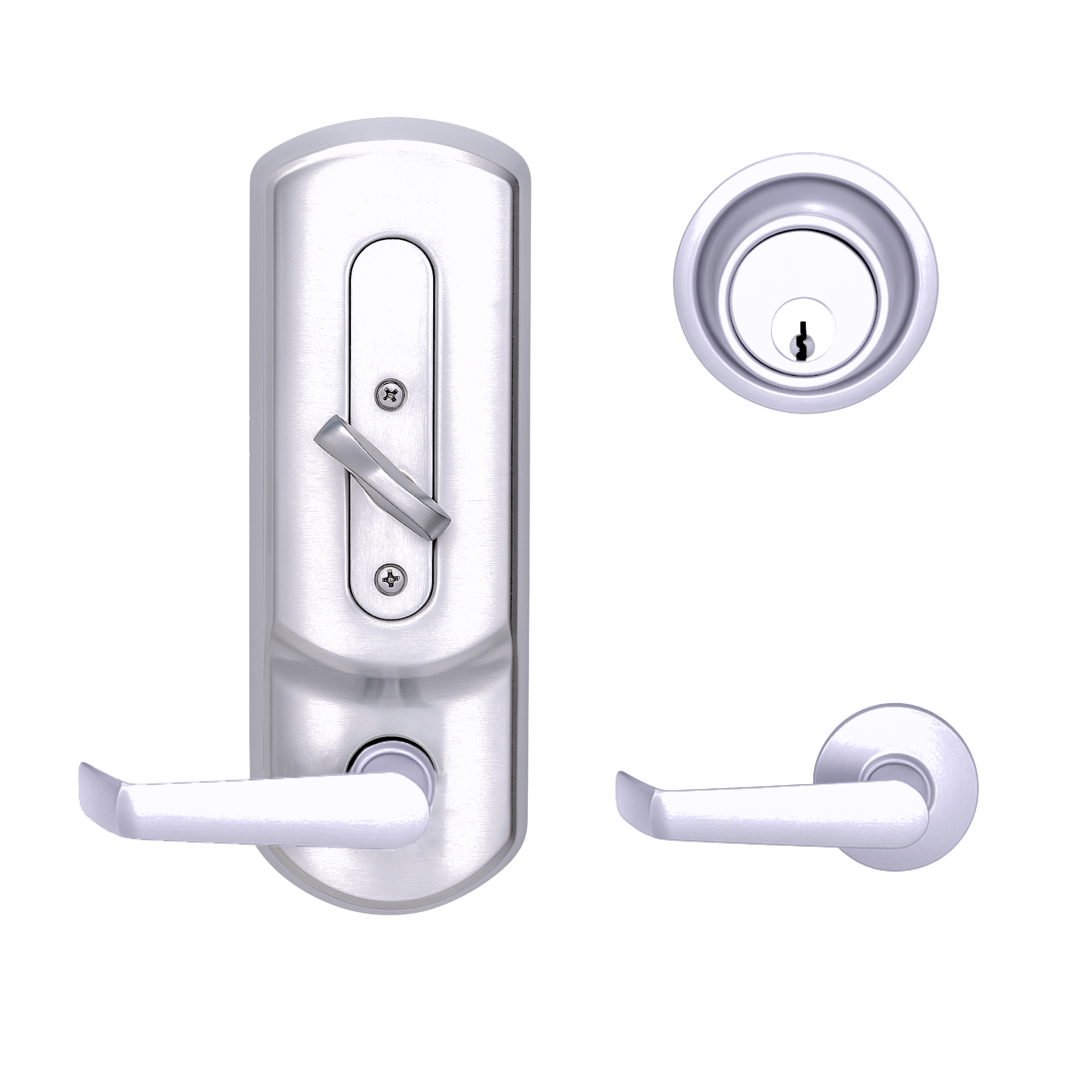

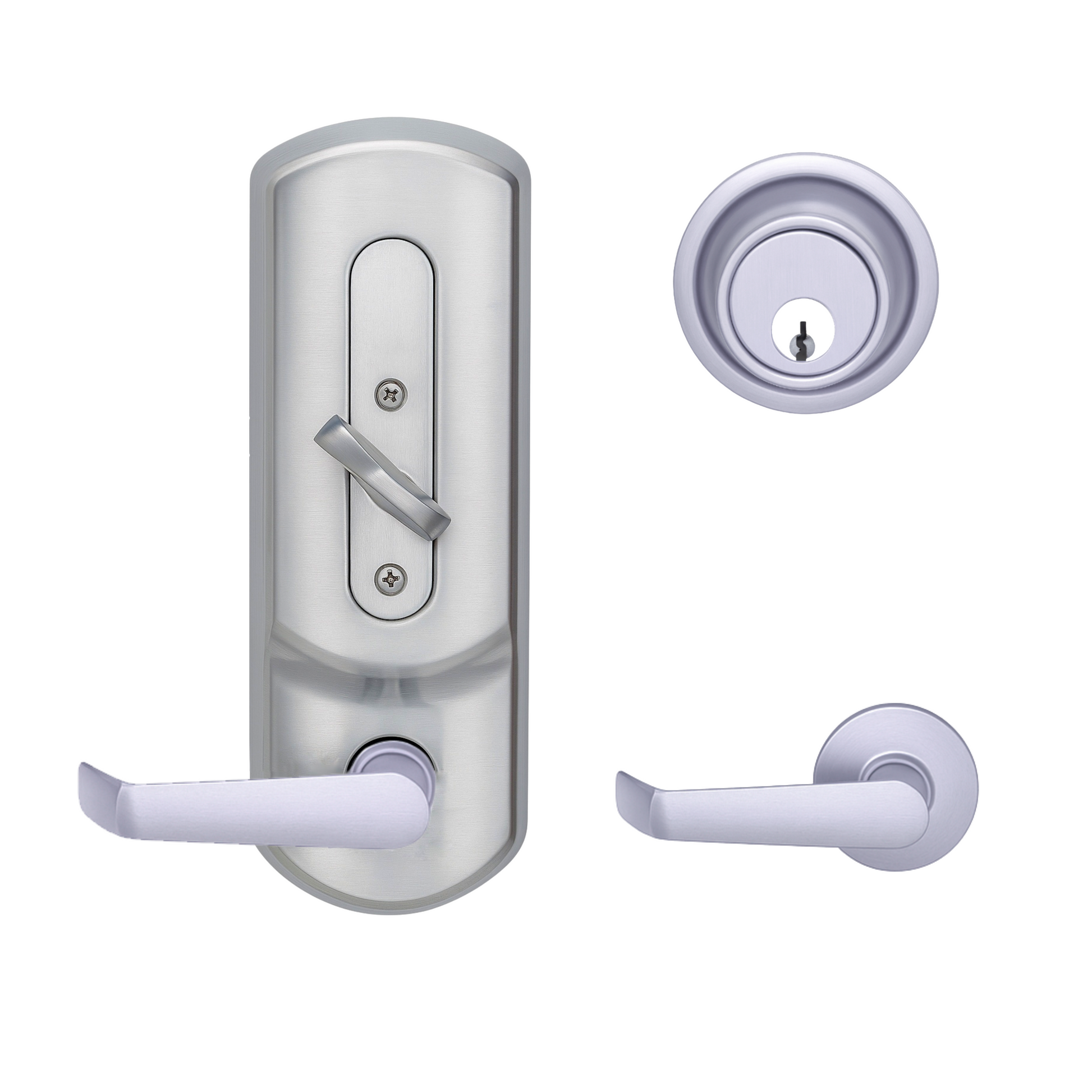

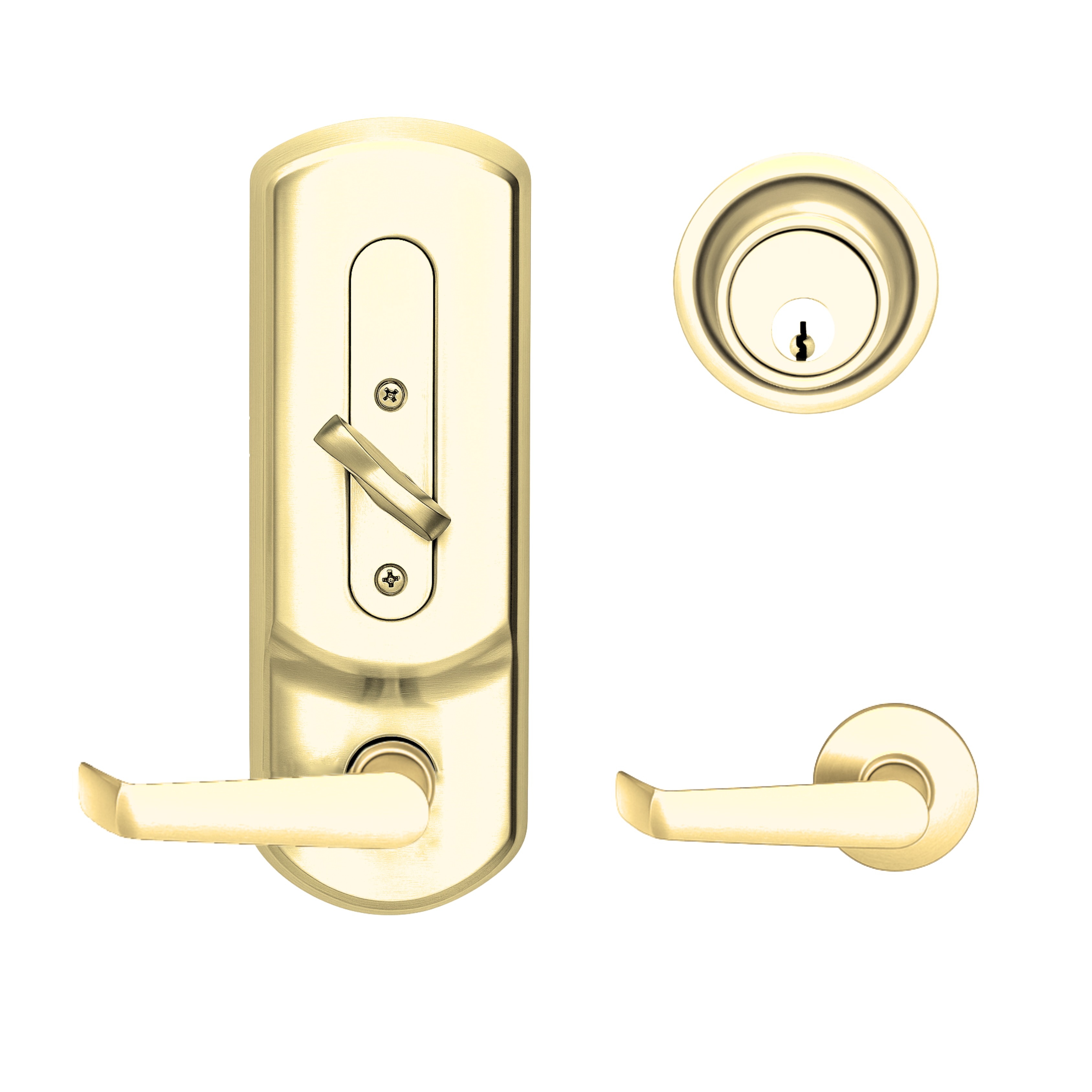

- Dane

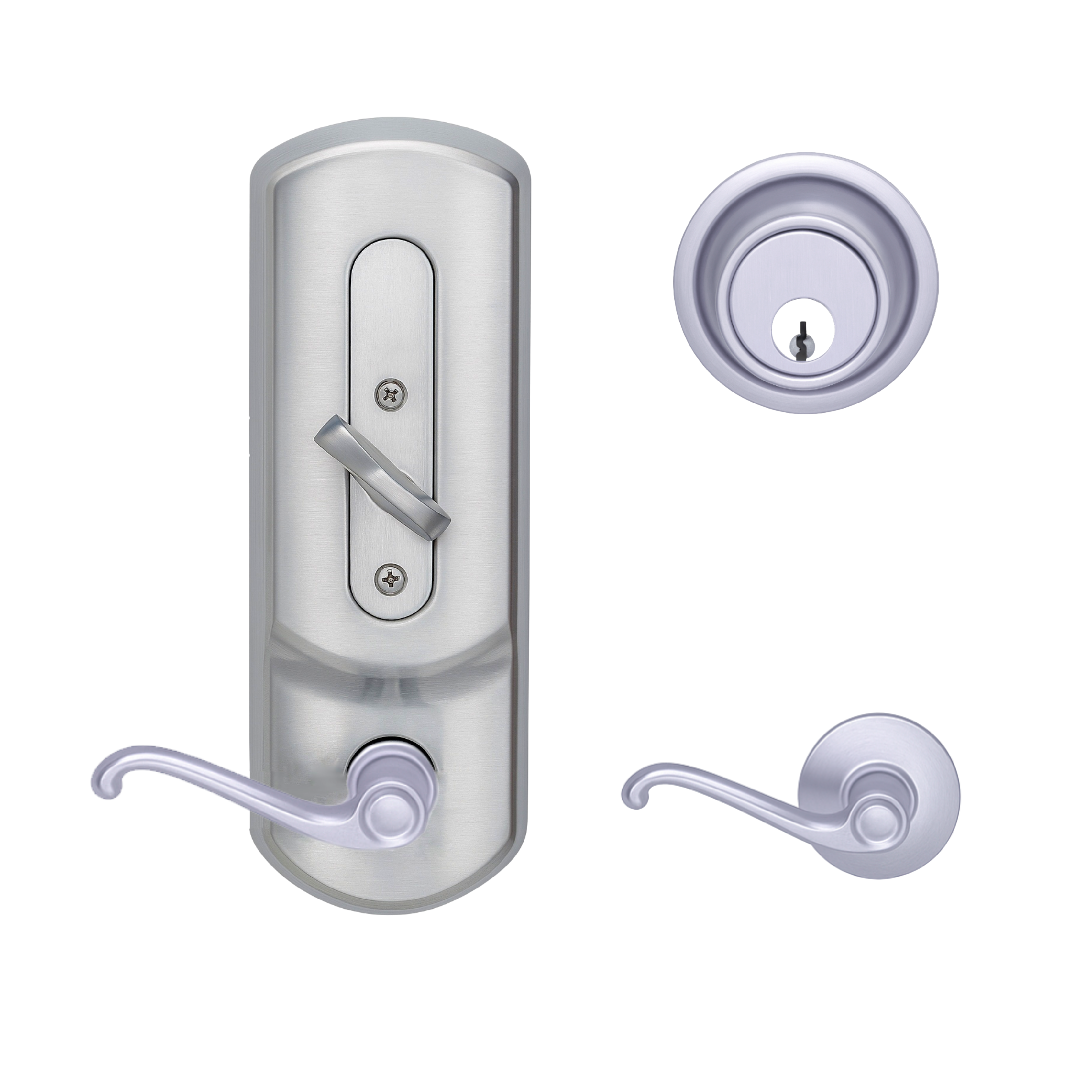

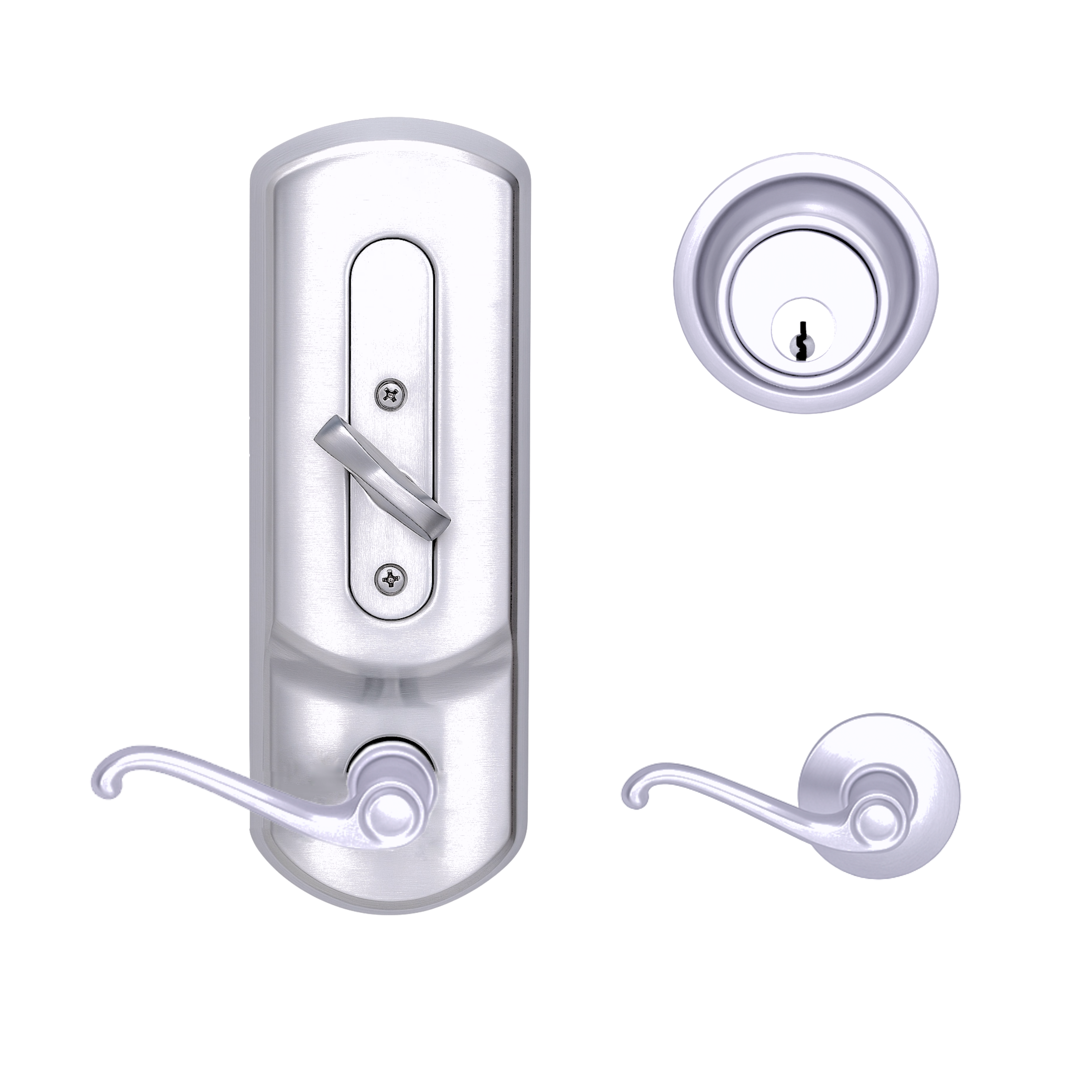

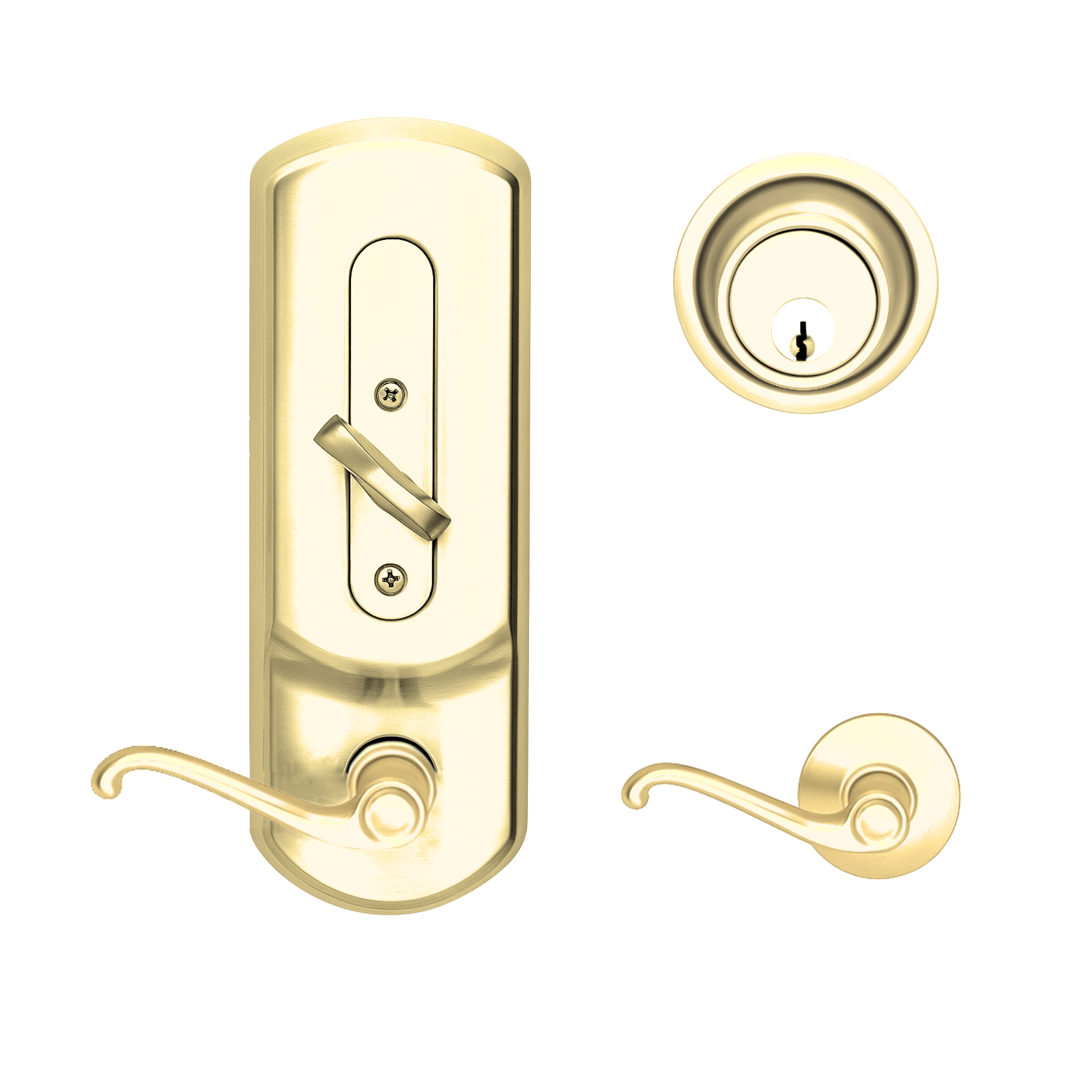

- Flair

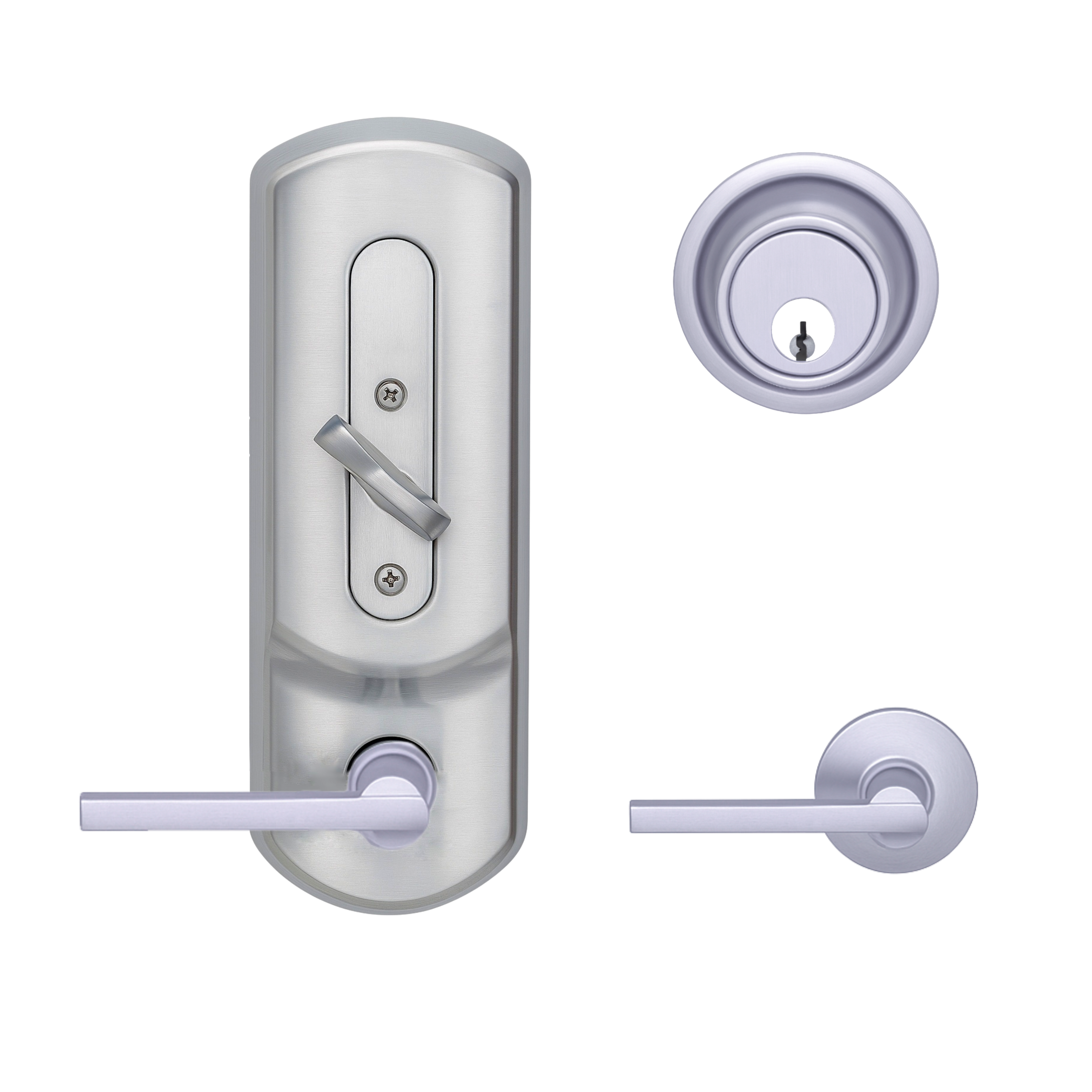

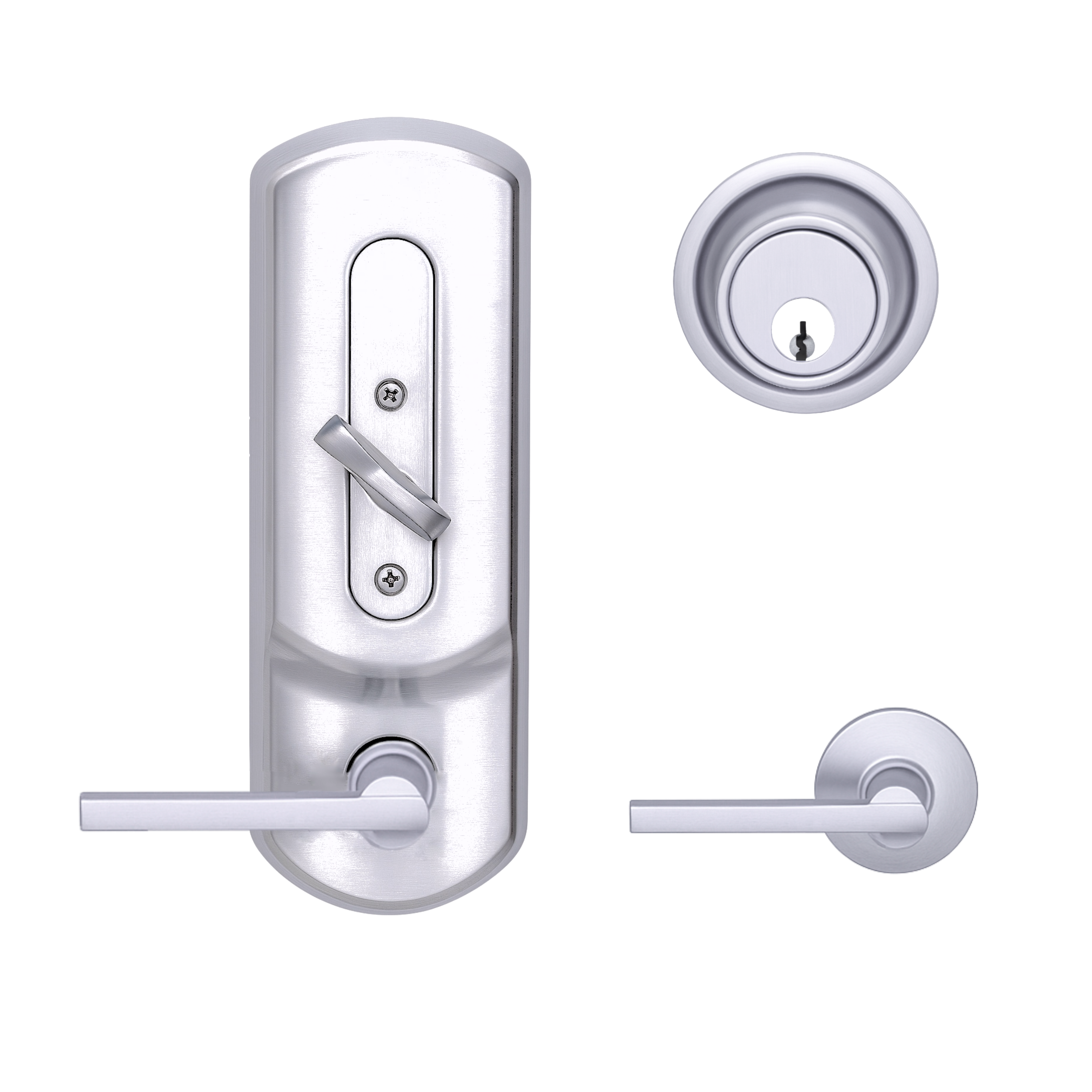

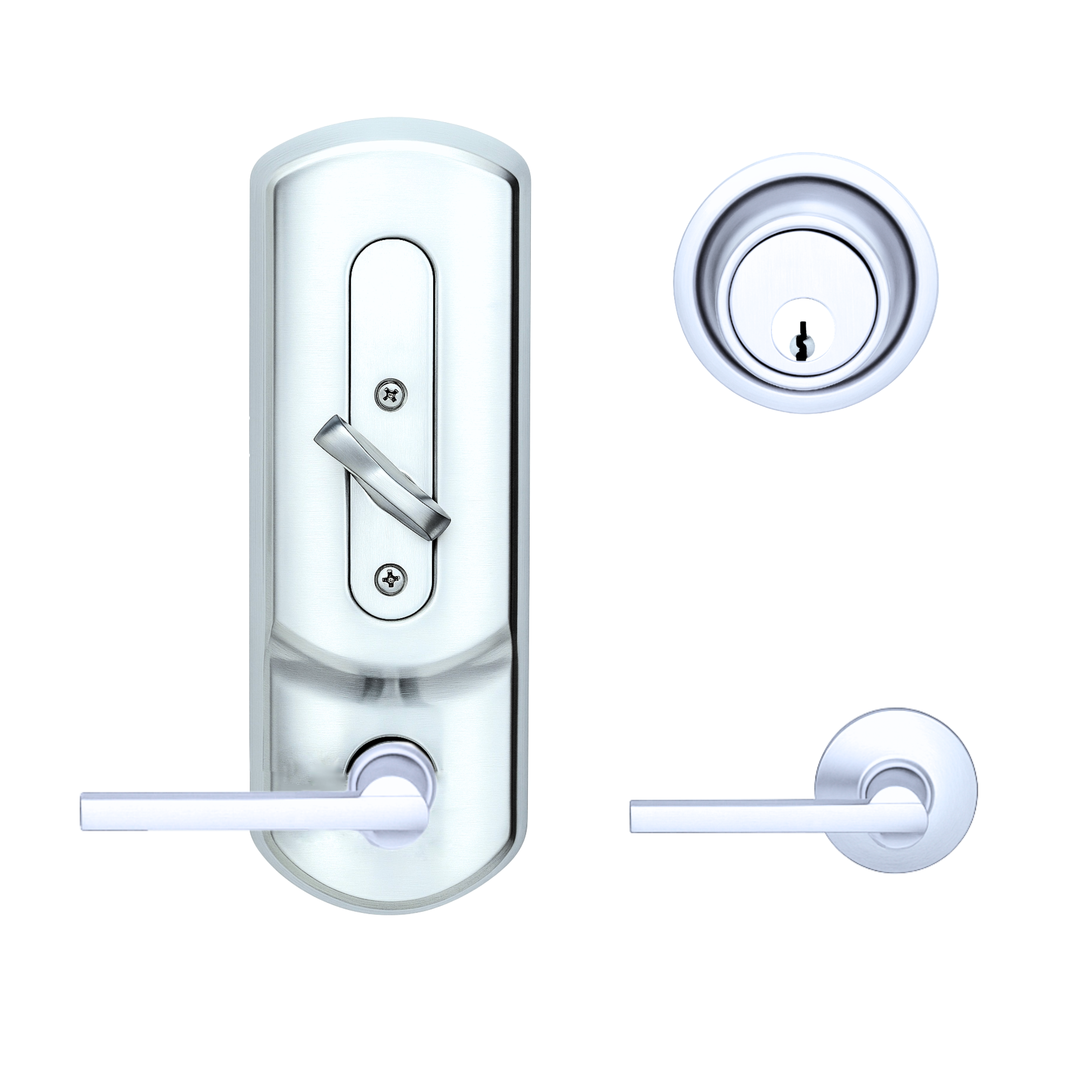

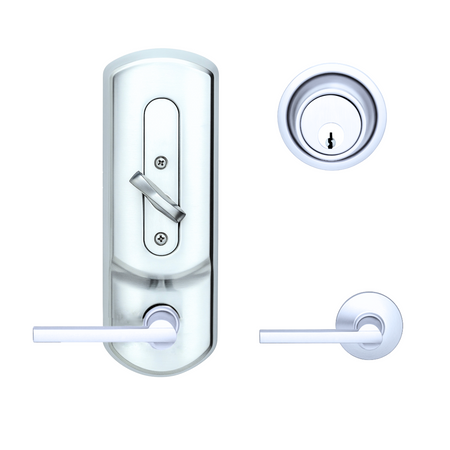

- Latitude

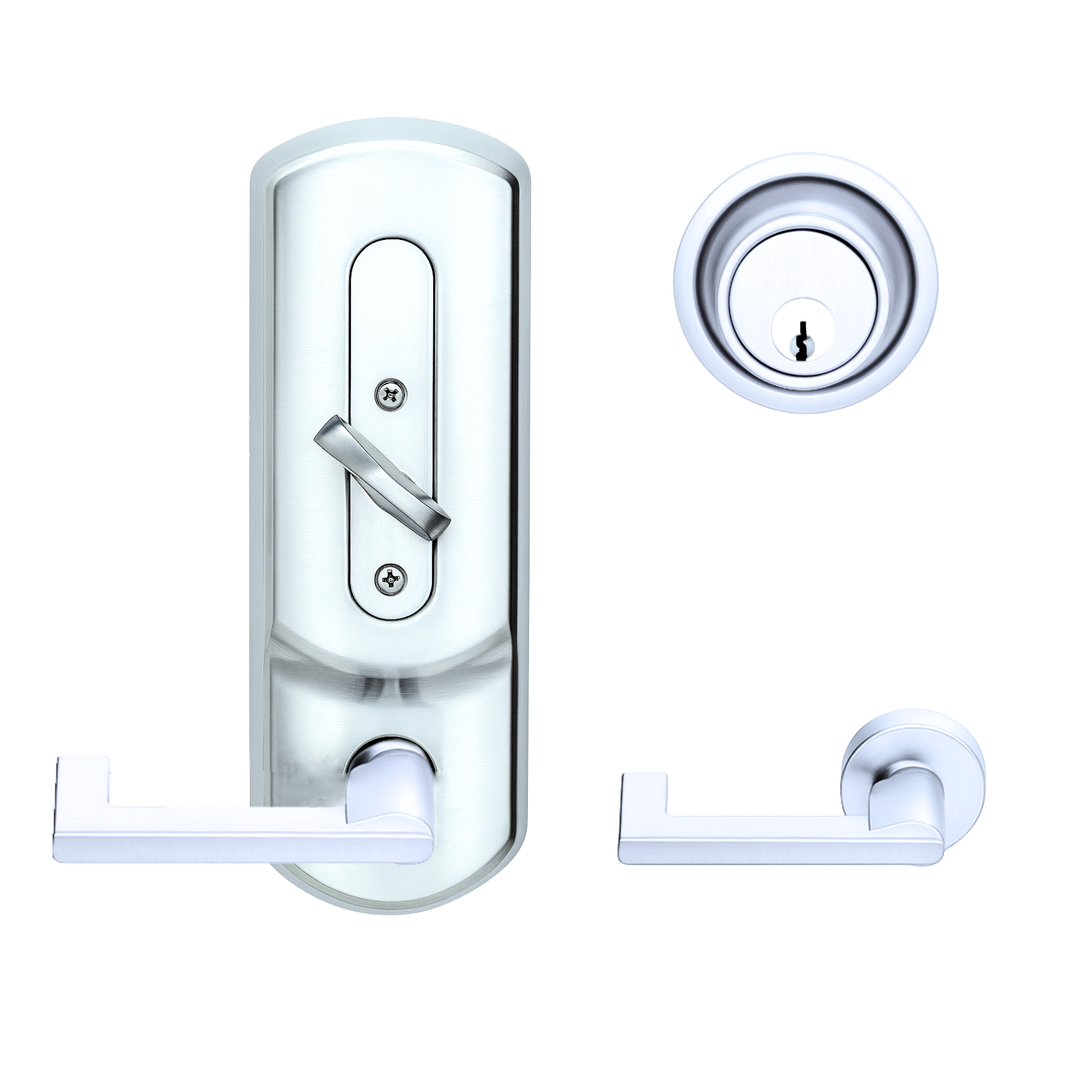

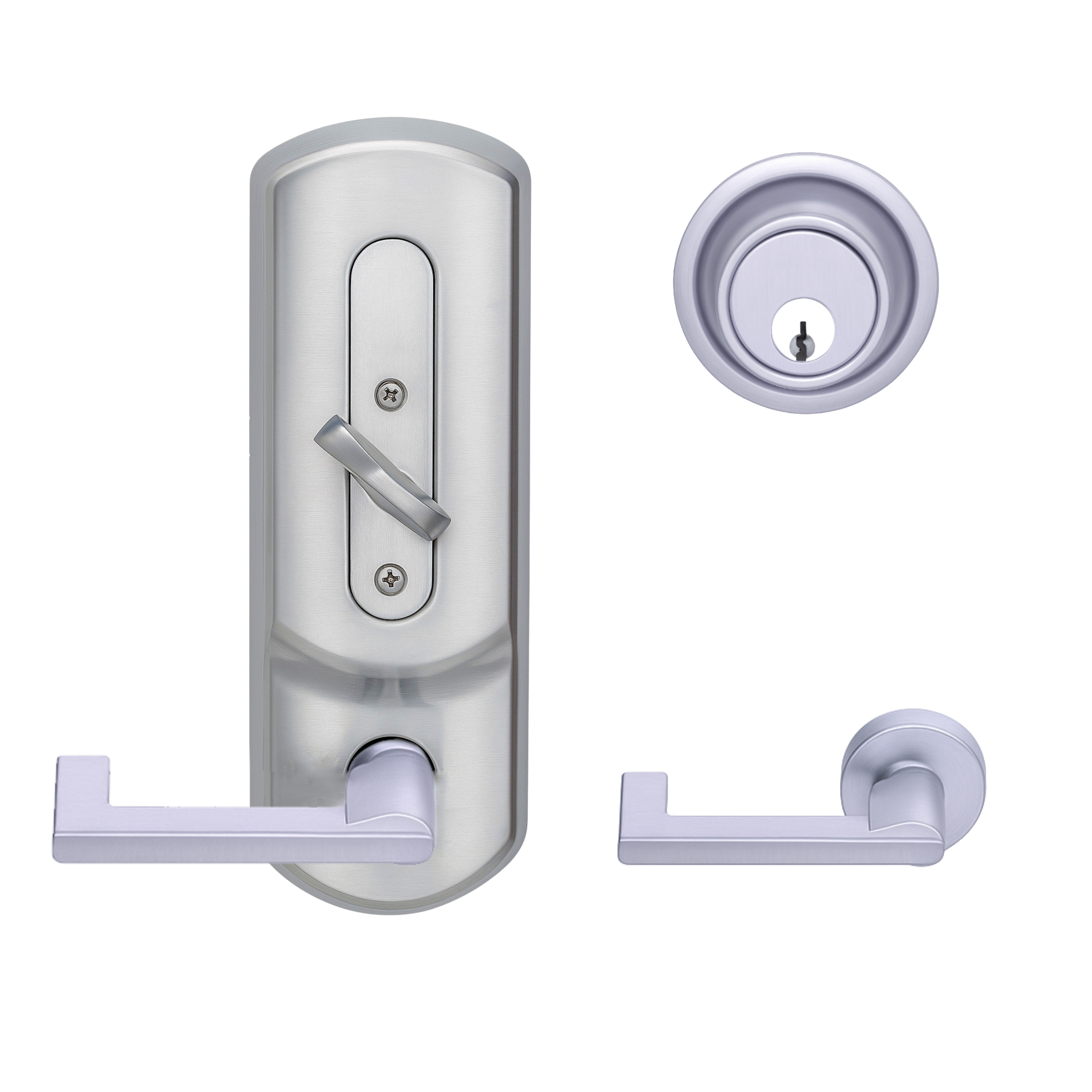

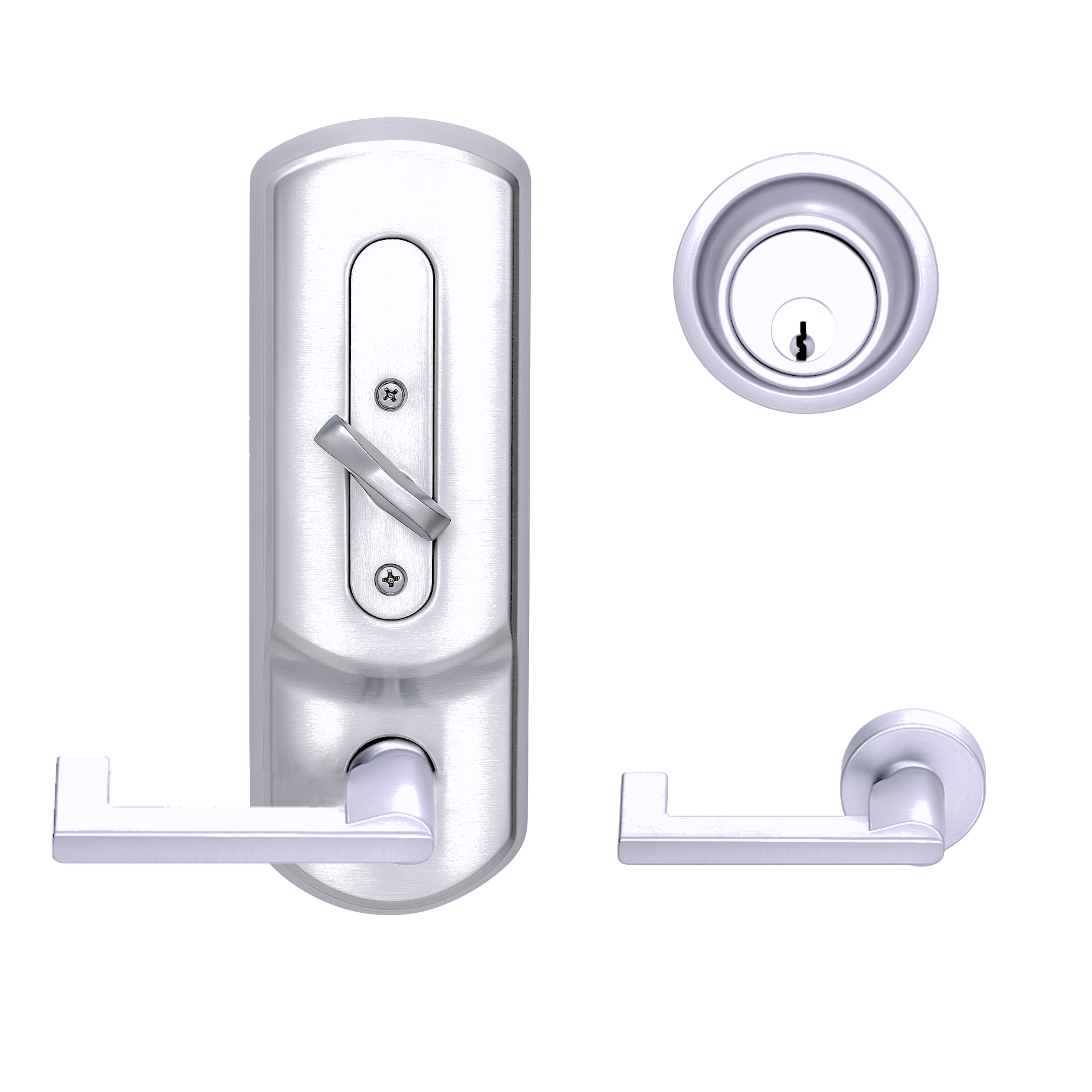

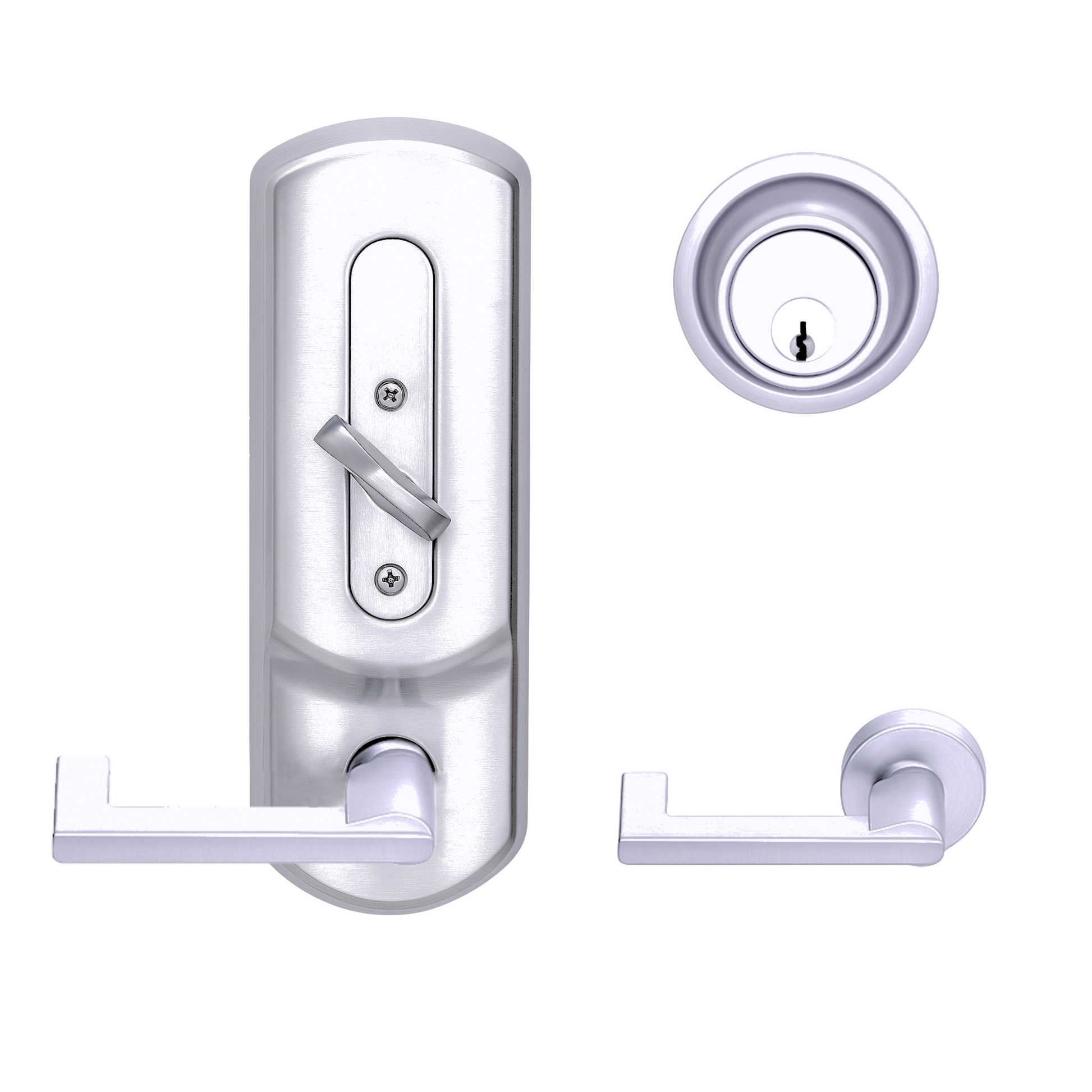

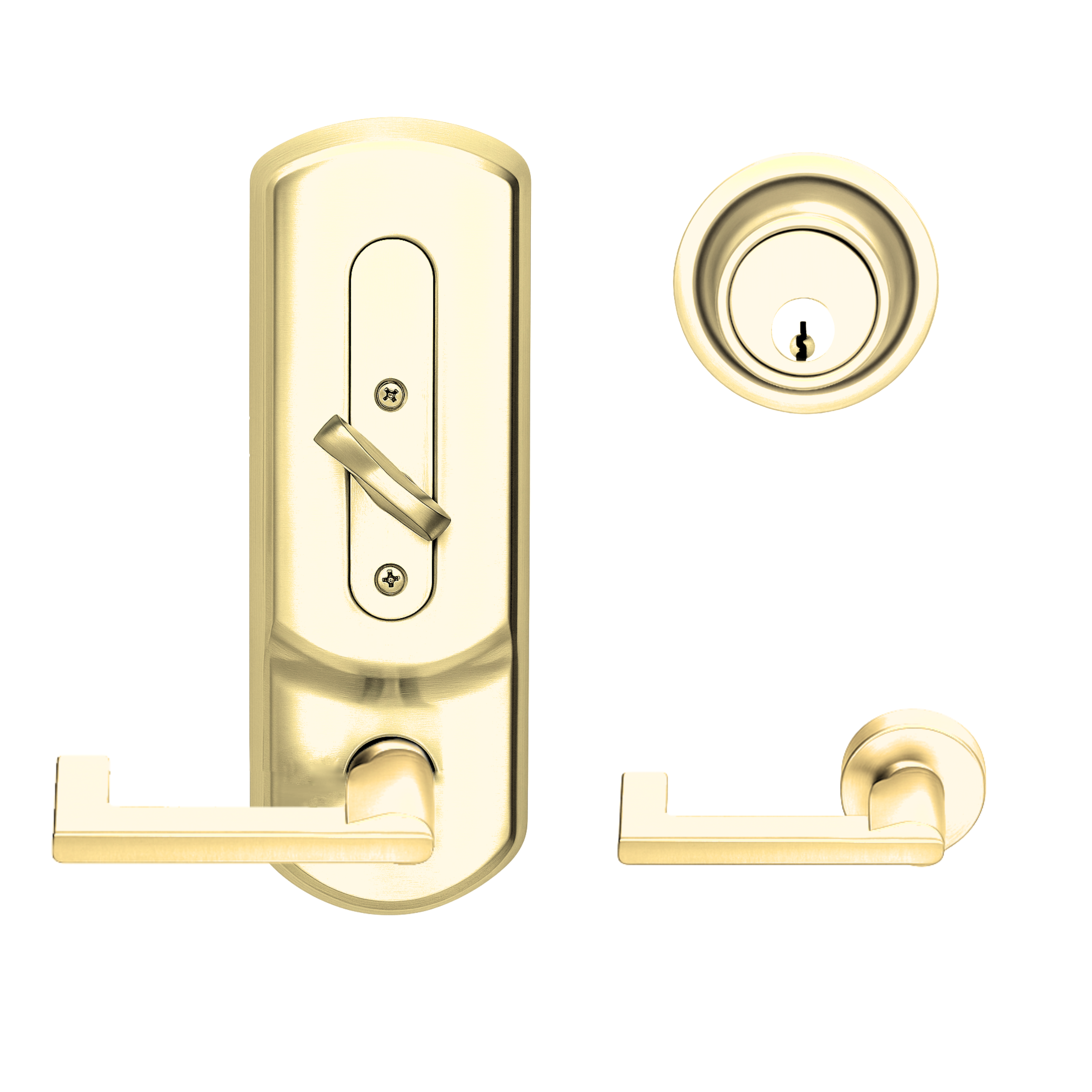

- Longitude

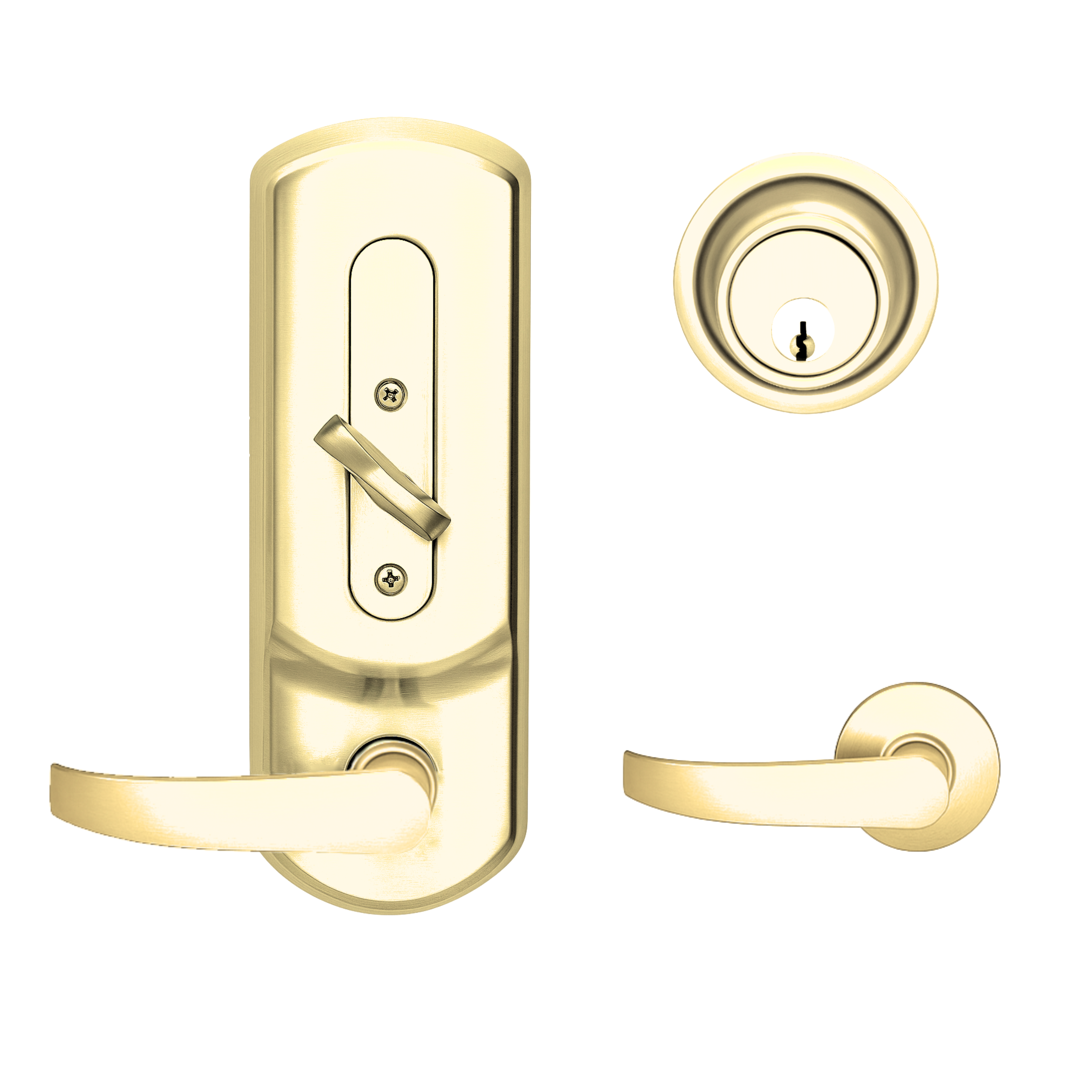

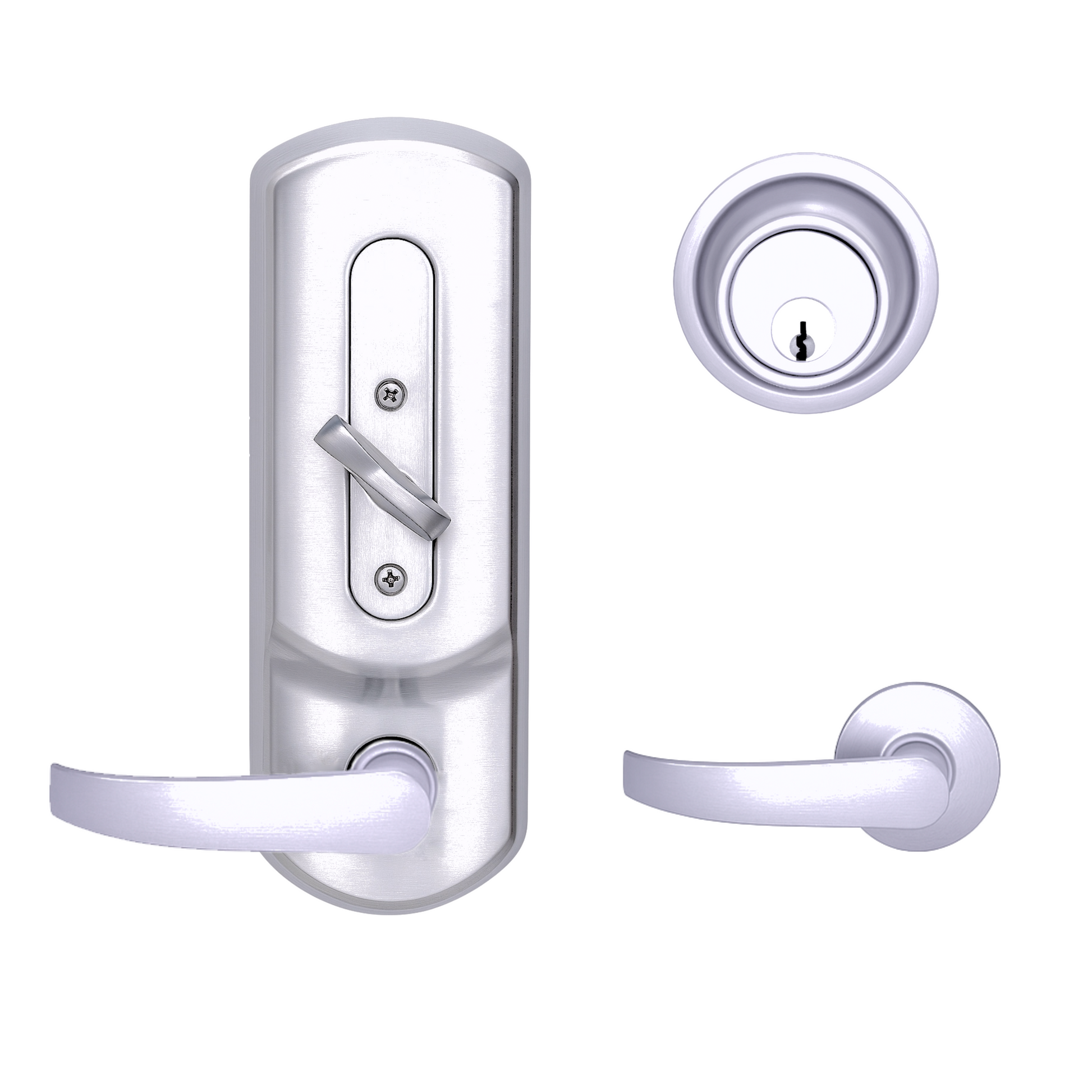

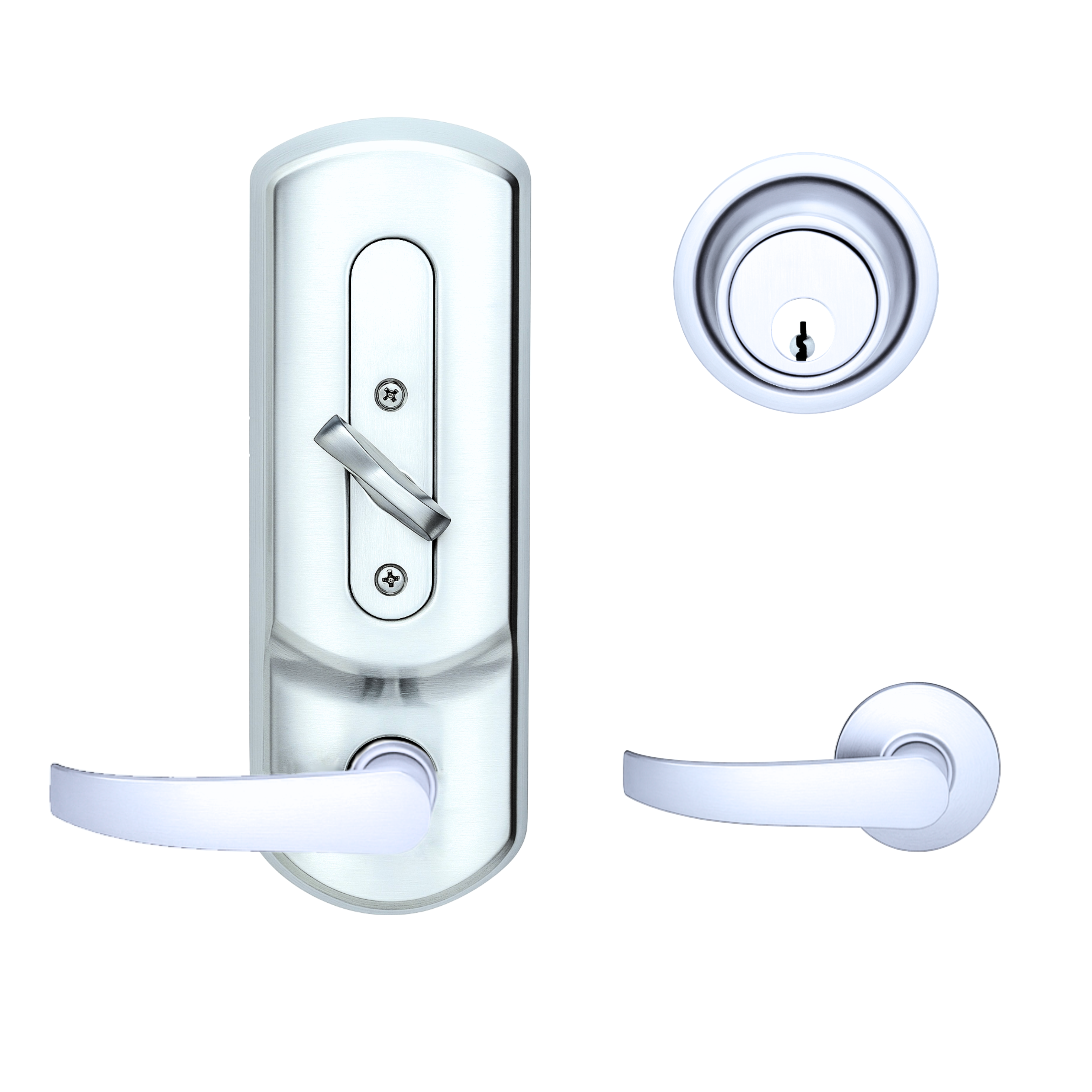

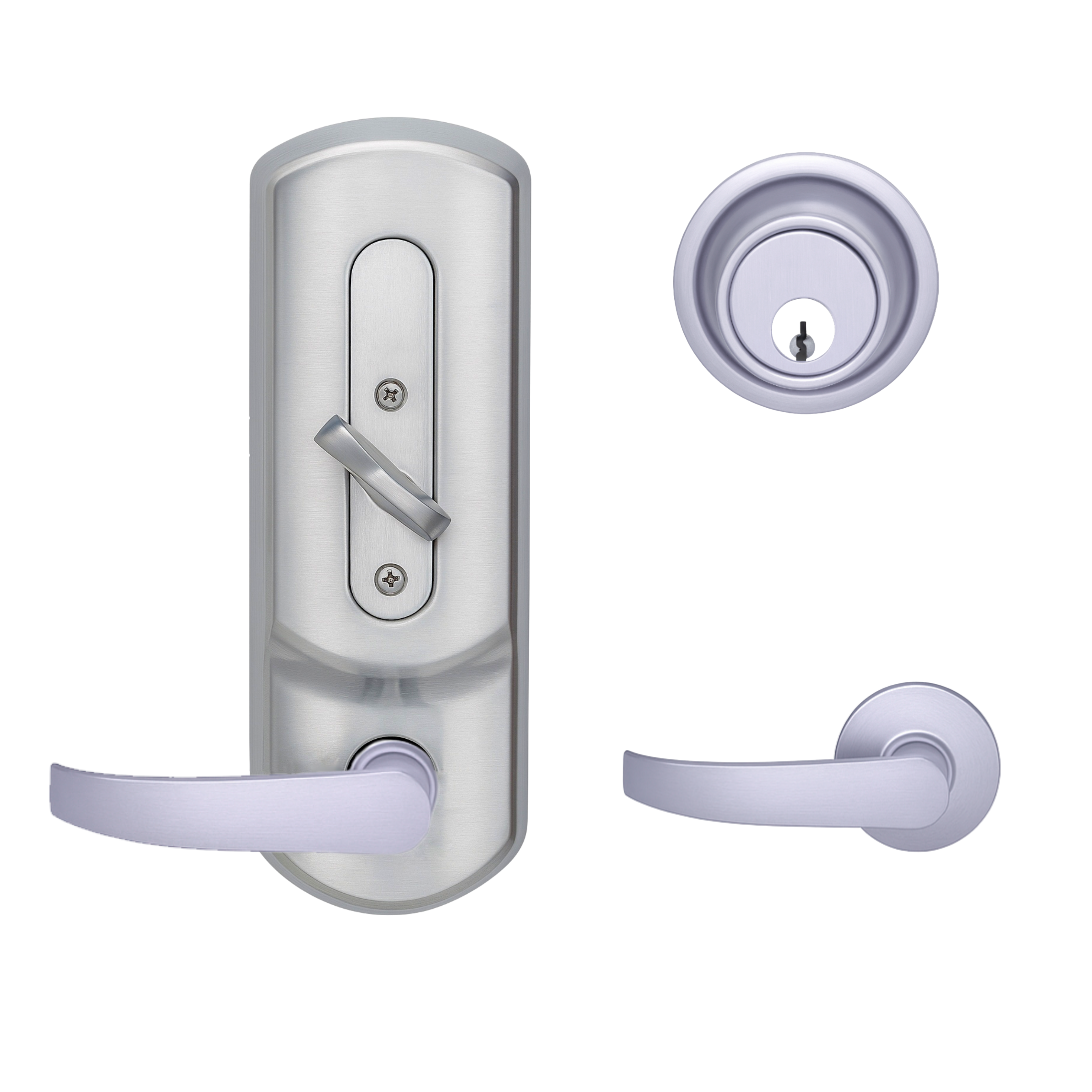

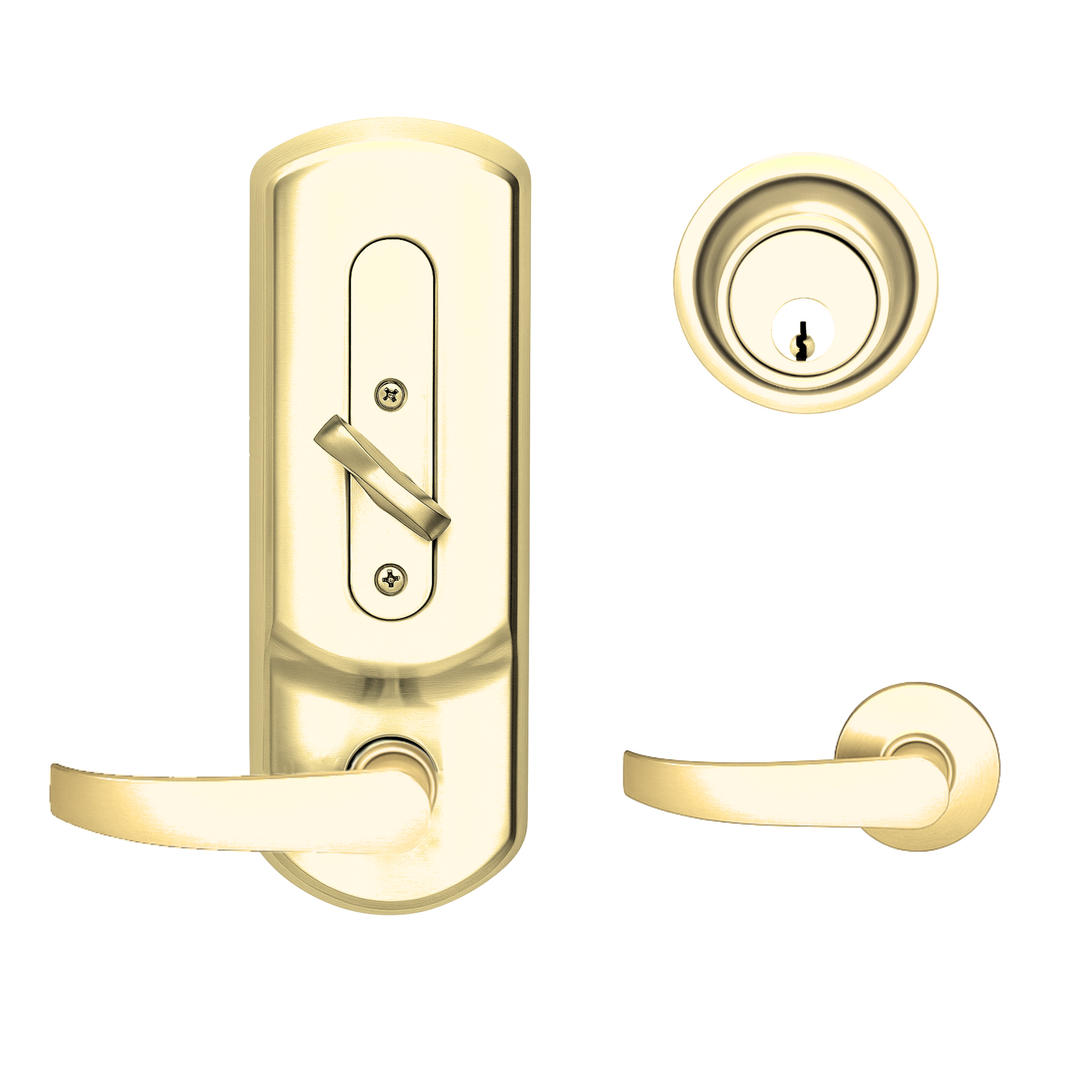

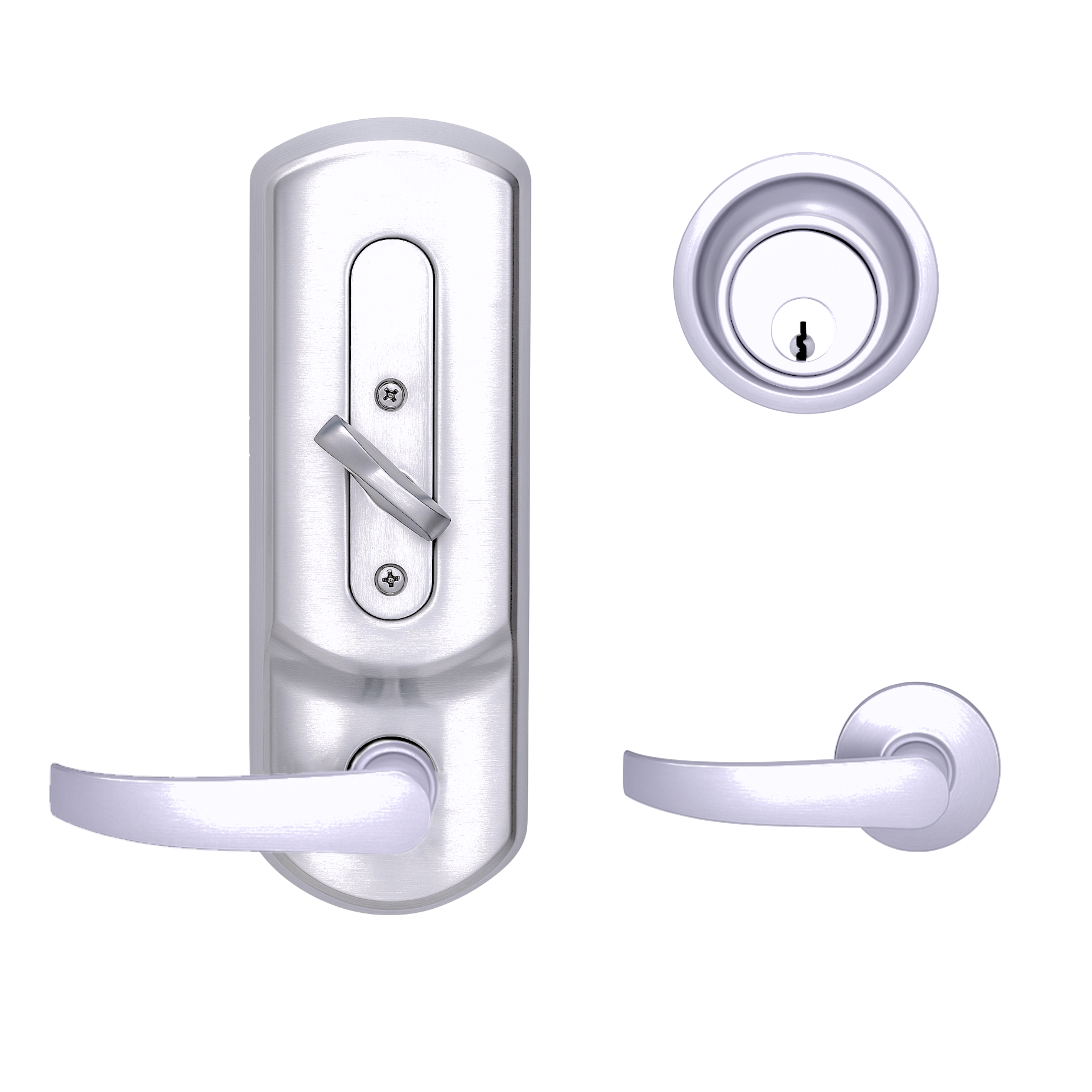

- Quantum
