Falcon D241 Single Cylinder x Thumbturn Grade 2 Deadbolt - US Lock Supply

SKU: D241P 626
$ 58.00

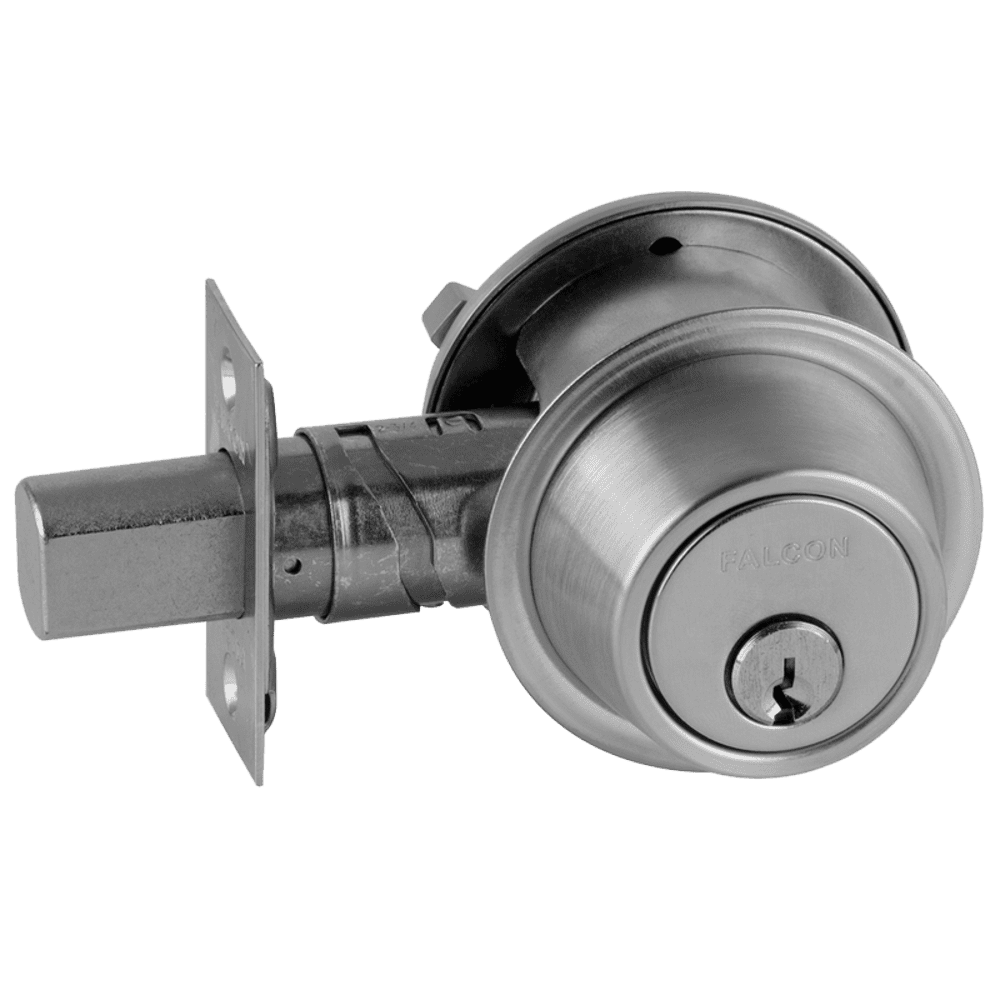

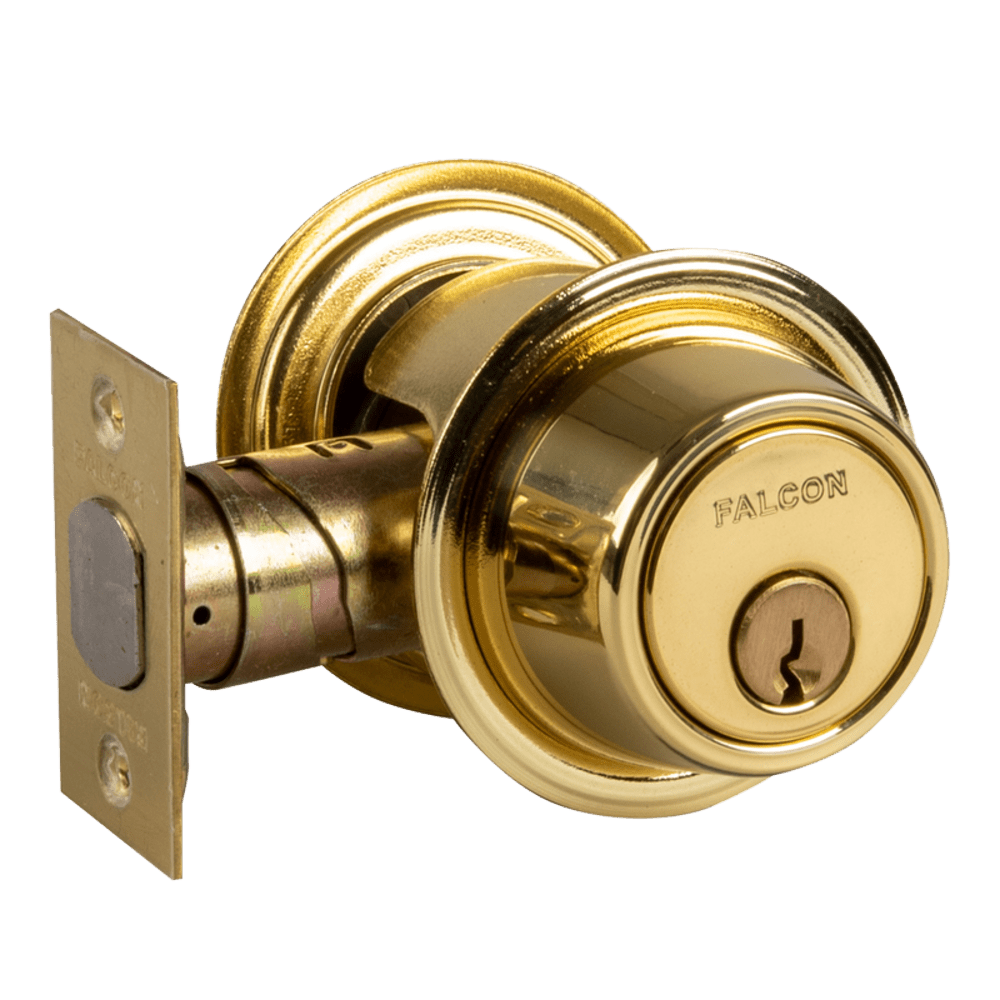

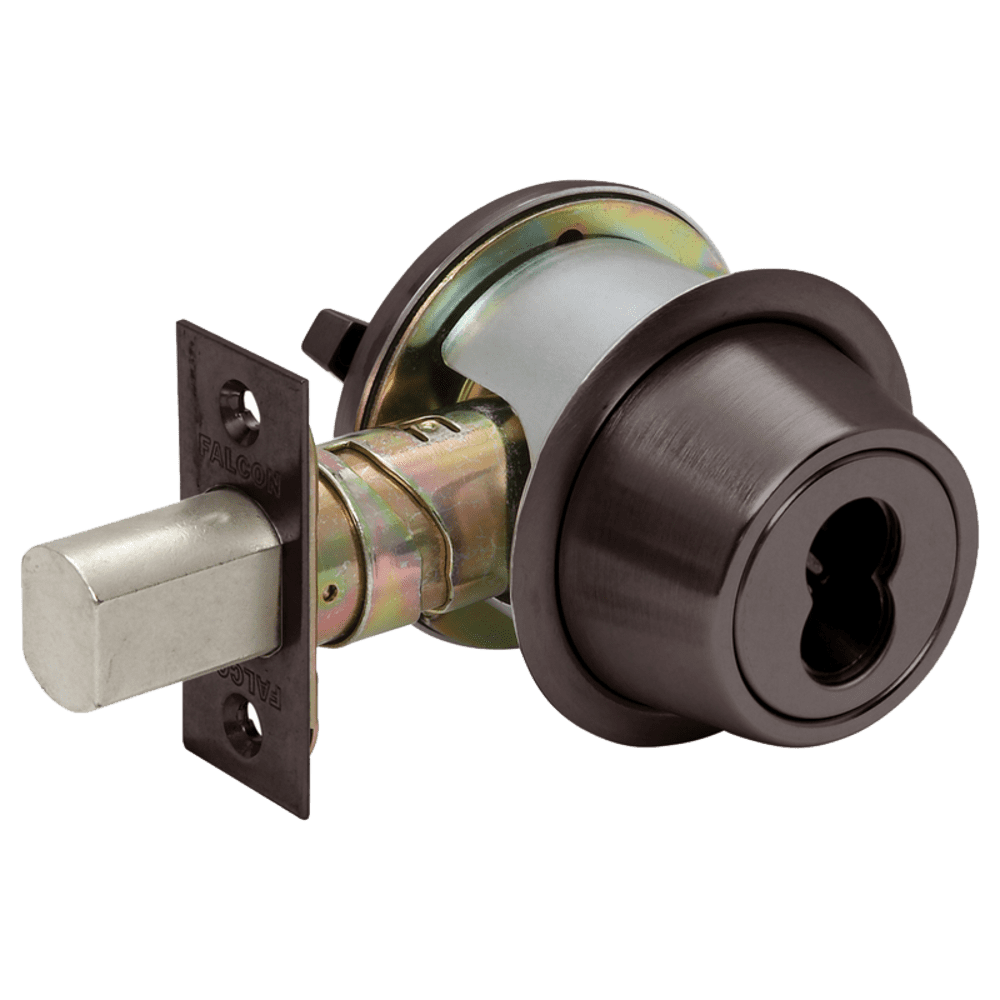

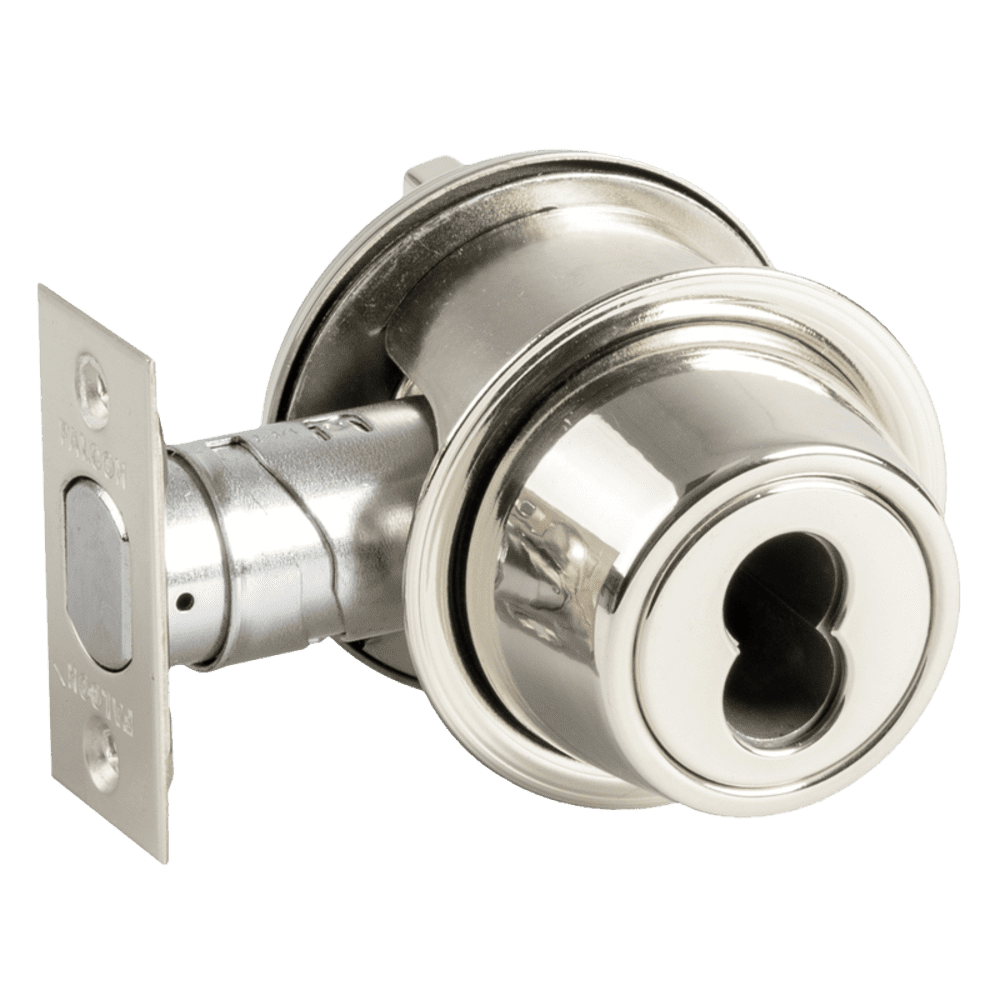

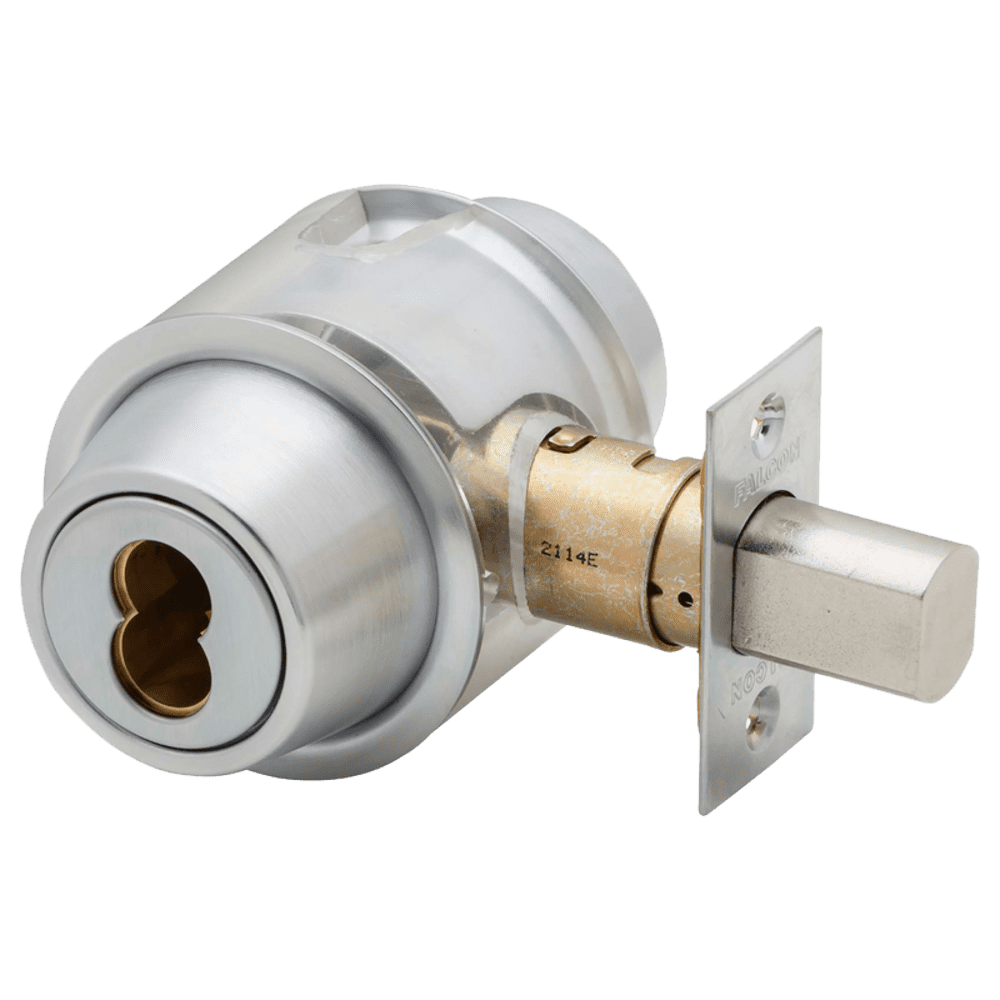

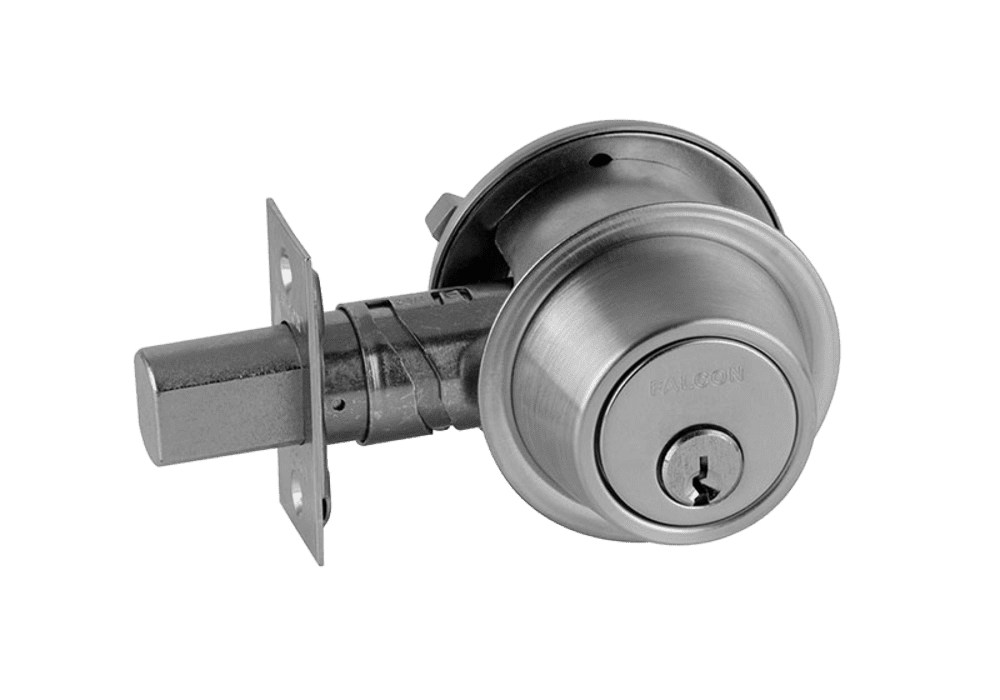

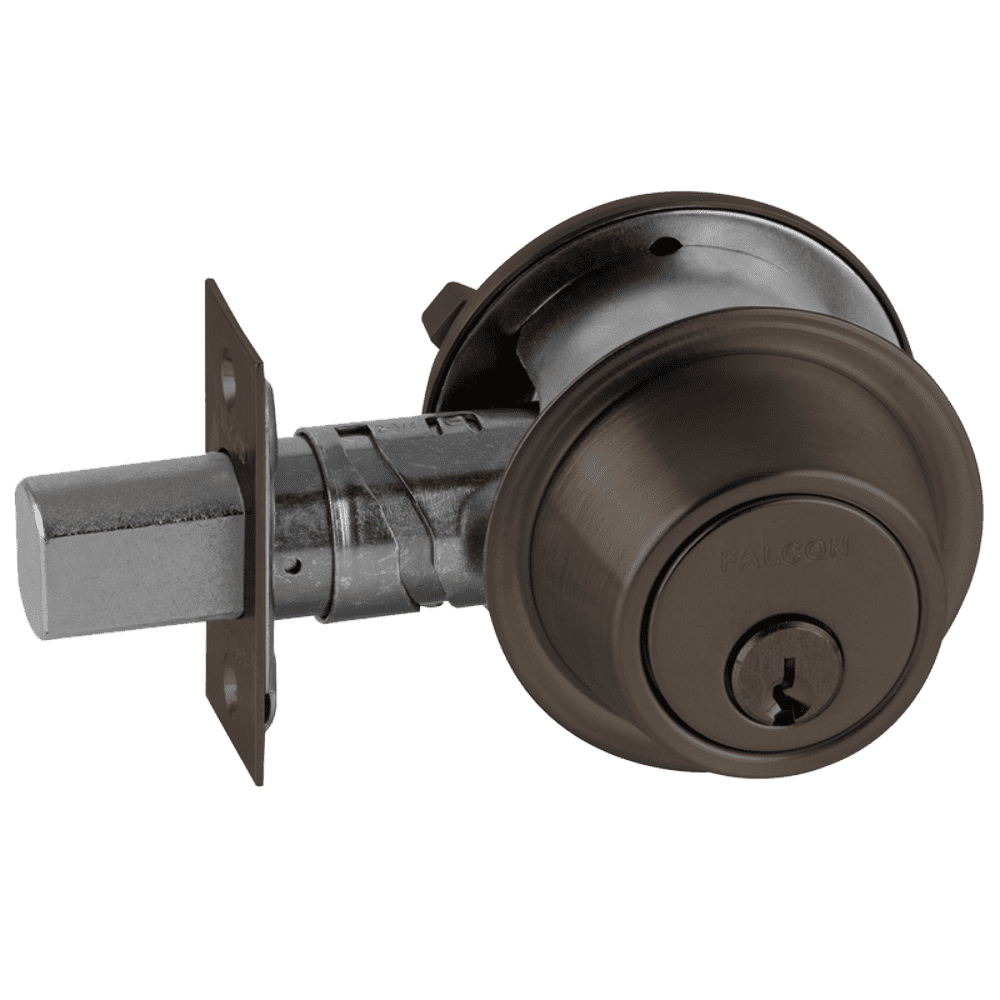

Falcon D241 Single Cylinder x Thumbturn Deadbolt. The D Series deadbolt from Falcon will fit on virtually any door, thanks to an adjustable backset with an innovative lock-in-place design. The Grade 2 D200 Series deadbolt can be fitted with any cylinder, enhancing lock strength on the jamb side of the door and is easier to install than any deadbolt you've ever worked with.
 Falcon D241 Single Cylinder x Thumbturn Deadbolt:
  • Deadbolt thrown or retracted by key or by turn. Bolt automatically deadlocks when fully thrown.
  • Deadbolt thrown or retracted by turn unit only. Bolt automatically deadlocks when fully thrown.
Features and Benefits
  • Integrated anti-pry shield behind cylinder assembly for added security and quicker installation
  • Integrated trim design – fewer pieces out of the box and improved installation time
  • Tapered front resists wrenching
  • Accepts small format interchangable style cores (SFIC) and conventional cylinders
  • Adjustable backset with lock-in-place design for greater versatility
  • Latch tube construction
  • Heavy duty saw-resistant bolt with spinning hardened steel pin inside for additional protection
  • ADA compliant thumbturn

Specifications
Door Thickness: 1 3/8” to 1 7/8”. For thicker doors, available up to 2 1/4”.
Backsets: 2 3/8” to 2 3/4” adjustable deadbolt.
Attachment: Locks are solidly attached to the door by 1/4” heat-treated steel bolts. These bolts pass through a steel plate (D211, D221 and D241) or the inner cylinder housing (D231) and thread directly into the back of the outer cylinder housing.
Handing: Non-handed. May be used in right hand or left hand doors swinging in or out.
Cylinders: Furnished with solid brass plug and housing, drilled with 6-pin chambers, pinned in 5 unless otherwise specified. Available with 6 or 7-pin interchangeable cores. Furnished with two (2) nickel silver keys standard.
Keyways: “G” keyway standard on conventional cylinders. “A” keyway standard on I/C core cylinders. Also available with some optional keyways.
Exposed Trim: Wrought brass or bronze reinforced with steel insert.
Deadbolts: Deadbolt locks are furnished with deadbolts which have a full 1” projection. Housed within the deadbolt is a freeturning, 1/4” thick, hardened steel, saw-resistant roller. Furnished standard with 2 3/8” to 2 3/4” adjustable backset and 1 1/8” x 2 1/4” faceplate. Optional 1” x 2 1/4” faceplate. Consult Options and Accessories section for other optional faceplates. D200 bolt is cast zinc.
Strikes: 2 3/4” x 1 1/8” lipless standard. ANSI 4 7/8” x 1 1/4” lipless, 2 1/4” full lip strikes, a 2 3/4” x 1 1/8” T-strike or a security strike are available. Consult Options and Accessories section.
Screws: Furnished with wood/machine screws for use on wood or metal doors or frames.
ANSI/BHMA Standard: A156.5, 2001, Grade 2. UL Listed, A label, 3 hour.
