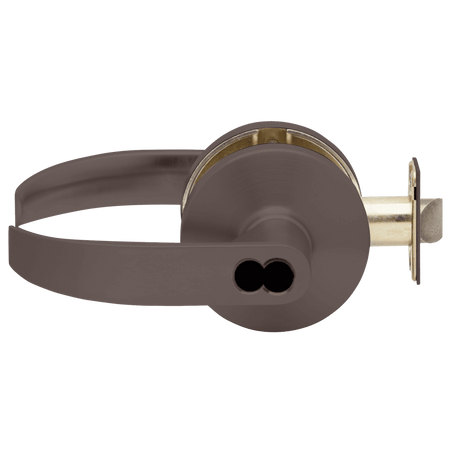

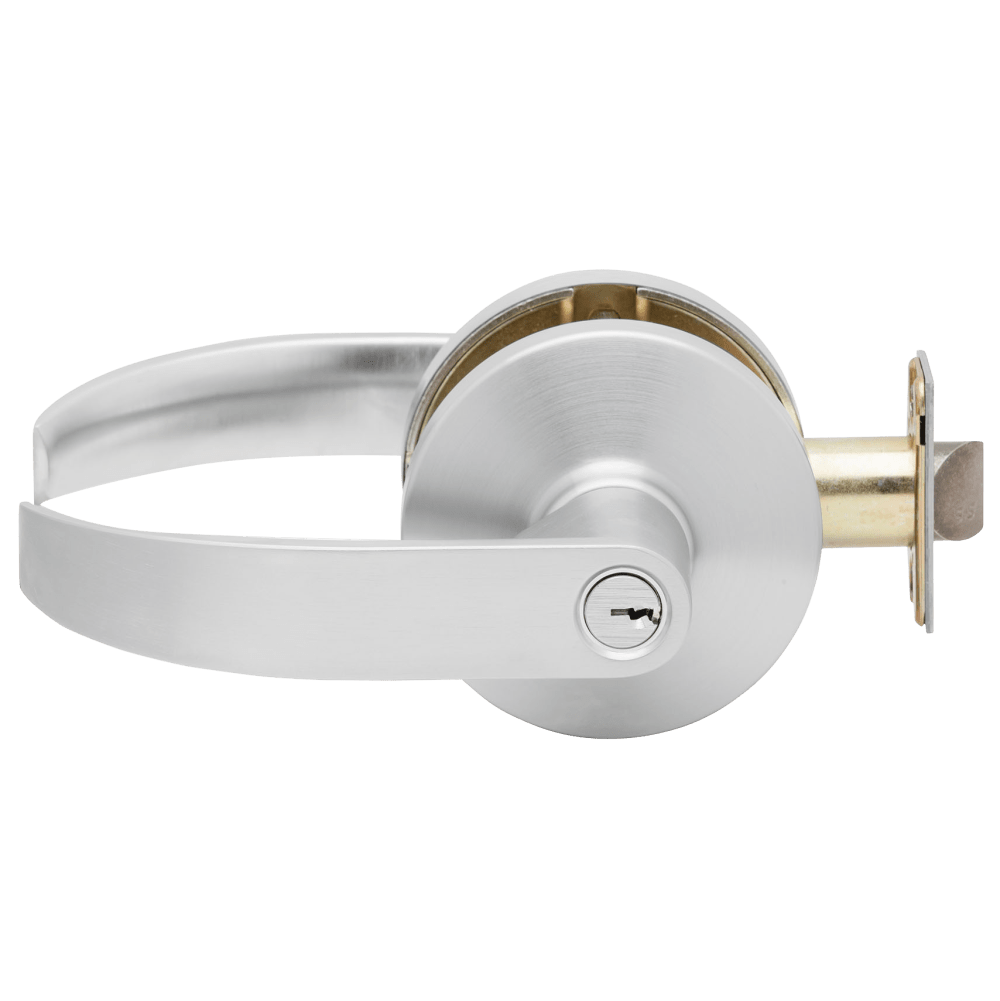

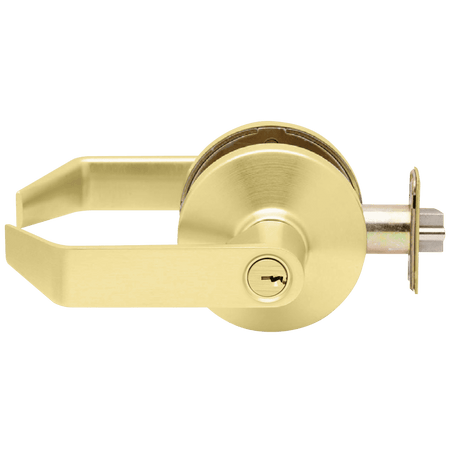

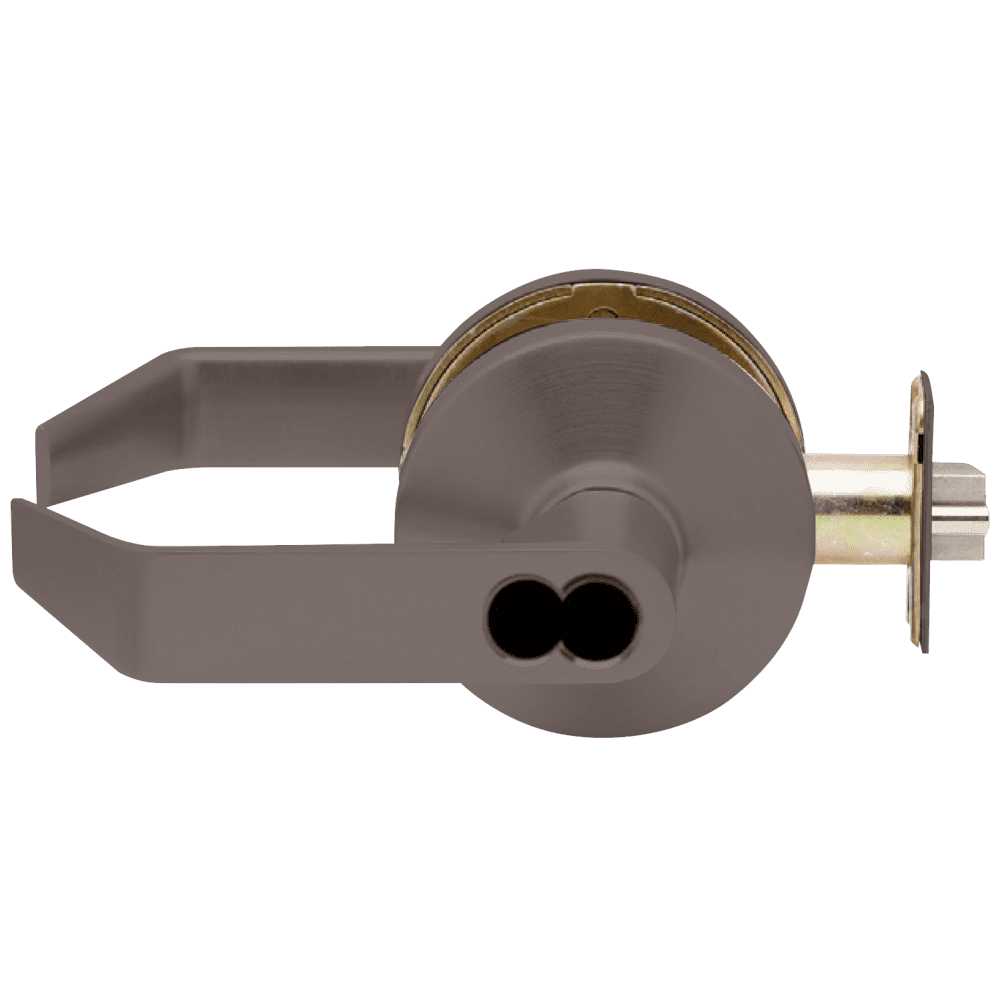

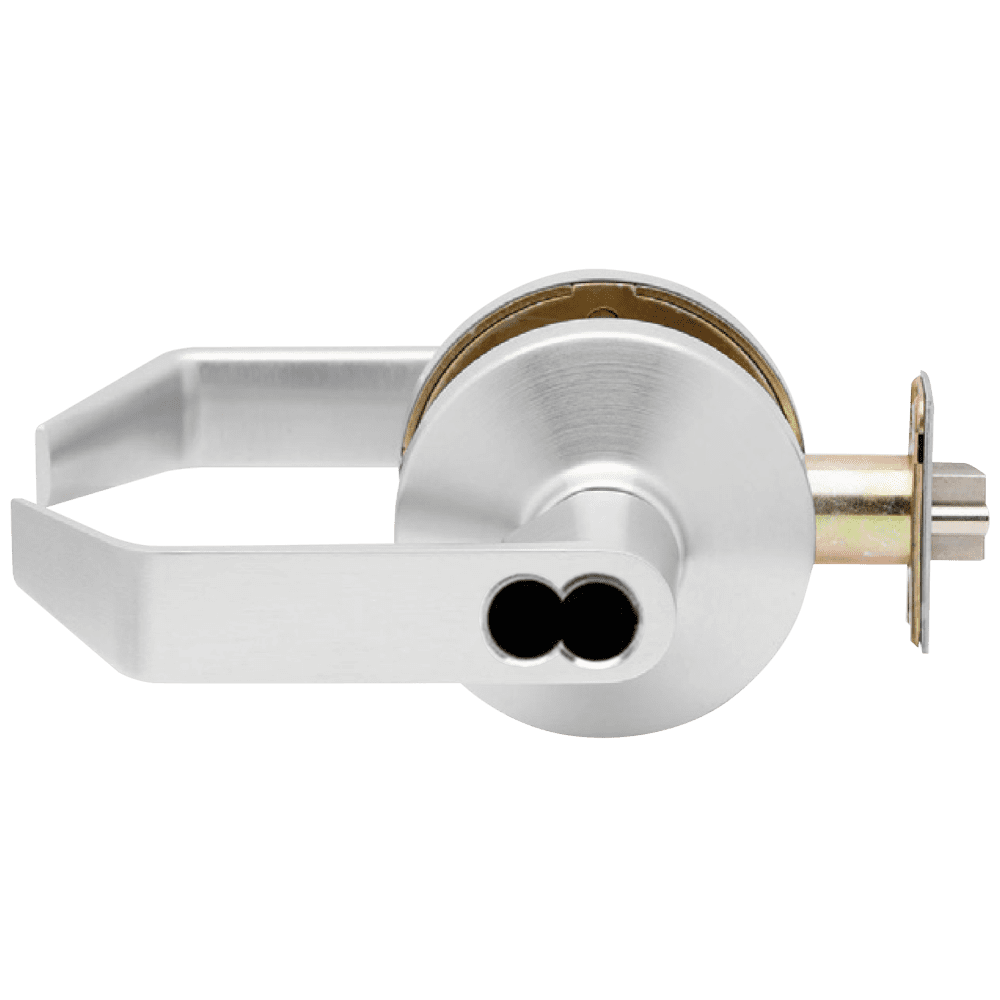

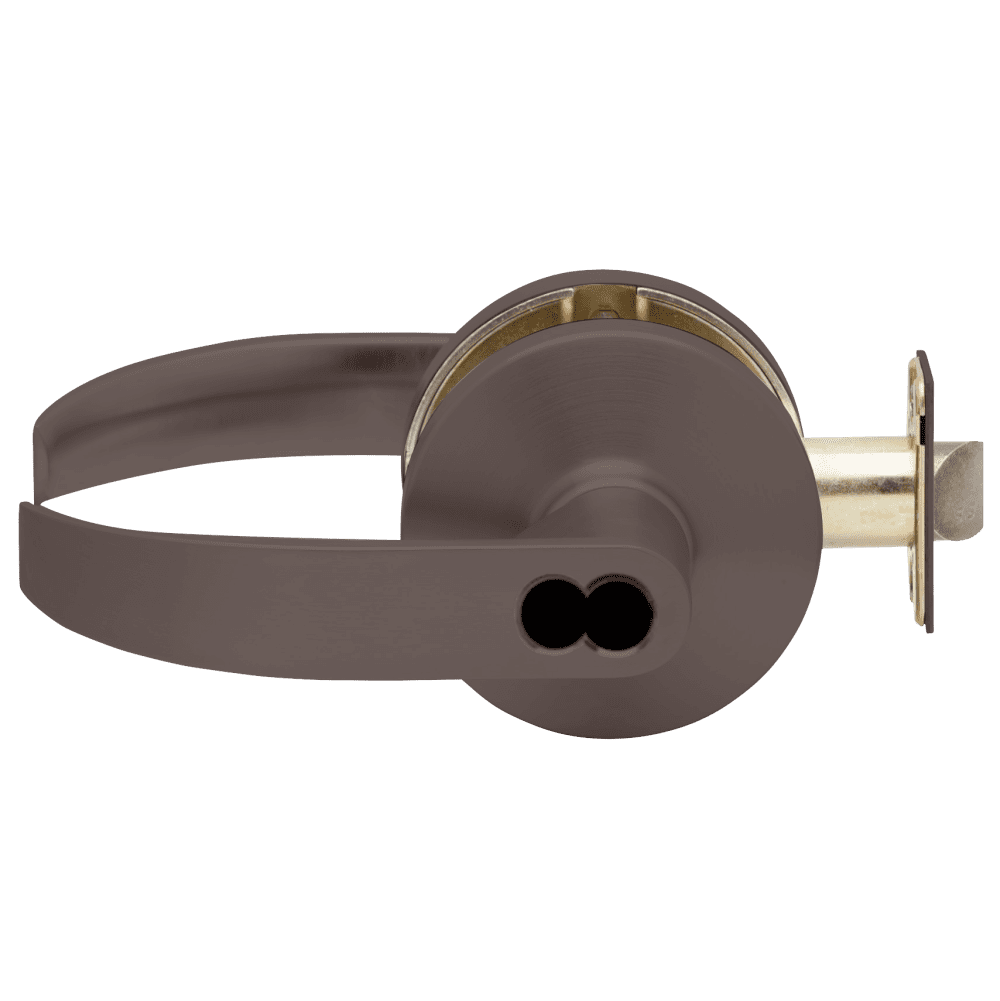

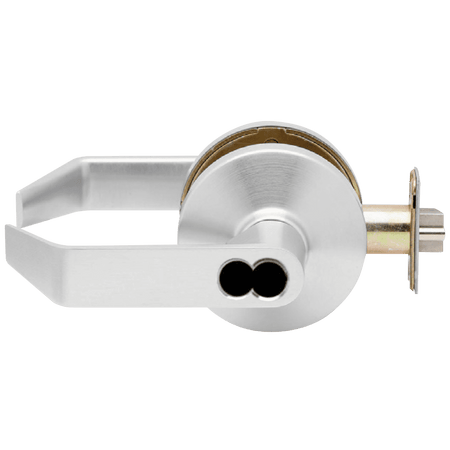

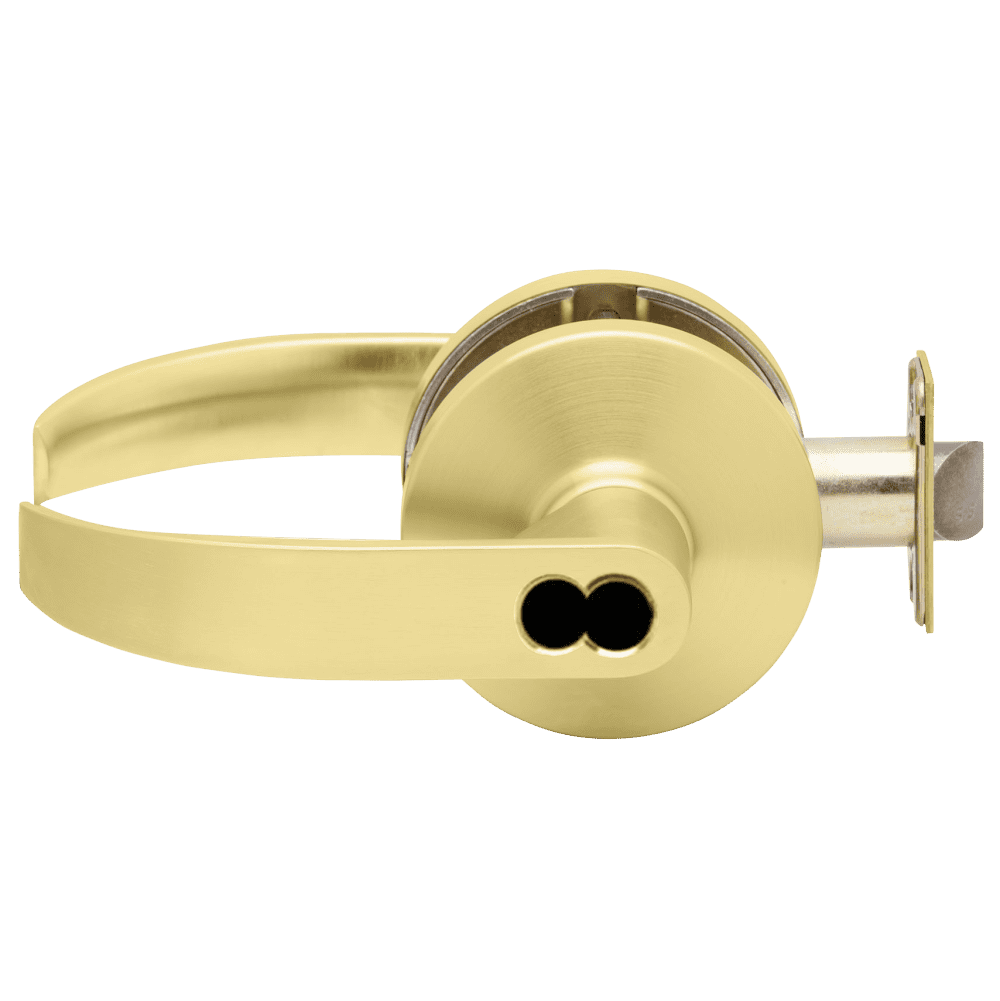

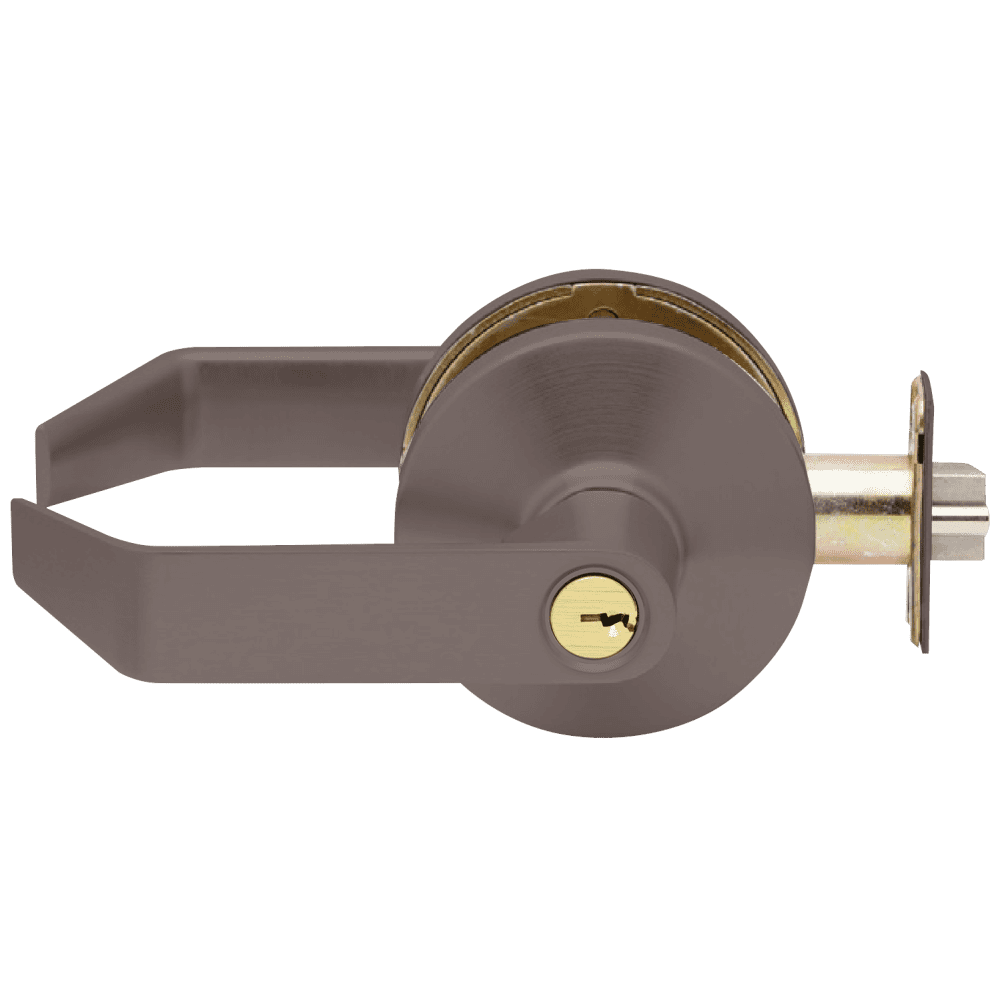

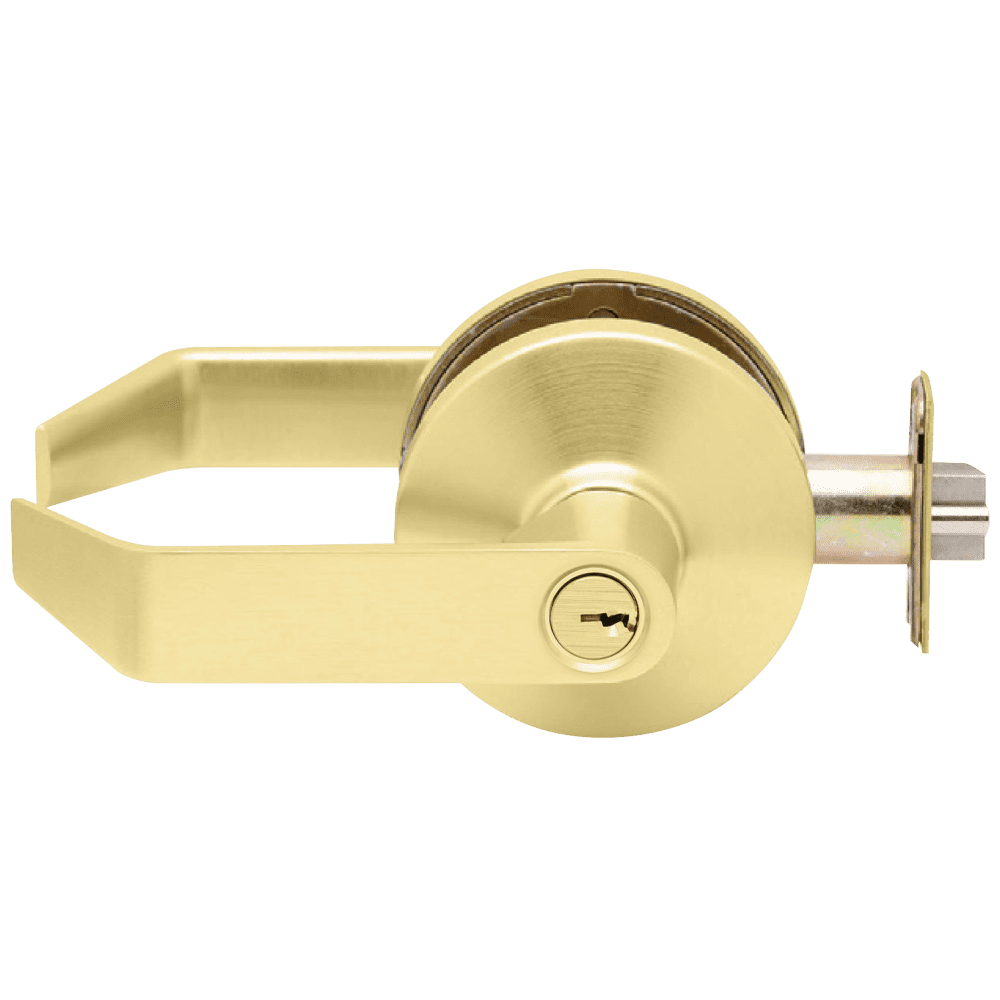

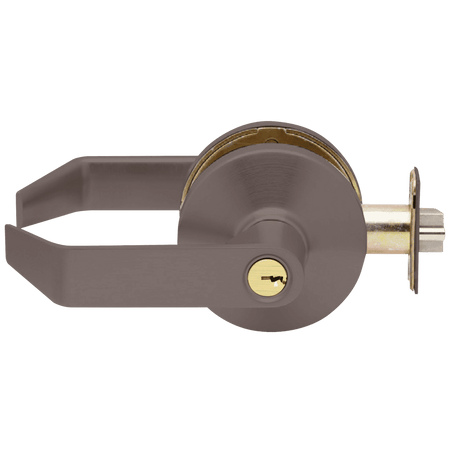

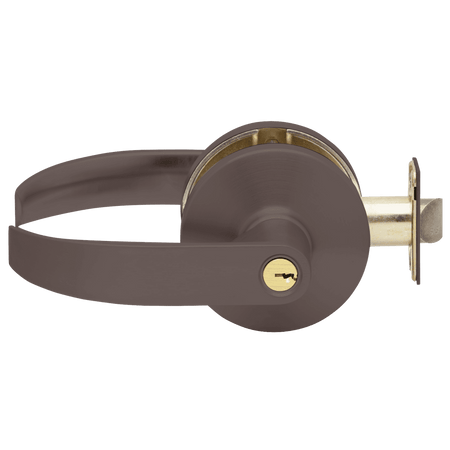

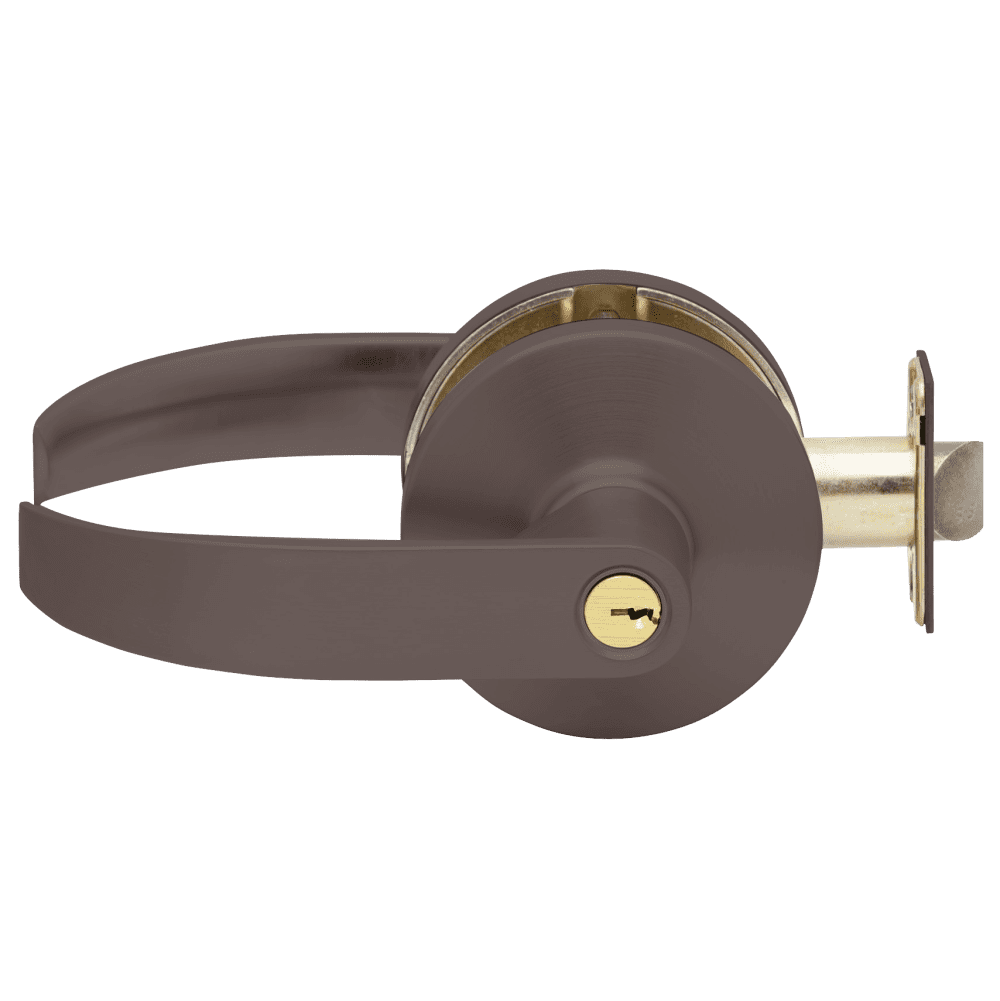

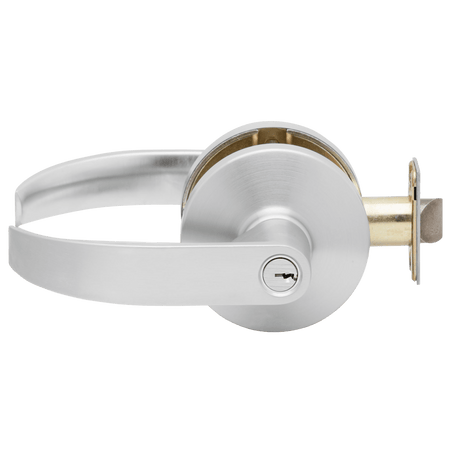

Falcon B511 Entry/Office Lever Lock

SKU: B511
$ 127.00
When you need a tough, reliable lock for a government/military, retail, industrial or multi-family project, you need a Falcon B511-Series lock. Our full line of Grade 2 locksets are a perfect replacement for existing locks, or a smart spec in new construction. With upgraded finishes these locks deliver style as well as strength. Falcon B-Series locks feature an interchangeable core that can be removed for quick, easy re-keying, and are compatible with SFIC products from other manufacturers. Most important, they’re backed by one of the best names in the business.
Entry/office lock—Turn/push button locking. Pushing and turning button locks outside lever requiring use of key until button is manually unlocked. Push button locking. Pushing button locks outside lever until unlocked by key or by rotating inside lever. Inside lever always free. Deadlocking latch bolt.
Features and Benefits
Key-in-lever cylindrical locksets shall be Falcon B Series or equal and meet the following requirements:
  • All locks shall meet the new ANSI/BHMA A156.2, Series 4000, Grade 2 test requirements for key-in-lever locksets.
  • Locksets shall be UL Listed 3-hour, A Label.
  • Lever trim shall have individual heavy-duty springs for lever return and to prevent lever sag. Trim shall be through-bolted with screws coated with thread sealant to provide strength and resistance to loosening.
  • Roses shall be 3-1/2” diameter.
  • All lever designs shall be solid (no inserts) and meet the federal ADA and state disability requirements.
  • Locksets shall adjust to fit door thickness from 1 3/8” to 2”.
  • All locksets shall be non-handed and not require field disassembly for re-handing.
  • Preparation for door must be non-handed.

Specifications
Door Thickness: 1 3/8” to 2” standard.
Backset: 2 3/4” standard. 2 3/8” also available.
Mechanism: Parts constructed of brass or cold formed steel, zinc plated and dichromated for rust resistance. Springs are stainless steel.
Attachment: Lock chassis secured to door by two screws which pass through a steel rose insert inside and thread directly into the outer rose mounting assembly.
Handing: Locks are non-handed.
Cylinders: Drilled with 6-pin chambers, pinned in 5. Pinning in 6 chambers available when specified, at no cost. Cylinder assemblies removable to rekey. Also available with 6 or 7-pin interchangeable core cylinders. Cylinder housings and plugs machined from solid brass. Springs are phosphor bronze. Two nickel silver keys furnished standard.
Competitor Cylinders: The B Series accepts these standard 6-pin cylinders: Assa, Kaba, Lori, Medeco, Primus and Schlage.
Keyways: “C” keyway standard on standard cylinders. Also available with some optional keyways.
Trim: Roses are 3 1/2” diameter, heavy wrought brass or bronze, installed over steel rose inserts which are through-bolted through door. Levers are pressure cast zinc (solid levers-no inserts) material finished to match mating parts.
Latches: 1/2” bolt projection. UL (3-hour, A Label) listed. Latches have self-adjusting fronts to accommodate beveled or flat doors. 2 3/8” backset with 2 1/4” x 1” latchfaces, 2 3/4” backset with 2 1/4” x 1 1/8” latchfaces. Deadlocking latches have a solid round bar stock DL bar preventing latch jamming and/or lock outs.
Strikes: 4 7/8” x 1 1/4” ANSI strike with curved lip to meet ANSI A115.2 door frame preparation standard. Consult Options and Accessories section for other available strike size and configurations.
Screws: Furnished with combination screws for use in wood or metal doors and frames.
ANSI/BHMA: Exceeds ANSI/BHMA A156.2, Series 4000, Grade 2.
UL: 3-hour, A Label.
