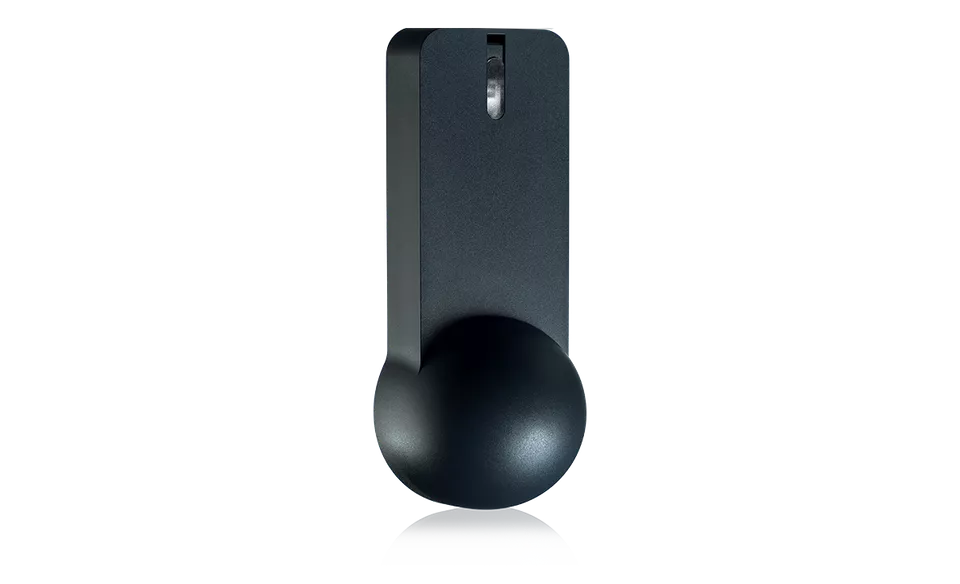

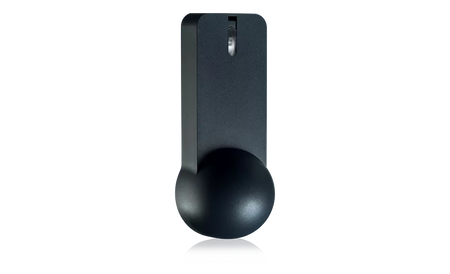

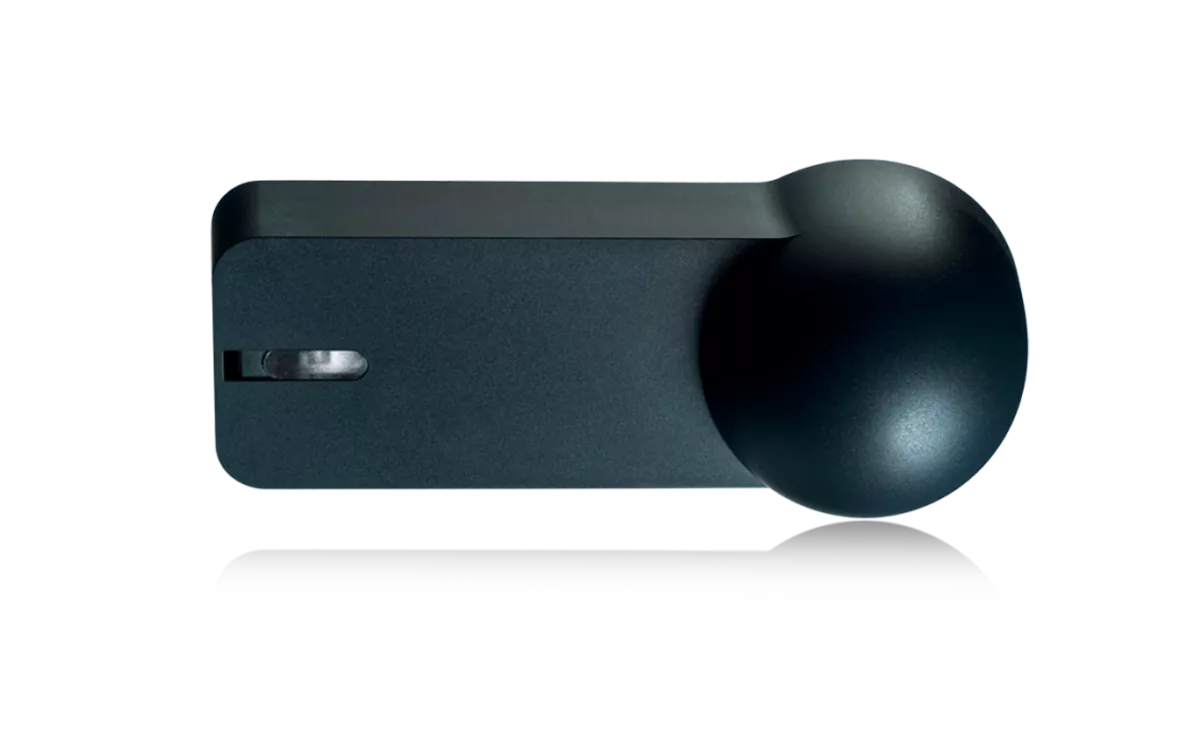

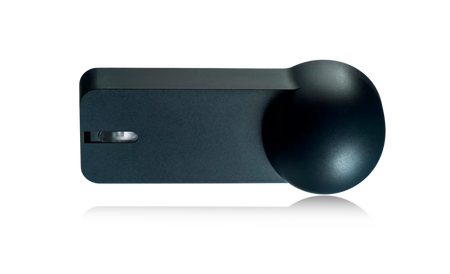

BEA’s SPARROW is a highly flexible motion sensor designed to detect people and vehicles in a variety of industrial, security and pedestrian applications.
The SPARROW’s adjustable microwave antenna can be rotated ±120 degrees to create different sensing fields, capable of detecting bi-directional traffic (two way), unidirectional (approach only) and unidirectional away (departure only).
The SPARROW is designed to operate in industrial or harsh environments. It is ideal for motion detection applications including vehicle sensing, access control and warning indication.
Table of specifications
|
Technology |
Microwave Doppler Radar |
|---|---|
|
Detection Mode |
Motion |
|
Tilt Angle |
0° – 90° vertical; |
|
Output |
Relay (free of potential change-over contact) |
|
Minimum Detection Speed |
2 in / s (measured in the sensor axis) |
|
Frequency |
50 – 60 Hz |
|
Supply Voltage |
12 – 24 VAC ±10% |
|
Maximum Power Consumption |
< 2 W |
|
Mounting Height |
6 ½ – 20’ |
|
Dimensions |
5 ½” (L) × 2 ¼” (H) × 2 1⁄5” (W) |
|
Material |
ABS |
|
Color |
Black |
|
Weight |
5.8 oz |
|
Cable Length |
30’ |
|
Temperature Range |
-22 – 140 °F |
|
Degree of Protection |
IP64 |
|
Norm Conformance |
R&TTE 1999/5/EC; |
