BEA

BEA 10TD900PB Transmitter

BEA 10TD900PB Transmitter

by BEA
$ 43.00

BEA 10TD900PB 900 MHz digital flag transmitter, for use with all activation plates, (2) AAA batteries

BEA 10TD433HH1 Transmitter

BEA 10TD433HH1 433 MHz digital handheld transmitter, 1 button control receiver

BEA 10RD433 Receiver

BEA 10RD433 Receiver

by BEA
$ 42.00

BEA 10RD433 433 MHz digital receiver, 12 to 24 V AC/DC

BEA 10TD433PB9V Transmitter

BEA 10TD433PB9V 433MHz digital flag transmitter, all activation plates except jamb and vestibule, 9V battery

BEA 10MS31U Microwave Touchless Actuator

BEA 10MS31U-G, 10MS31U-B, 10MS31U-W Microwave Touchless Actuator, Single & Double Gang Plate, Text & Hand Logo, Adjustable 4 to 24 In, 12-24 VAC/DC, Gray, Black, White

Finish
Finish

Gray, Black, White
Finish Description Applied

Technical Specs
Operating Voltages 12/24 VDC/AC
Relay Action Multi Function
Relay Type Switch-over Contact (Voltage Free)
Timer Duration 0.5 - 30 s
Delay Duration Selectable
Sensor Technology Microwave
Range 4-24 In. (Adjustable)
Inputs Microwave Doppler Radar
Environment Weatherproof
Product Type Touchless Actuators
BEA 10RD900 Receiver

BEA 10RD900 Receiver

by BEA
$ 44.00

BEA 10RD900 900 MHz digital receiver, performs up to 500 ft. line of sight, works through Low-E glass, 12 to 24 V AC/DC

BEA 10BR3-X Logic Module

BEA 10BR3-X Logic Module

by BEA
$ 95.00

BEA 10BR3-X Logic Module

Logic Module, 13 Programmable Logic Functions, 3 Relays

BEA 10TD900HH1 Transmitter

BEA 10TD900HH1 900 MHz digital handheld transmitter, 1 button control receiver

BEA 10MS41-S Microwave Touchless Actuator

Microwave Touchless Actuator, Single Gang Plate, Text & Hand Logo, Adjustable 4 to 24 In, 12-24 VAC/DC, Stainless Steel



Technical Specs
Operating Voltages 12/24 VDC/AC
Relay Action Multi Function
Relay Type Switch-over Contact (Voltage Free)
Timer Duration 0.5 - 30 s
Delay Duration Selectable
Sensor Technology Microwave
Range 4-24 In. (Adjustable)
Inputs Microwave Doppler Radar
Mounting Plate Size 1 Gang
Environment Weatherproof
Product Type Touchless Actuators
BEA 10IXIOST Motion Sensor

BEA 10IXIOST Motion Sensor

by BEA
$ 278.00

FALCON Motion Sensor, 6.5' to 11.5' Mounting Height, 33' of Cable, Multiple Detection Options, 12 to 24 V AC/DC

BEA 10BOX45RNDSM Mount Box

BEA 10BOX45RNDSM

Mount box, 4.5 In. round, surface mount

BEA 10EAGLE Motion Sensor

BEA 10EAGLE Motion Sensor

by BEA
$ 213.00

EAGLE Family Motion Sensor for Automatic Doors, 0 to 90 Degree Mounting Angle, 6 to 13' Mounting Height, 12 to 24 V AC/DC

BEA 10BOXJAMBSM Mount Box

BEA 10BOXJAMBSM Mount Box

by BEA
$ 10.00

BEA 10BOXJAMBSM

Mount box, 1.5 In. by 4.75 In. surface mount, use with transmitter

BEA 10MS31J Microwave Touchless Actuator

BEA 10MS31J-G,10MS31J-B, 10MS31J-W Microwave Touchless Actuator, Jamb Plate, Text & Hand Logo, Adjustable 4 to 24 In, 12-24 VAC/DC, Gray, Black, White

Finish
Finish

Gray, Black, White
Finish Description Applied
Technical Specs
Operating Voltages 12/24 VDC/AC
Relay Action Multi Function
Relay Type Switch-over Contact (Voltage Free)
Timer Duration 0.5 - 30 s
Delay Duration Selectable
Sensor Technology Microwave
Range 4-24 In. (Adjustable)
Inputs Microwave Doppler Radar
Mounting Plate Size Narrow Jamb
Environment Weatherproof
Product Type Touchless Actuators



BEA 10MC25 Time Delay

BEA 10MC25 Time Delay

by BEA
$ 74.00

TECHNICAL SPECIFICATIONS Power supply: 15 – 24 VAC/VDC -5 – 10% Operating frequency: 4 MHz (microprocessor) Power consumption: 10 mA at rest; 50 mA max. Output: 2 SPST relays Max. voltage (relay contact): 30 VDC / 120 VAC Max. current (relay contacts): 1.0A DC / 0.5A AC

Logic module, single function, time delay

Tech Docs

BEA 10BOX45SQSM Mount Box

BEA 10BOX45SQSM Mount Box

by BEA
$ 25.00

BEA 10BOX45SQSM Mount box, 4.5 In. square, surface mount

BEA 10LPR36HW Full Length Actuator

BEA 10LPR36HW Full length actuator, weather resistant stainless steel, entire surface activation, 36 In. by 6 In. by 1 In., hardwired only

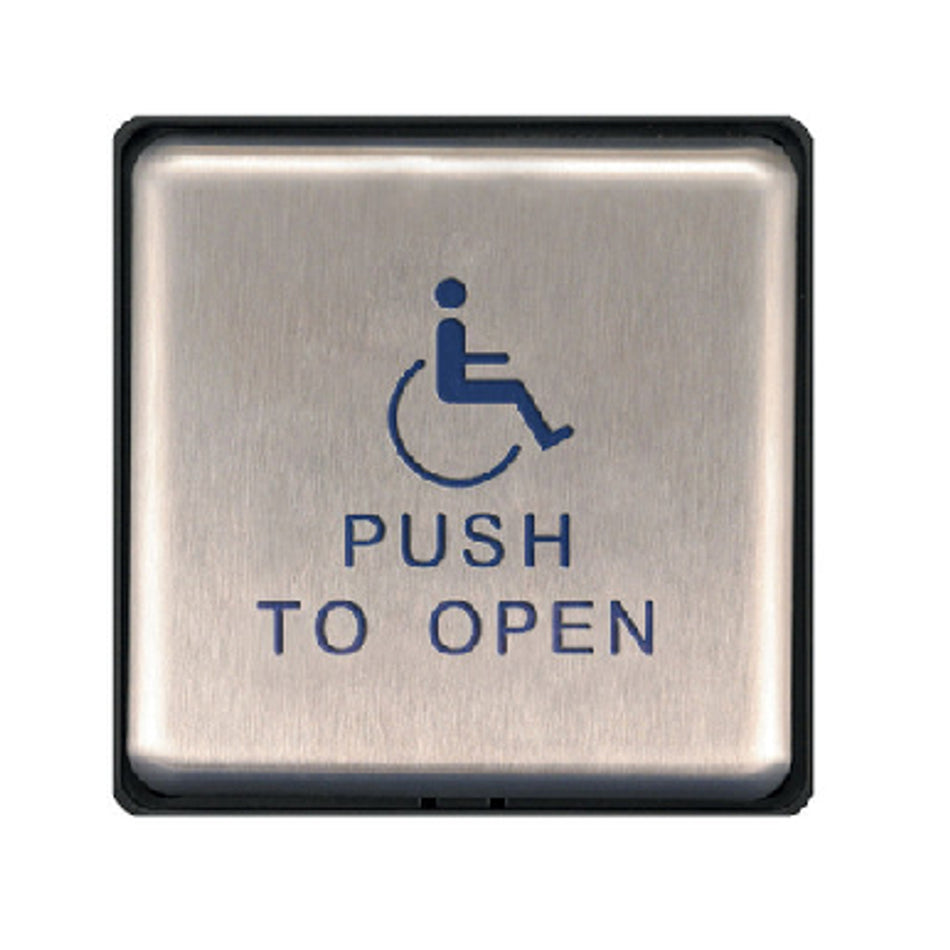

BEA 10PBS1 Push Plate

BEA 10PBS1 Push Plate

by BEA
$ 54.00

BEA 10PBS1 Stainless steel push plate, 4.75 In. square, blue handicap logo and text

BEA 10PBS45 Push Plate

BEA 10PBS45 Push Plate

by BEA
$ 49.00

BEA 10PBS45 Stainless steel push plate, 4.5 In. square, blue text only

BEA 10PBR45LL Push Plate

BEA 10PBR45LL Push Plate

by BEA
$ 46.00

BEA 10PBR45LL Stainless steel push plate, 4.5 In. round, blue handicap logo only

BEA 10KEYPADU Keypad Sold out

BEA 10KEYPADU Keypad

by BEA
Sold out
$ 161.00

TECHNICAL SPECIFICATIONS Supply Voltage 12 — 24 VAC / VDC (DO NOT EXCEED 30 VDC or 24 VAC) Standby Current ≤ 30 mA Working Current ≤ 160 mA Max User Codes Zone 1 Zone 2 1100 1000 users 100 users Relock Time 0 – 99 s Output Max. Contact Voltage Max. Contact Current Max. Switching Power 2 relays (free of potential change-over contact) 42 VAC / VDC 1 A (resistive) 30 W (VDC) / 48 VA (VAC) Cable Length 3’ Operating Temperature -22 – 158 °F Operating Humidity 0 – 95% (non-condensing) IP Rating IP66 (waterproof and dust proof) Dimensions Single gang Slim-line 3” (W) × 4 7 ⁄10” (H) × 9 ⁄10” (D) 1 7 ⁄10” (W) × 5 9 ⁄10” (H) × 19⁄20” (D) Certifications CE, RoHS Backlight Blue keypad illumination



DESCRIPTION
ACCESS CONTROL KEYPADS FOR INDOOR AND OUTDOOR USE

BEA’s UNIVERSAL KEYPAD FAMILY offers field-proven reliability and a cost-effective solution anywhere access control is desired.

Available in both single gang and slim-line surface mount, these devices are designed for integration into security systems with electromagnetic locks, electric strikes and other equipment requiring on / off or momentary control inputs.

All programming is completed entirely from the keypad. Nonvolatile memory means codes settings will remain in the event of power loss.

BEA 10STRIKECU Electric Strike

10STRIKECUV
Mode Fail Safe, Fail Secure
Voltage 12 VDC 24 VDC
Duty Continuous Continuous
Amps † 0.300 0.150
Sound Silent Silent
Static / Dynamic Strength 1000 lbs / 70 lbs
Endurance 250,000 cycles (UL tested) / 1,000,000 cycles (factory tested)
Latch Throw 9
⁄16” (15 mm max)
Standards Compliance UL 294, UL 1034, UL listed



UL / ULC Listed Universal Cylindrical Electric Strike, 12/24 VDC/VAC, Continuous / Intermittent Duty, Silent or Buzz, Includes 3 Faceplates (Aluminum , Hollow Metal and Wood Frame Installations)3

BEA 10FALCONXL Motion Sensor

FALCON Motion Sensor, 6.5' to 11.5' Mounting Height, 33' of Cable, Multiple Detection Options, 12 to 24 V AC/DC

BEA 10FALCON Motion Sensor

BEA 10FALCON Motion Sensor

by BEA
$ 434.00

FALCON Motion Sensor, 11.5' to 23' Mounting Height, 33' of Cable, Multiple Detection Options, 12 to 24 V AC/DC
