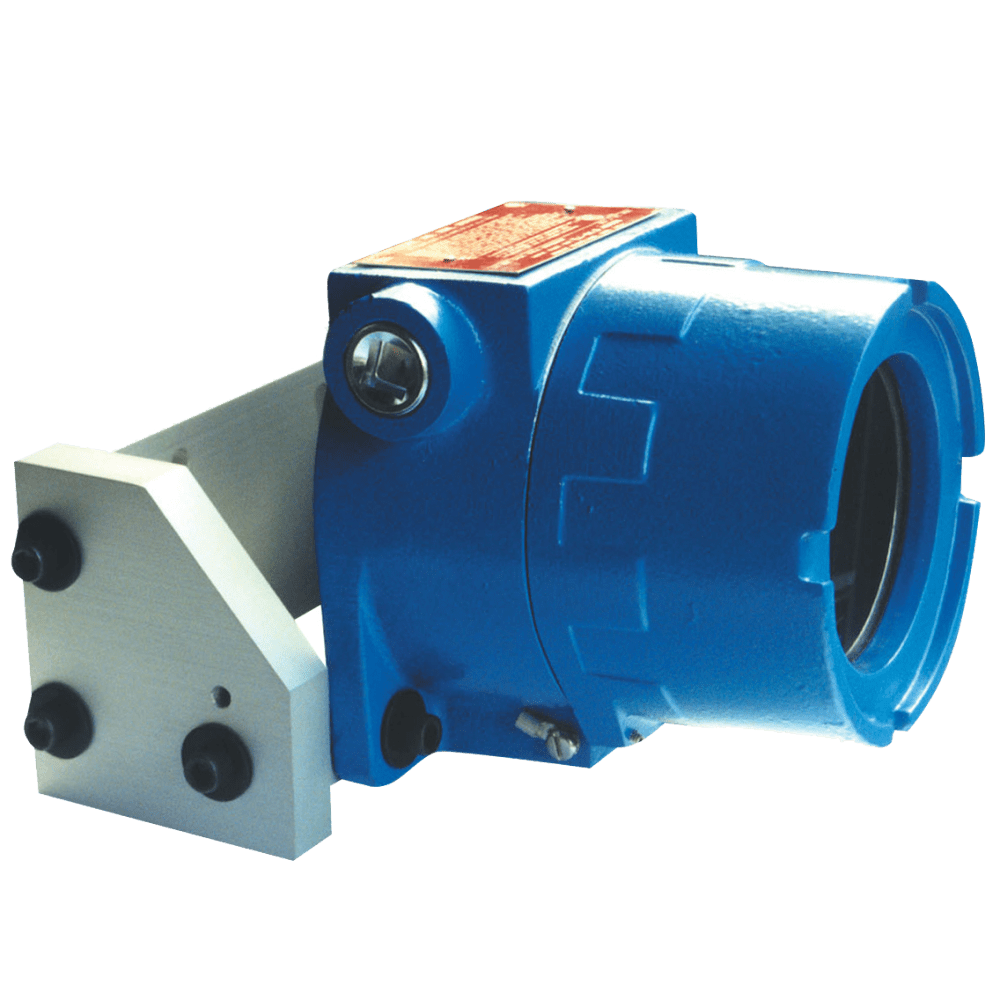

BEA’s FALCON EX combines a microwave activation sensor with an explosion-proof / flame-proof housing, which is ideal for use in unique environments such as chemical manufacturing, petroleum refining and agriculture.
The FALCON EX can be mounted from 11 ½ feet to 23 feet to fit any industrial application. For lower mounting heights, BEA’s FALCON EX XL can be mounted from 6 ½ feet to 11 ½ feet. The FALCON EX WIDE is available for wide
detection fields, with a mounting height range of 11 ½ feet to 21 feet.
The explosion-proof / flame-proof housing is a NEMA 4X, water-proof rated enclosure designed as an IP66 housing. This housing achieves UL Class I, Div. 1, Groups B, C, D; Class II, Div. 1 & 2, Groups E, F, G; and Class III*.
|
Technology |
Microwave Doppler Radar |
|---|---|
|
Detection Mode |
Motion |
|
Detection Zone |
|
|
Tilt Angles |
-90 – 30° in elevation |
|
Output |
Relay (free of potential change-over contact) |
|
Minimum Detection Speed |
2 in / s |
|
Mains Frequency |
50 – 60 Hz |
|
Supply Voltage |
12 – 24 VAC; ±10% |
|
Maximum Power Consumption |
< 2 W |
|
Mounting Height |
|
|
Dimensions |
|
|
Electrical Access |
|
|
Weight |
11 lbs |
|
Cable Length |
See User’s Guide for reference |
|
Cable Diameter |
0.216” (5-conductor cable) |
|
Housing / Bracket Material |
Copper-free Aluminum / Aluminum |
|
Temperature Range |
-22 – 140 °F |
|
Housing Certification* |
(Adalet / Scott Fetzer Co., UL Listing # E81696) |
|
Norm Conformance |
EMC: 2004 / 108 / EC |
