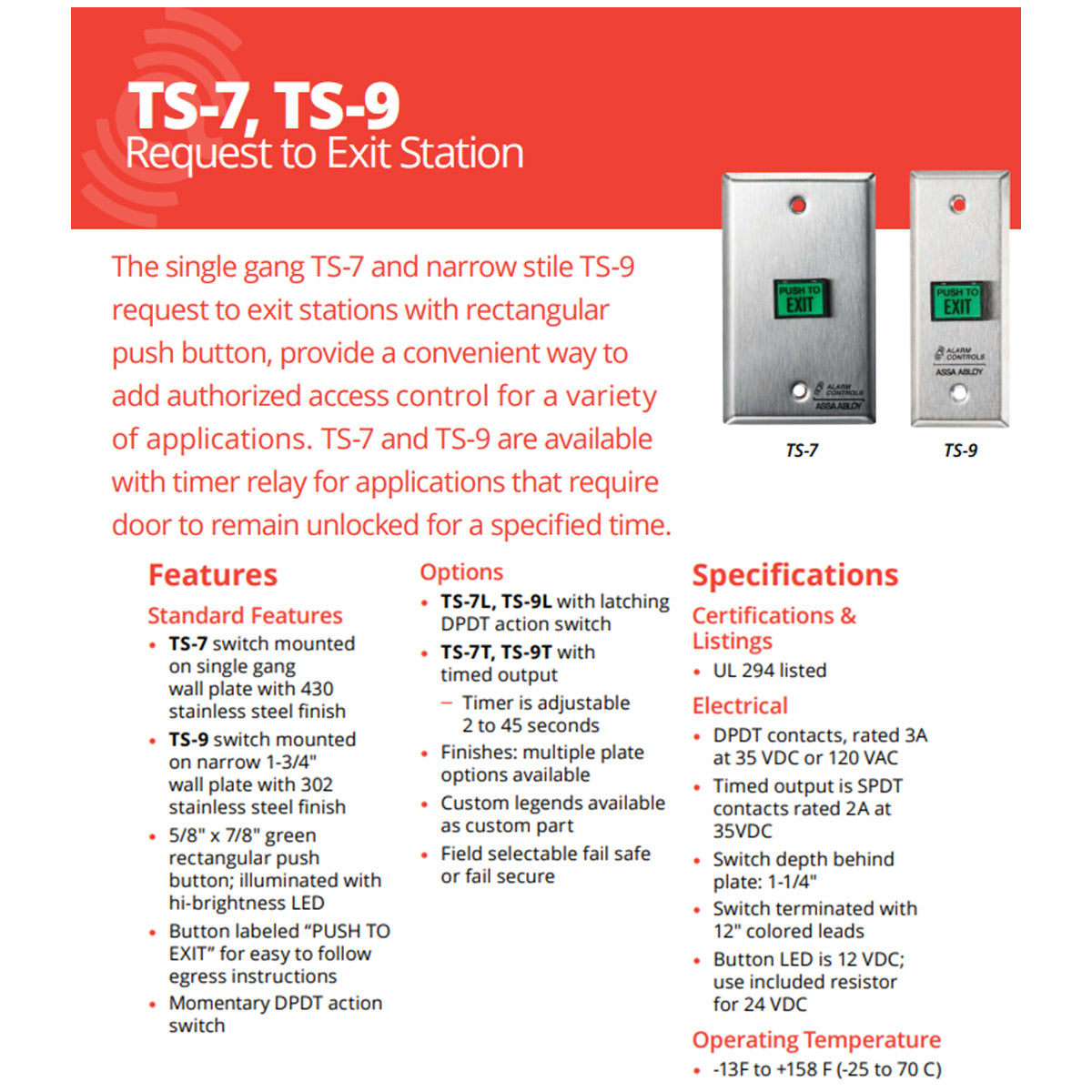

Alarm Controls TS-7 & TS-9 Request to Exit Stations
The Alarm Controls TS-7 and TS-9 Request to Exit Stations provide a reliable and durable solution for controlled egress in access control systems. Designed for commercial, industrial, and institutional applications, these exit stations feature an illuminated green rectangular push button labeled "PUSH TO EXIT" for clear user guidance and enhanced visibility in low-light environments.

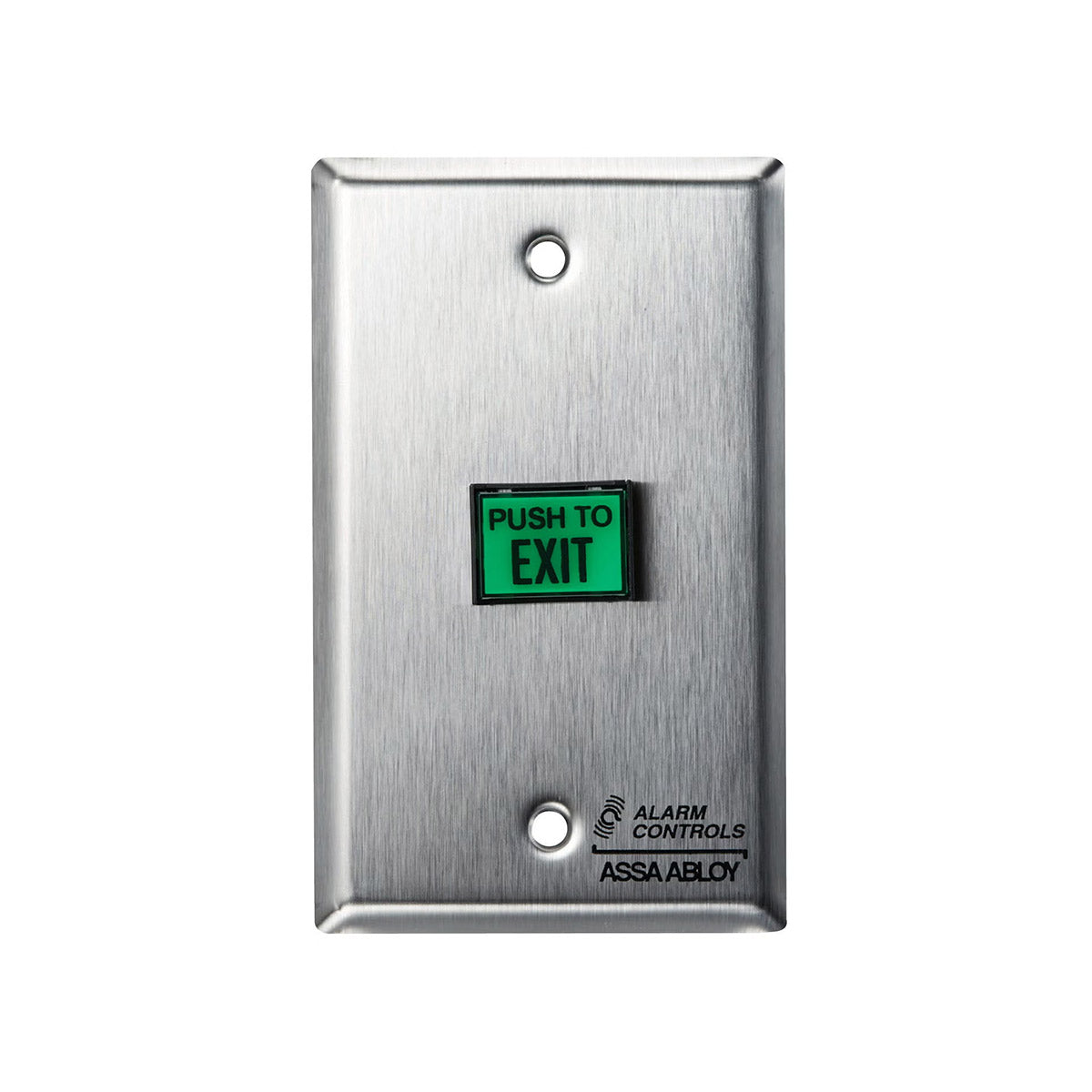

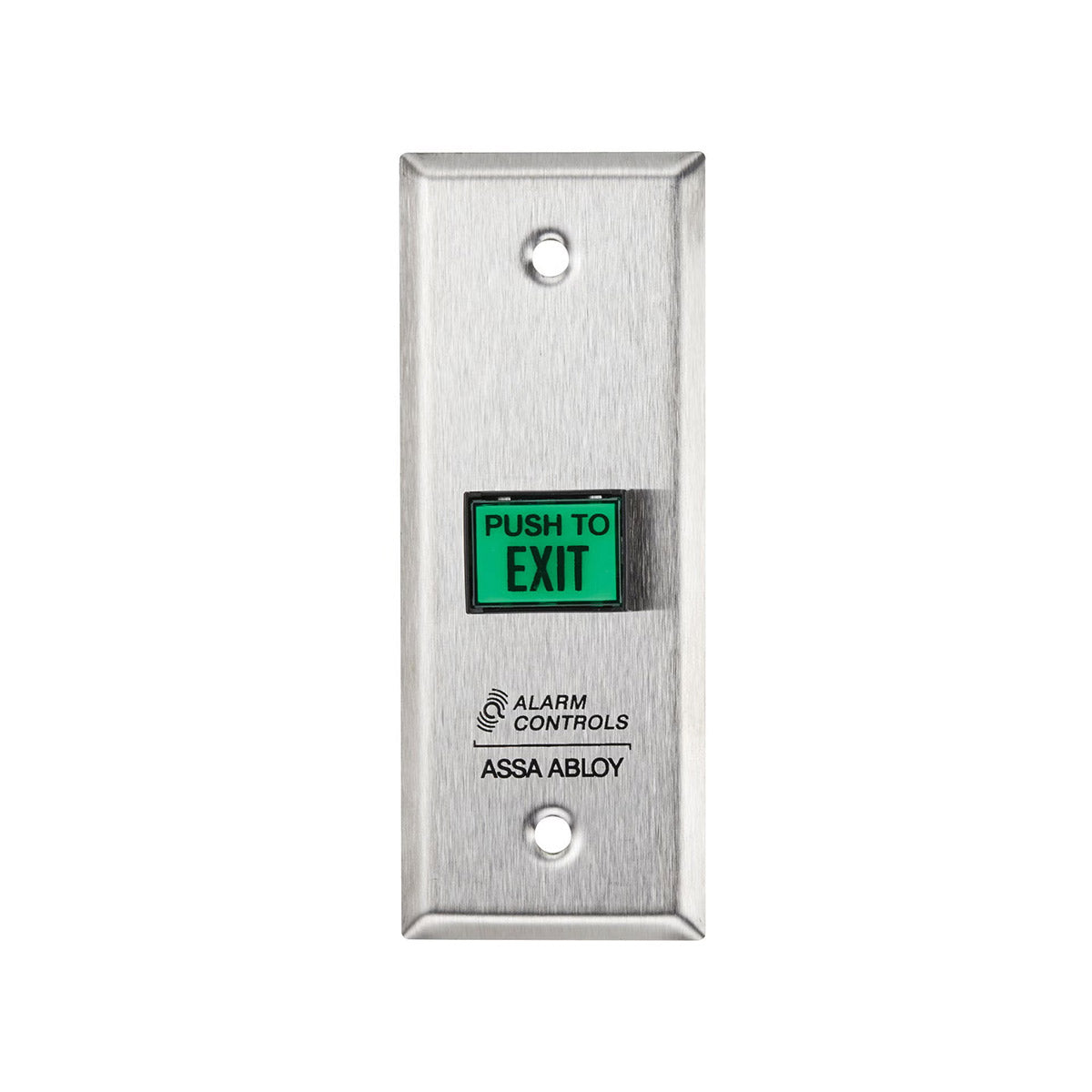

The TS-7 is mounted on a standard single-gang 430 stainless steel wall plate, while the TS-9 is designed for narrow stile door frames with a 1-3/4" 302 stainless steel wall plate. Both models include a momentary DPDT switch and are available in latching and timed-output versions for applications requiring the door to remain unlocked for a programmable period.
Key Features
- Standard TS-7 mounted on a single-gang 430 stainless steel wall plate
- TS-9 mounted on a narrow 1-3/4" 302 stainless steel wall plate
- Illuminated 5/8" x 7/8" green rectangular push button
- Clearly marked "PUSH TO EXIT" legend for easy identification
- Hi-brightness LED illumination for improved visibility
- Momentary DPDT action switch as standard
- Rugged stainless steel construction for long-lasting durability
- Ideal for access control, electric lock, magnetic lock, and door release applications
Available Options
- TS-7L / TS-9L – Latching DPDT action switch
- TS-7T / TS-9T – Adjustable timed output (2–45 seconds)
- Field selectable Fail Safe or Fail Secure operation (timed models)
- Multiple stainless steel plate finish options
- Custom engraved legends available for specialized applications
Certifications
- UL 294 Listed
Electrical Specifications
- Standard DPDT contacts rated 3A @ 35 VDC or 120 VAC
- Timed models feature SPDT contacts rated 2A @ 35 VDC
- Illuminated button operates on 12 VDC
- Included resistor allows operation on 24 VDC
- 12" color-coded wire leads for easy installation
- Switch depth behind plate: 1-1/4"
Operating Temperature
- -13°F to +158°F (-25°C to 70°C)
Ideal Applications
The Alarm Controls TS-7 and TS-9 are ideal for:
- Commercial access control systems
- Office buildings
- Healthcare facilities
- Schools and universities
- Retail stores
- Government buildings
- Aluminum storefront and narrow stile doors
- Electric strikes and electromagnetic lock systems
Why Choose the Alarm Controls TS-7 & TS-9?
With durable stainless steel construction, an illuminated exit button, UL 294 certification, and optional latching or programmable timed operation, the TS-7 and TS-9 provide dependable request-to-exit functionality for virtually any access control installation. Their flexible mounting options make them an excellent choice for both standard and narrow stile door applications.
